- Release Date:
- 7th February 2023
- KBA Summary:
- This Knowledge Base Article describes the functionality of the Final Stemming Length dashboard in BlastIQ™ Insights.
Summary
BlastIQ™ Insights enables users to visualise the final stemming length compliance of holes before and after holes within a blast plan have been stemmed via the Final Stemming Length Dashboard.

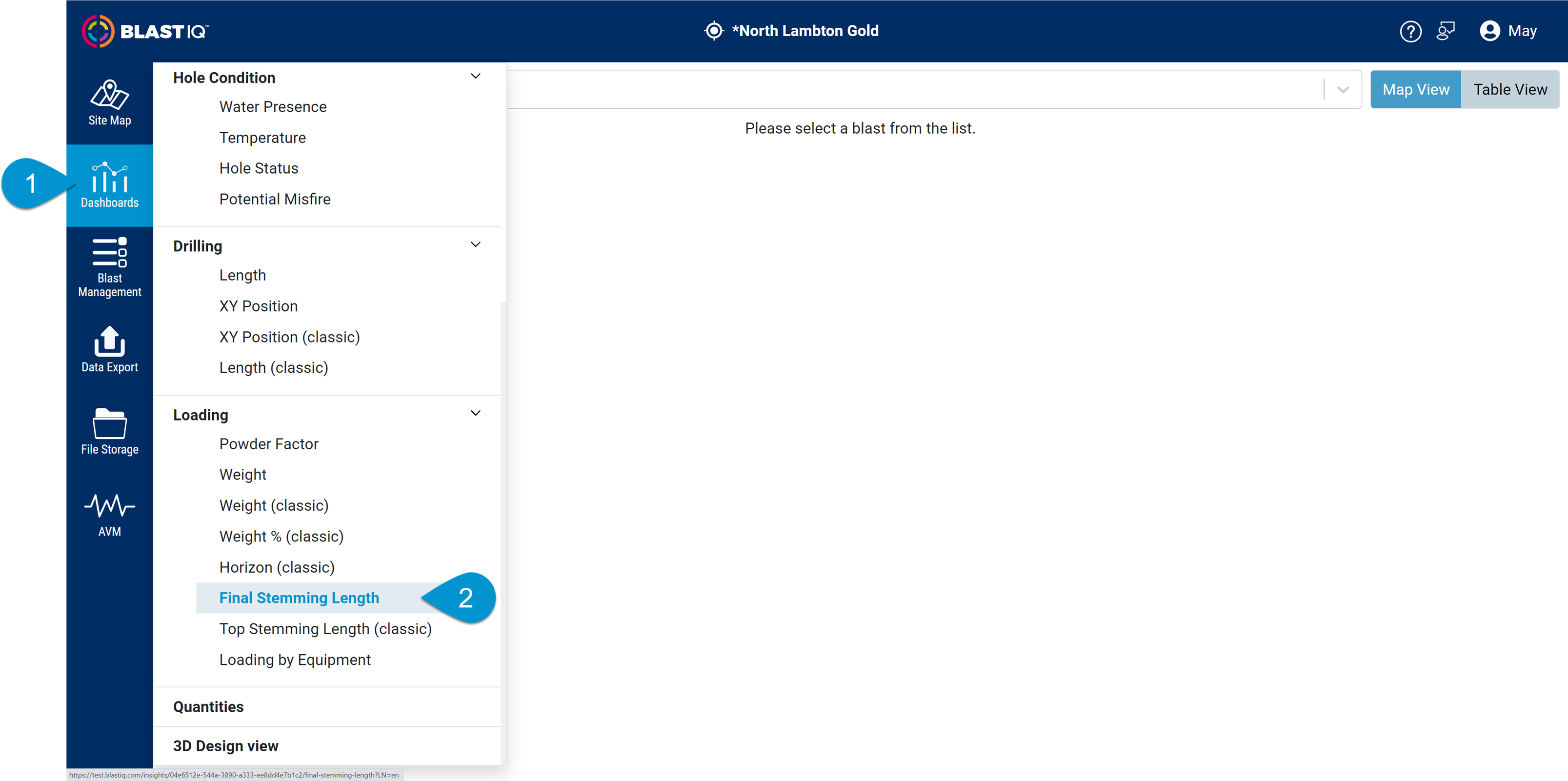

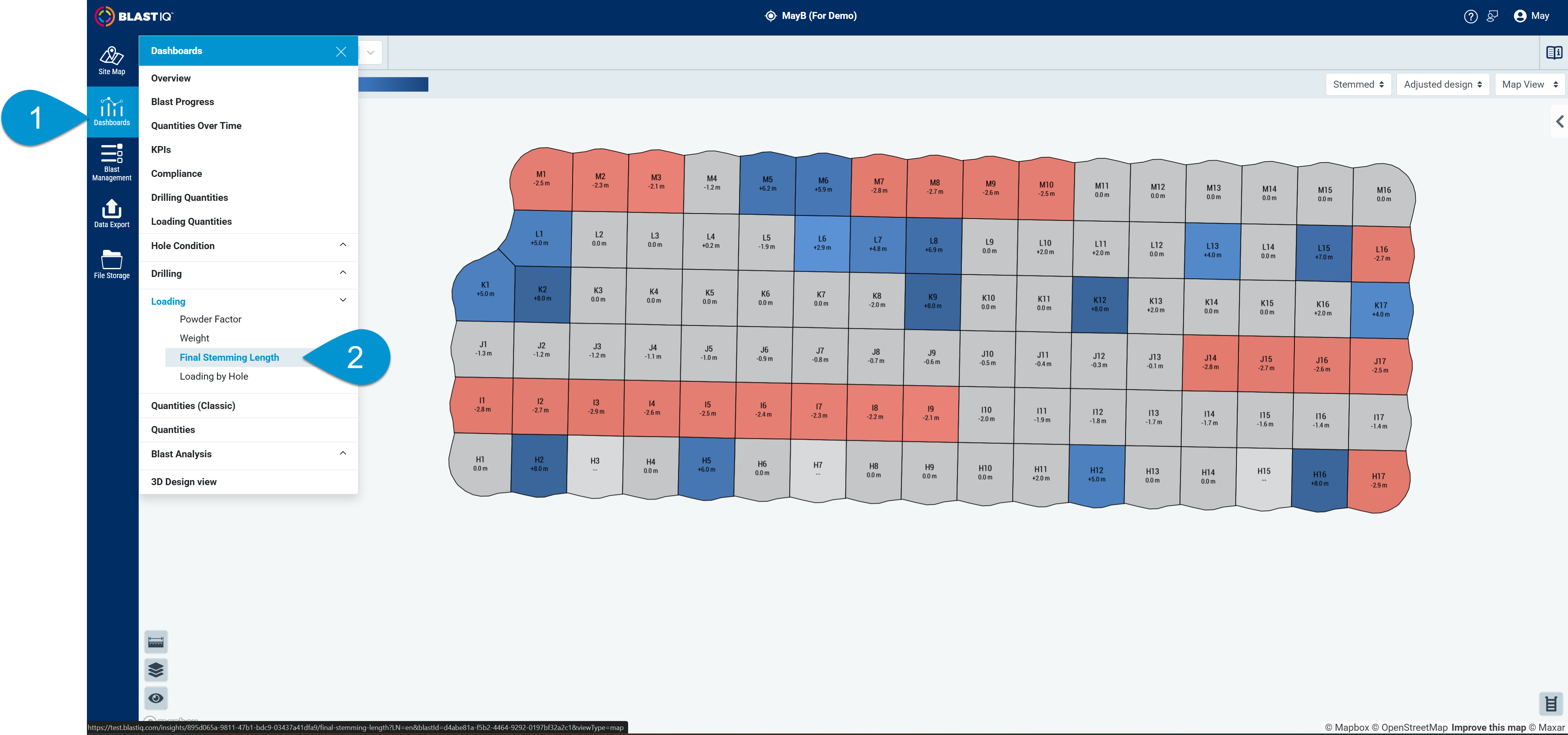

To navigate to the Final Stemming Length dashboard:
- From the BlastIQ™ Insights toolbar, select Dashboards.
- From the Dashboards menu, select Loading > Final Stemming Length.

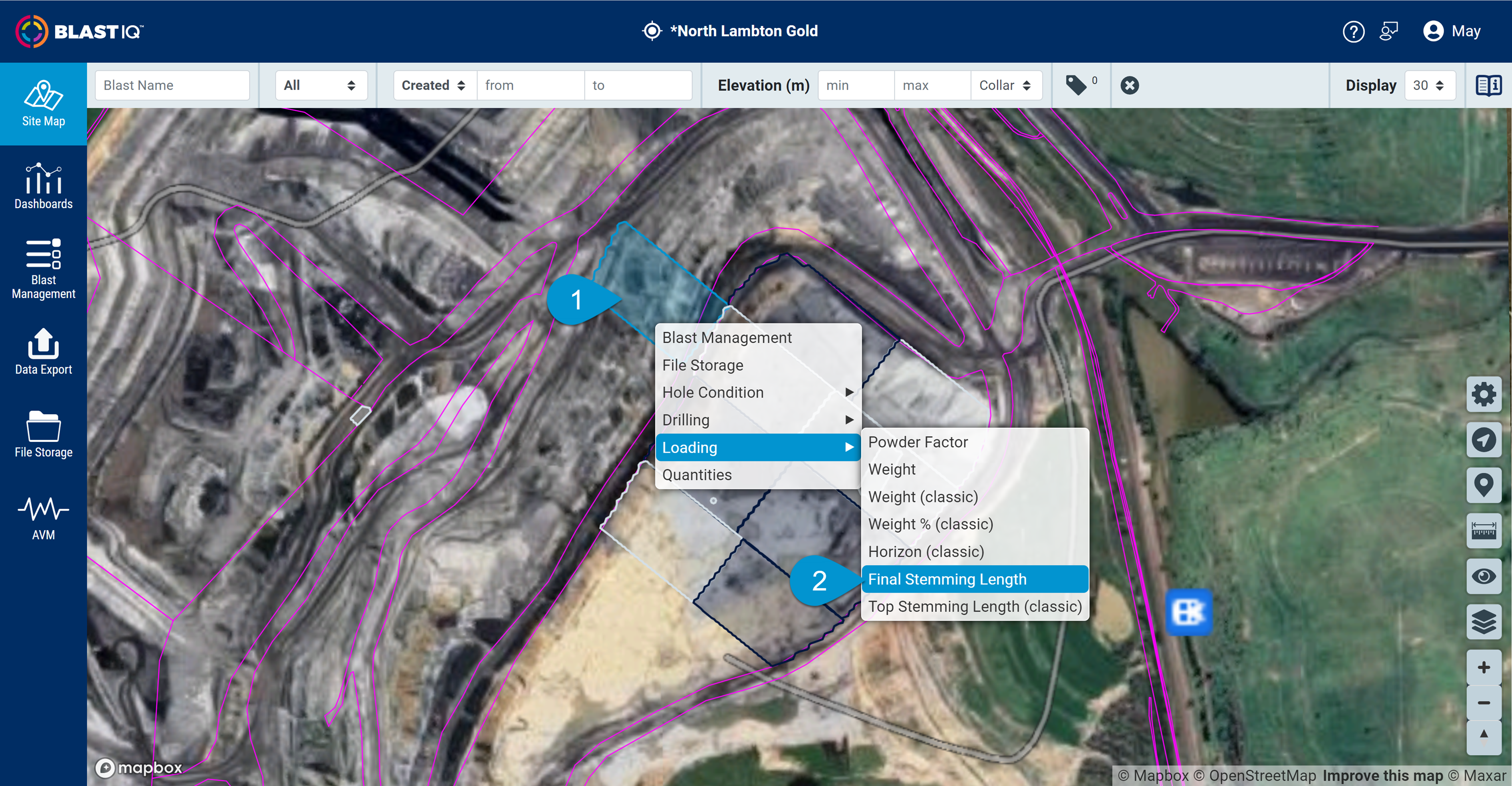

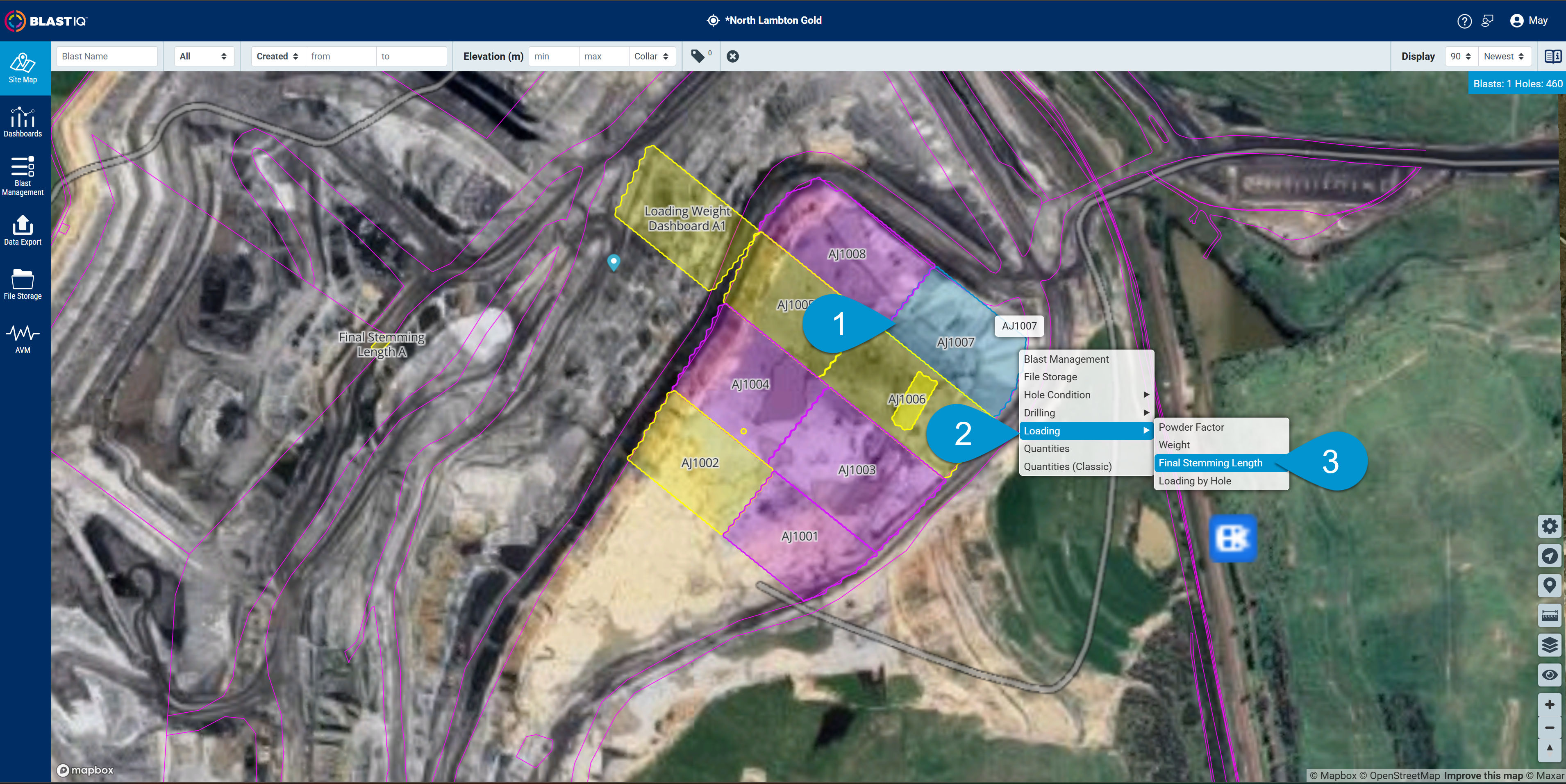

Via Site Map
- Select a single blast by clicking a blast on the map.
- Right-click and navigate to the "Loading."
- Select "Final Stemming Length."
To pan around the Final Stemming Length Dashboard:
- Activate the map by placing the mouse cursor anywhere on the map and clicking the screen, then use the Up, Down, Left, or Right arrows on the keyboard; or
- Place the mouse cursor anywhere on the Final Stemming Length map, press and hold the left mouse button, and move the cursor as required.
To rotate and tilt the Final Stemming Length Dashboard:
- Place the mouse cursor anywhere on the map, press and hold the right mouse button, and move the cursor as required or
- Place the mouse cursor anywhere on the Final Stemming Length map, press and hold Ctrl on the keyboard, press and hold the left mouse button, and move the cursor as required.

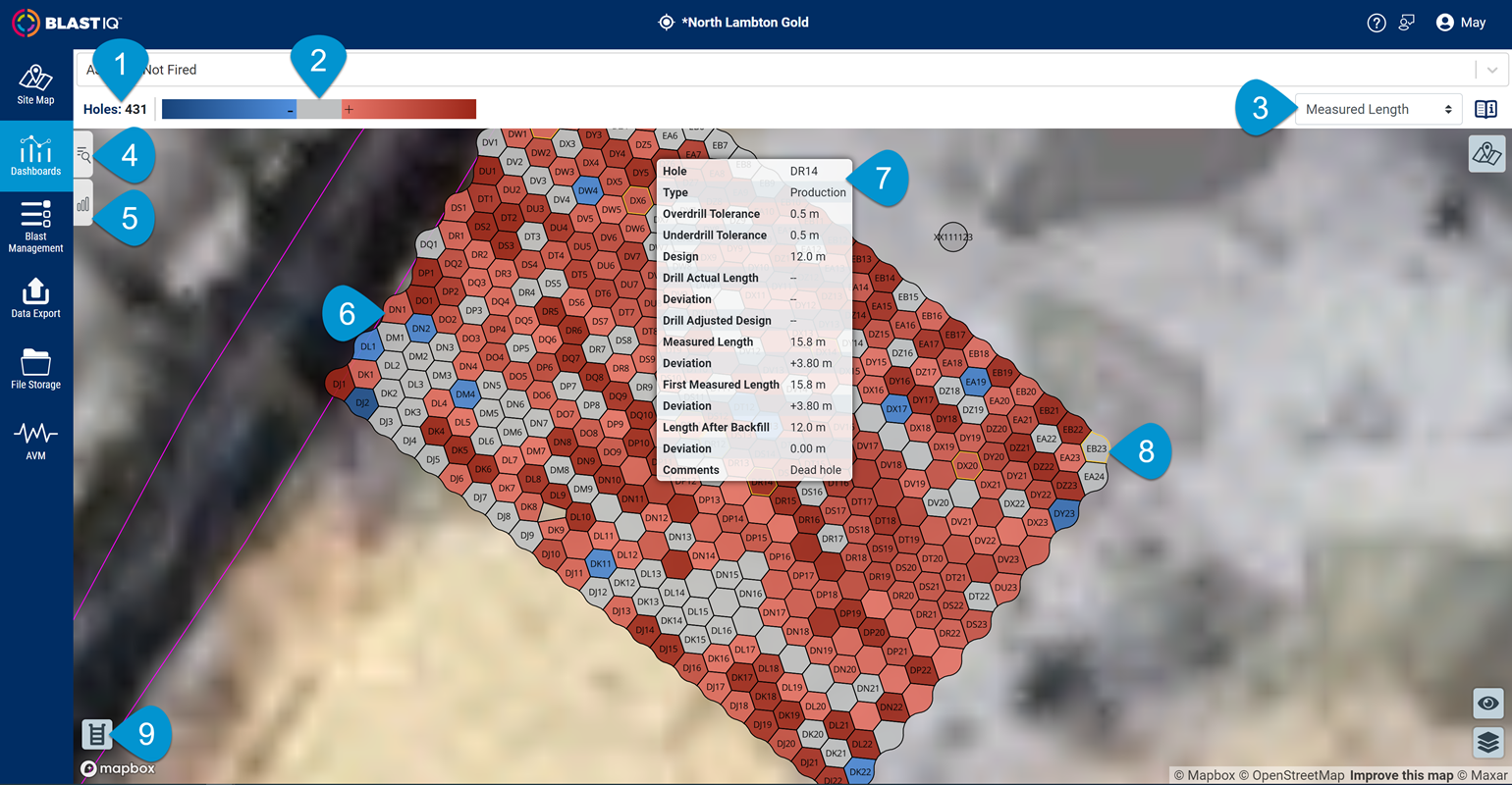

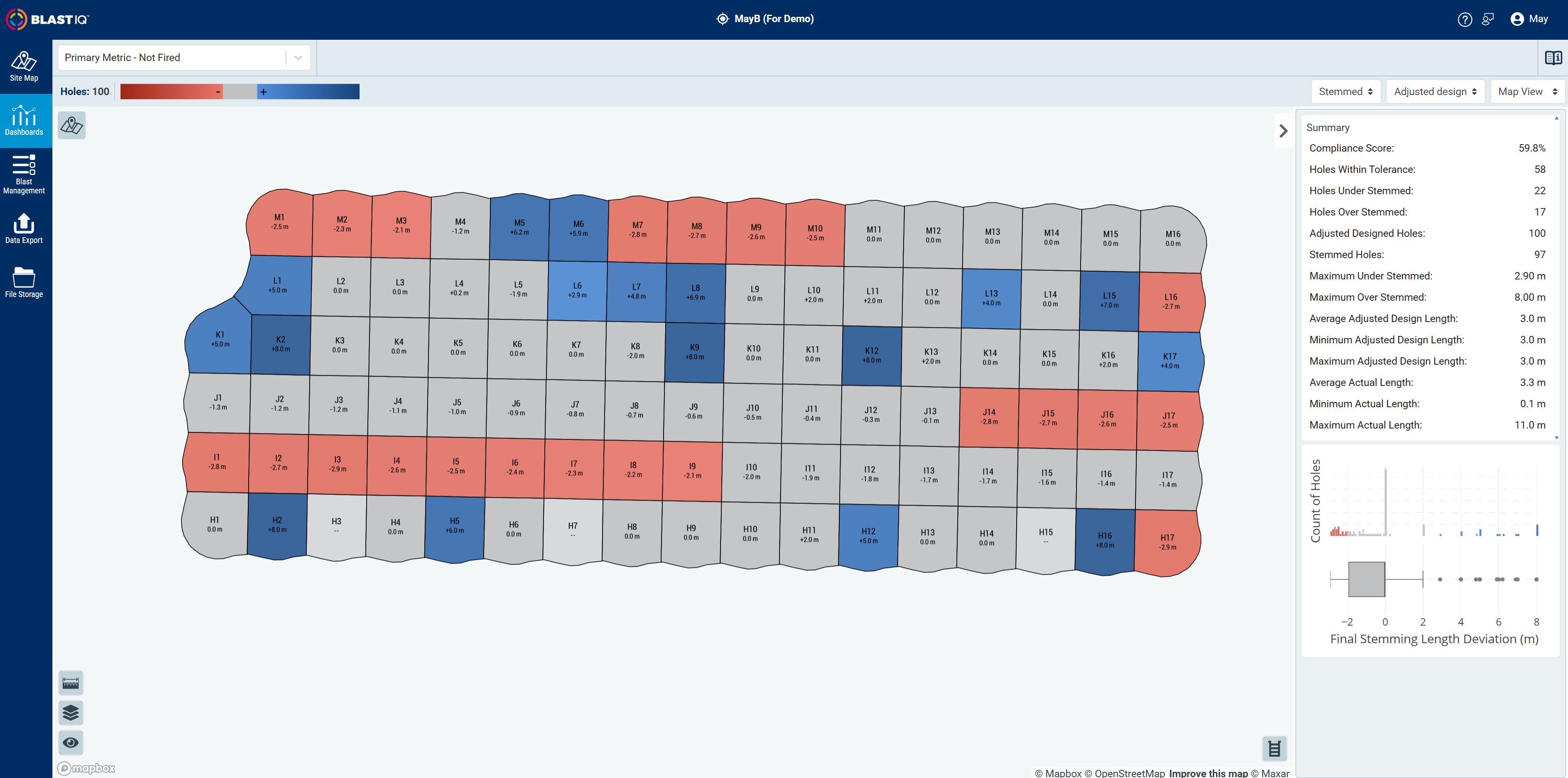

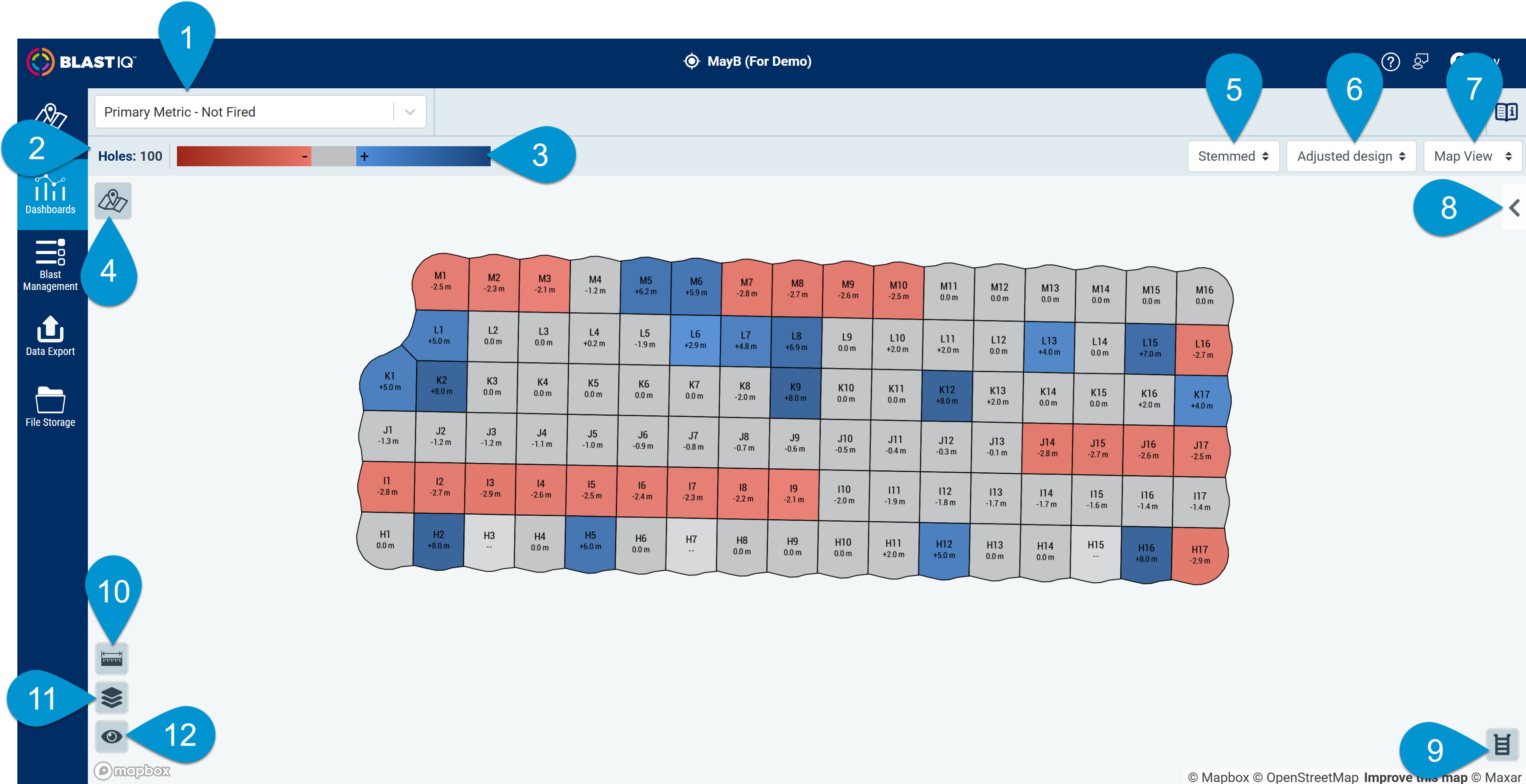

The following information is shown on the Final Stemming Length Dashboard:
- Blast Name Selector.
- Total Number of Holes.
- Colour Legend.
- Back to Site Map.
- Actual Selector.
- Stemmed
- Available
- Design Selector.
- Adjusted Design
- Design
- View Selector.
- Map View
- Table View
- Summary and Plots.
- Hole Details Panel.
- Measurements.
- Layers.
- Display.
Detailed information on each section:
-

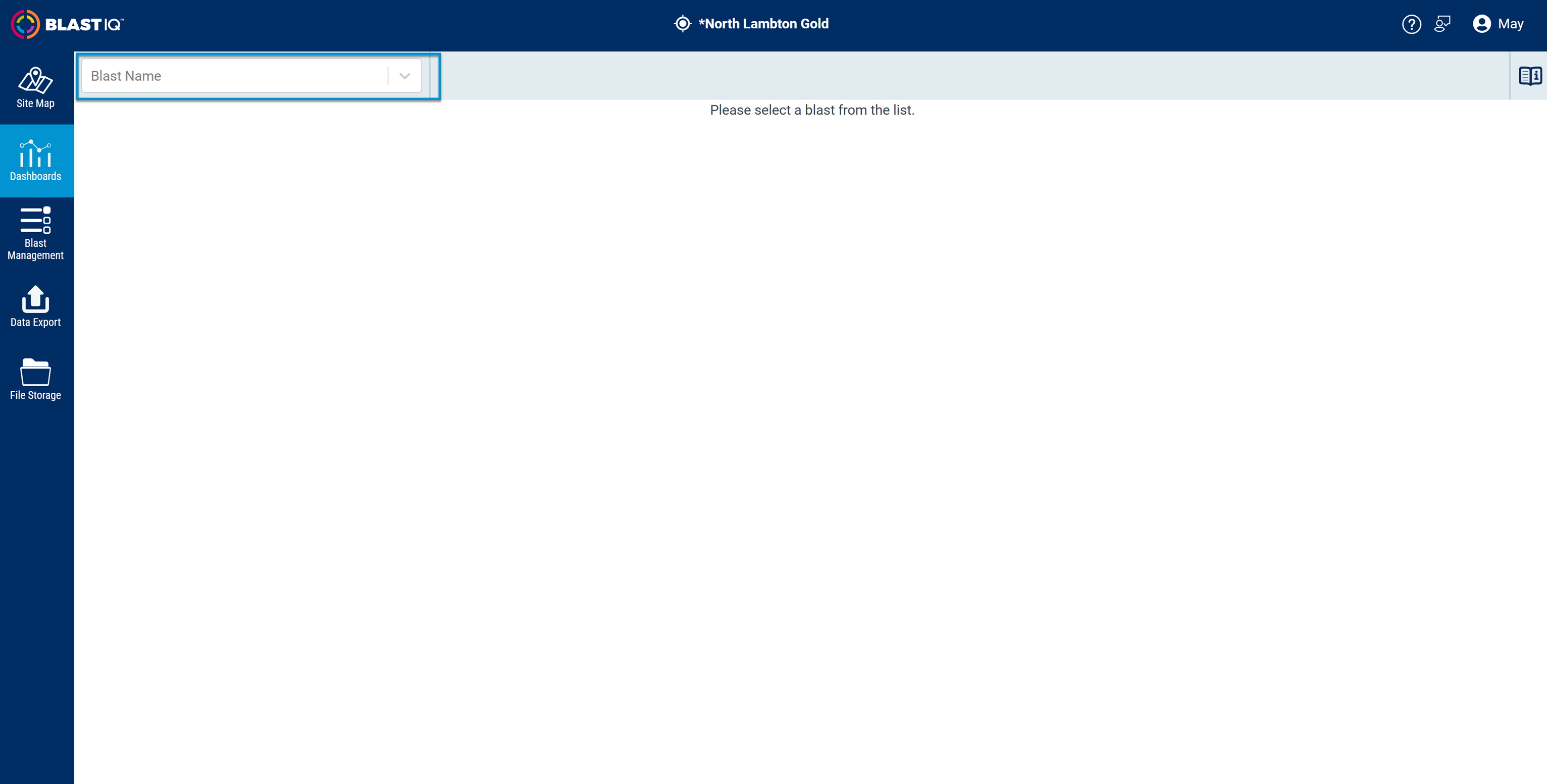

Blast Name Selector

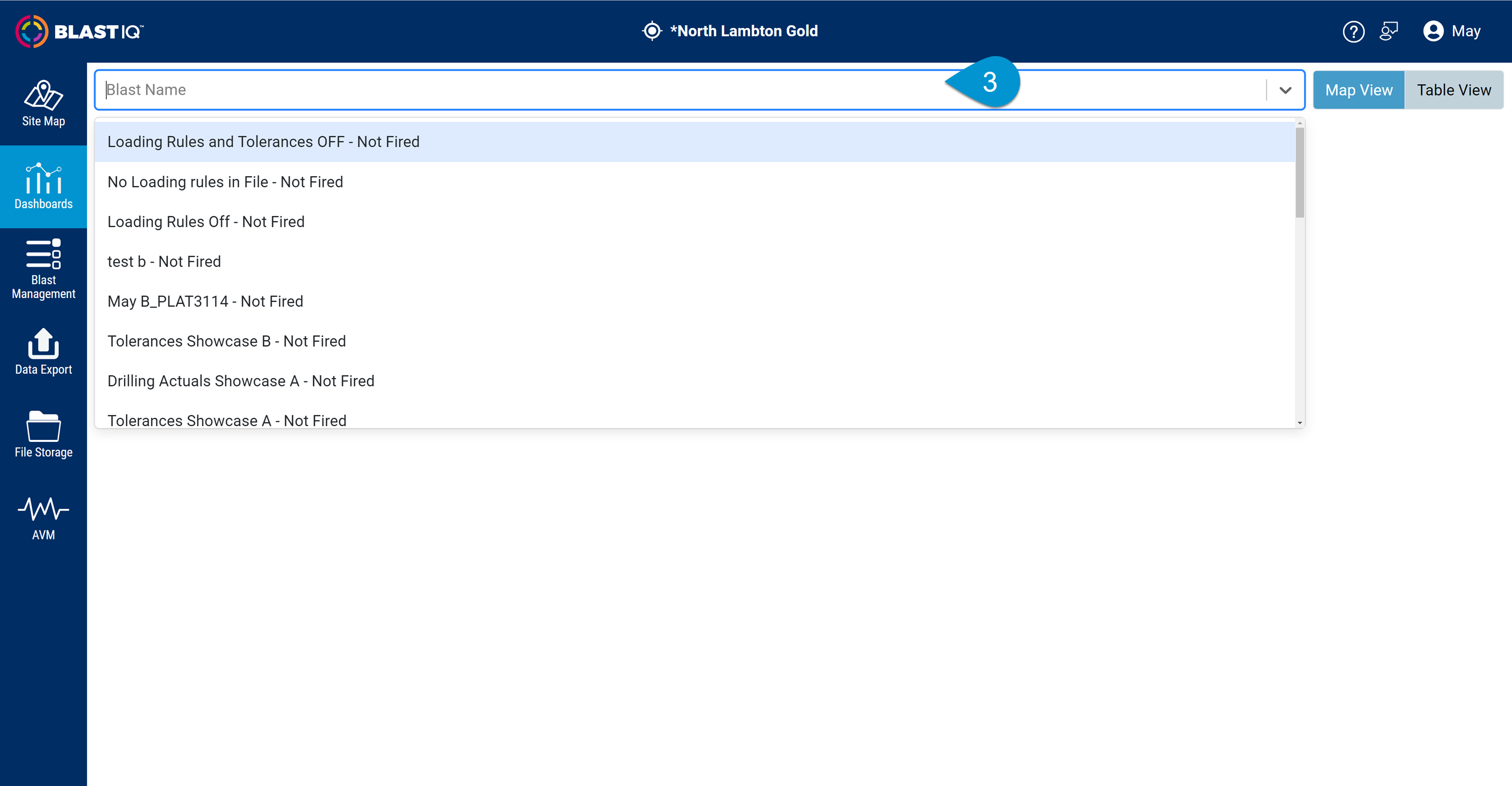

- Select a blast from the drop-down list.
- The user can type in to search for the desired blast.
-
Total Number of Holes
- Displays the total number of holes in a blast.
-

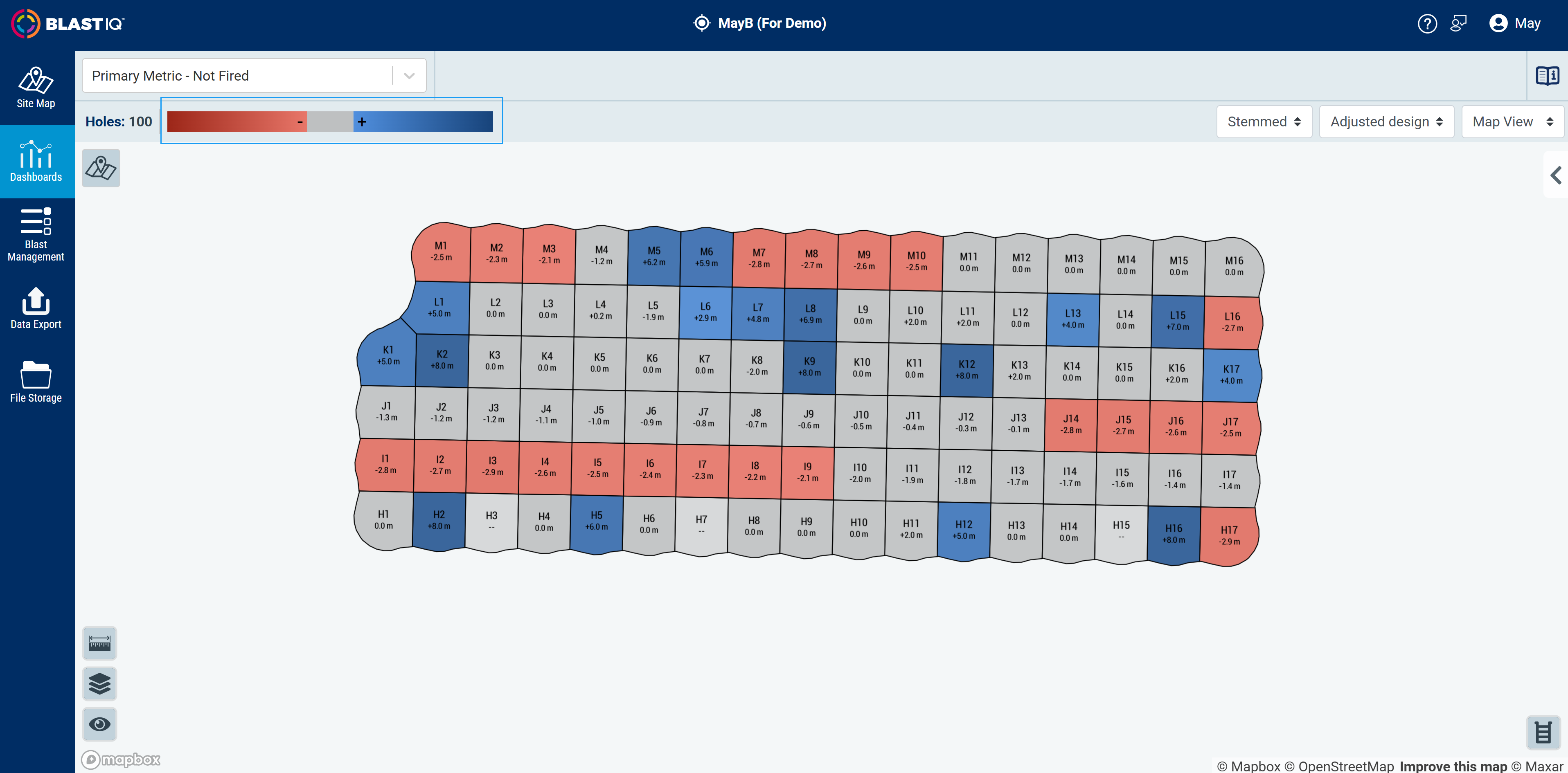

Colour Legend
- Displays colour gradient.
- In the case of over and under-stemmed holes, the greater the length difference, the darker the shade colour will be.
-
Back to Site Map
- Click the "Back to Site Map" button.
- User will be redirected to the Site Map page.
-

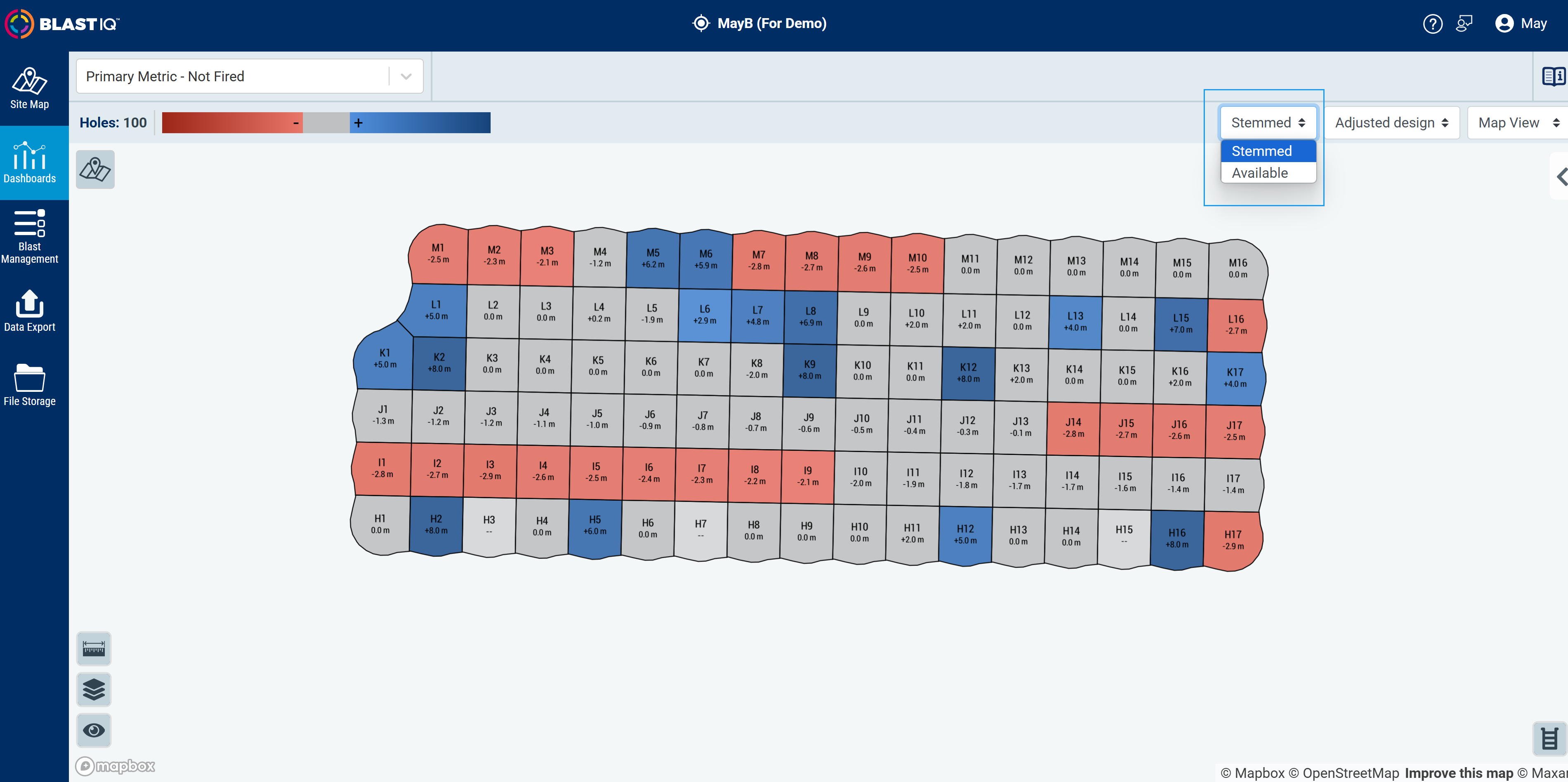

Actual Selector
- Navigate to the actual selector.
- Select an actual "Stemmed" or "Available":
-
Stemmed
- Considers the final stemming length only of holes that have been stemmed.
-
Available
- Considers the length remaining to be stemmed of holes that have actual loading and have not been stemmed.
-
Stemmed
- The dashboard will be updated based on the selected option.
-

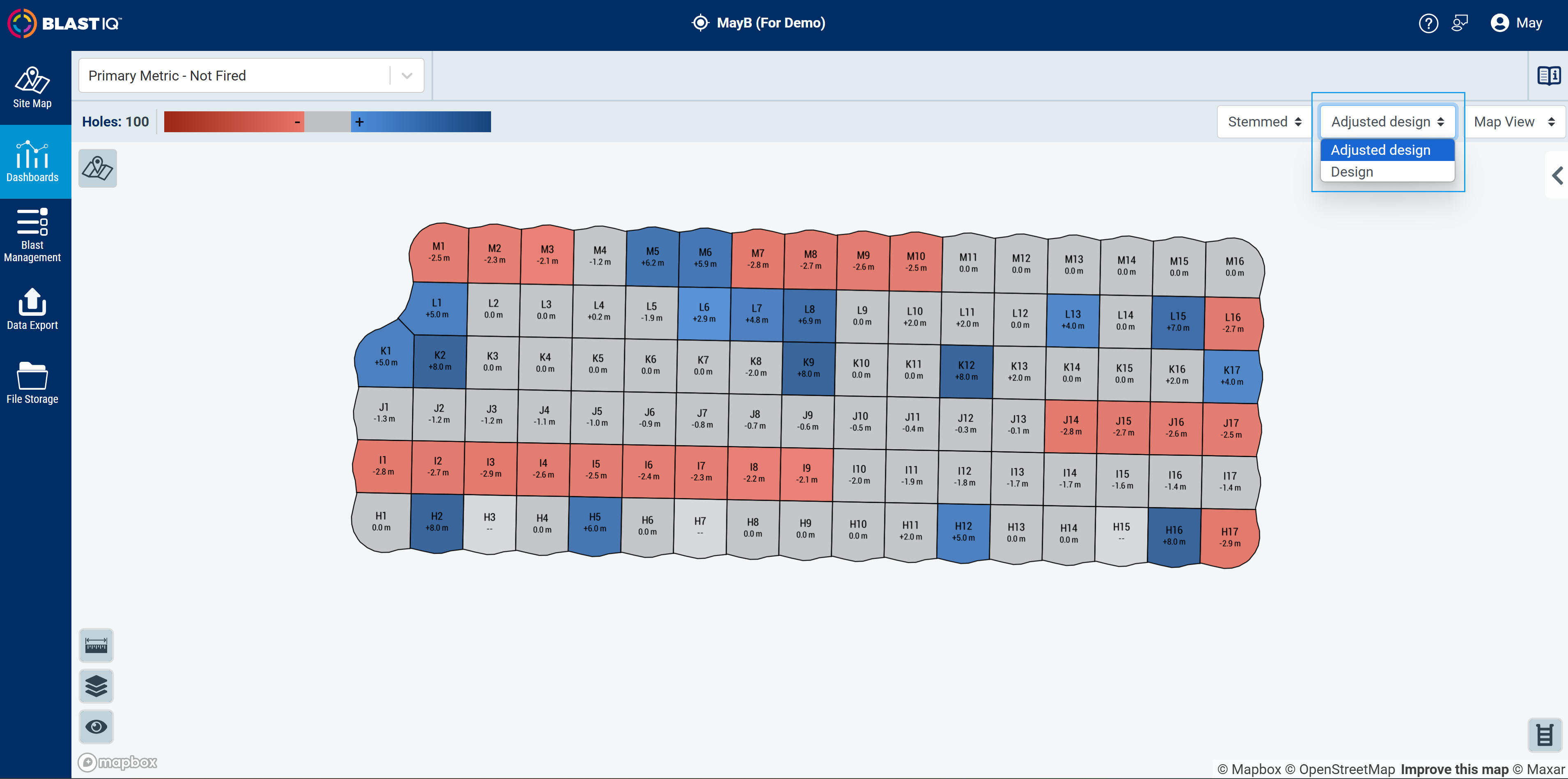

Design Selector
- Navigate to the design selector.
- Select a design "Adjusted Design or Design":
-
Adjusted Design
- The latest loading instruction or design is adjusted based on actual hole conditions.
-
Design
- Original design, before adjusted by actual hole conditions.
-
Adjusted Design
- The dashboard will be updated based on the selected option.
-

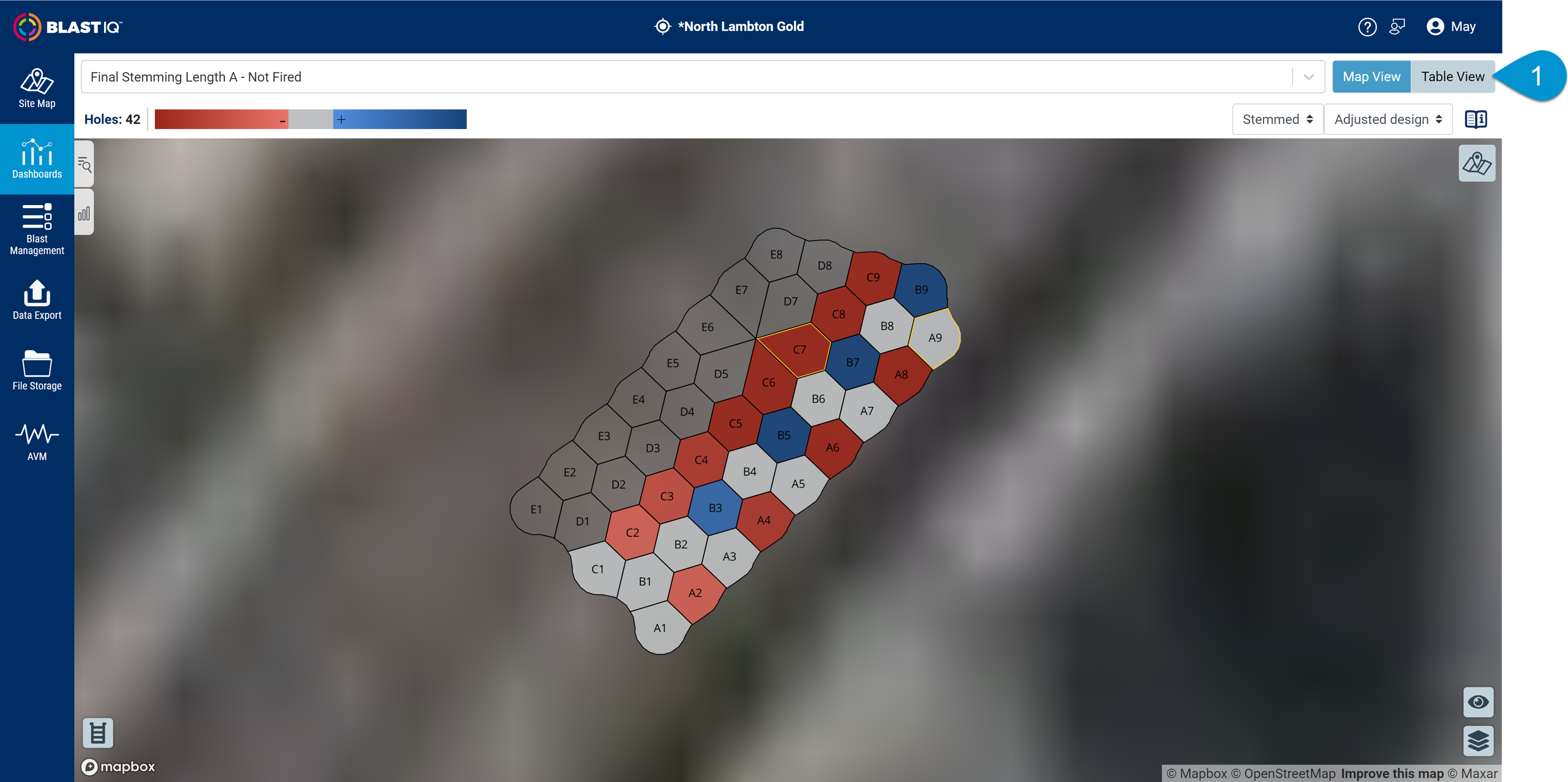

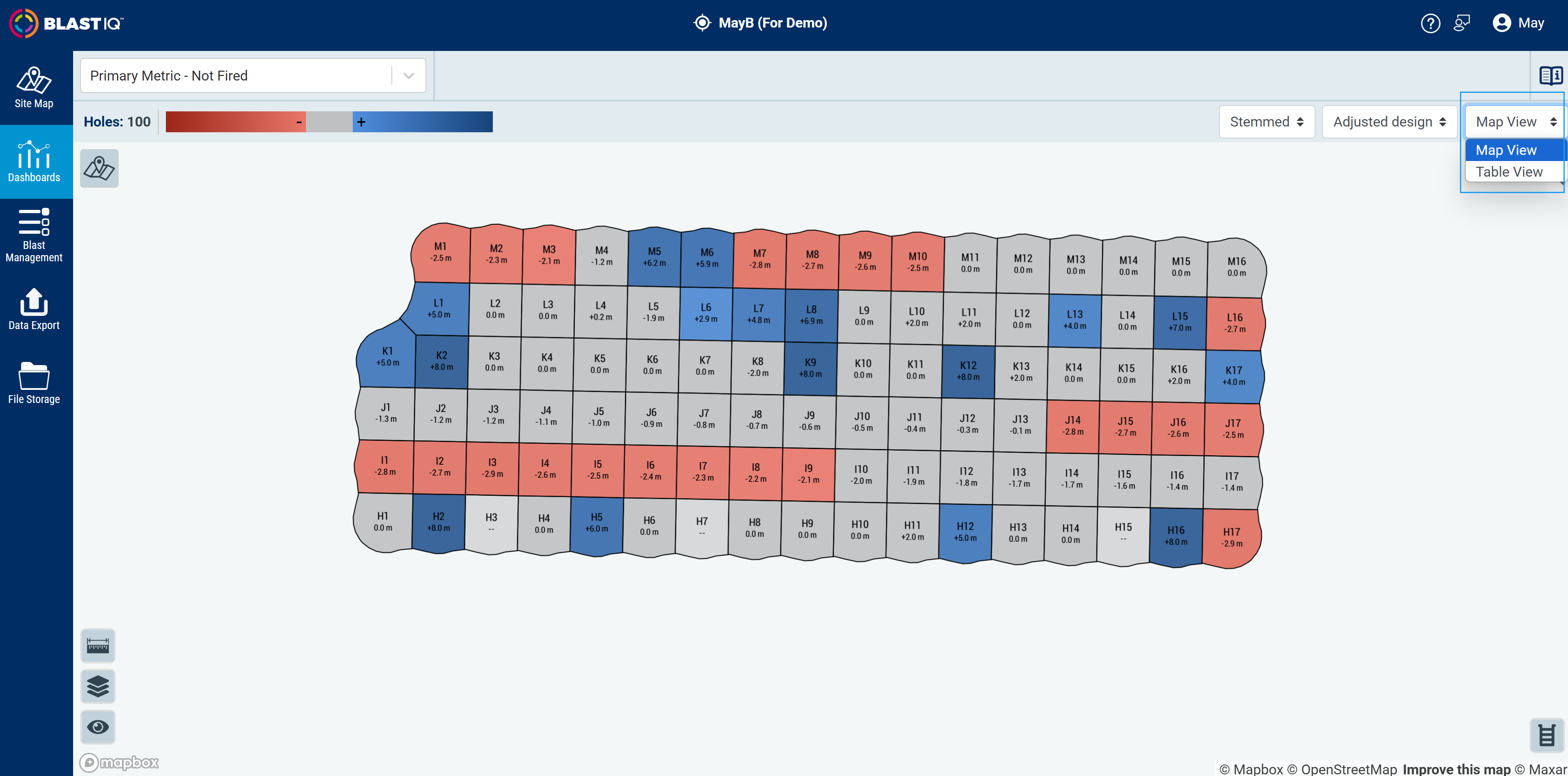

View
-
Map View
- Navigate to the view selector.
- Select "Map View".
- Blast Plan view displays an area per hole coloured according to the hole compliance. In the case of over and under-stemmed holes, the greater the length difference, the darker shade of the colour will be (see the colour legend). To learn more, click here.
- Mouse over the holes to get more information
-

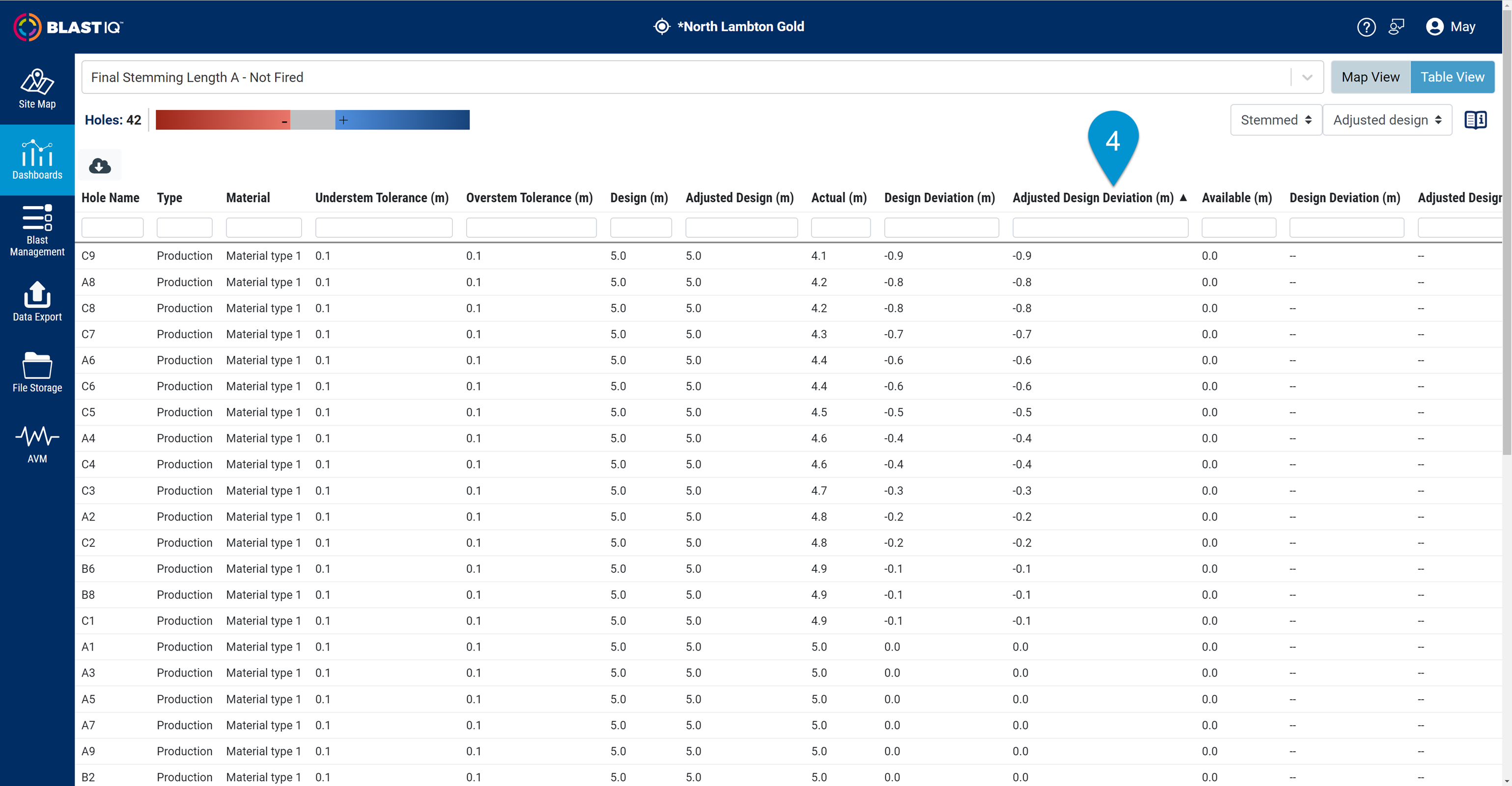

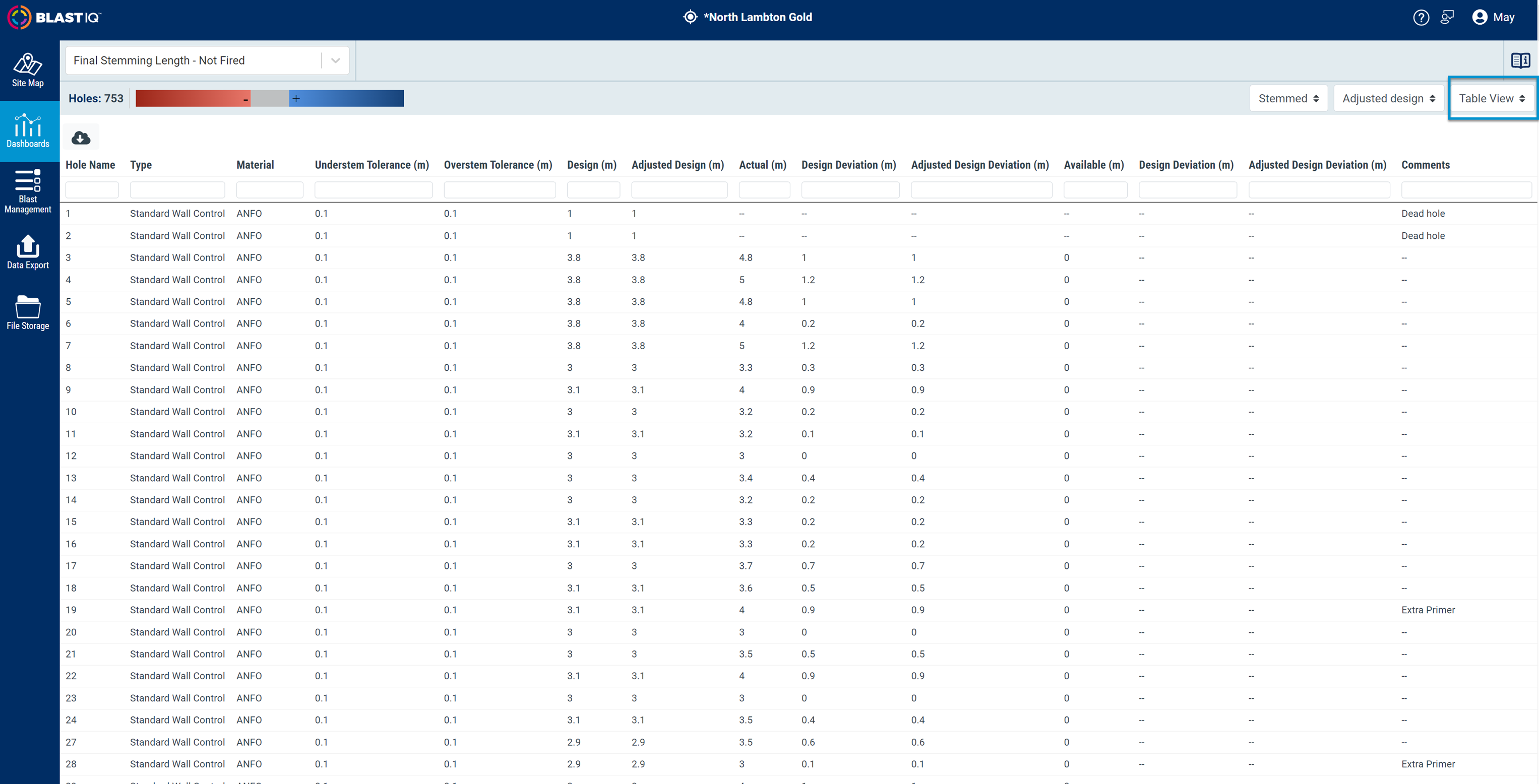

Table View
- Navigate to the view selector.

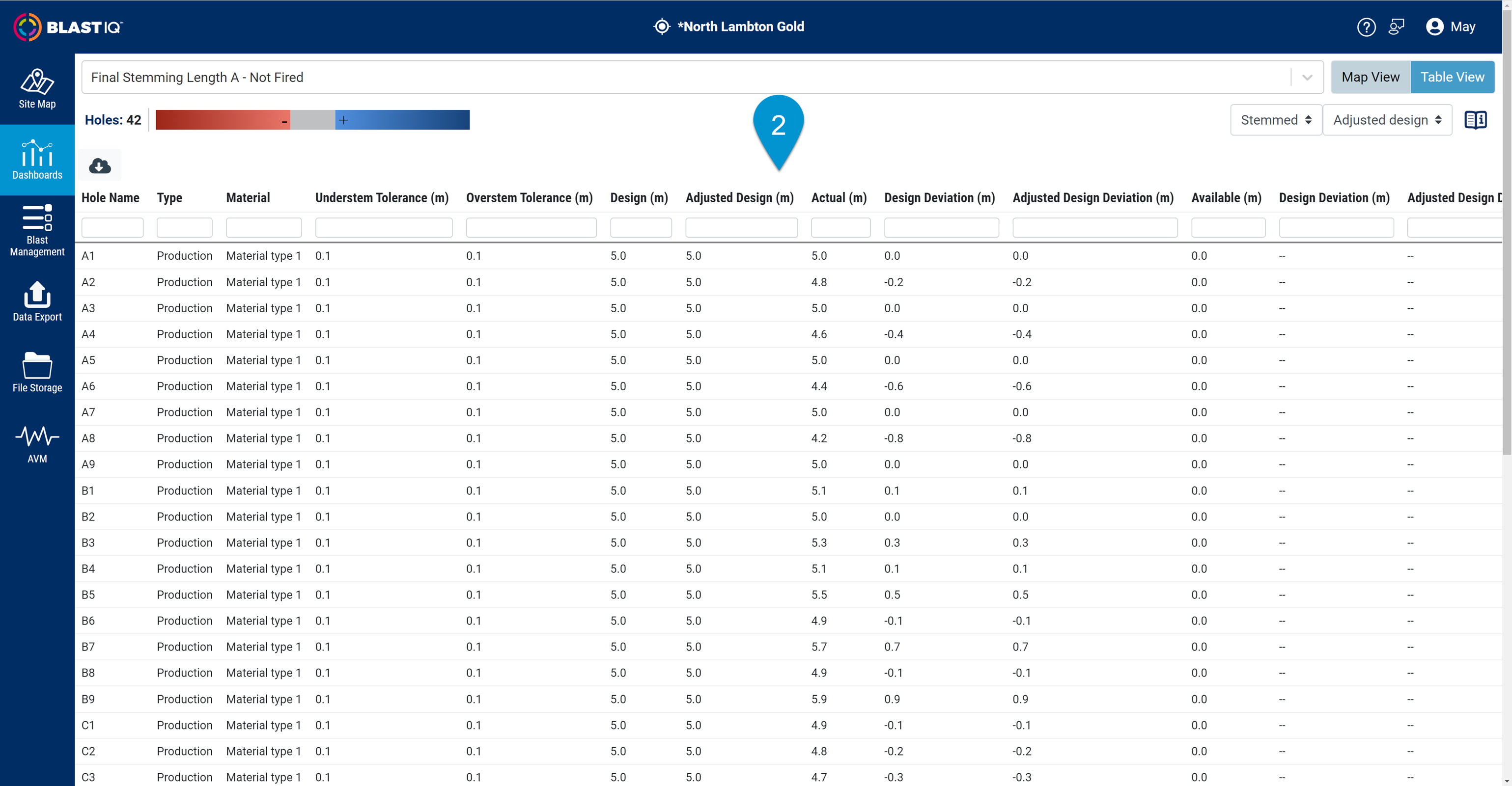

- Select "Table View".
- Table view will be visible and show relevant data.

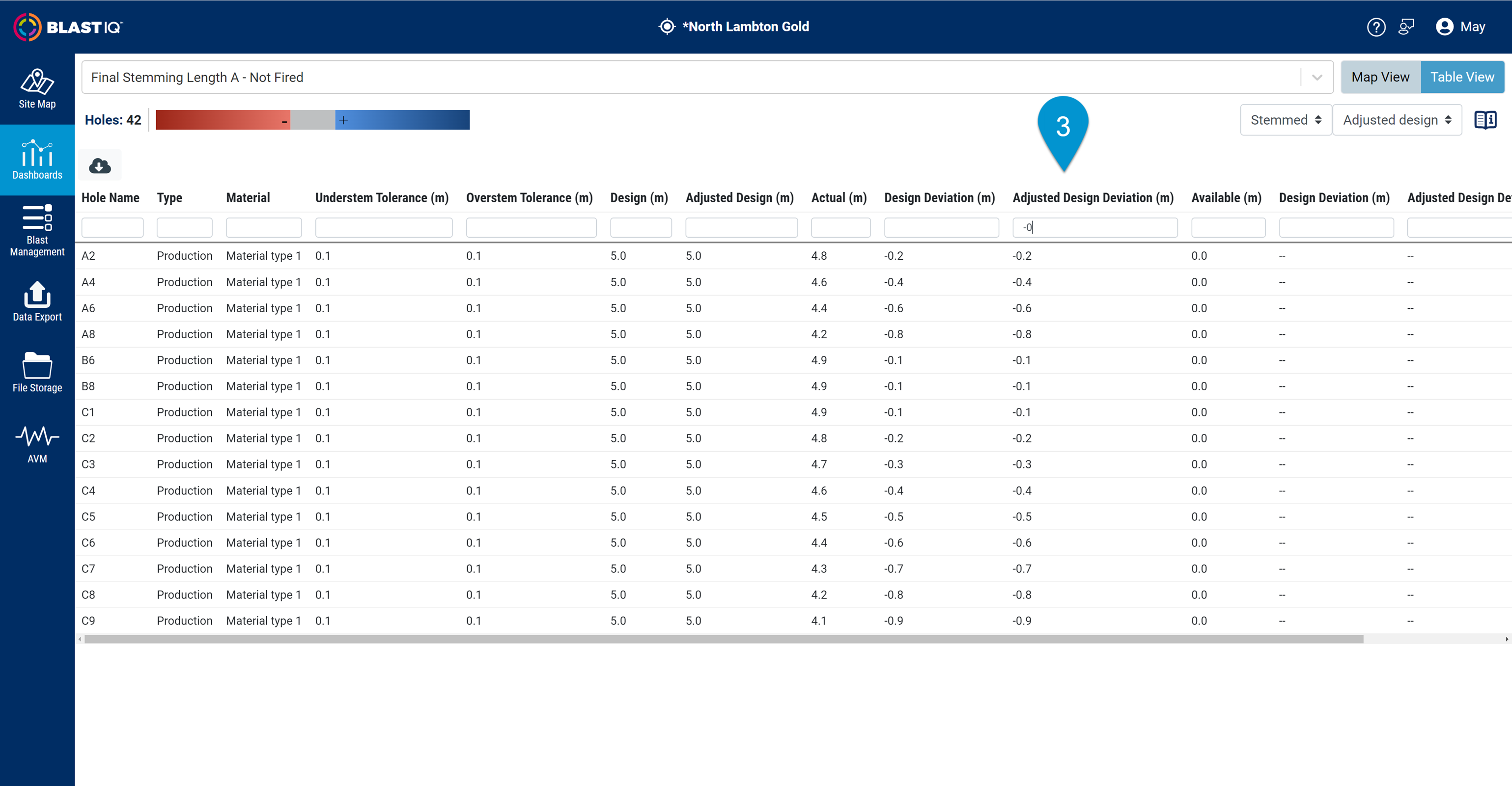

- Use the search boxes to filter the data.
- Click on the column headers to sort.

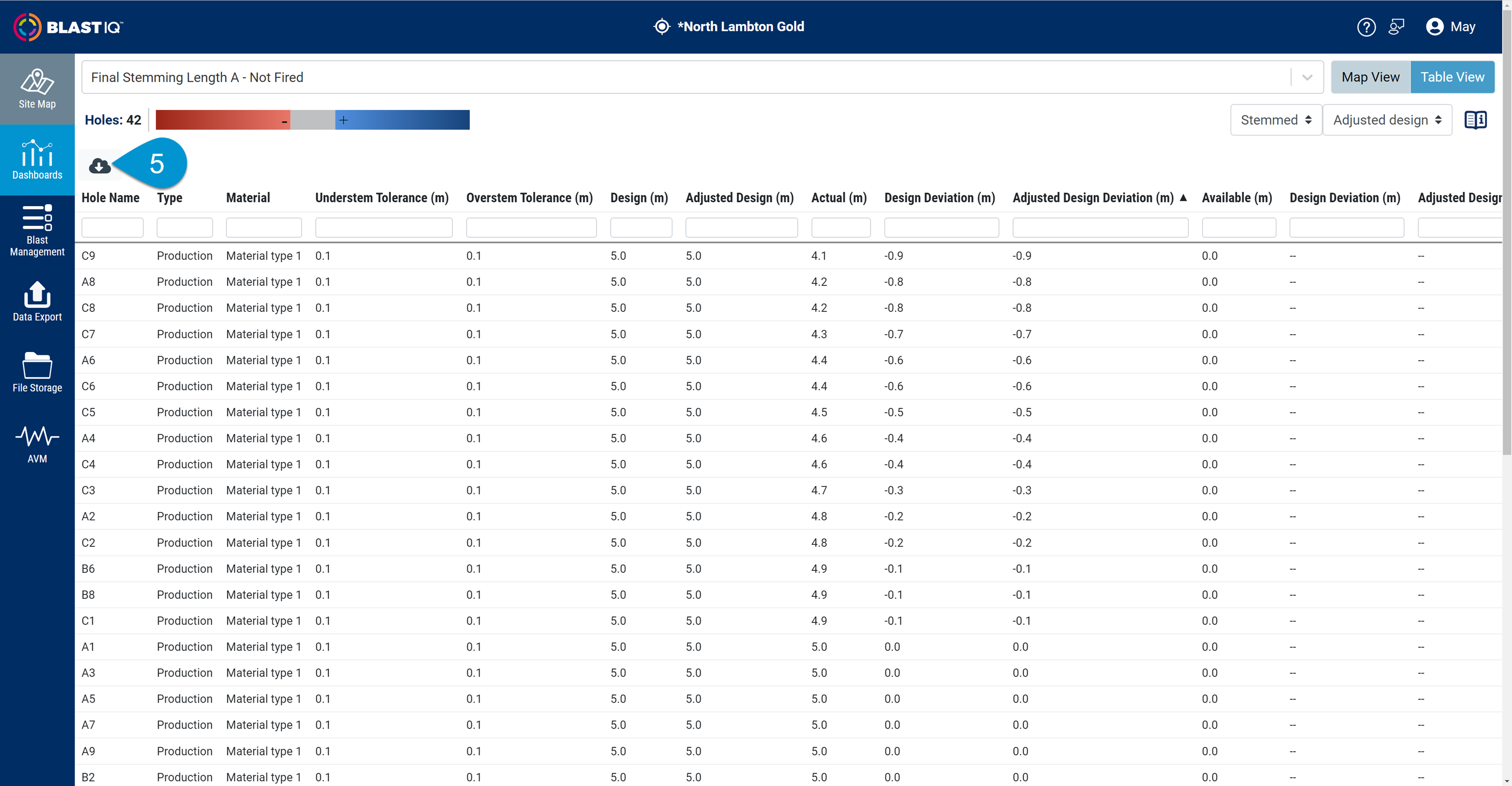

- You can download by clicking the download button to initiate a CSV file download.
-
Map View
-

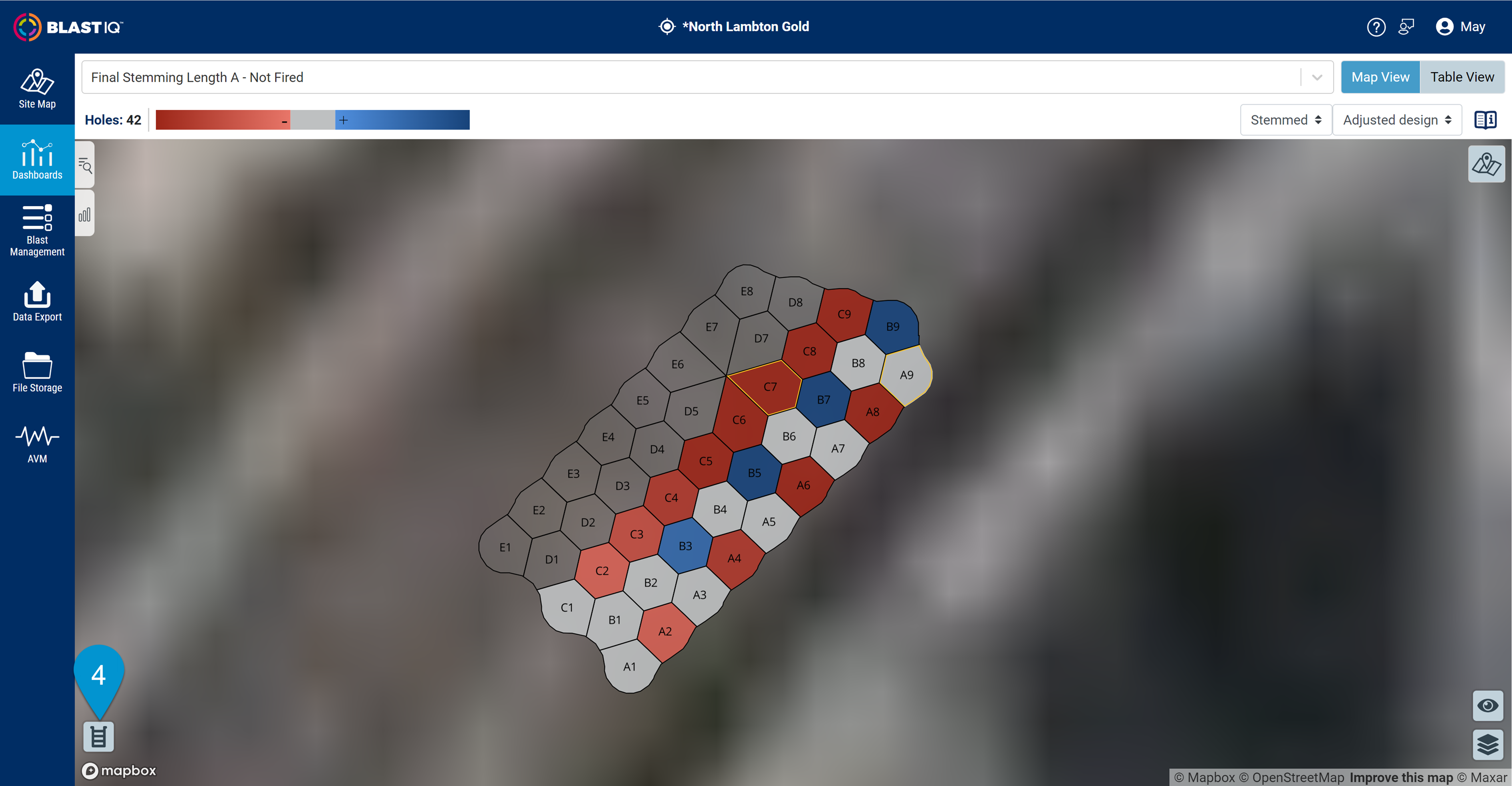

Summary and Plots
-

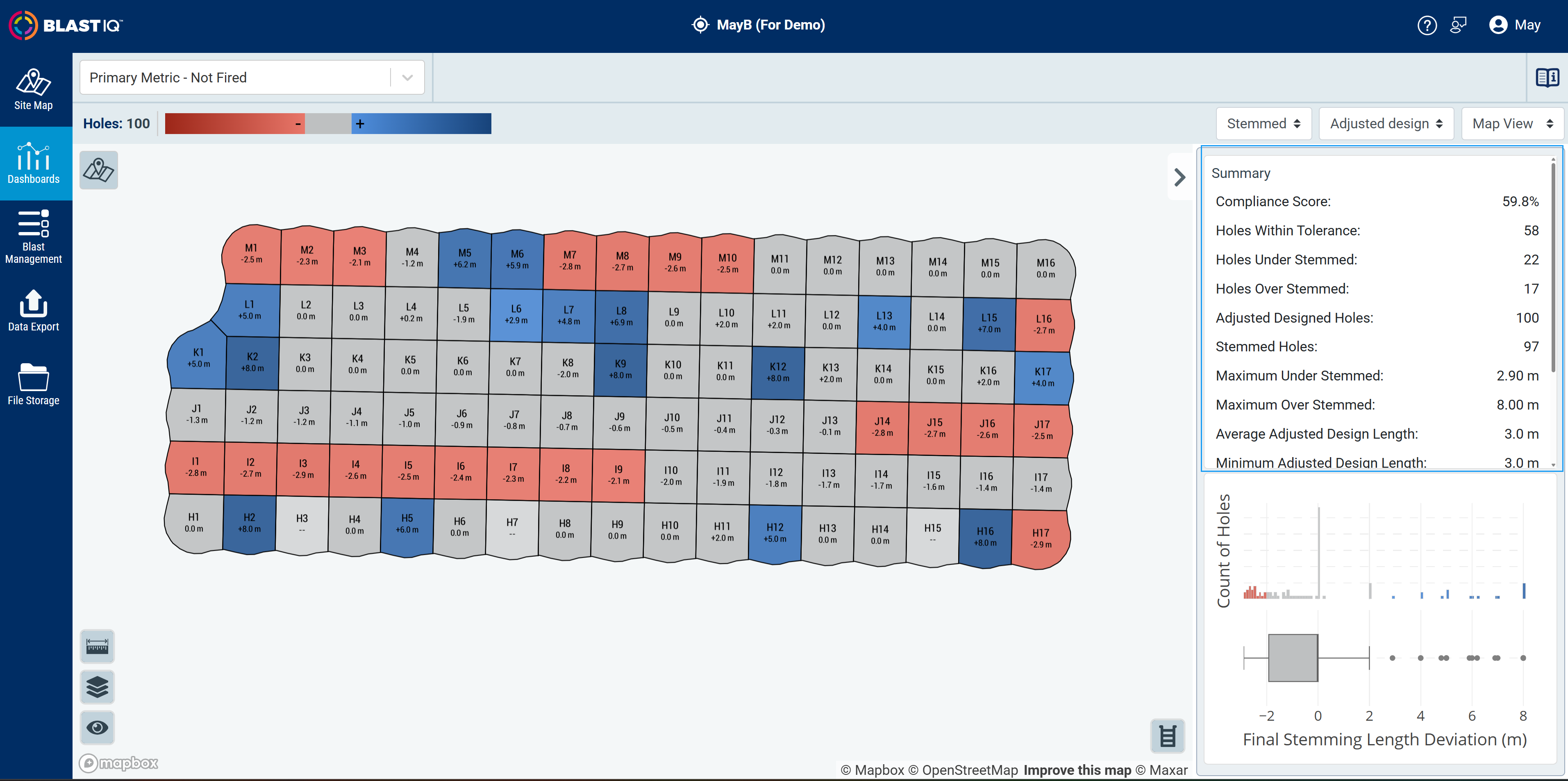

Summary
- Click on the "Summary" icon located in the right-hand corner.
- Navigate to the summary section.

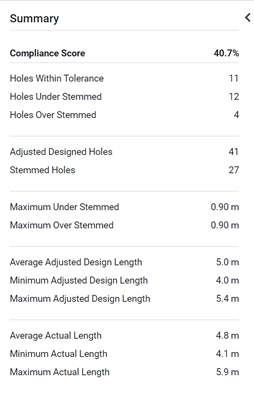

- The blast summary will display the blast's compliance percentage and other helpful statistics.
-
Histogram
- Displays the count of holes for each deviation range.
- Click and drag horizontally to zoom in on a section.
- Double click to reset zoom.
-

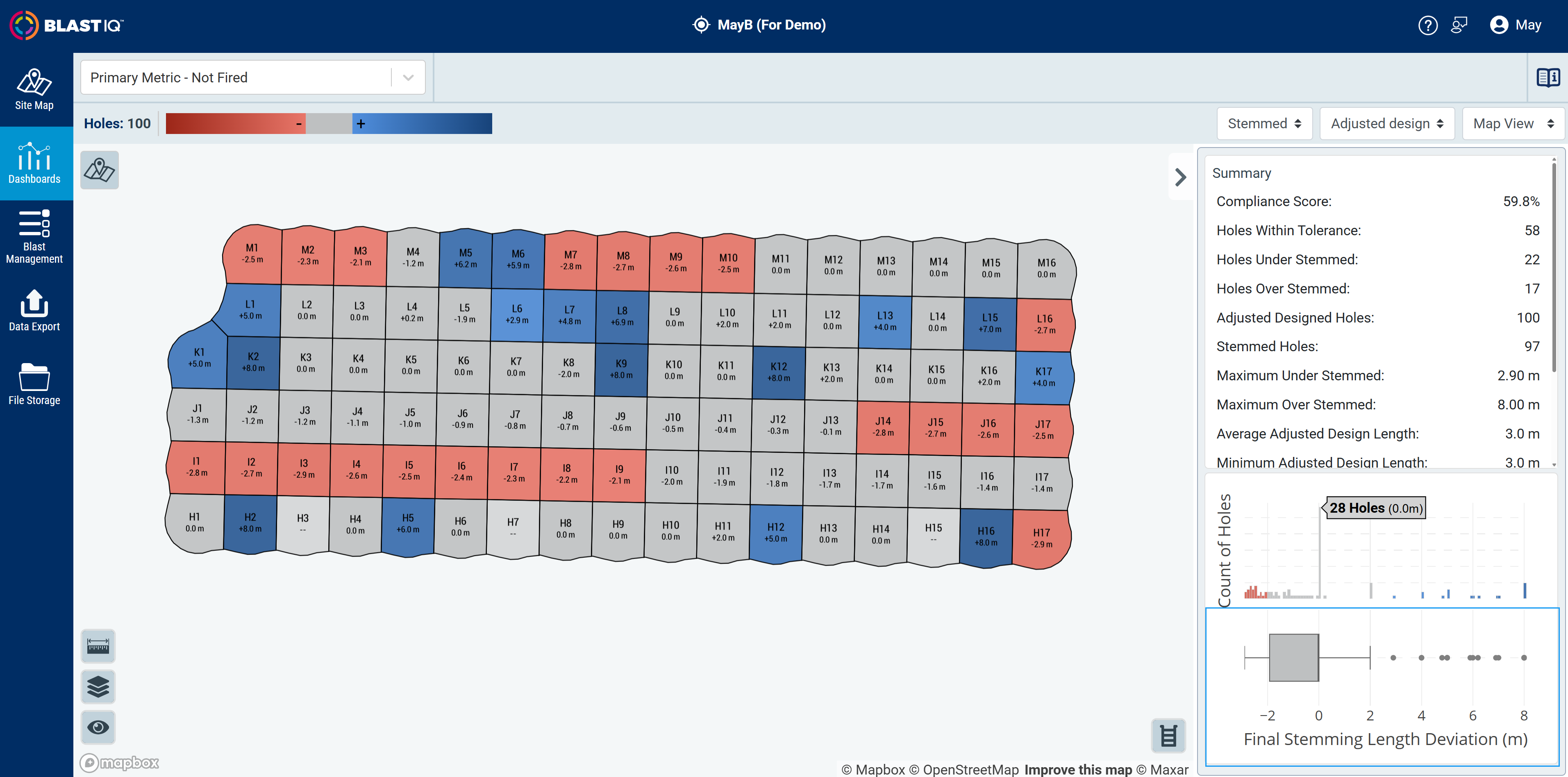

Box Plot
- Displays the deviation distribution of the blast. Click here to learn more about this type of chart.
- Click and drag horizontally to zoom in on a section.
- Double click to reset zoom.
-
Summary
-

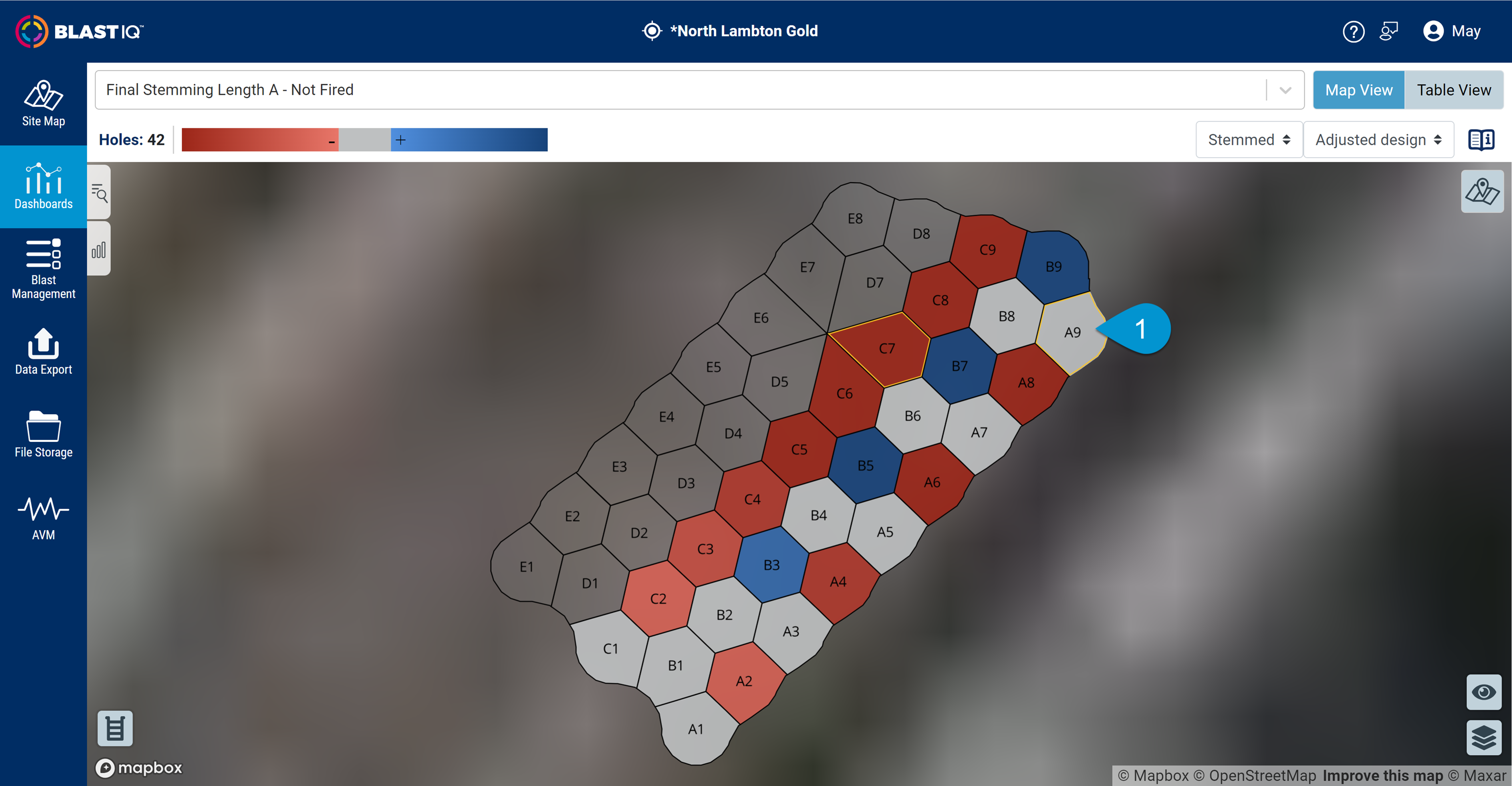

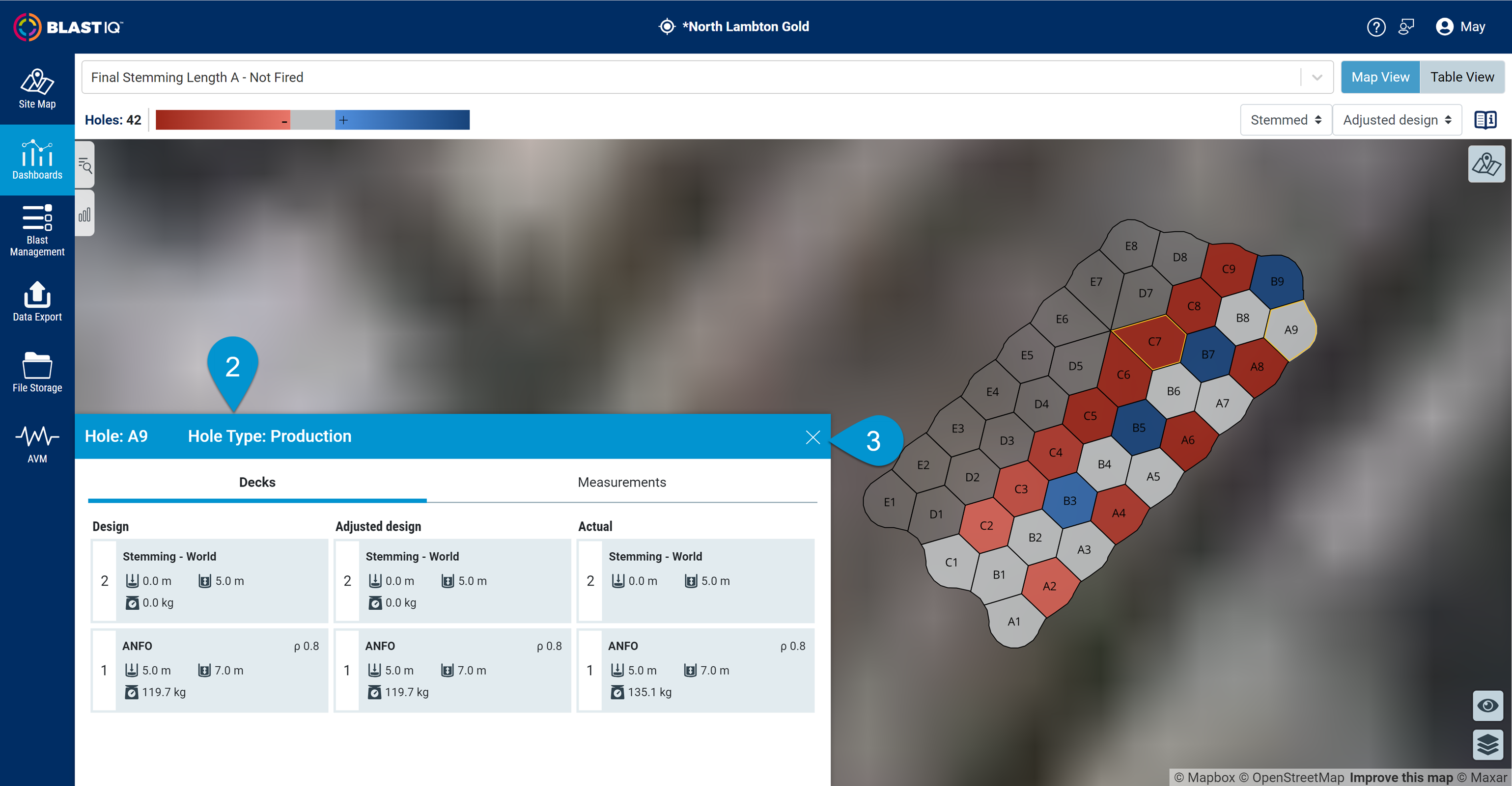

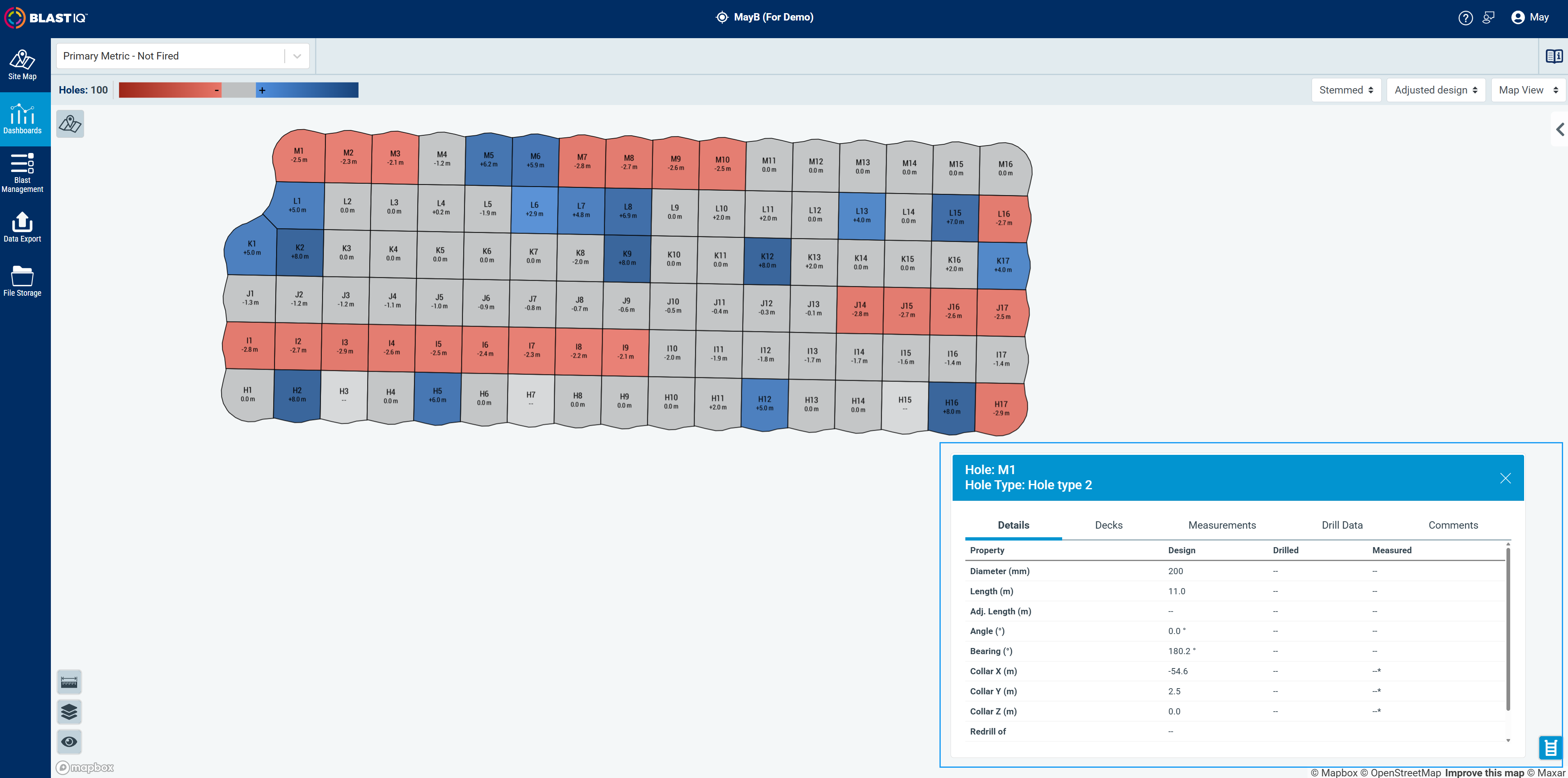

Hole Details Panel

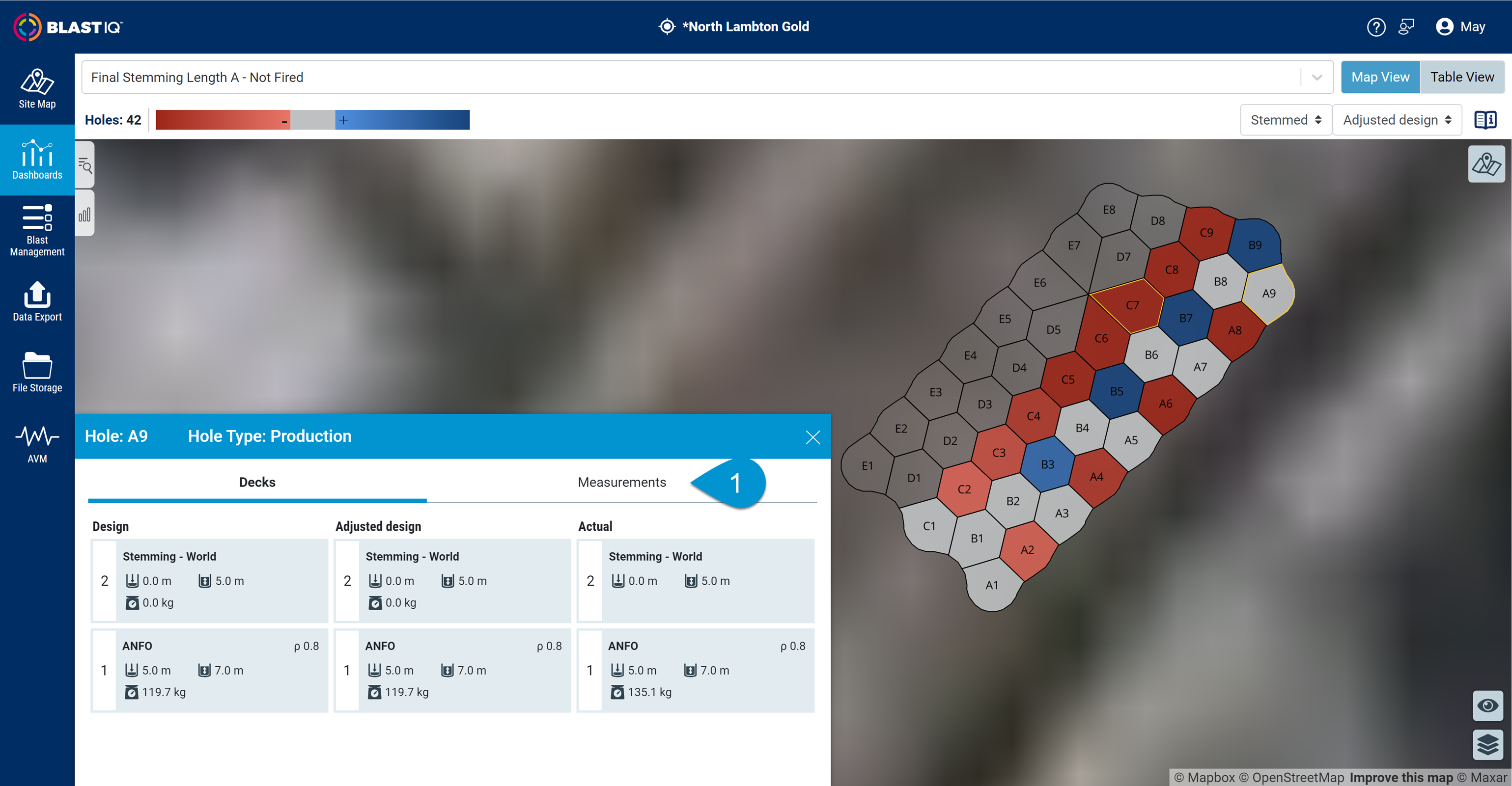

- Click on a hole on the map.
- The hole details panel opens.
- Clicking the Hole Details icon without clicking a hole by default shows no data.
- The hole details panel closes only when the user clicks the "x" button.
- Once the panel is closed and you want to open the panel again, click the "Hole Details" icon at the bottom left-hand corner.
- The panel consists of five tabs: Details, Decks, Measurements, Drill Data, and Comments.
-
Details
- By default, the "Details" will be visible, presenting users with design, drilled, and measured data.
-
Decks
- Decks and relevant properties are grouped by design, adjusted and actual.
- Deck is displayed by a lower number from the bottom to the top (higher number).
-

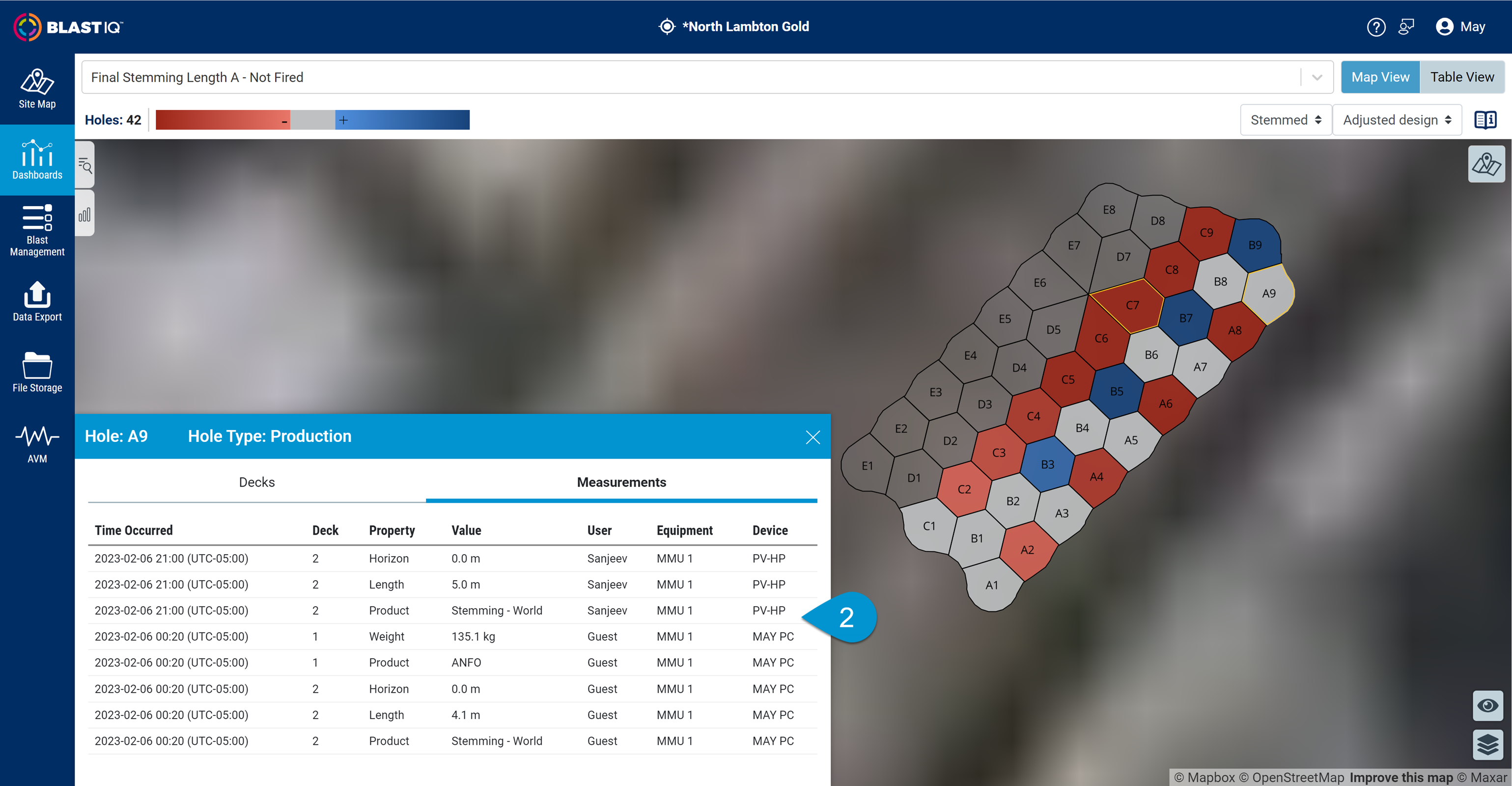

Measurements
- Provides a concise overview of recorded data, including the time occurrence, associated deck, property details, recorded values, user identity, and the equipment or device used.
- Measurements are ordered by timestamp.
- Sorting is implemented by clicking on the column headers.
-
Drill Data
- Provides a concise summary of drilling-related information. Users will find details such as the average penetration rate, start time, end time, drill name, operator, and timestamps for when the event occurred and was received.
-
Comments
- Hole comments recorded in BlastIQ™ Mobile v1.22.206 or older will not show in the comments in the hole details panel. These comments are still available in the already supported display points and data export.
-
Details
-

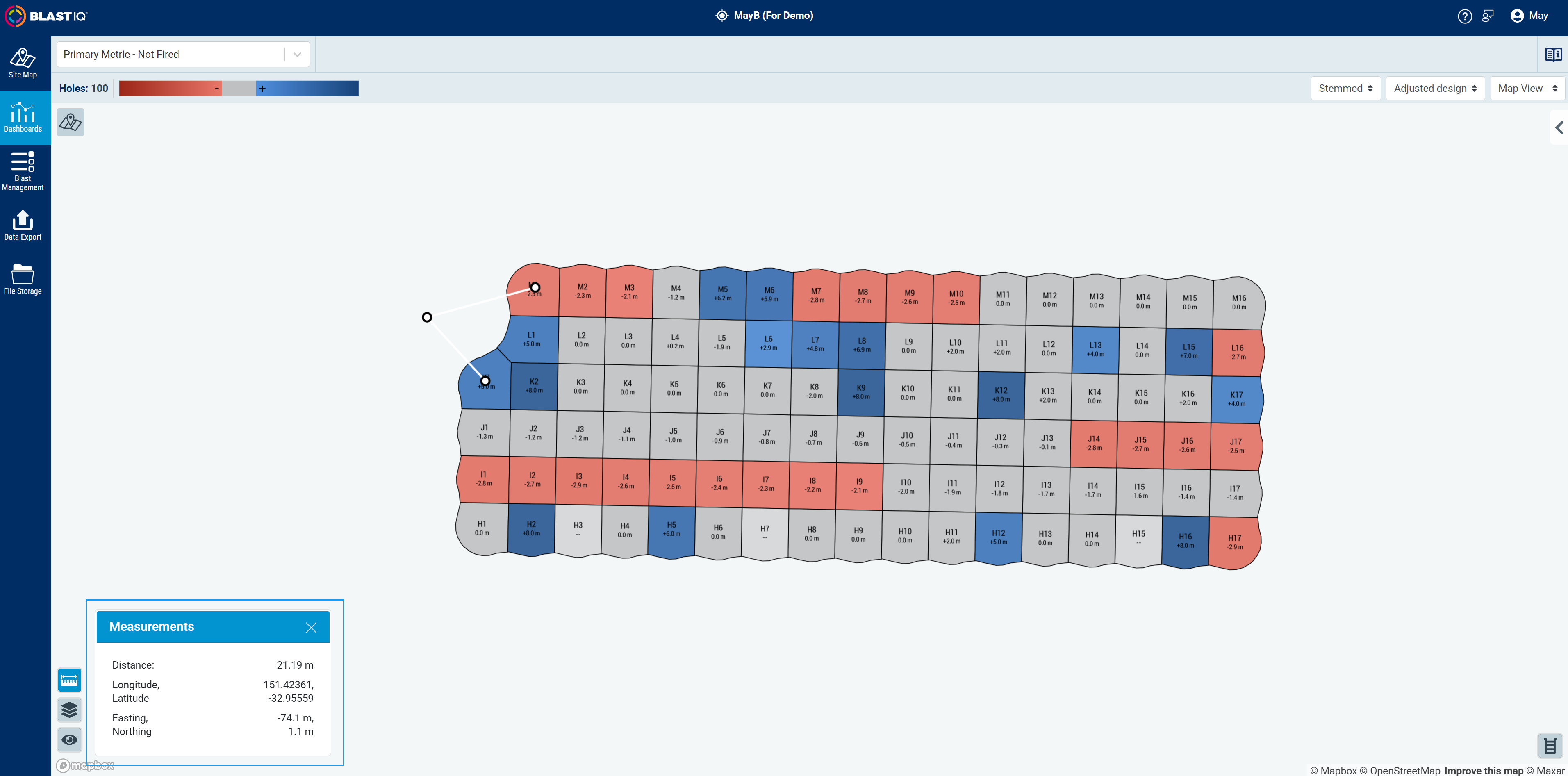

Measurements
- Click the measurements icon located in the lower left-hand corner.
- Click anywhere on the map to draw points.
-
Lines should automatically connect the points.
- The aggregated distance of the drawn lines will be visible.
-

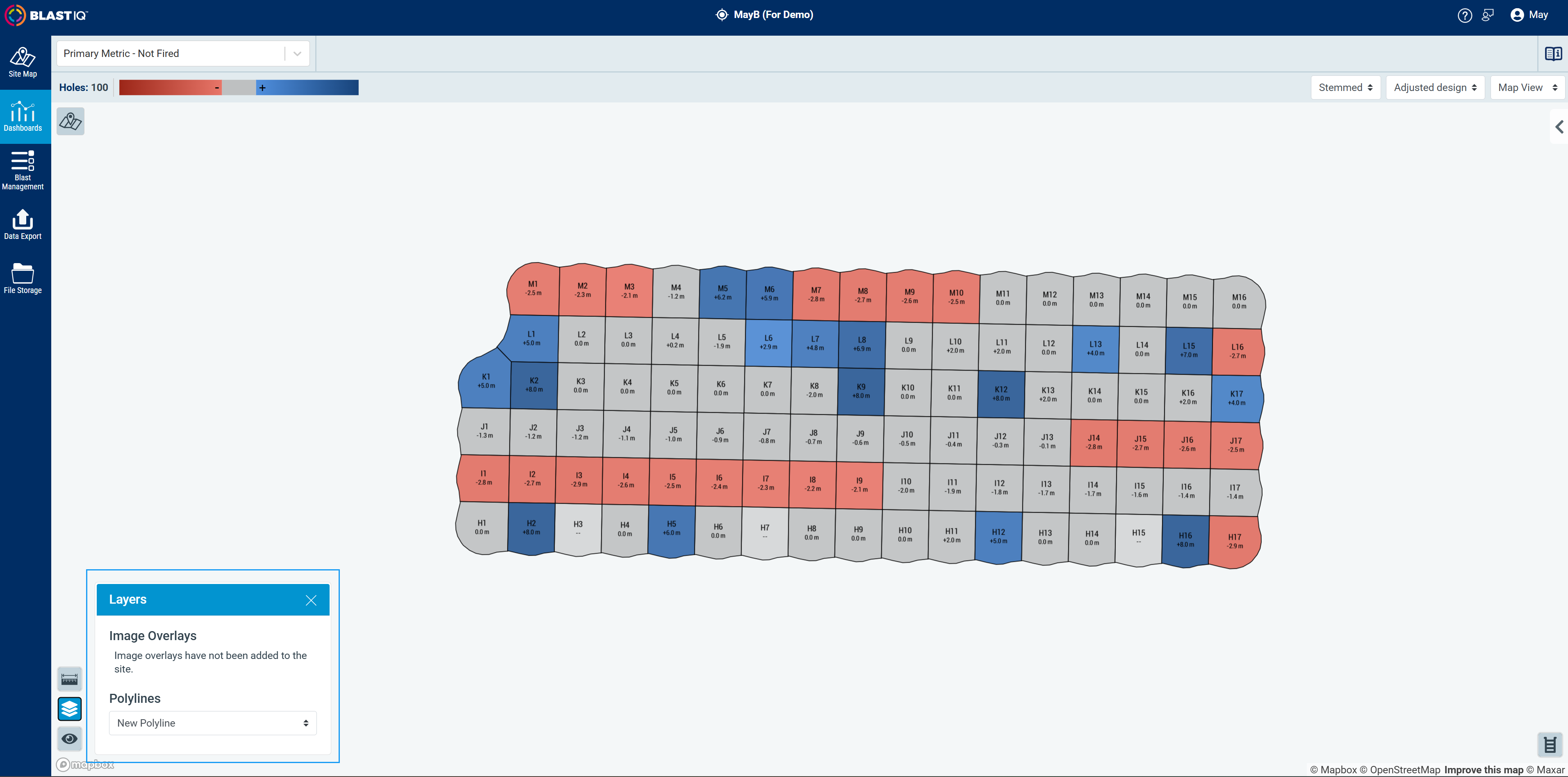

Layers
- Click on the layers icon.
- Choose "Image Overlays" or "Polylines" from the available options.
- Select "None" for no layers display.
To upload polylines and image overlays, please visit the Site Map article here and navigate to the Layer Administration section.
-

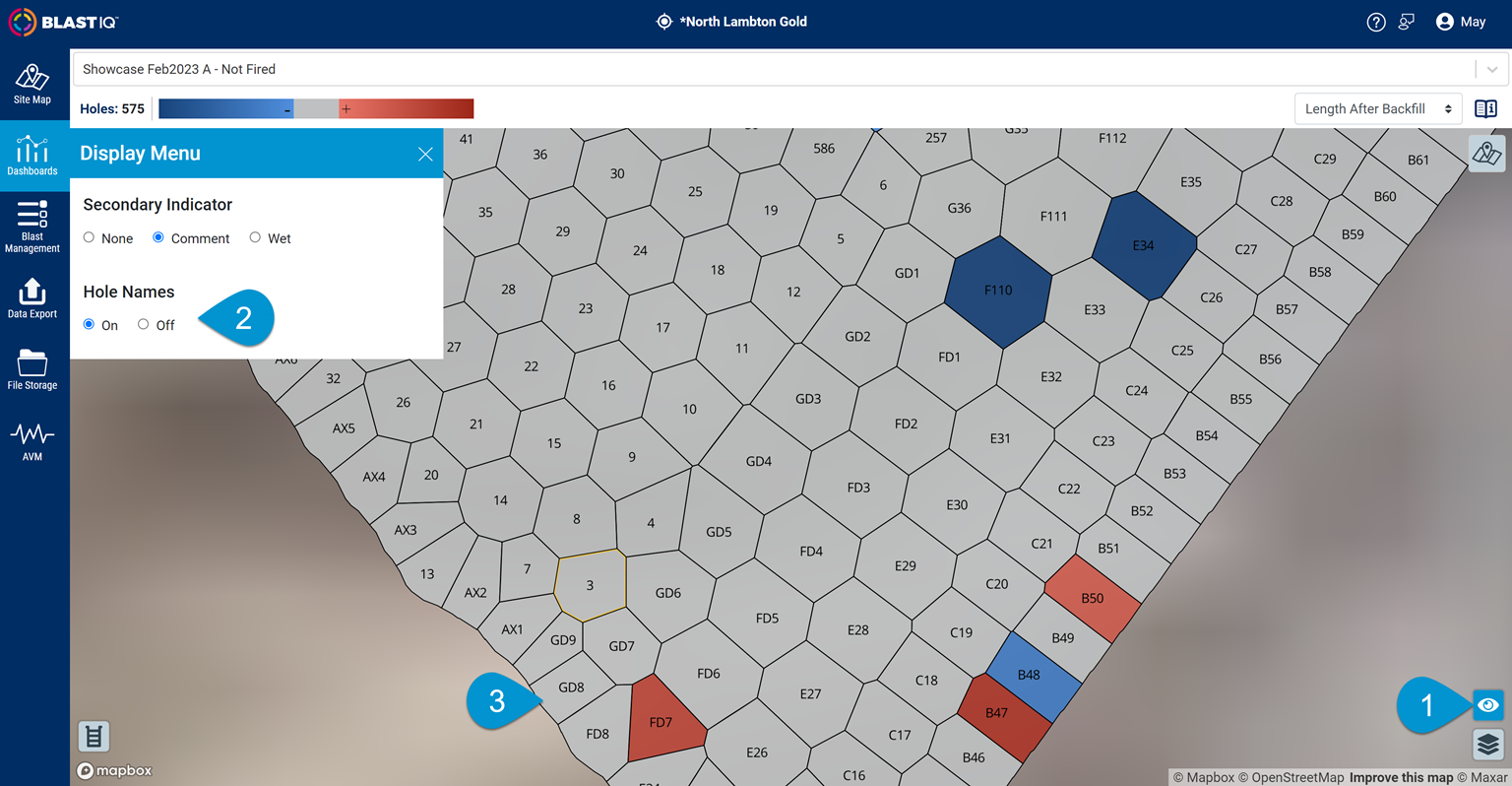

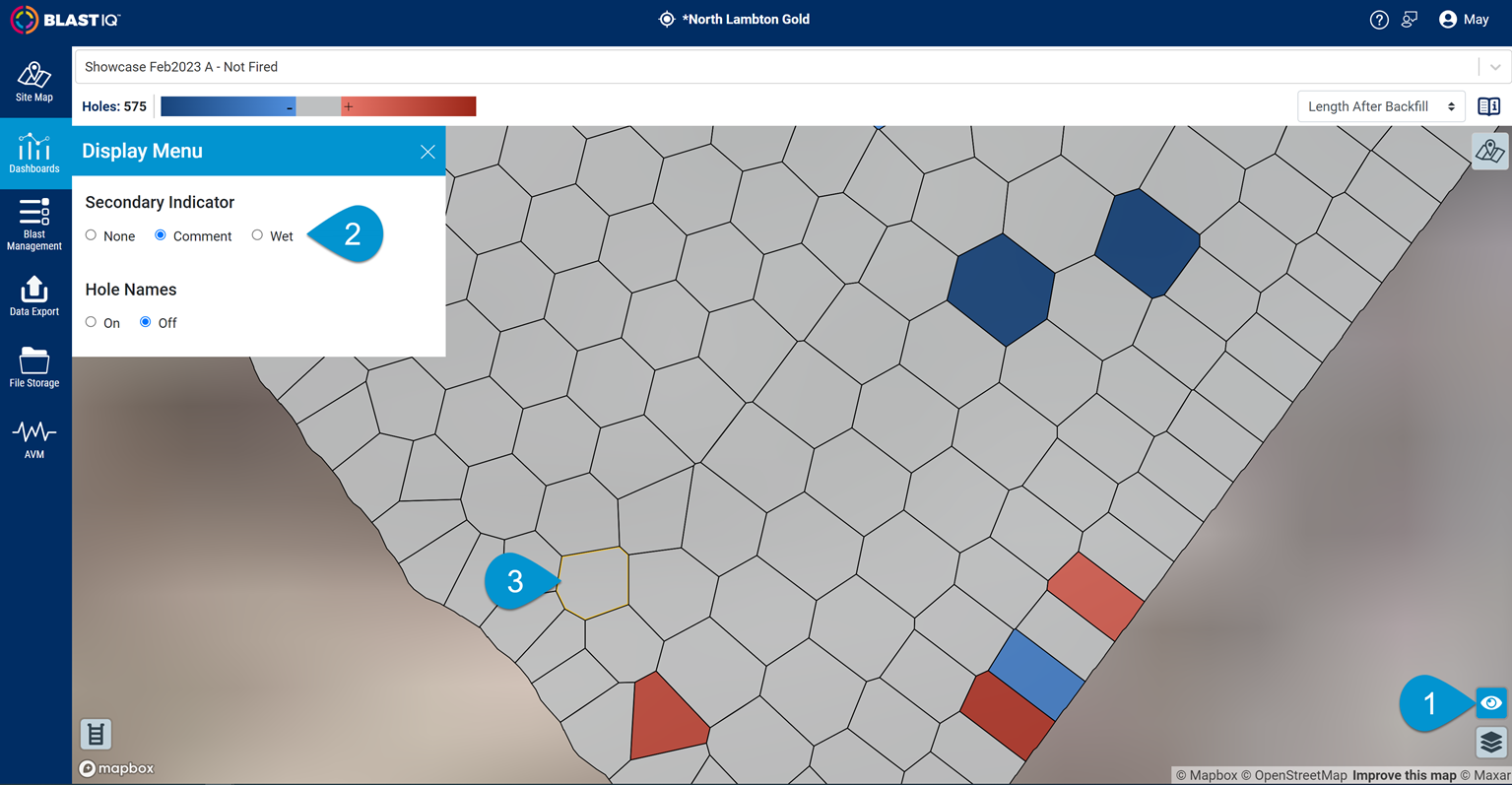

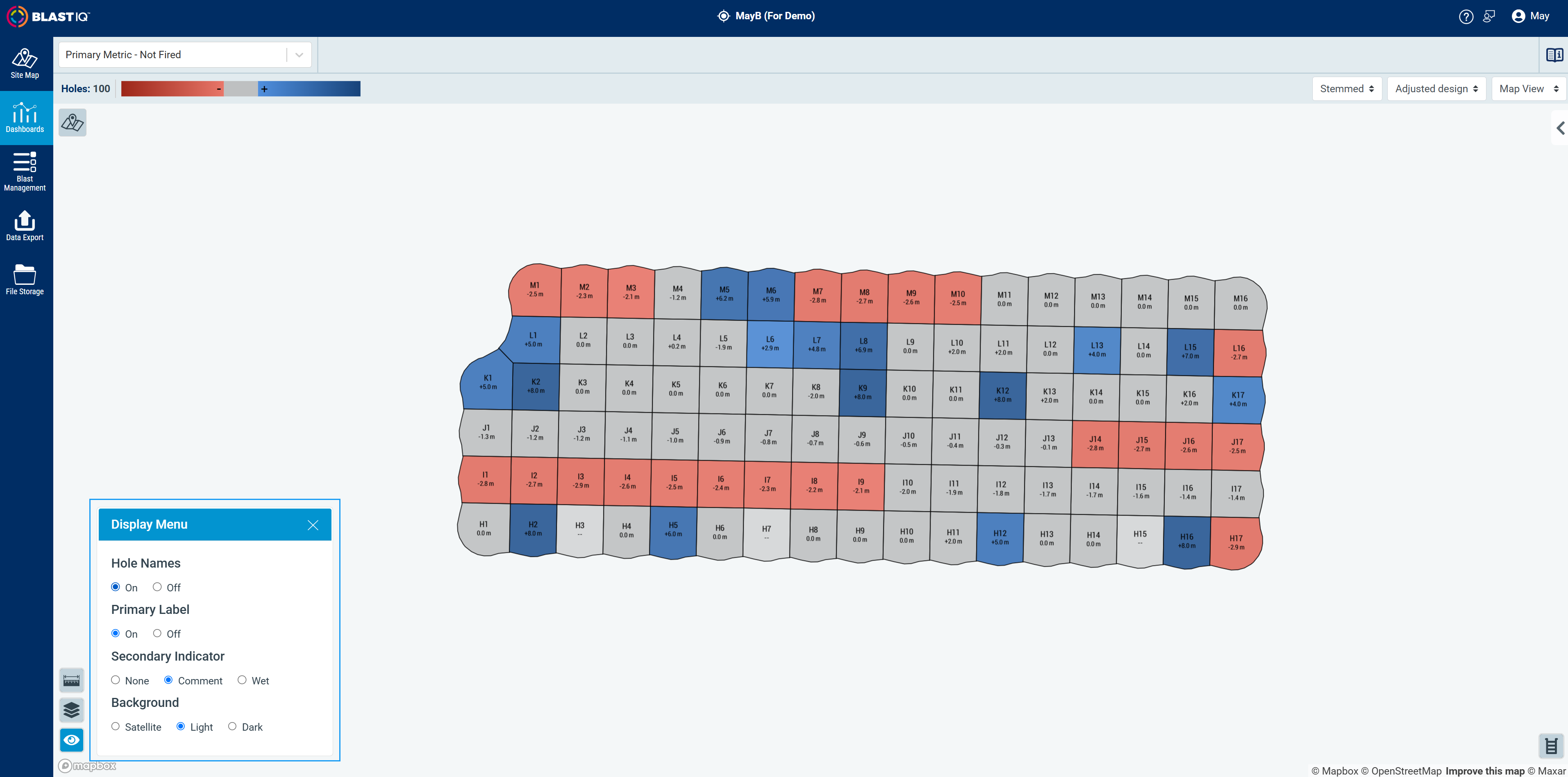

Display
- Hole Names
- Select "On" to display hole names on the map.
- Select "Off" to hide hole names on the map.
- Secondary Indicators
- Select "None" does not highlight any holes.
- Select "Comment" to highlight holes with added notes.
- Select "Wet" to highlight holes in a wet state.
- Background
- The user can choose to change the map background to allow better visualisation of the blasts of interest from the following options:
- Select "Satellite" to set a satellite image as your map background.
- Select "Light" to give your map a white background.
- Select "Dark" to give your map a dark background.
- The user can choose to change the map background to allow better visualisation of the blasts of interest from the following options:
- Hole Names
-
Comparison Options:
Enable users to compare and evaluate the selected actual against the chosen design.
- Select an Actual:
- Stemmed - Considers the final stemming length only of holes that have been stemmed.
- Available - Considers the length remaining to be stemmed of holes that have actual loading and have not been stemmed.
- Select a Design:
- Adjusted Design - Latest loading instruction or design adjusted based on actual hole conditions.
- Design - Original design, before adjusted by actual hole conditions.
- Select an Actual:
-
Tolerances:
- The tolerance considered in this dashboard is the site-level deck horizon/top stemming length reporting tolerance. Read more here.
-
Compliance Score:
- For any of the comparisons, the compliance score (%) is calculated as follows:
Compliance Score (%) = 100*W/M
Where:
W = within tolerance holes
M = overstemmed holes + understemmed holes + within tolerance holes
- For any of the comparisons, the compliance score (%) is calculated as follows:
Note:
- All percentage values are truncated to 1 decimal place.
- All other values are rounded to 1 decimal place.

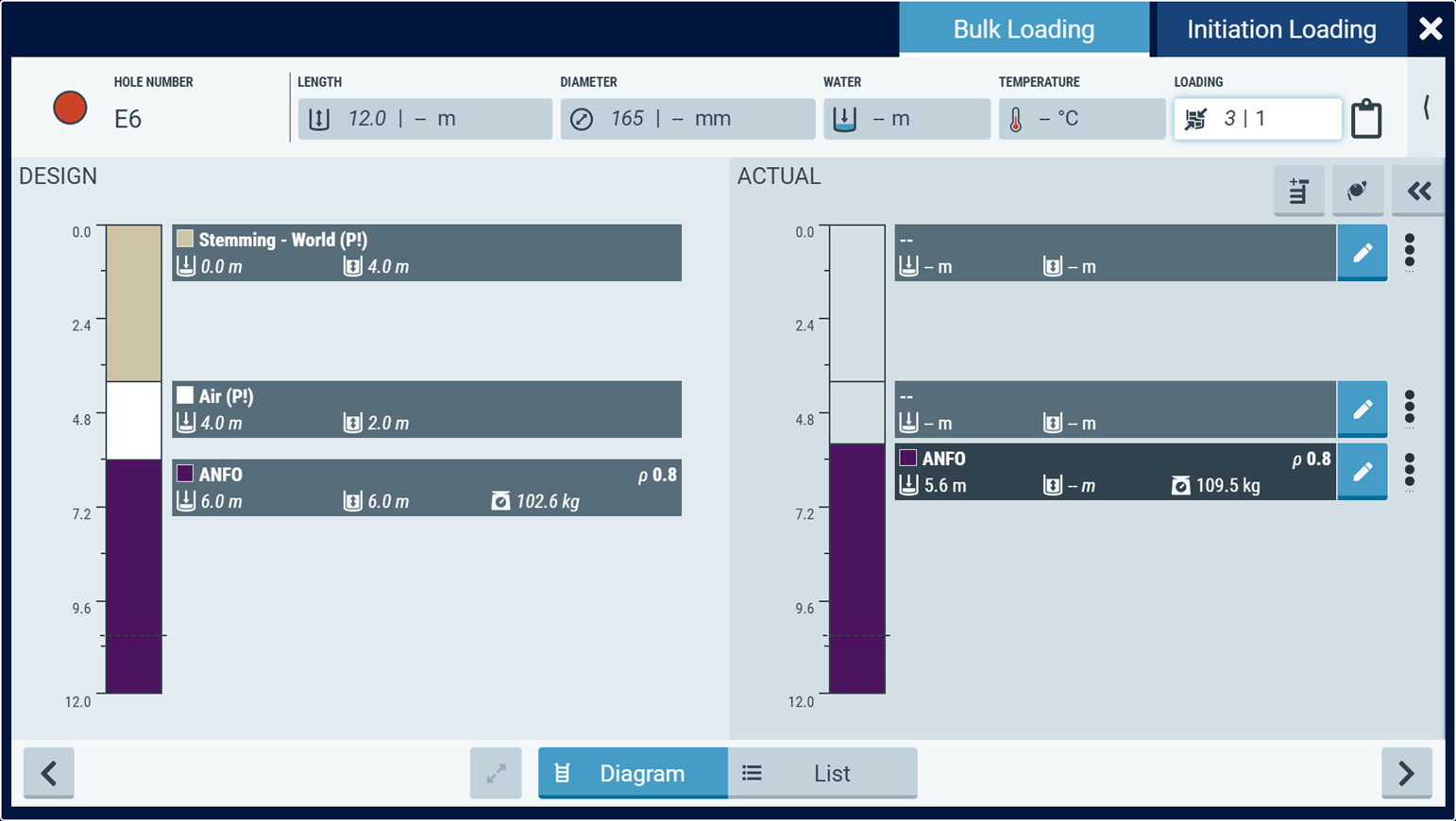

The following scenario will result in no evaluation for any comparison mode as the logic won't detect a design or final stemming length, the hole will show some 'available' values as it is loaded.
The following design will cause a mismatched comparison in the Available mode when the actual air deck is not recorded.
The recording of the air is required to the correct available stemming length compared to the design's final stemming length.
