BlastIQ™ Insights - Quantities Over Time Dashboard


Release Date:
18th January 2024
KBA Summary:
This Knowledge Base Article describes the functionality of the Quantities Over Time Dashboard in BlastIQ™ Insights.
Summary

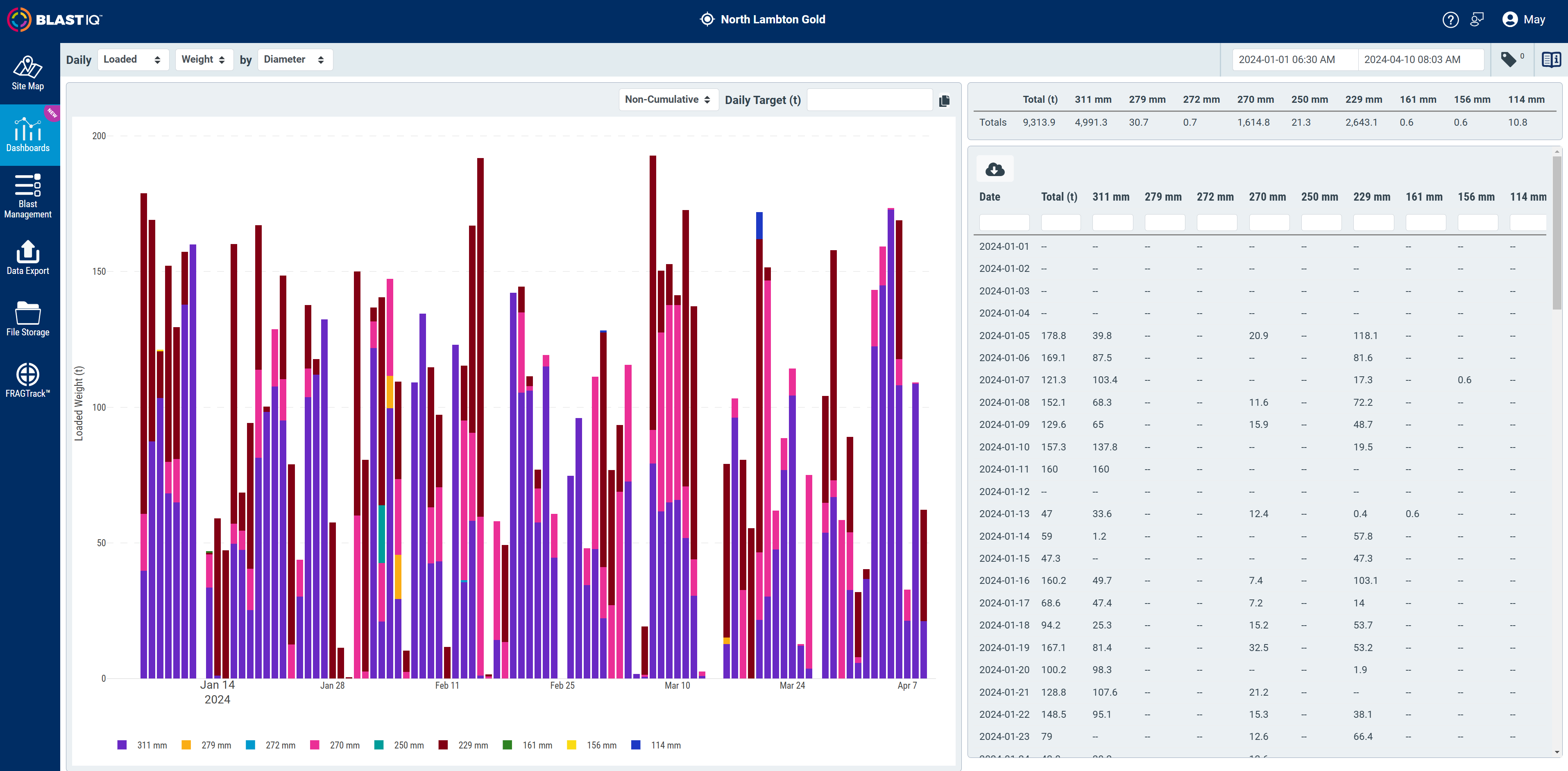

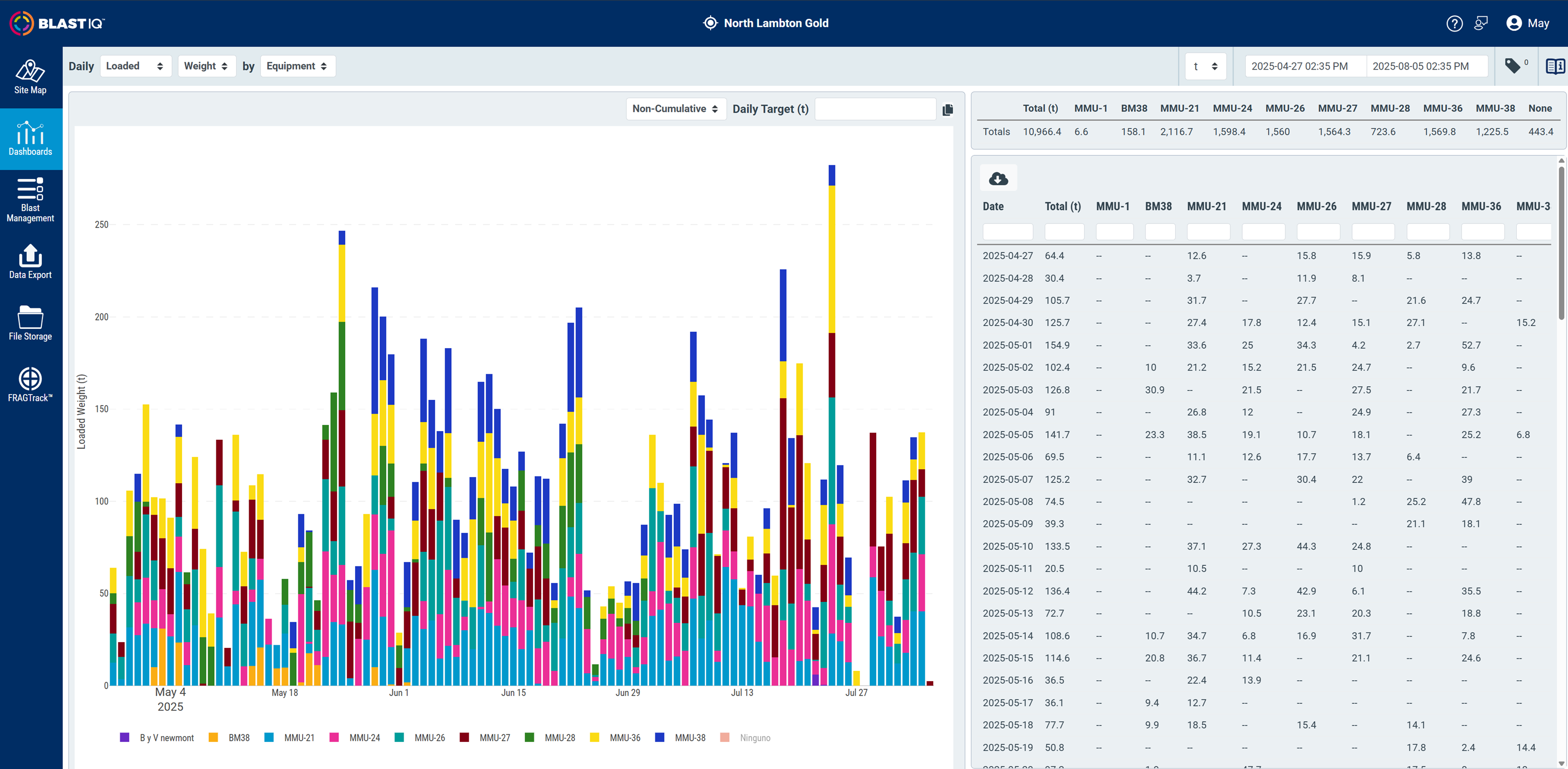

BlastIQ™ Insights Quantities Over Time Dashboard helps Drill and Blast Supervisors to track whether daily goals are met, ensure targets for different timeframes are on track, and identify any task-related issues. Home.png



Navigation

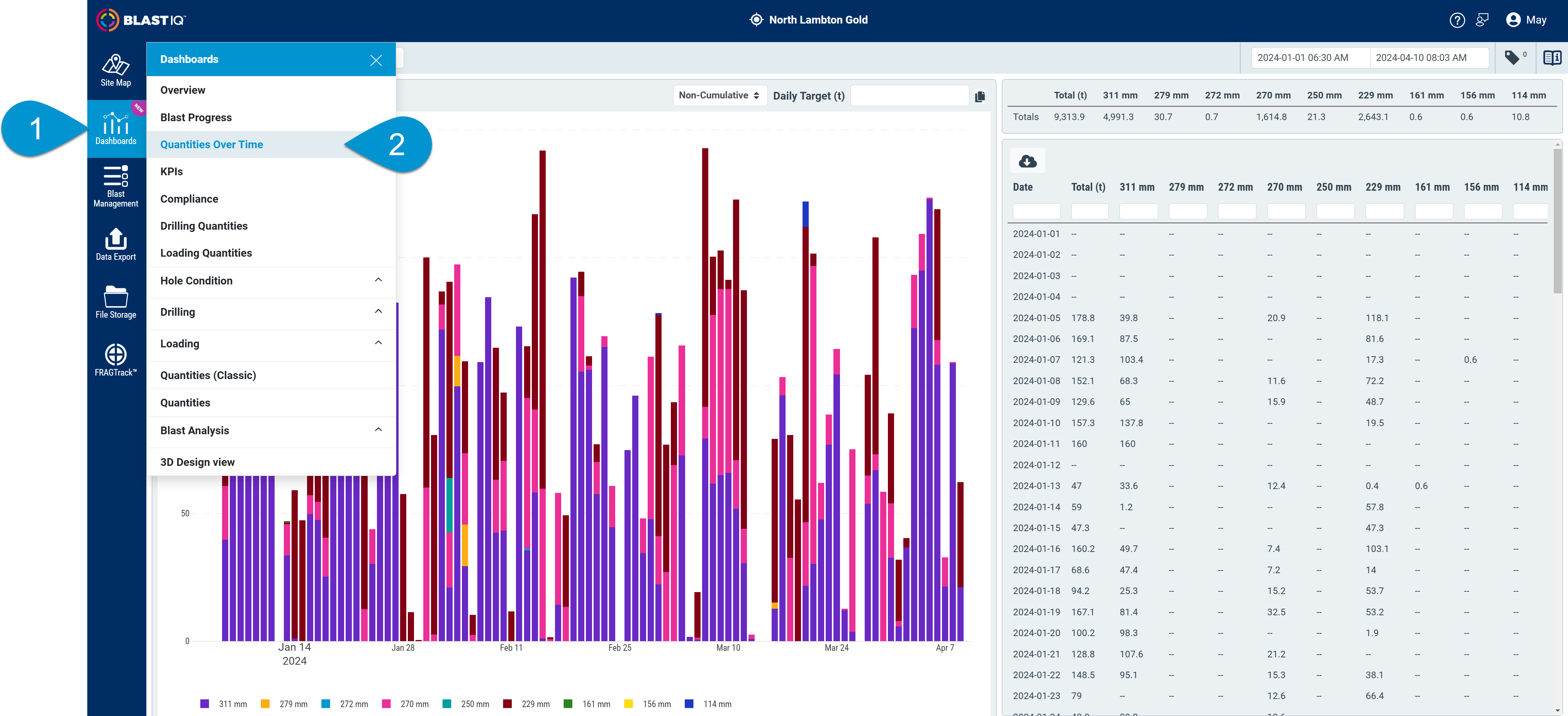

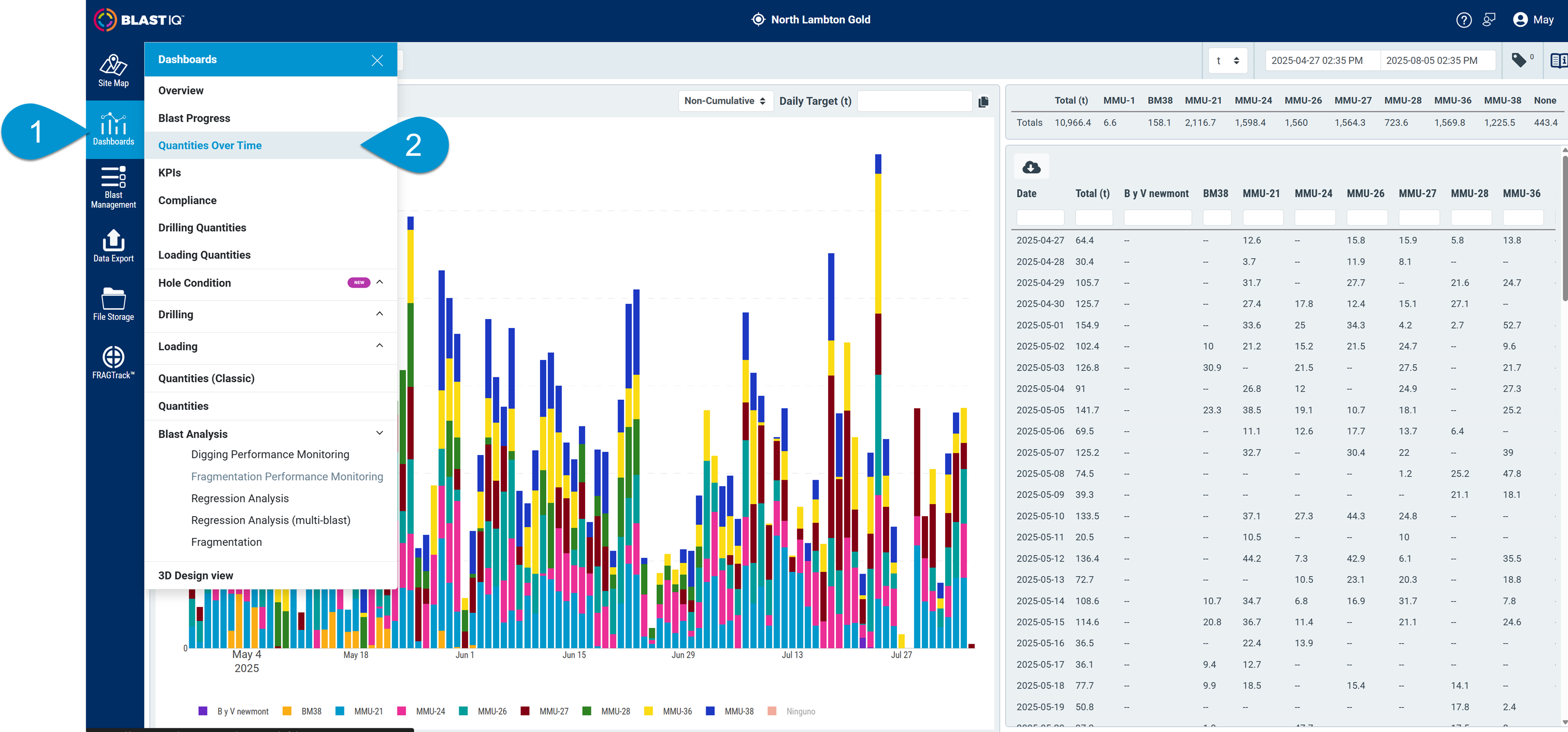

To navigate to the Quantities Over Time Dashboard:

  1. From the BlastIQ™ Insights toolbar, select Dashboards.
  2. From the Dashboards menu, select Quantities Over Time.Navigation.png

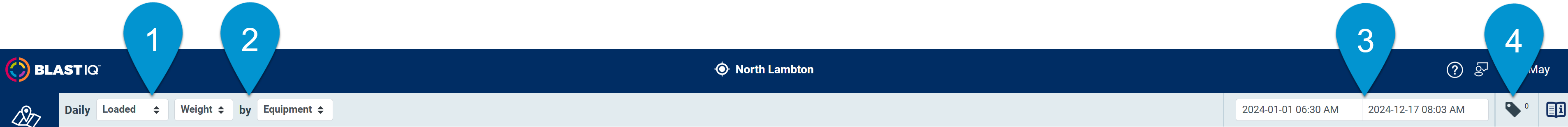

Filters




  1. Primary Filter
    • Loaded (default)
    • Measured
    • Drilled
  2. Secondary Filters
    • The secondary filters change based on your primary filter selection.
      • Loaded
        • Select "Loaded" as your primary filter.
        • For category filter, choose between the options such as "Weight (default)" or "Decks," and partitioned by filter such as "Equipment (default)," "Diameter," "User", "Wet," and "Product".
      • Measured
        • Select "Measured" as your primary filter.
        • For category filters such as "Holes" and partitioned filters such as  "User (default), "Wet," and "Diameter."
      • Drilled

        • Select "Drilled" as your primary filter.
        • For category filters, choose between the options such as "Length (default)" or "Holes" and partitioned by a filter such as "Drill Name (default)," Operator," "Diameter," and "Wet."
  3. Date Range
    • By default, the system shows the data for the past 7 days.
    • The range is limited to 101 days. Dates beyond this limit will be disabled and cannot be clicked.
    • If users input a starting date, the system will automatically display the ending date, which should be approximately 101 days from the specified starting date.
  4. Tags filter:
    • Click on the Tags icon.
    • Select the desired tags from each category.
    • Click Apply to apply the filter criteria.
    • It will return the loading data containing the selected tags based on the following logic:
      • OR for tags within the same category.
      • AND for tags across categories.
    • Click on Clear and then Apply to clear all tags filters.
    • Click on the X on the top right to close the tags filter; any edits to the filter criteria will be lost if not previously applied.
      Read more about Tags here.
Information
General Section details

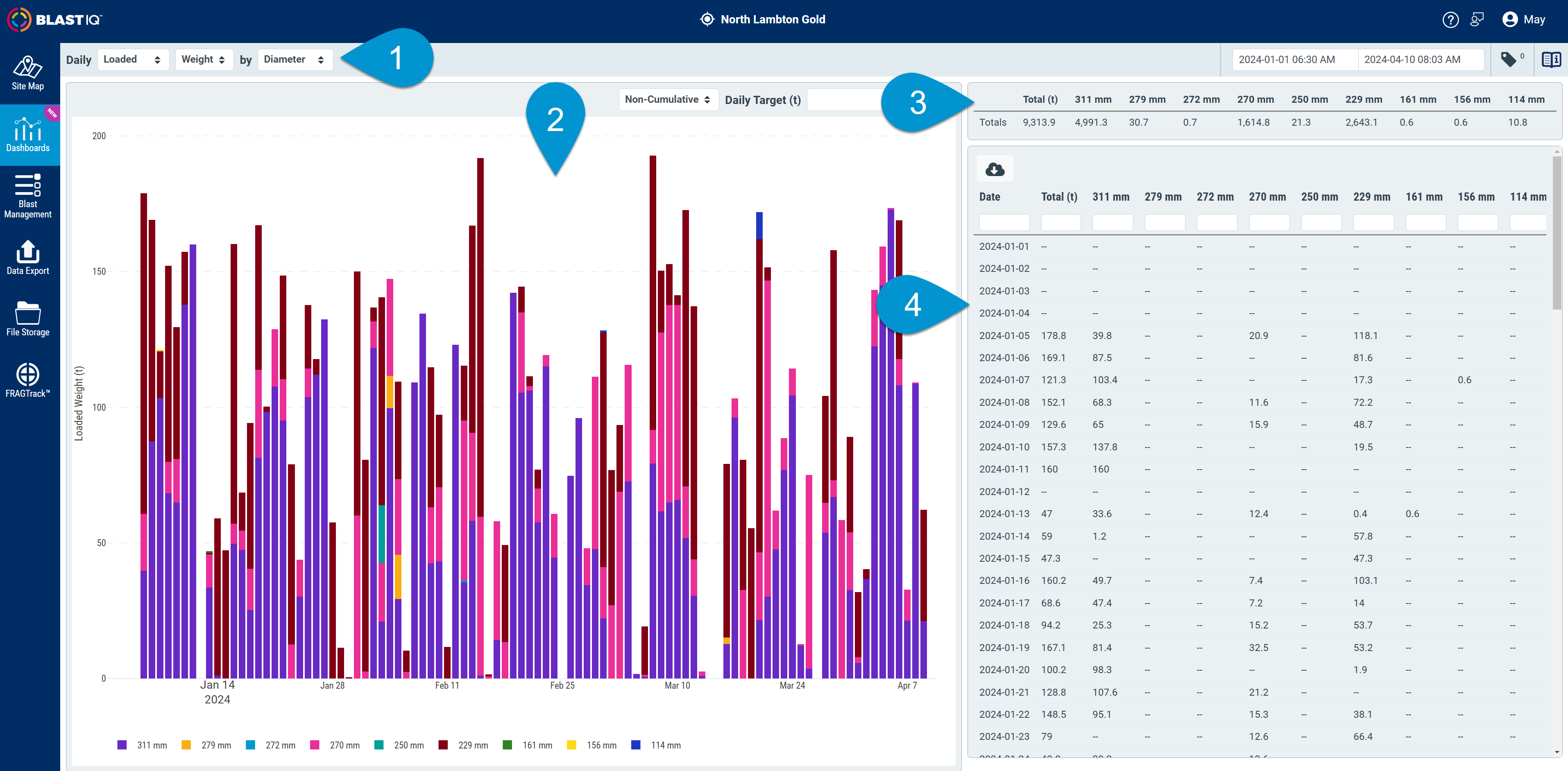

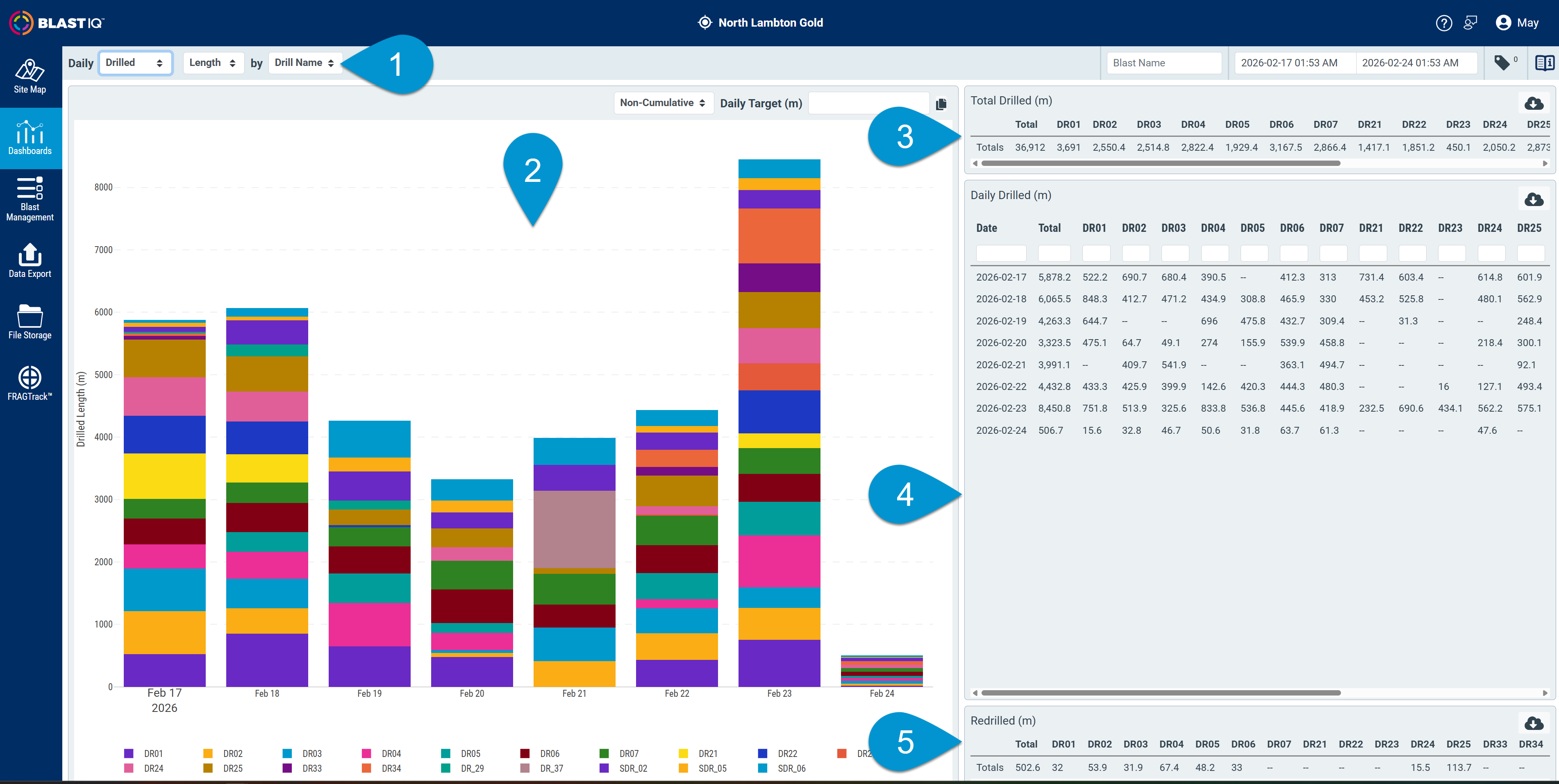

The following information is shown on the Quantities Over Time Dashboard:Details.png

  1. Filter bar.
  2. Chart.
  3. Summary Total view.
  4. Table view.
