BlastIQ™ Insights - Site Map

Last updated November 30, 2023 01:24

Release Date:: 26^th of July 2021
KBA Summary:: This Knowledge Base Article describes the use of Site Map in BlastIQ™ Insights.

Summary

BlastIQ™ Insights enables users to visually find blasts and navigate to its other pages, visualise points of interest, administrate map layers, and aid in identifying issues with the site's coordinate transformation parameters which are directly related to BlastIQ™ field devices GPS location precision.

Site Map

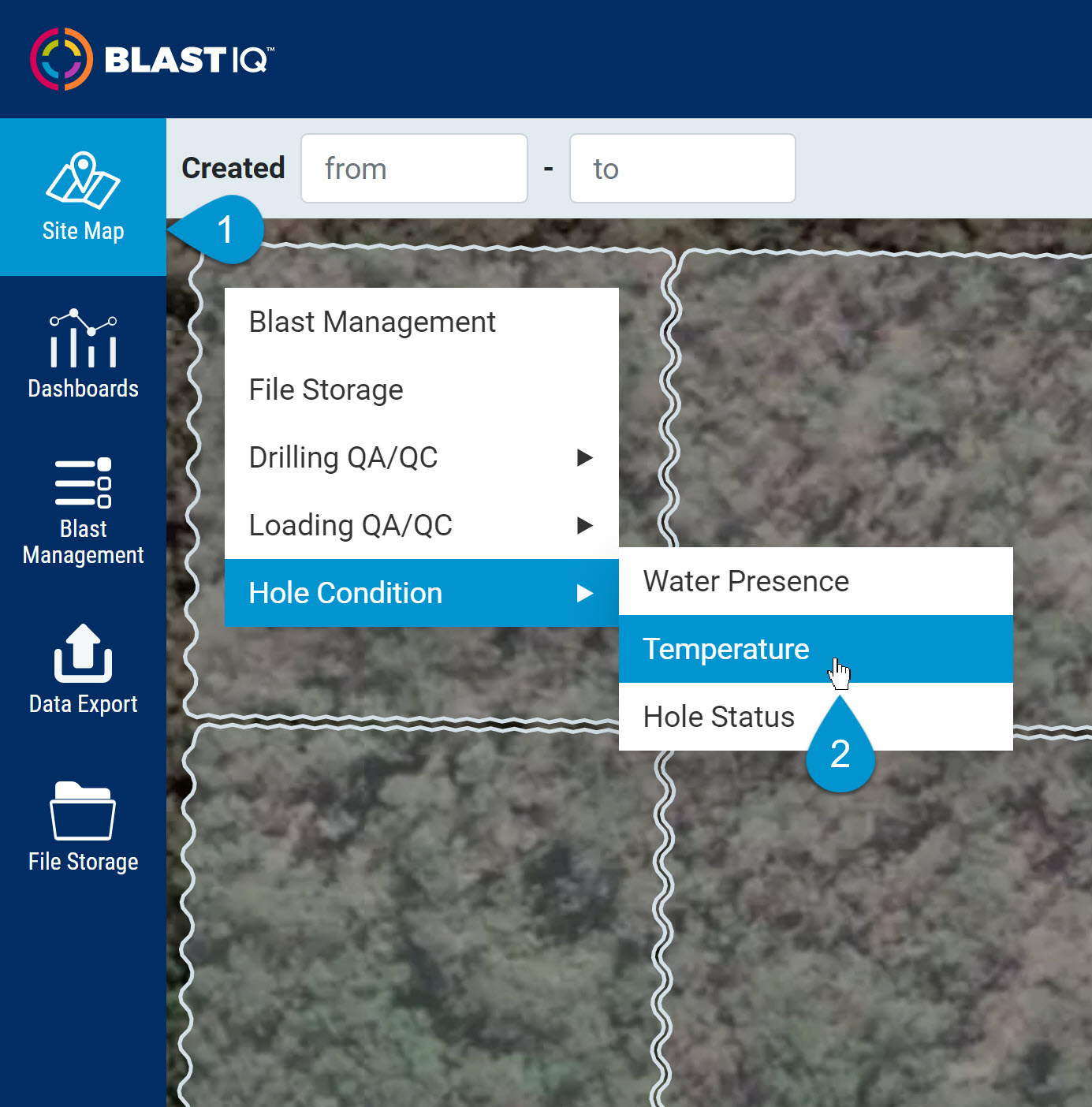

Site Map is the default landing page after login and site selection. To navigate to Site Map:

Click on the left hand menu icon.
To navigate to other views from within Site Map, right-click on any of the blast boundaries and select the desired view from the pop-up menu.

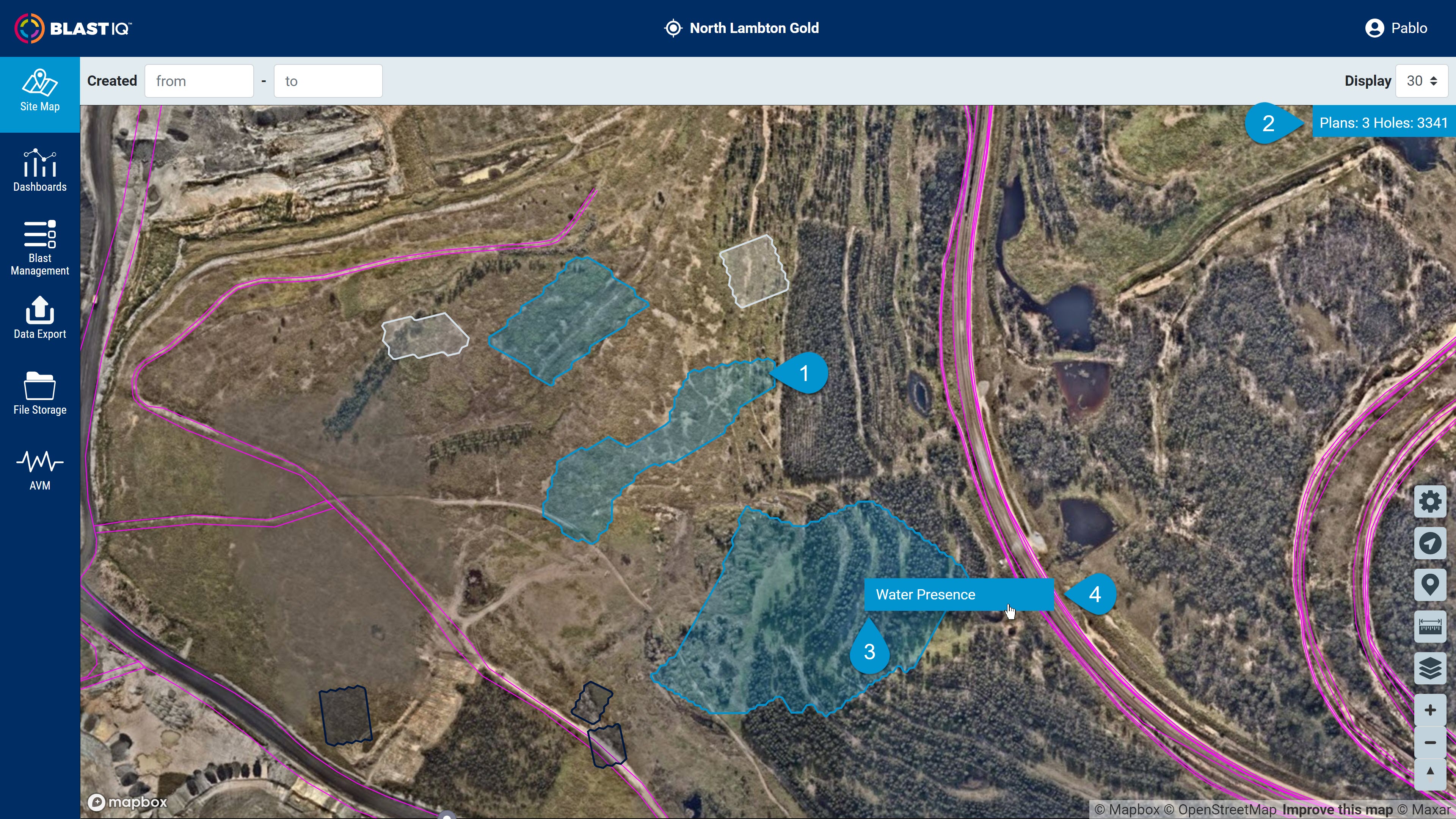

Select multiple blasts and navigate

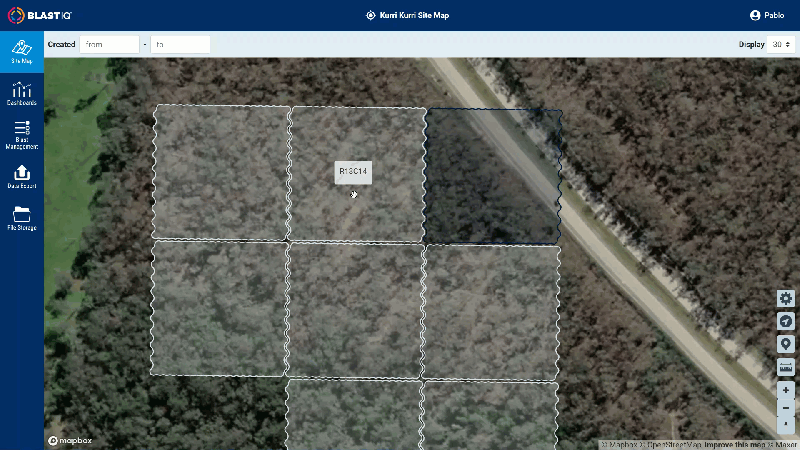

Click on the blast boundaries on the map to select 2 or more blasts.
Information about selected blasts will display on the top right corner of the map.
Right click on one of the selected blasts.
Navigate to multiple blast water presence dashboard.

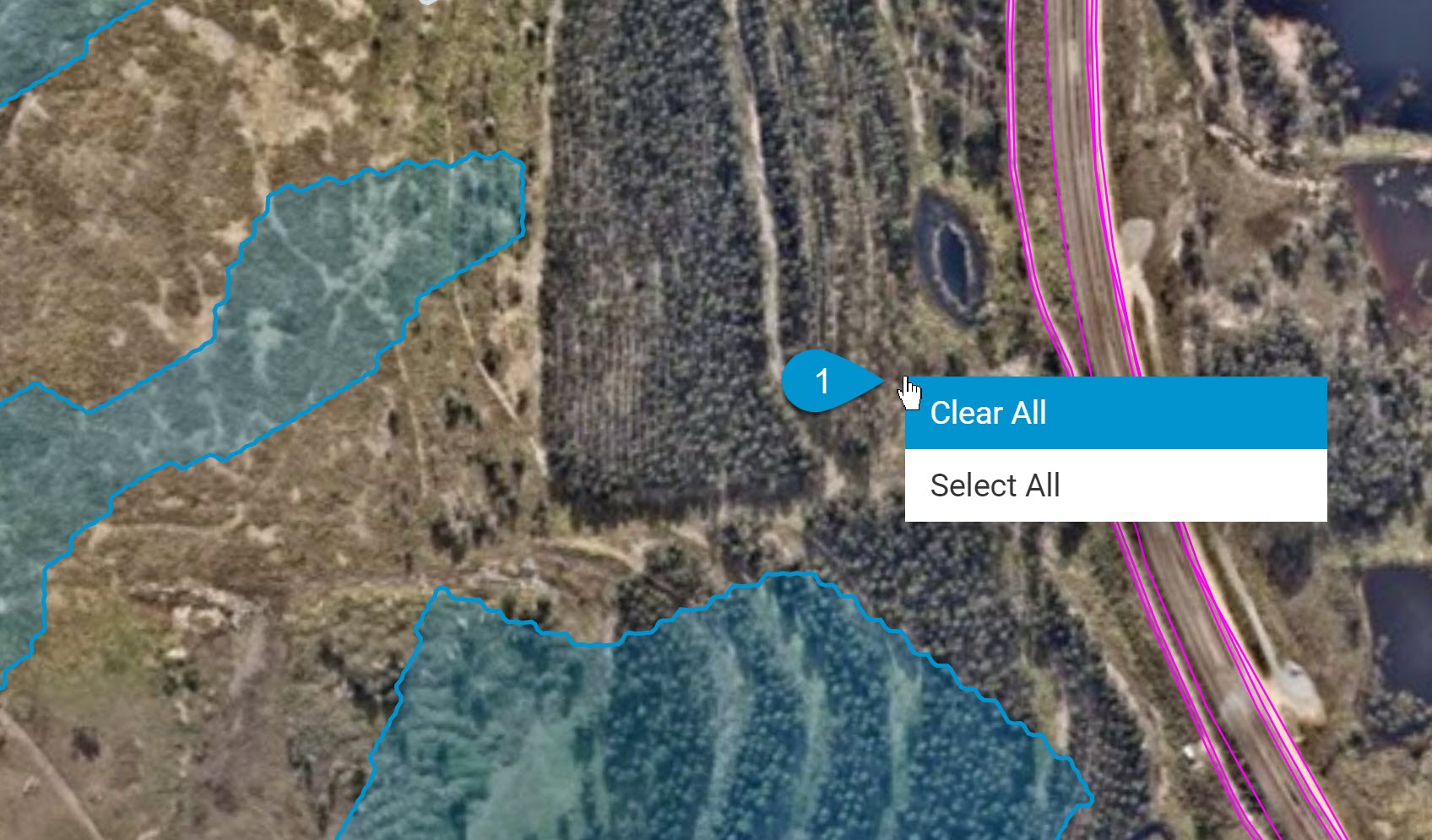

To clear multiple blast selections OR select all blasts displayed on the map:

Right click on a blank space on the map to see the Select All and Clear All functions.

Multiple Blast Selection limit: 30 blasts or 10,000 holes.

Users can interact with the Site Map in a number of ways:

Mouse over each element on the map to visualise relevant information.
Place the mouse cursor anywhere on the map and click on the screen, then use the Up, Down, Left, or Right arrows on the keyboard or Left-click and drag anywhere on the map to pan.

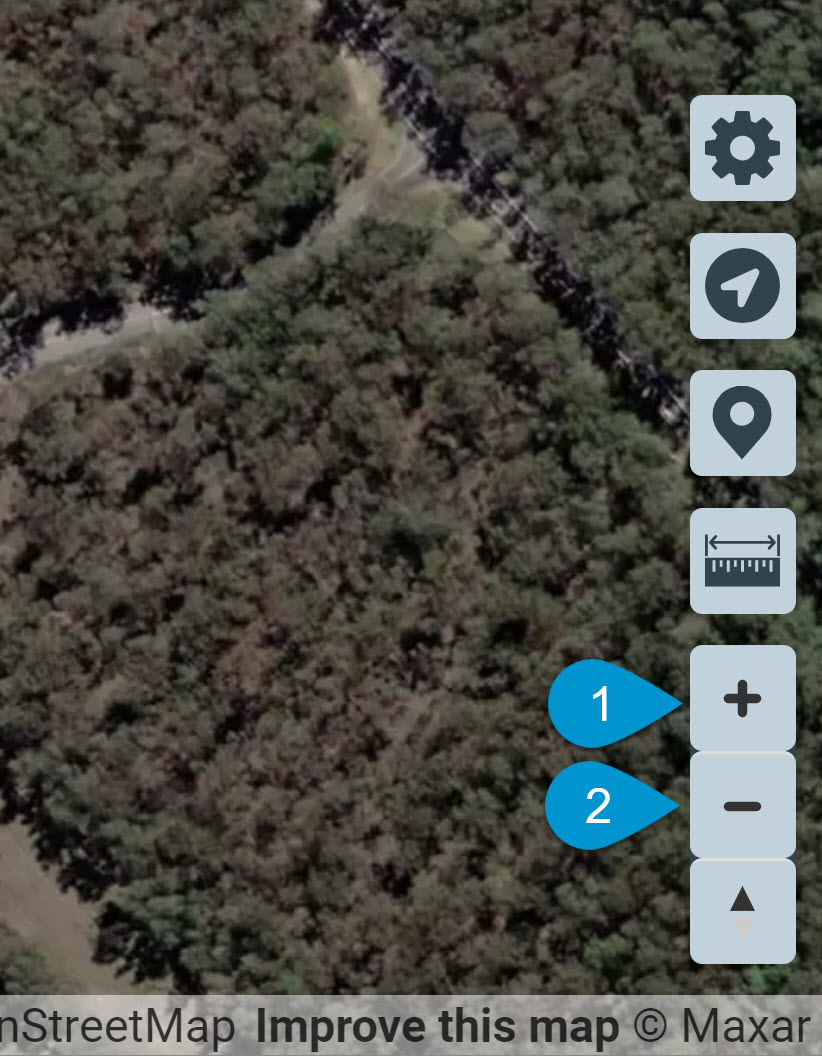

Use the mouse wheel to zoom in and out.

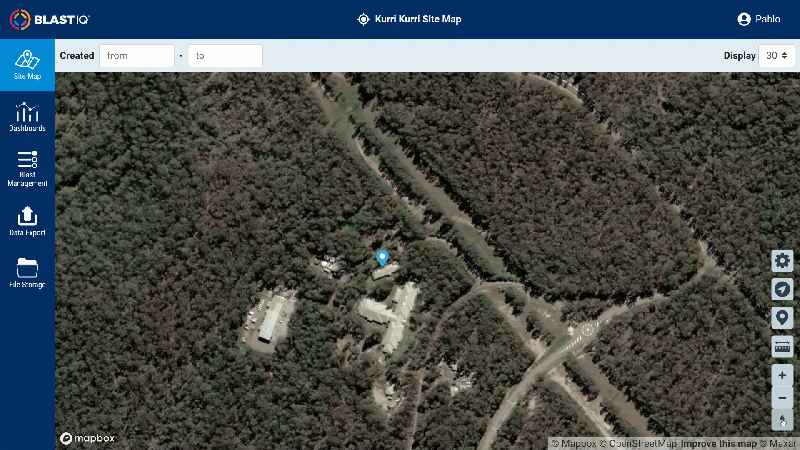

Right-click (or CTRL + Left-click) and drag to rotate and tilt.

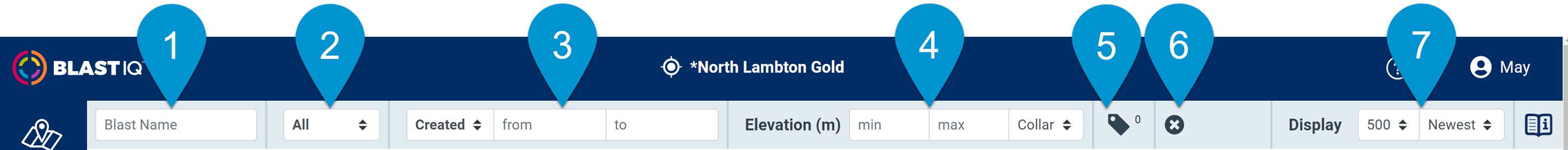

Filters

Blasts can be filtered using the following filters:

Blast Name Search Filter:
- Type in the search box.
- Blasts shown are the one containing the typed in characters.
Blast Status Filter:
- Select : All, Fired or Not Fired.
Date Range filter:
- Select Created or Fired Date.
- From and To fields are not mandatory.
- If date range filter is not used the blasts shown are the latest created/fired for the site.
- Maximum number of blasts shown is based on the Display Filter.
Elevation filter:
- Choose a minimum and/or a maximum elevation.
- Select Collar or Grade.
- If elevation filter is not used the blasts shown any elevation range.
- Maximum number of blasts shown is based on the Display Filter.
Tags filter:
- Click on the Tags icon.
- Select the desired tags from each category.
- Click Apply to apply the filter criteria.
- Site Map will return the blasts containing the selected tags based on the following logic:
  - OR for tags within the same category.
  - AND for tags across categories.
- Click on Clear and then Apply to clear all tags filters.
- Click on the X on the top right to close the tags filter by , any edits to the filter criteria will be lost if not previously applied.
  Read more about Tags here.
Clear All filters - clears any filters that have been applied.
Display selection:
- Choose 30, 60, or 90 and Newest or Oldest blasts from the dropdown list.
- This dictates the limit of blasts that are shown from other filters criteria and whether these blasts are picked from oldest first or newest first.

Layer Administration

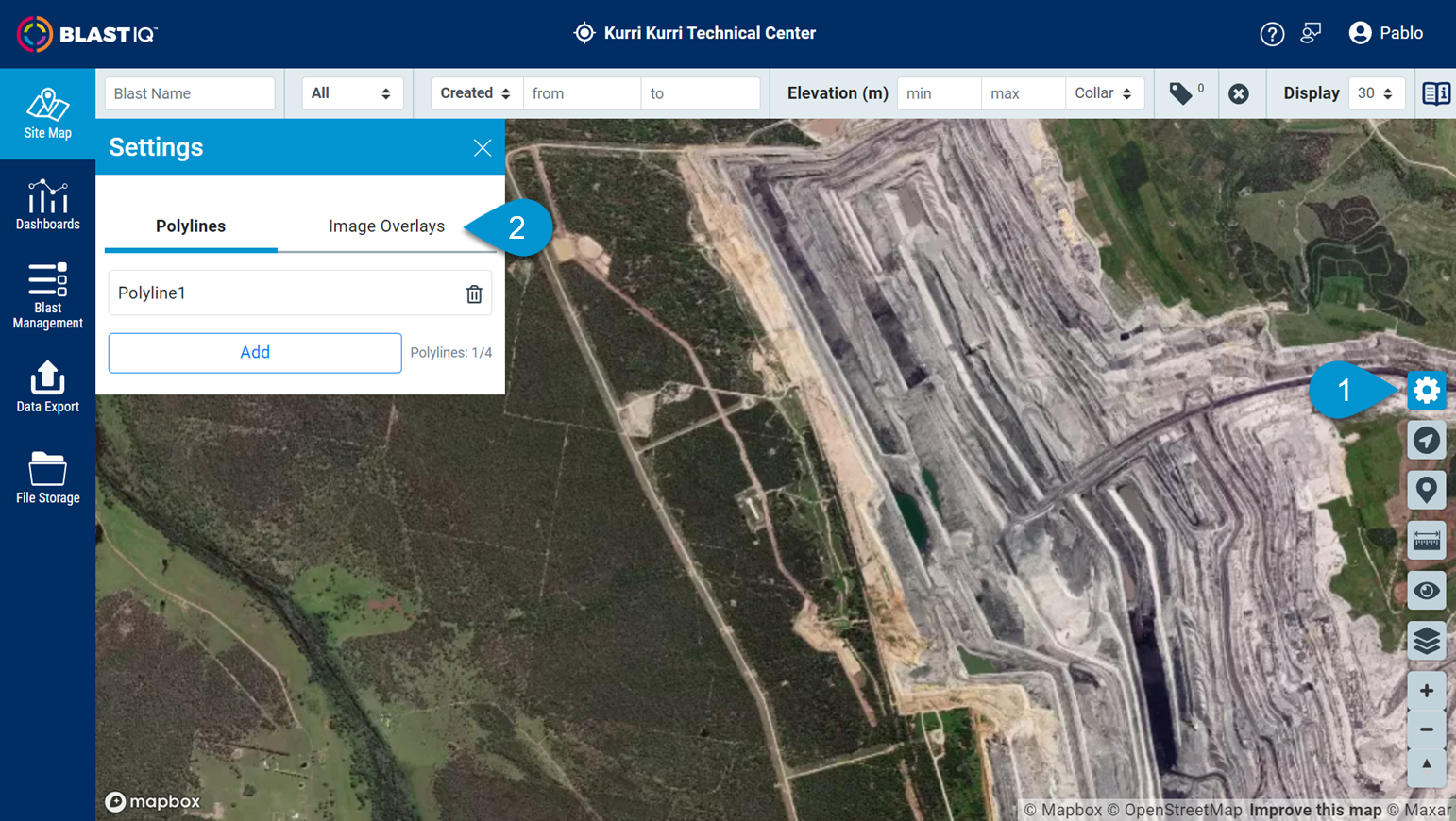

Site Map enables users to upload polylines and image overlays that can be seen in Site Map and other dashboards. To access settings and upload a polyline or image overlay:

Select the gear icon located in to bottom right corner of the map.
Select polylines or image overlays.

Identify a Previously Uploaded Polyline

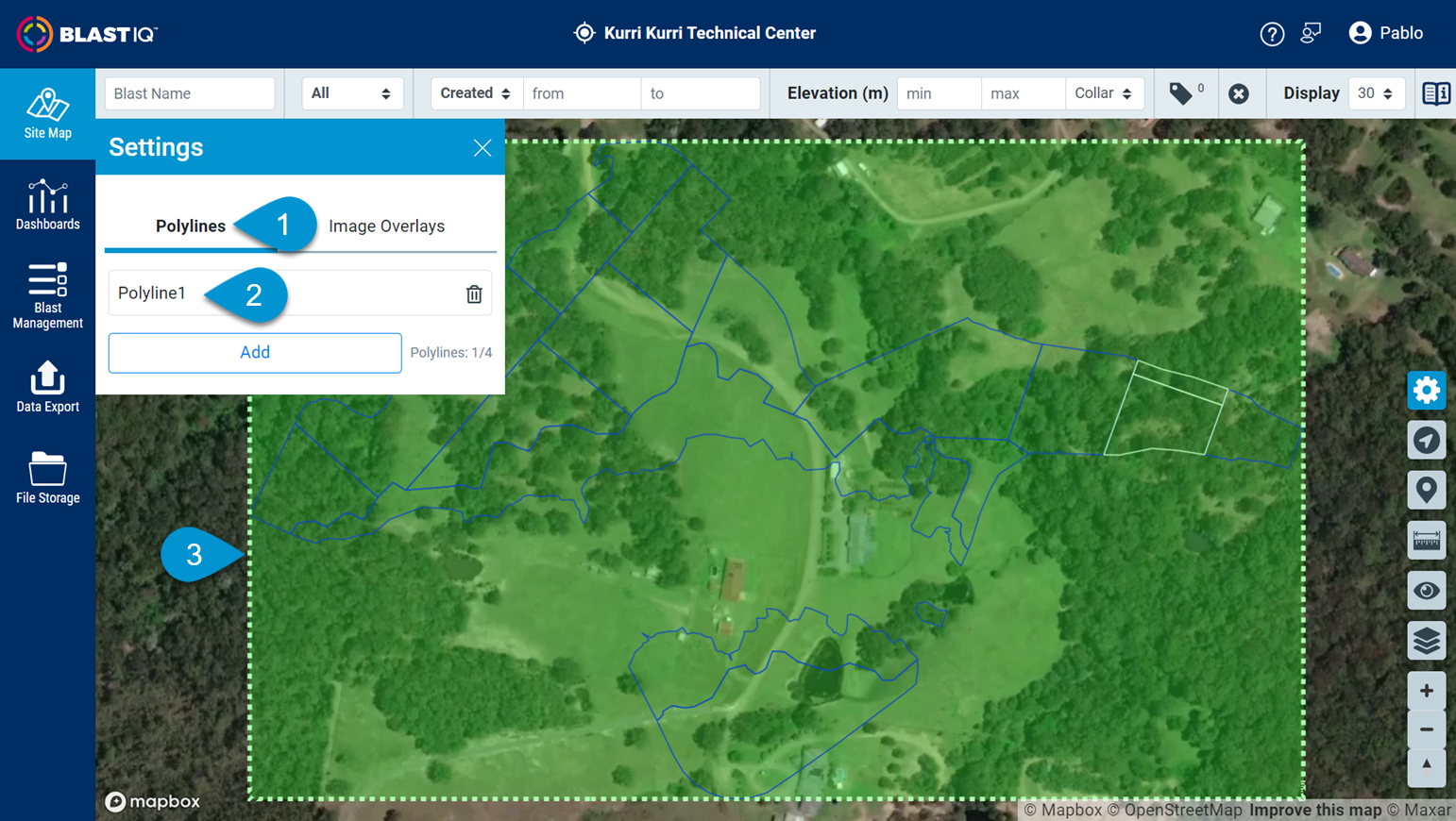

Click on "Polylines" within the Site Map Settings menu.
Click on an existing polyline.
The Site Map will center and draw a green square around the selected polyline.

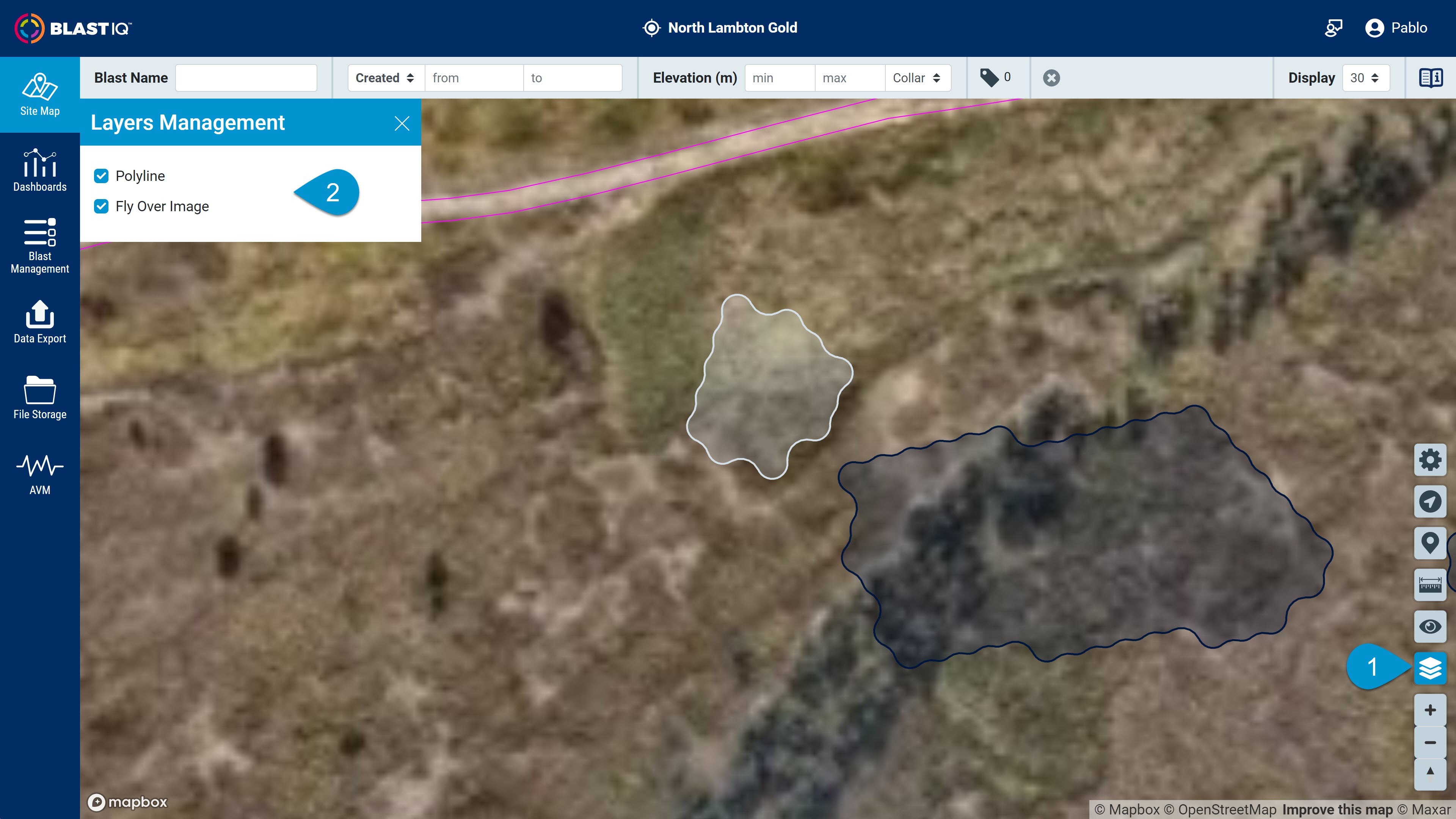

Note: The polyline will only be visible if it is turned on in the Layers menu.

Upload a New Polyline

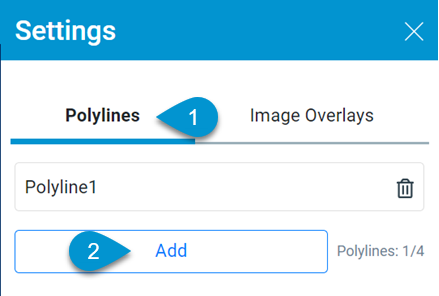

Click on "Polylines" within the Site Map settings menu.
Click on "Add".

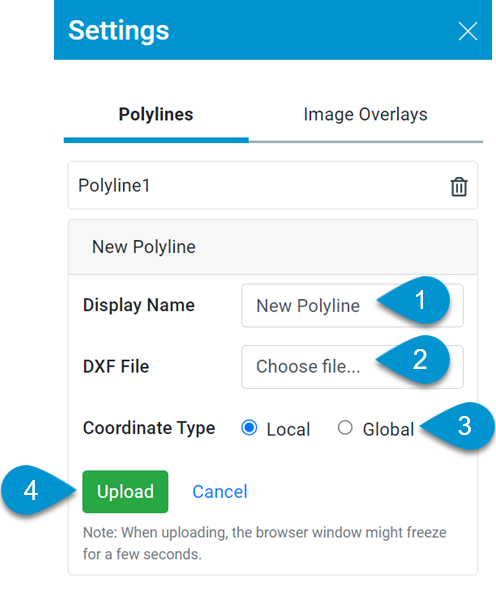

Type the name of the polyline.
Select "Choose file..." and select the file to upload using your device's file browser.
Select the file's coordinate type: Global (Lat, Long) or Local (Easting, Northing).
Click on "Upload".

Note: When uploading, the browser window might freeze for a few seconds. Polylines will display on the map after a few seconds (depending on your internet connection speed).

Information:

- The uploaded polylines will be visible to all users with access to the site.
- Supported file formats:
  - DXF - recommended for pit survey lines.
- 5MB file size limit. To ensure optimum load times, decimation (reducing the number of points) of the DXF file is recommended to ensure the file size is below the 5 mb limit.
- Up to 4 DXF files are supported per site.
- Only 1 polyline can be displayed at once in the dashboards. All polylines can be visualised in the Site Map.

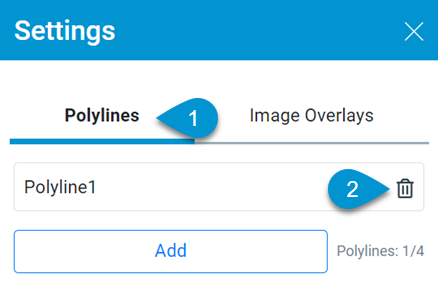

Delete a Polyline

Click on "Polylines" within the Site Map settings menu.
Click on the "Delete" icon for the desired polyline.
Confirm.

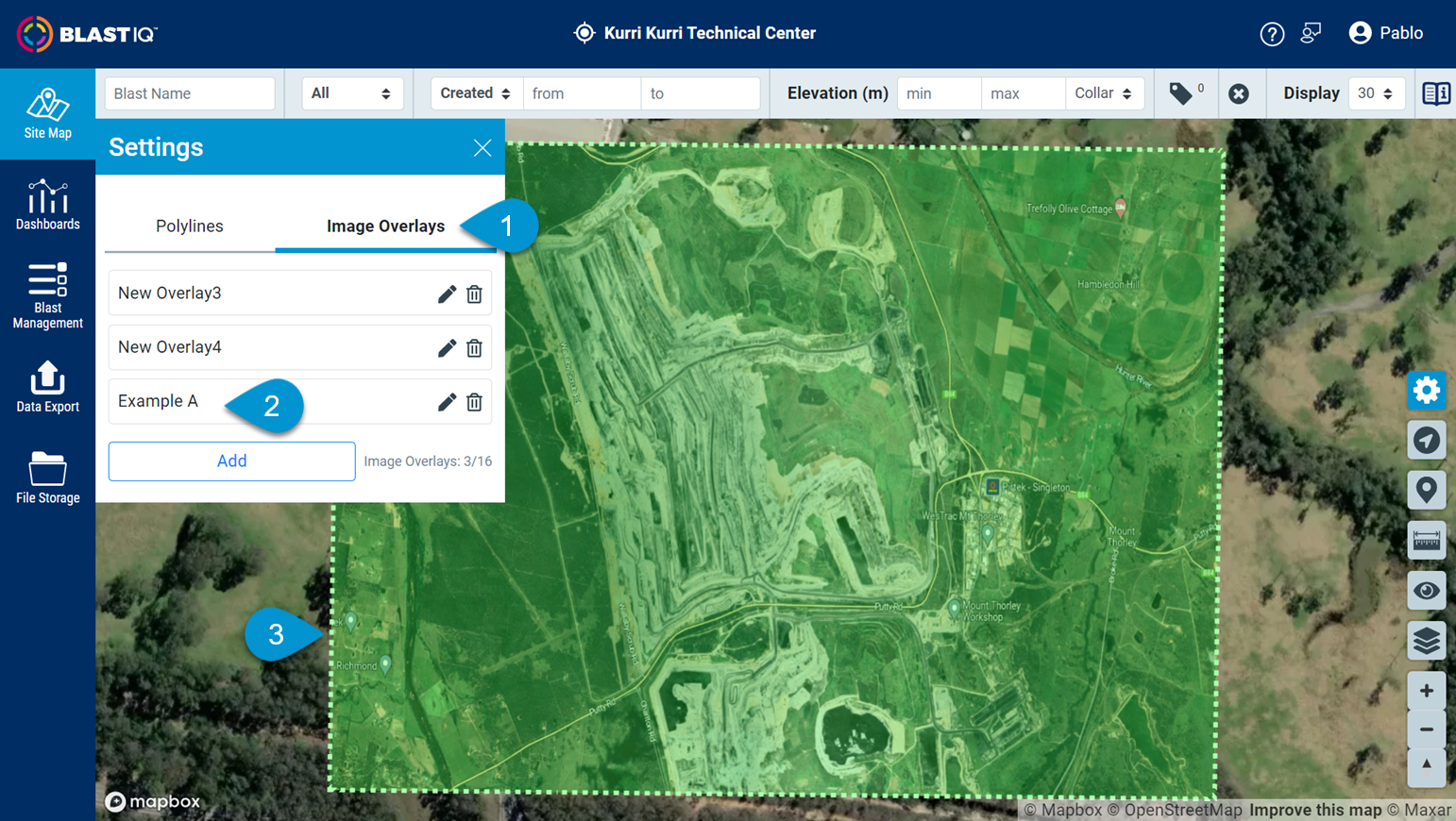

Identify a Previously Uploaded Image Overlay

Click on "Image Overlays" within the Site Map Settings menu.
Click on an existing image.
The Site Map will center and draw a green square around the selected image.

Note: The image will only be visible if it is turned on in the Layers menu.

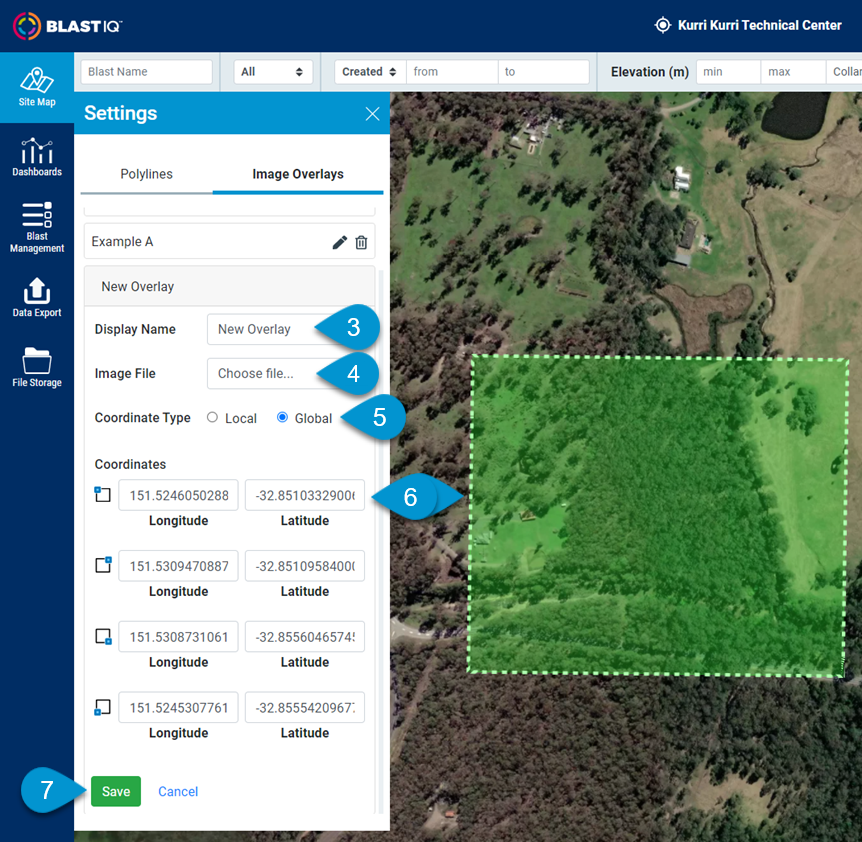

Upload a New Image Overlay

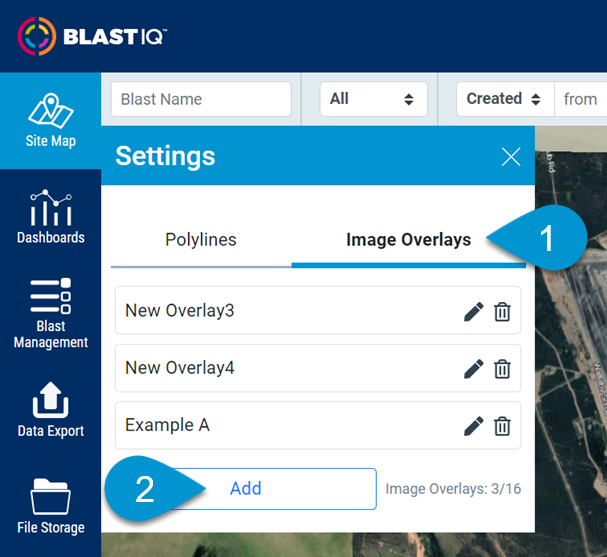

Click on "Image Overlays" within the Site Map Settings menu.
Click on "Add".
Type in a name for the image.
Select "Choose file..." and select the file to upload using your device's file browser.
Select the file's type of coordinates: Global (Lat, Long) or Local (Easting, Northing).
Edit the coordinates for the four corners of the image. Use the green rectangle displayed on the map as reference.
Select Save.

Note: When uploading, the browser window might freeze for a few seconds, the image overlay will display on the map after a few seconds (depending on your internet connection speed).

Information:

- The uploaded file(s) will be visible to all users with access to the site.
- Supported file formats:
  - JPEG - recommended for flyover images.
  - PNG - recommended for simple cad exported images.
  - AVIF - recommended for large compressed images and where transparency is required.
  - WEBP - recommended for large compressed images and where transparency is required for MS Edge users.
- 10MB file size limit. To ensure loading speed performance. It is recommended the files are compressed to below 1mb.
- The maximum supported image resolutions are:
  - Desktop: 16384px (width/height).
  - Mobile device: 4096px (width/height).
  - More information:
    - Check the hardware support for webGL on https://webglreport.com/?v=2
    - Check the texture max size.
    - If the image is beyond the size, you will see a black box.
- Up to 16 image overlays can be uploaded per site. Users can rename, edit, and delete existing images individually.
- Only 1 image overlay can be turned on and visualised at once in the dashboards. All images can be visualised in the Site Map.

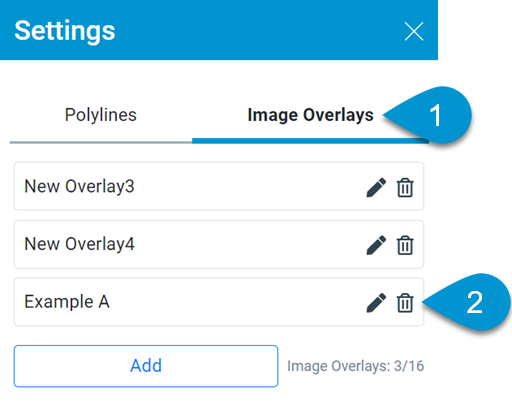

Delete an Image Overlay

Click on "Image Overlays" within the Site Map settings menu.
Click on the "Delete" icon for the desired image.
Confirm the operation.

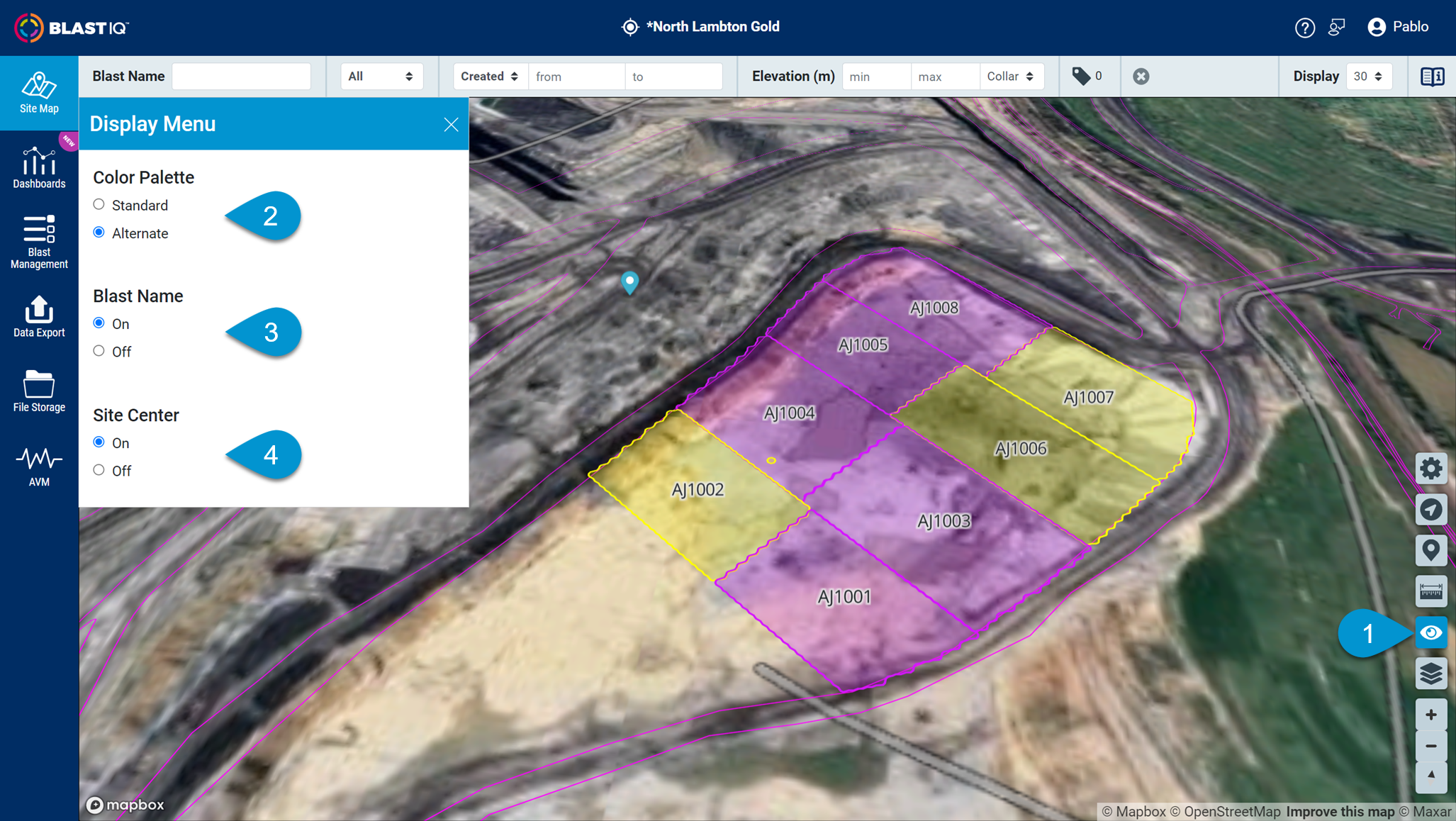

Other Tools

Site Map provides tools to enable easier navigation and identification of issues with coordinate transformations:

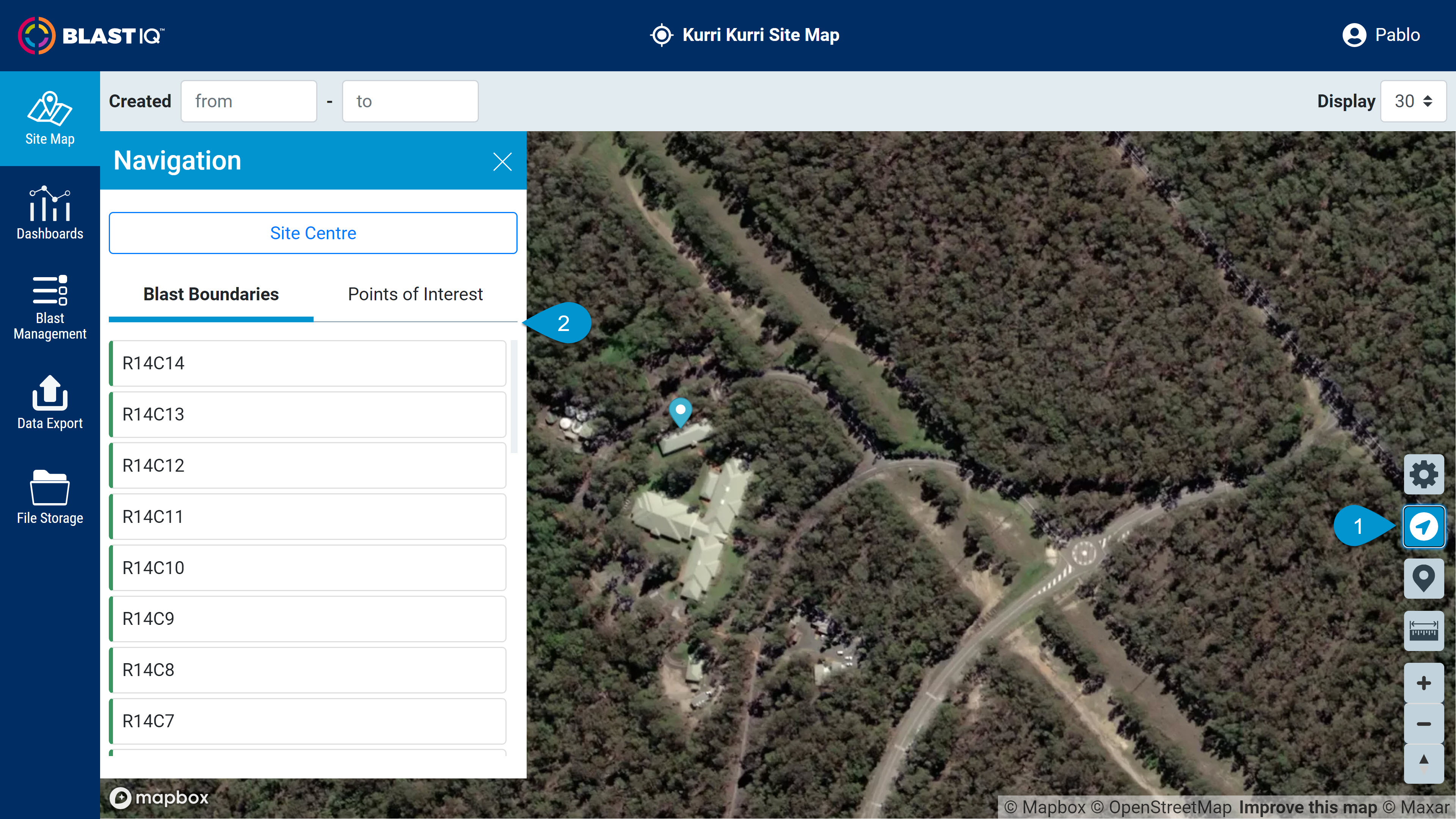

Select the Navigation icon to open the tool.
Select any of the following elements to focus the map view on it:
- Site Centre.
- Blast Names.
- Points of Interest.

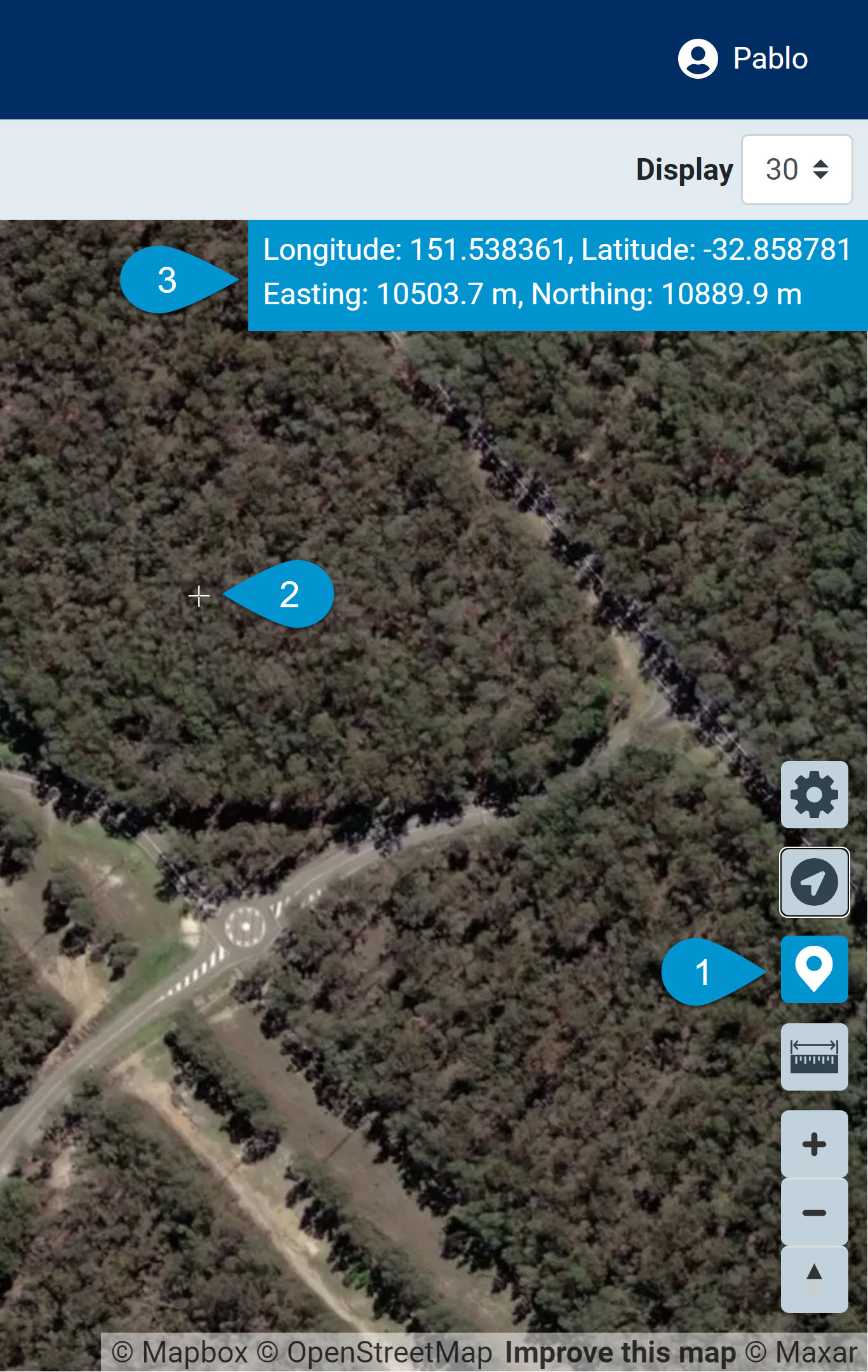

Select the location icon to turn on the tool.
An information box will display on the top right corner indicates the location on the mouse cursor in Global and Local coordinates.

Select the measurement icon to open the tool.
Select the map to draw points on the map. Lines will be drawn to connect these points.
The aggregated distance of the drawn lines is displayed in an information box in the top right corner of the map.
