- Release Date:
- 7th March 2022
- KBA Summary:
- This Knowledge Base Article describes using the Loading Weight Dashboard in BlastIQ™ Insights.
Summary
BlastIQ™ Insights enables users to visualise the loading weight compliance of holes within a blast plan via the Loading Weight Dashboard.

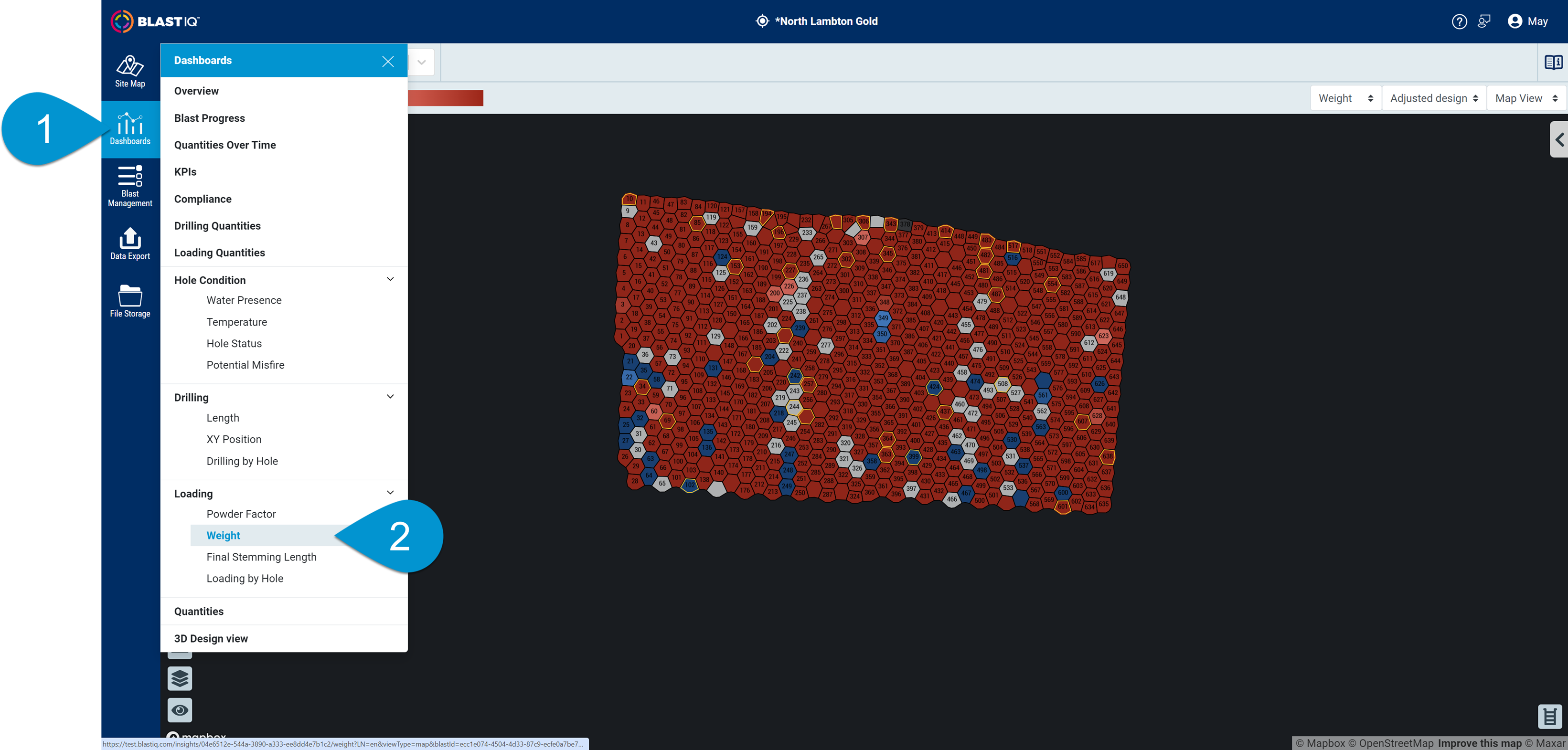

To navigate to the Loading Weight dashboard:
- From the BlastIQ™ Insights toolbar, select Dashboards.
- From the Dashboards menu, select Loading > Weight.

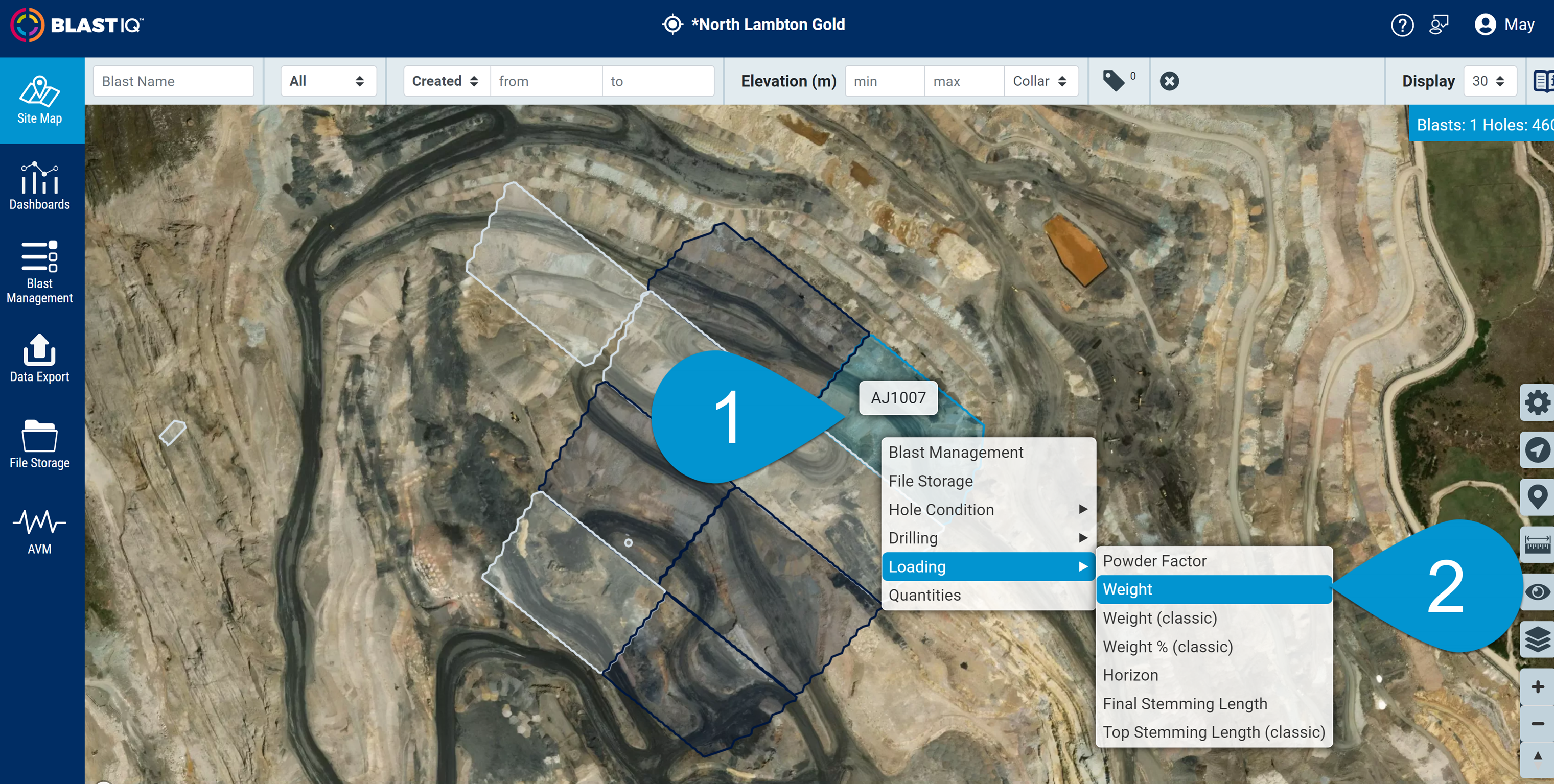

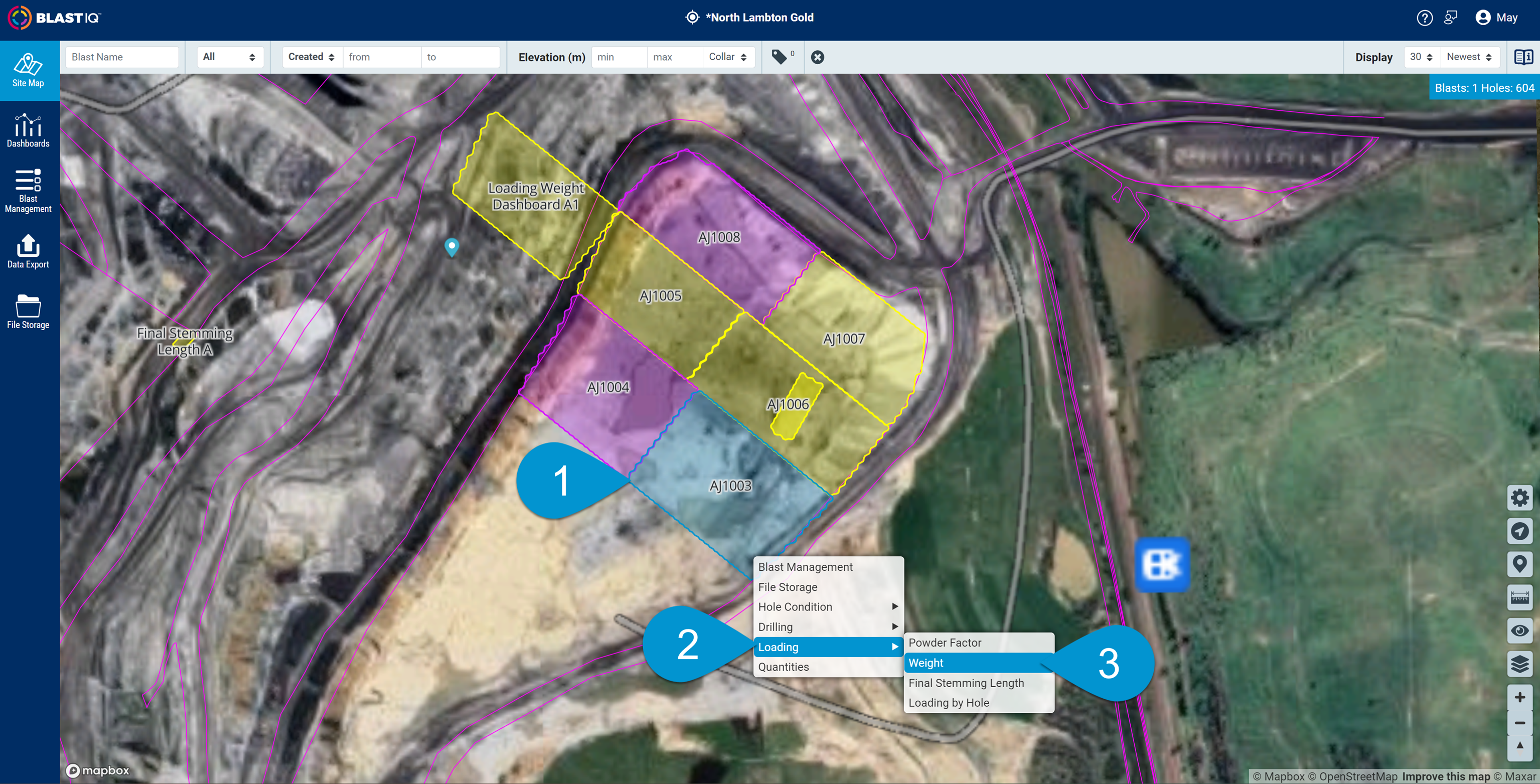

Via Site Map
- Select a single blast by clicking a blast on the map.
- Right-click and navigate to the "Loading."
- Select "Weight."

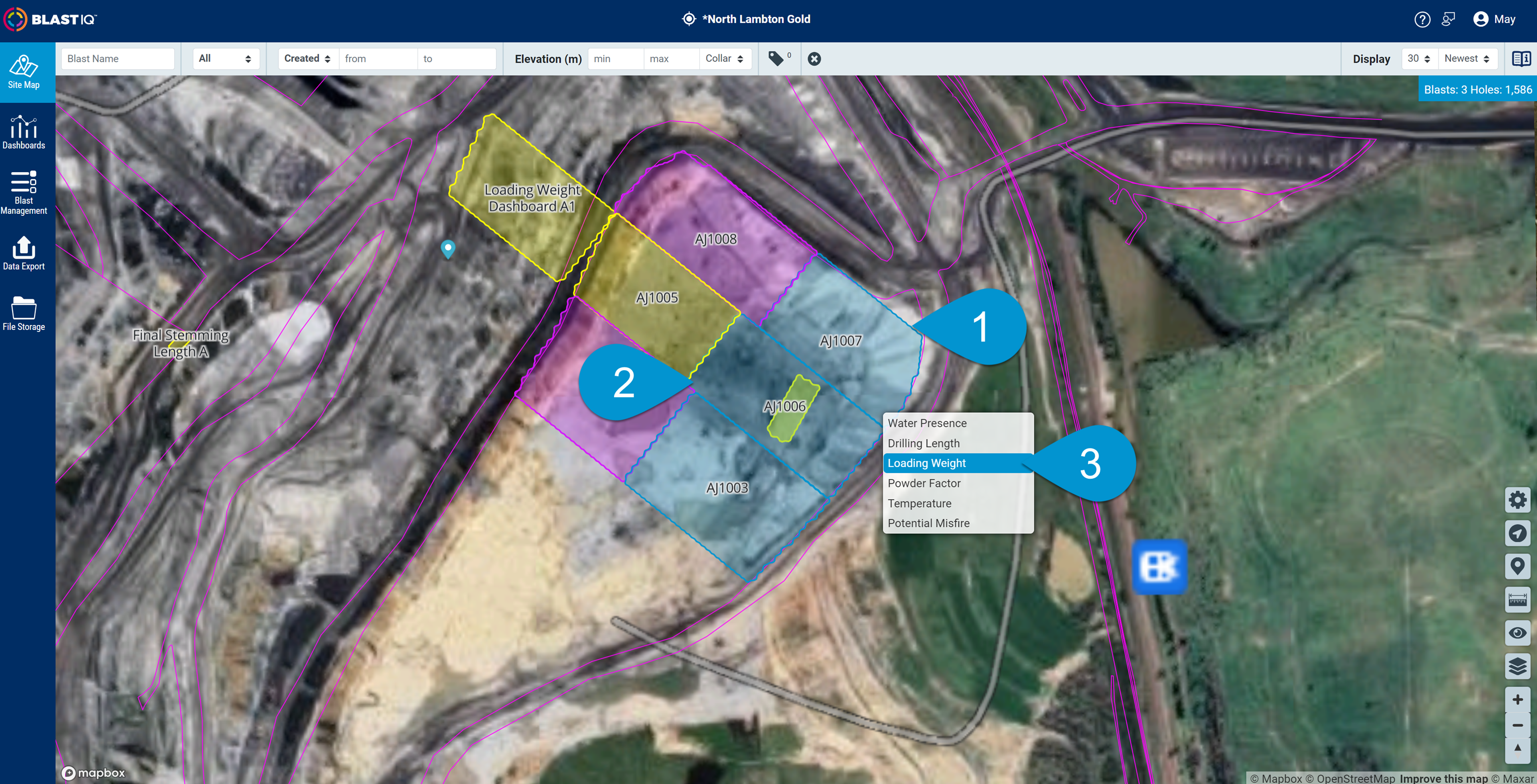

To access the Loading>Weight dashboard for multiple blasts.
- On the Site Map, select 2 or more blasts by clicking on them on the map.
- Right-click on one of the selected blasts.
- Choose Loading Weight from the menu.
To pan around the Loading Weight Dashboard:
- Activate the map by placing the mouse cursor anywhere on the map and clicking the screen, then use the Up, Down, Left, or Right arrows on the keyboard; or
- Place the mouse cursor anywhere on the Loading Weight Dashboard map, press and hold the left mouse button, and move the cursor as required.
To rotate and tilt the Loading Weight Dashboard:
- Place the mouse cursor anywhere on the map, press and hold the right mouse button, and move the cursor as required or
- Place the mouse cursor anywhere on the Loading Weight Dashboard map, press and hold Ctrl on the keyboard, press and hold the left mouse button, and move the cursor as required.

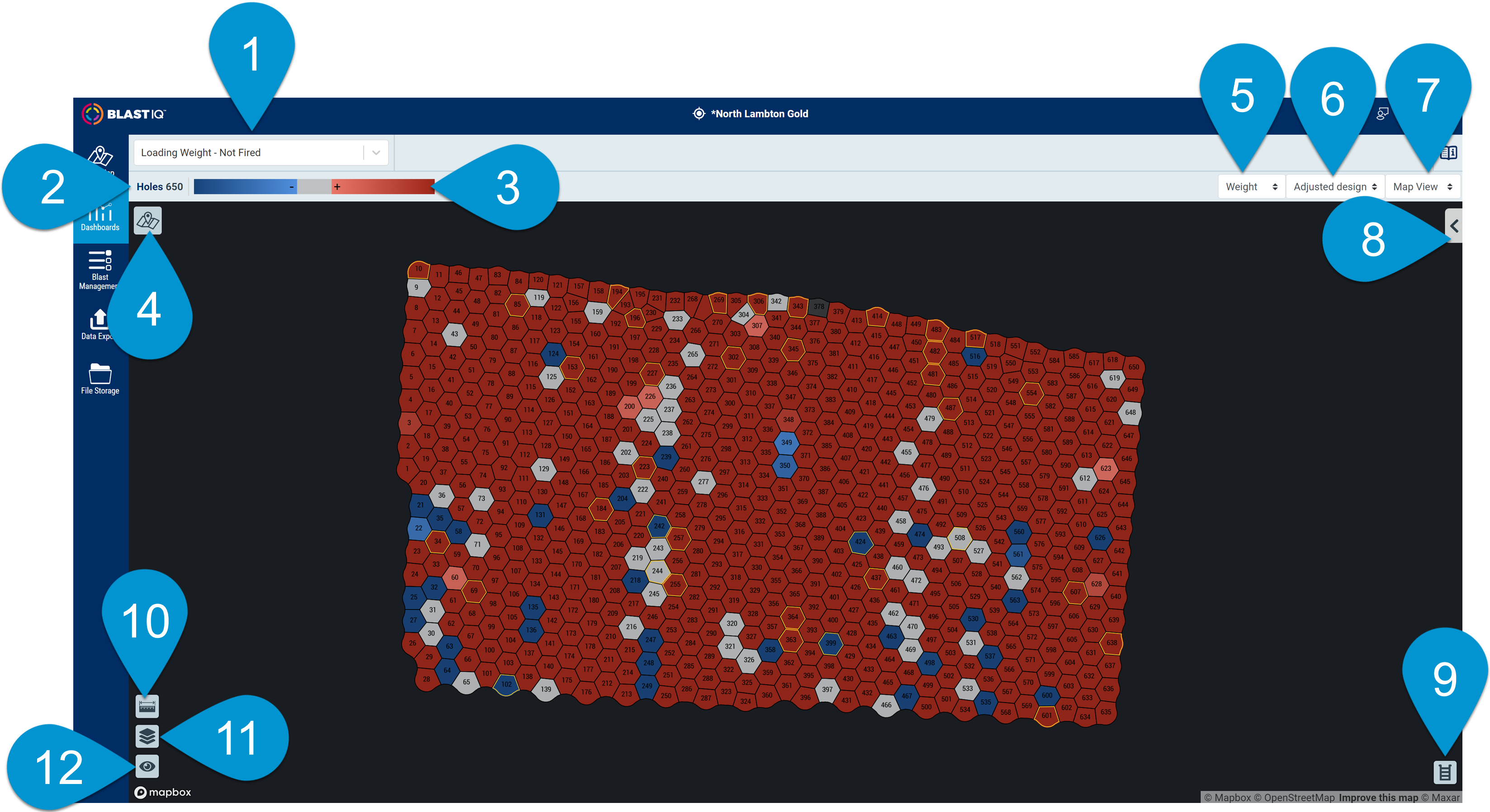

The following information is shown on the Loading Weight Dashboard:
- Blast Name Selector.
- Total Number of Holes.
- Colour Legend.
- Back to Site Map.
- Measure Selector.
- Weight
- Weight %
- Design Selector.
- Design
- Adjusted Design
- View Selector.
- Map View
- Table View
- Summary and Plots.
- Hole Details Panel.
- Measurements.
- Layers.
- Display.
Detailed information on each section:
-

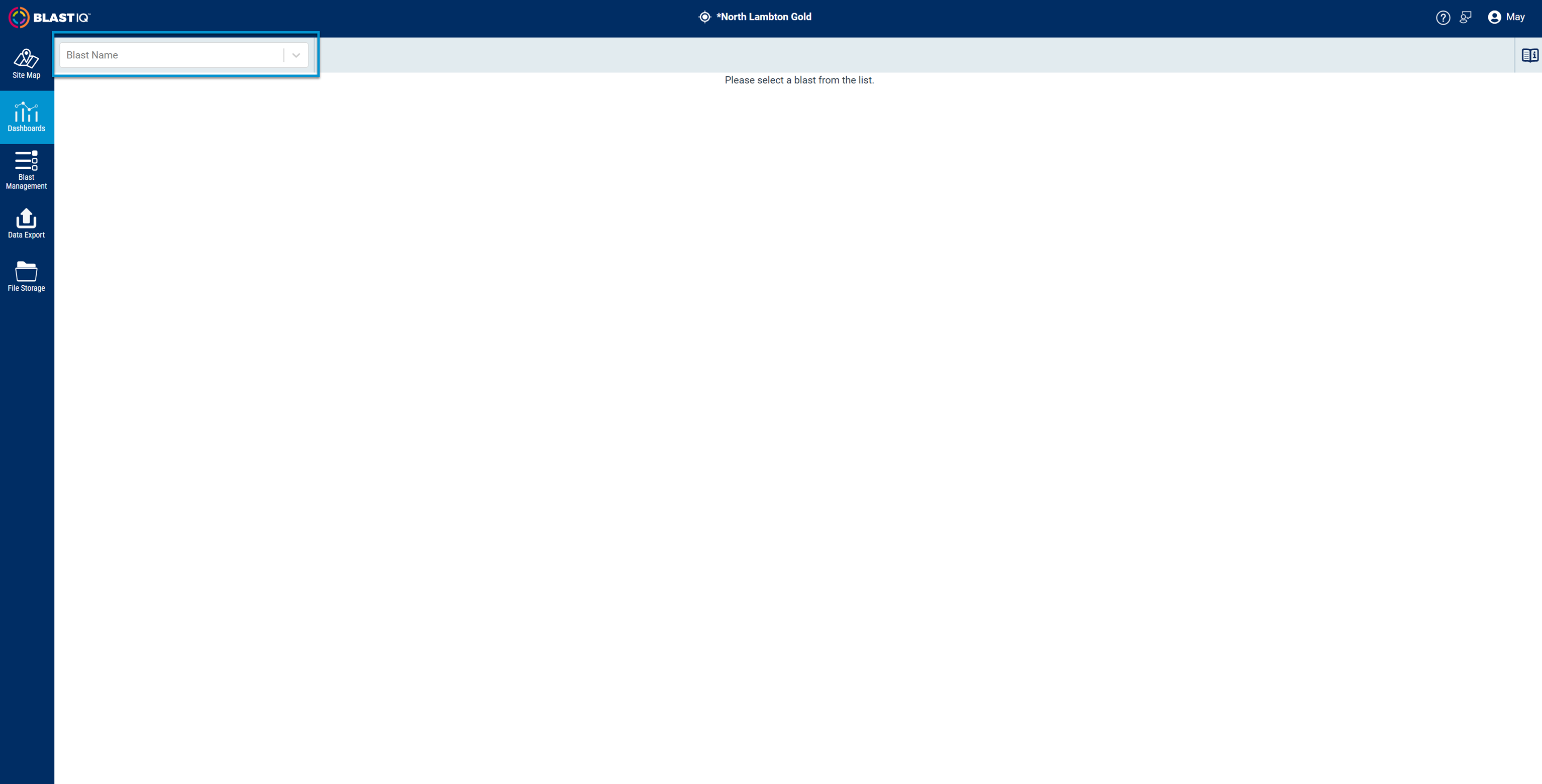

Blast Name Selector
- Select a blast from the drop-down list.
- The user can type in to search for the desired blast.
-

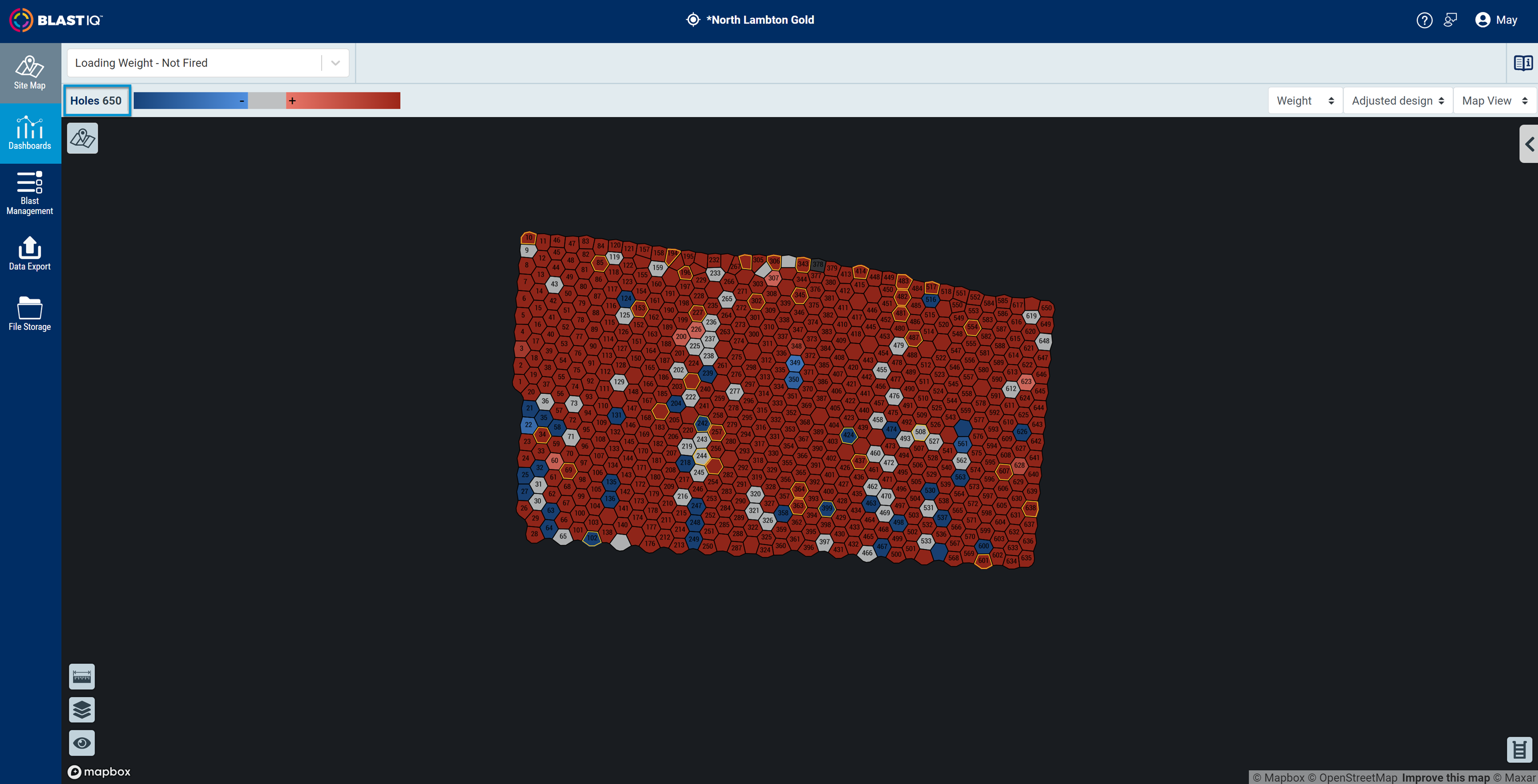

Total Number of Holes
- Displays the total number of holes in a blast.
-

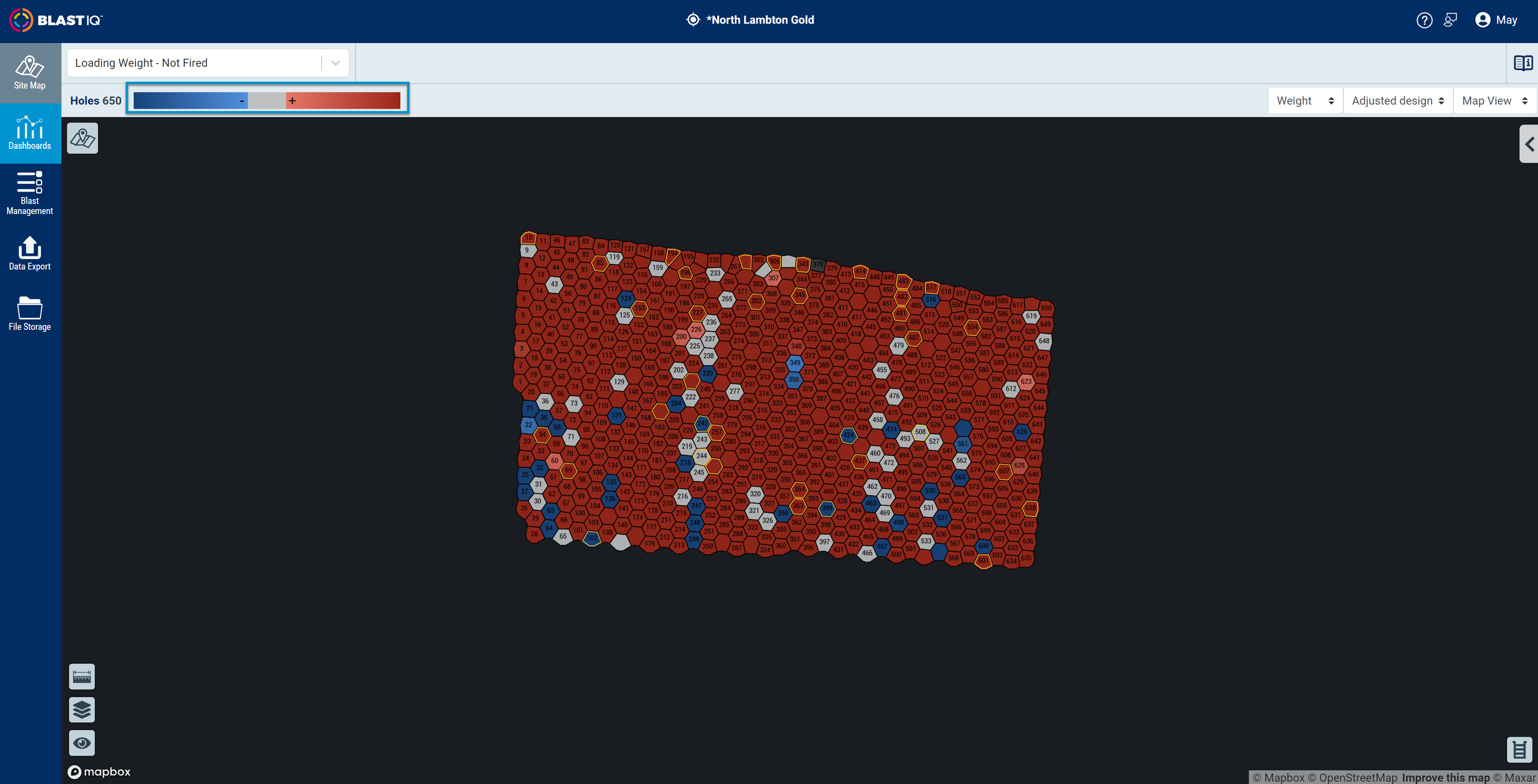

Colour Legend
- Displays a gradient from lighter to darker shades.
- In the case of over and under-loaded holes, the greater the length difference, the darker shade the colour will be.
-
Back to Site Map
- Click the "Back to Site Map" button.
- User will be redirected to the Site Map page.
-

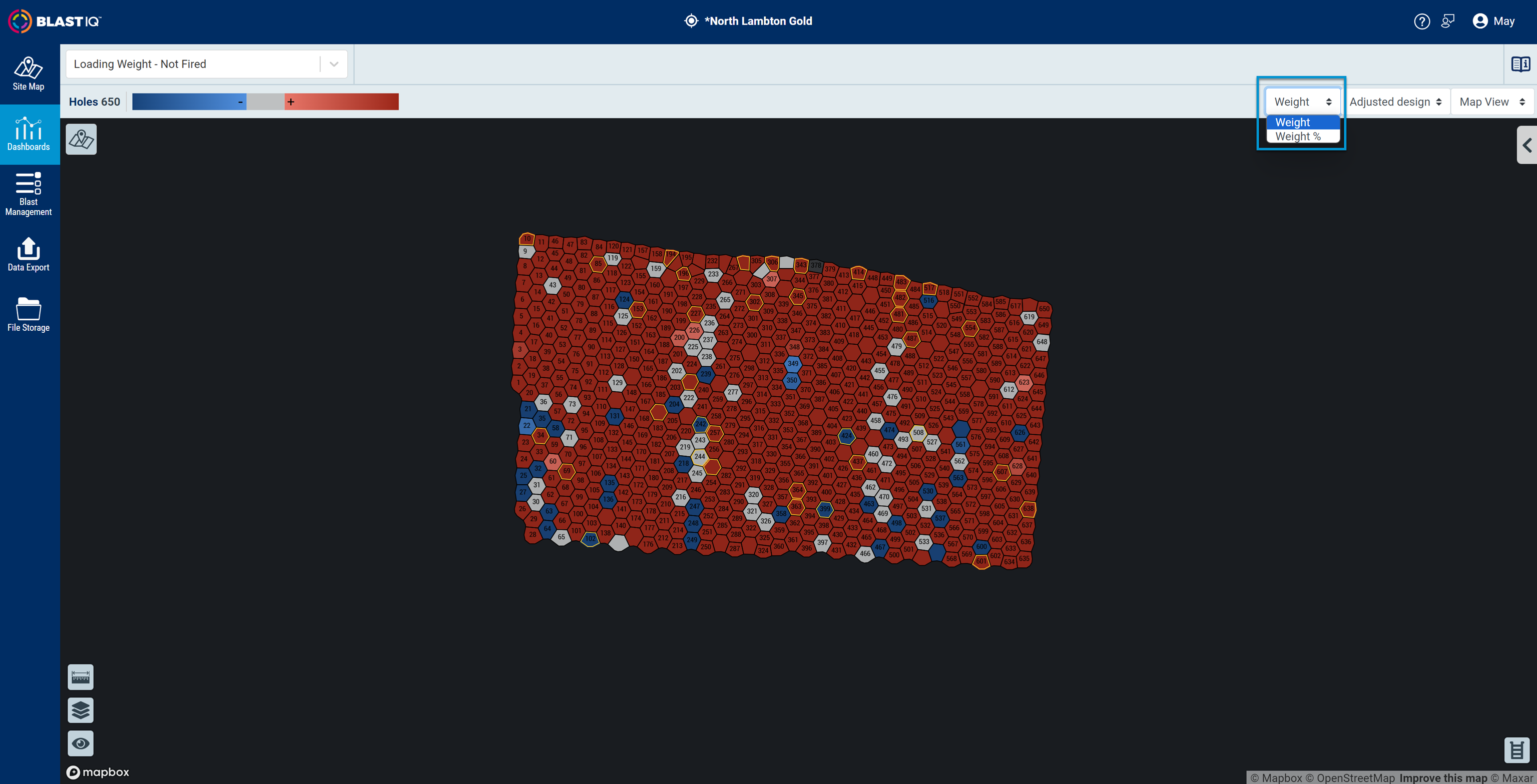

Measure Selector
- Navigate to the measure selector.
- Select "Weight" or "Weight %" from the drop-down list.
-
Weight
- Hole Compliance is based on the Weight (absolute) reporting tolerance.
-
Weight %
- Hole Compliance is based on the Weight % reporting tolerance.
-
Weight
- Dashboard will automatically update based on the selected option.
-

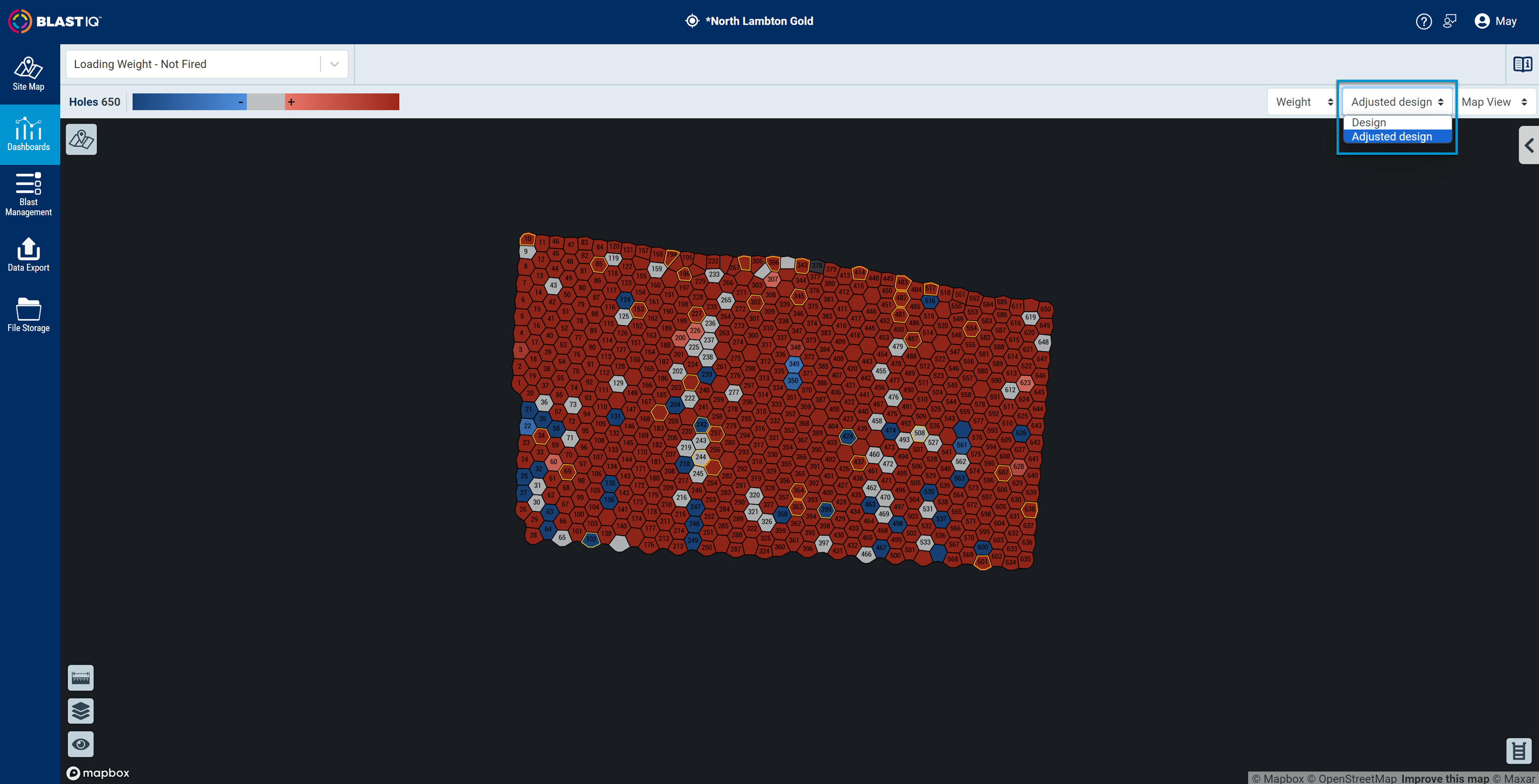

Design Selector
- Navigate to the design selector.
- Select "Adjusted Design or Design" from the drop-down list.
-
Design
- Provides a view of the actual recorded hole loading against the original loading design. Actual Hole Weight vs Design Hole Weight
-
Adjusted Design
- Provides a view of the actual recorded hole loading against the latest adjusted loading design. Actual Hole Weight vs Adjusted Design Hole Weight.
-
Design
- Dashboard will automatically update based on the selected option.
-
View Selector
-

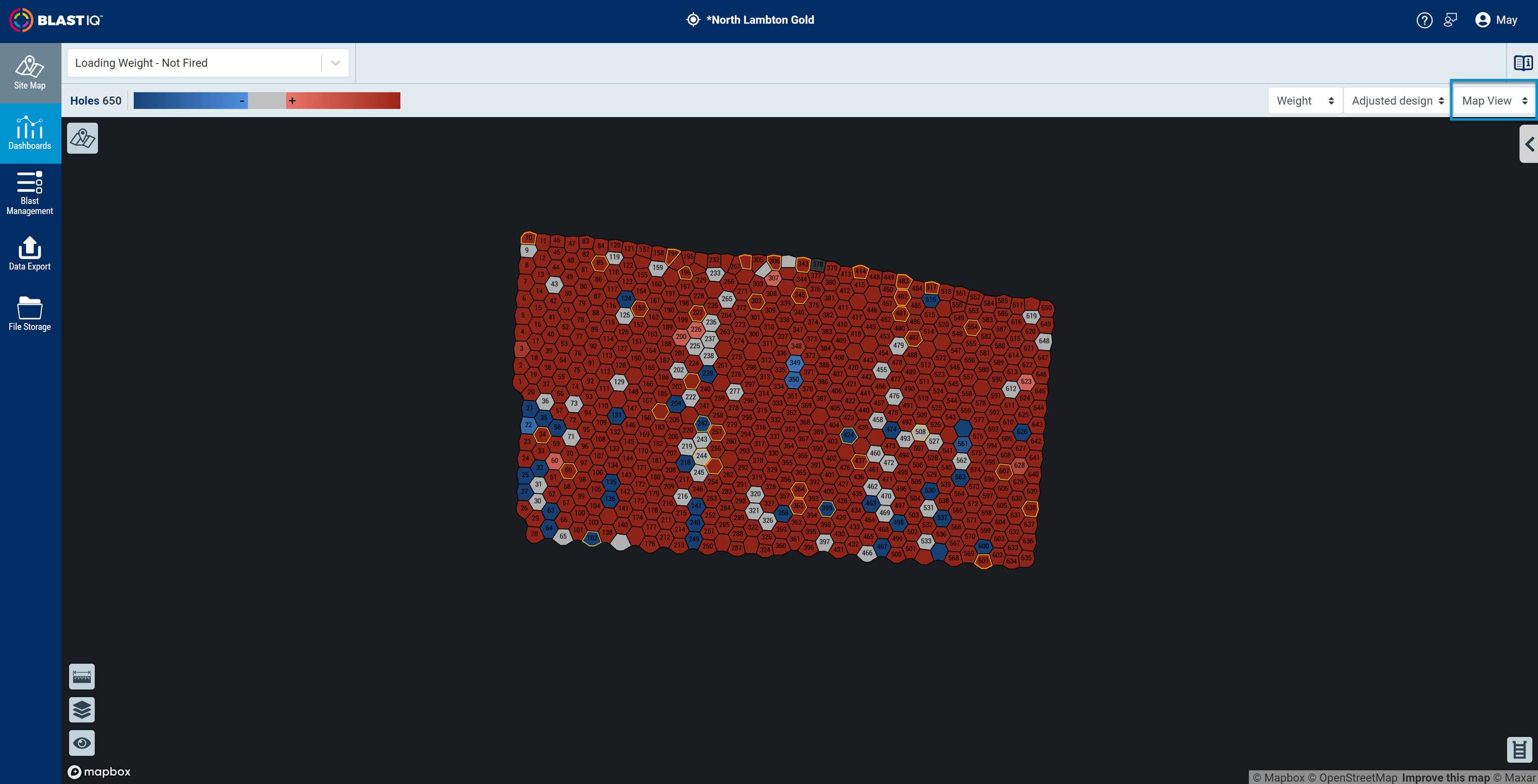

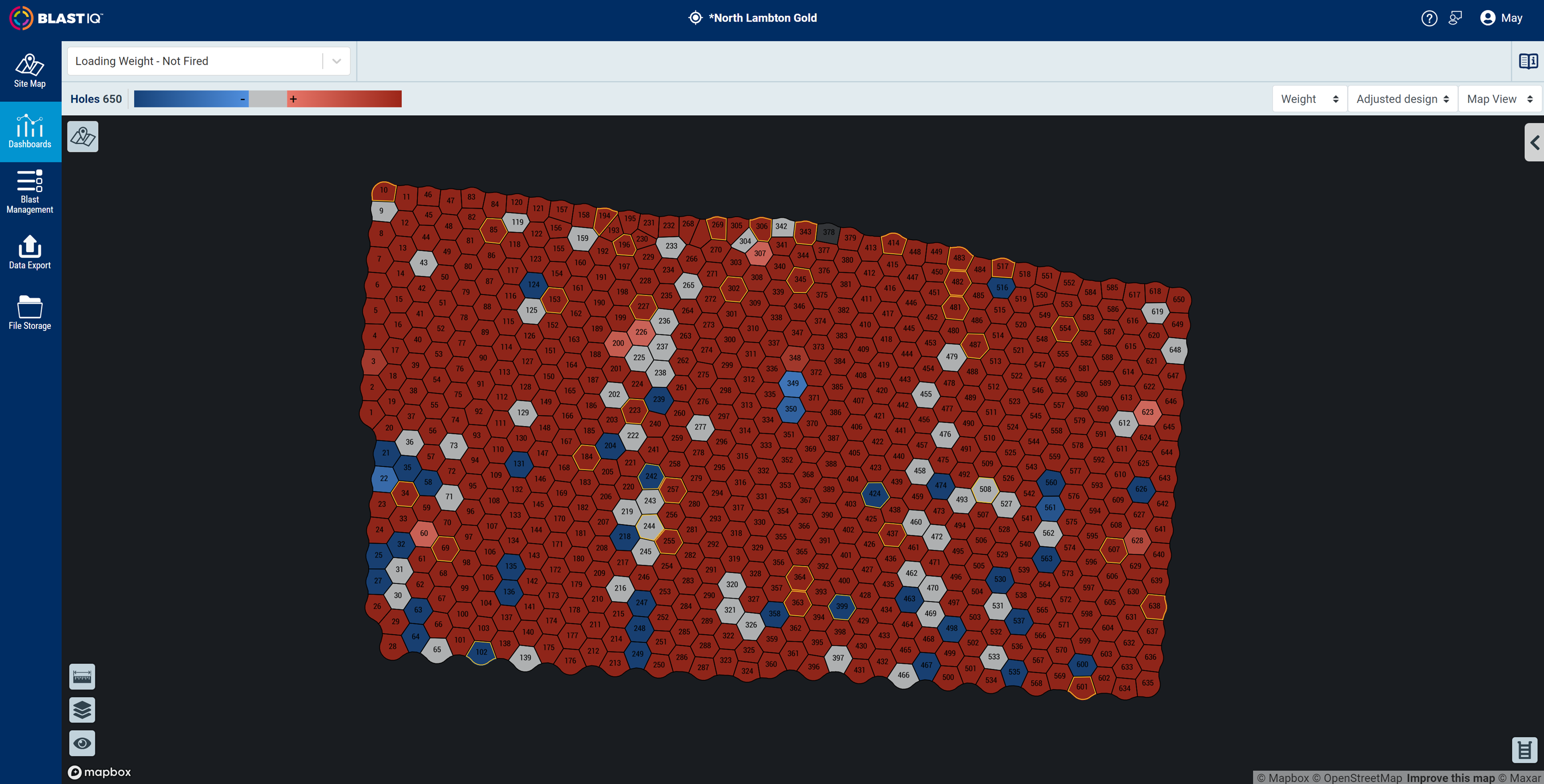

Map View
- Navigate to the view selector.
- Select "Map View".
- Blast Plan view displays an area per hole coloured according to the hole compliance. In the case of over and under-loaded holes, the greater the length difference, the darker shade the colour will be (see the colour legend). To learn more, click here.
- Mouse over the holes to get more information.
-

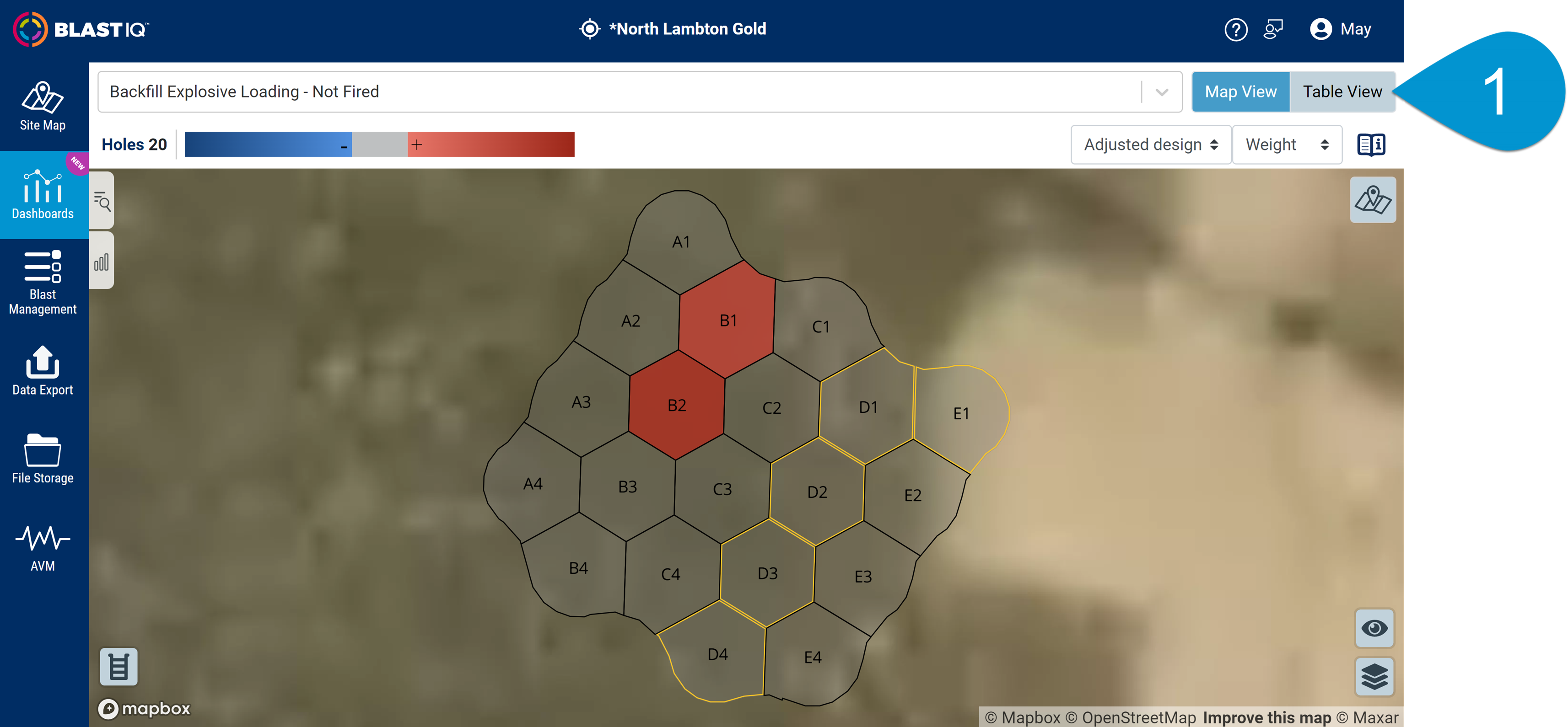

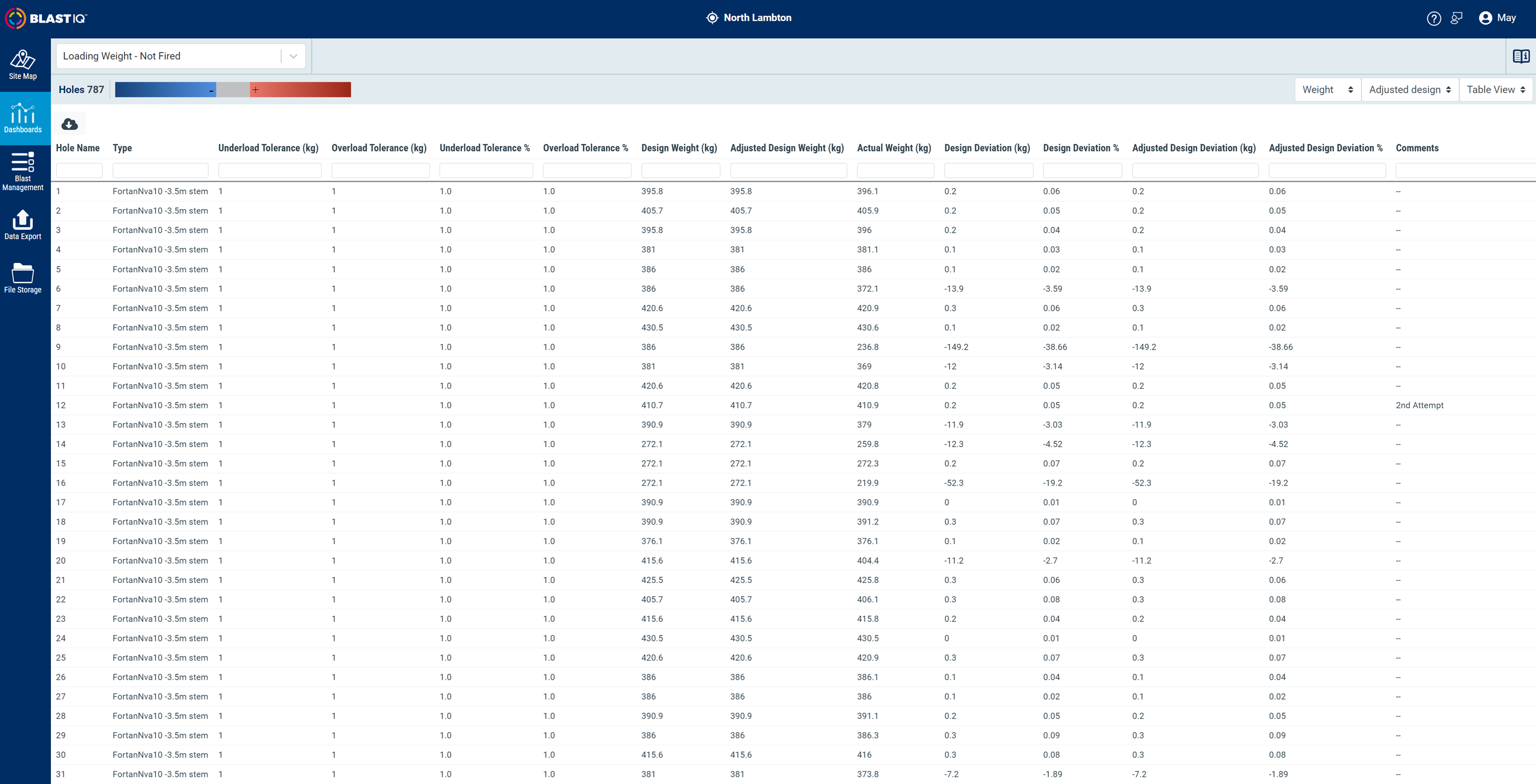

Table View
- Navigate to the view selector.
- Select "Table View".
- Table view will be visible and show relevant data.
- Use the search boxes to filter the data.
- Click on the column headers to sort.
- You can download by clicking the download button to initiate a CSV file download.
-
Map View
-

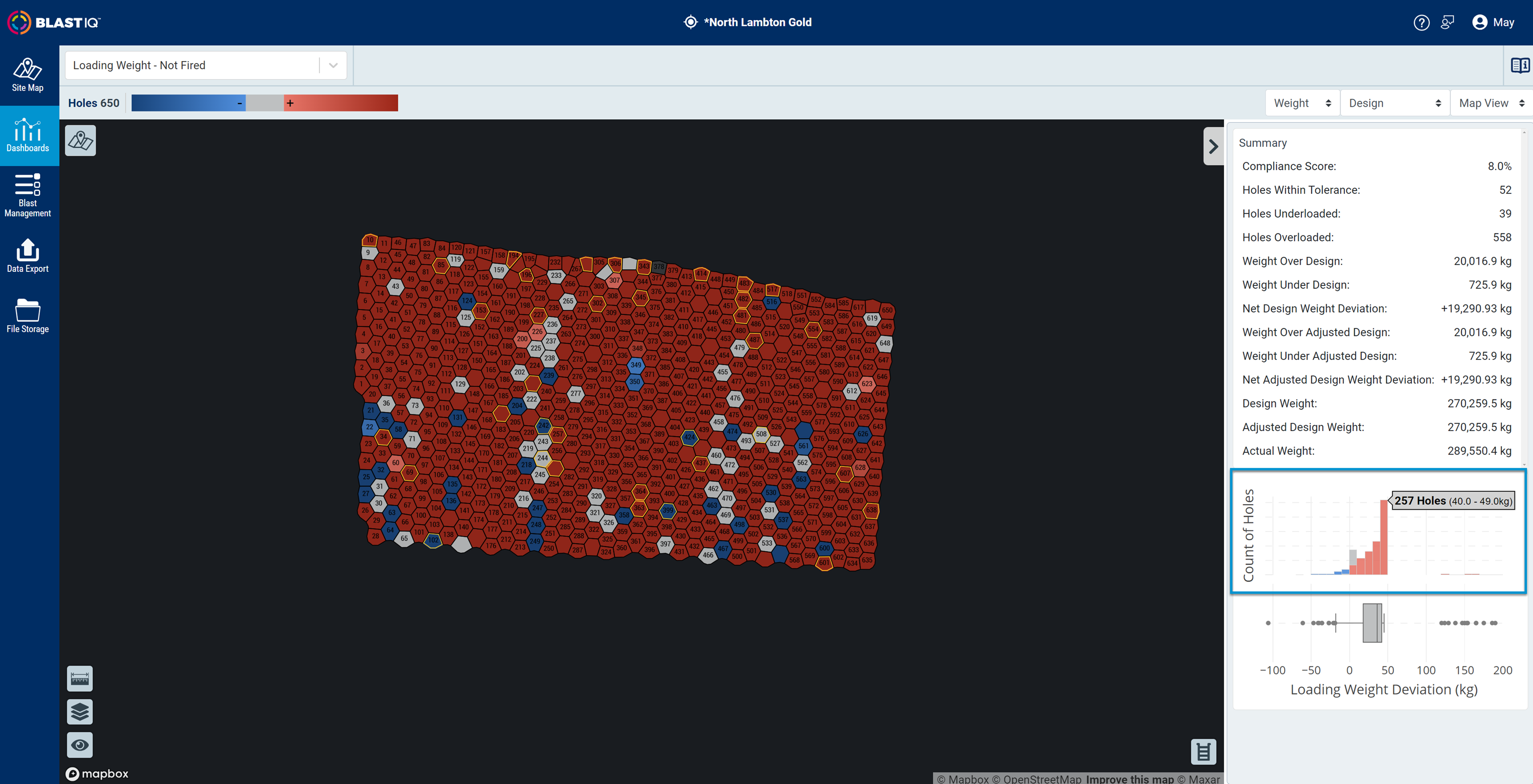

Summary and Plots
-

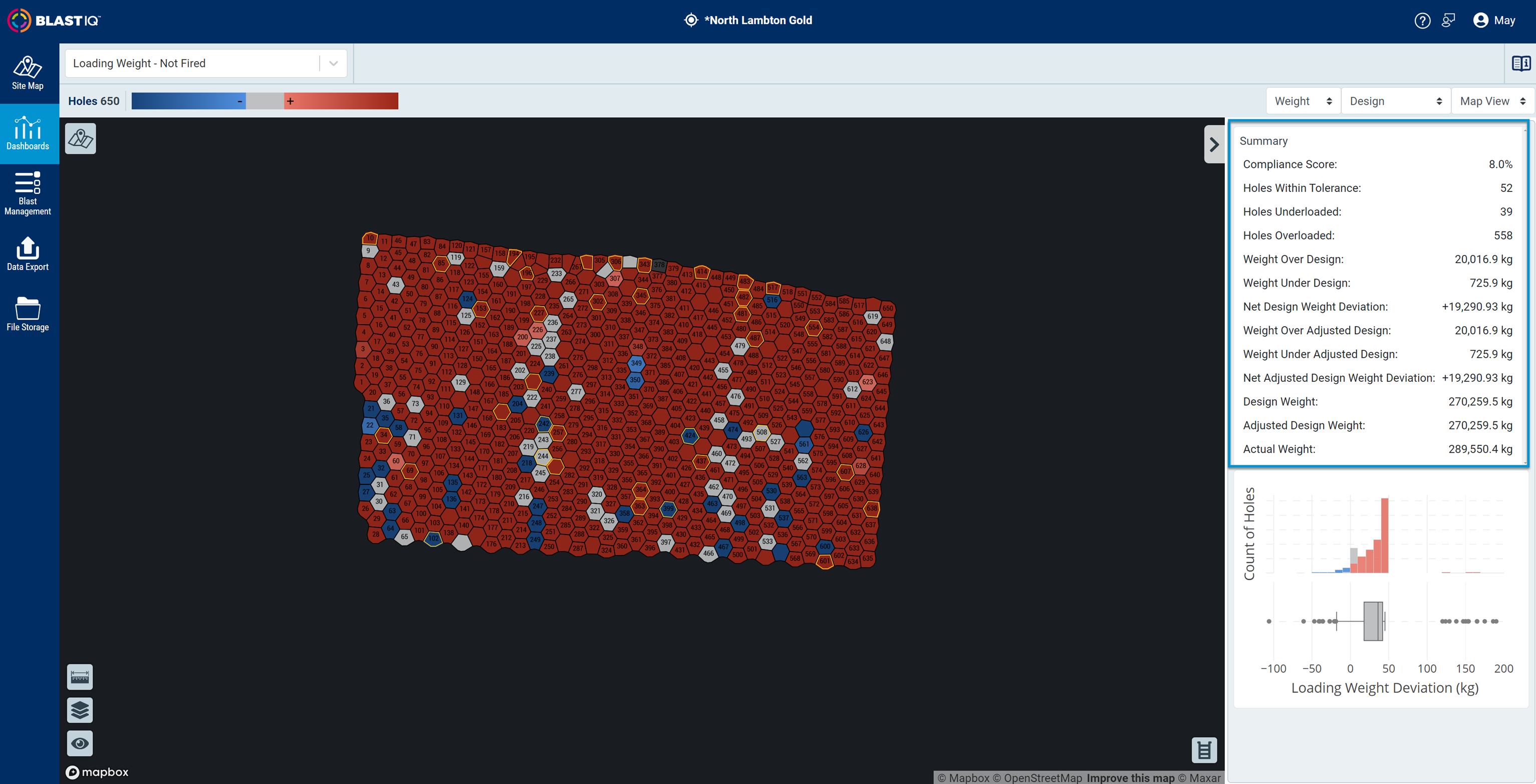

Summary
- Click on the "Summary" icon located in the right-hand corner.
- Navigate to the summary section.
- The blast summary will display the blast's compliance percentage and other helpful statistics.
-

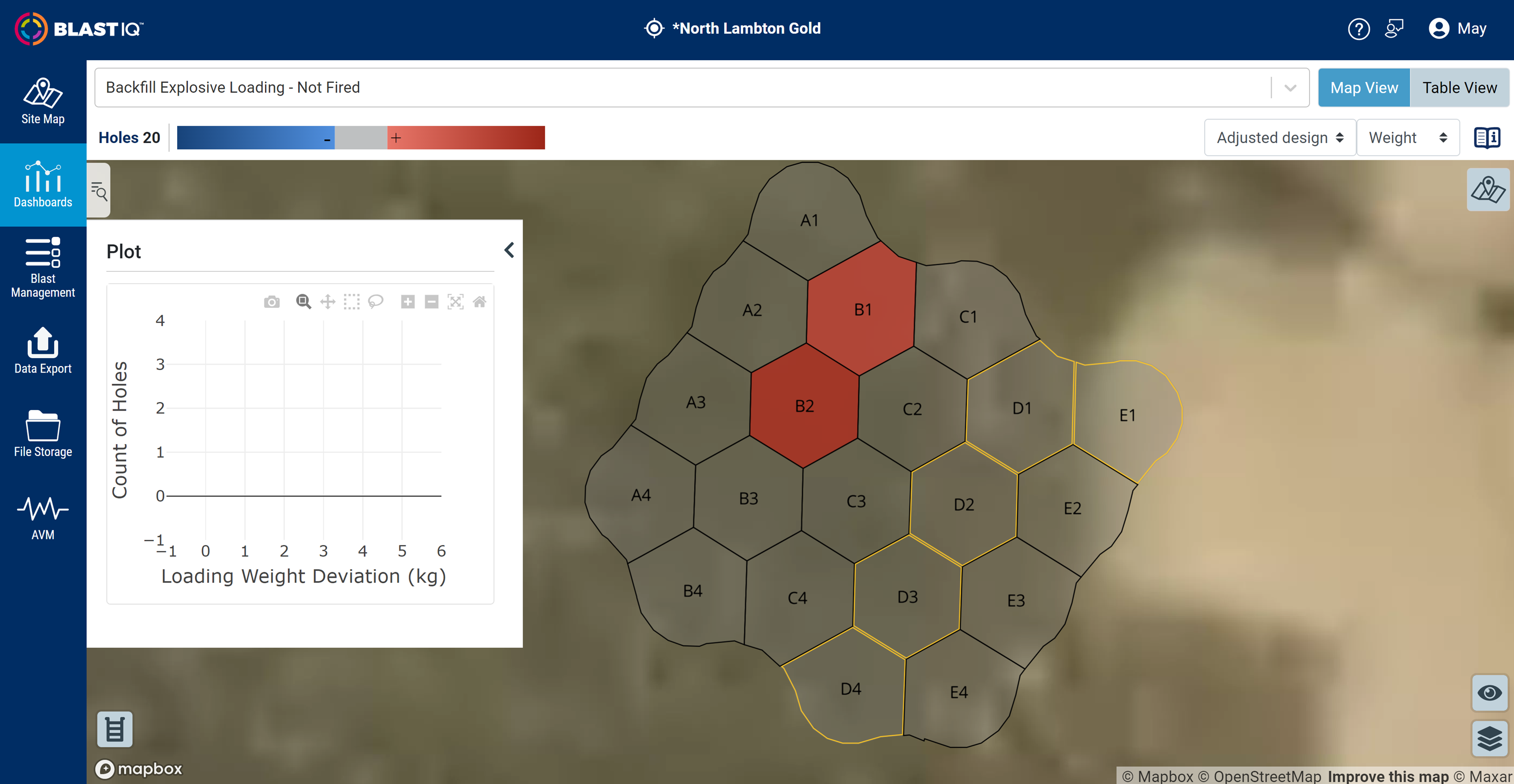

Histogram
- Displays the count of holes for each deviation range.
- Click and drag horizontally to zoom in on a section.
- Double click to reset zoom.
-
Box Plots
- Displays the deviation distribution of the blast. Click here to learn more about this type of chart.
- Click and drag horizontally to zoom in on a section.
- Double click to reset zoom.
-
Summary
-

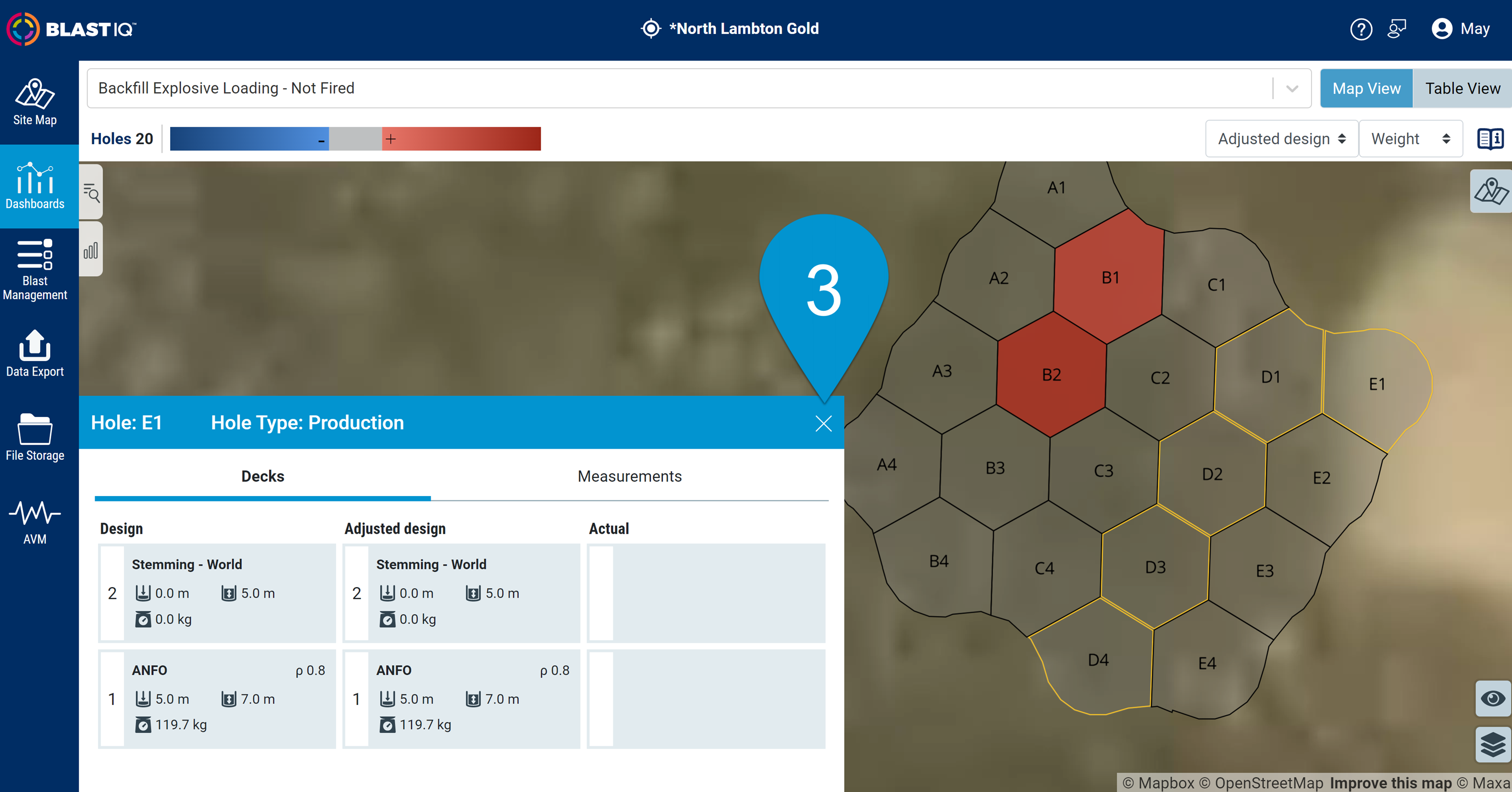

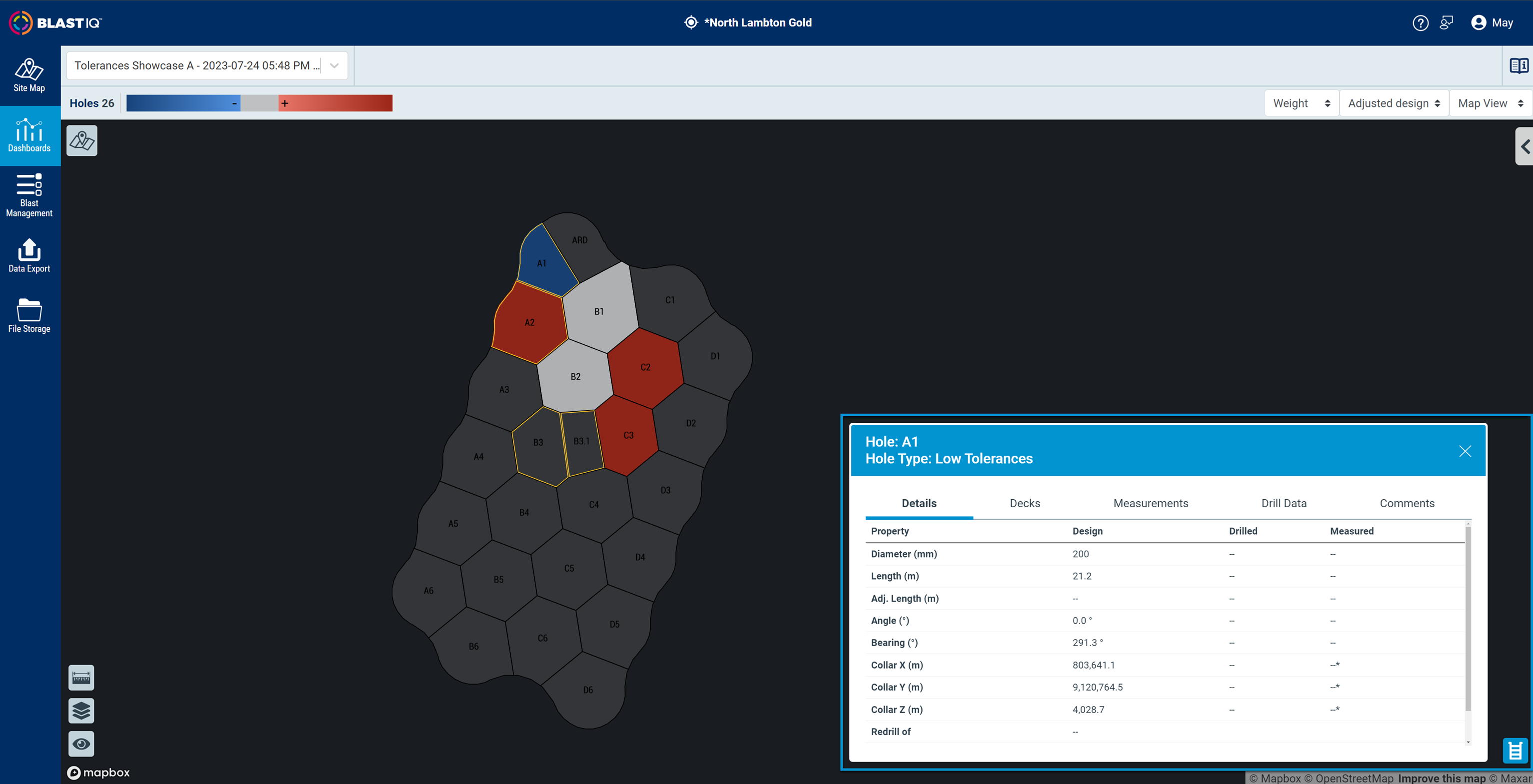

Hole Details Panel
- Click on a hole on the map.
- The hole details panel opens.
- Clicking the Hole Details icon without clicking a hole by default shows no data.
- The hole details panel closes only when the user clicks the "x" button.
- Once the panel is closed and you want to open the panel again, click the "Hole Details" icon at the bottom left-hand corner.
- The panel consists of five tabs: Details, Decks, Measurements, Drill Data, and Comments.
-
Details
- By default, the "Details" will be visible, presenting users with design, drilled, and measured data.
-
Decks
- Decks and relevant properties are grouped by design, adjusted and actual.
- Deck is displayed by a lower number from the bottom to the top (higher number).
-
Measurements
- Provides a concise overview of recorded data, including the time occurrence, associated deck, property details, recorded values, user identity, and the equipment or device used.
- Measurements are ordered by timestamp.
- Sorting is implemented by clicking on the column headers.
-
Drill Data
- Provides a concise summary of drilling-related information. Users will find details such as the average penetration rate, start time, end time, drill name, operator, and timestamps for when the event occurred and was received.
-
Comments
- Hole comments recorded in BlastIQ™ Mobile v1.22.206 or older will not show in the comments in the hole details panel. These comments are still available in the already supported display points and data export.
-
Details
-

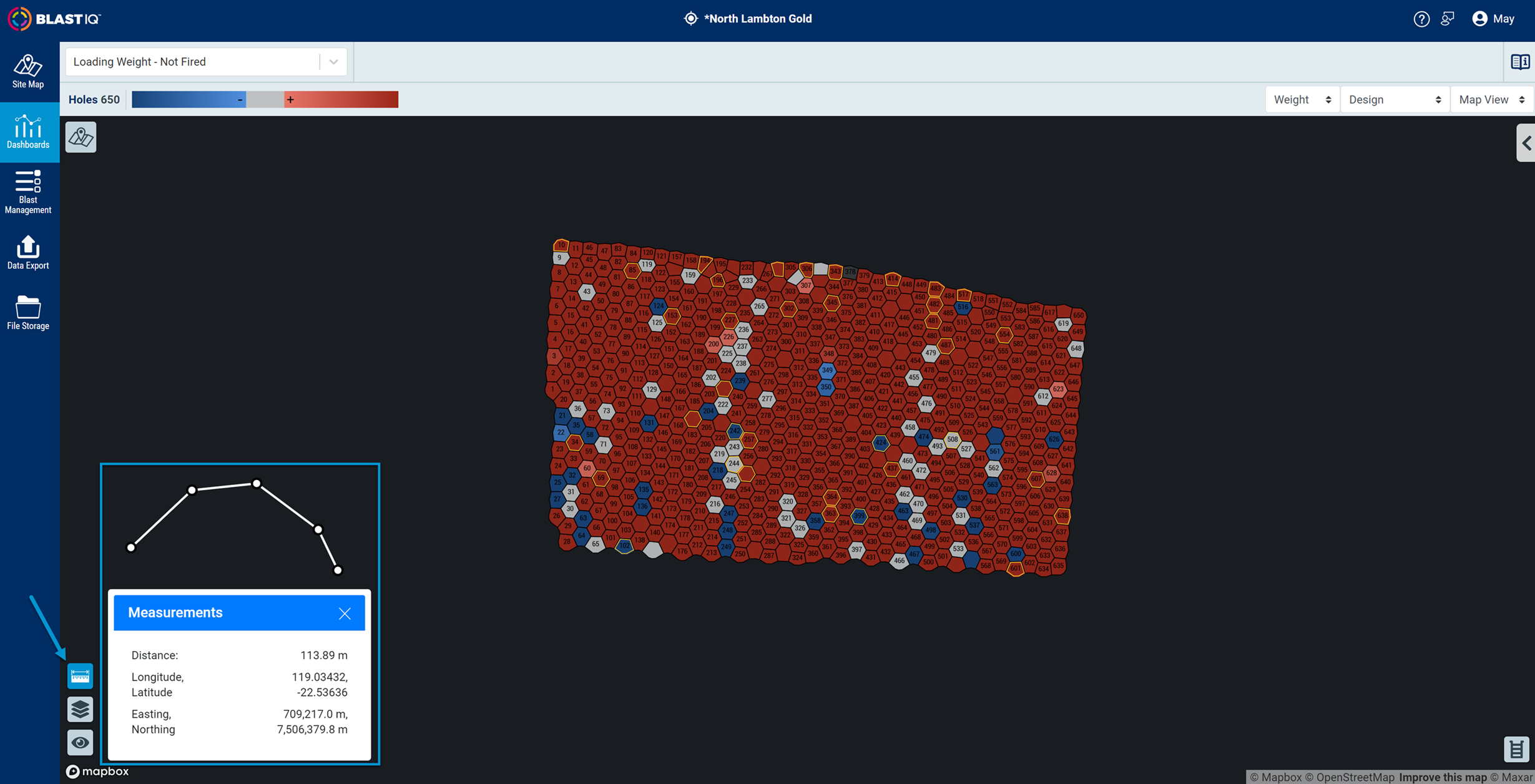

Measurements
- Click the measurements icon located in the lower left-hand corner.
- Click anywhere on the map to draw points.
-
Lines should automatically connect the points.
- The aggregated distance of the drawn lines will be visible.
-

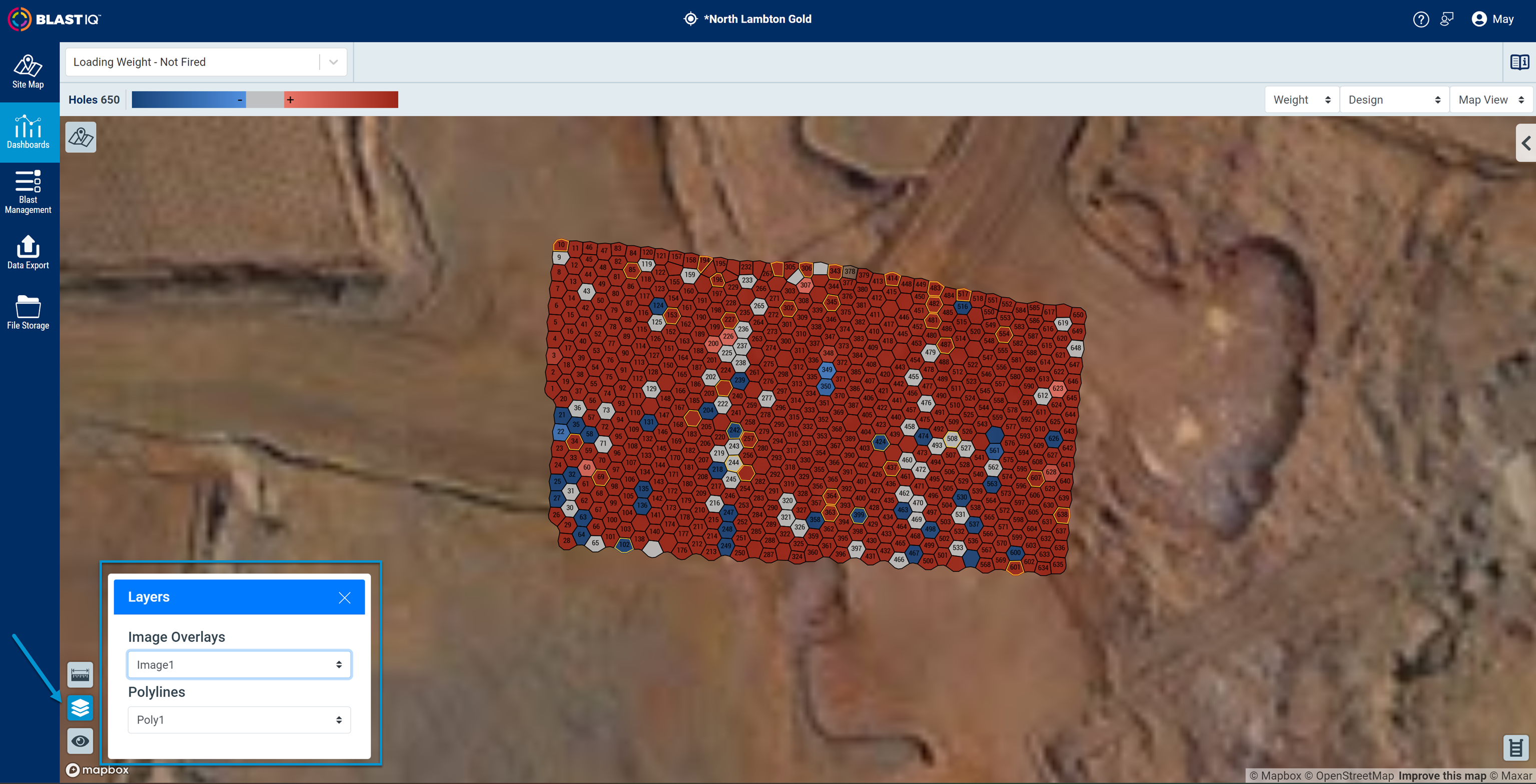

Layers
- Click on the layers icon.
- Choose "Image Overlays" or "Polylines" from the available options.
- Select "None" for no layers display.
To upload polylines and image overlays, please visit the Site Map article here and navigate to the Layer Administration section.
-

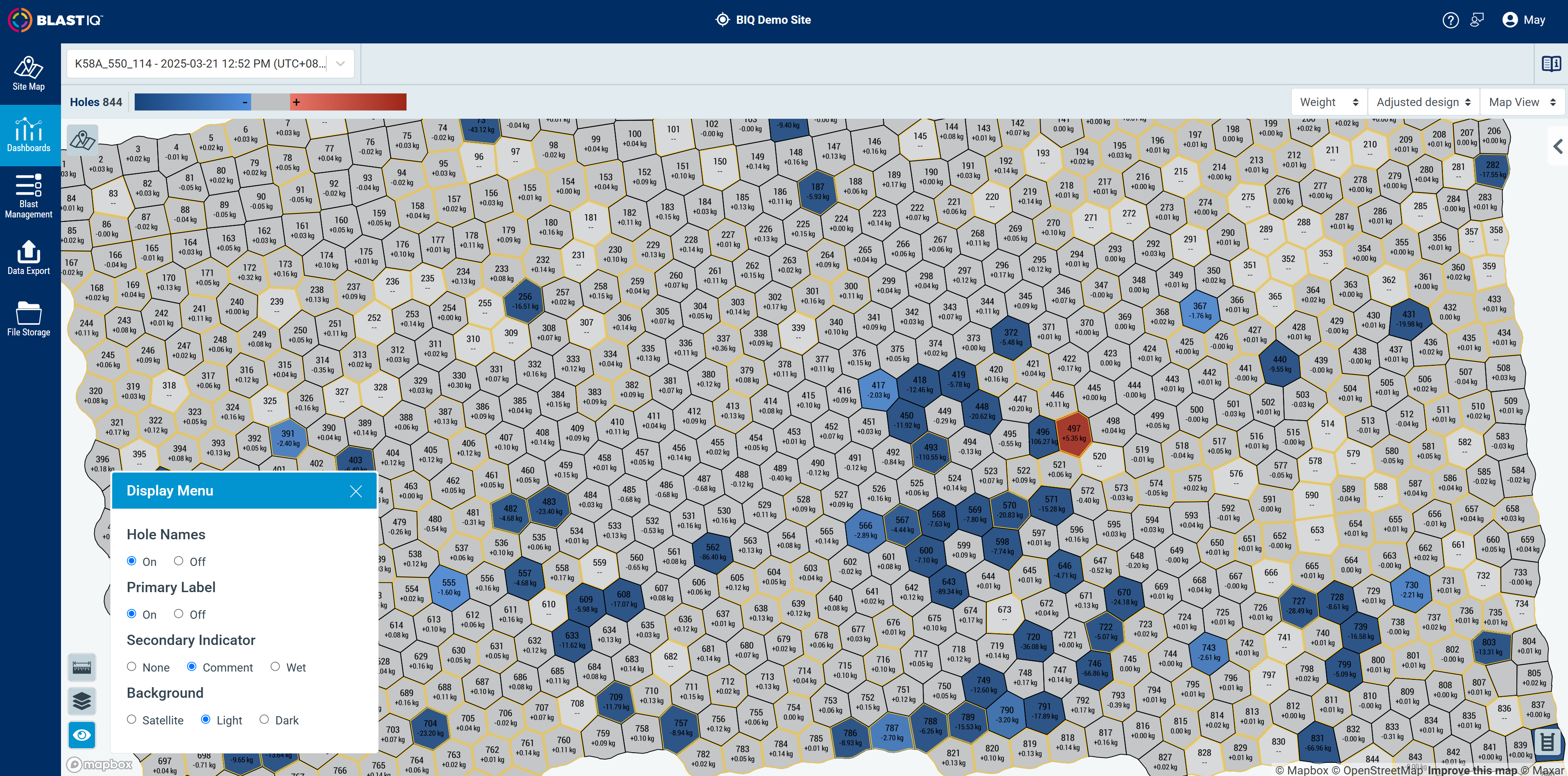

Display

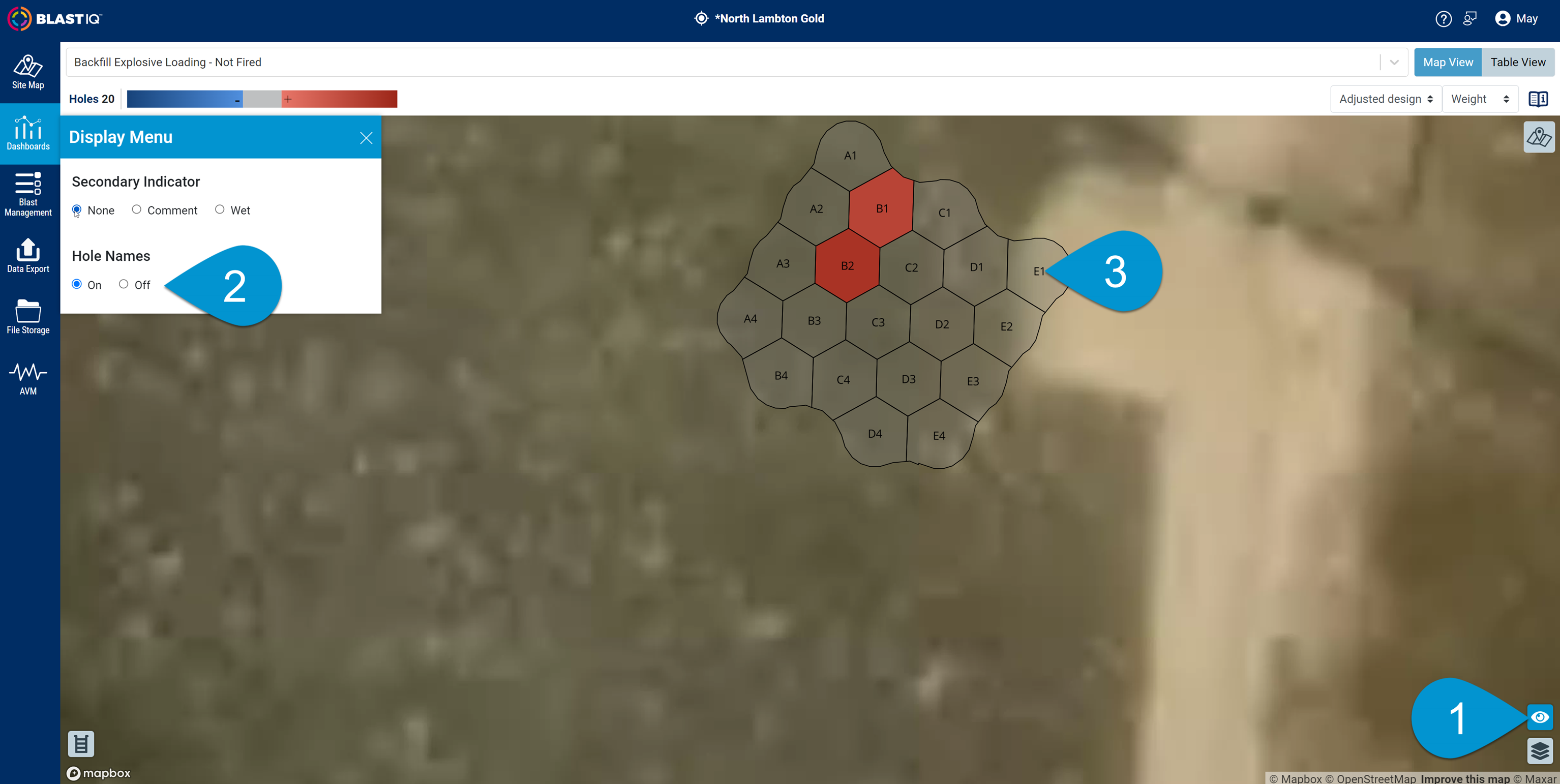

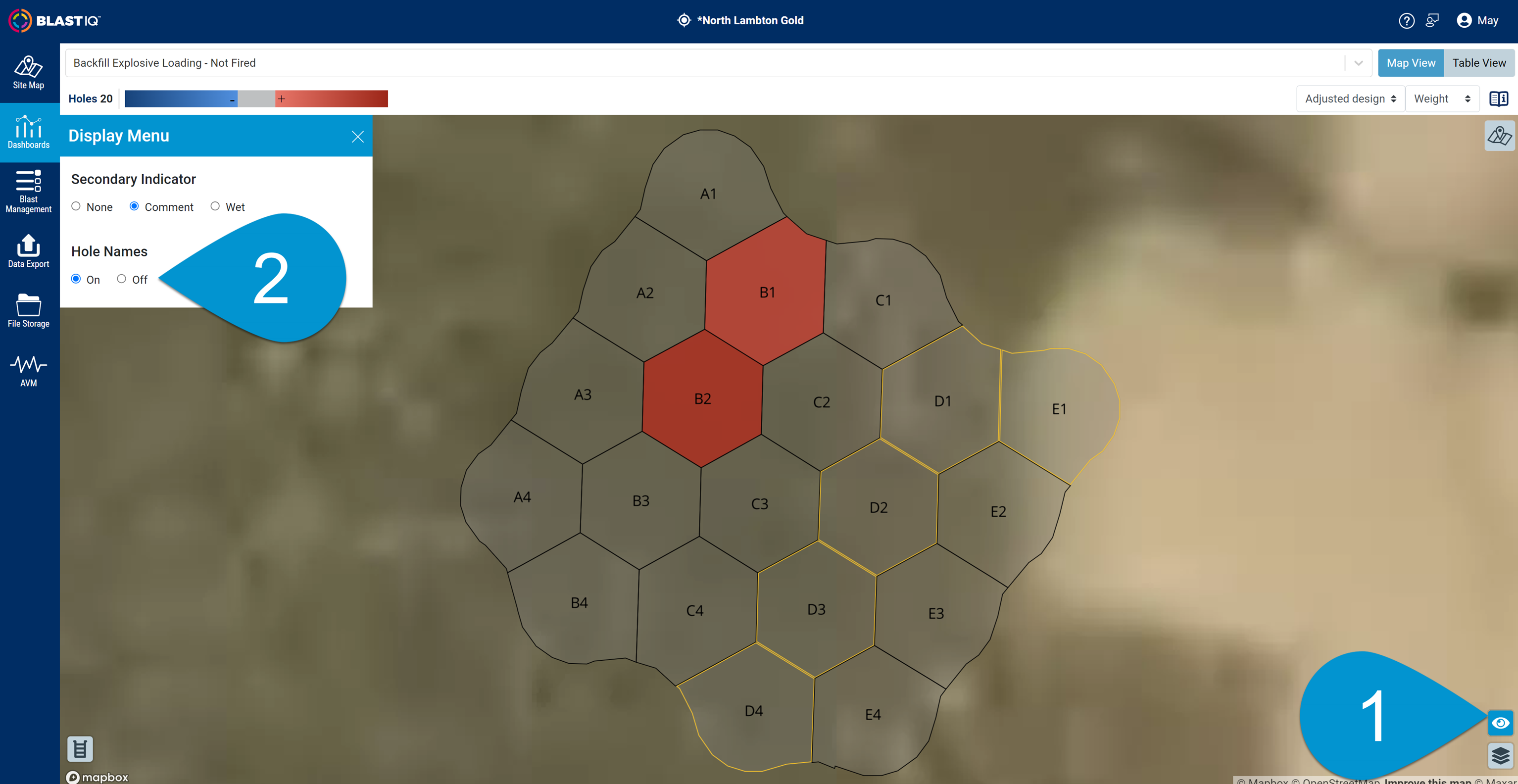

- Hole Names
- Select "On" to display hole names on the map.
- Select "Off" to hide hole names on the map.

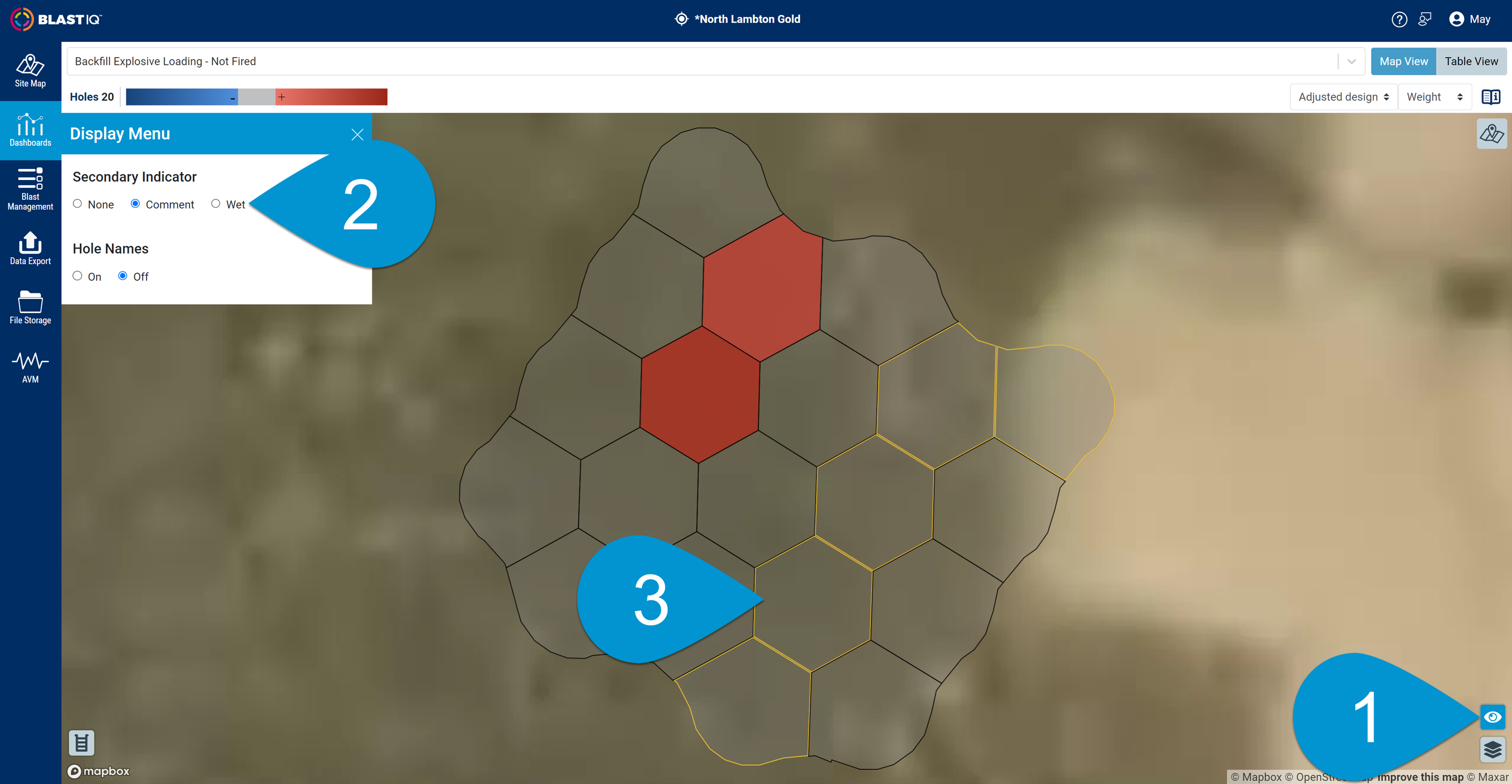

- Secondary Indicators
- Select "None" does not highlight any holes.
- Select "Comment" to highlight holes with added notes.

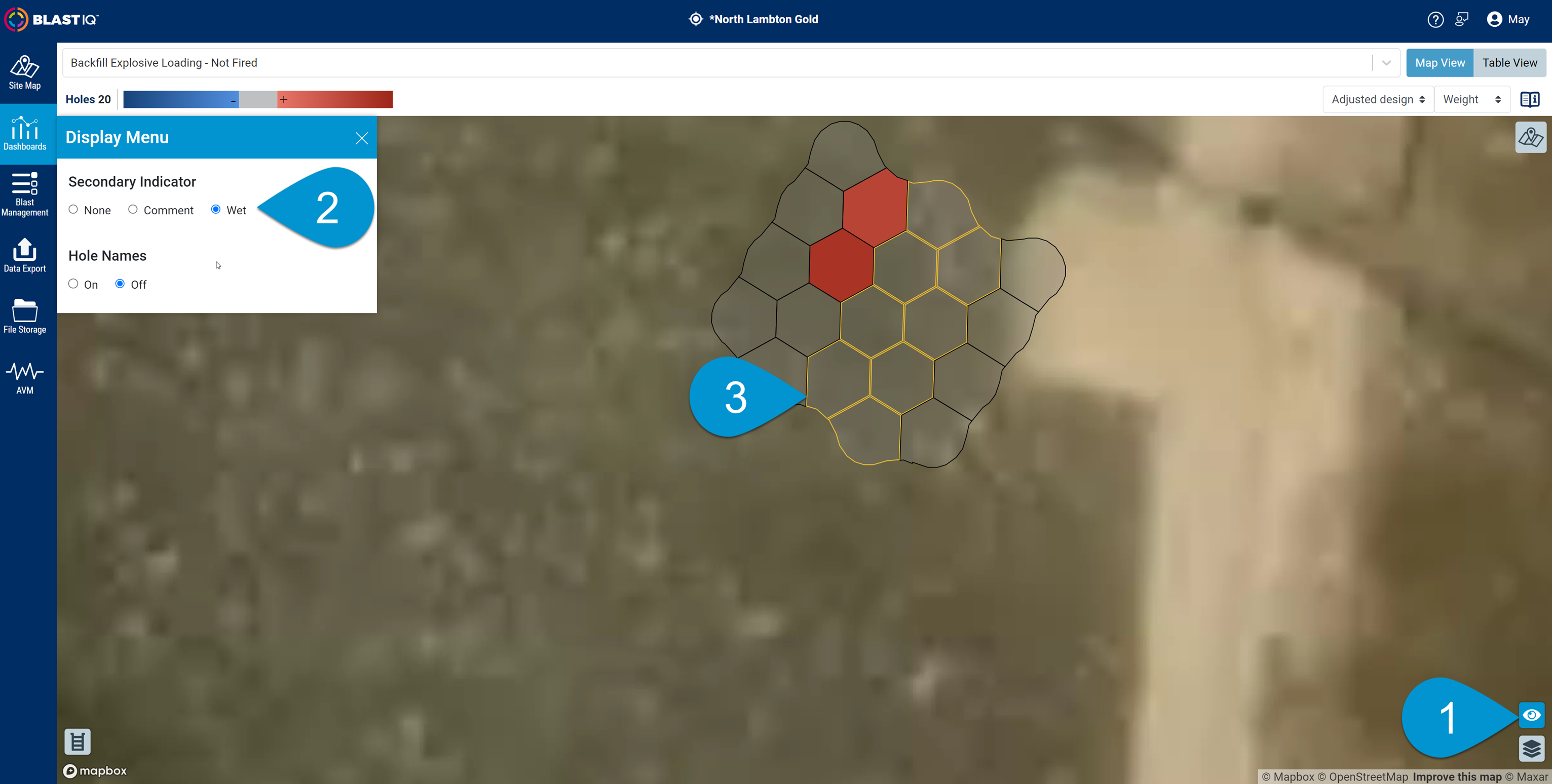

- Select "Wet" to highlight holes in a wet state.
- Background
- The user can choose to change the map background to allow better visualisation of the blasts of interest from the following options:
- Select "Satellite" to set a satellite image as your map background.
- Select "Light" to give your map a white background.
- Select "Dark" to give your map a dark background.
- The user can choose to change the map background to allow better visualisation of the blasts of interest from the following options:
- Hole Names
Hole Compliance
Each hole is evaluated based on the following formula:
Notes:
Deck Actual Weight = As recorded in BlastIQ™ Mobile or LOADPlus™ devices.
Deck Design Weight = Latest Adjusted Design Deck Weight.
Deck Weight Difference is calculated for each deck based on the deck number, hence marking the deck as one of the following:
- Within Tolerance – if the Deck Weight Difference does not exceed the site’s Deck Weight Tolerance (over or under).
- Over drilled – if the Deck Weight Difference is positive and exceeds the site’s Deck Weight Tolerance.
- Under drilled – if the Deck Weight Difference is negative and its absolute value exceeds the site’s Deck Weight Tolerance.
- or, No Data – There is no sufficient data to run the analysis. E.g. a deck has an actual weight but no design weight (these decks might have been added in the field), or a deck has design weight but no actual has been recorded.
Blast % Compliance
The Blast’s Loading Weight % Compliance is calculated with this formula:
Tolerances
This dashboard uses the site-level Deck Weight (kg) Reporting Tolerances defined in the Admin Portal.
Any changes to these tolerances in the Admin Portal will apply to all single blast dashboards across the site. To learn more about Reporting Tolerances, click here.
Note:
- All percentage values are truncated to 1 decimal place.
- All other values are rounded to 1 decimal place.
