- Release Date:
9th September 2026
Summary
BlastIQ™ Mobile (Underground) enables operators to record water and temperature conditions in a hole during the prep and charging workflow. Capturing this data provides visibility into hole conditions and supports QA/QC processes.
Depending on the site configuration, water can be captured either as a water measurement (depth or amount) or as a wet/dry indicator. Temperature is recorded as a numeric reading in either Celsius or Fahrenheit.
Follow the steps below to enable water presence capture and temperature.

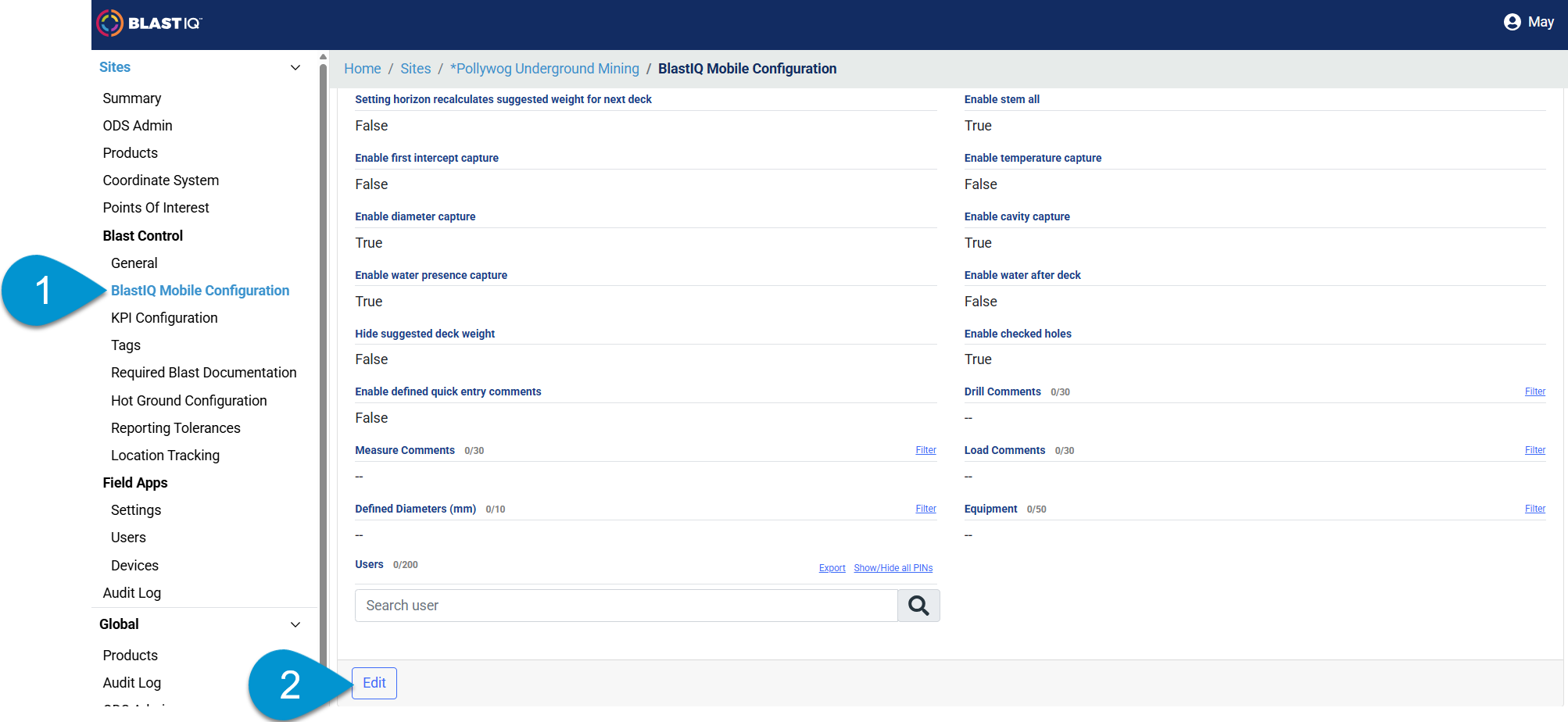

- Select a site and click the "BlastIQ Mobile Configuration" menu.
-
Click the "Edit" button.

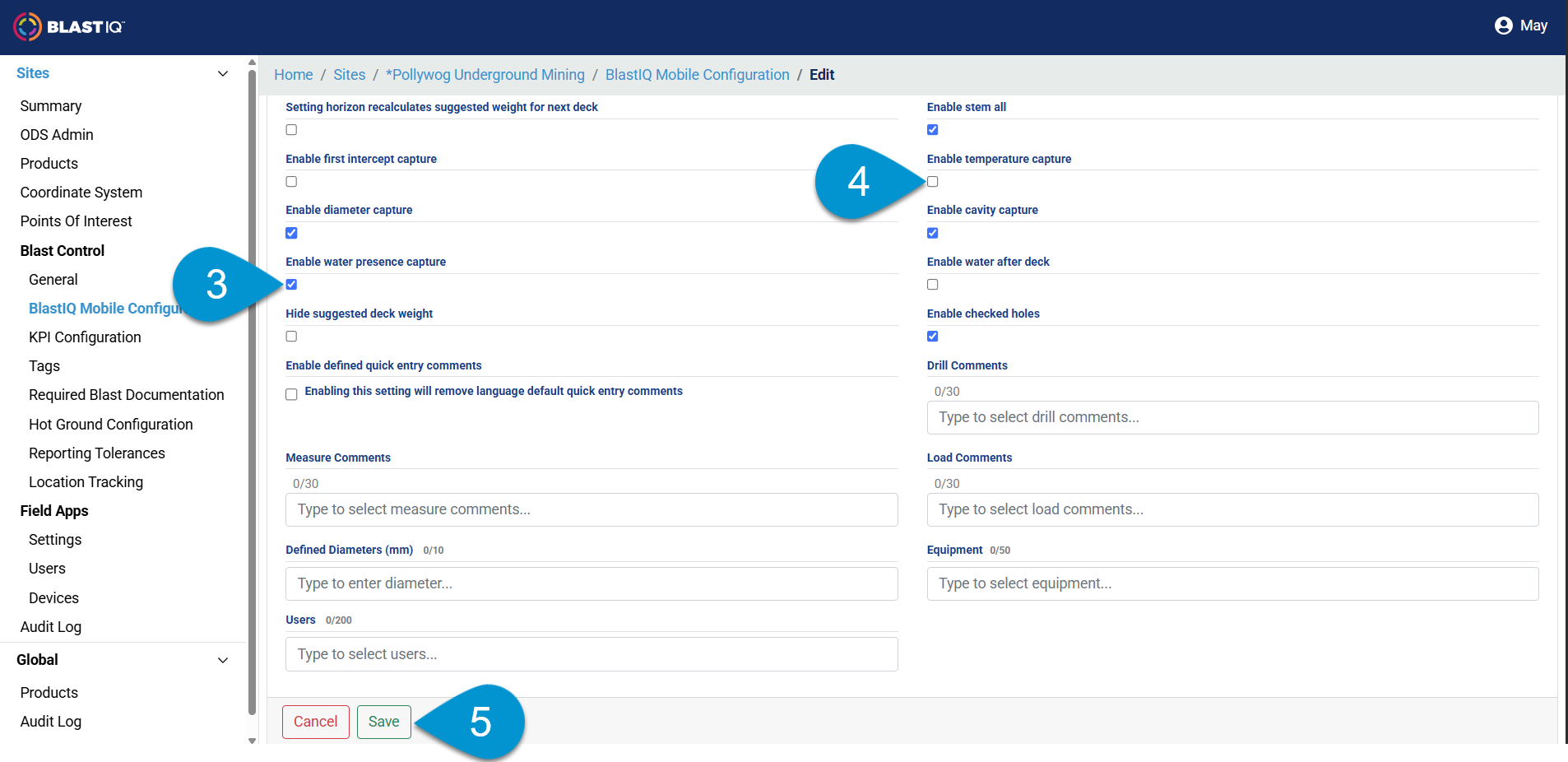

- By default, "Enable water presence capture" is true. Untick the checkbox to enable water depth/amount recording instead of a simple wet/dry indicator.
- Tick the checkbox "Enable temperature capture" to enable it.
-
Click the "Save" button when done.
- If the "Enable water presence capture" is set to False (No):
- Operators can record a water measurement against the hole.

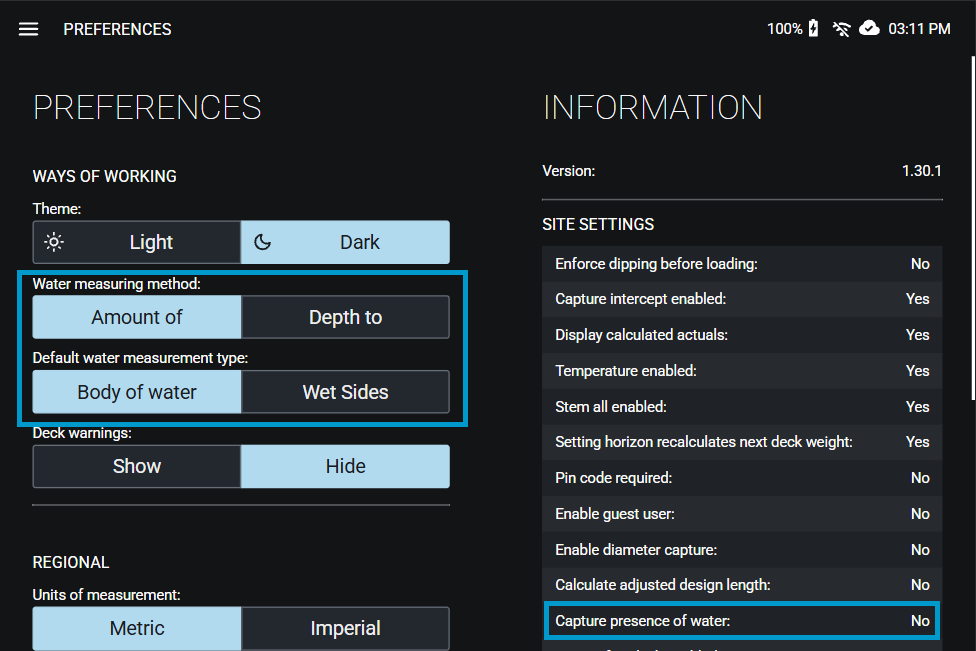

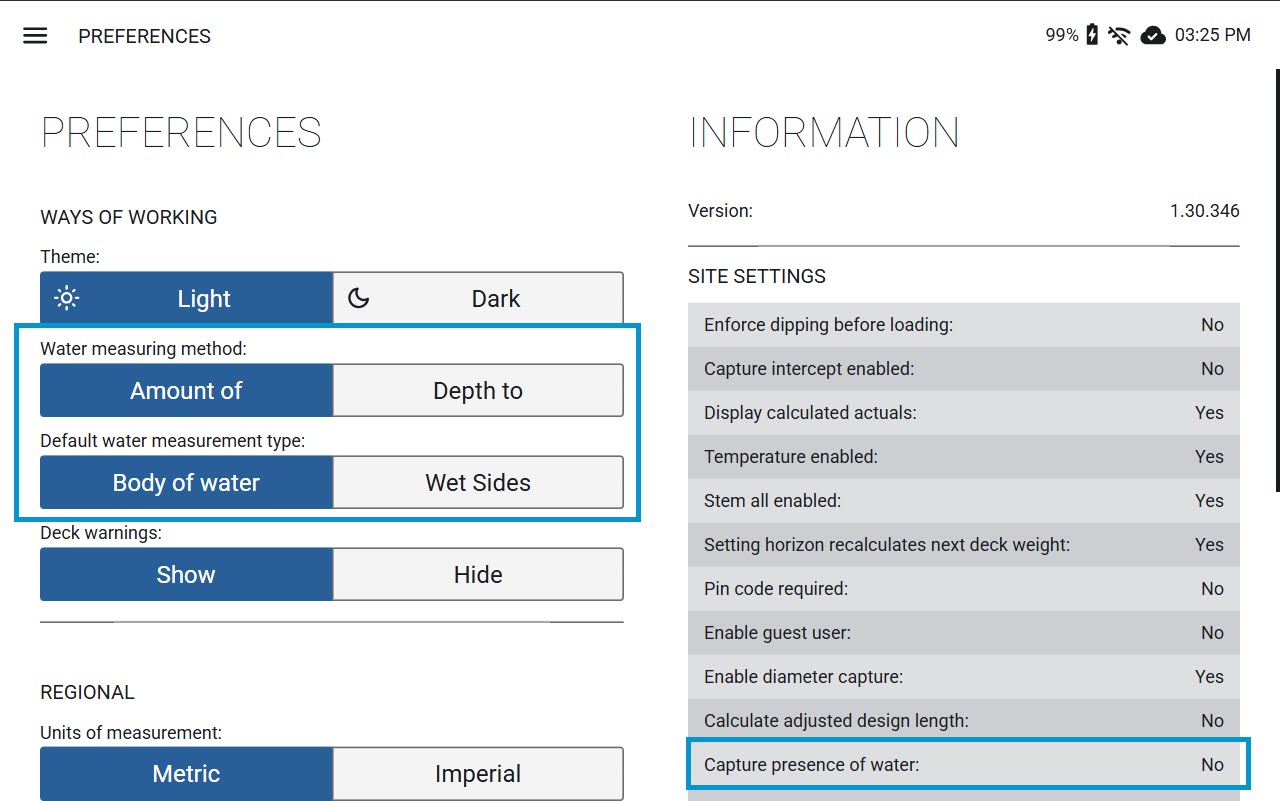

- Two preferences toggles become visible under Ways of Working in preferences, allowing the site to configure how that measurement is captured:
- Water measuring method: Amount of or Depth to
- Default water measurement type: Body of water or Wet Sides
- Note: Underground sites do not currently support water tolerances. Water measurements, including Wet Sides observations, can be recorded and used for reference; however, holes are not evaluated against tolerance thresholds and are not automatically classified as Wet based on recorded water values.

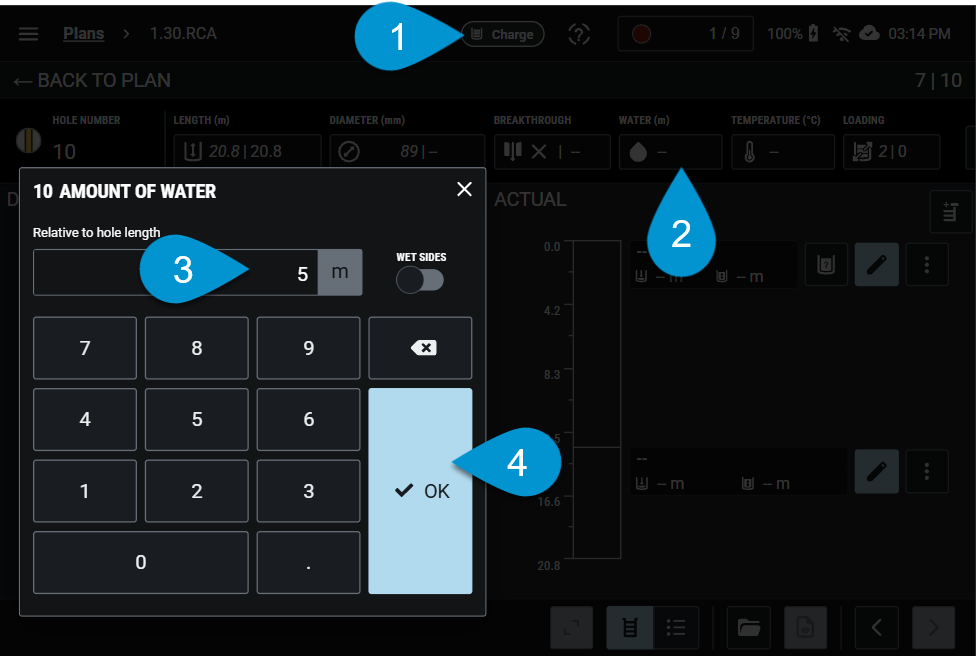

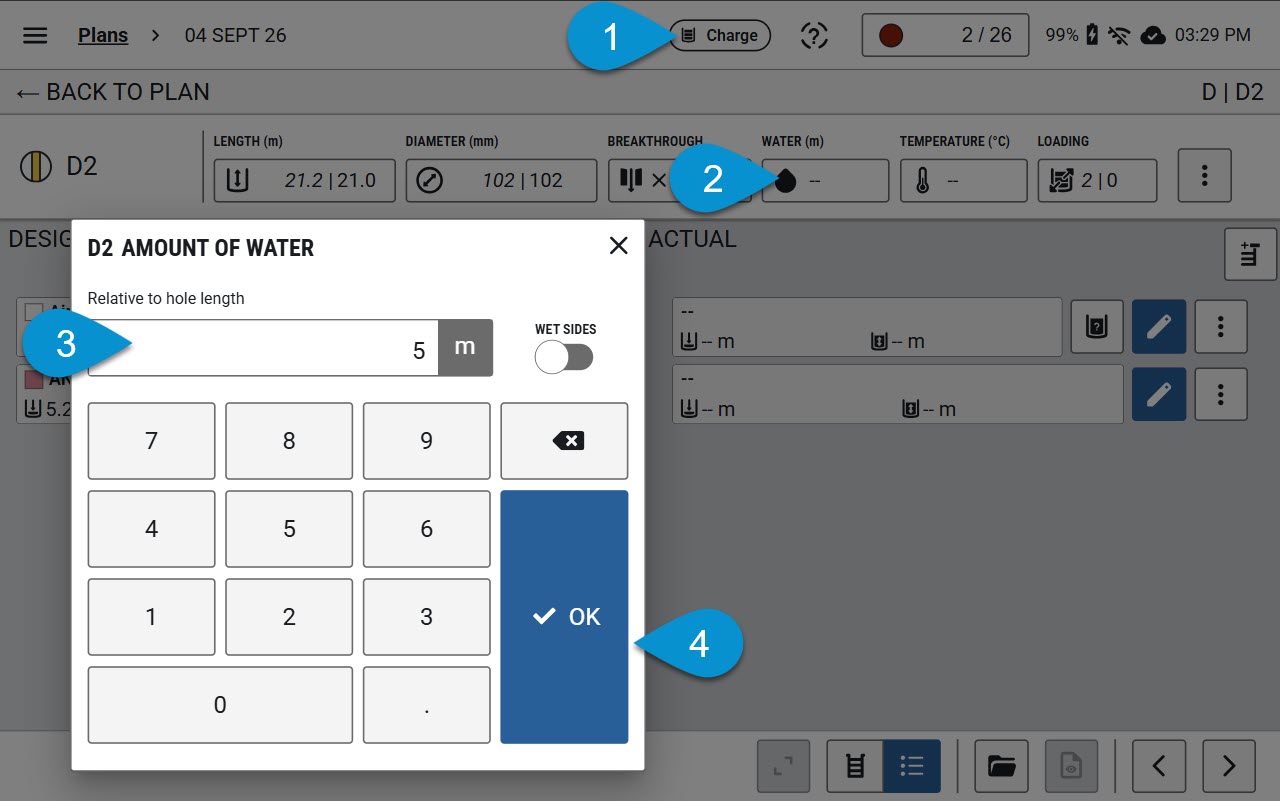

To record a water measurement against a hole:
- Navigate to Prep or Charge view.
- Locate the hole and tap the water field.
- Input the water measurement using water editor.
- Tap OK when done.
Note: Depending on the configured Water measuring method and Default water measurement type, the label on the modal will differ for example: Amount of Water, Depth to Water, Amount of Wet Sides, or Depth to Wet Sides. Read more on Measure Water After Backfill or Stand-off

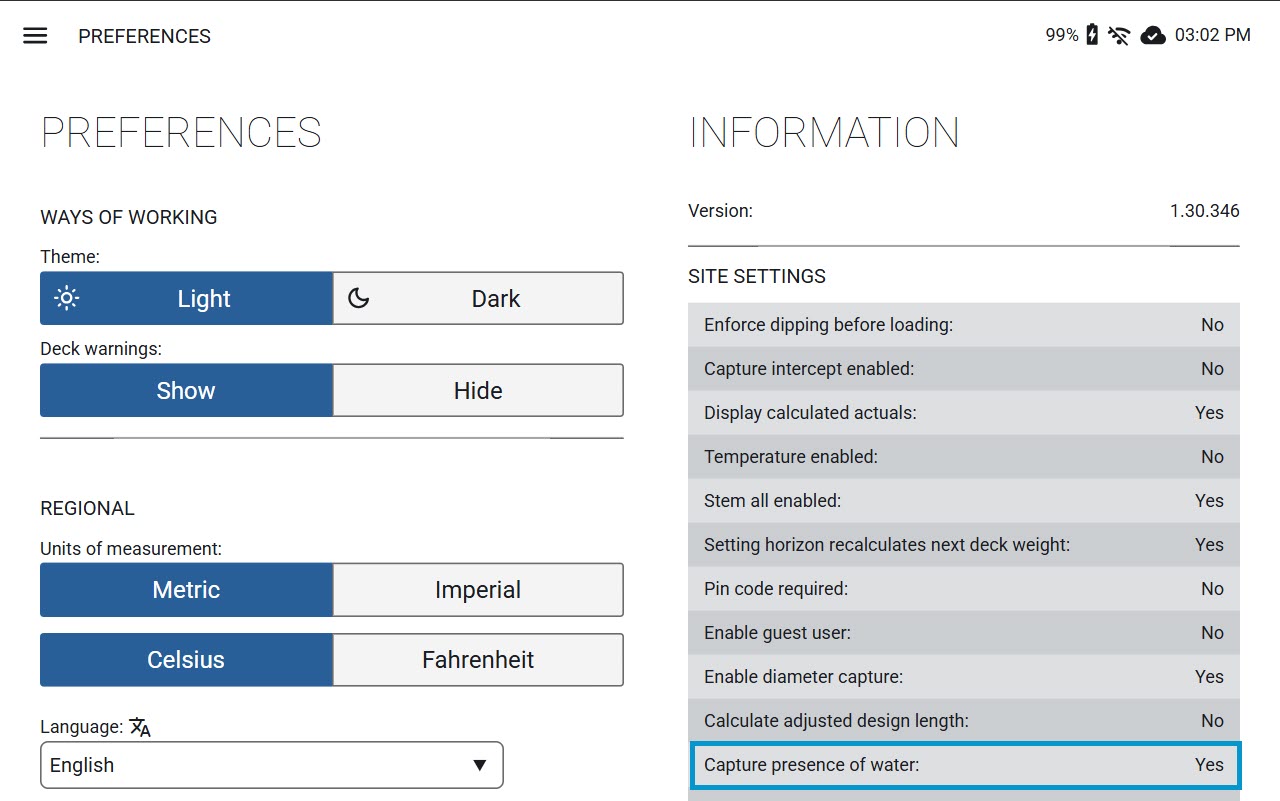

- If the "Enable water presence capture" is set to True (Yes):
- Operators can mark a hole as wet or dry, rather than recording a specific water measurement. Read more here.

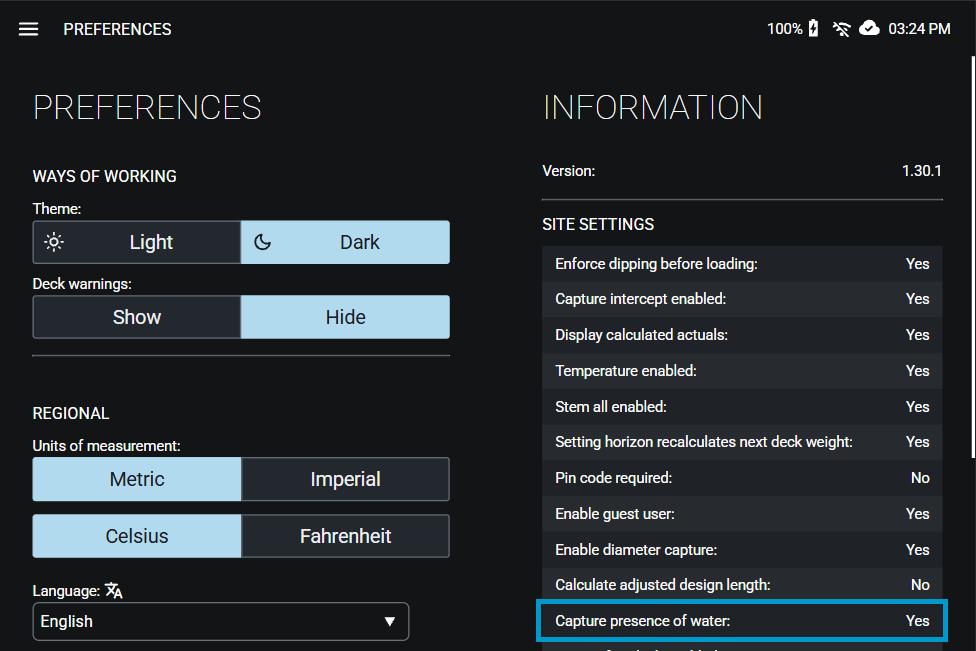

- The two water preferences toggles "Water measuring method & Default water measurement type" are hidden.

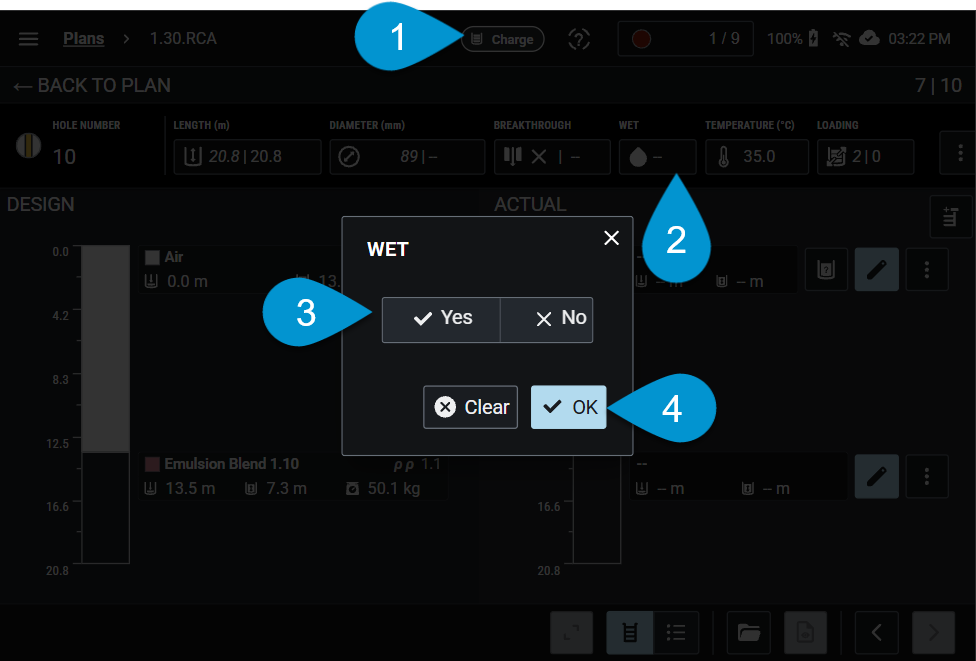

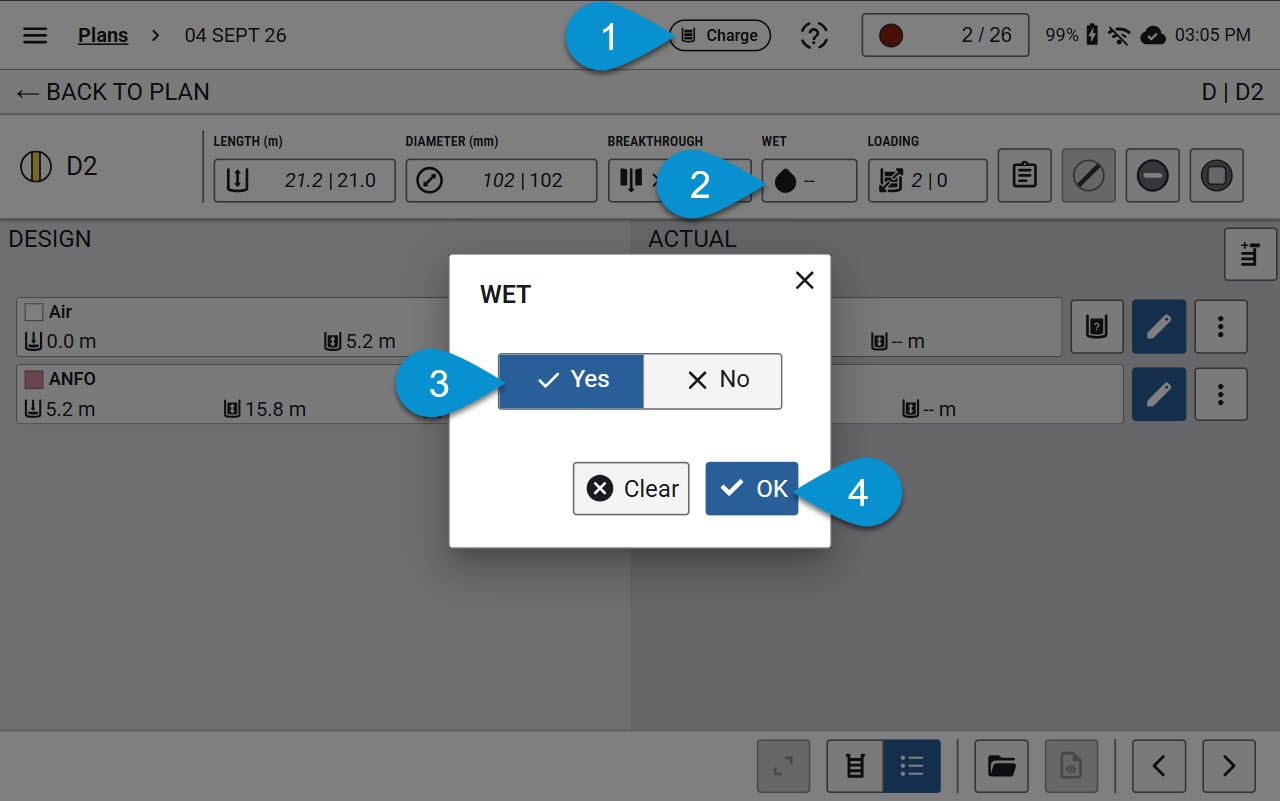

To mark a hole as wet or dry:
- Navigate to Prep or Charge view.
- Locate the hole and tap the wet field.
- Select Yes or No.
- Tap OK.
The Enable temperature capture settings in the Admin Portal controls whether temperature can be recorded against a hole.
- If the "Enable temperature capture" is set to True:
- Operators can record a temperature against the hole, in either Celsius or Fahrenheit depending on the site's Units of measurement preference.
- The temperature field is visible on each hole row in both Prep and Charge view

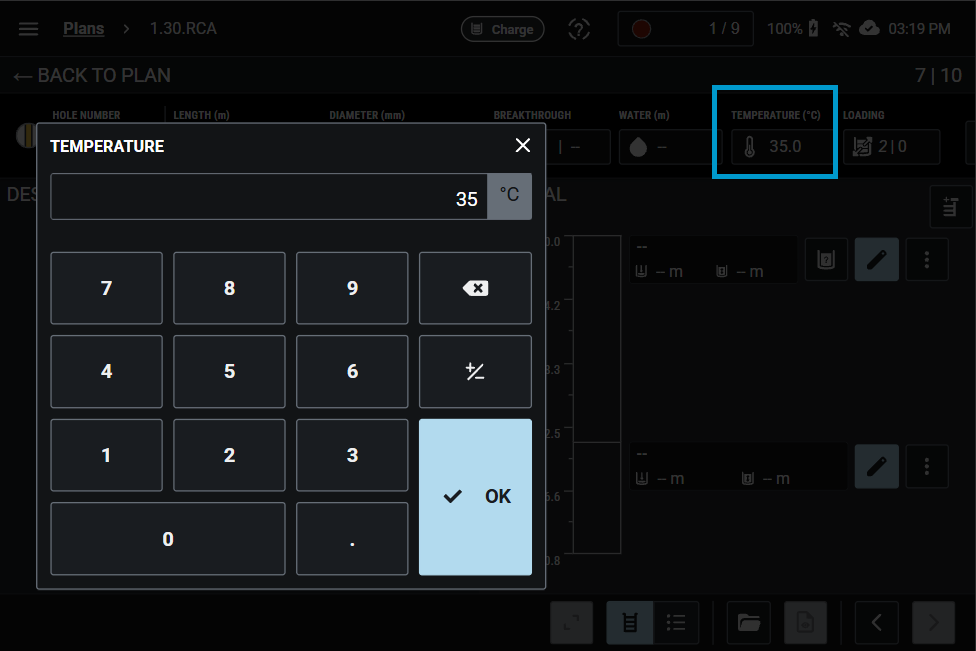

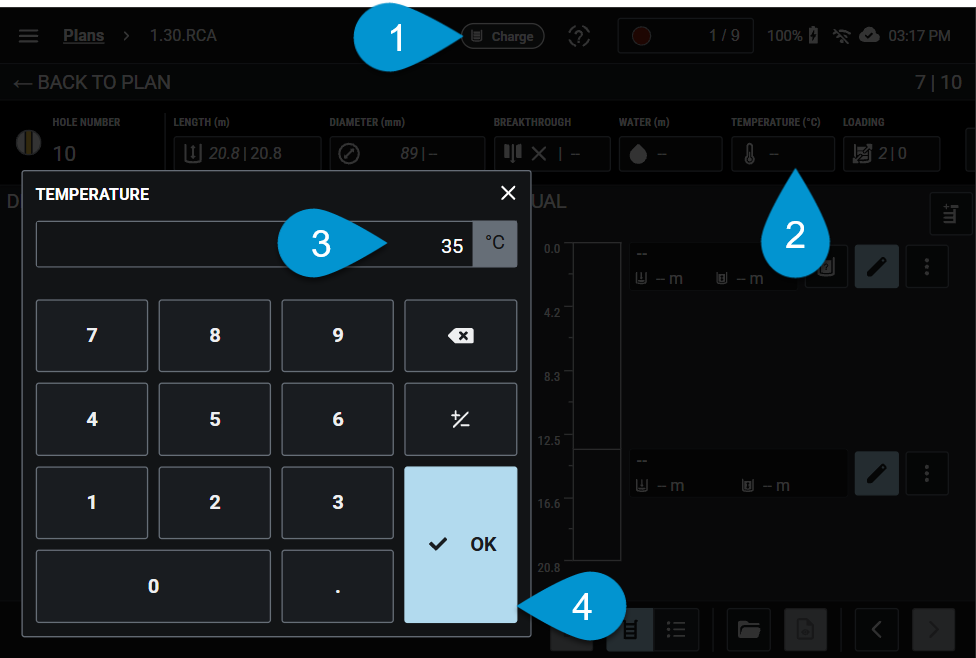

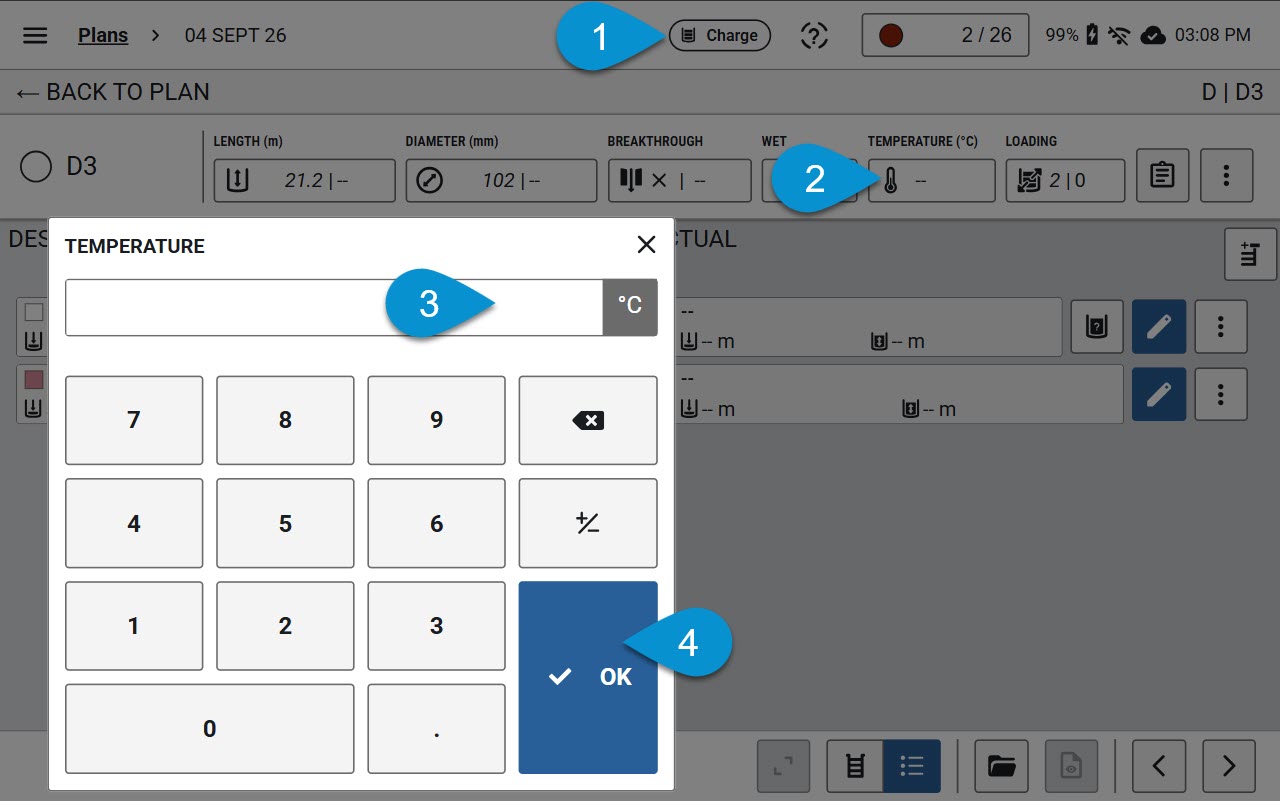

To record a temperature reading against a hole:
- Navigate to the Prep or Charge view.
- Locate the hole and tap the temperature field.
- Input the temperature reading using the numeric keypad.
- Tap OK
- If the "Enable temperature capture" is set to False:
- The temperature field is not visible in Prep or Charge views.

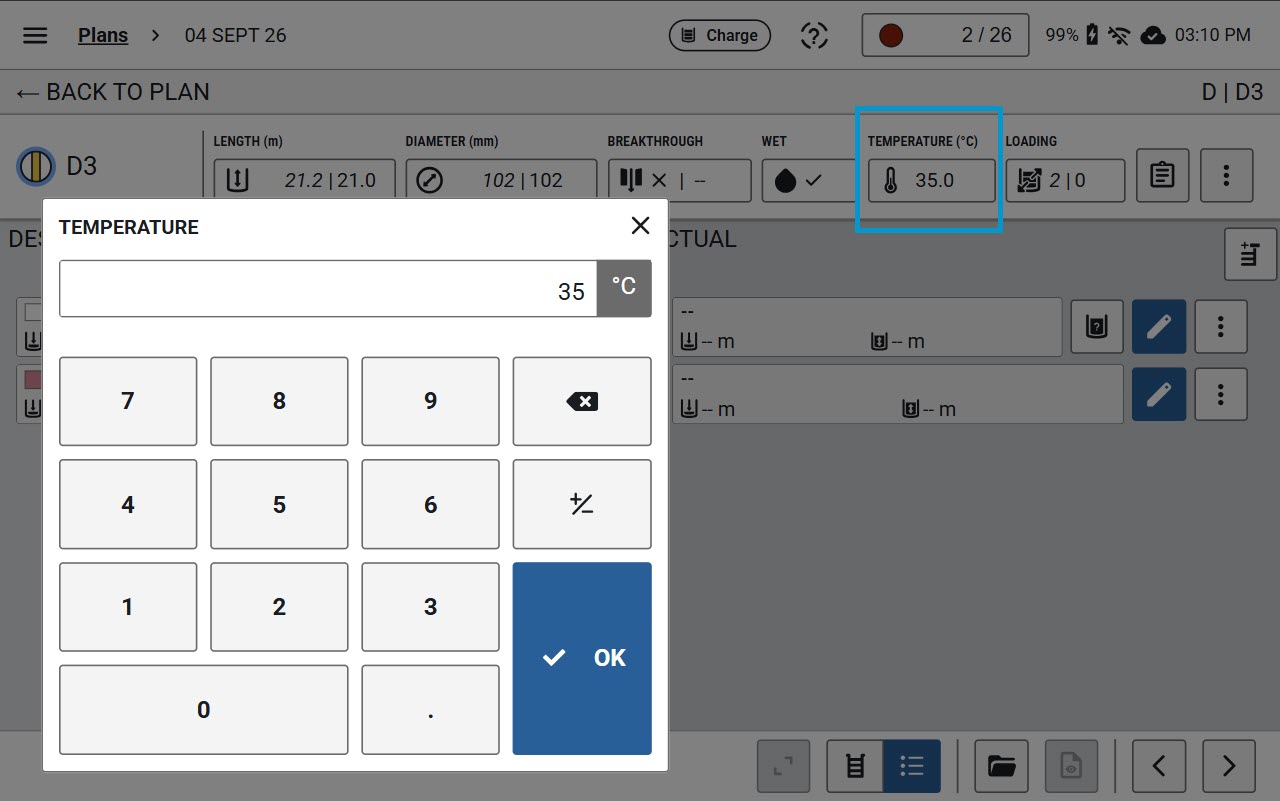

To change or remove previously recorded values:
- Locate a hole with a recorded water measurements and or temperature reading in Prep or Charge views.
- Tap the water or temperature field.
- The modal opens pre-populated with the existing value.
- To edit, enter the new value and tap OK.
- To delete, tap x to clear the value and tap OK.
