- Release Date:
December 2021
Summary
BlastIQ Mobile will recalculate the suggested weight of the product required for a deck on the actual side of the charging panel based on the selected product's density and either the design deck length or when a calculated actual length can be estimated. A calculated actual length can be derived from actual information recorded in the deck below when there is a recorded or suggested horizon. Either the recorded horizon for the deck below or the bottom of the hole, when no deck below exists, can be used when deriving the actual length.
Follow these steps to enable and use the "Setting horizon recalculates suggested weight for next deck" feature in the BlastIQ Mobile.

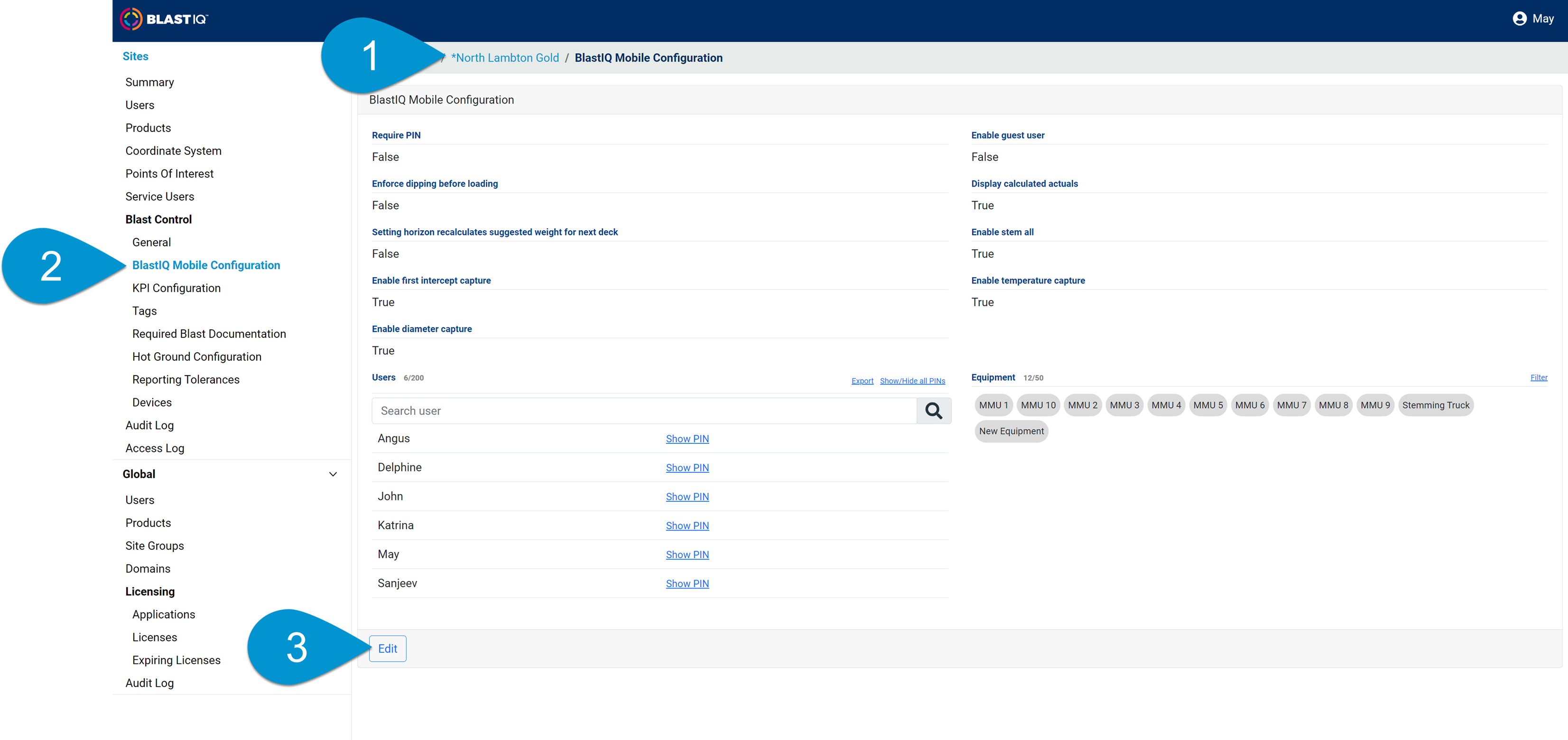

- Login to the Admin portal and open your site.
- Click the BlastIQ Mobile Configuration menu.
Click the "Edit" button.

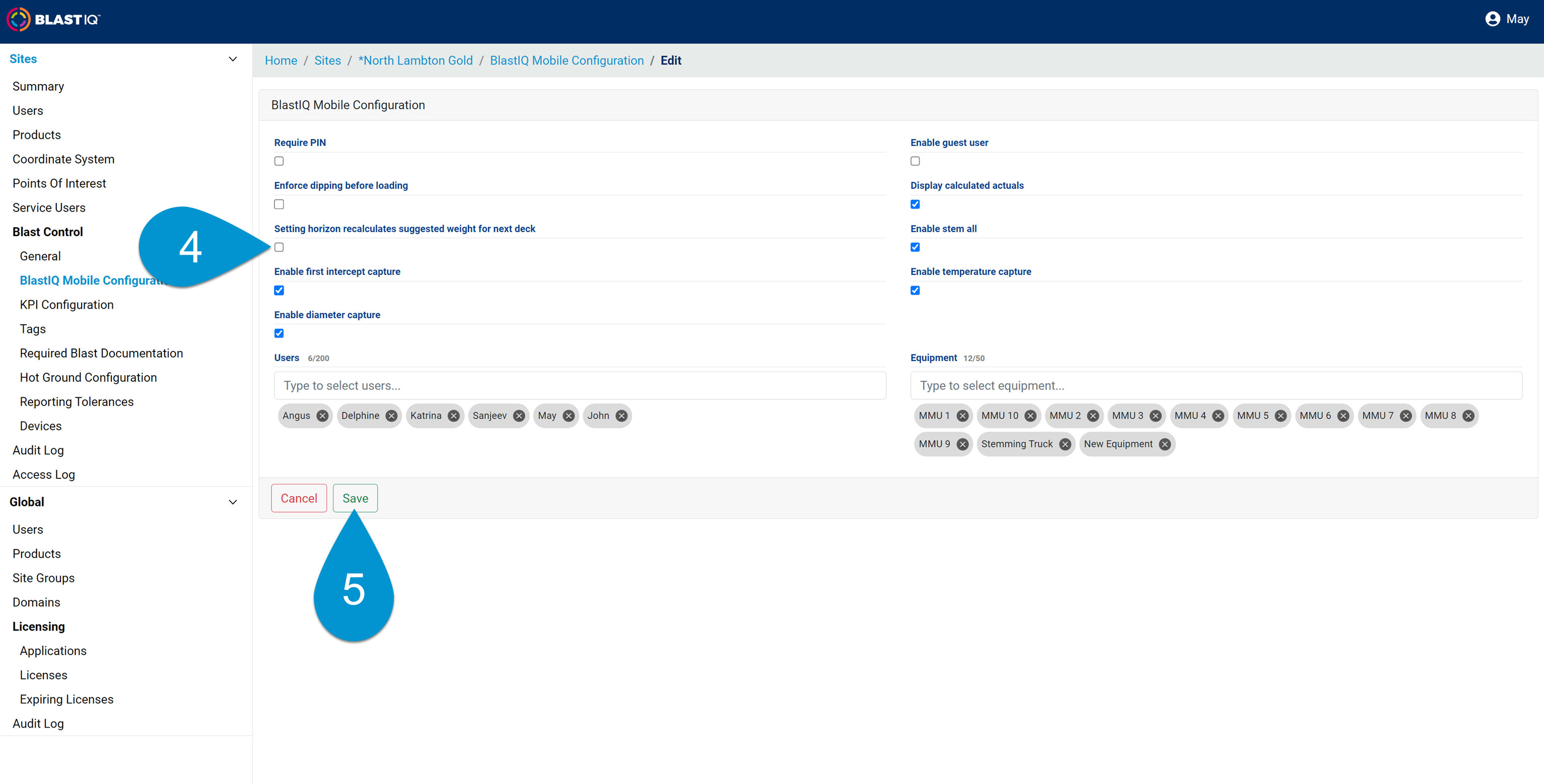

- Find the "Setting horizon recalculates suggested weight for next deck" section in the configuration options and tick the checkbox to enable the "Setting horizon recalculates suggested weight for next deck".
Click "Save".

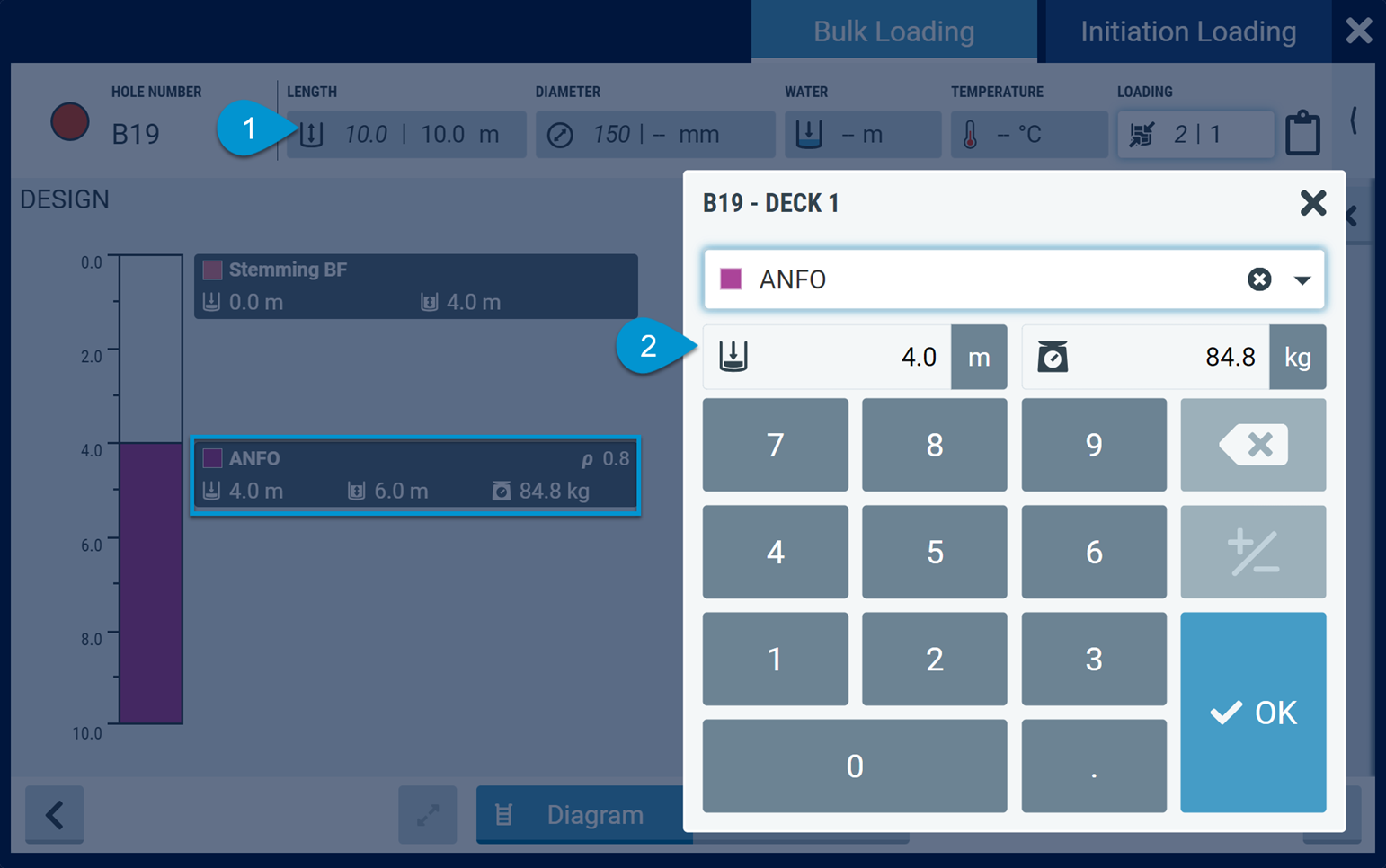

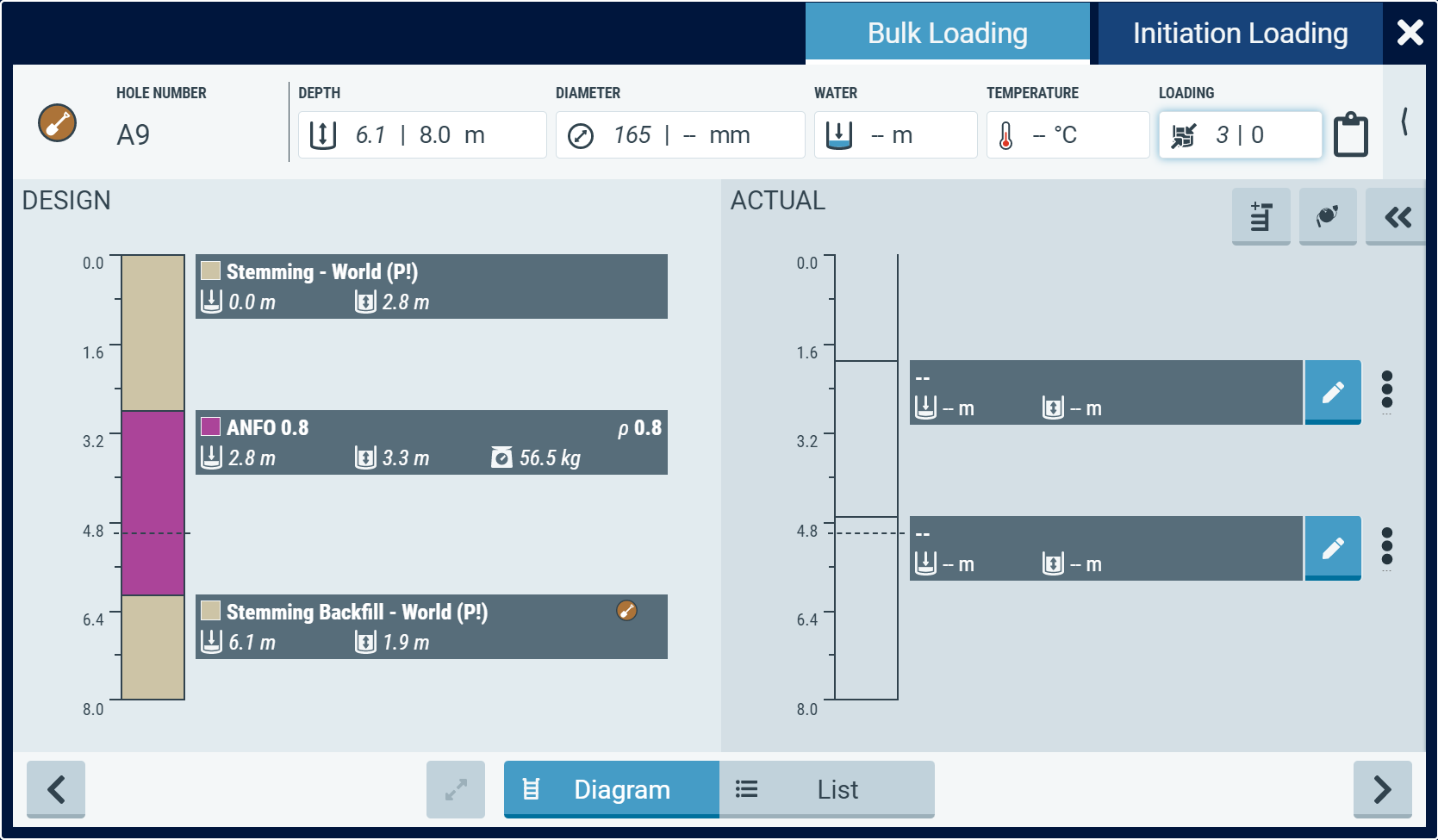

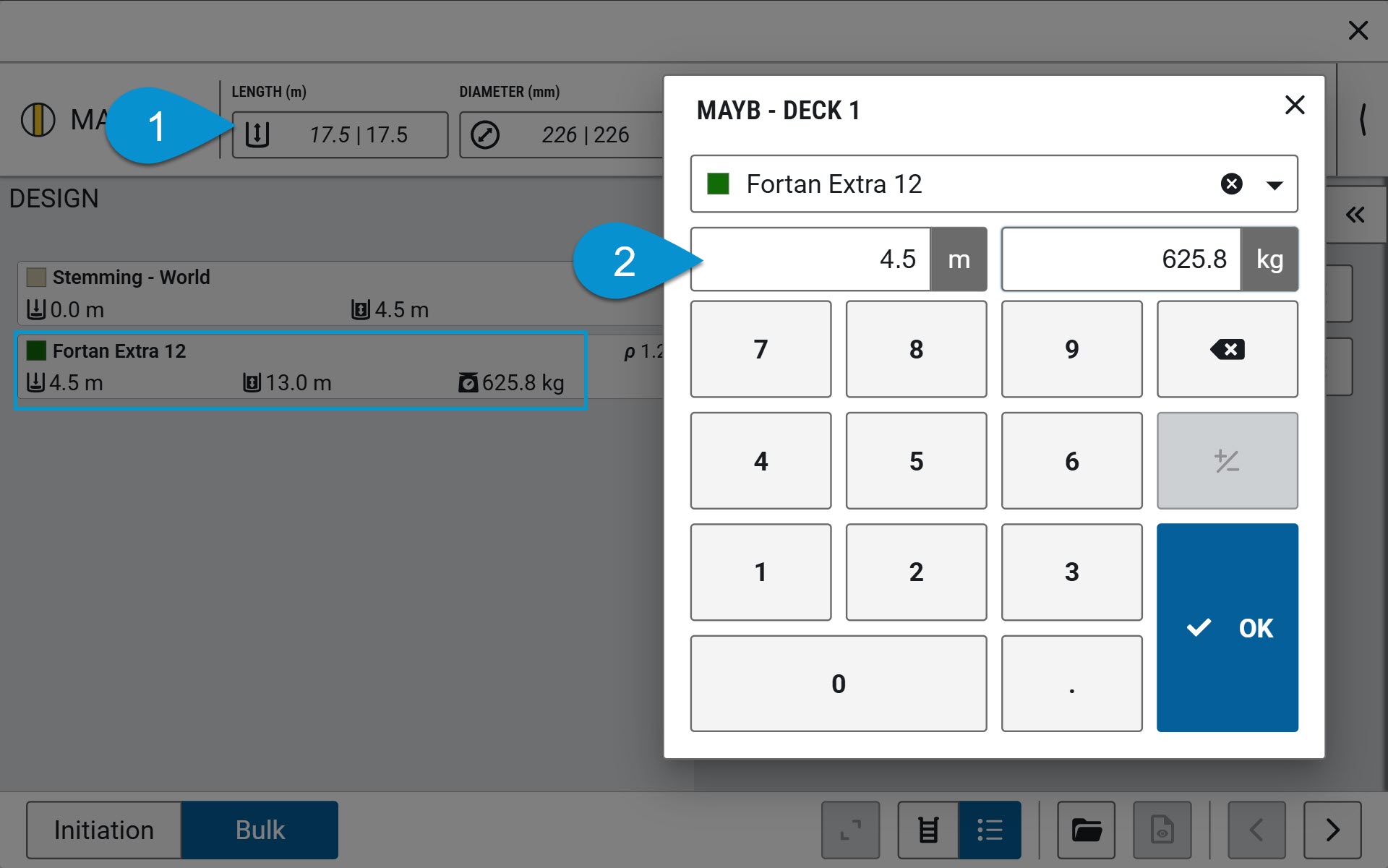

- In the charging panel enter a hole measurement.

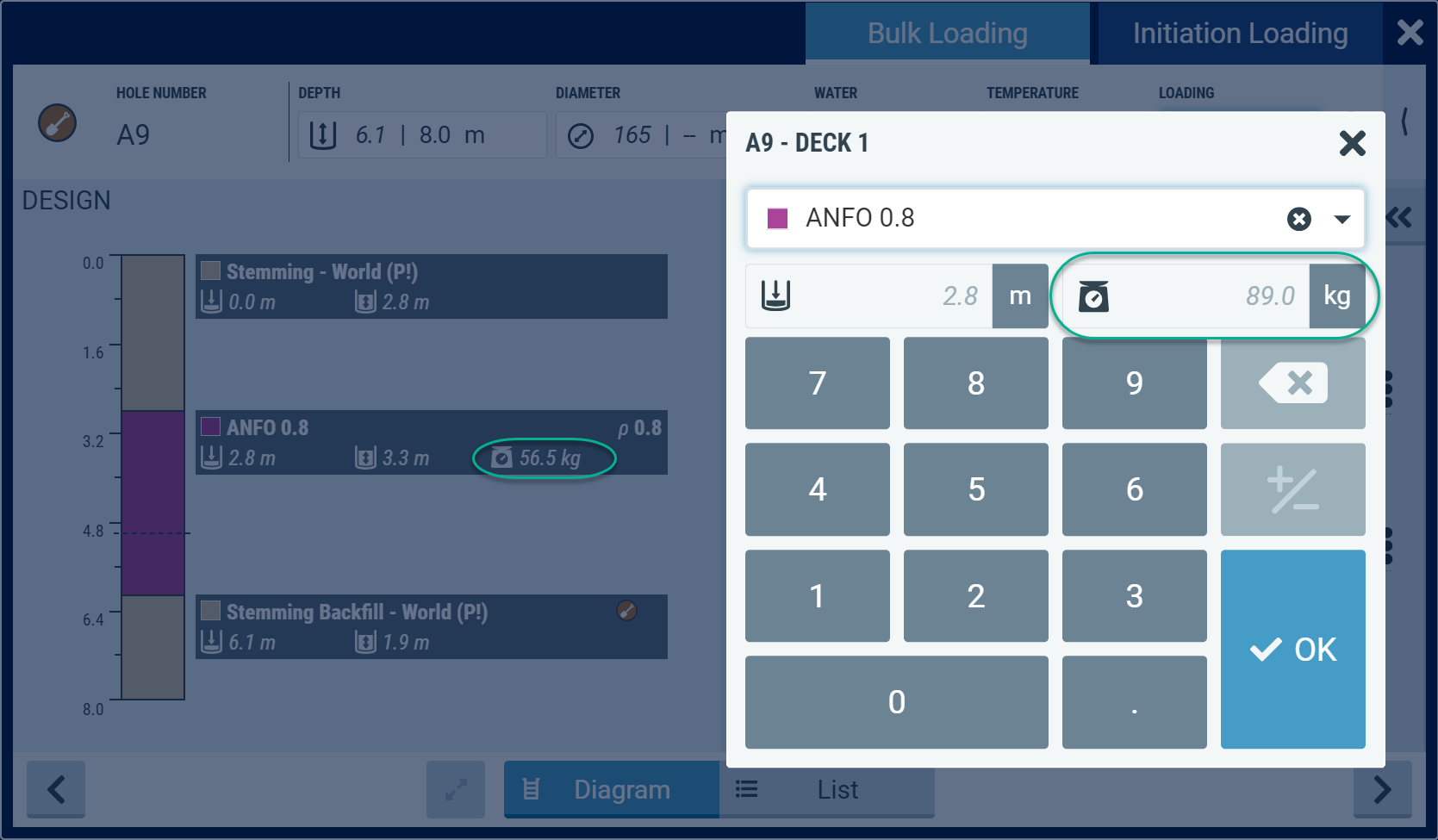

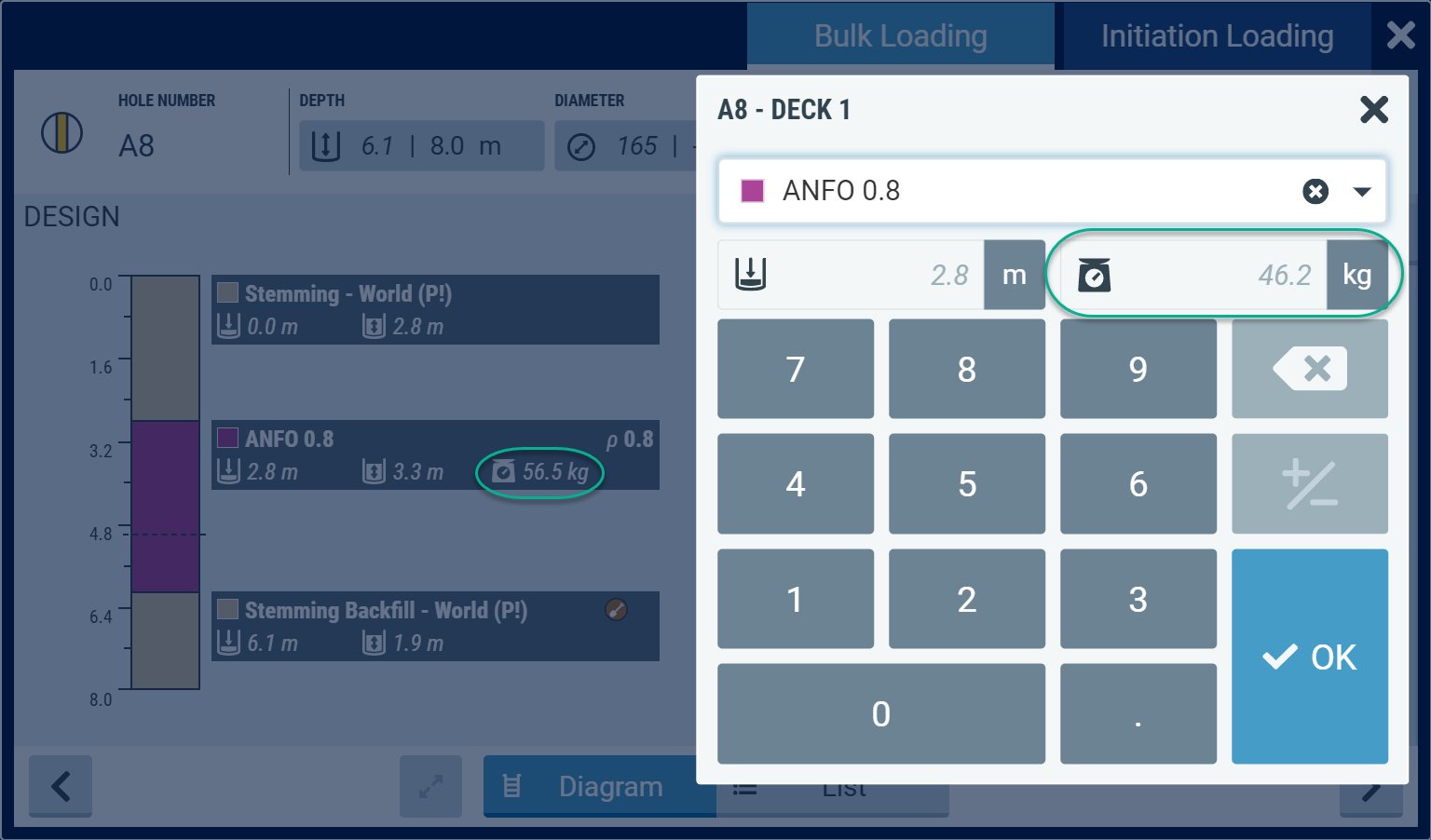

Open a deck and notice the automatic recalculation of weight/length/horizon based on the decks that have been loaded.
Note:

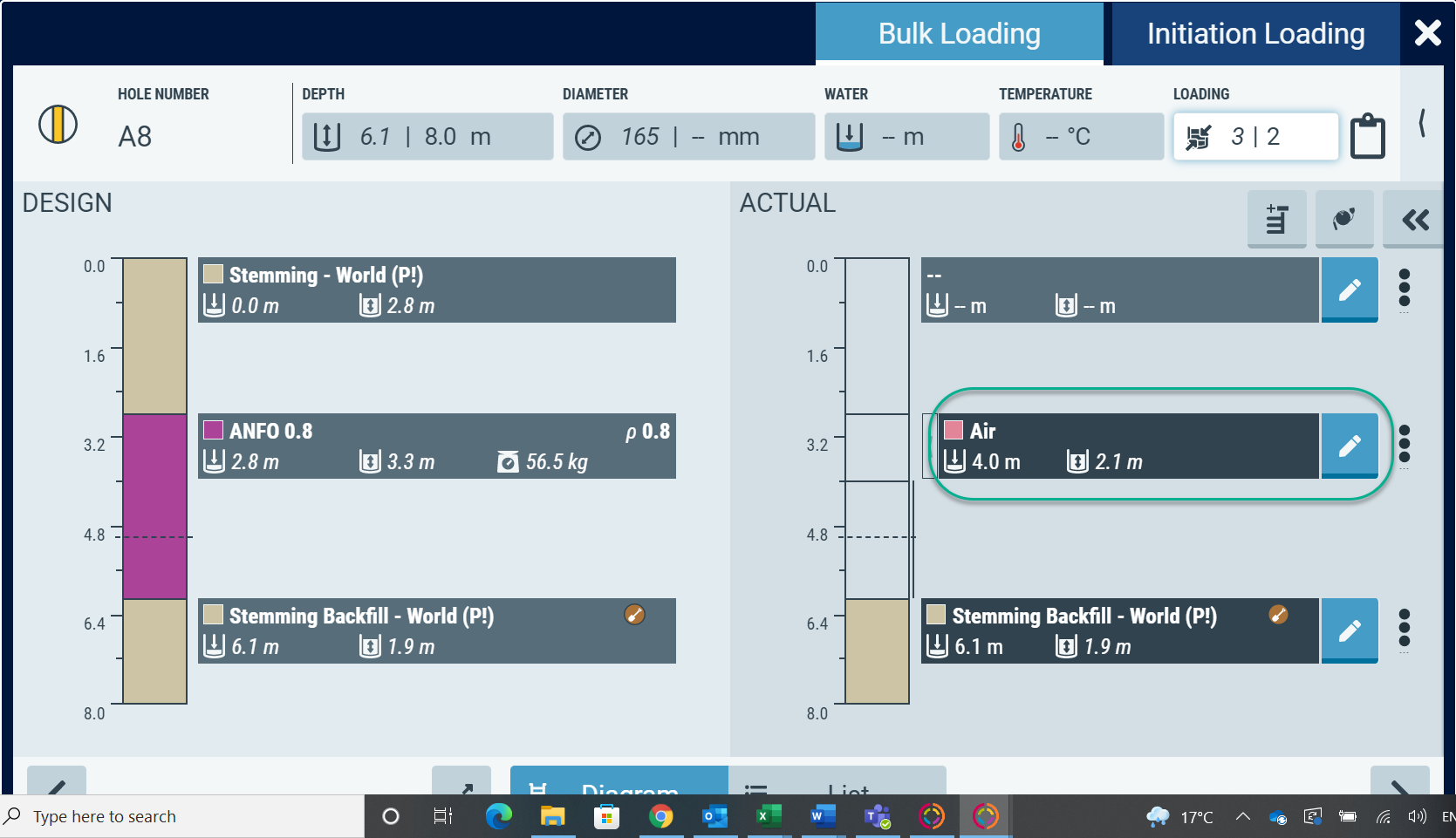

- Recalculations will occur for an actual deck if an actual horizon is recorded for a deck directly below it and it has a recorded horizon.
- A deck length is calculated from the 2 recorded horizons.
- Deck length = actual horizon - actual horizon (from the deck below)
- A deck length is calculated from the 2 recorded horizons.
- Recalculation will occur for an actual deck if a product is changed.
- See examples below.

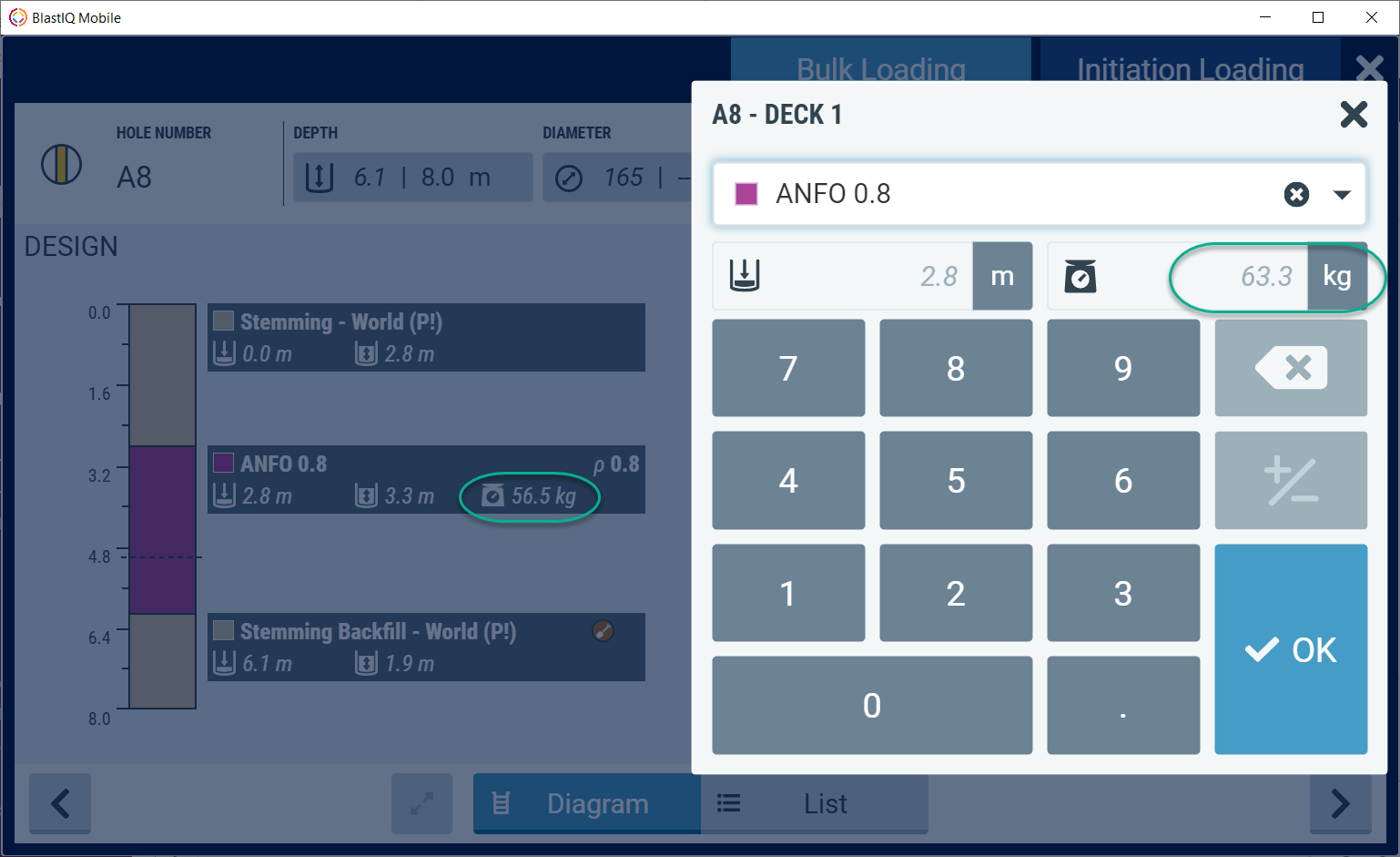

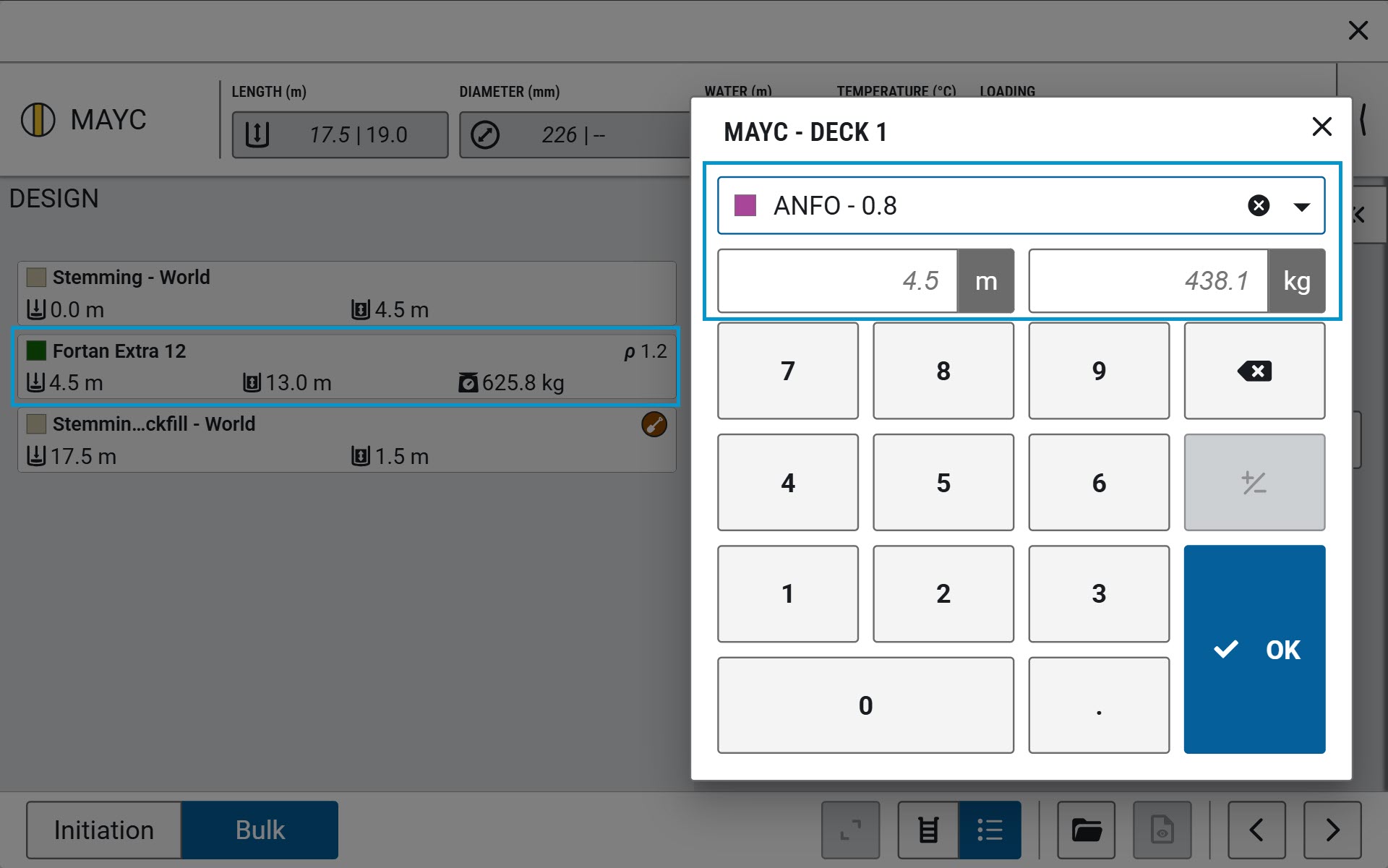

Product Swap

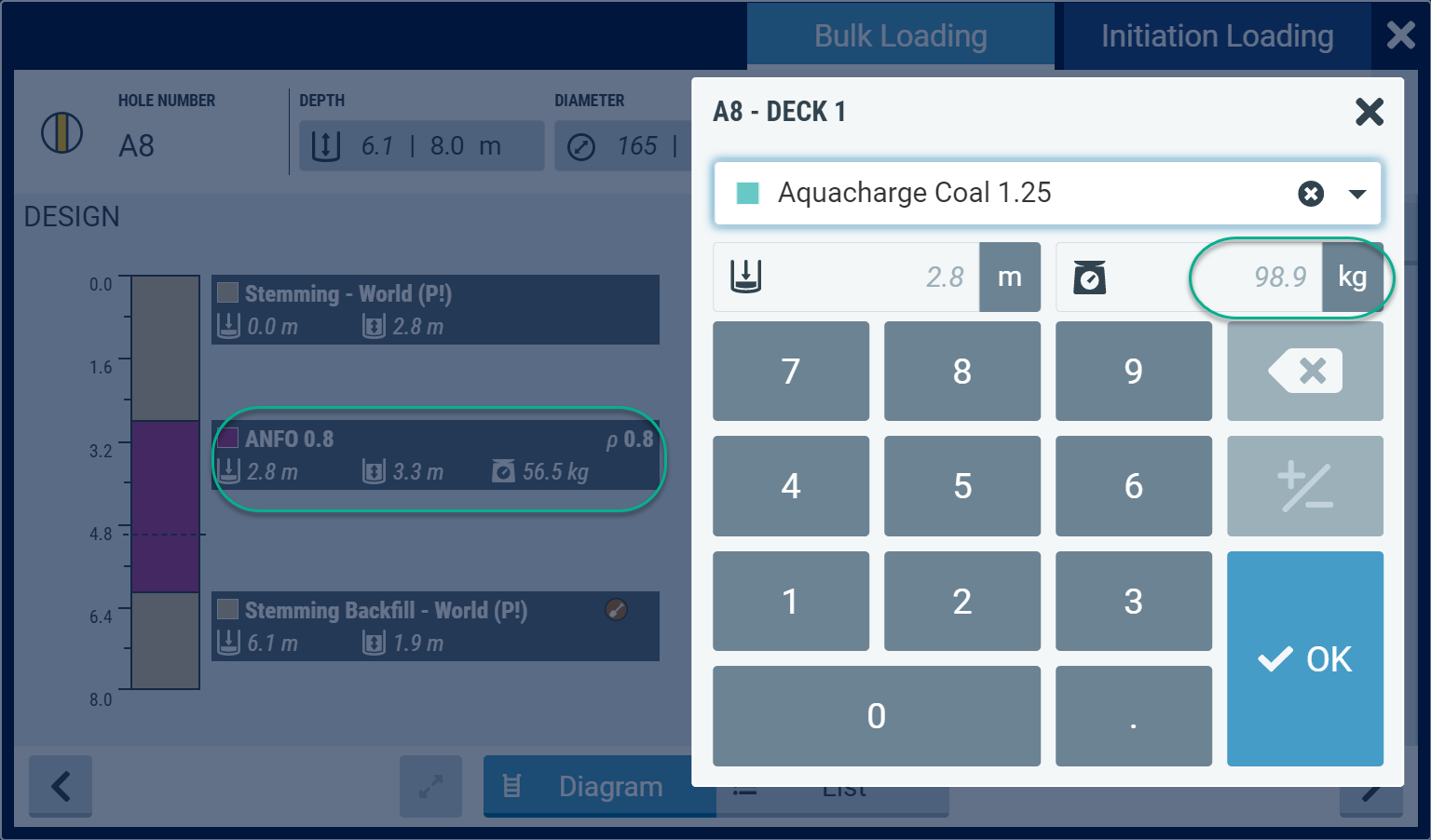

When a product is swapped in a deck that is of a different density to what was designed for the deck, the required weight of the product will be recalculated.

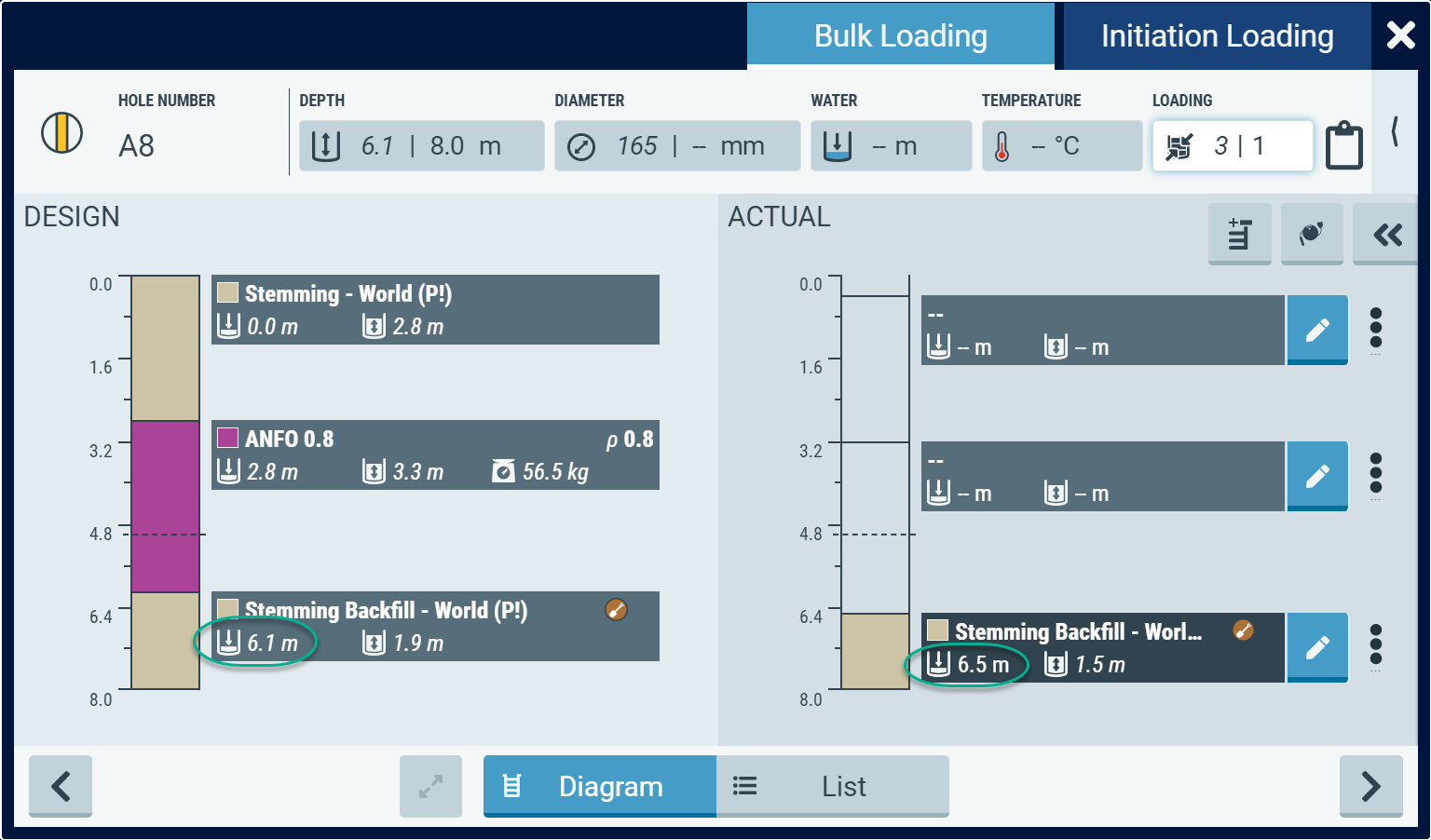

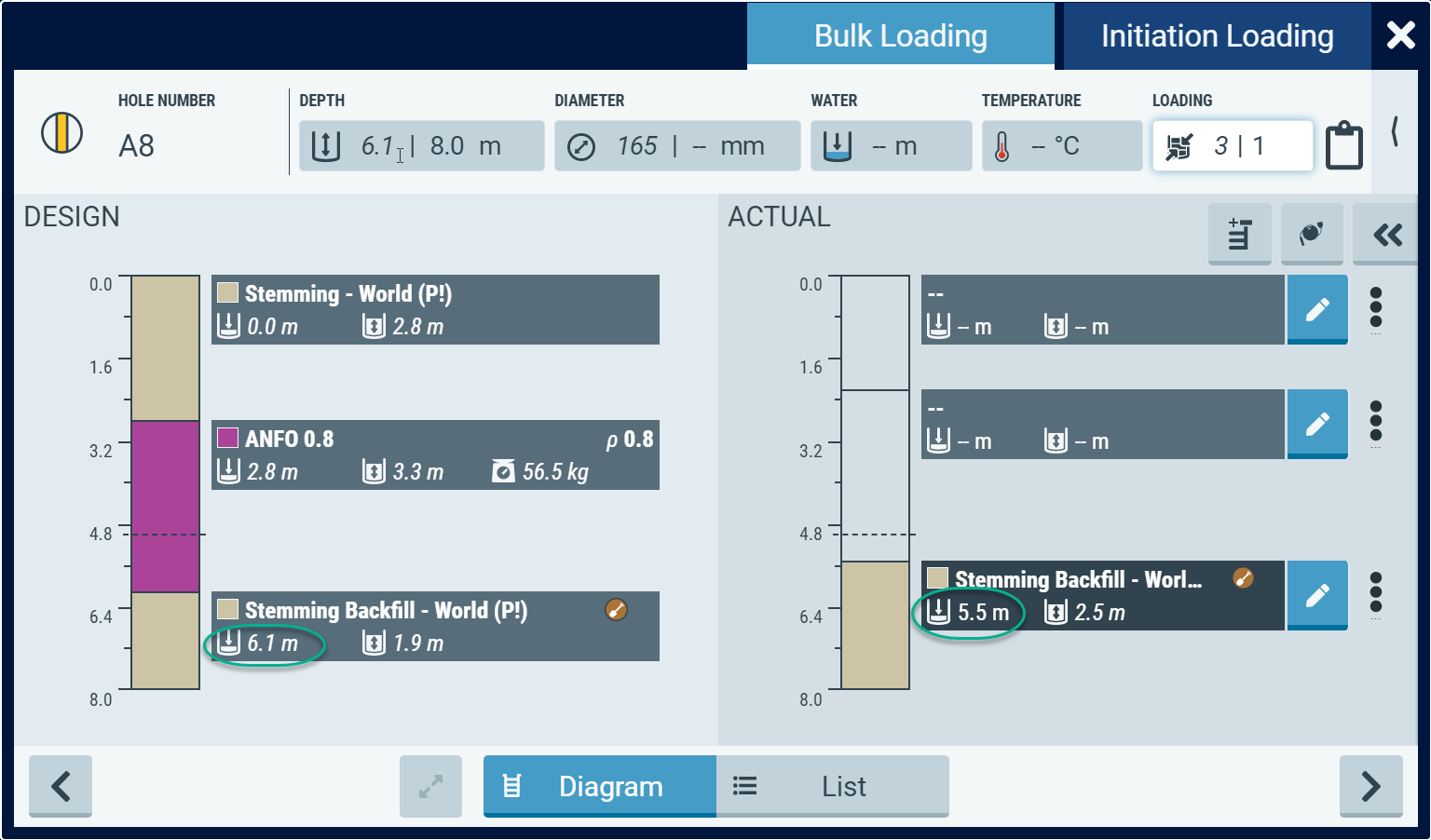

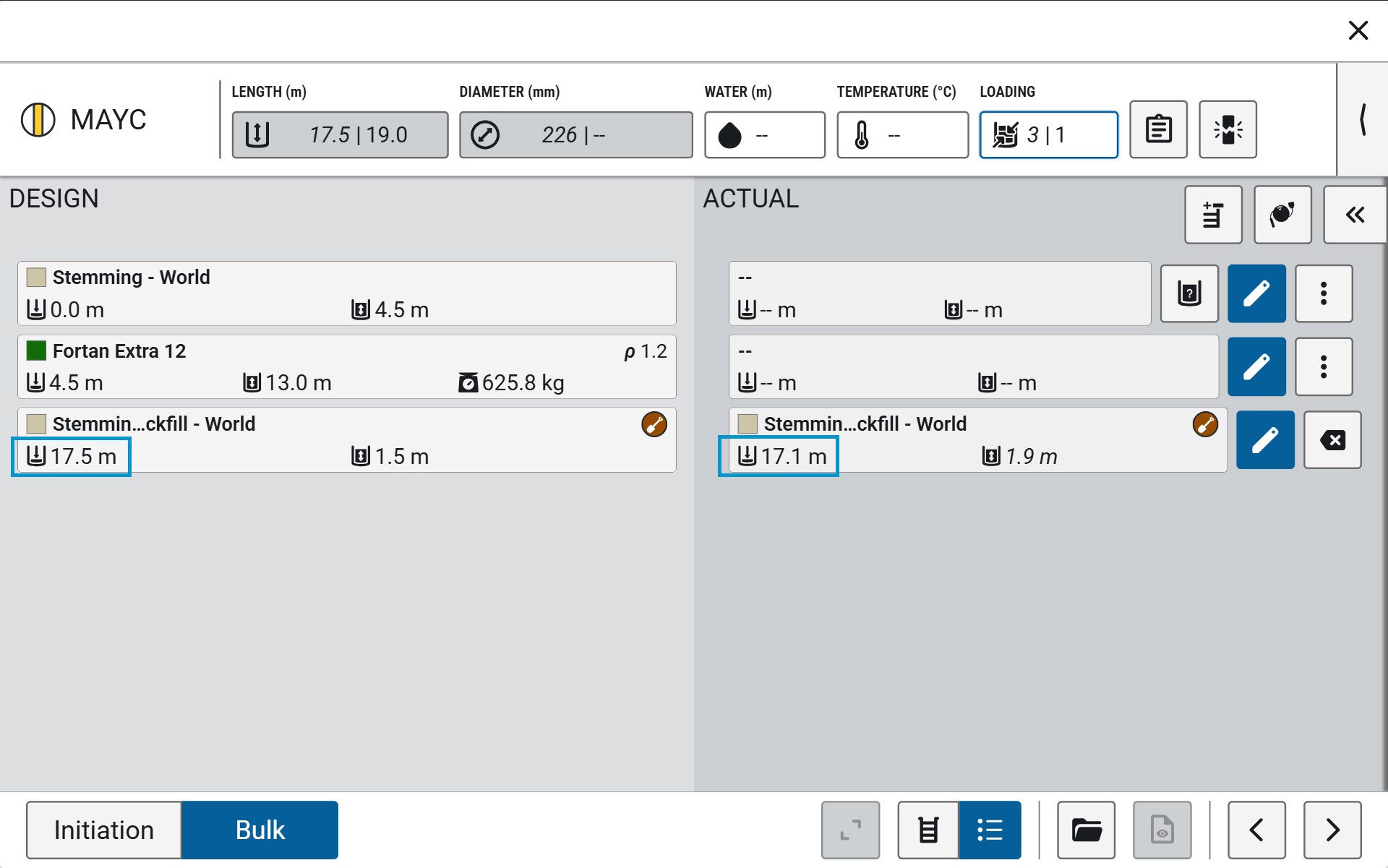

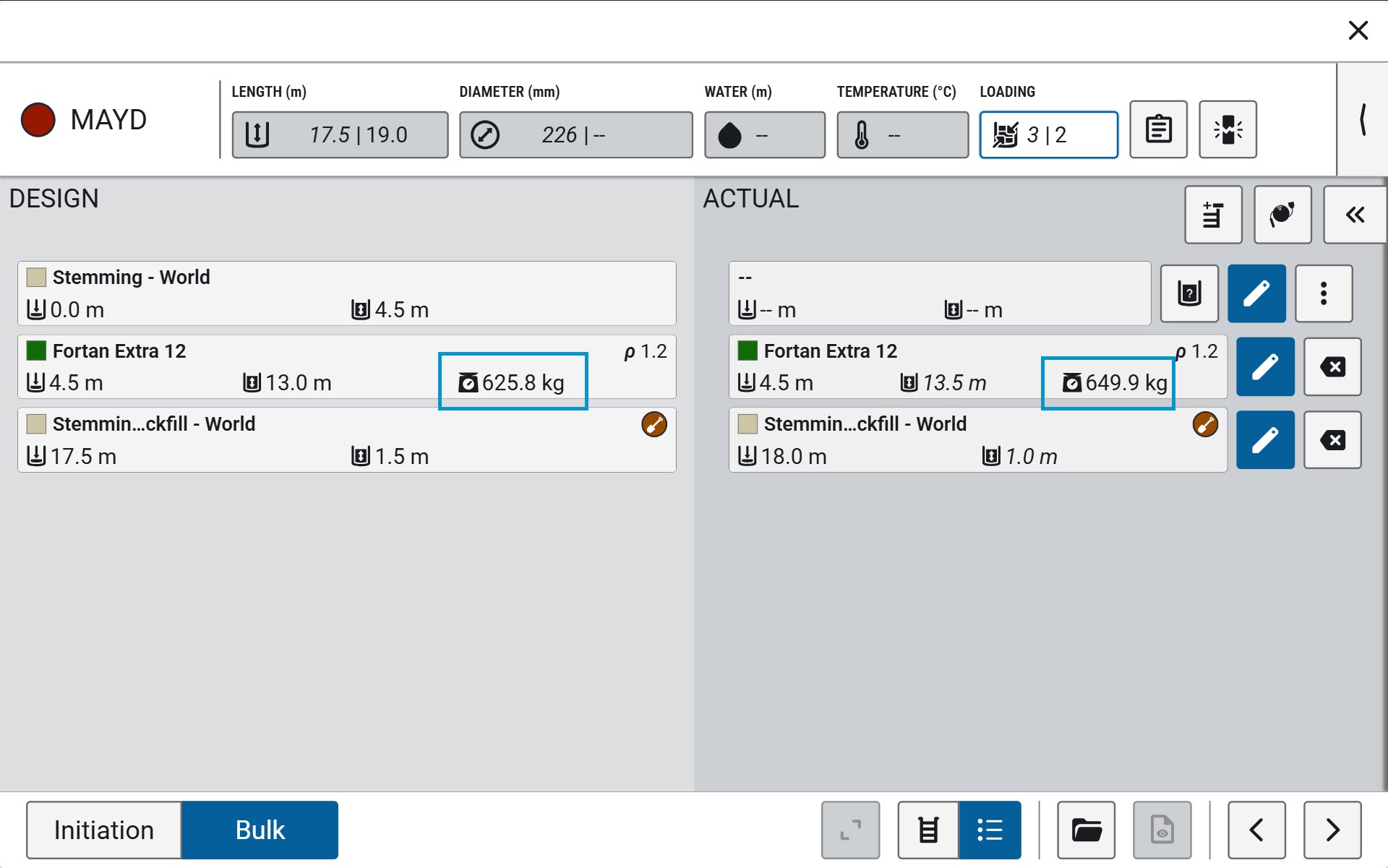

Deck Underloaded/Overloaded
Insert Deck

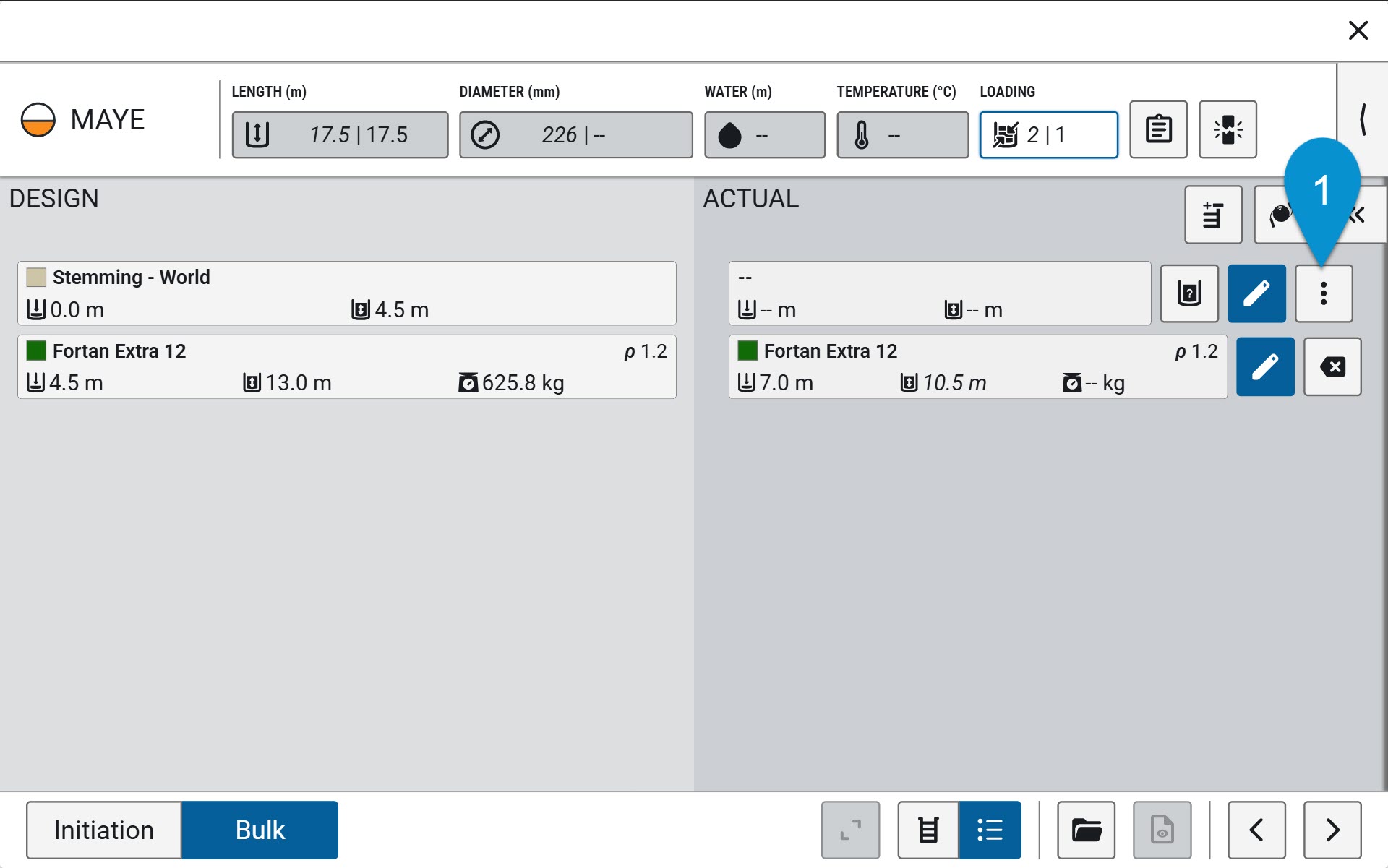

Click the Ellipsis (...) .

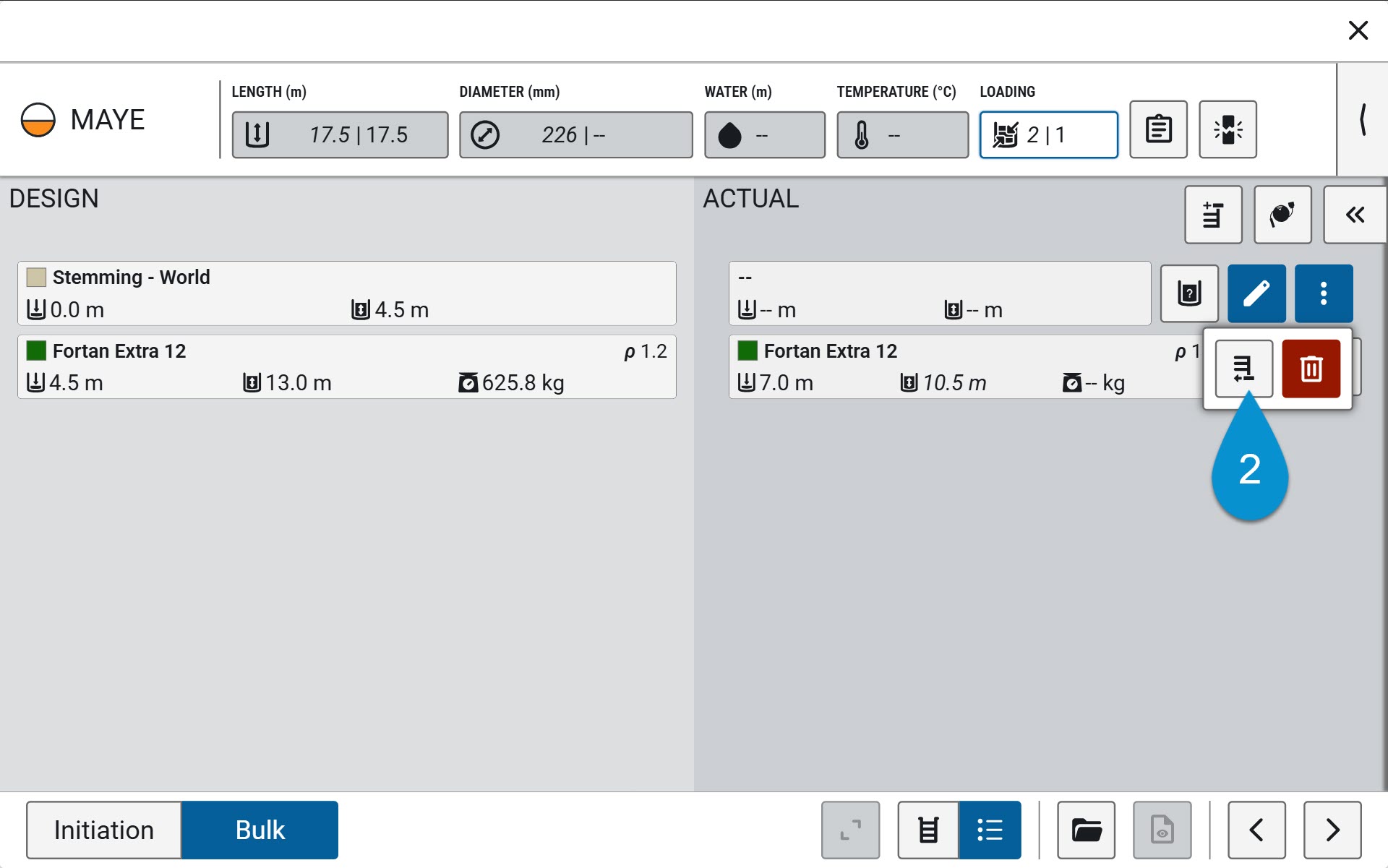

Select Insert New Deck.

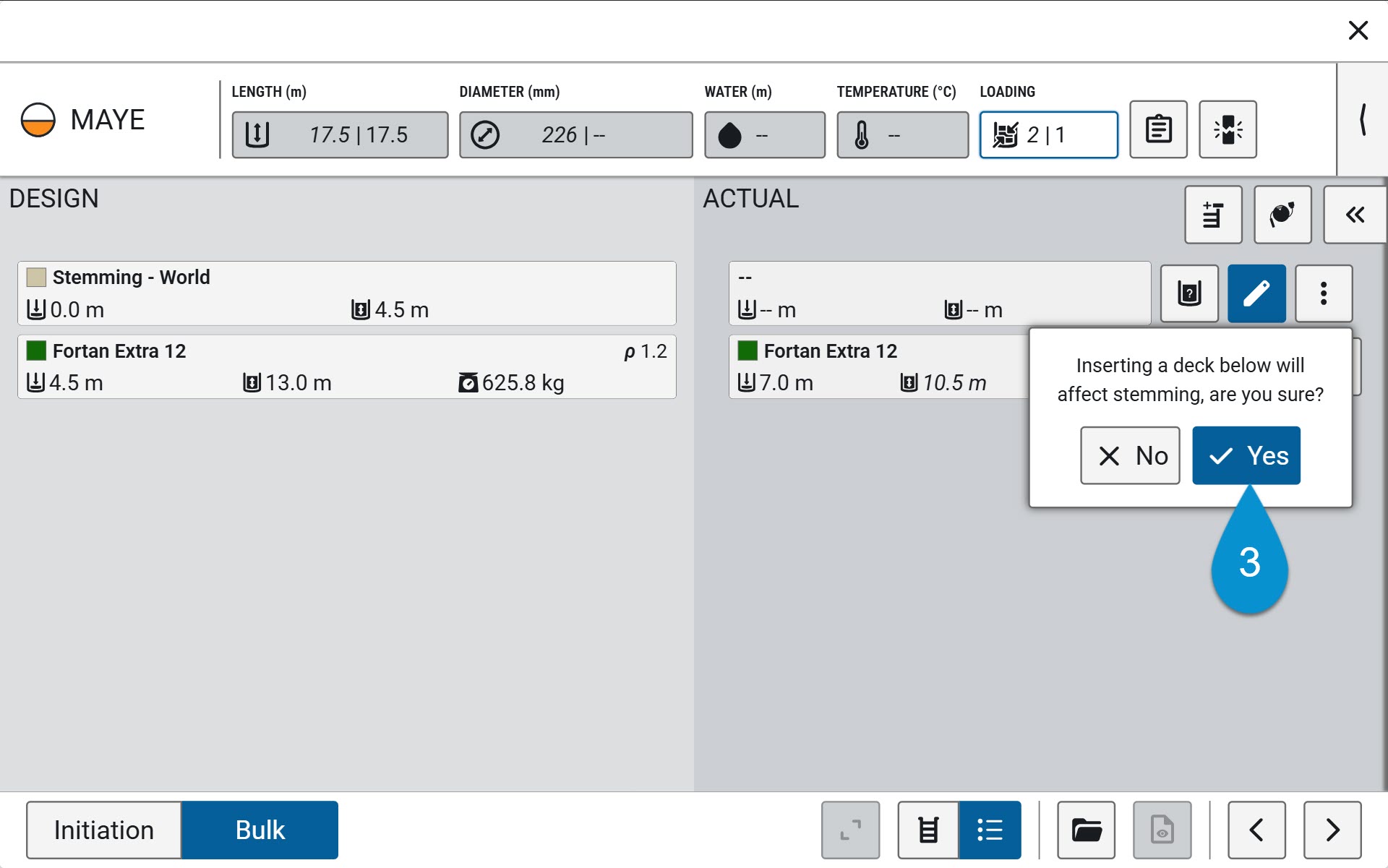

Confirming.

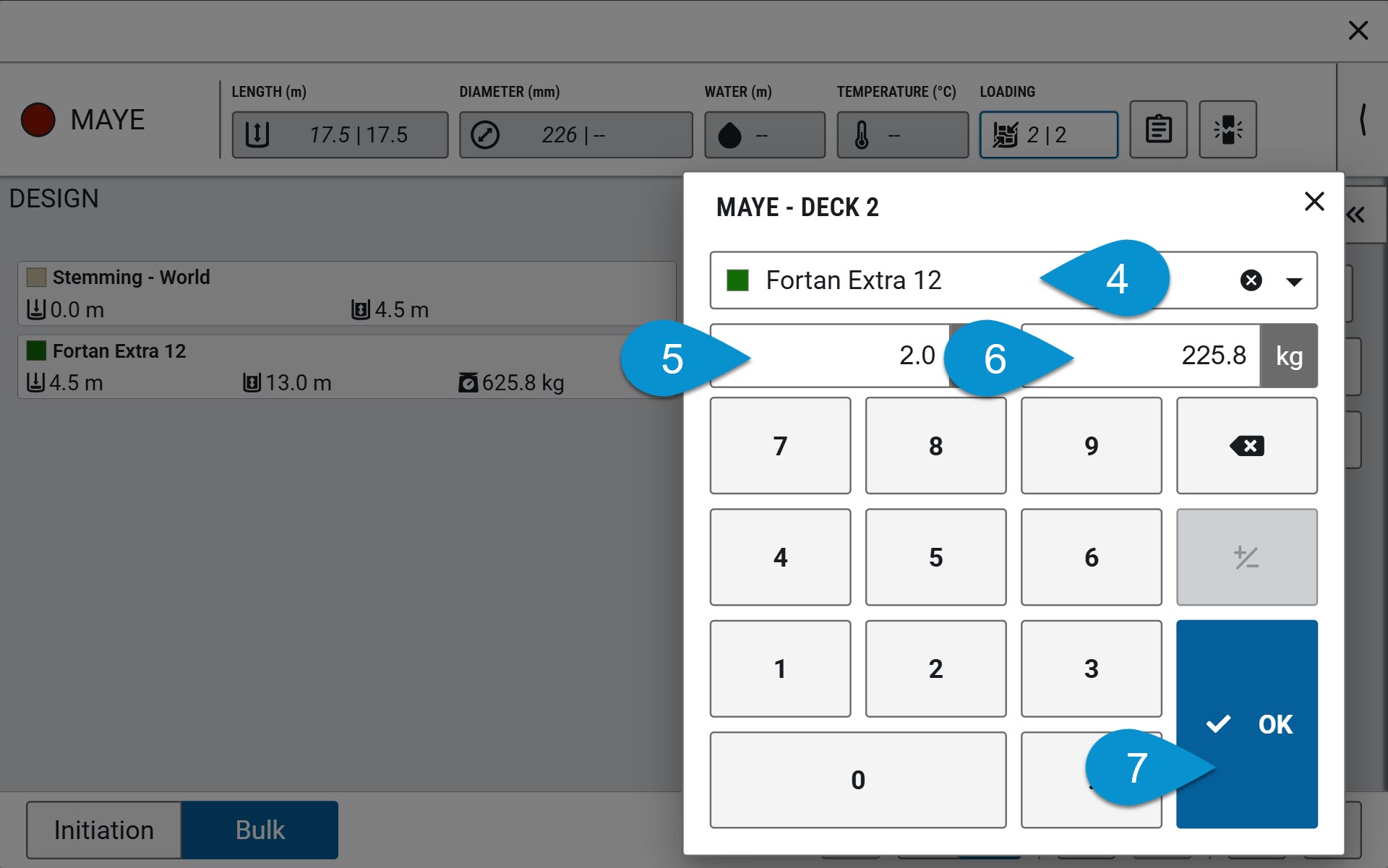

- Select Product from the drop down list.
- Add the horizon.
- Add the weight.
Press OK to save.

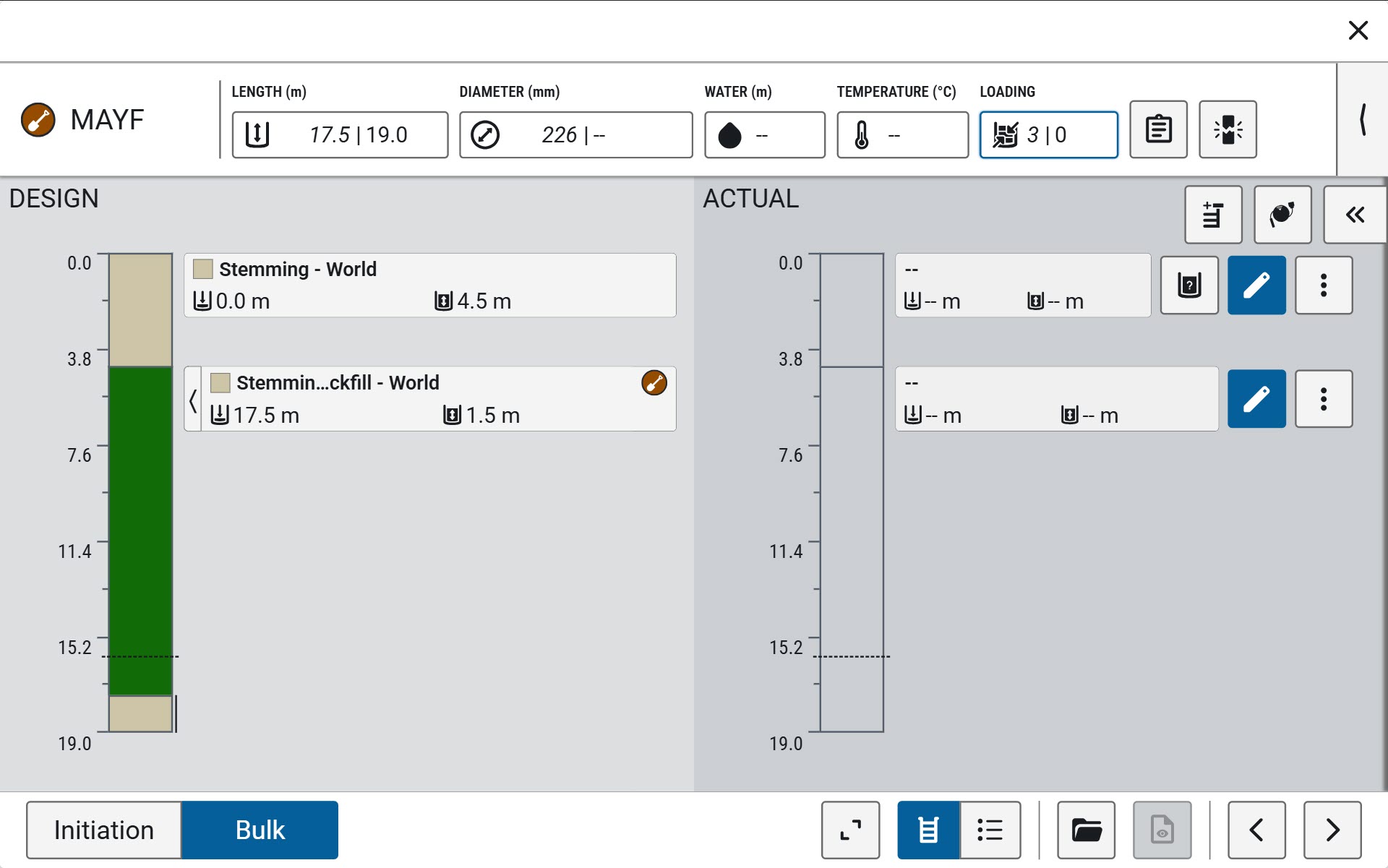

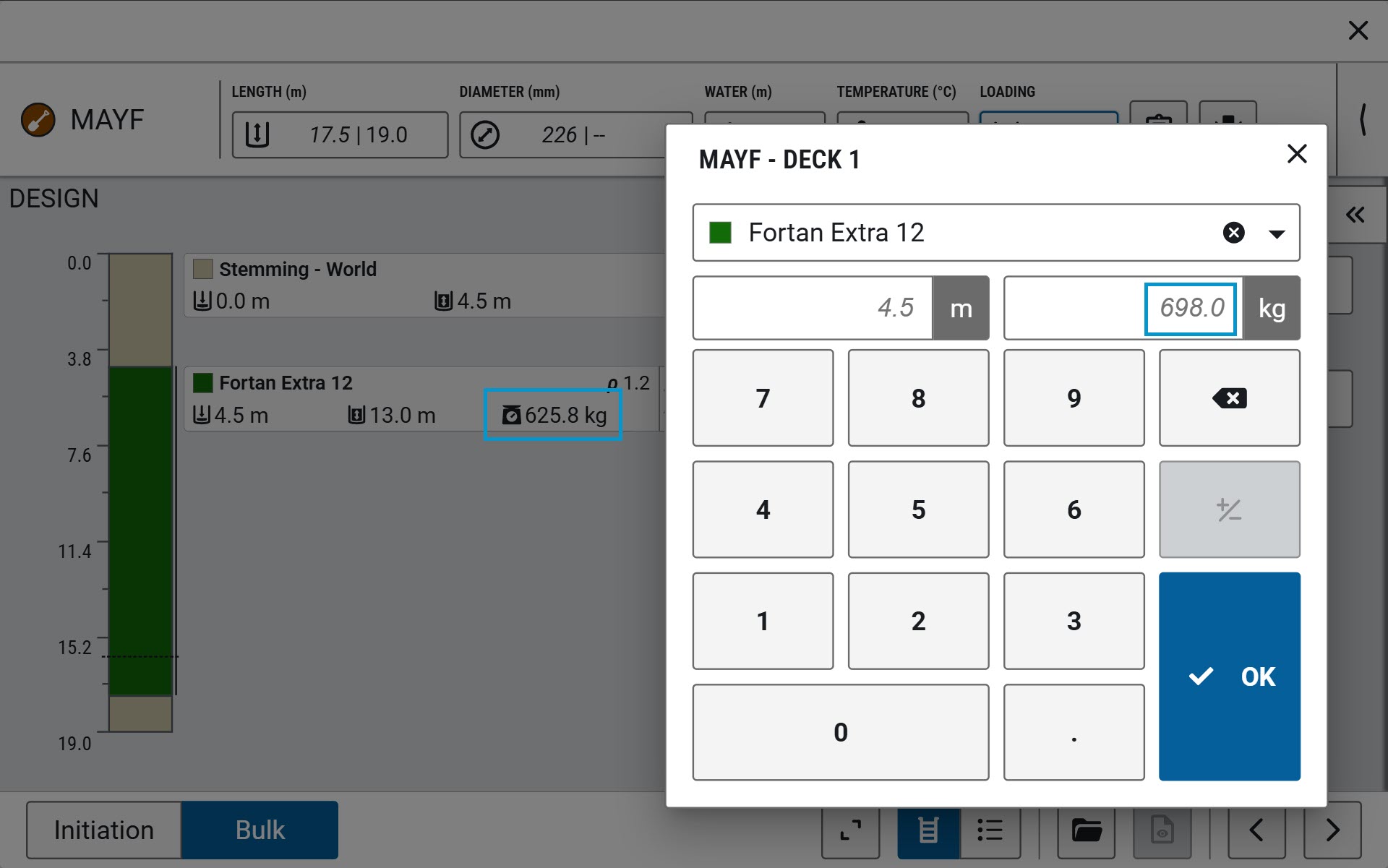

Deck Deleted
When a deck is deleted, the suggested weight will be recalculated, but the diagram will not be recalculated as horizons aren't adjusted, only weight.
