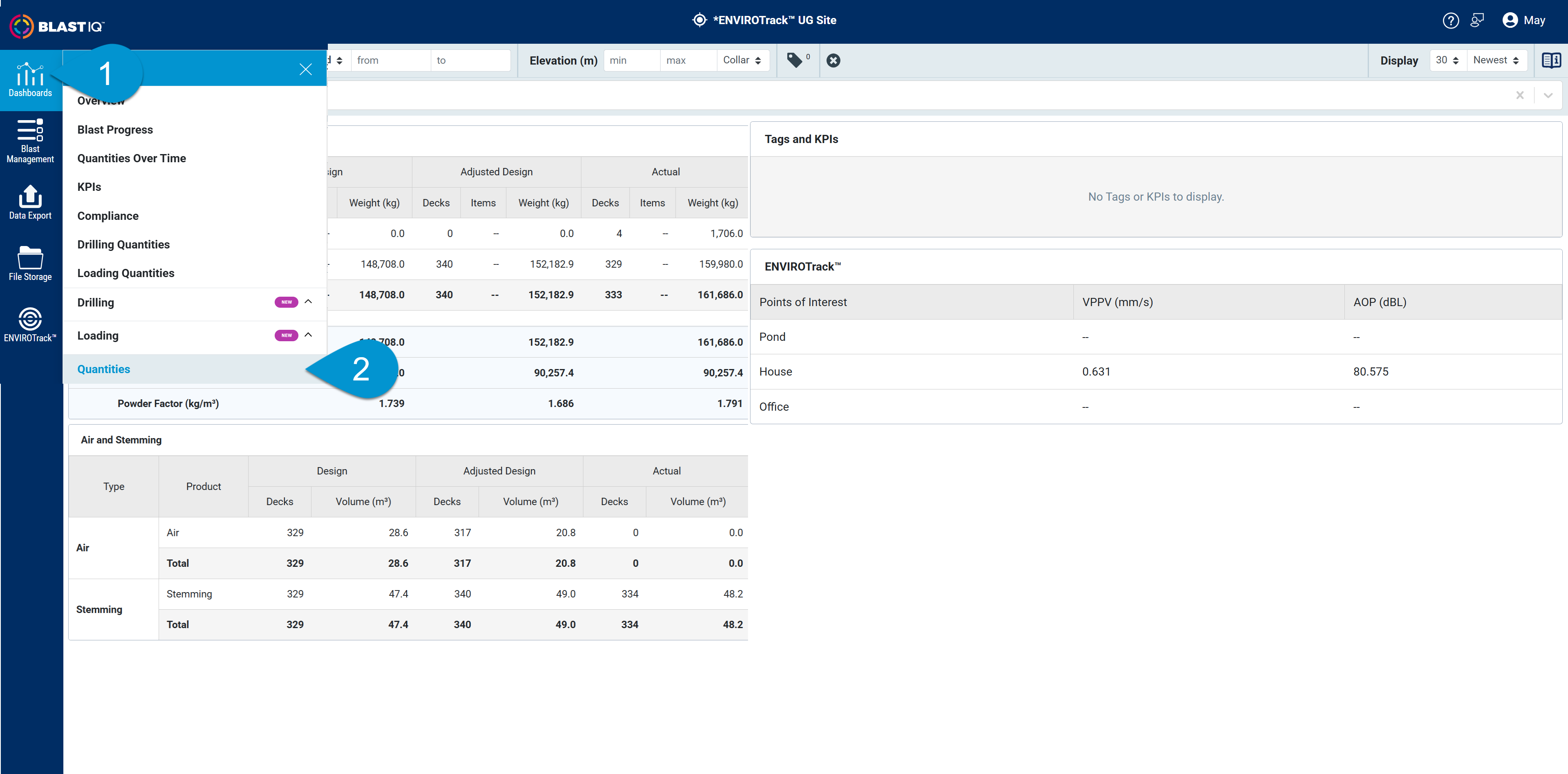

BlastIQ™ Insights - Underground Quantities Dashboard

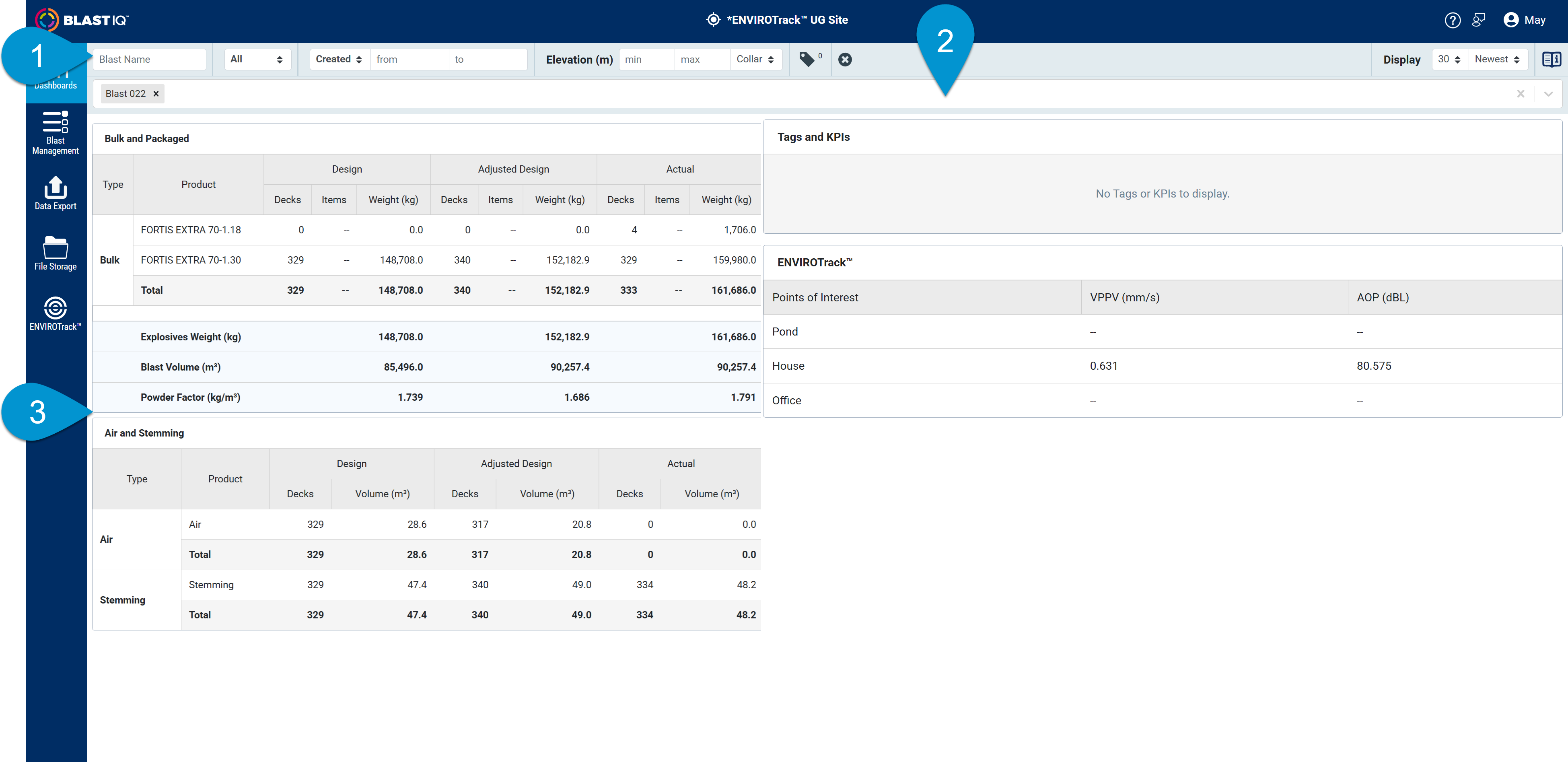

Blasts can be filtered using the following filters:

1. Blast Name Search Filter:
   • Type in the search box.
   • Blasts shown are the ones containing the typed-in characters.
2. Blast Status Filter:
   • Select All, Fired or Not Fired.
3. Date Range filter:
   • Select Created or Fired Date.
   • From and To fields are not mandatory.
   • If the date range filter is not used, the blasts shown are the latest created/fired for the site.
   • Maximum number of blasts shown is based on the Display Filter.
4. Elevation filter:
   • Choose a minimum and/or a maximum elevation.
   • Select Collar or Grade.
   • If an elevation filter is not used, the blasts show an elevation range.
   • Maximum number of blasts shown is based on the Display Filter.
5. Tags filter:
   • Click on the Tags icon.
   • Select the desired tags from each category.
   • Click Apply to apply the filter criteria.
   • It will return the blasts containing the selected tags based on the following logic:
     • OR for tags within the same category.
     • AND for tags across categories.
   • Click on Clear and then Apply to clear all tags filters.
   • Click on the X on the top right to close the tags filter; any edits to the filter criteria will be lost if not previously applied.
     Read more about Tags here.
6. Clear All filters - clears any filters that have been applied.
7. Display selection:
   • Choose 20, 30, 60, 90, 250, 500 blasts and Newest or Oldest blasts from the dropdown list.
   • This dictates the limit of blasts that are shown from other filters criteria and whether these blasts are picked from oldest first or newest first.
