BlastIQ™ Insights - Underground Quantities Over Time Dashboard

Last updated December 16, 2024 21:31

Release Date:: 16^th December 2024
KBA Summary:: This Knowledge Base Article describes the functionality of the Underground Quantities Over Time Dashboard in BlastIQ™ Insights.

Summary

BlastIQ™ Insights Underground Quantities Over Time Dashboard helps Drill and Blast Supervisors to track whether daily goals are met, ensure targets for different timeframes are on track, and identify any task-related issues.

Navigation

To navigate to the Underground Quantities Over Time Dashboard:

From the BlastIQ™ Insights toolbar, select Dashboards.
From the Dashboards menu, select Quantities Over Time.

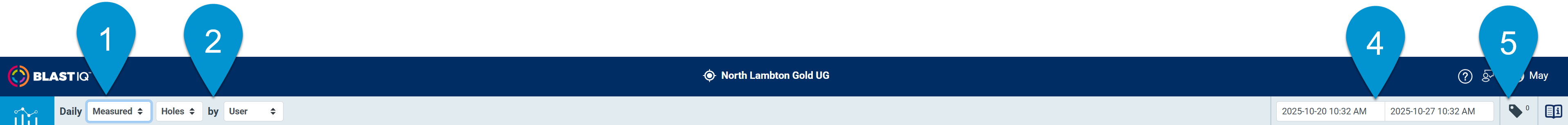

Filters

Primary Filter
- Loaded (default)
- Measured
- Drilled
Secondary Filters
- The secondary filters change based on your primary filter selection.
  - Loaded
    - Select "Loaded" as your primary filter.
    - For category filter, choose between the options such as "Weight (default)" or "Decks," and partitioned by filter such as "Equipment (default)," "Diameter," "User", "Wet," and "Product".
  - Measured
    - Select "Measured" as your primary filter.
    - For category filters such as "Holes" and partitioned filters such as "User (default), "Wet," and "Diameter."
  - Drilled
    - Select "Drilled" as your primary filter.
    - For category filters, choose between the options such as "Length (default)" or "Holes" and partitioned by a filter such as "Drill Name (default)," Operator," "Diameter," and "Wet."
Date and Time Filter
- By default, the system shows the data for the past 7 days.
- The range is limited to 100 days. Dates beyond this limit will be disabled and cannot be clicked.
- A specific start time and end time can now be specified for more precise filtering within the selected date range.
Tags filter:
- Click on the Tags icon.
- Select the desired tags from each category.
- Click Apply to apply the filter criteria.
- It will return the loading data containing the selected tags based on the following logic:
  - OR for tags within the same category.
  - AND for tags across categories.
- Click on Clear and then Apply to clear all tags filters.
- Click on the X on the top right to close the tags filter; any edits to the filter criteria will be lost if not previously applied.
  Read more about Tags here.

Information

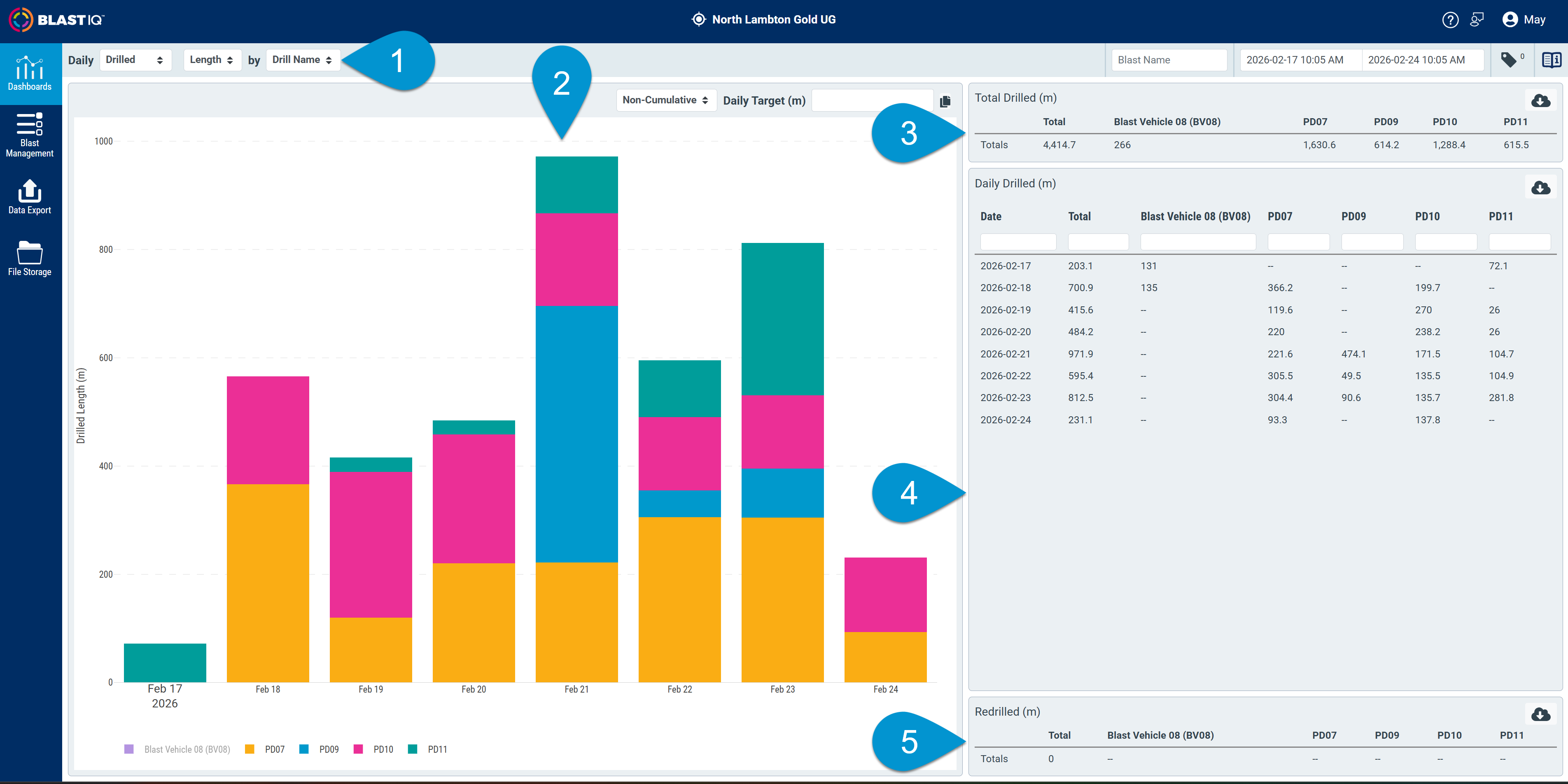

The following information is shown on the Quantities Over Time Dashboard:

Filter bar.
Chart.
Summary Total view.
Table view.

Comprehensive information is provided in each section.

Filter Bar:
- Filter by blasts using multiple criteria.
- For comprehensive details, please navigate to the Filters section.

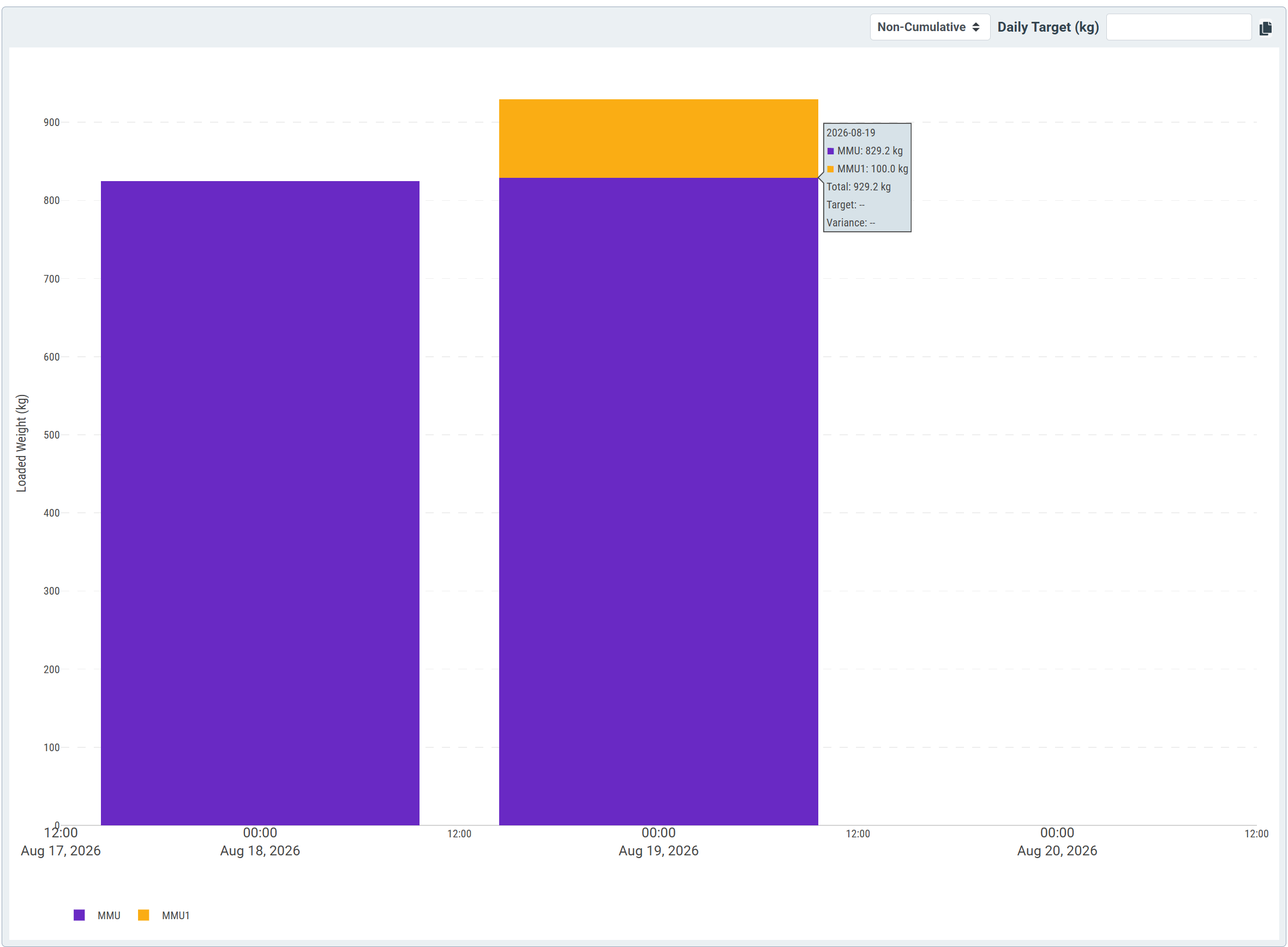

Chart:
- Modes:
  - Non-Cumulative
  - Cumulative
- Settings and Visualisation of Targets
  - Input: The user can input a "daily target" in the secondary mode field.
  - Display: The chart will dynamically display a constant dashed line based on the user's input in the selected plot modes. However, if no values are entered for the daily target, the chart will not display any dashed line.
- Legends
  - Selecting the legend toggles the visibility of the corresponding information, either hiding or showing it.
- Hover over
  - When you hover over the plot, the display varies based on the selected plot mode (Non-Cumulative or Cumulative) and applied filters. It includes:
    - Date
    - Groups with colour-coded legends and values
    - Total
    - Target with a corresponding coloured line legend
      - The displayed target is the cumulative sum of the target values up to the current date. In Non-Cumulative mode, it represents the target for that specific day.
    - The Variance is calculated as (Total - Target).
      - If the difference is negative, the result is below the target. Conversely, the result is above the target if the difference is positive.

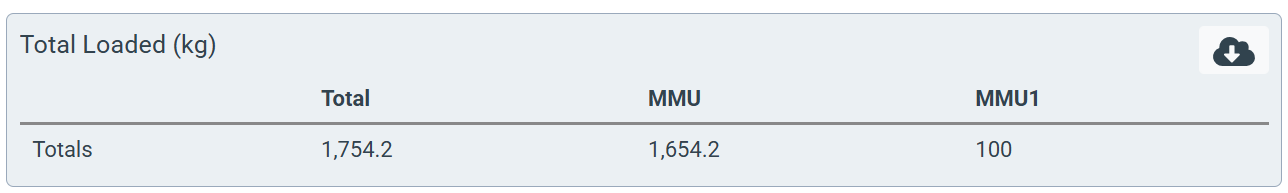

Summary Total view
- Display will be populated based on the filters selected.
- Rows
  - Total
    - Calculation: =SUM(Total for all dates for all groups)
      - This calculates the total sum for all dates and all groups in your dataset.
  - Grouping
    - Calculation: =SUM(Total for all dates for a specific group)
      - This provides the total for all dates, specifically for a particular group.
- All other values are rounded to 1 decimal place.

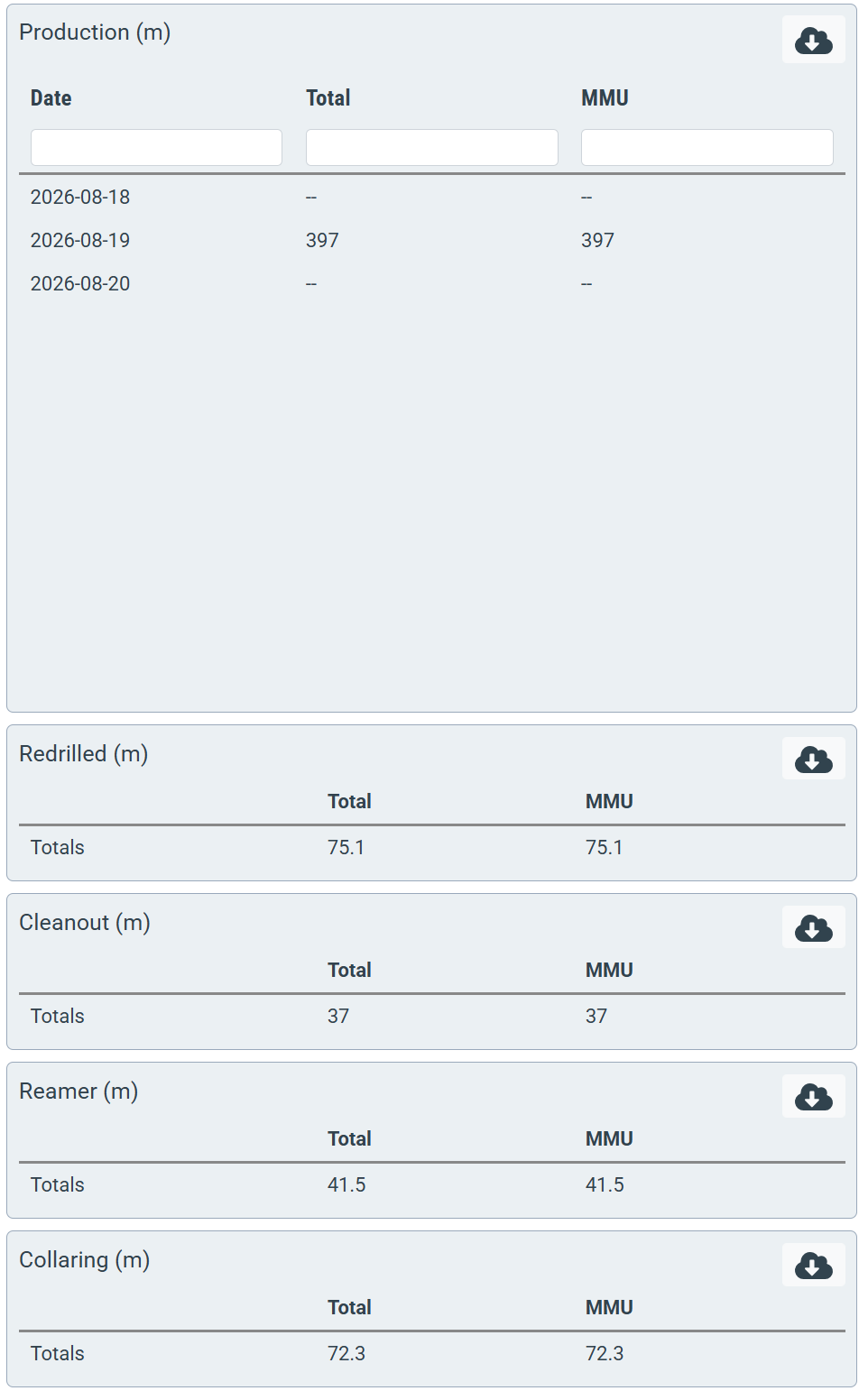

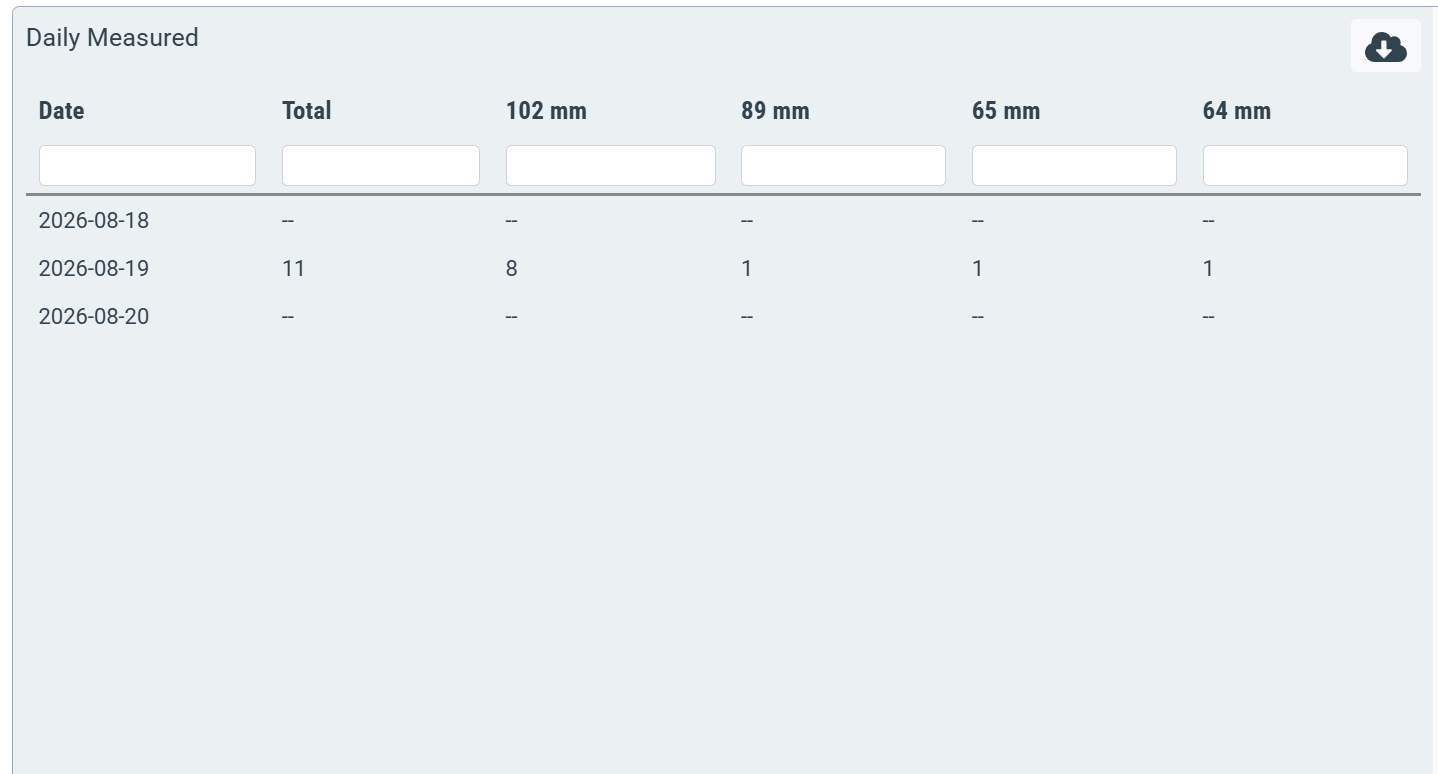

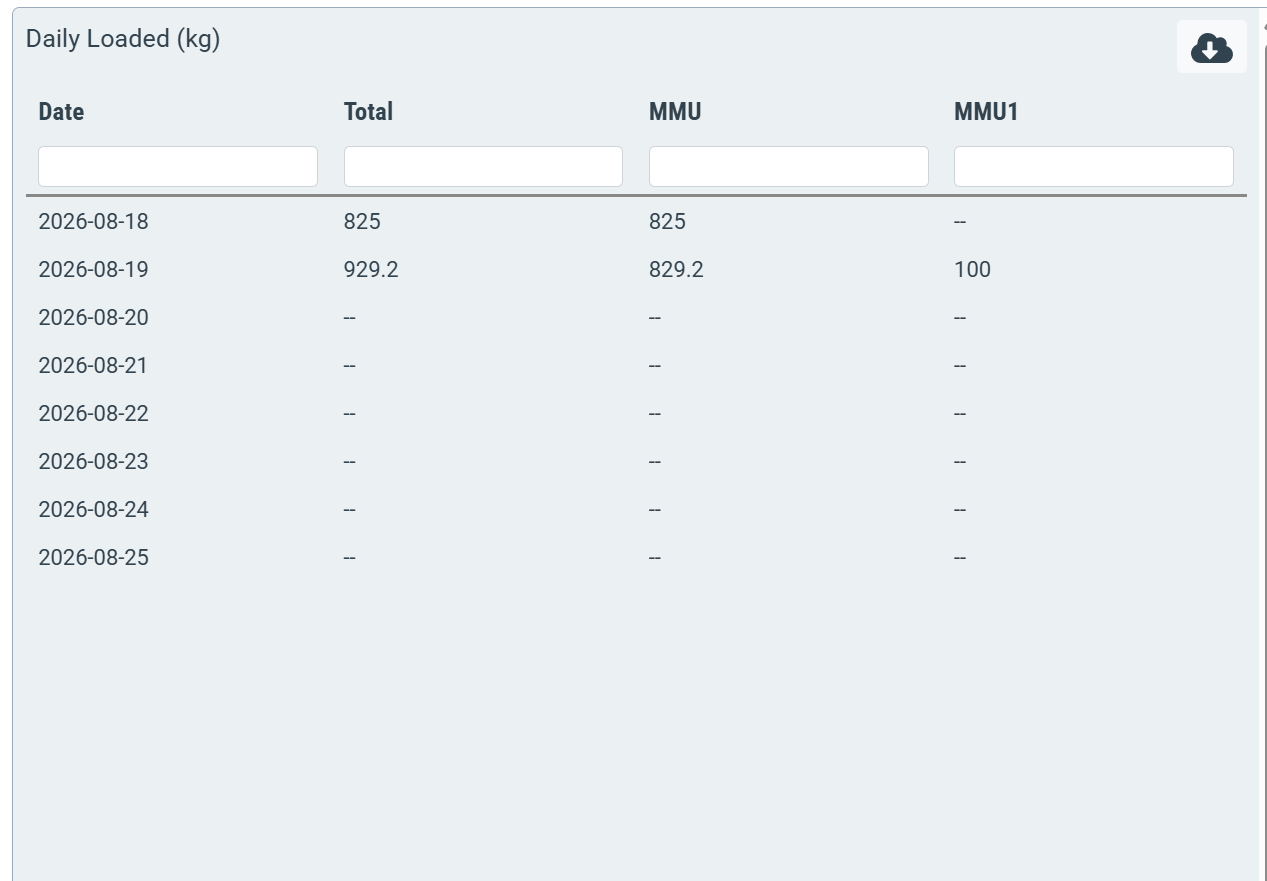

Table view
- Displays will be populated based on the filters selected.
- Rows
  - Date
    - Will be displayed based on the date filter.
  - Total
    - Calculation: = SUM (Total for all groups per day)
      - This provides the total for all groups.
  - Grouping
    - Displays the value per day
- Hover-over to see the details.
- Use the search boxes to filter the data.
- Click on the column headers to sort.
- To download, click the download button to initiate a CSV file download.
- All other values are rounded to 1 decimal place.
