BlastIQ™ Insights - Underground Drilling Length

Last updated March 02, 2025 23:58

Release Date:: 16^th December 2024
KBA Summary:: This Knowledge Base Article describes using the Underground Drilling Length Dashboard in BlastIQ™ Insights.

Summary

BlastIQ™ Insights enables users to visualise the drilling length compliance of holes within a blast plan via the Underground Drilling Length Dashboard.

Navigation

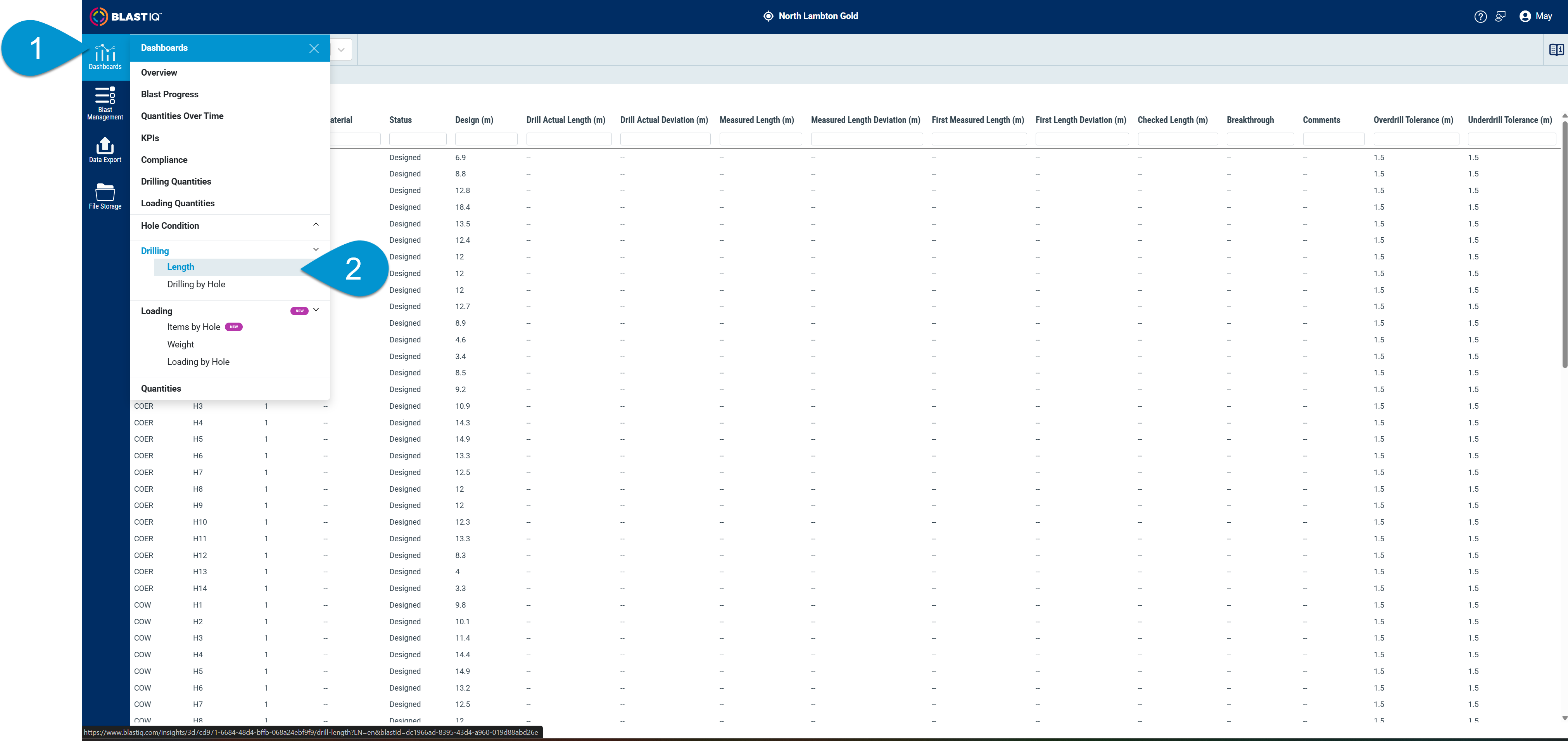

To navigate to the Underground Drilling by Hole Dashboard:

From the BlastIQ™ Insights toolbar, select Dashboards.
From the Dashboards menu, under Drilling, select Length.

Information

The following information is shown on the Drilling Length Dashboard:

Blast Name Selector.
Total Number of Holes.
Table View.

Detailed information on each section:

1. Blast Name Selector
  - Select a blast from the drop-down list.
  - The user can type in to search for the desired blast.
2. Total Number of Holes
  - Displays the total number of holes in a blast.

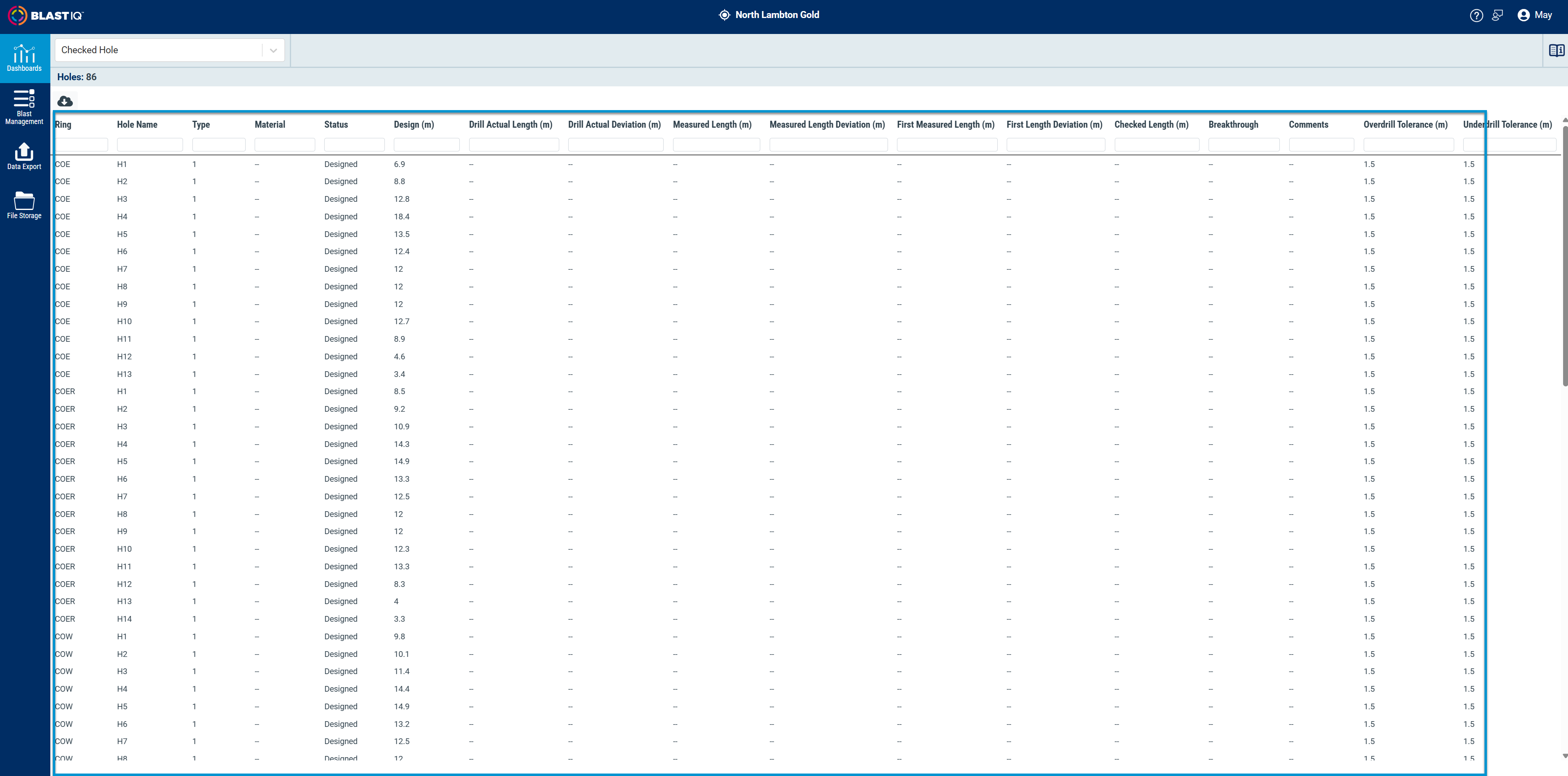

3. Table View
  - Use the search boxes to filter the data.
  - Click on the column headers to sort.
  - You can download by clicking the download button to initiate a CSV file download.

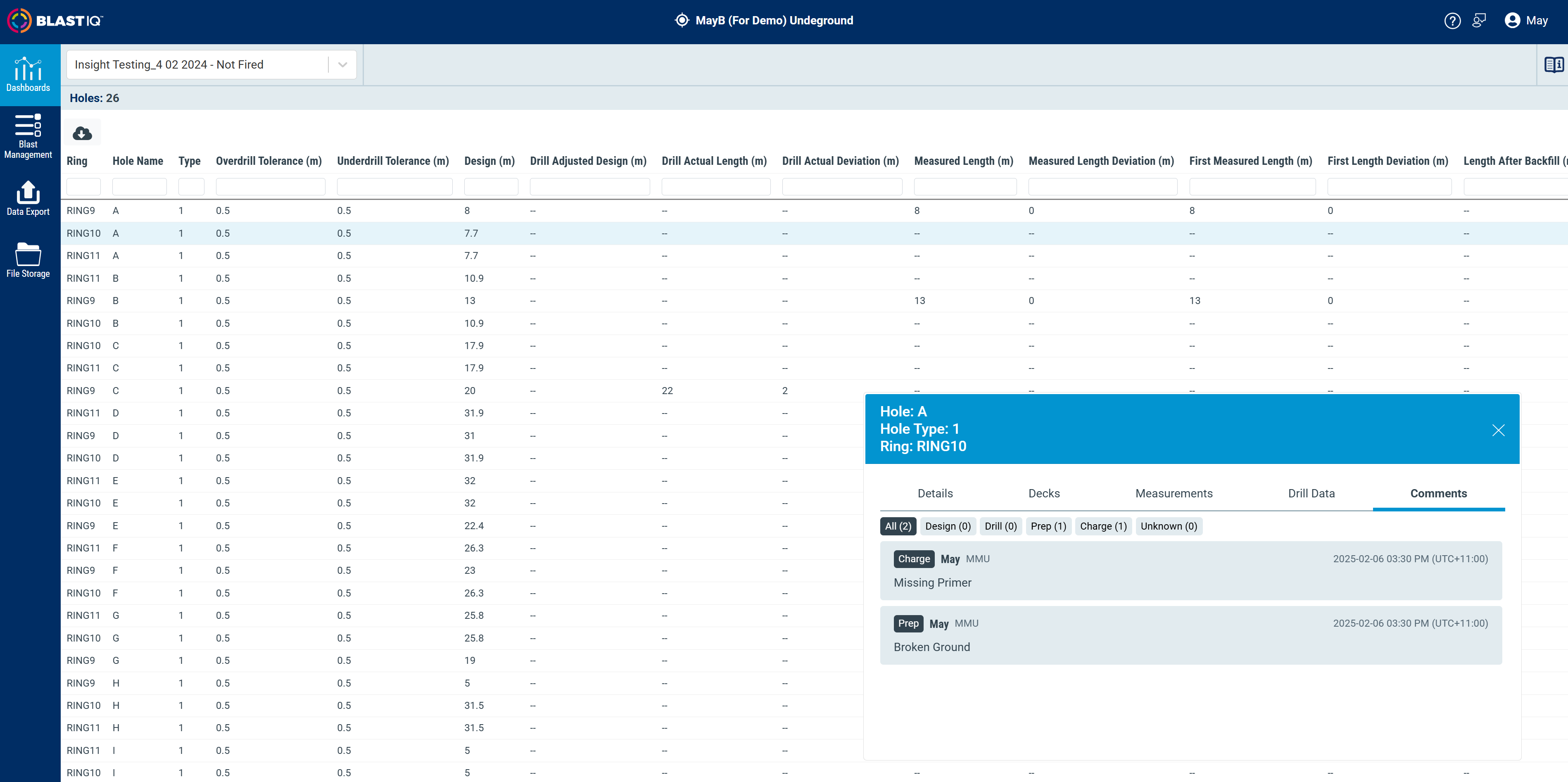

  - Clicking a hole row opens the hole details panel.
    - The panel consists of five tabs: Details, Decks, Measurements, Drill Data, and Comments.
      - Details

        By default, the "Details" will be visible, presenting users with design, drilled, and measured data.
      - Decks

        Decks and relevant properties are grouped by design, adjusted and actual.

        Deck is displayed by a lower number from the bottom to the top (higher number).
      - Measurements

        Provides a concise overview of recorded data, including the time occurrence, associated deck, property details, recorded values, user identity, and the equipment or device used.

        Measurements are ordered by timestamp.

        Sorting is implemented by clicking on the column headers.
      - Drill Data

        Provides a concise summary of drilling-related information. Users will find details such as the average penetration rate, start time, end time, drill name, operator, and timestamps for when the event occurred and was received.
      - Comments

        Hole comments recorded in BlastIQ™ Mobile v1.22.206 or older will not show in the comments in the hole details panel. These comments are still available in the already supported display points and data export.

        Comments per tasks like Design, Drill, Prep, Charge, and Unknown should be visible once added.
