- Release Date:
- 16th December 2024
- KBA Summary:
- This Knowledge Base Article describes the functionality of the Underground Drilling by Hole dashboard in BlastIQ™ Insights.
Summary
BlastIQ™ Insights Underground Drilling by Hole dashboard enables users to visualise and assess drilling data by providing a data table to quickly identify which drill rig (equipment) was used during drilling for each hole, determine the diameter with which holes were drilled, evaluate the average penetration rates, and determine what dates holes were drilled.
Navigation
To navigate to the Underground Drilling by Hole Dashboard:
- From the BlastIQ™ Insights toolbar, select Dashboards.
- From the Dashboards menu, under Drilling, select Drilling by Hole.
Information
The following information is shown on the Drilling by Hole Dashboard:
- Blast Name Selector.
- Total Number of Holes.
- Table View.
Detailed information on each section:
- Blast Name Selector
- Select a blast from the drop-down list.
- The user can type in to search for the desired blast.
- Total Number of Holes
- Displays the total number of holes in a blast.
- Table View
- Use the search boxes to filter the data.
- Click on the column headers to sort.
- You can download by clicking the download button to initiate a CSV file download.

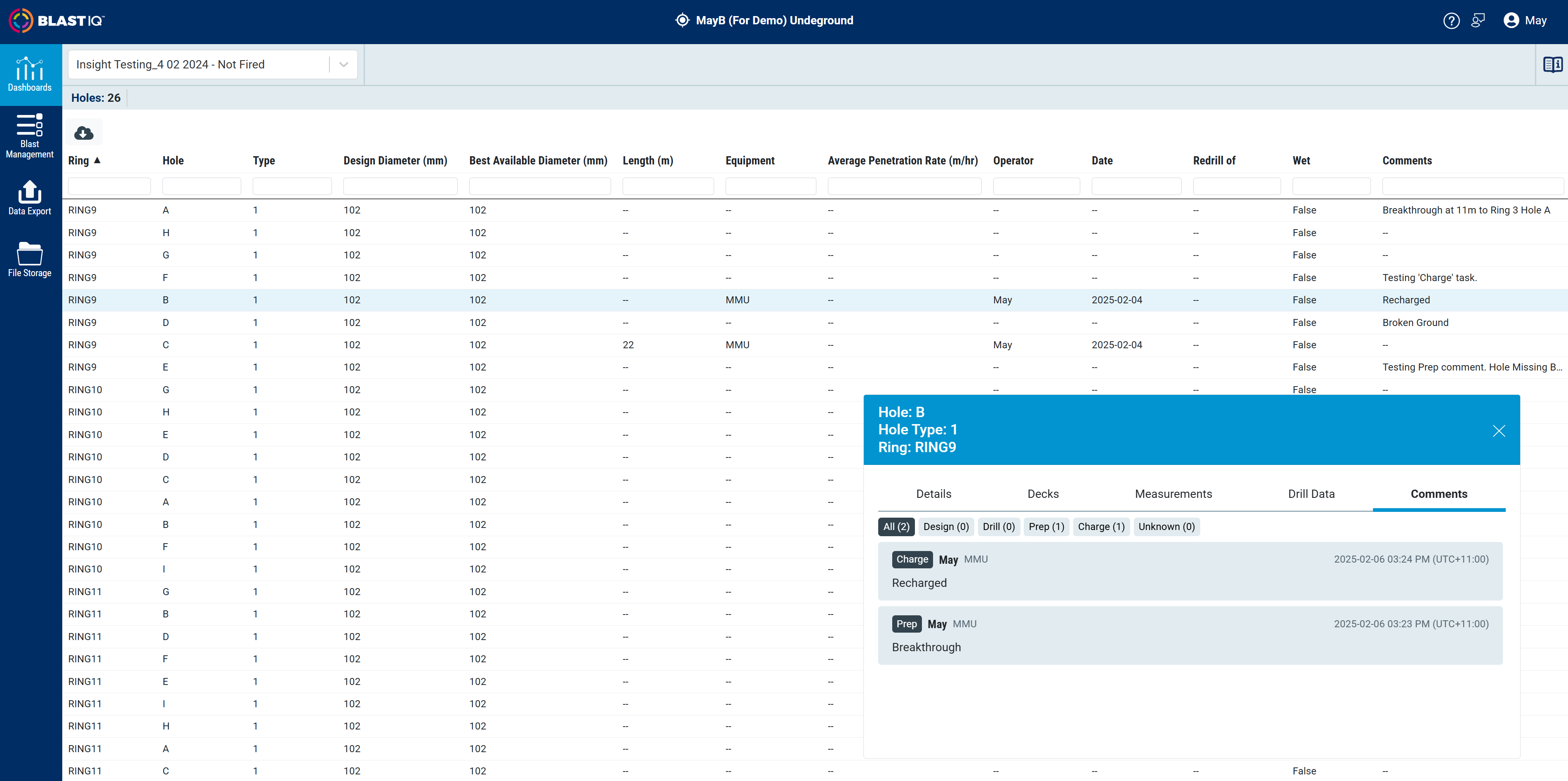

- Clicking a hole row opens the hole details panel.
- The panel consists of five tabs: Details, Decks, Measurements, Drill Data, and Comments.
- Details
- By default, the "Details" will be visible, presenting users with design, drilled, and measured data.
- Decks
- Decks and relevant properties are grouped by design, adjusted and actual.
- Deck is displayed by a lower number from the bottom to the top (higher number).
- Measurements
- Provides a concise overview of recorded data, including the time occurrence, associated deck, property details, recorded values, user identity, and the equipment or device used.
- Measurements are ordered by timestamp.
- Sorting is implemented by clicking on the column headers.
- Drill Data
- Provides a concise summary of drilling-related information. Users will find details such as the average penetration rate, start time, end time, drill name, operator, and timestamps for when the event occurred and was received.
- Comments
- Hole comments recorded in BlastIQ™ Mobile v1.22.206 or older will not show in the comments in the hole details panel. These comments are still available in the already supported display points and data export.
- Comments per tasks like Design, Drill, Prep, Charge, and Unknown should be visible once added.
- Details
- The panel consists of five tabs: Details, Decks, Measurements, Drill Data, and Comments.
