- Release Date:
24th March 2021
Summary
An option to capture a single intercept value has been added to BlastIQ Mobile. This value will be imported into SHOTPlus with other field-captured data and can be used to create strata surface A, which can then be used in the application of loading rules.
Understanding the "First Intercept Capture" Setting
The "First Intercept Capture" behaviour depends on whether it is configured at the plant, quarry/site level through the Admin portal.
Note: Please see this article on How to configure a site that can support multiple customer sites for BlastIQ Mobile using ODS Admin portal
-
Plant-Level Configuration
- Activating "First Intercept Capture" at the plant level affects all sites within that plant. In other words, it activates the "First Intercept Capture" feature for all quarries or sites linked to the plant.
- If you deactivate "First Intercept Capture" at the plant level and activate it at the site level, the site-level setting won't override the plant-level setting. This means that the "First Intercept Capture" field will not be visible in the BlastIQ™ Mobile interface.
- Configuring "First Intercept Capture" at the site level linked to a plant is impossible, as it would affect the login.
-
Site-Level Configuration
- When a site isn't linked to a plant, users can control the 'First Intercept Capture' feature. When enabled, the 'First Intercept Capture' field appears on the mobile app both in the measurement and drill page; when disabled, it disappears.
-
Recommendation
- It's not advisable to disable "First Intercept Capture" at the site level because a site may be accessed directly or through a plant-level setup. It's best to manage this setting at the plant level to ensure consistent behaviour and avoid unexpected issues.
How to use the first intercept in BlastIQ™ Mobile
- Make sure that the first intercept is enabled. To configure, visit here.
- Launch the BlastIQ Mobile app and choose one of the available plans from the drill plans page.
- Navigate to either the drilling page or the measurements page. Tap the depth from the measurement or on the drilling page.
-

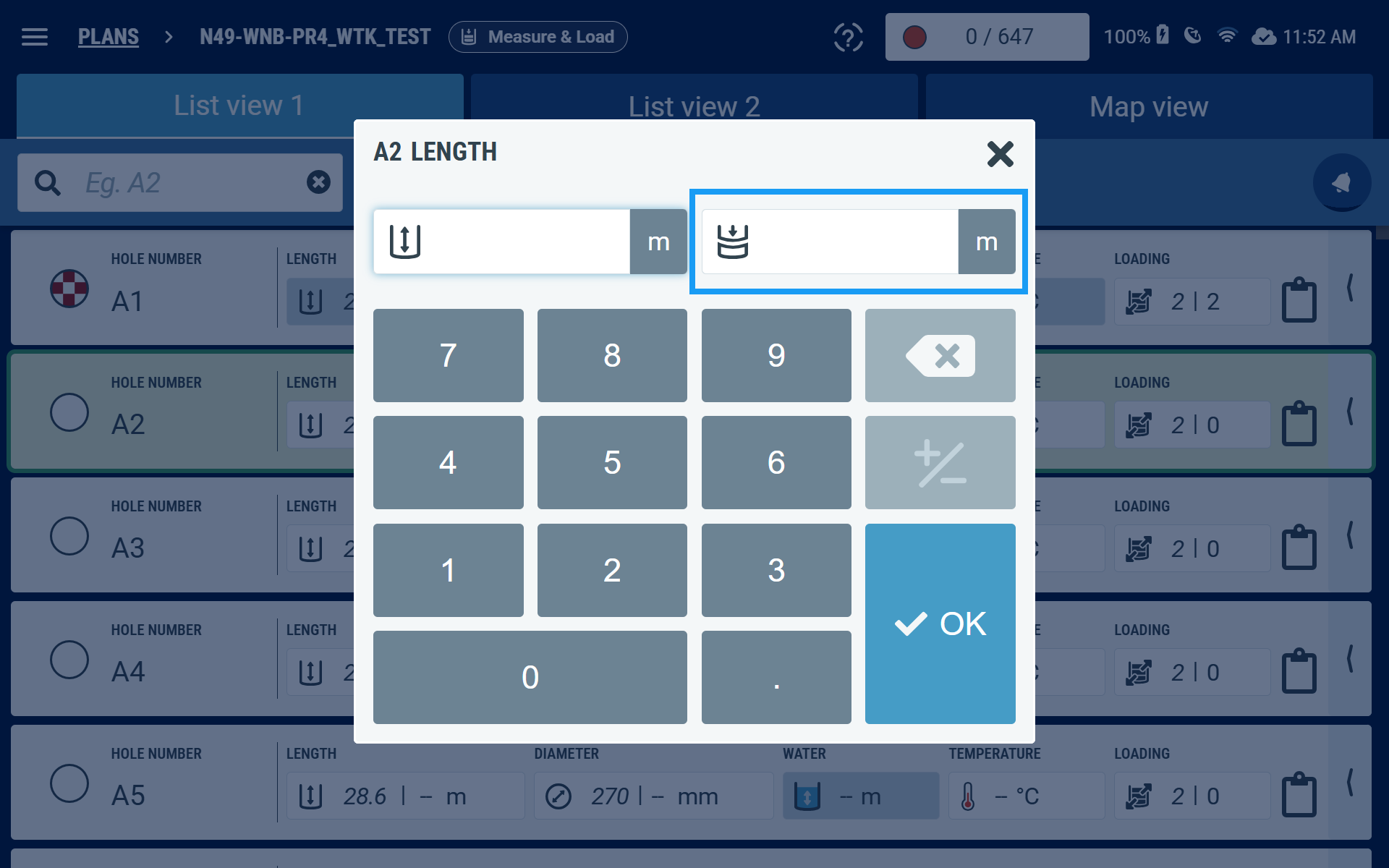

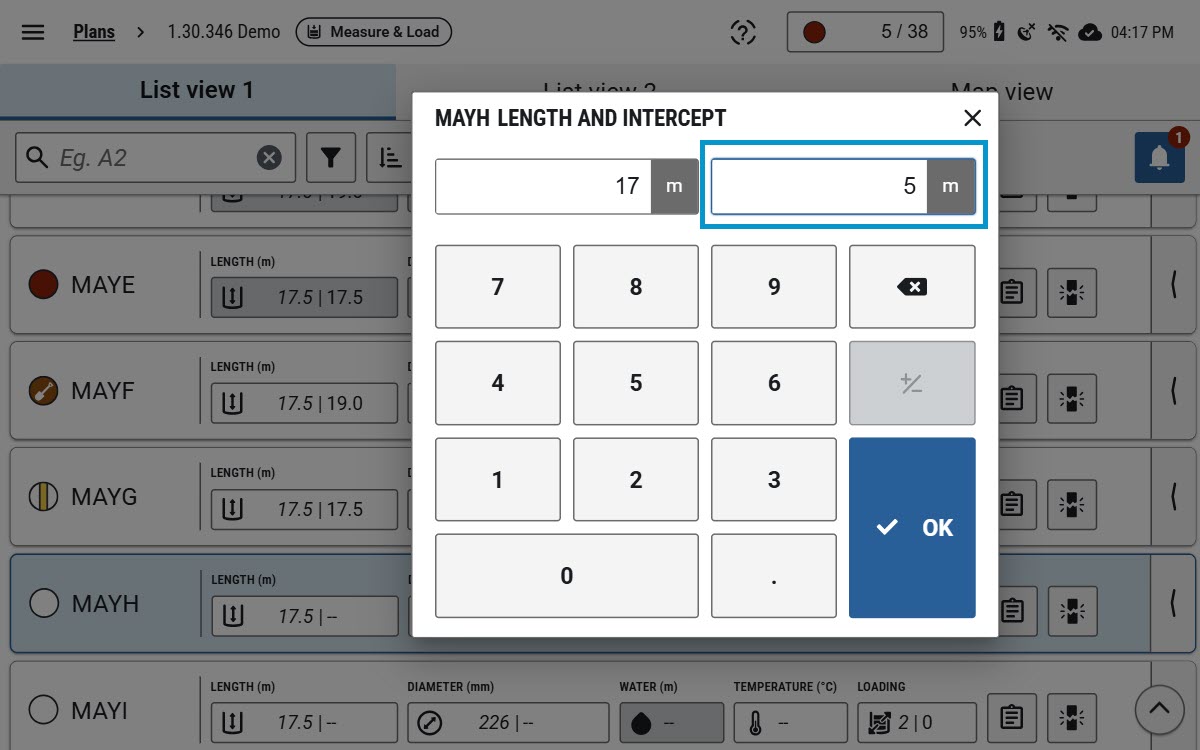

The keypad will appear, allowing you to capture an intercept value.
-

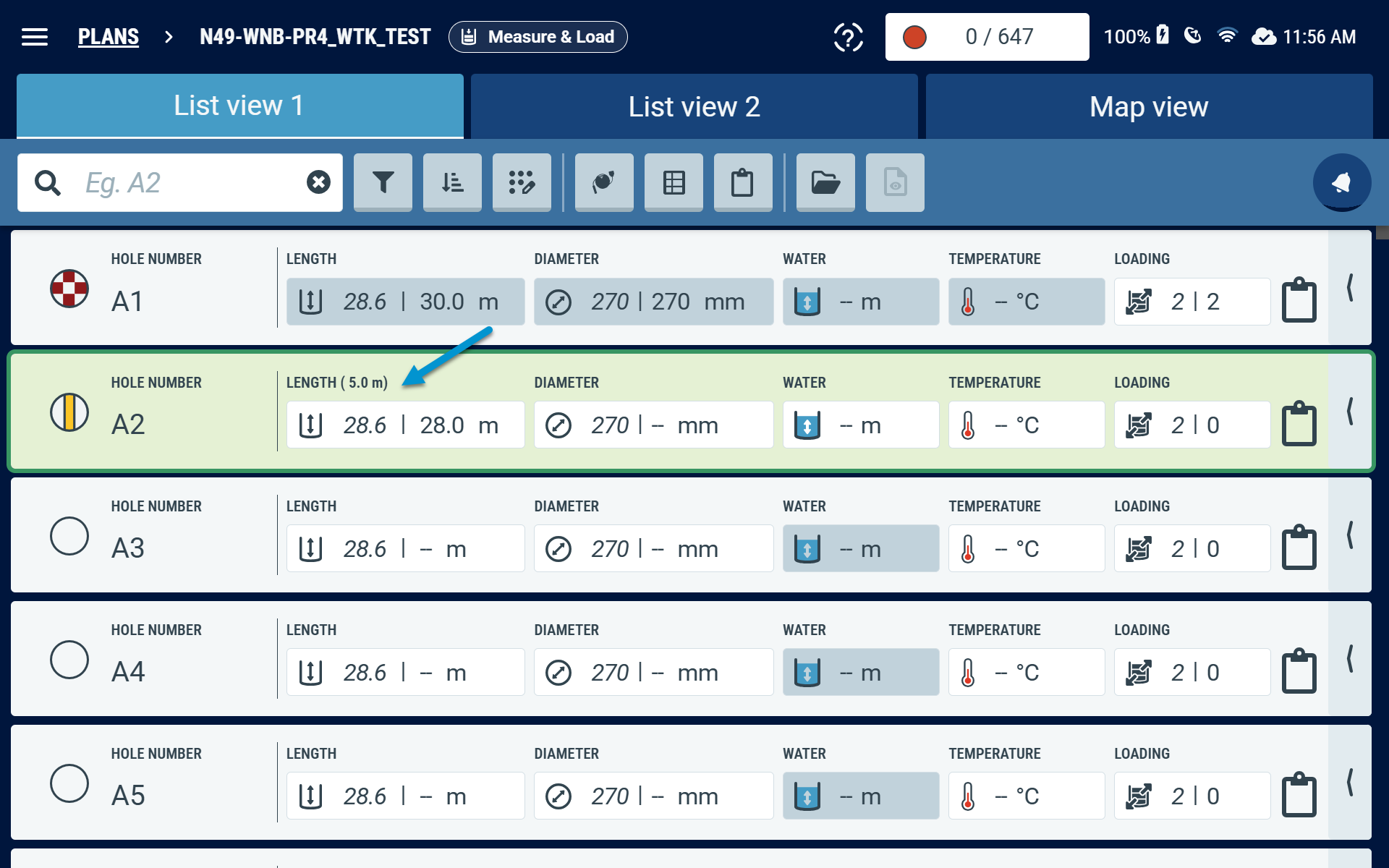

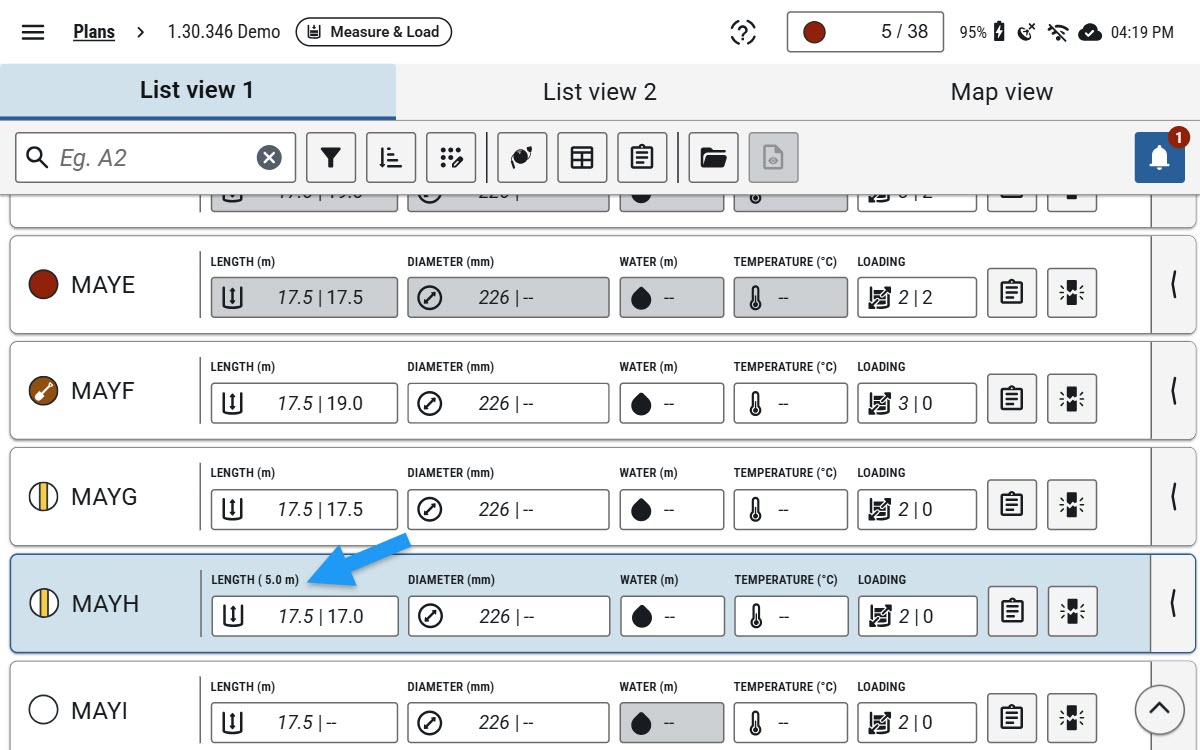

The First Intercept value is visible inline with the Length label.
