- SHOTPlus™ Variant:
- Surface
- Version:
- 6.10.4 and above
- KBA Summary:
- The Knowledge Base Article describes how to move holes between BlastIQ™ plans in SHOTPlus™.
Summary
Using SHOTPlus™ users can move holes between two existing BlastIQ™ plans, or move holes from an existing BlastIQ™ plan to a new plan.
Functionality
- Holes can only be moved between plans on the same BlastIQ™ site.
- The loading design for any moved holes will be moved with the hole.
- Measurements recorded against a hole, e.g. length, depth to/depth of water, the temperature will be moved with the hole.

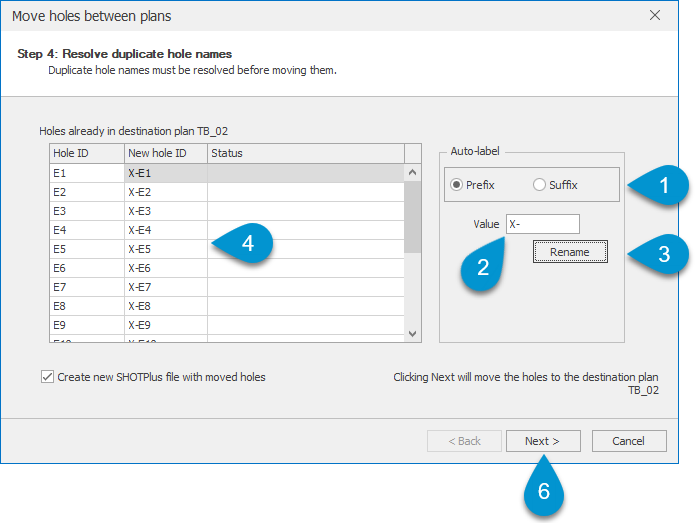

When moving holes between plans, SHOTPlus™ must resolve all duplicate hole IDs before completing the move. Users should ensure, as much as is practicable, that there are no duplicate hole IDs between the holes being moved and the destination plan. Where Duplicate Hole IDs exist, SHOTPlus™ will prompt the user to rectify the duplicates in the Move Hole Wizard. To rename holes using the move hole wizard:
- When prompted, select to add either a prefix or a suffix to the duplicate hole IDs.
- Enter the desired prefix/suffix.
- Select rename.
- Review the renamed Hole IDs.
- If required, change the prefix/suffix settings or the assigned value and select rename again.
- Select 'Next' to continue.
Information
In the event that there is a conflict between a source and destination plans hole types and material types, SHOTPlus™ will notify the user that there is a mismatch.- If the total number of hole types or material types is less than 24, SHOTPlus™ will append the source plan material types to the destination plan.
- If the total number of hole types or material types is greater than 24, users will still be able to send the holes to the destination plan, however there will be compatibility issues. It is recommended that users exit the wizard and resolve the conflict in the source and destination files before continuing.
Move Holes (versions > 6.21.4)
To move holes from one existing plan to another existing plan:
- Ensure the destination plan has been uploaded to BlastIQ™.

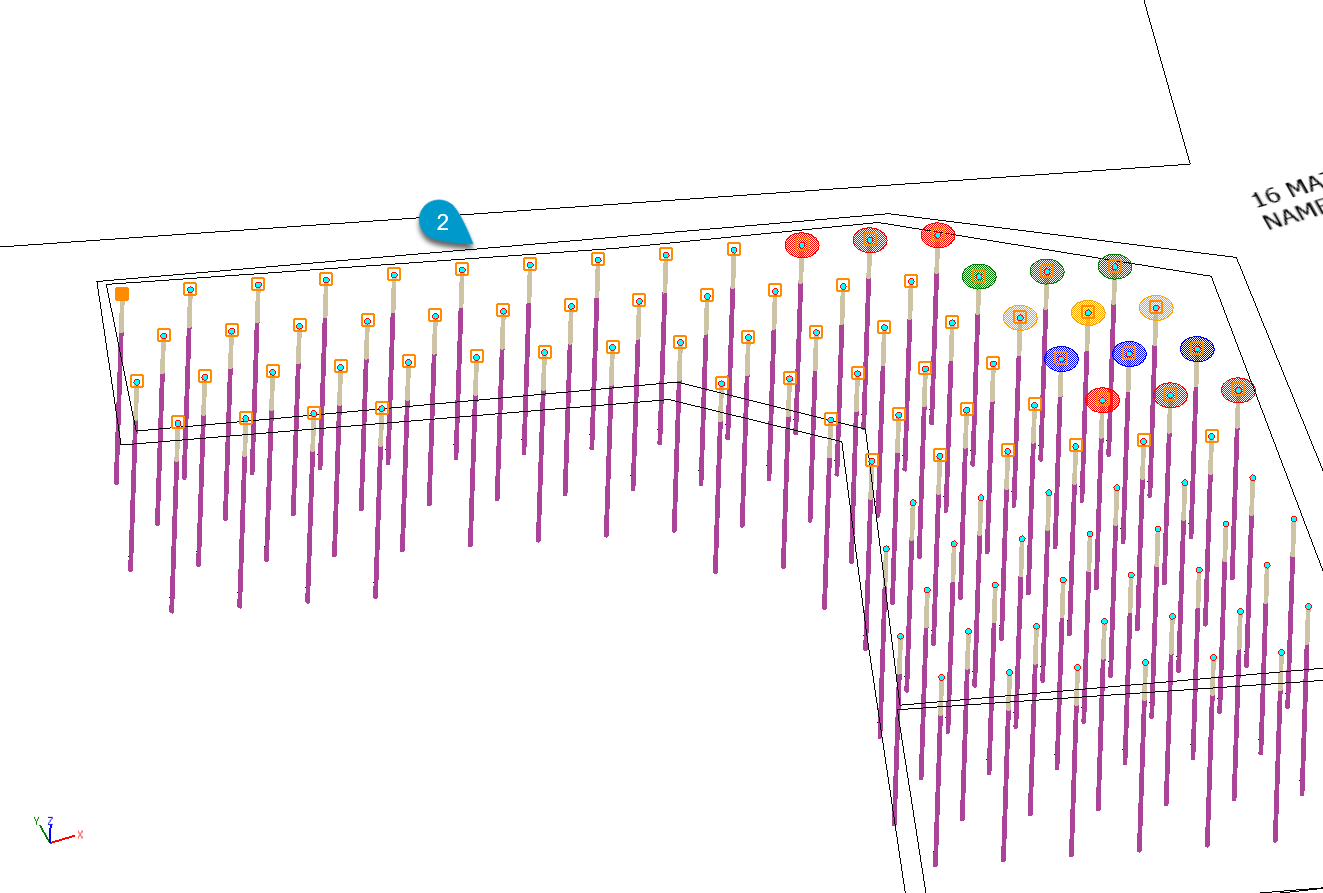

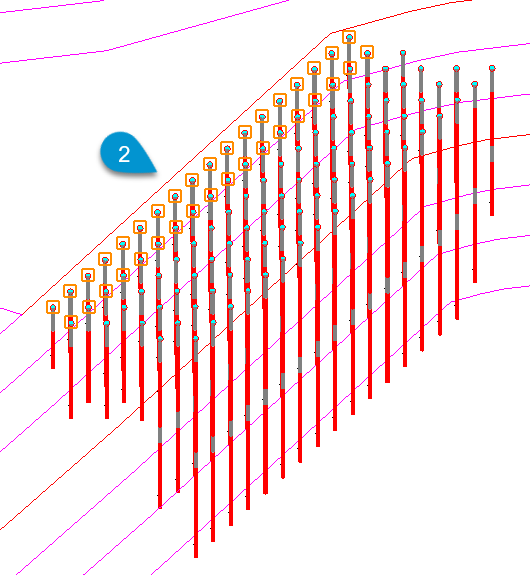

- Select the holes to be moved.

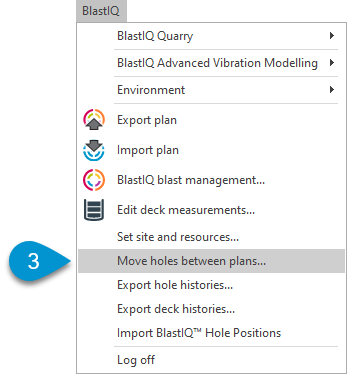

- From the main SHOTPlus™ toolbar, select 'BlastIQ' > 'Move holes between plans'.

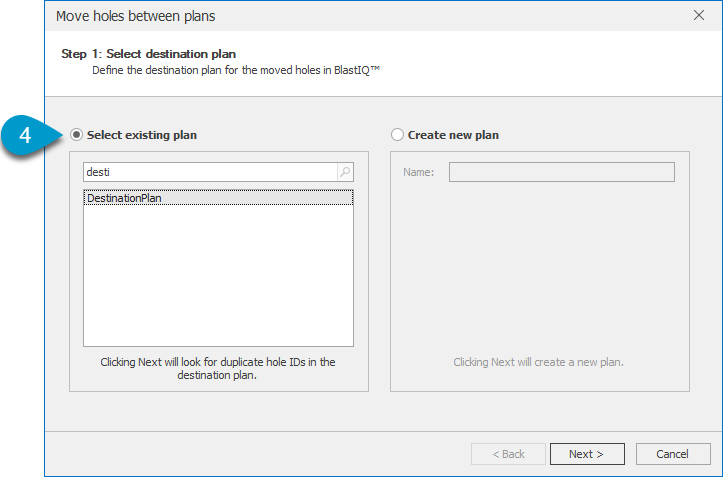

- Select 'Select existing plan' and find the plan to move the holes to, either by typing in the search bar or selecting from the list. Select 'Next'

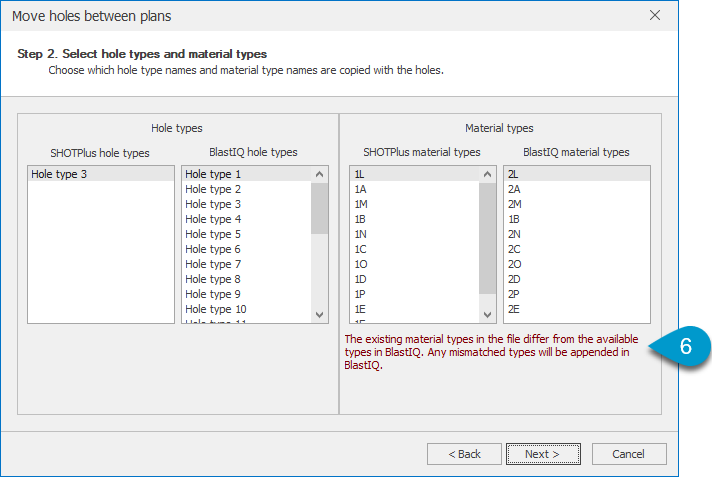

- SHOTPlus™ will check for any hole types and material types conflicts. If there is a mismatch, the user will be notified through a maroon warning message below the lists.
In the image below, the user is being notified of a mismatch between the material types in the source and destination plans.

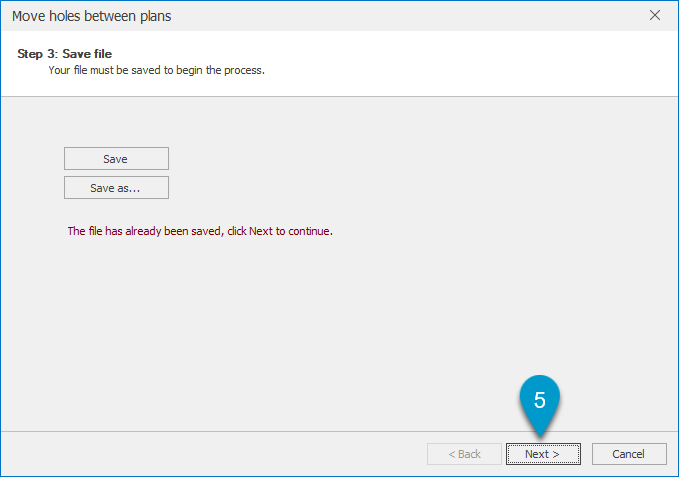

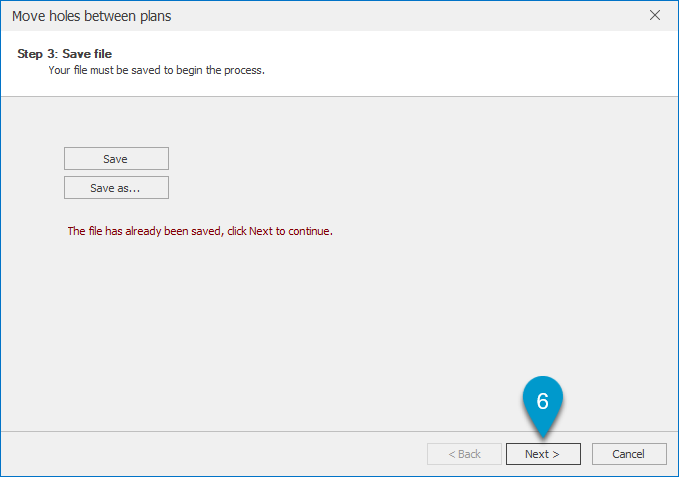

Click 'Next' to proceed. - Save the SHOTPlus™ file if prompted1 and select 'Next'.

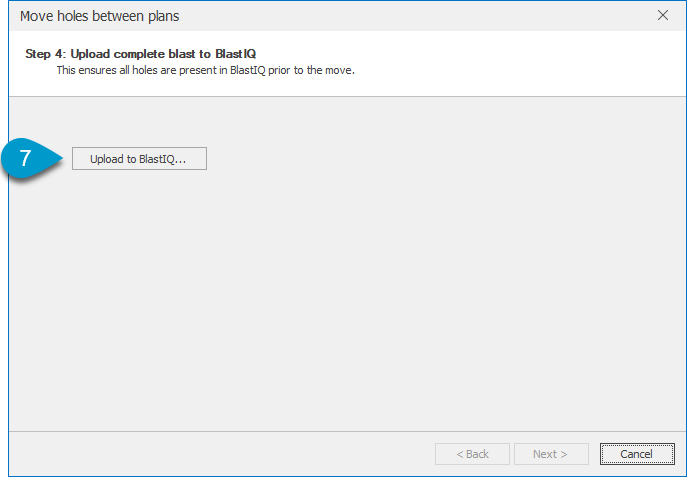

- Upload the current plan to BlastIQ™.

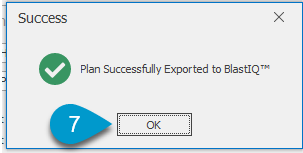

- Once uploaded, select 'OK'.

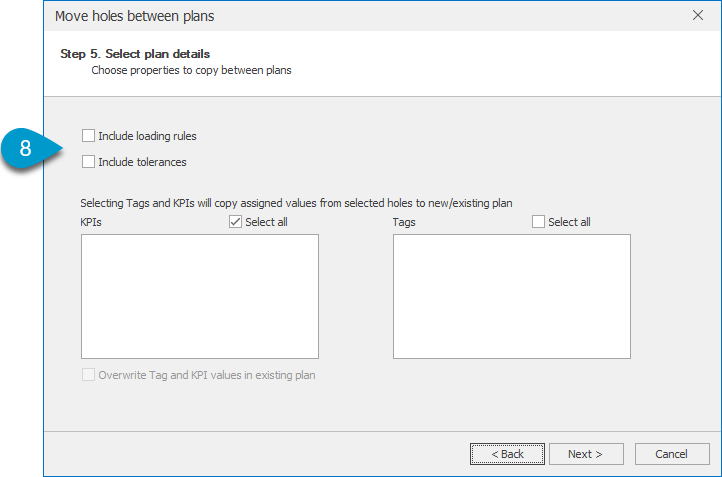

- Select what plan meta data to move to the destination blast.

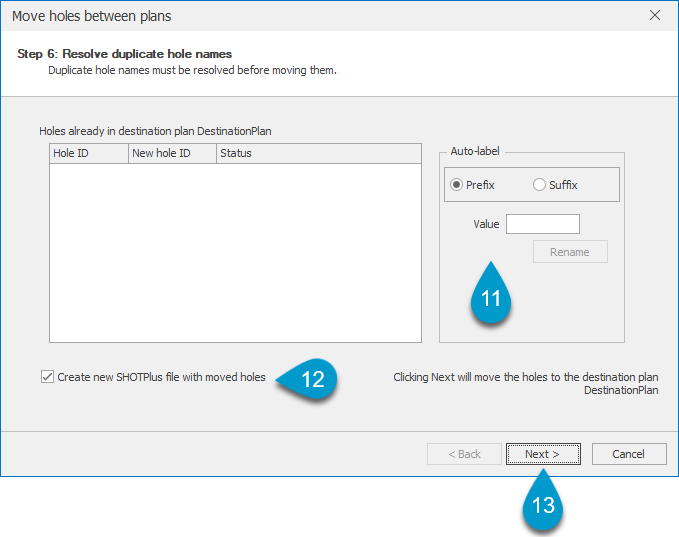

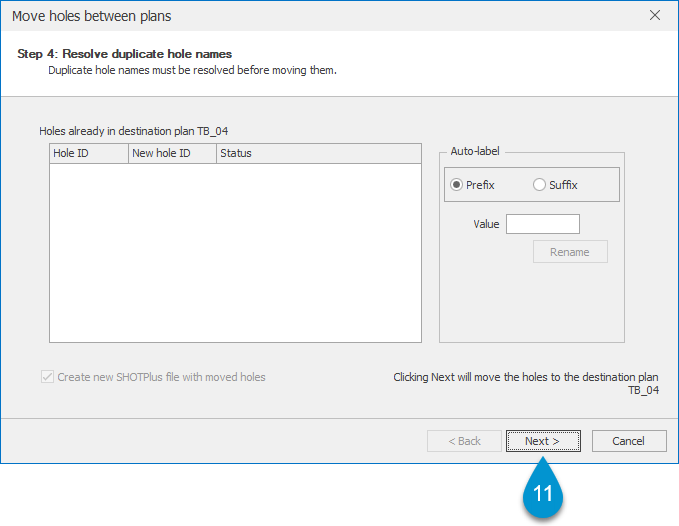

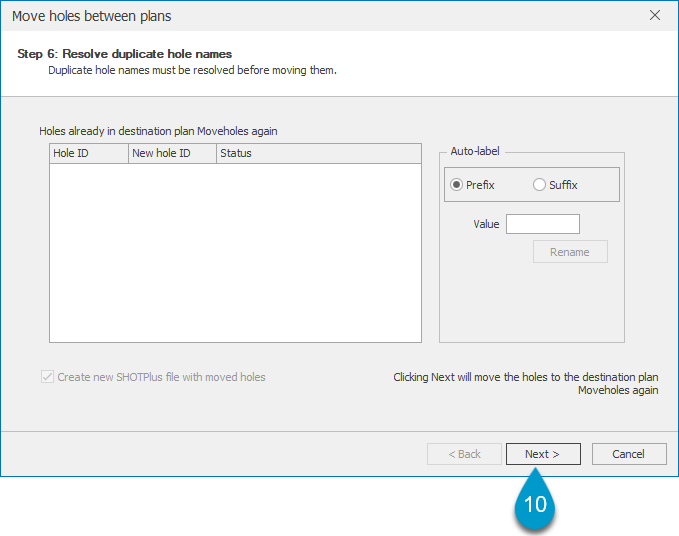

- SHOTPlus™ will check for duplicate hole names, any duplicate must be resolved before moving holes between plans. Rename any duplicate hole names by auto-labelling holes with a prefix or a suffix.
- Check/uncheck 'Create new SHOTPlus file with moved holes'2.
- Select 'Next' and the holes will be moved to the selected plan.
- Select 'Next', then 'Finish' to complete the process.
Information
- Files must be saved before moving holes to ensure there are no inconsistencies between the data in the local SHOTPlus™ file and the data in the holes moved between plans in BlastIQ™.
- If checked, SHOTPlus™ will generate a file with the moved holes, and preserve the original file without the moved holes. SHOTPlus™ will open the original file in a new instance once the move holes process is complete.
- Select the holes to be moved.
- From the main SHOTPlus™ toolbar, select 'BlastIQ' > 'Move holes between plans'.

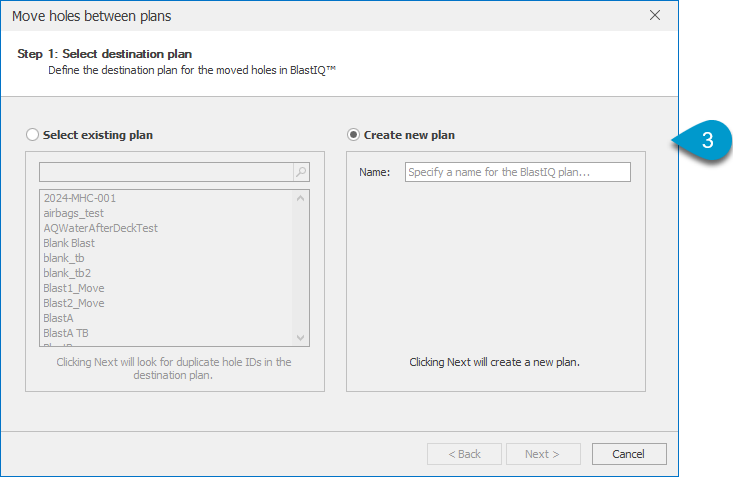

- Select the 'Create new plan' radio button and enter a name for the new blast plan.
- Click 'OK'.
- Save the SHOTPlus™ file if prompted1 and select 'Next'.

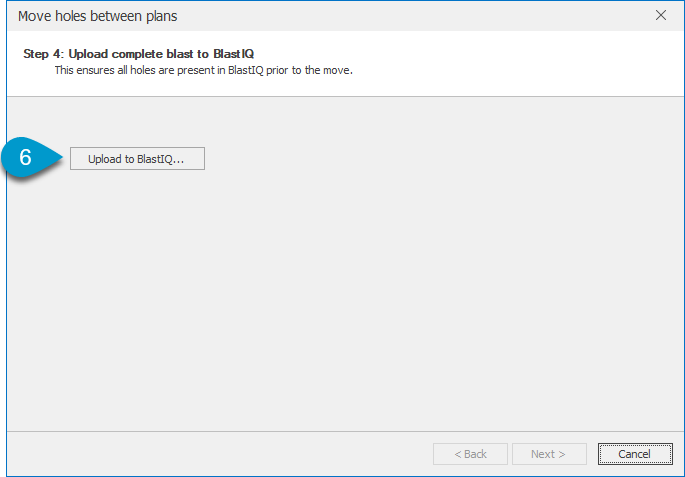

- Upload the current plan to BlastIQ™.
- Once uploaded, select 'OK'.
- Select to include Loading Rules and/or Tolerances, as well as KPIs or tags.
- Select 'Next'
- Select 'Next' and the holes will be moved to the new plan.
- Select 'Next', then 'Finish' to complete the process.
Move Holes (versions 6.10.4 to 6.21.2)
To move holes from one existing plan to another existing plan:
- Ensure the destination plan has been uploaded to BlastIQ™.
- Select the holes to be moved.
- From the main SHOTPlus™ toolbar, select 'BlastIQ' > 'Move holes between plans'.

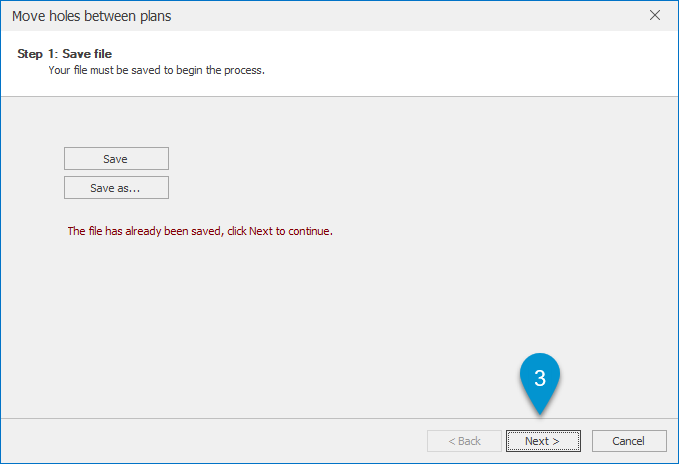

- Save the SHOTPlus™ file if prompted1 and select 'Next'.

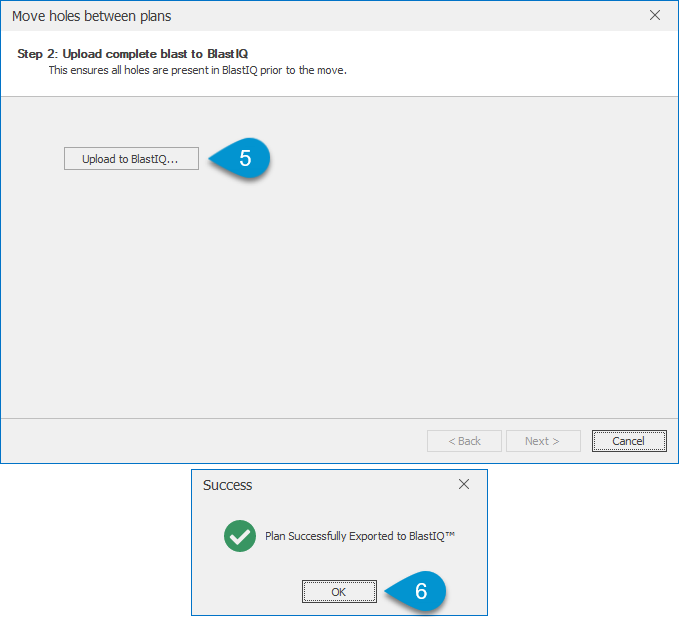

- Upload the current plan to BlastIQ™.
- Once uploaded, select 'OK'.

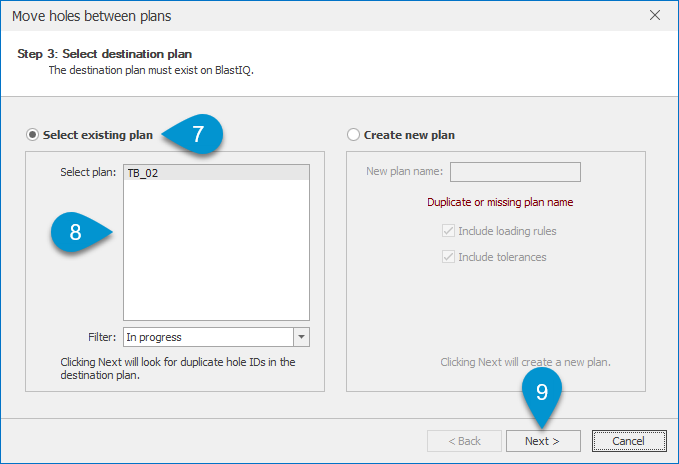

- Ensure the 'Select existing plan' radio button is selected.
- Select the blast to move the holes to.
- Select 'Next'.
- SHOTPlus™ will check for duplicate hole names, any duplicate must be resolved before moving holes between plans. Rename any duplicate hole names by auto-labelling holes with a prefix or a suffix.
- Check/uncheck 'Create new SHOTPlus file with moved holes'2.
- Select 'Next' and the holes will be moved to the selected plan.
- Select 'Next', then 'Finish' to complete the process.
Information
- Files must be saved before moving holes to ensure there are no inconsistencies between the data in the local SHOTPlus™ file and the data in the holes moved between plans in BlastIQ™.
- If checked, SHOTPlus™ will generate a file with the moved holes, and preserve the original file without the moved holes. SHOTPlus™ will open the original file in a new instance once the move holes process is complete.
- Select the holes to be moved.
- From the main SHOTPlus™ toolbar, select 'BlastIQ' > 'Move holes between plans'.
- Save the SHOTPlus™ file if prompted1 and select 'Next'.
- Upload the current plan to BlastIQ™.
- Once uploaded, select 'OK'.

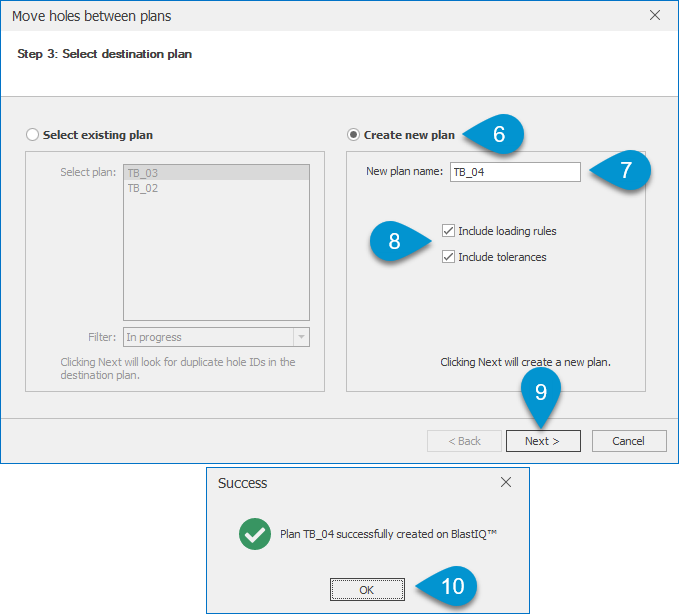

- Ensure the 'Create new plan' radio button is selected.
- Enter the desired name for the new plan the holes will be moved to.
- Select to include Loading Rules and/or Tolerances.
- Select 'Next' and a new Plan Will be created in BlastIQ™.

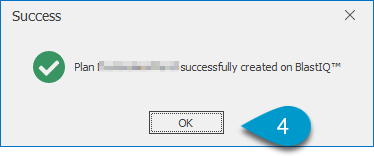

- Select 'OK'
- Select 'Next' and the holes will be moved to the new plan.
- Select 'Next', then 'Finish' to complete the process.
