BlastIQ™ Insights - Water Presence Dashboard

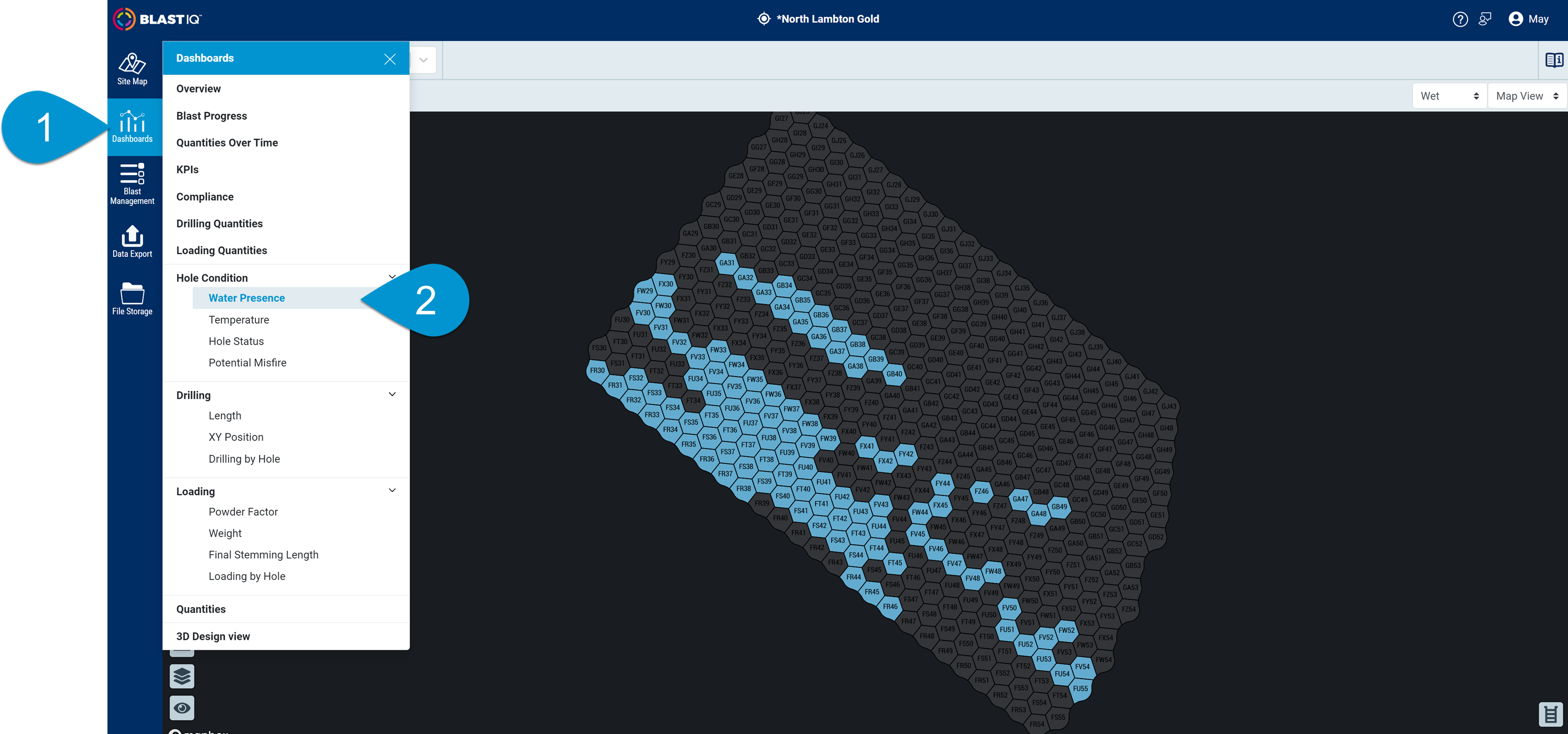

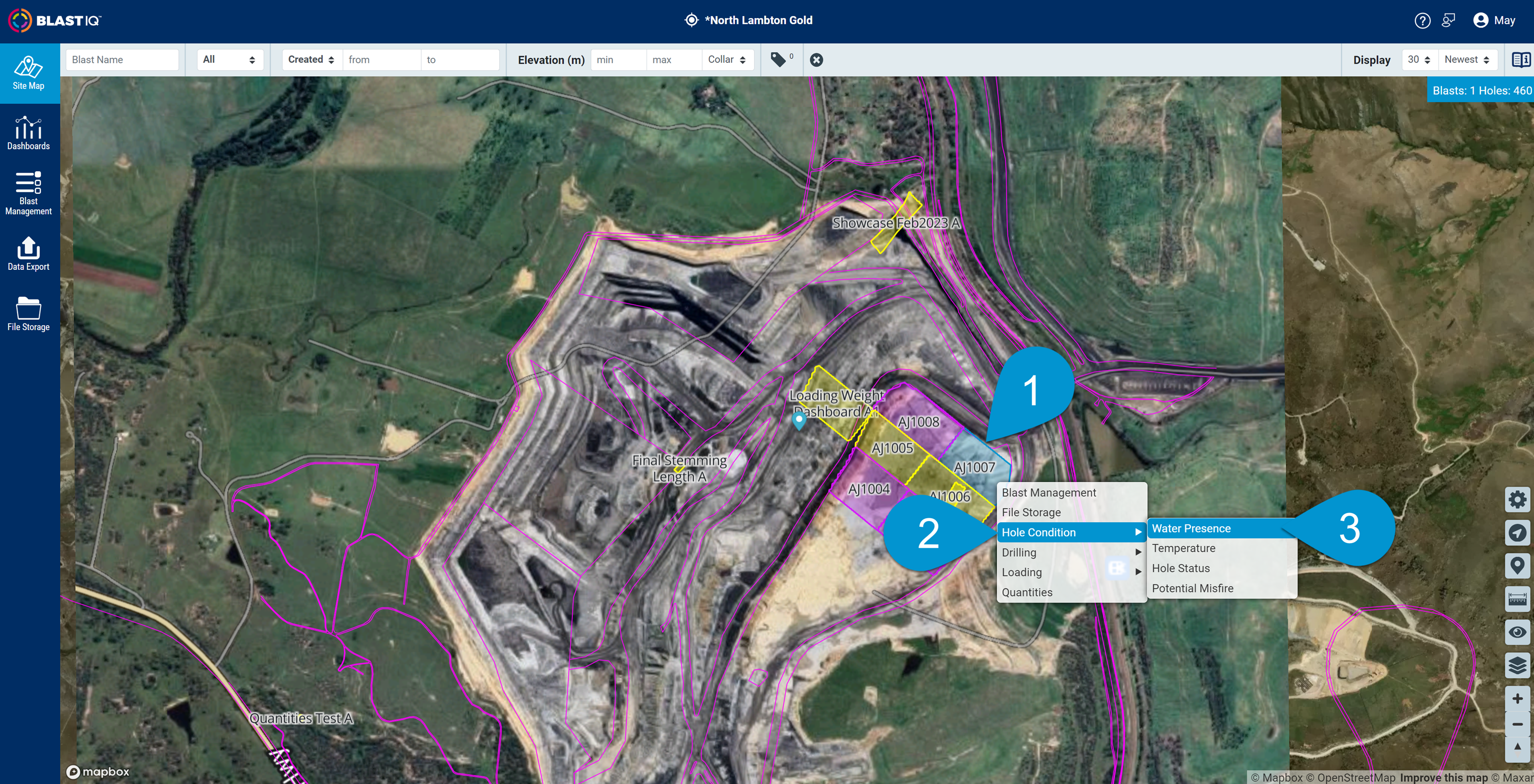

To pan around the Water Presence Dashboard:

1. Activate the map by placing the mouse cursor anywhere on the map and clicking the screen, then use the Up, Down, Left, or Right arrows on the keyboard; or
2. Place the mouse cursor anywhere on the Water Presence Dashboard map, press and hold the left mouse button, and move the cursor as required.

To rotate and tilt the Water Presence Dashboard:

1. Place the mouse cursor anywhere on the Water Presence Dashboard map. Press and hold the right mouse button, and move the cursor as required or
2. Place the mouse cursor anywhere on the Water Presence Dashboard map. Press and hold Ctrl on the keyboard, press and hold the left mouse button, and move the cursor as required.

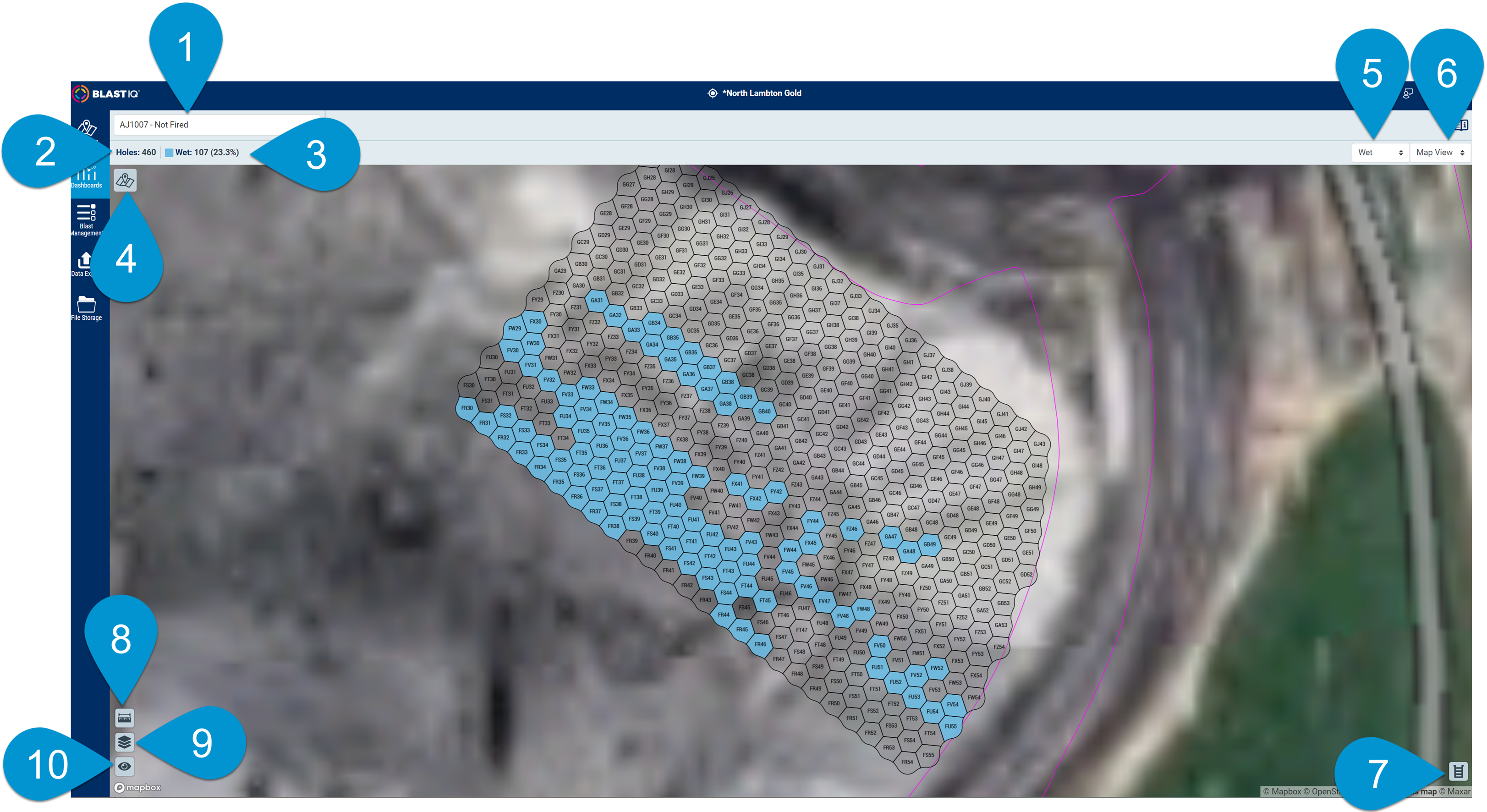

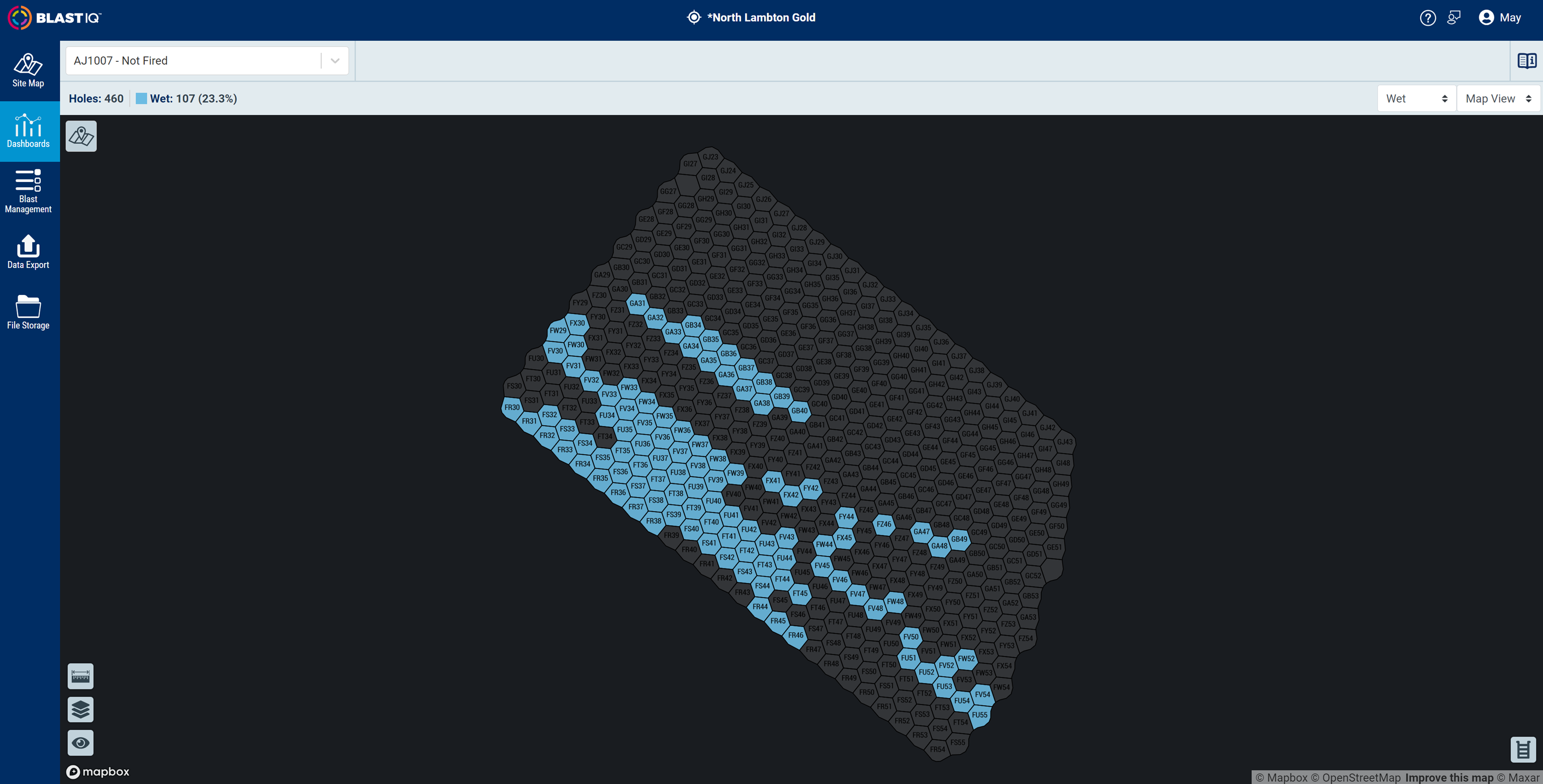

Detailed information on each section:

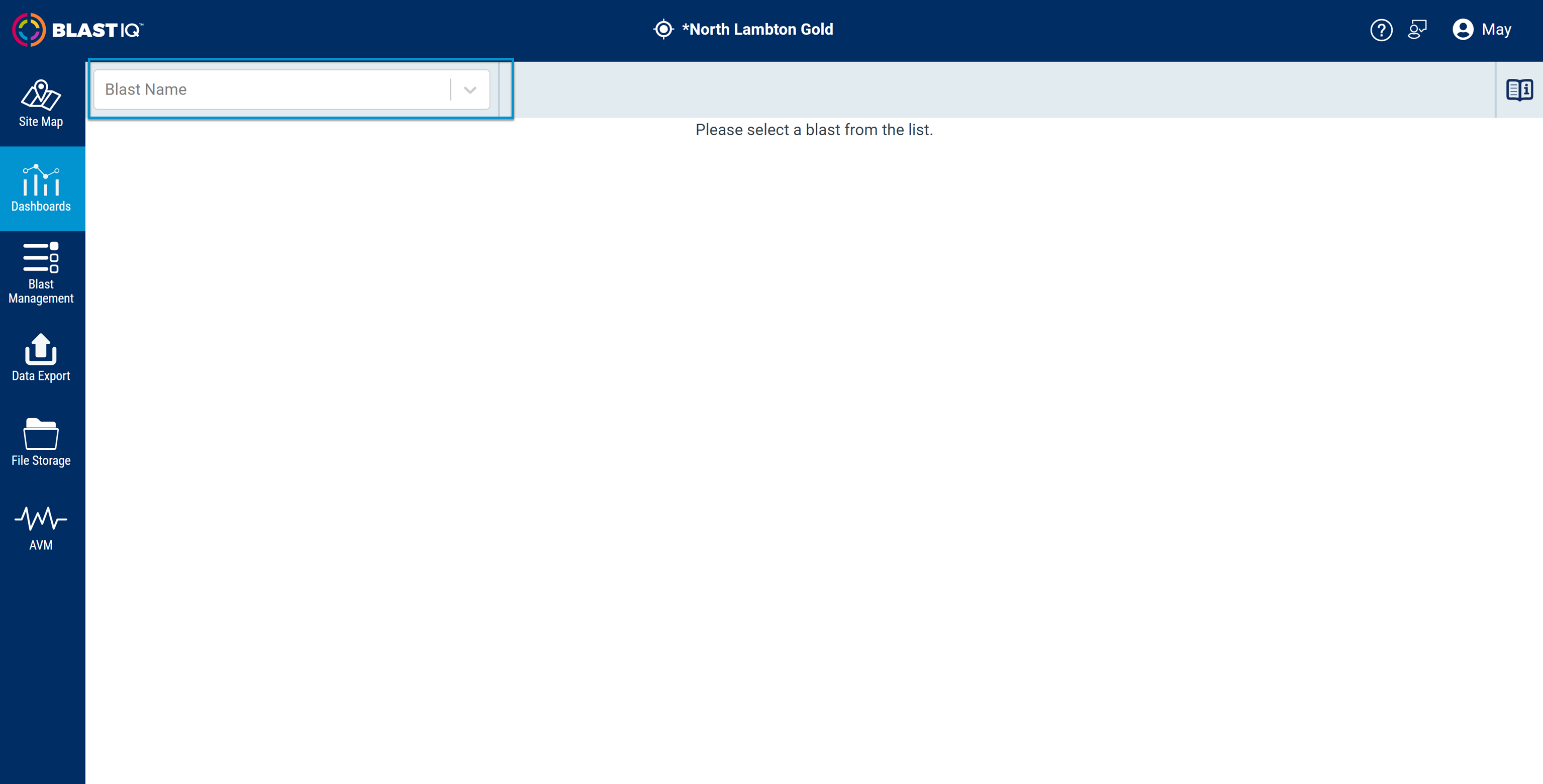

1. Blast Name Selector



   • Select a blast from the drop-down list.
   • The user can type in to search for the desired blast.
2. Total Number of Holes



   • Displays the total number of holes in a blast.
3. Colour Legend



   • The displays will reflect the chosen comparison options, such as "Wet" or "Wet Sides.
   • Additionally, it will show the count and percentage of holes marked as wet or wet sides and its percentage.
4. Back to Site Map



   • Click the "Back to Site Map" button.
   • User will be redirected to the Site Map page.

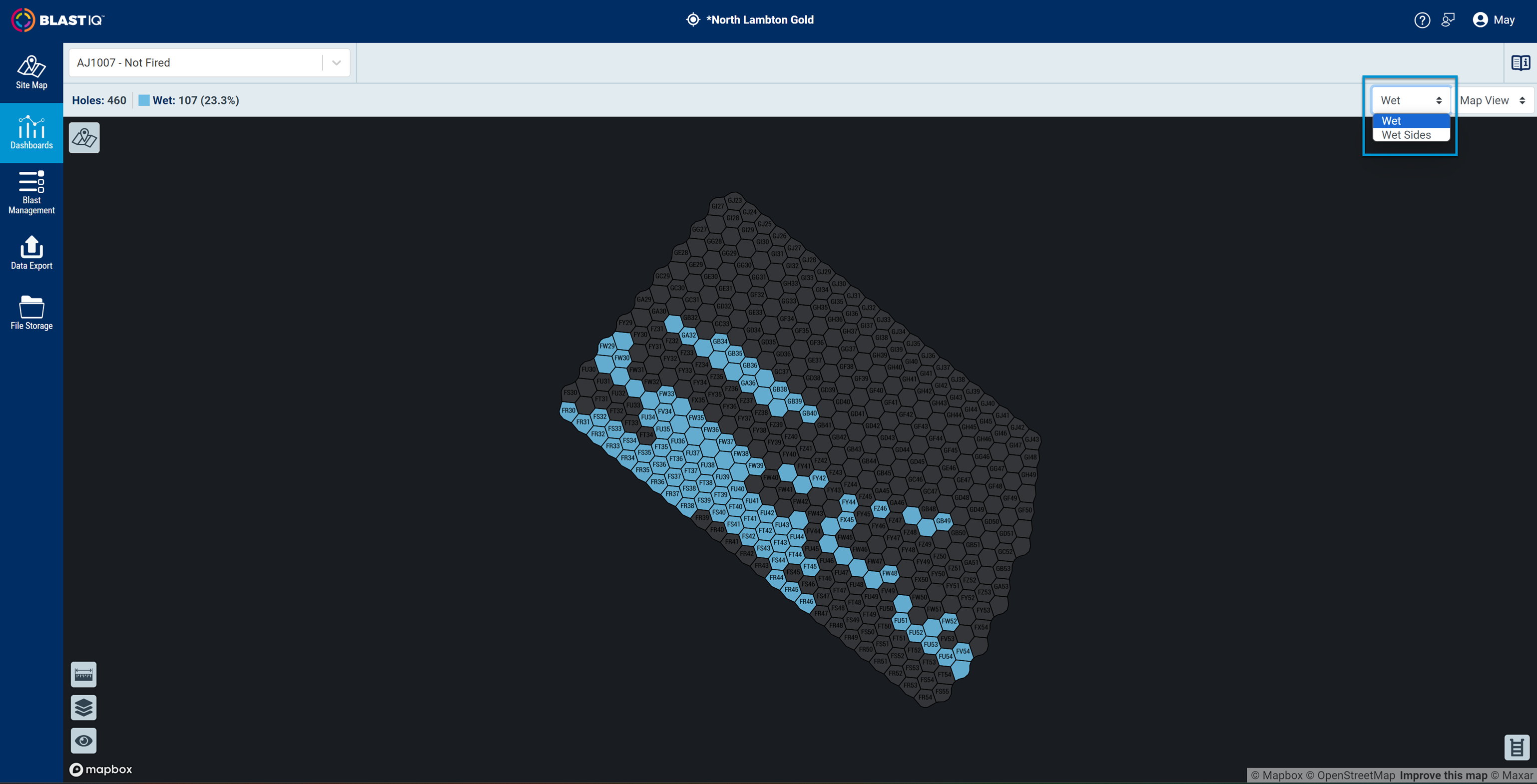

5. Comparison Options




   • Navigate to the comparison options selector.
   • Click "Wet" or "Wet Sides".
   • The dashboard will automatically update based on the selected comparison option.
   • The Water Presence Dashboard will default to wet state view when only wet state information is available and wet side state view when only wet side state information is available. Where holes have wet and wet side state measurements, the Water Presence Dashboard will default to wet side state view.
6. View

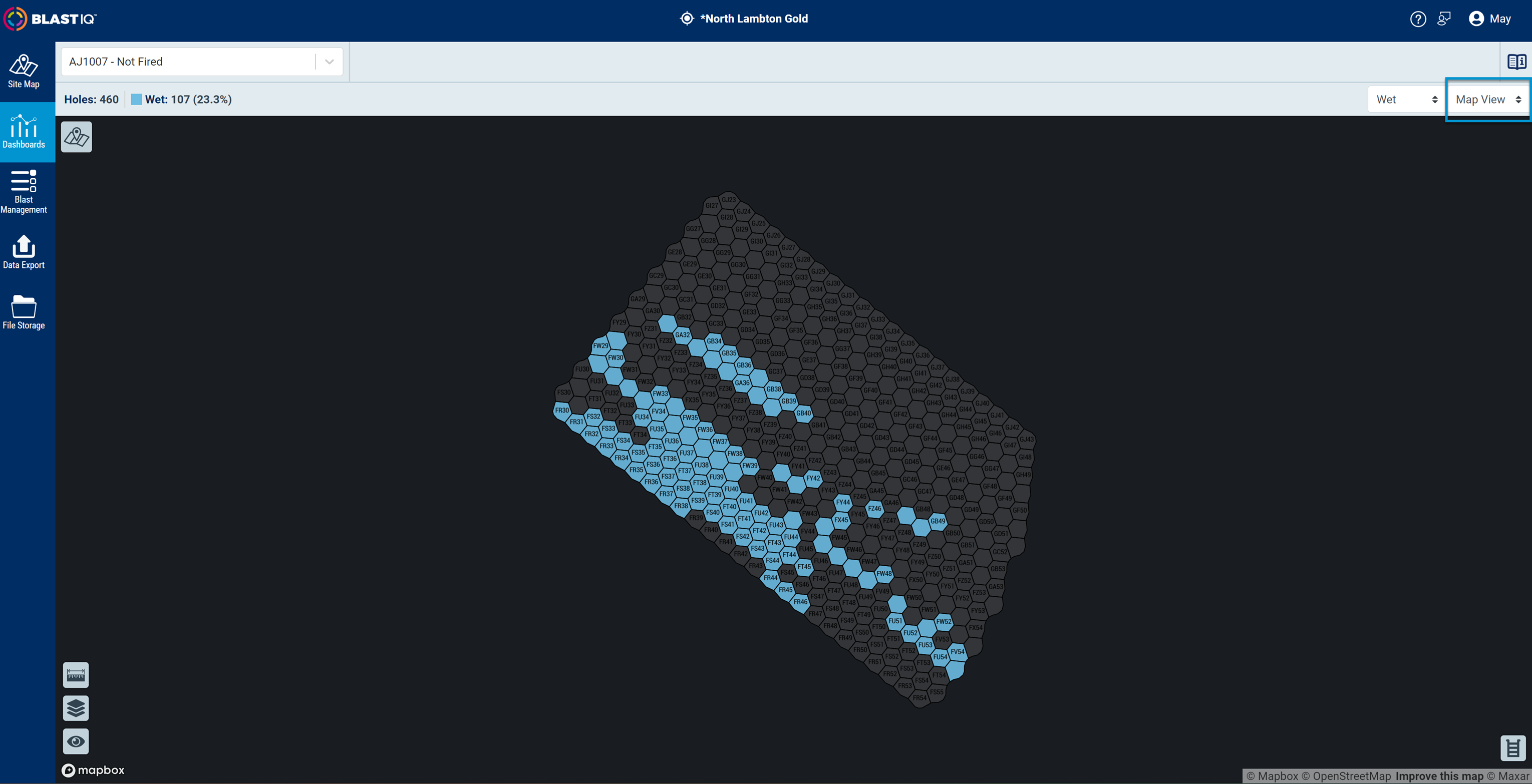

   • Map View



     • Navigate to the view selector.
     • Select "Map View".
     • The Blast Plan view displays an area per hole coloured according to the presence of the wet or wet side.
     • Mouse over the holes to get more information.

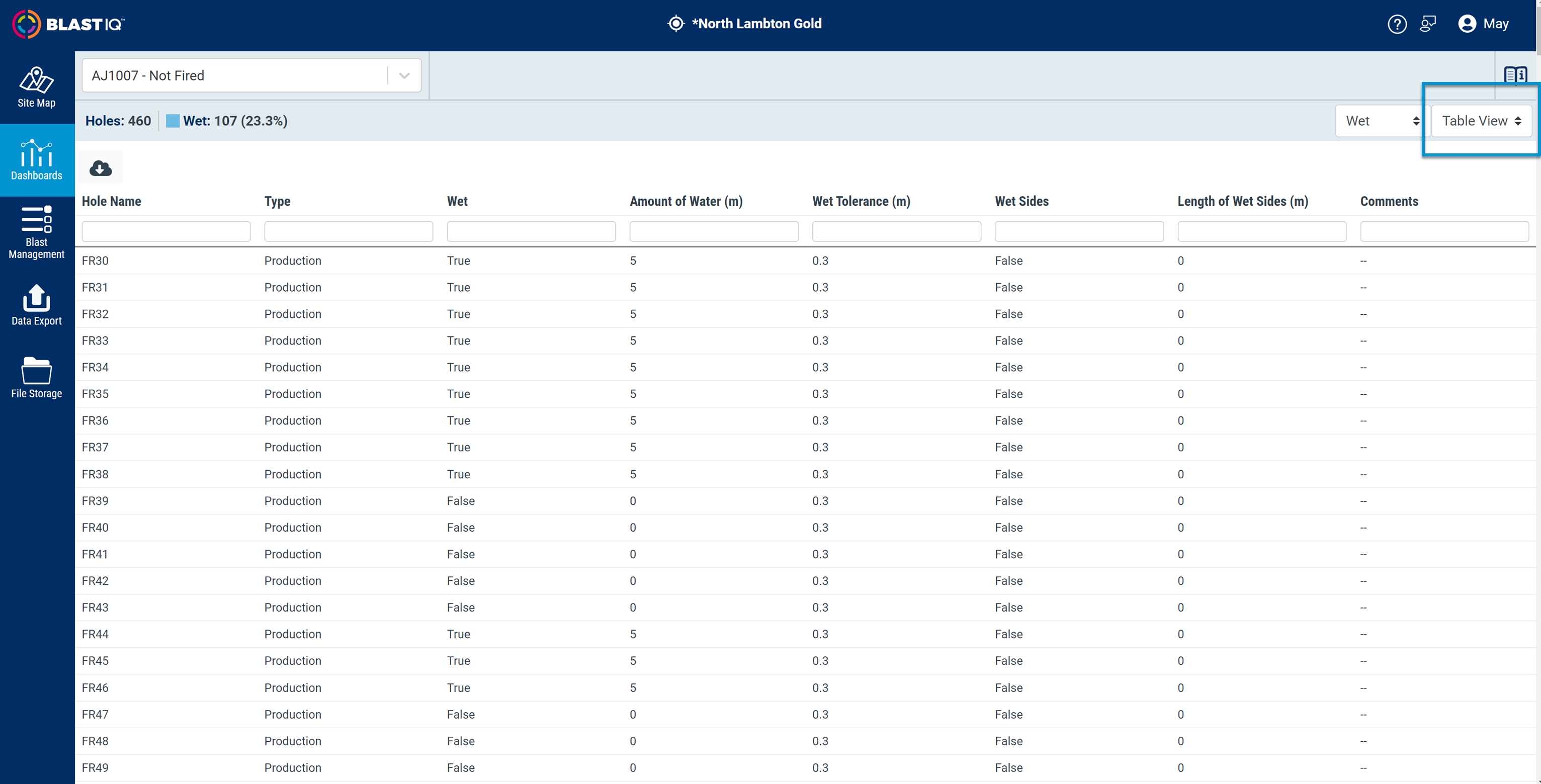

   • Table View



     • Navigate to the view selector.
     • Select "Table View".
     • Table view will be visible and show relevant data.
     • Use the search boxes to filter the data.
     • Click on the column headers to sort.
     • You can download by clicking the download button to initiate a CSV file download.
     • Clicking a hole row opens the hole details panel.

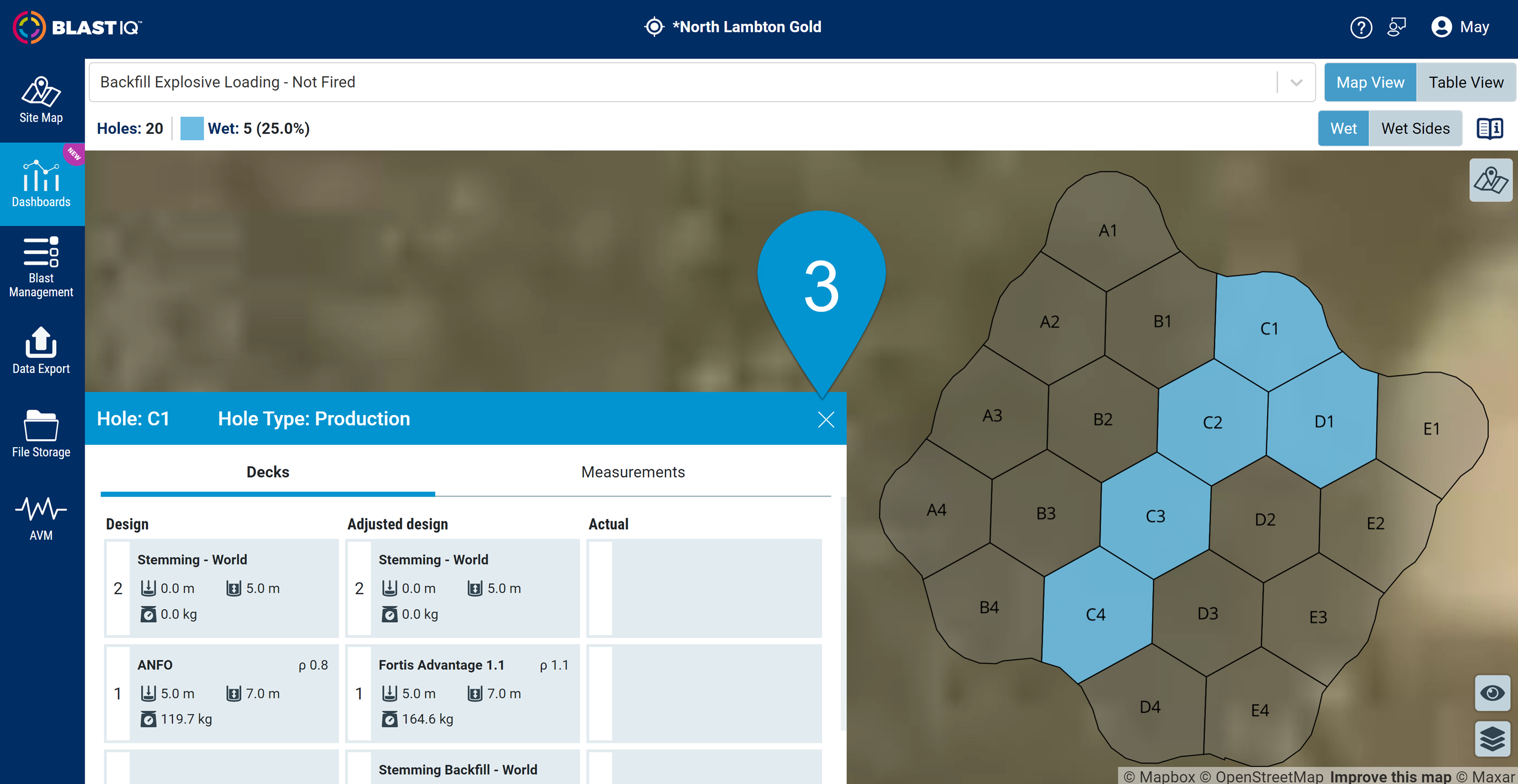

7. Hole Details Panel

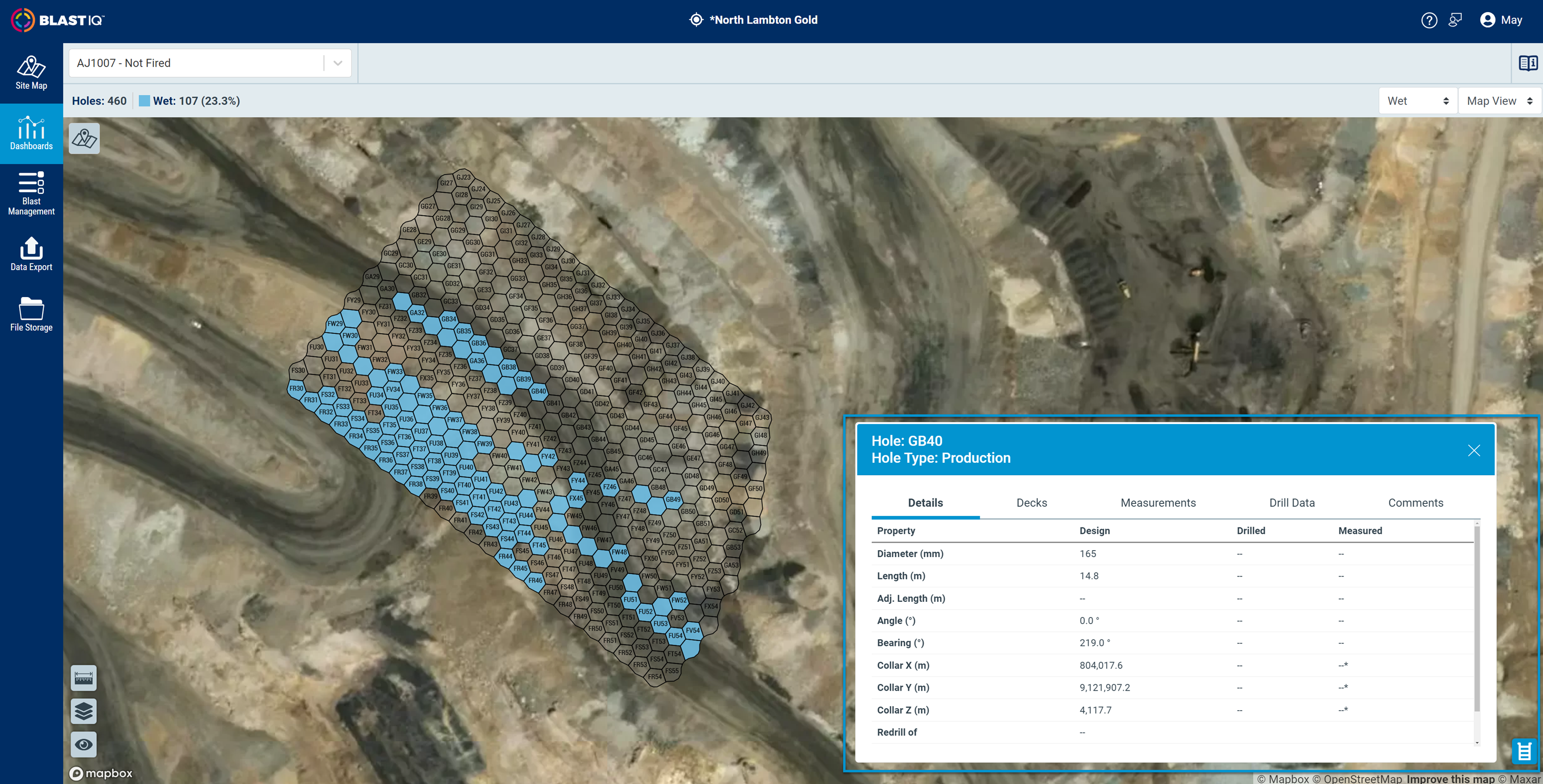

   • Click on a hole on the map.
   • The hole details panel opens.
   • Clicking the Hole Details icon without clicking a hole by default shows no data.
   • The hole details panel closes only when the user clicks the "x" button.
   • Once the panel is closed and you want to open the panel again, click the "Hole Details" icon at the bottom left-hand corner.
   • The panel consists of five tabs: Details, Decks, Measurements, Drill Data, and Comments.
     • Details
       • By default, the "Details" will be visible, presenting users with design, drilled, and measured data.
     • Decks
       • Decks and relevant properties are grouped by design, adjusted and actual.
       • Deck is displayed by a lower number from the bottom to the top (higher number).

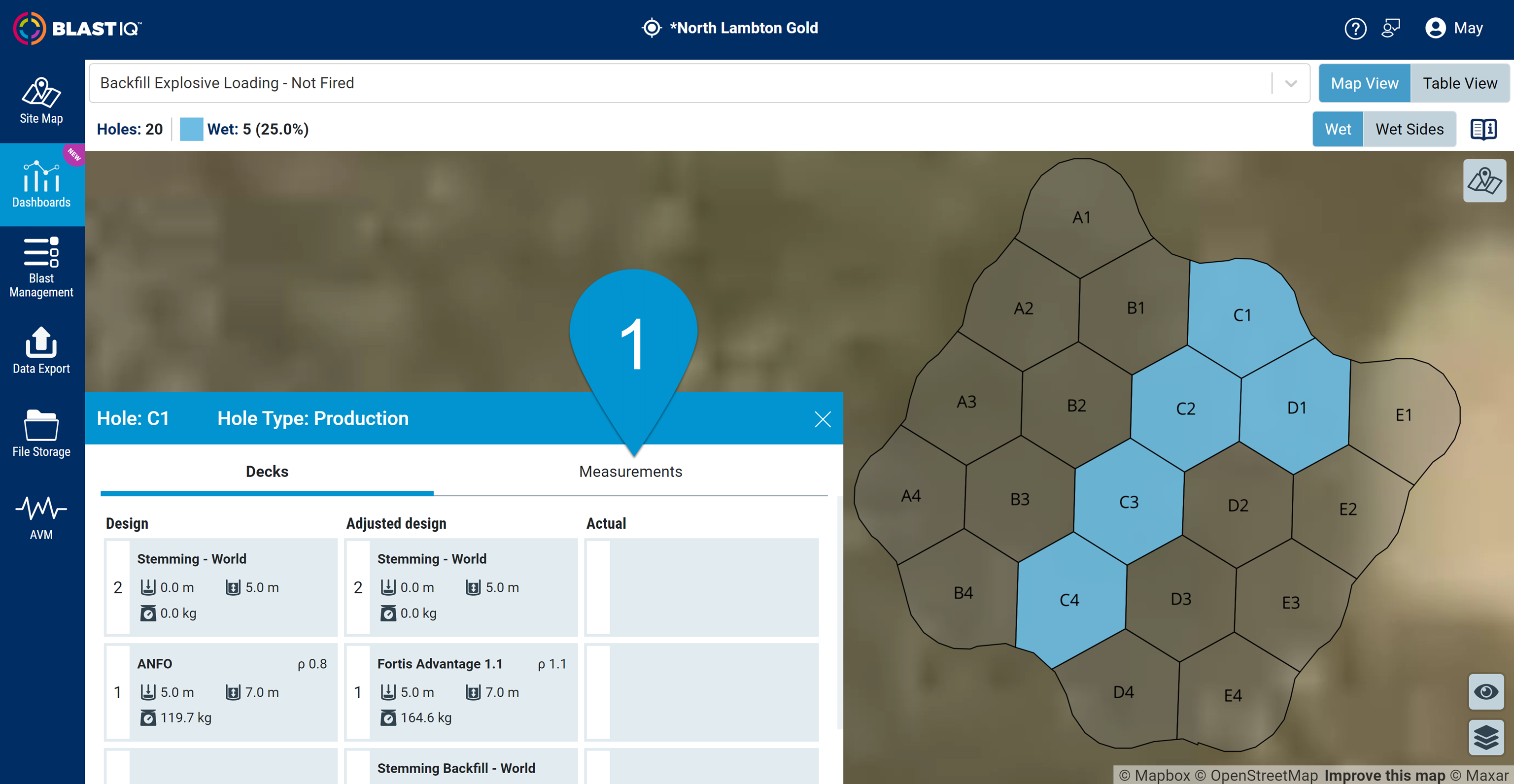

     • Measurements
       • Provides a concise overview of recorded data, including the time occurrence, associated deck, property details, recorded values, user identity, and the equipment or device used.
       • Measurements are ordered by timestamp.
       • Sorting is implemented by clicking on the column headers.
     • Drill Data
       • Provides a concise summary of drilling-related information.  Users will find details such as the average penetration rate, start time, end time, drill name, operator, and timestamps for when the event occurred and was received.
     • Comments
       • Hole comments recorded in BlastIQ™ Mobile v1.22.206 or older will not show in the comments in the hole details panel.  These comments are still available in the already supported display points and data export.
8. Measurements

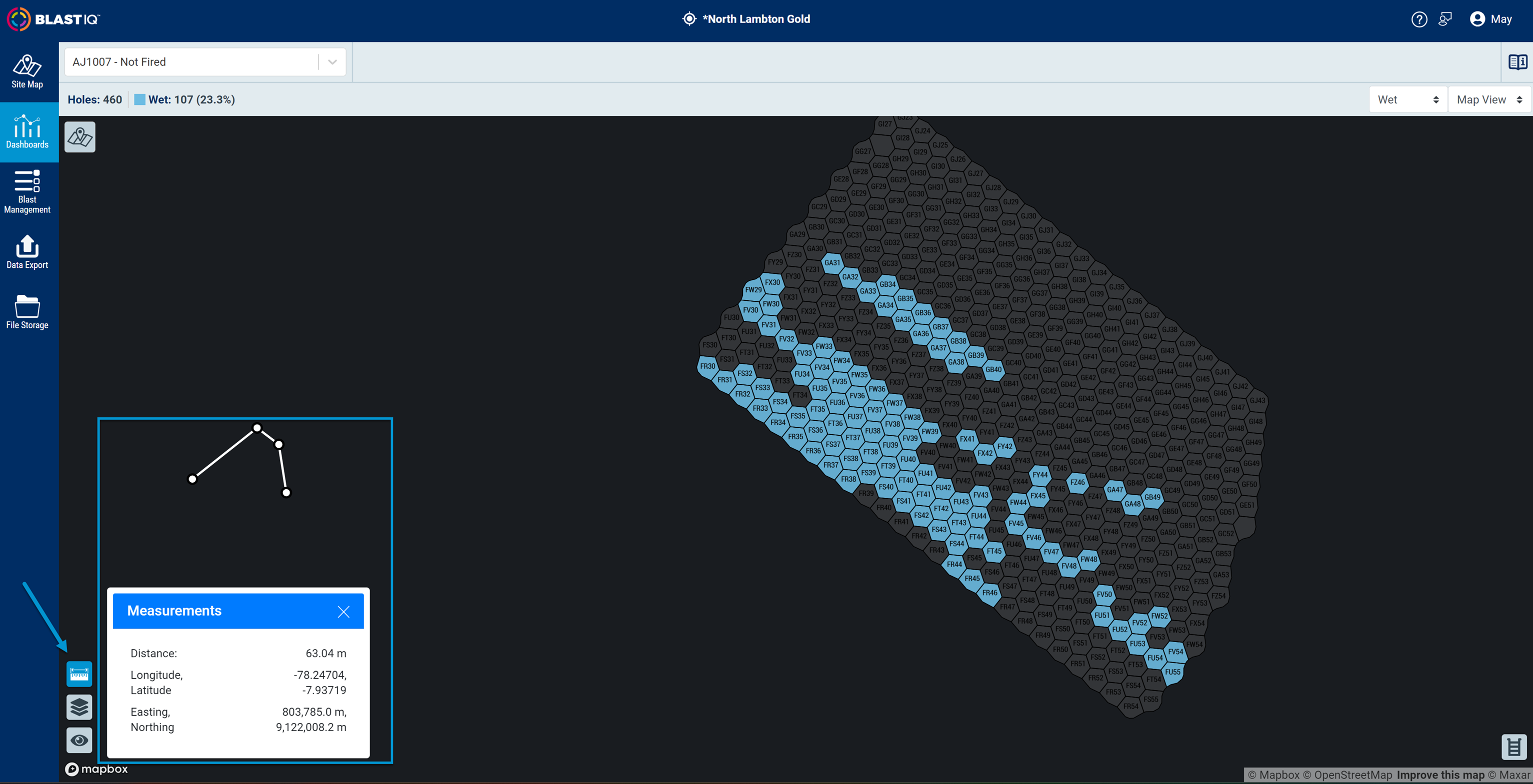

   • Click the measurements icon located in the lower left-hand corner.
   • Click anywhere on the map to draw points.

   • Lines should automatically connect the points.

   • The aggregated distance of the drawn lines will be visible.

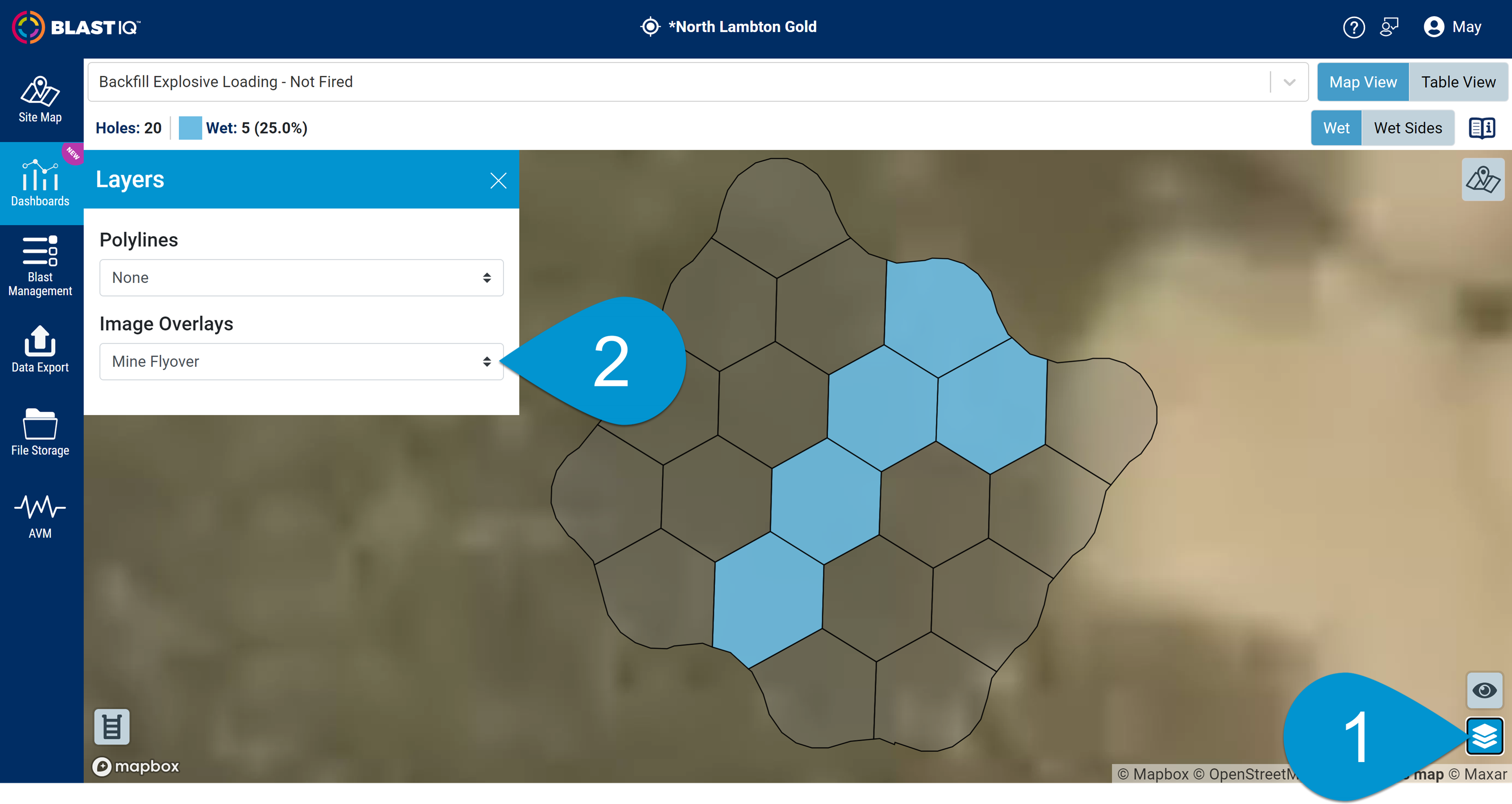

9. Layers

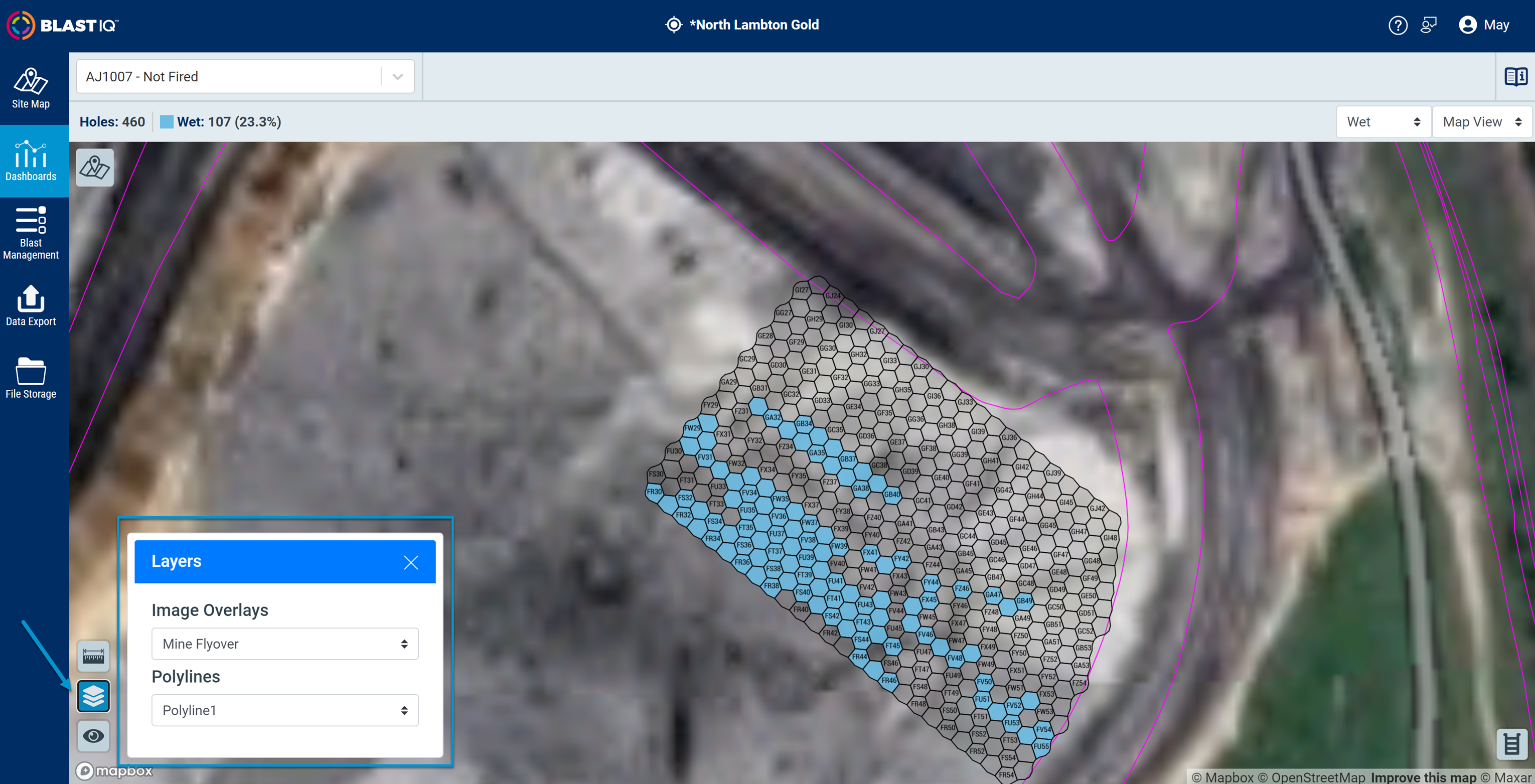

   • Click on the layers icon.
   • Choose "Image Overlays" or "Polylines" from the available options.
   • Select "None"  for no layers display.

     To upload polylines and image overlays, please visit the Site Map article here and navigate to the Layer Administration section.

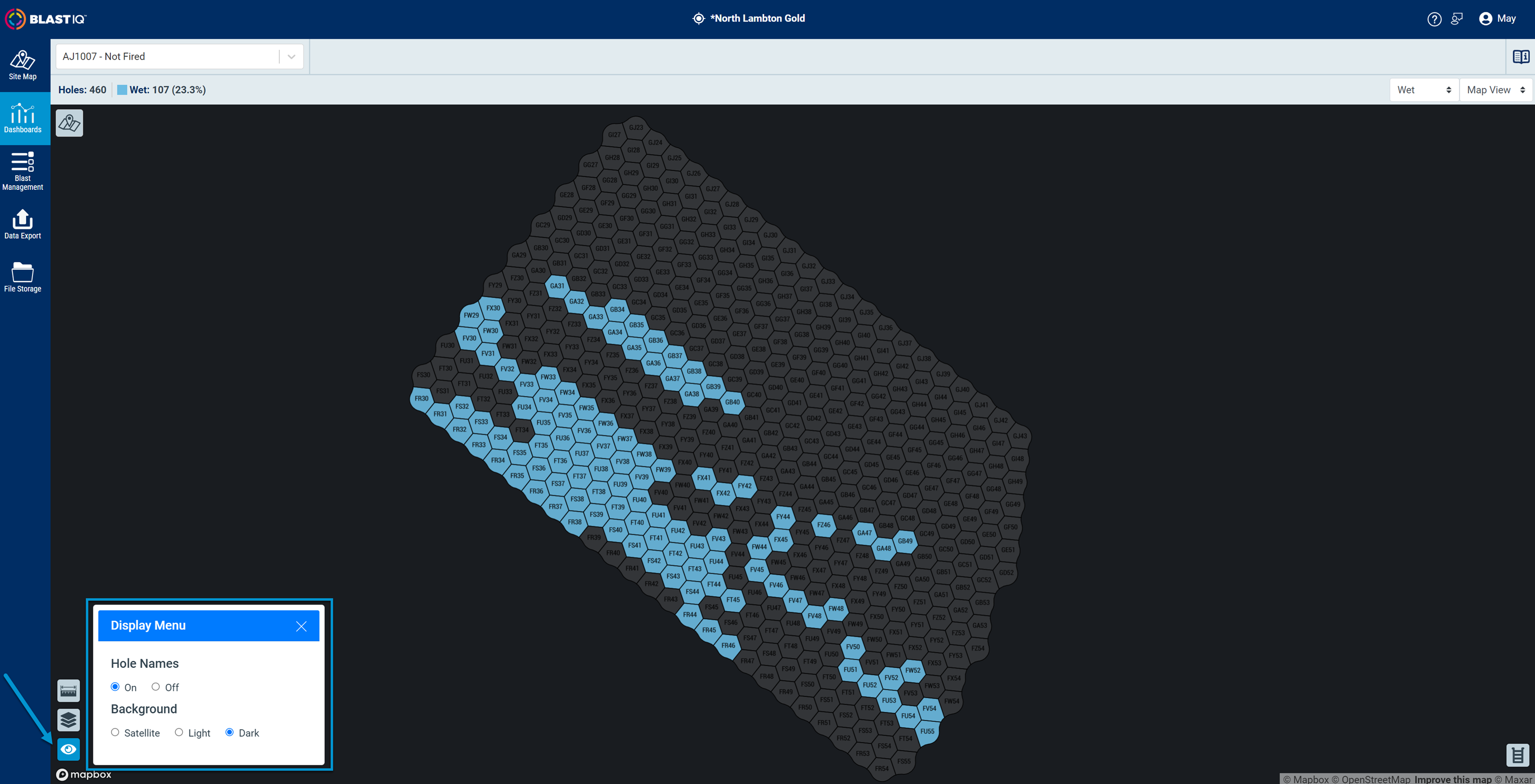

10. Display



    • Hole Names
      • Select "On" to display hole names on the map.
      • Select "Off" to hide hole names on the map.
    • Background
      • The user can choose to change the map background to allow better visualisation of the blasts of interest from the following options:
        • Select "Satellite" to set a satellite image as your map background.
        • Select "Light" to give your map a white background.
        • Select "Dark" to give your map a dark background.
