- Release Date:
12th November 2024
- KBA Summary:
This Knowledge Base Article describes the functionality of the BlastIQ™ Admin Portal, which allows sites using FRAGTrack™ to configure the installations' metrics of interest, thresholds, and notifications.
Summary
The NEW FRAGTrack™ web portal enables a consistent yet customisable visualisation of fragmentation results per installation.
Users using the web portal can visualise fragmentation results consistently thanks to the introduction of the metrics of interest and thresholds configurable through the BlastIQ™ Admin Portal.
Note: Only site admin users can access and modify these values for sites with a Fragtrack™ cloud license.
Note: Experience the new BlastIQ™ Insights Blast Fragmentation dashboard for blast-correlated fragmentation analysis. Read more here.
In BlastIQ™ Admin portal:
-

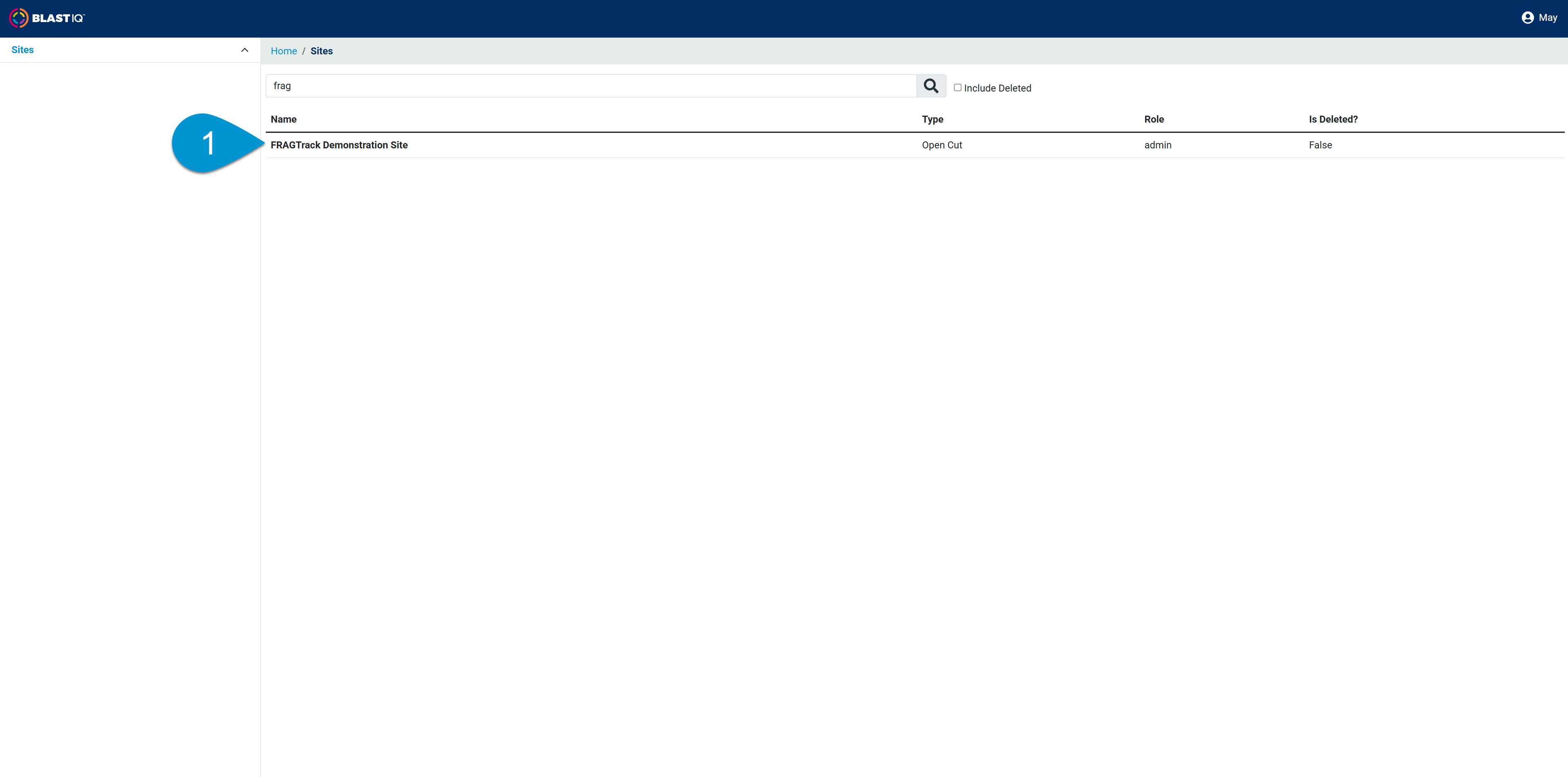

Select a site.

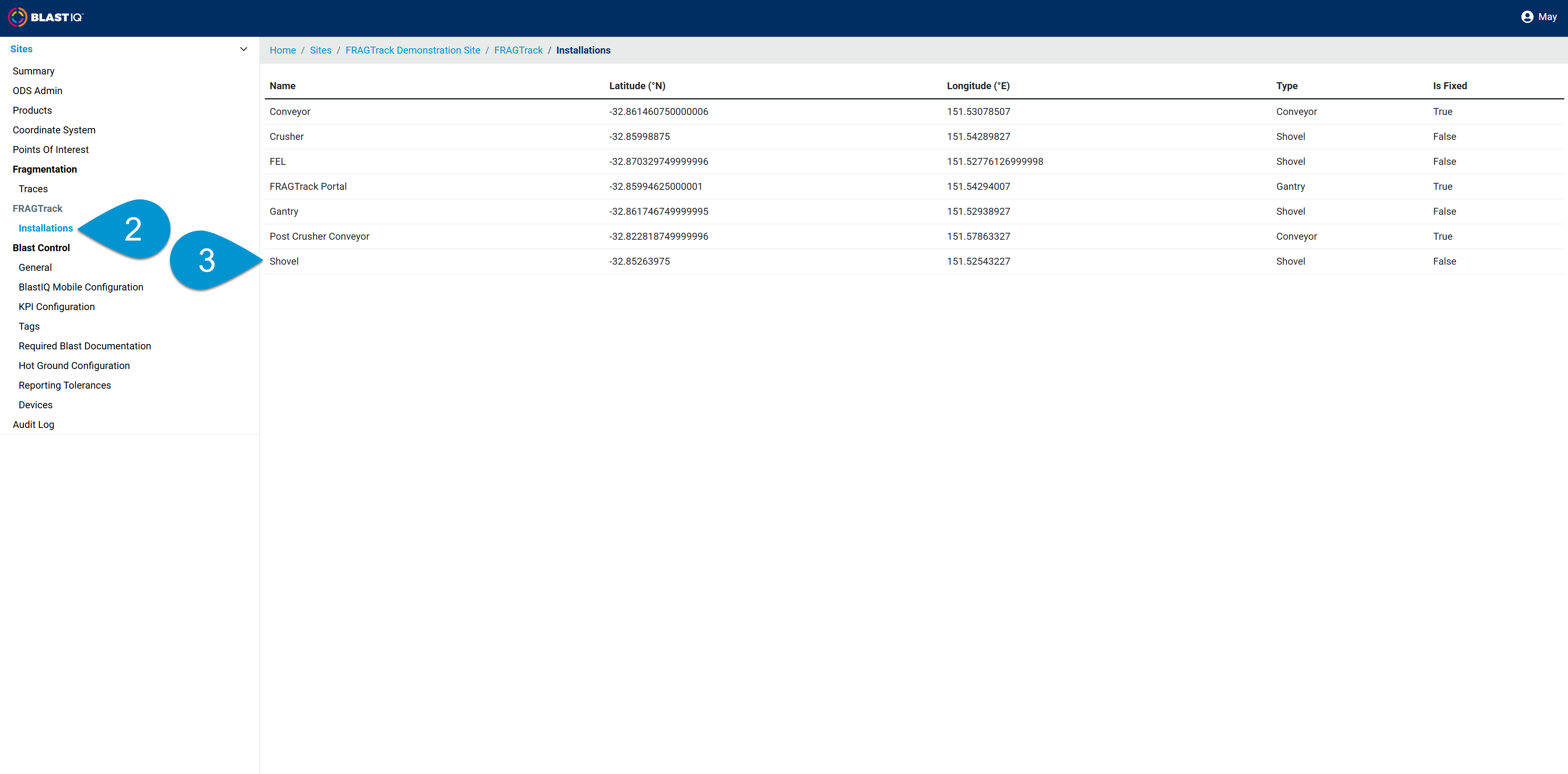

- Select FRAGTrack>Installations on the left side menu.
-
Select an installation.

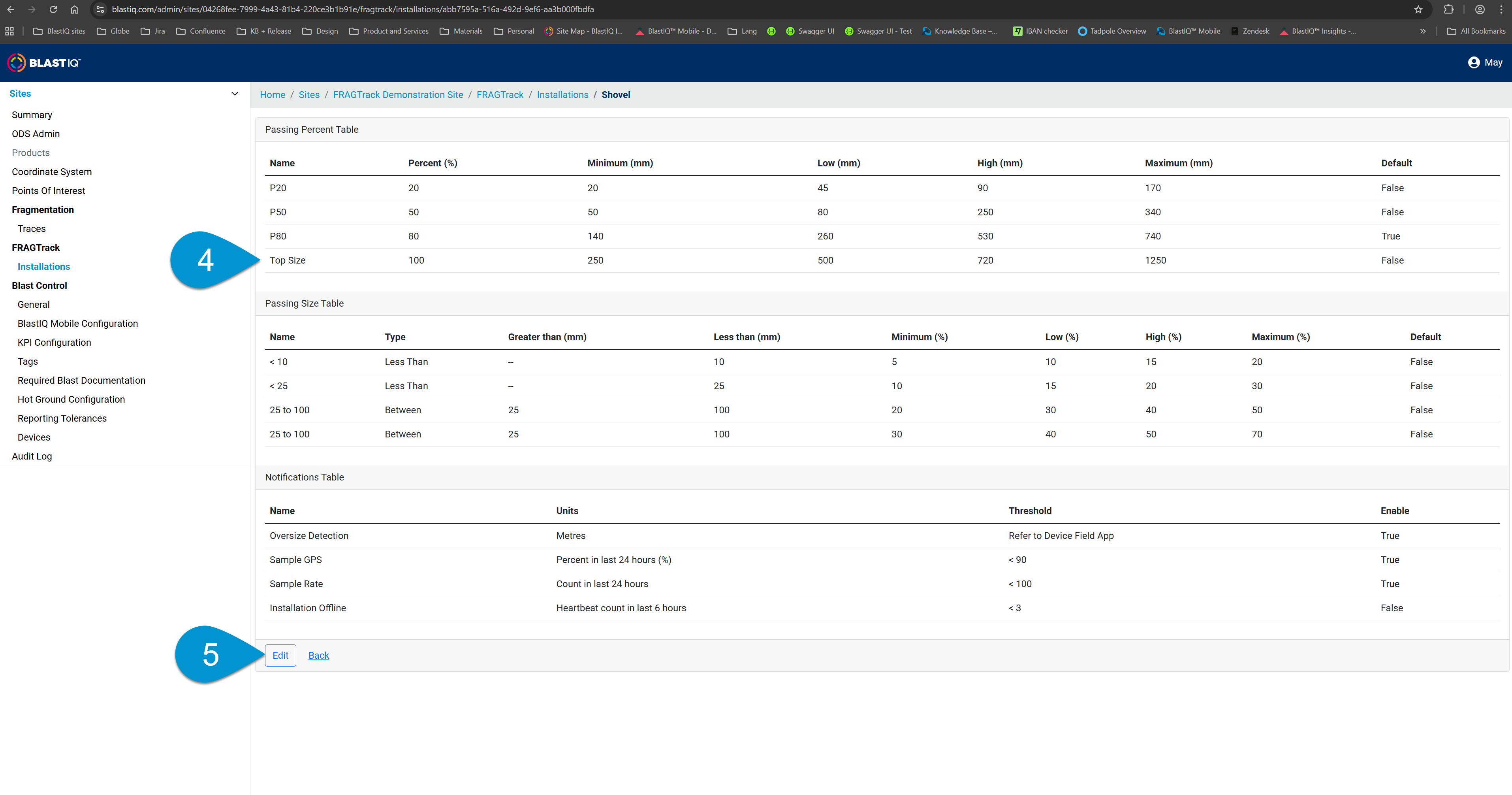

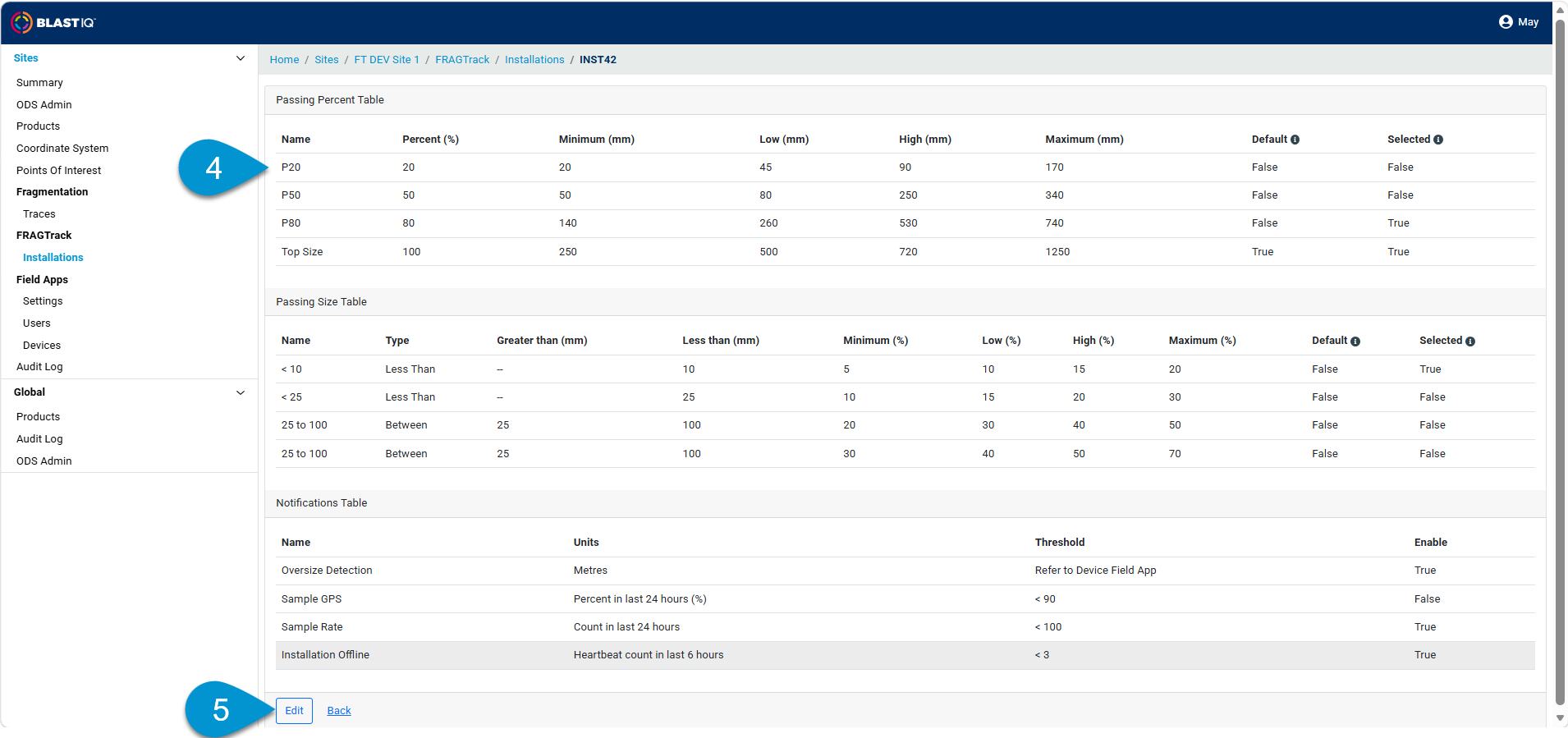

- See a list of passing percentage, passing size and mass (only for conveyor) metrics.
- User can now select up to 3 checkboxes in total across the selected column, combined between the Passing Percent Table and Passing Size Table. Once 3 are selected (in either table, or split across both), the remaining unselected checkboxes in both tables are disabled until one is deselected.
- The default checkbox remains active at all times, but only one row can be set as Default per table.
- Hovering over the column headers now shows tooltips clarifying their purpose:
- Selected: Selections shown in Results Dashboard.
- Default: Default Selection shown in Analysis Screen.
-
Select Edit.

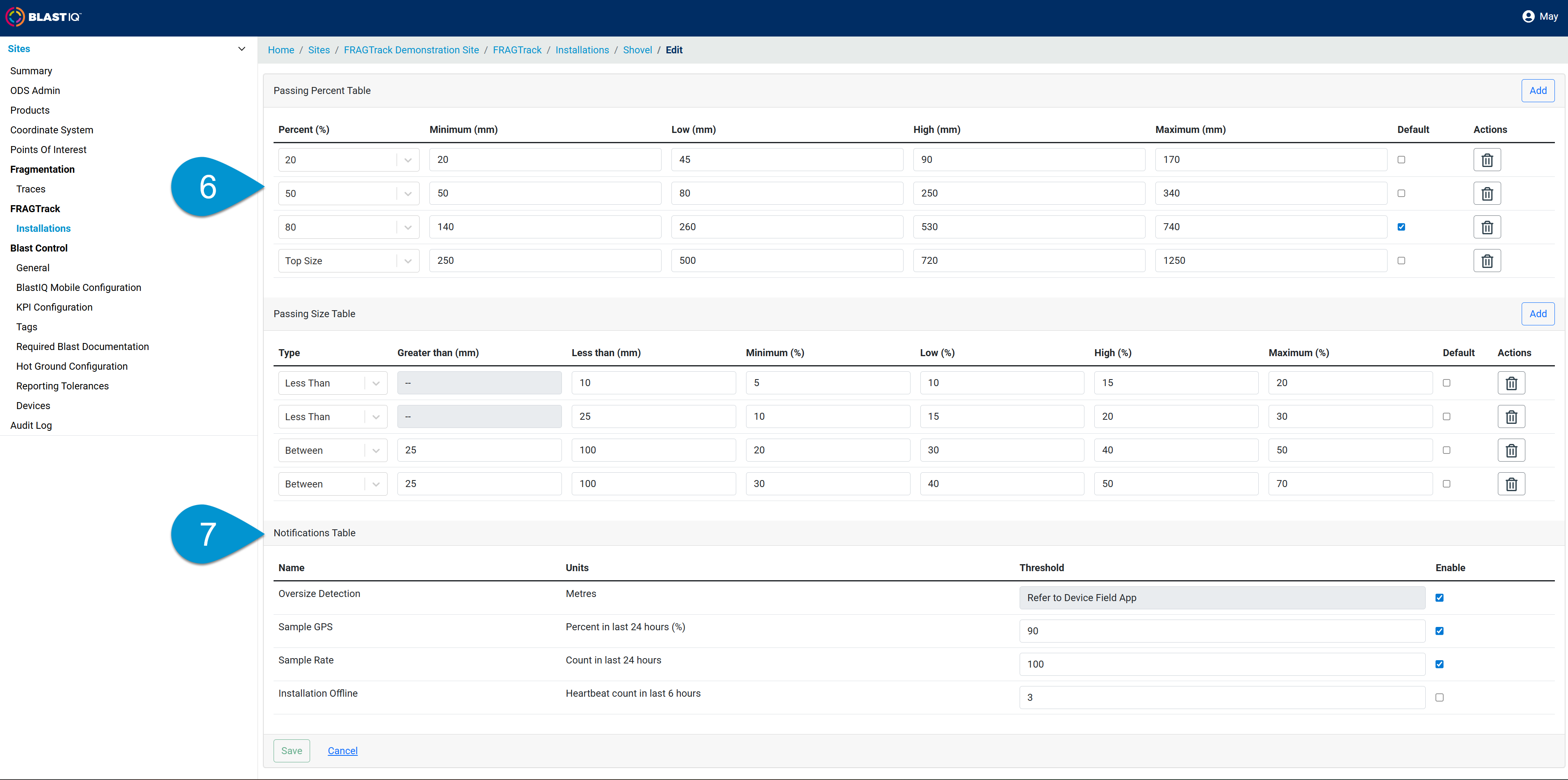

- Remove, add or modify existing metrics to the desired values.
-
In the Notifications table, set or update the threshold for each event. Default thresholds are applied to events based on the installation type. When an event is enabled, you will receive an ODS notification. Read more here.
