- Release Date:
- 12th November 2024
- KBA Summary:
- This Knowledge Base Article describes the functionality of the BlastIQ™ Admin Portal that allows sites to configure their site's blast fragmentation metrics of interest and thresholds.
Summary
The BlastIQ™ Fragmentation dashboard enables a consistent yet customisable visualisation of blast related fragmentation results.
Users can visualise blast fragmentation results consistently thanks to the introduction of the metrics of interest and thresholds configurable through the BlastIQ™ Admin Portal.
Note: Only site admin users can access and modify these values for sites with a Blast Fragmentation cloud license.
Note: Experience the NEW FRAGTrack™ web portal for installation performance analysis. Read more here.
Configuration
In BlastIQ™ Admin portal:

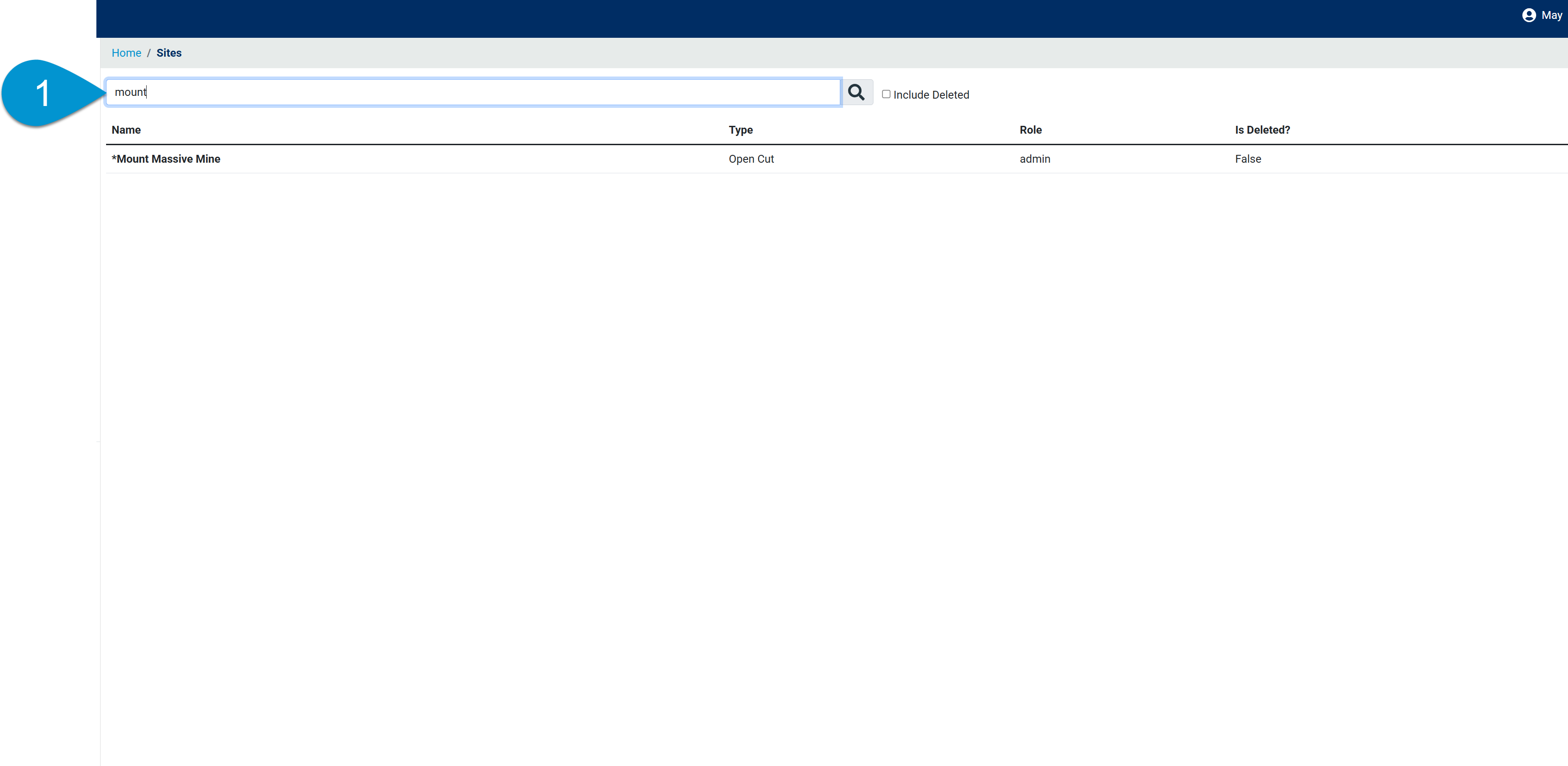

- Select a site.

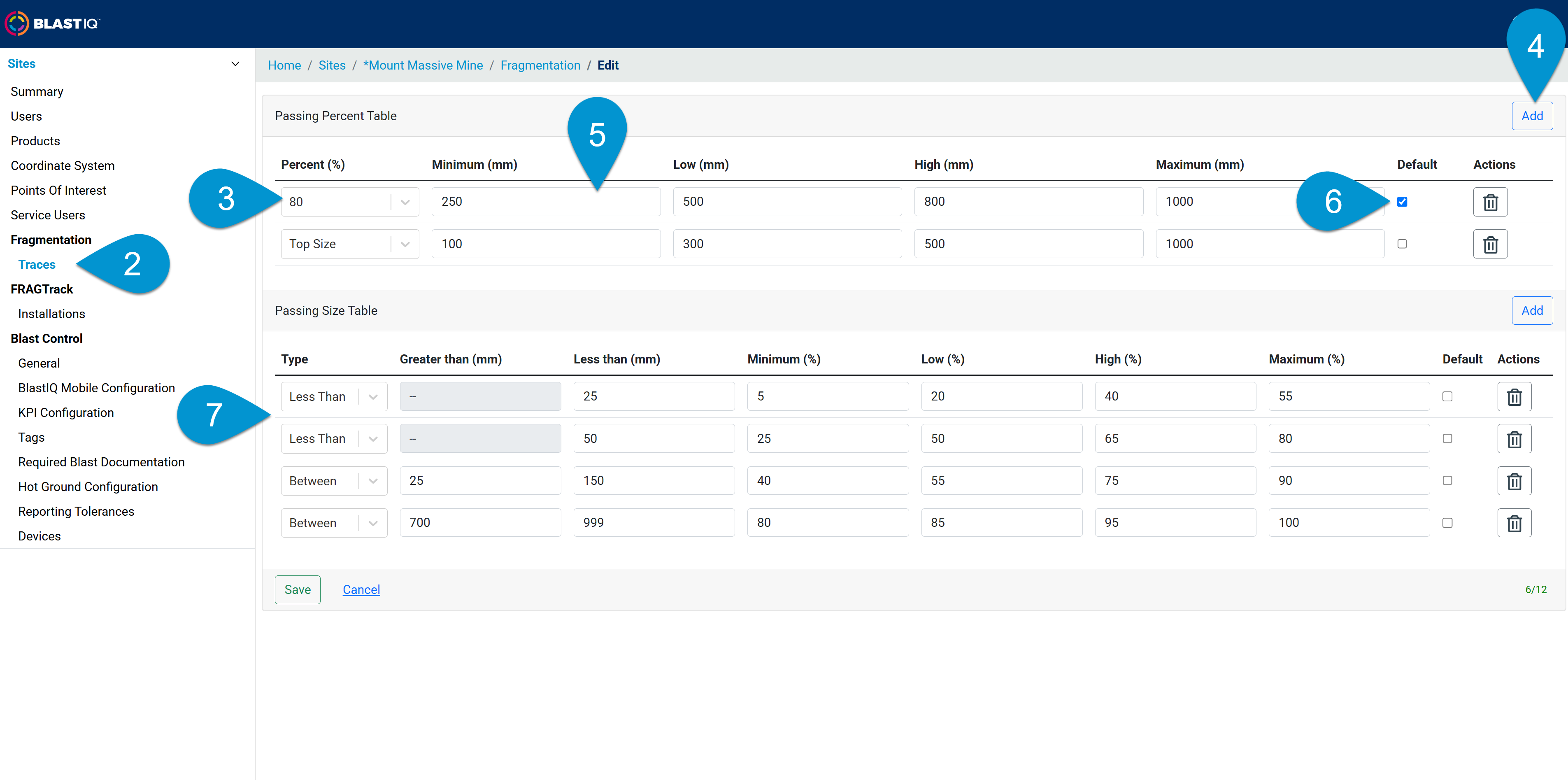

- Select Fragmentation>Traces on the left side menu.
- Select any trace to edit it.
- -OR- select Add to create a new trace.
- Modify the details and thresholds of the metrics to the desired values.
- Passing size types of metrics:
- Bt = Percent of the area of material in between two sizes.
- Lt = Percent of the area of material lower than a specific size.
- Gt = Percent of the area of material greater than a size.
