ENVIROTrack™ Site Configuration


Release Date:
22nd May 2025
KBA Summary:
This Knowledge Base Article provides guidance on configuring ENVIROTrack™ settings within the BlastIQ™ Admin Portal. This functionality is available to site administrators.  Please note that a site must have an active ENVIROTrack™ license,  as well as either Blast Control or Blast Management.
Configuration

In BlastIQ™ Admin portal:

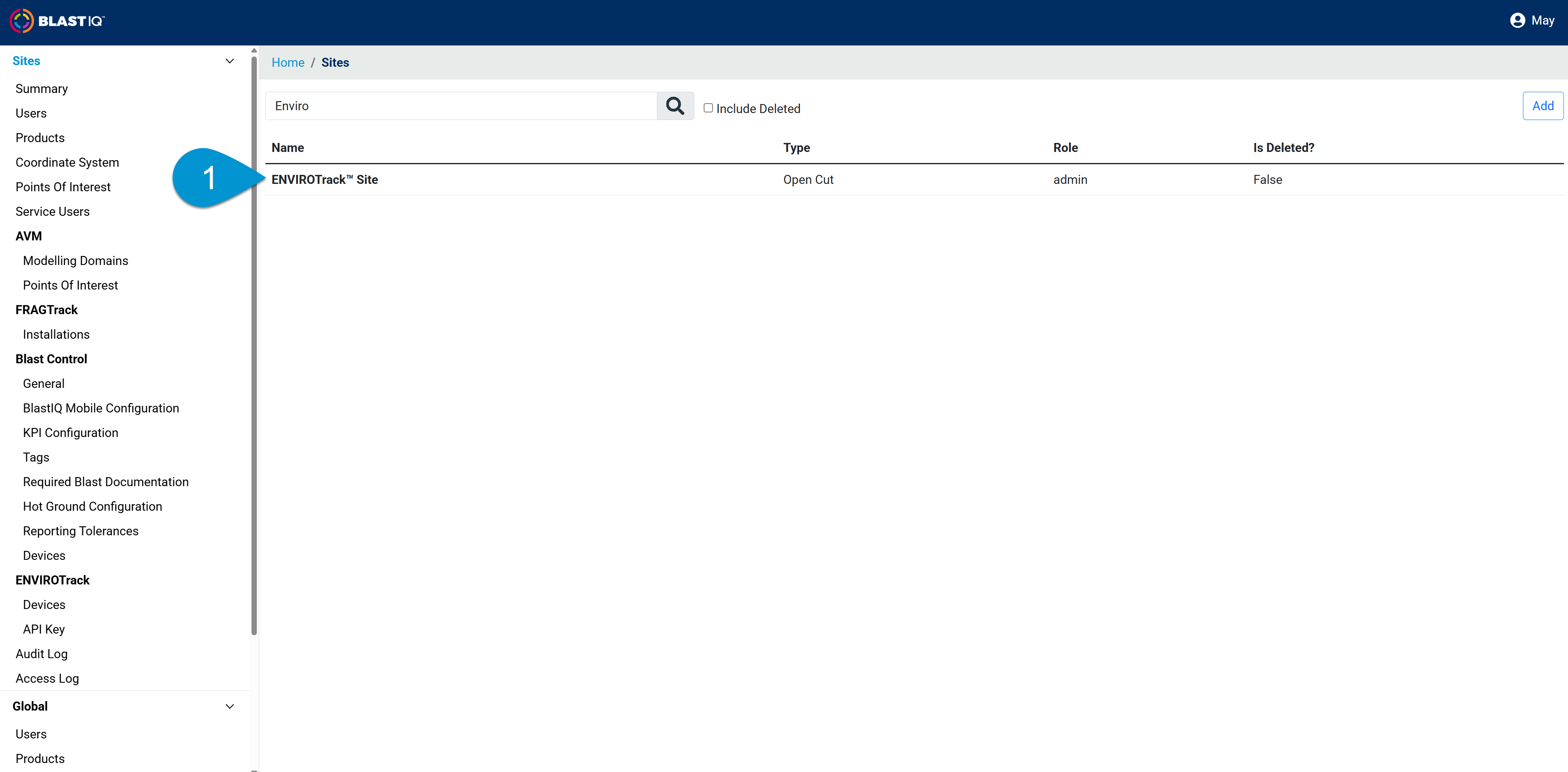

  1. Select a site.Admin1.png

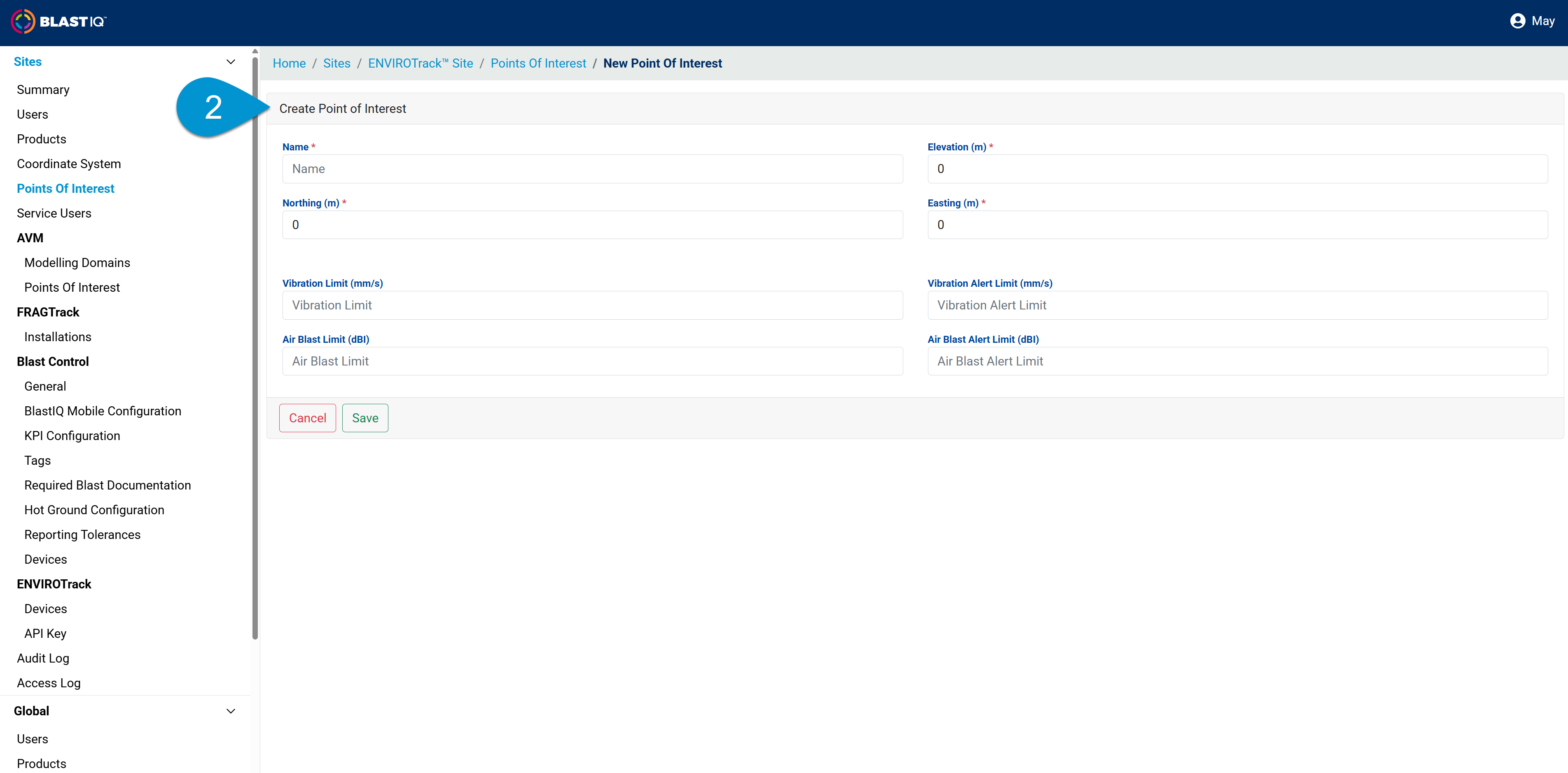

  2. Configure Points of Interest (POI).
    • If POI are already configured:
      • Proceed to step 3.
    • If POI are NOT configured:
      • Click "Points of Interest" in the left-hand menu.
      • Click the 'Add' button and enter the required site-specific coordinate details.
      • Set the threshold limits required.
      • Click the 'Save' button when done.
      • Repeat the process for each POI required.

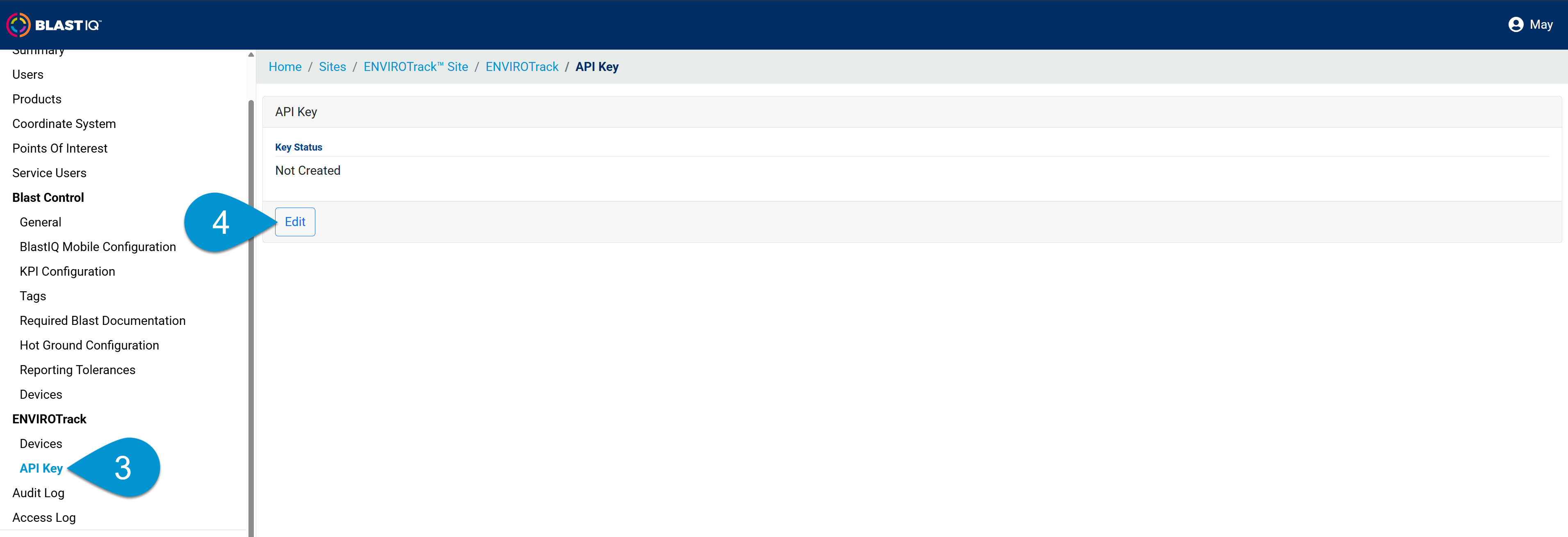

  3. Navigate to the ENVIROTrack section in the left-hand menu and click 'API Key'.
  4. Click 'Edit'.

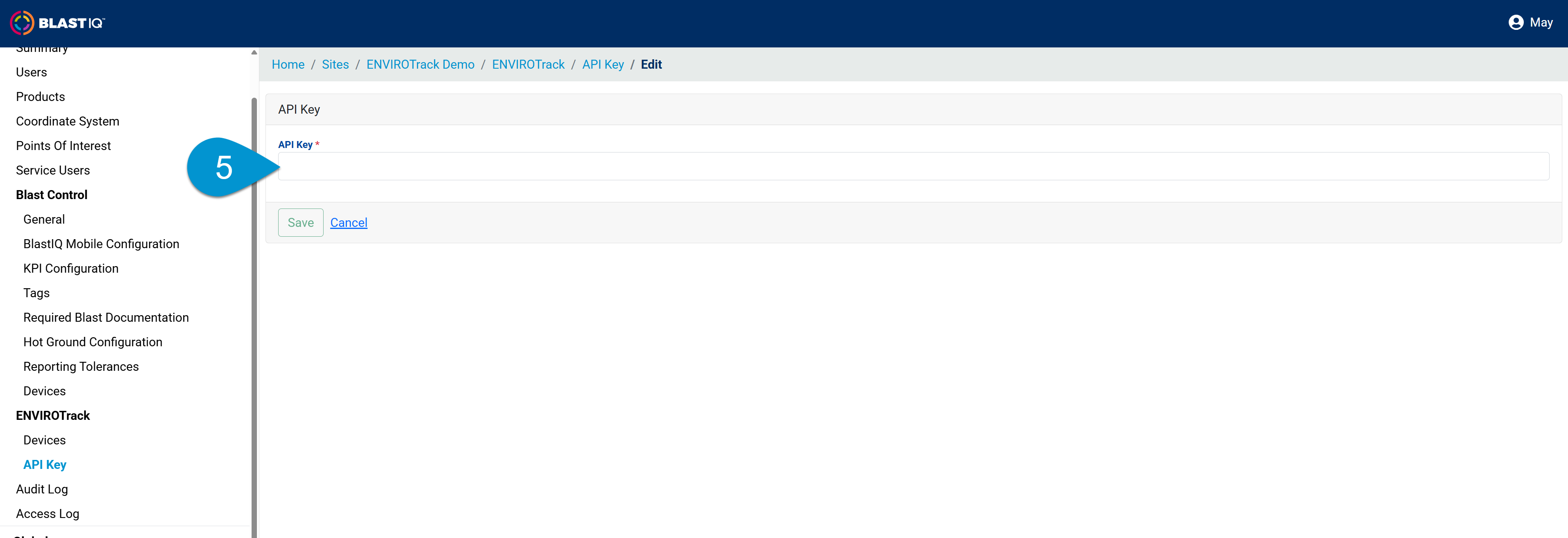

  5. Add the Syscom API Key and click 'Save'.

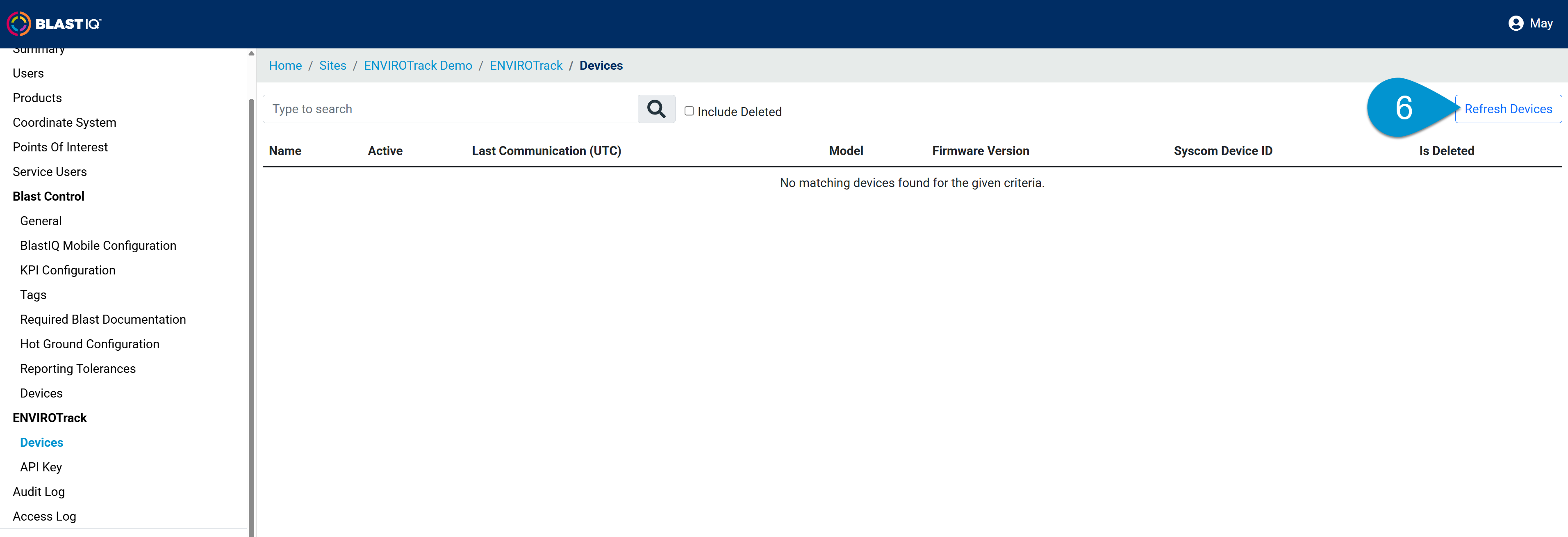

  6. Click 'Device' under the ENVIROTrack section in the left-hand menu and click 'Refresh Devices'.

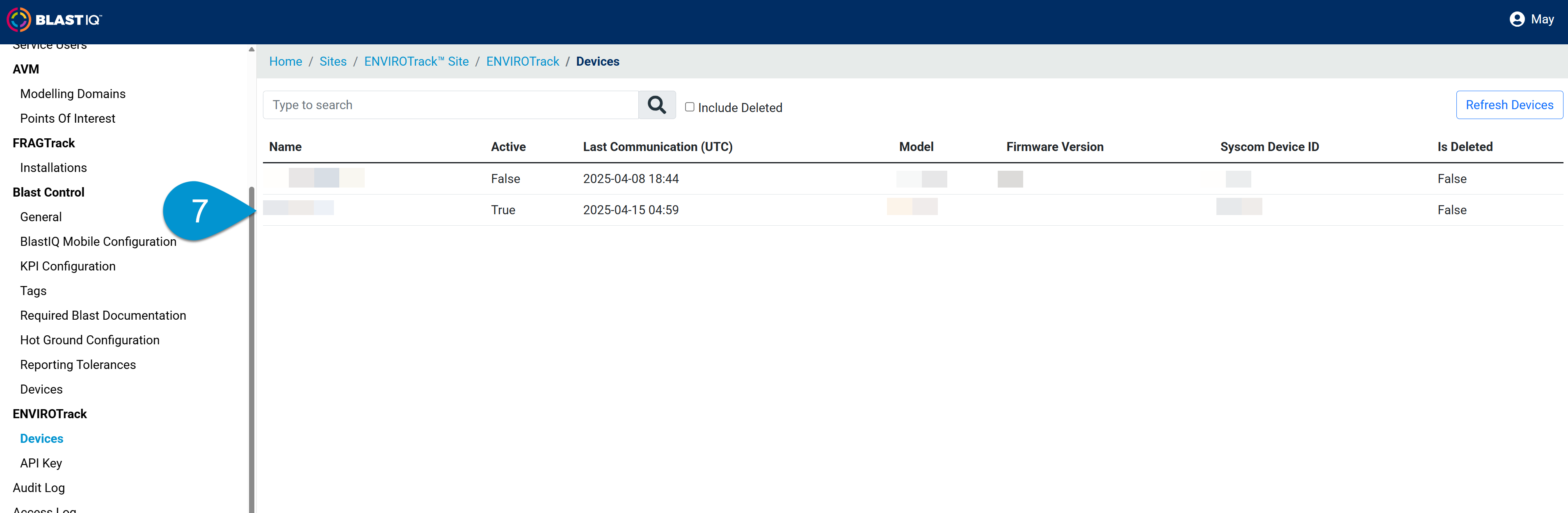

  7. Select a device.

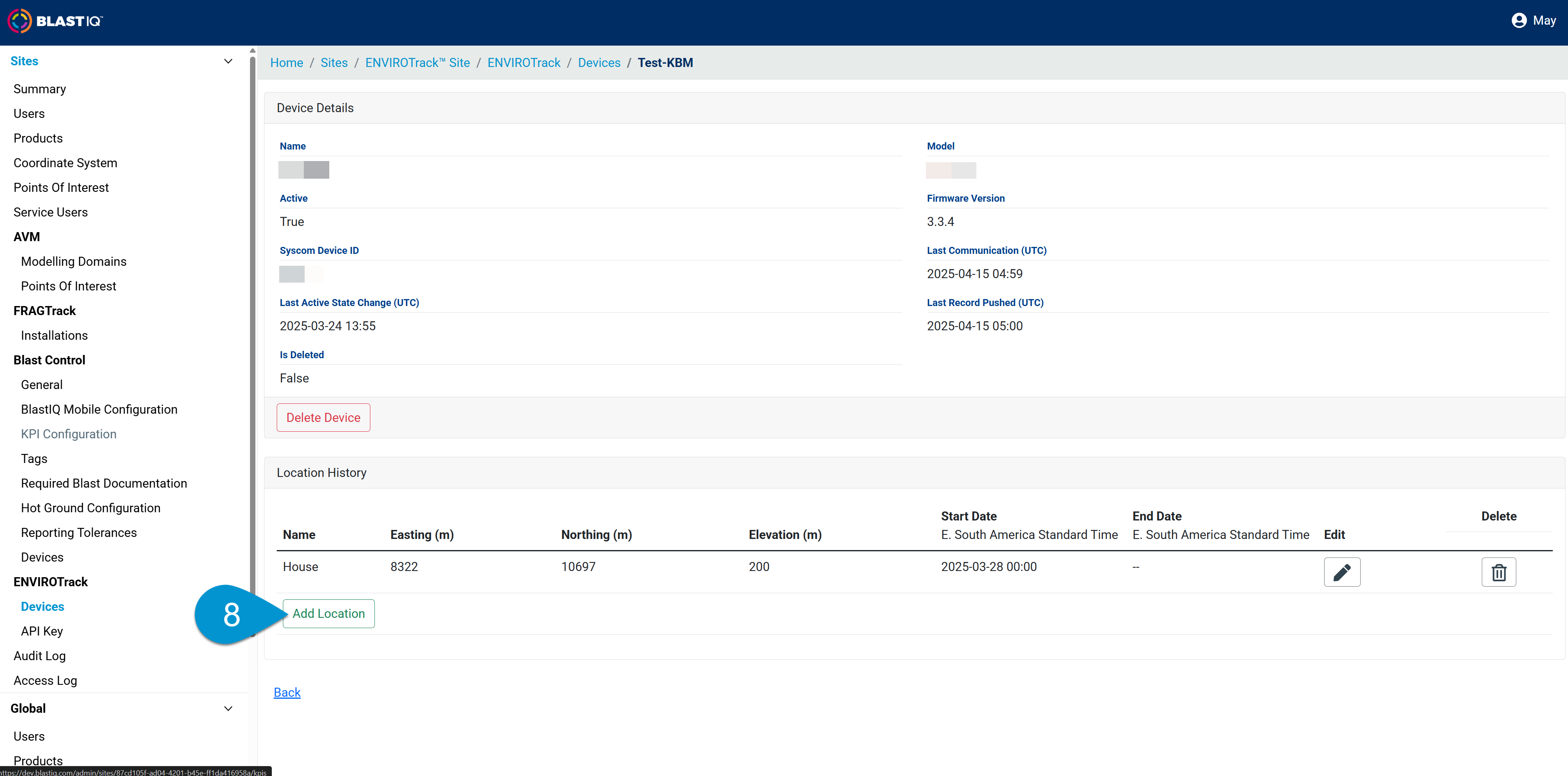

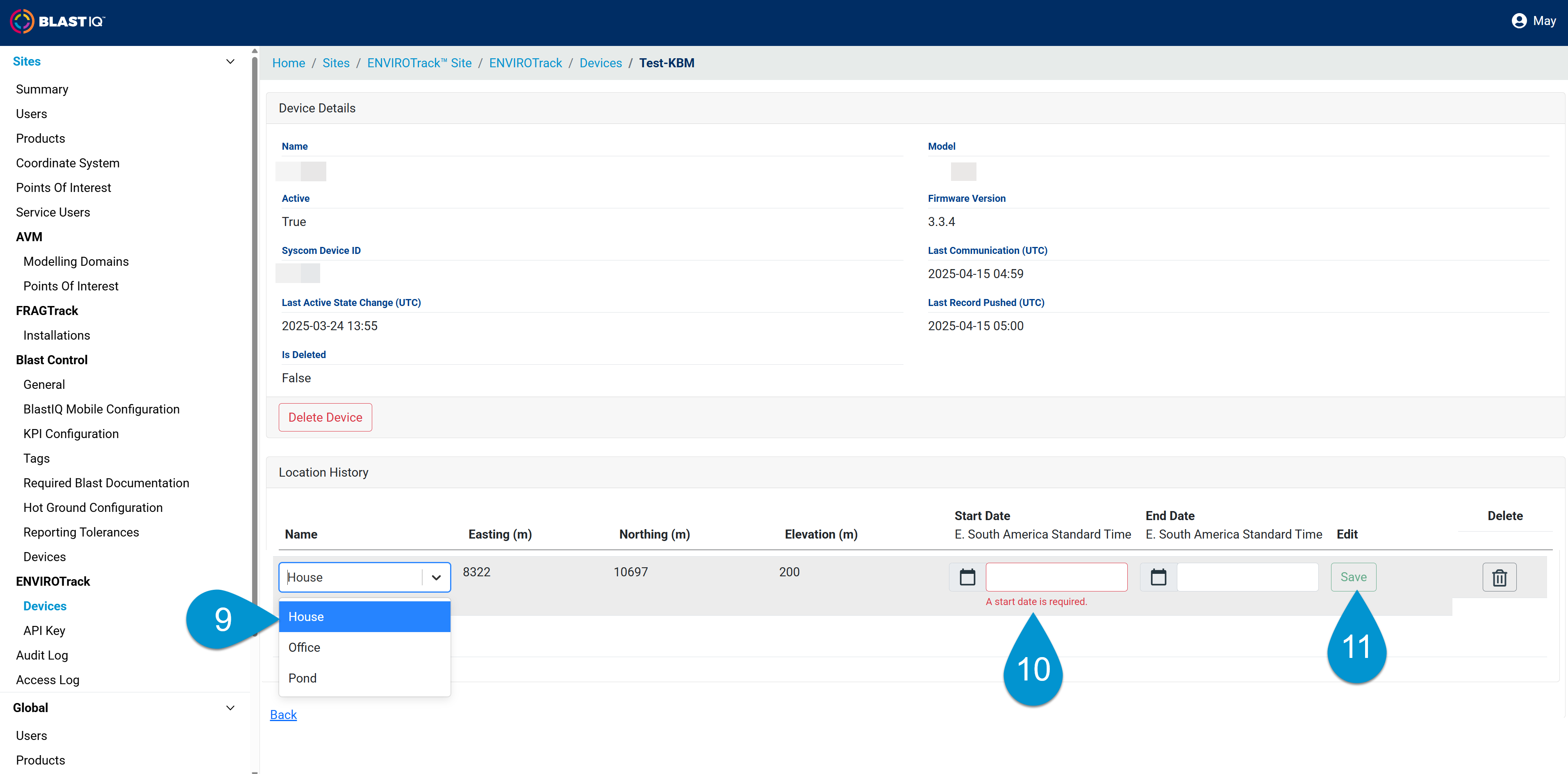

  8. To associate devices with POI, navigate to the Location History and click 'Add Location'.


  9. Select a Point of Interest.
  10. Add a start and end date or leave the end date open.
  11. Click 'Save'.Admin9-11.png
