BlastIQ™ Mobile - Measure Water After Backfill or Stand-off

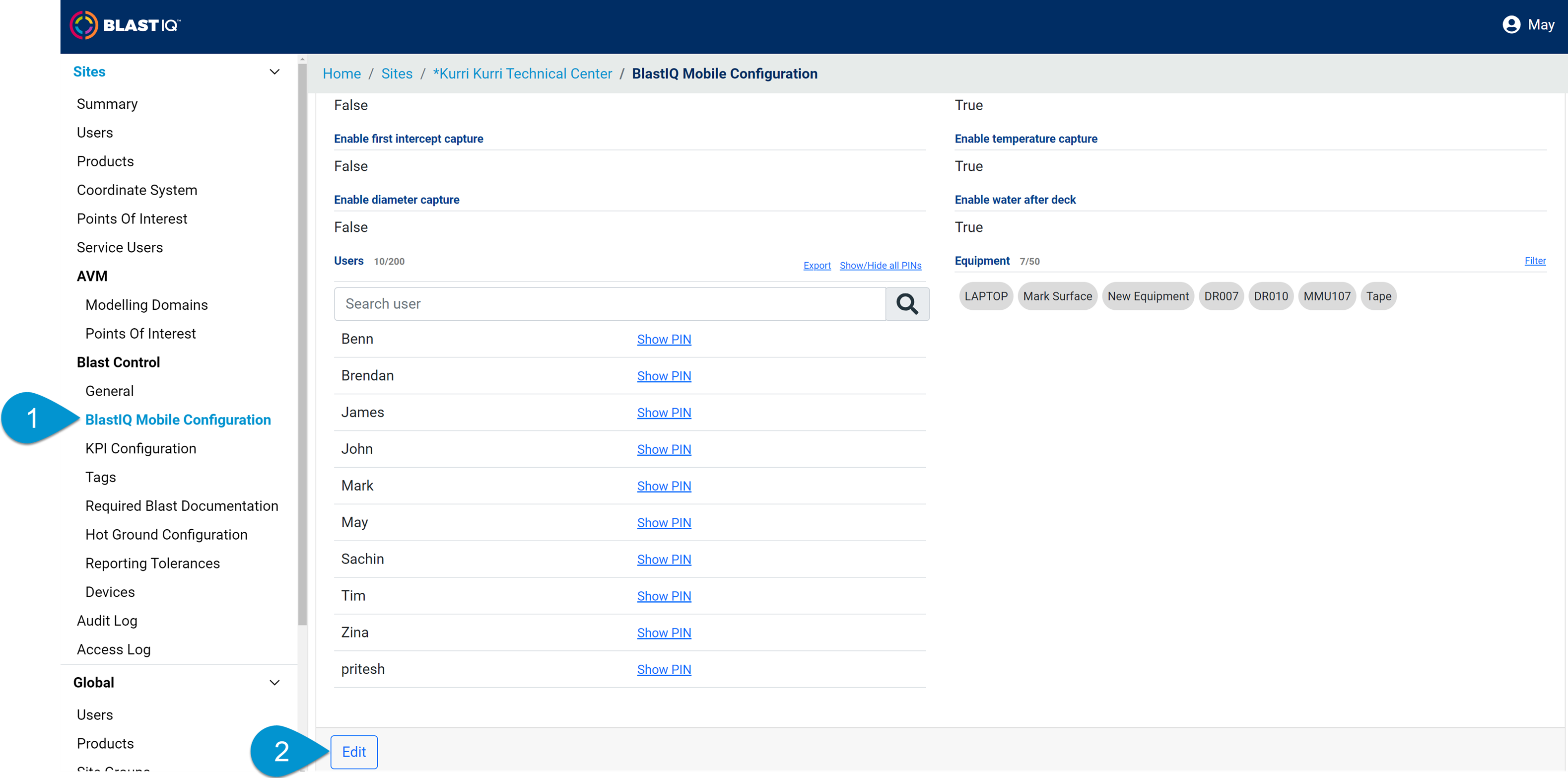

1. Select a site and click the "BlastIQ Mobile Configuration" menu.
2. Click the "Edit" button.

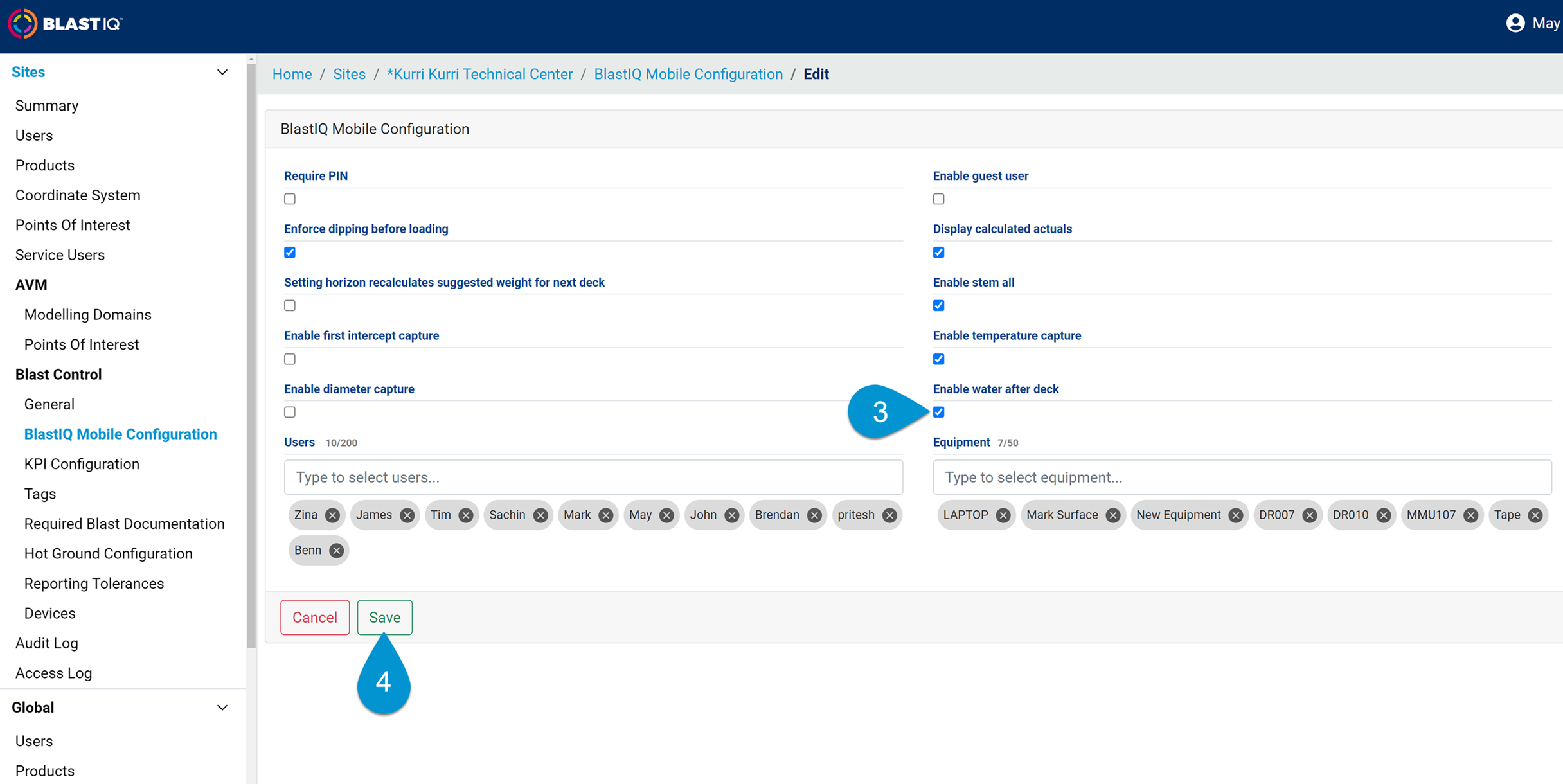

3. By default, "Enable water after deck" is false.  Tick the checkbox to enable.
4. Click the "Save" button.



• If the "Enable water after deck" is disabled:
  • All water measurements are relative to the hole length.
• If the "Enable water after deck" is enabled:
  • Users can record water measurements after a backfill and/or a stand-off deck have been recorded.
  • Any water measurements after these decks will be relative to the horizon of the deck, which must be recorded.
  • "Amount of water" to mark a hole as wet or dry is calculated accordingly. Read more here.
  • Wet side measurements are not supported after backfill or stand-off decks.

User Interface

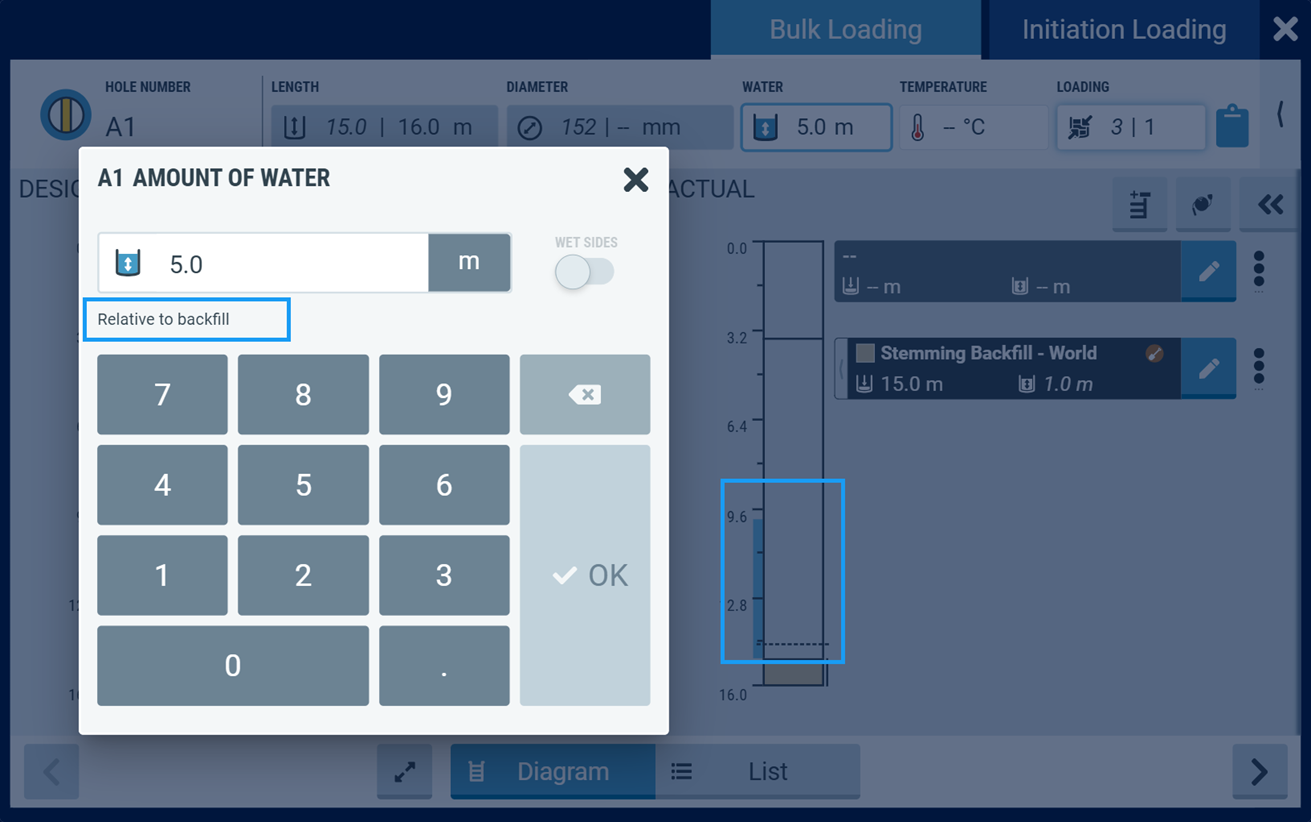

• The water measurement dialogue shows what the measurement is relative to (if existing) or will be recorded relative to (if new measurement).
• The water measurement will be shown in the diagram accordingly.

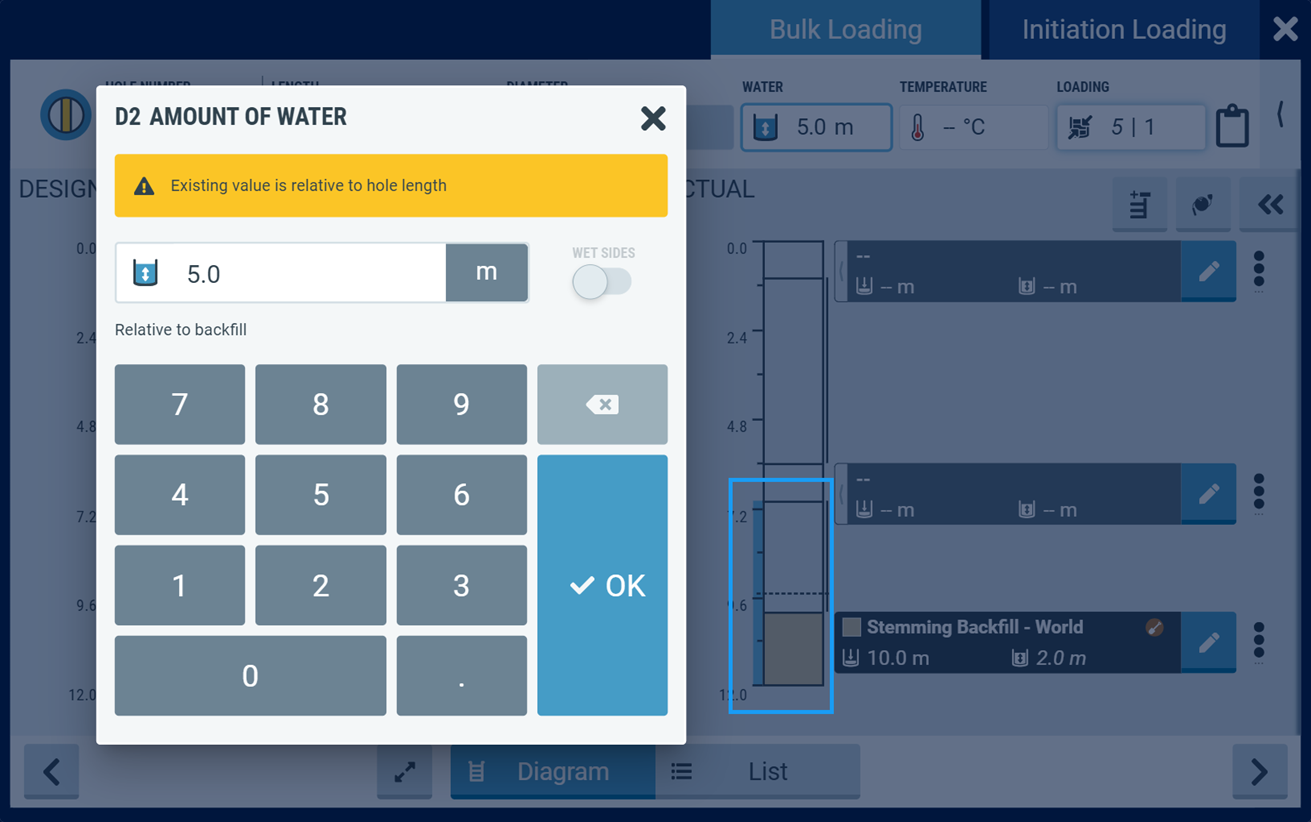

• Warnings are displayed when editing existing water measurements, and there is a difference in what the new water measurement will be recorded relative to.

Conditions

• • Relative to Backfill
    • To classify a water measurement as relative to backfill:
      • In the charging panel, add a hole measurement that triggers a backfill.
      • Open the backfill deck (deck 0) and add horizon measurement.
        • The product should be stemming, with no other actual measured decks.
      • Open the water measurement dialogue. It should show as relative to backfill.
      • Add a water measurement and tap the "OK" button.
  • Relative to Stand-off
    • • To classify a water measurement as relative to stand-off:

        • In the charging panel, add a hole measurement.
        • Add horizon measurement to an actual stand-off deck (deck 1).
          • The product must be stemming, with no other actual decks except a backfill deck.
        • Open the water measurement dialogue.  It should show as relative to the stand-off.
        • Add a water measurement and tap the "OK" button.

Important Notes:

• • The wet side toggle is disabled when the water measurement is relative to backfill or stand-off and is only enabled when it is relative to hole length.
  • If the corresponding backfill or stand-off deck is recorded as "loaded not measured", then water measurements are not allowed.
  • If a water measurement relative to the backfill or stand-off deck is present, that deck or any deck below cannot be cleared without first clearing the water.
