- Release Date:
- 16th December 2021
Summary
BlastIQ™ Mobile Delivery Summary provides a comprehensive overview of the designed, actual, and remaining products within a plan. It offers users a convenient way to track products, covering both deviated and non-deviated designs.
Note: Toggling the 'Deviated from design' will not impact the display of the product counts.
Navigation
To view the Delivery Summary:

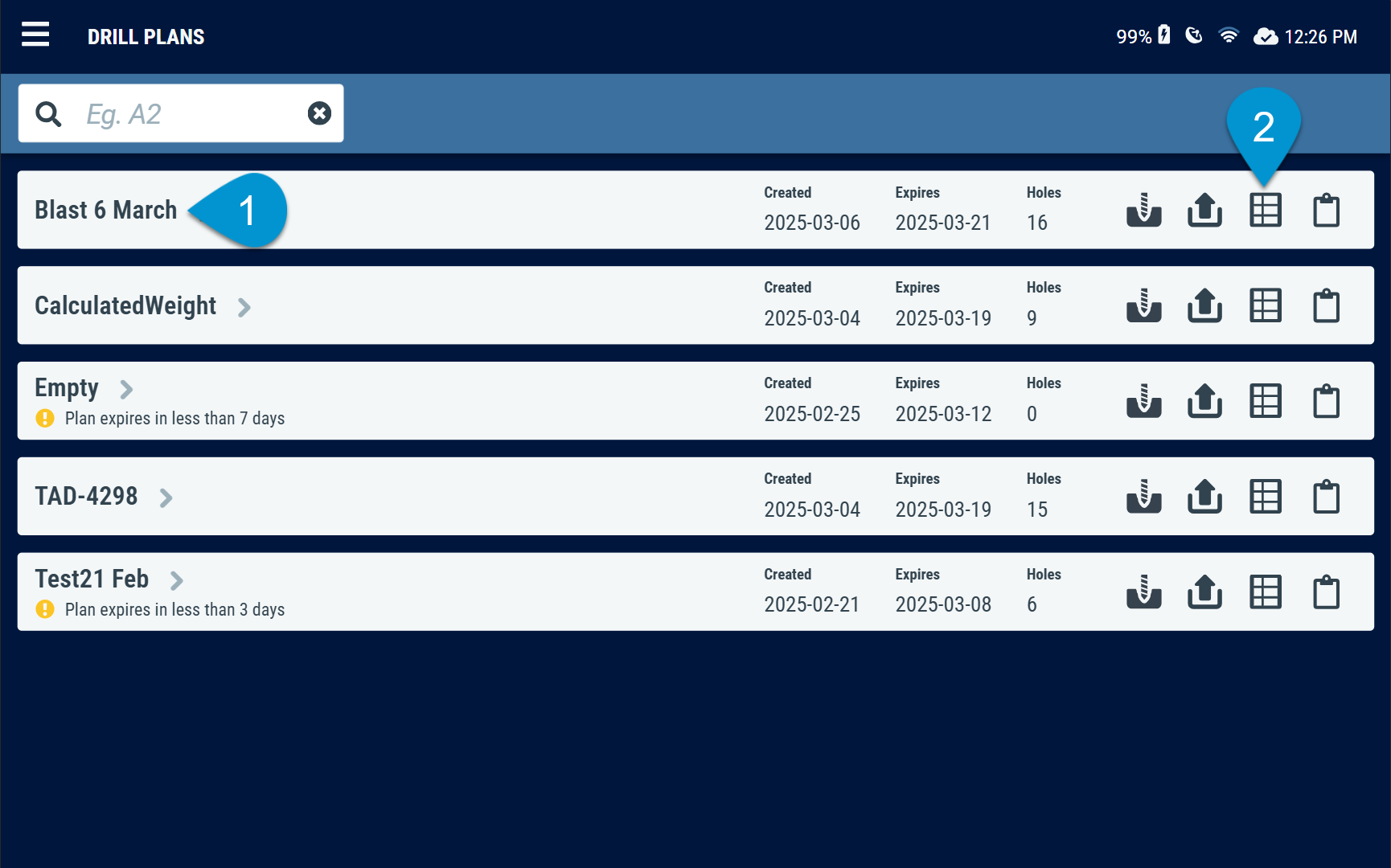

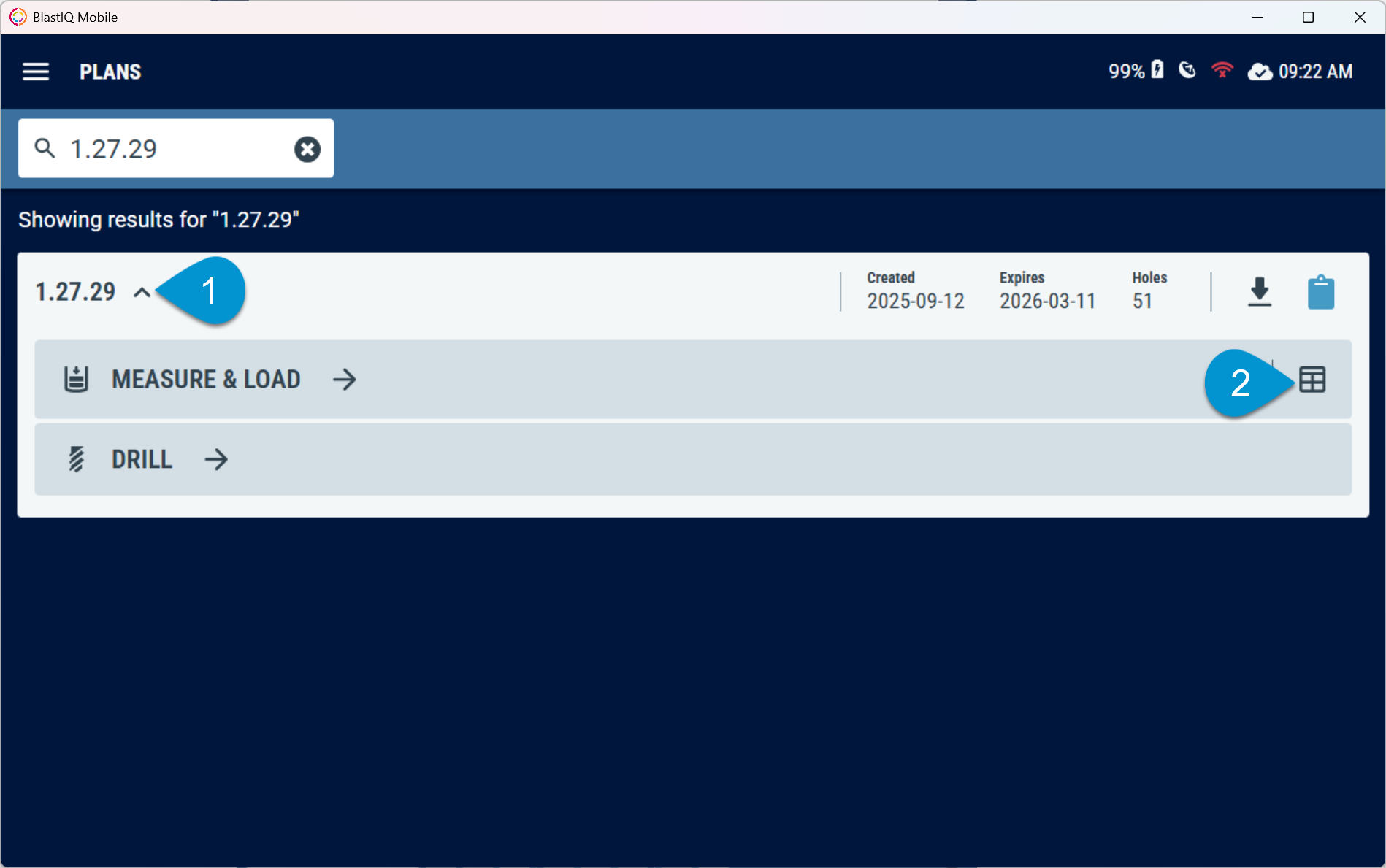

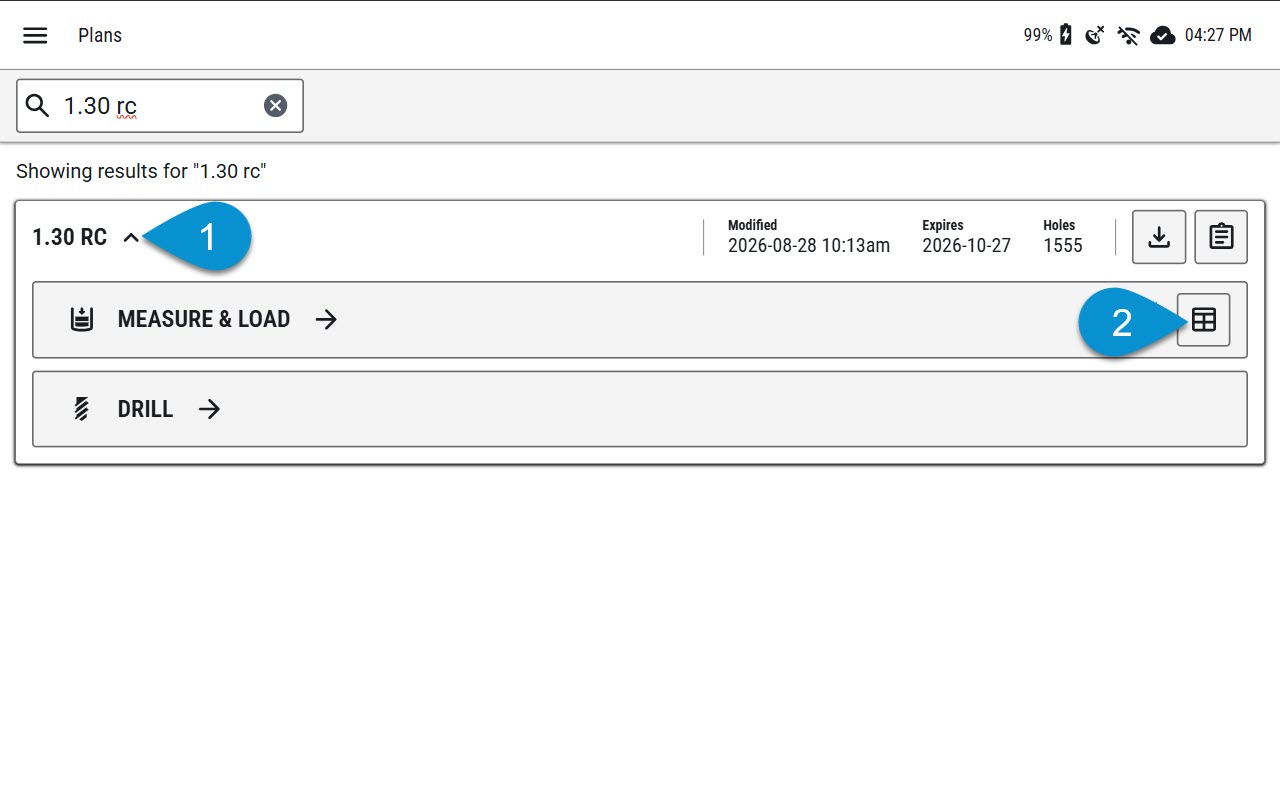

- From the drill plans page, choose a plan you want to view the delivery summary.
- Tap on the 'Delivery Summary' icon.

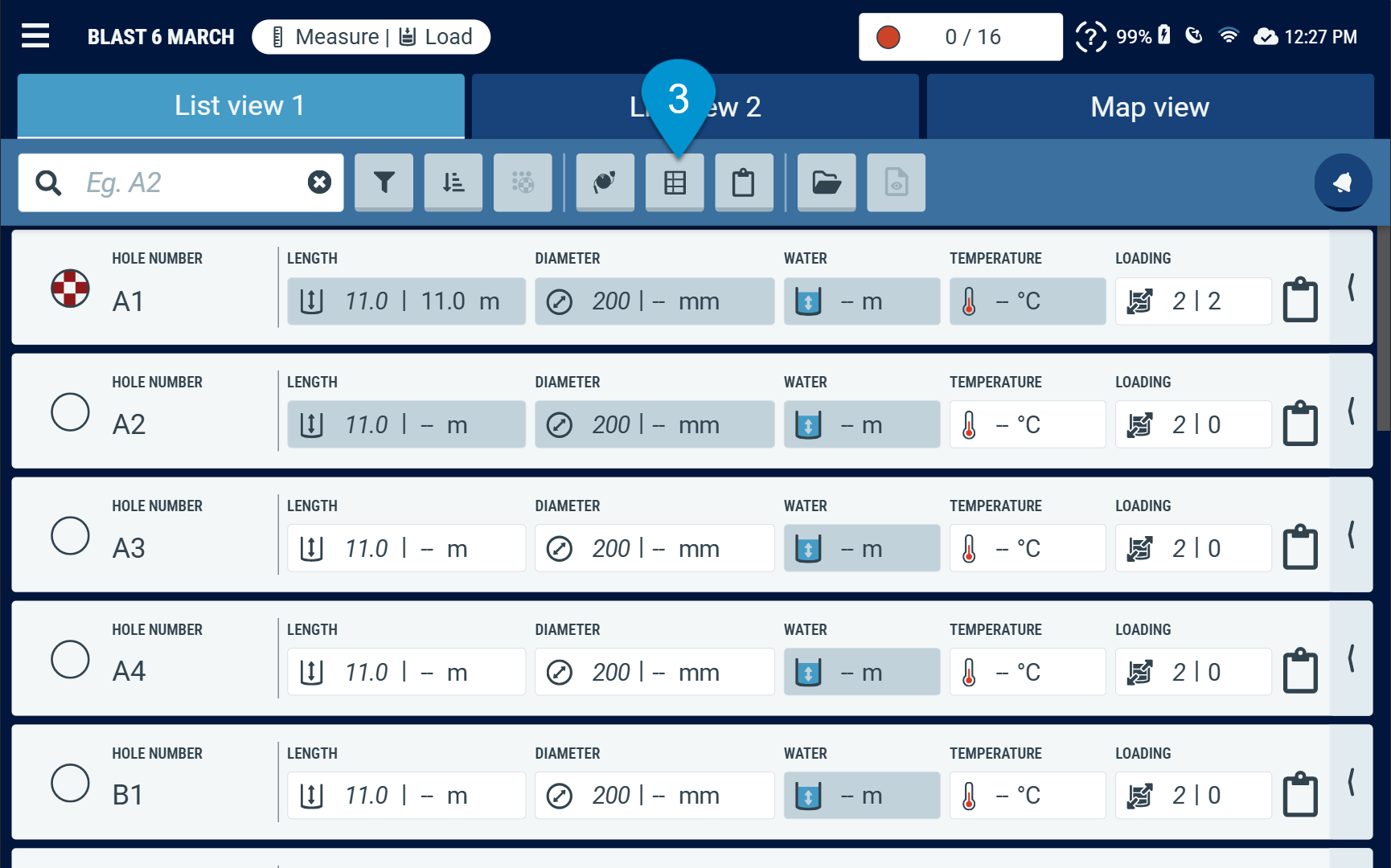

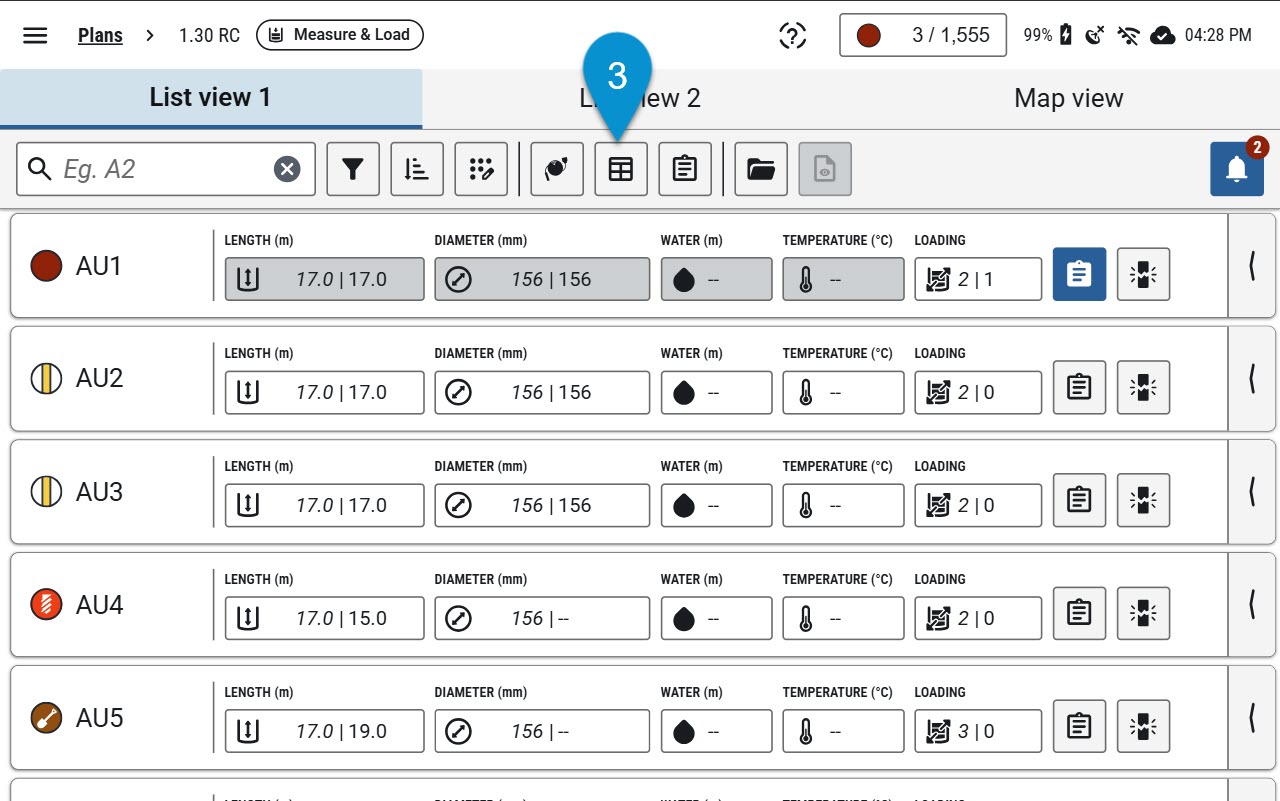

- From the measurements page, navigate to the toolbar section and tap the 'Delivery Summary' icon.

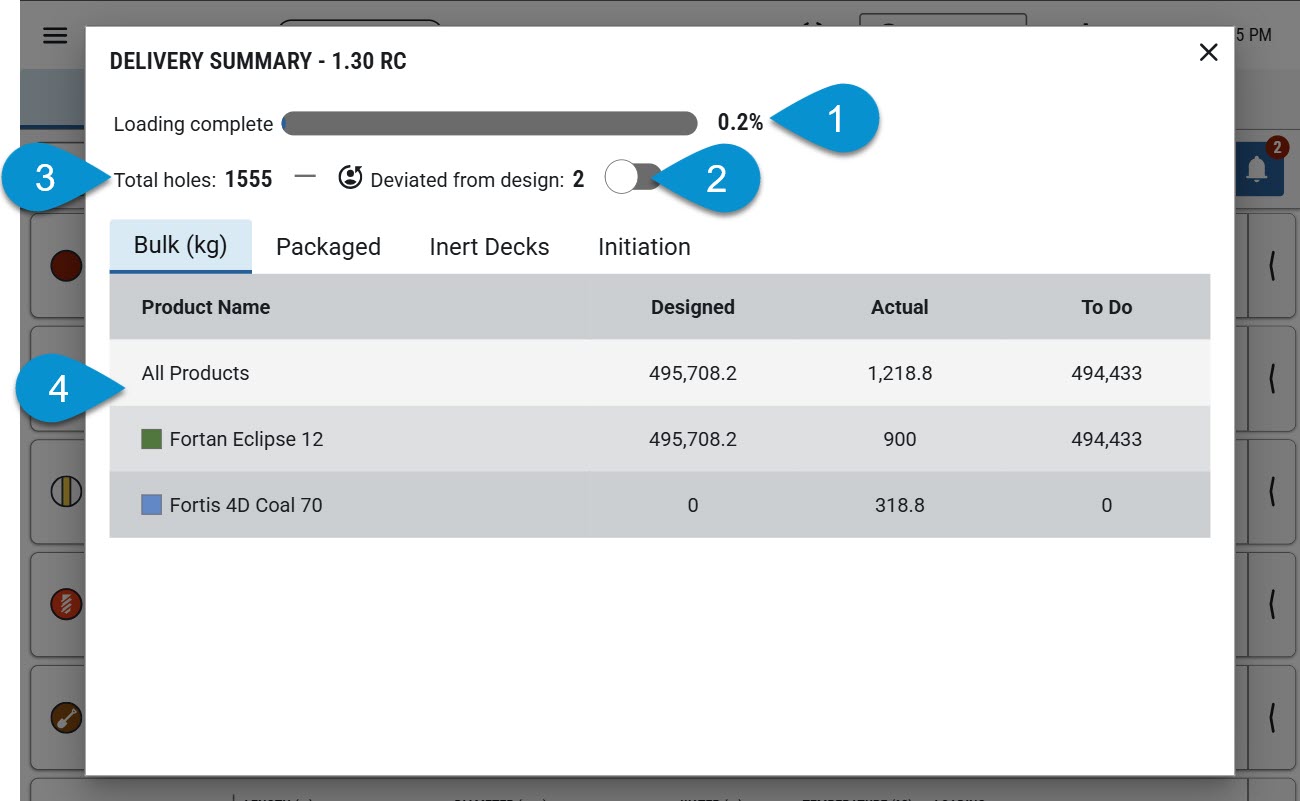

Information

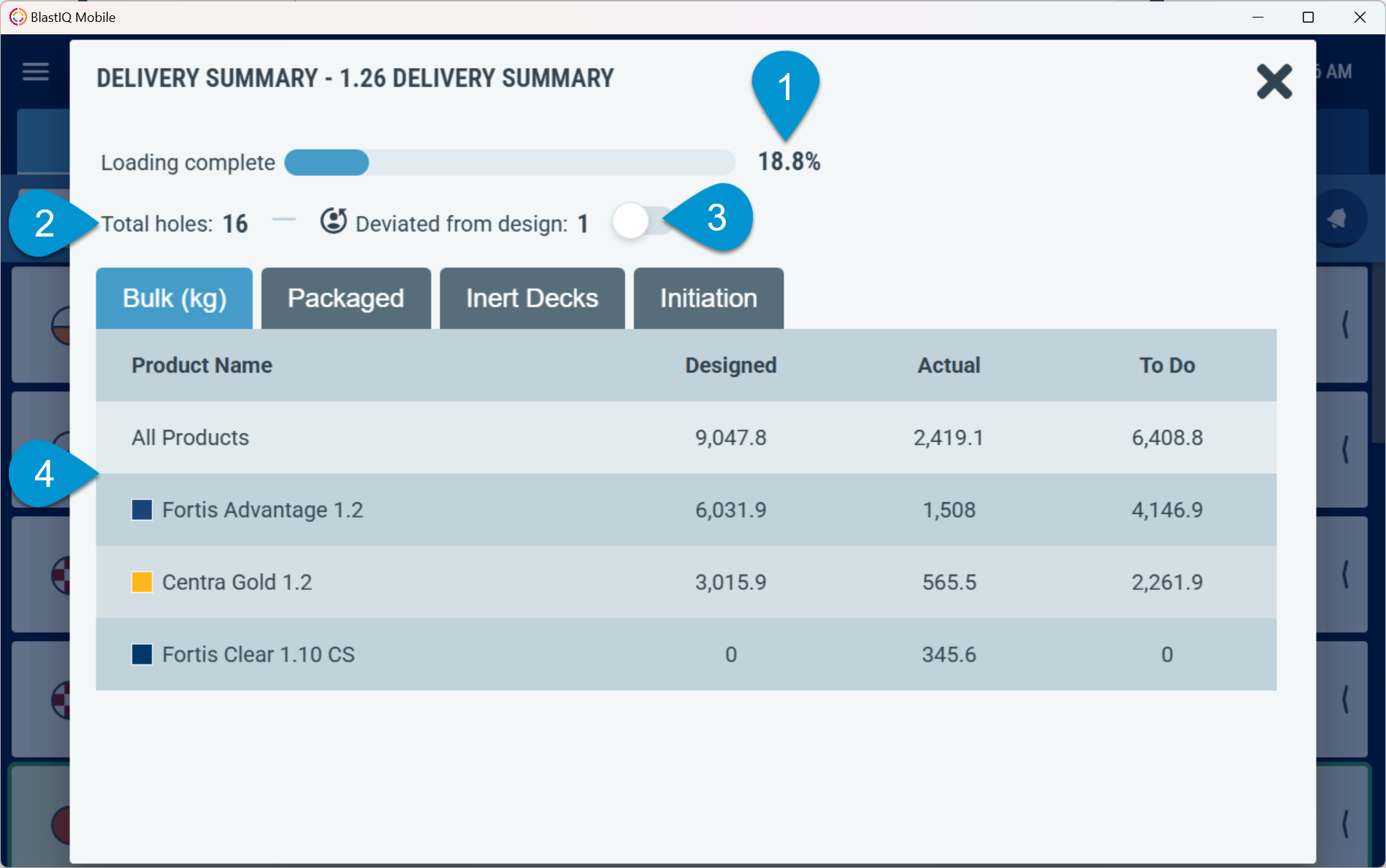

The following information is shown on the Delivery Summary:
- Progress indicator.
- Total number of holes.
- Holes deviated from design (toggle).
- Product summary table.
- Progress indicator:
- It provides a visual representation of how many holes are explosive loading complete.
- Total holes:
-
Displays the total number of holes in the plan.
-
- Holes deviated from design (toggle):
- This feature allows users to view and manage holes that deviate from the design, such as the addition of decks or changes in products.
- By default, the toggle button is OFF but retains the last used state for the current session. To change the state, swipe the toggle to the right to turn it on or swipe to the left to turn it off.
-
When the toggle is on, the sum of the total product weight for both non-deviated and deviated holes will be shown.

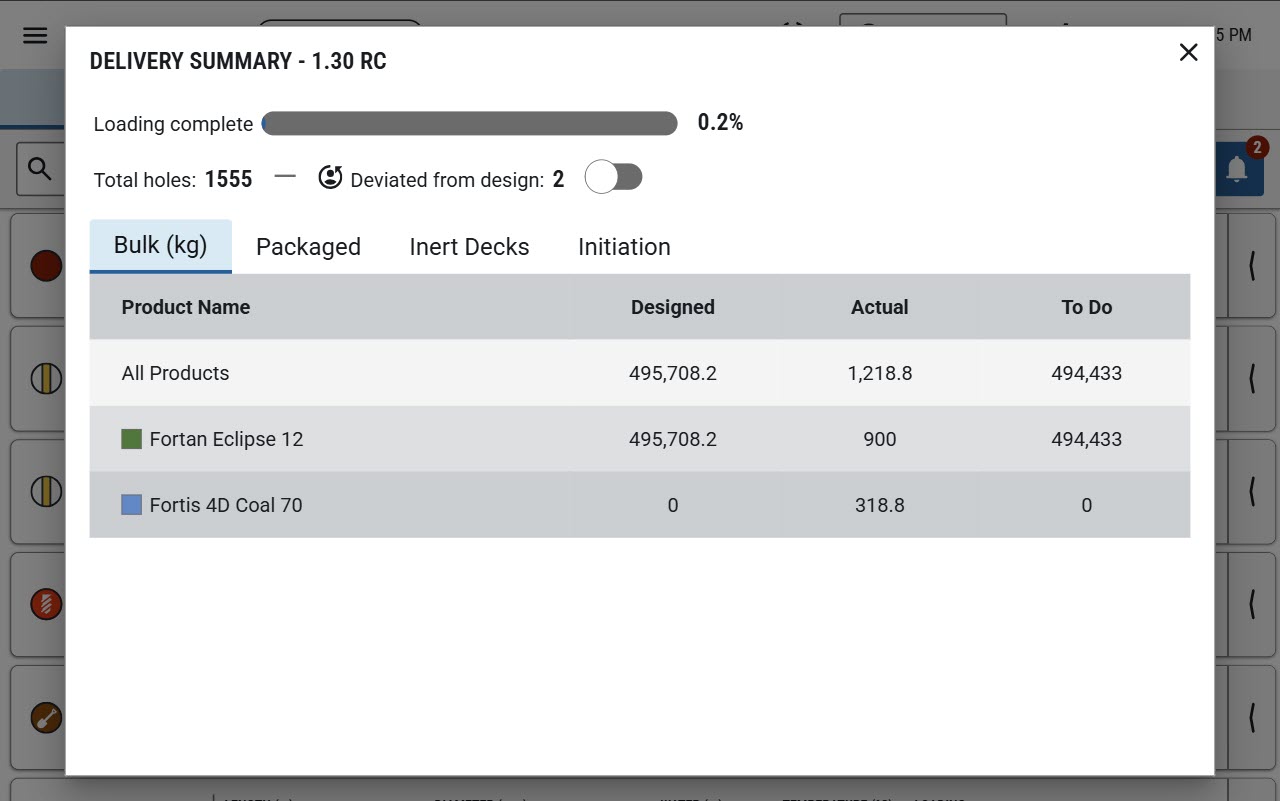

- Product Summary Table.
- This table offers a comprehensive display of product details, including the product name, the quantity initially designed, the actual quantity used, and the remaining quantity for each product.
- The table is structured with the following columns:
- Product Name: This column specifies the name of the product.
- All Products display the total Design, Actual, and To Do values for all products combined.
- Designed: The Designed column represents the intended or designated quantity of the product.
- Actual: The Actual column displays the actual quantity of the product used or consumed.
- To Do: The To Do column indicates the amount of the product still available or yet to be utilised.
- Calculation of Remaining Value:
- The remaining value of the product is calculated on a hole-by-hole basis.
- Key factors considered in the calculation include:
- Whether the hole is stemmed.
- Completion of explosive loading.
- Any deviations from the design.
- After calculating the remaining value for each hole, the values are added together to determine the total remaining product value for the plan.

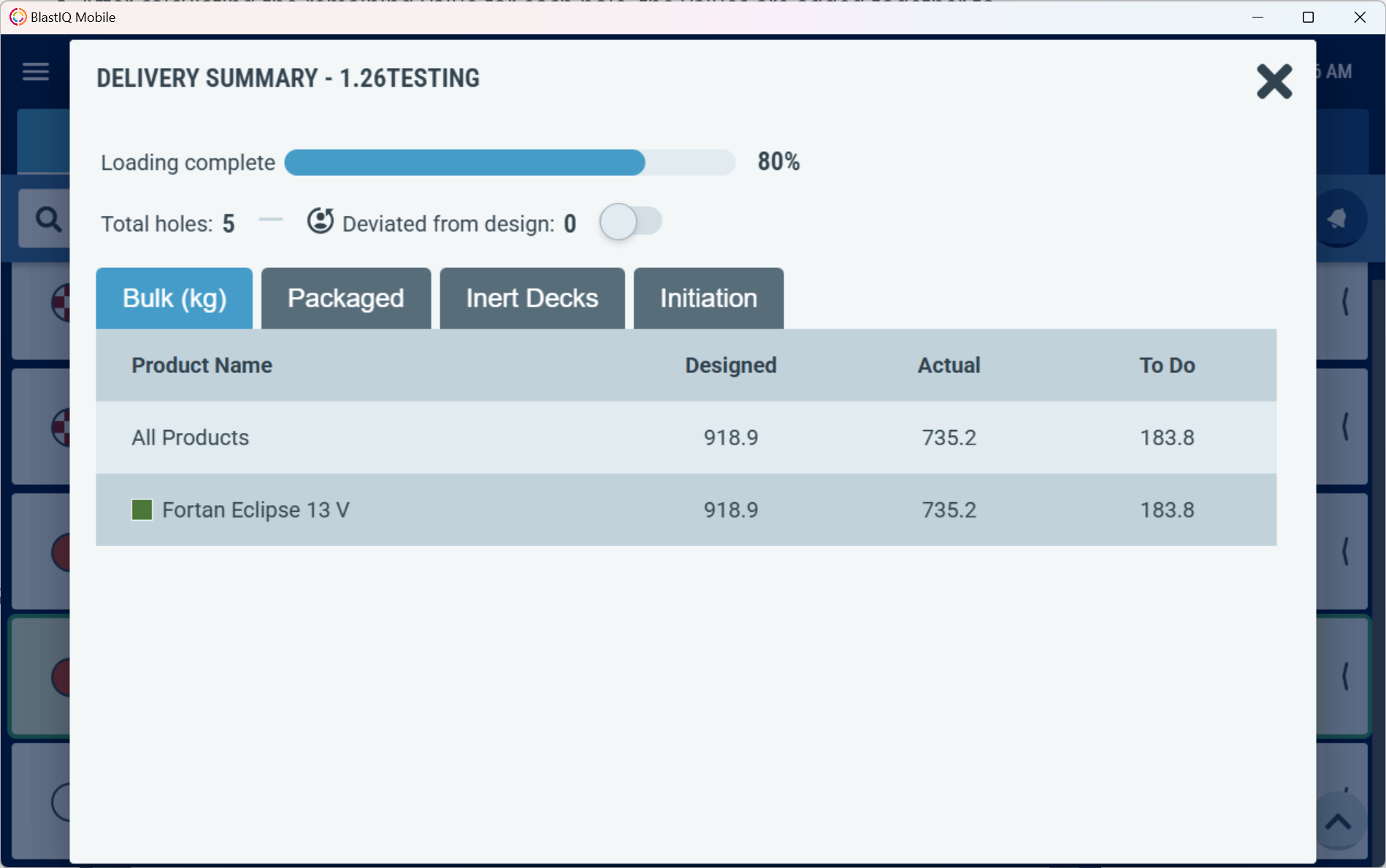

- Example: The Delivery Summary shows the remaining Fortan value of 183.8 because Hole A5 has not been loaded.
Hole Designed (Fortan) Actual (Fortan) A1 183.8 183.8 A2 183.8 183.8 A3 183.8 183.8 A4 183.8 183.8 A5 183.8 0 918.9 735.2
- Tabs
-
- Bulk
- Displays deck counts for bulk products.
- Displays deck counts for bulk products.

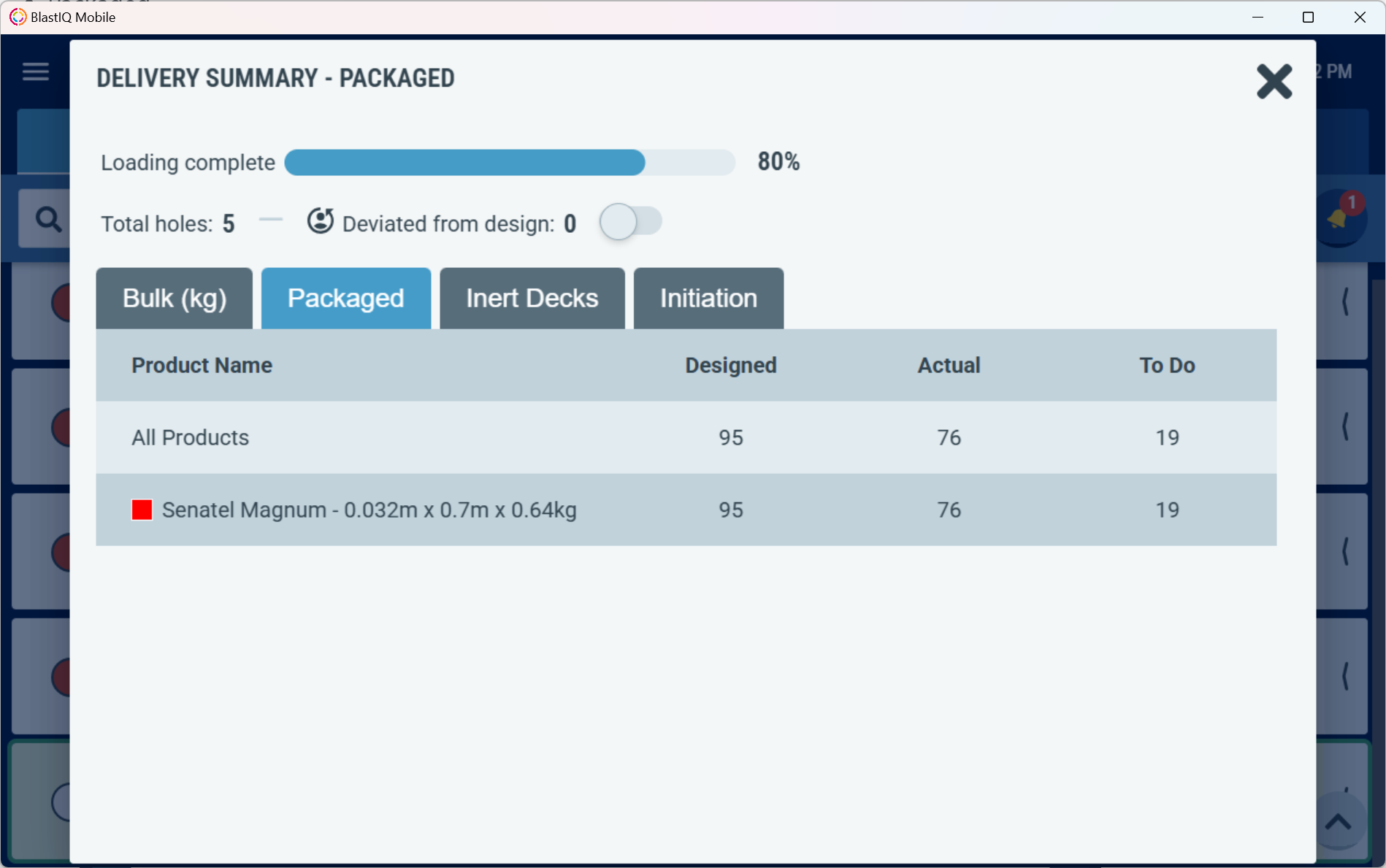

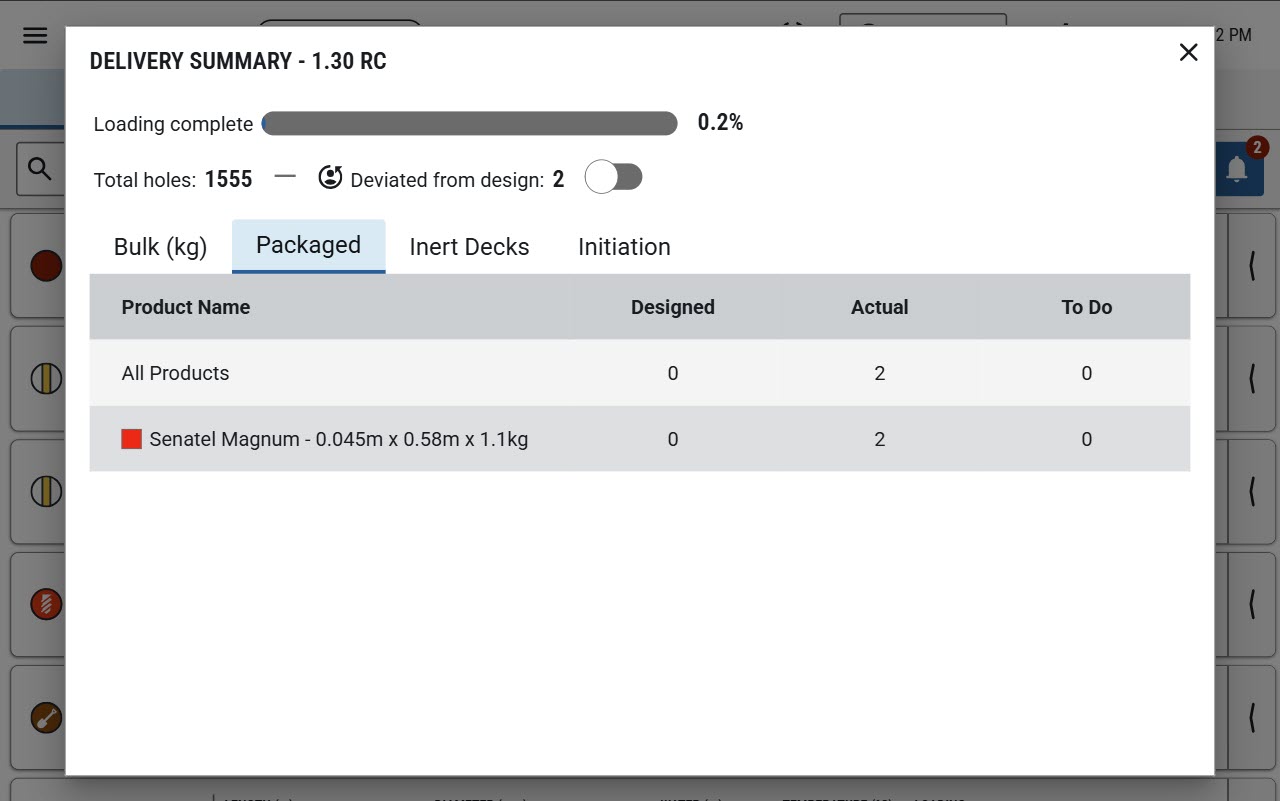

- Packaged
- Displays deck counts for packaged products.
- Displays deck counts for packaged products.

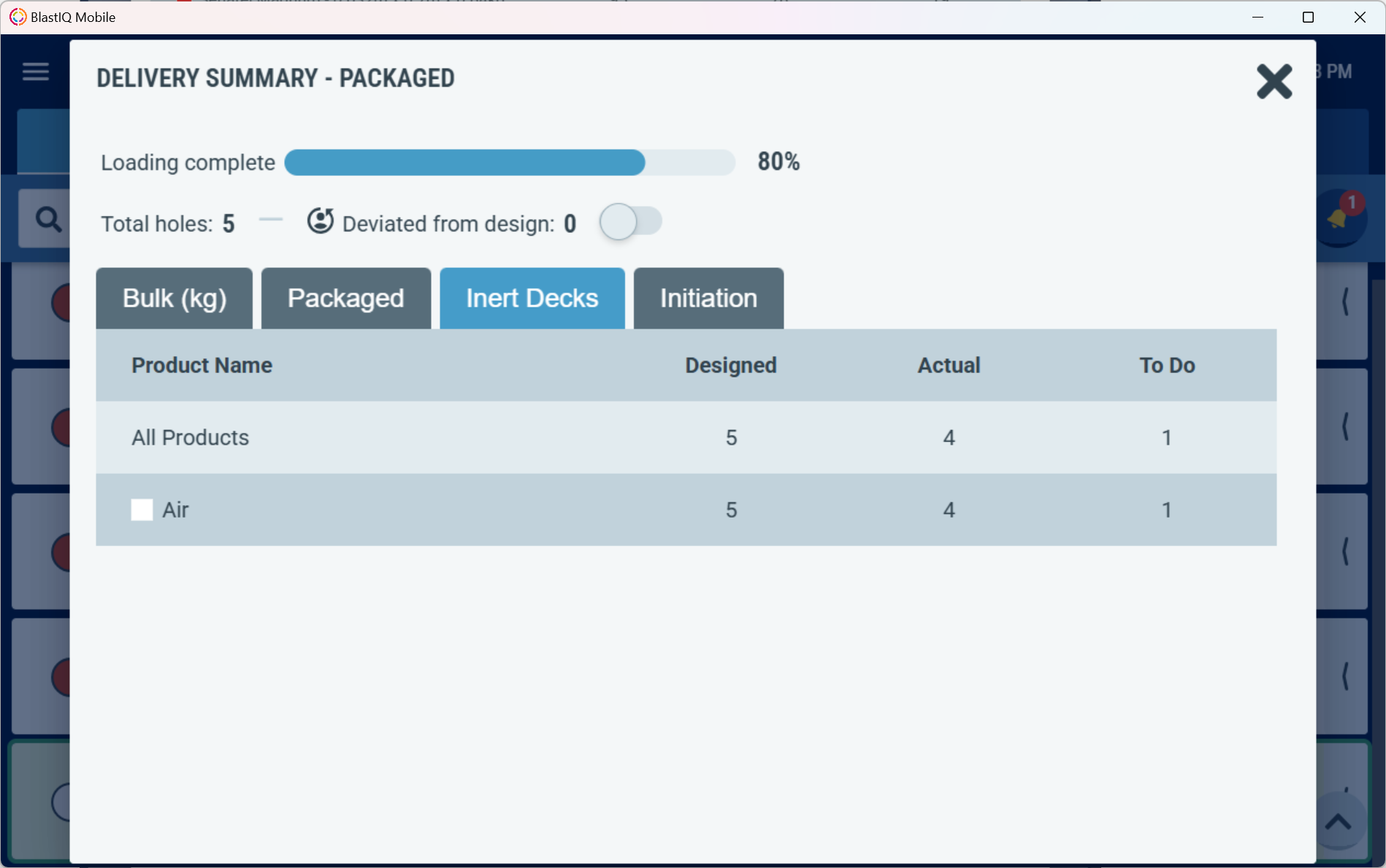

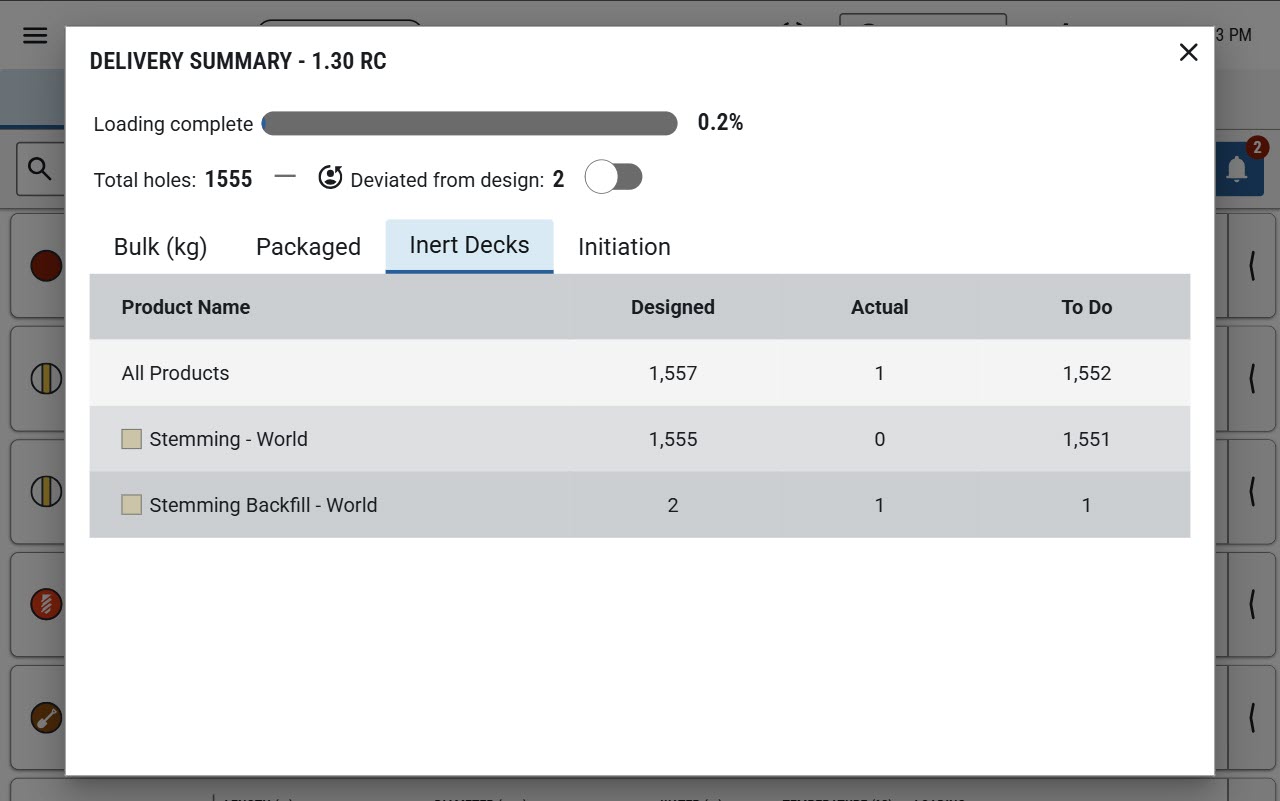

- Inert
- Displays deck counts for stemming and air products.
- Displays deck counts for stemming and air products.

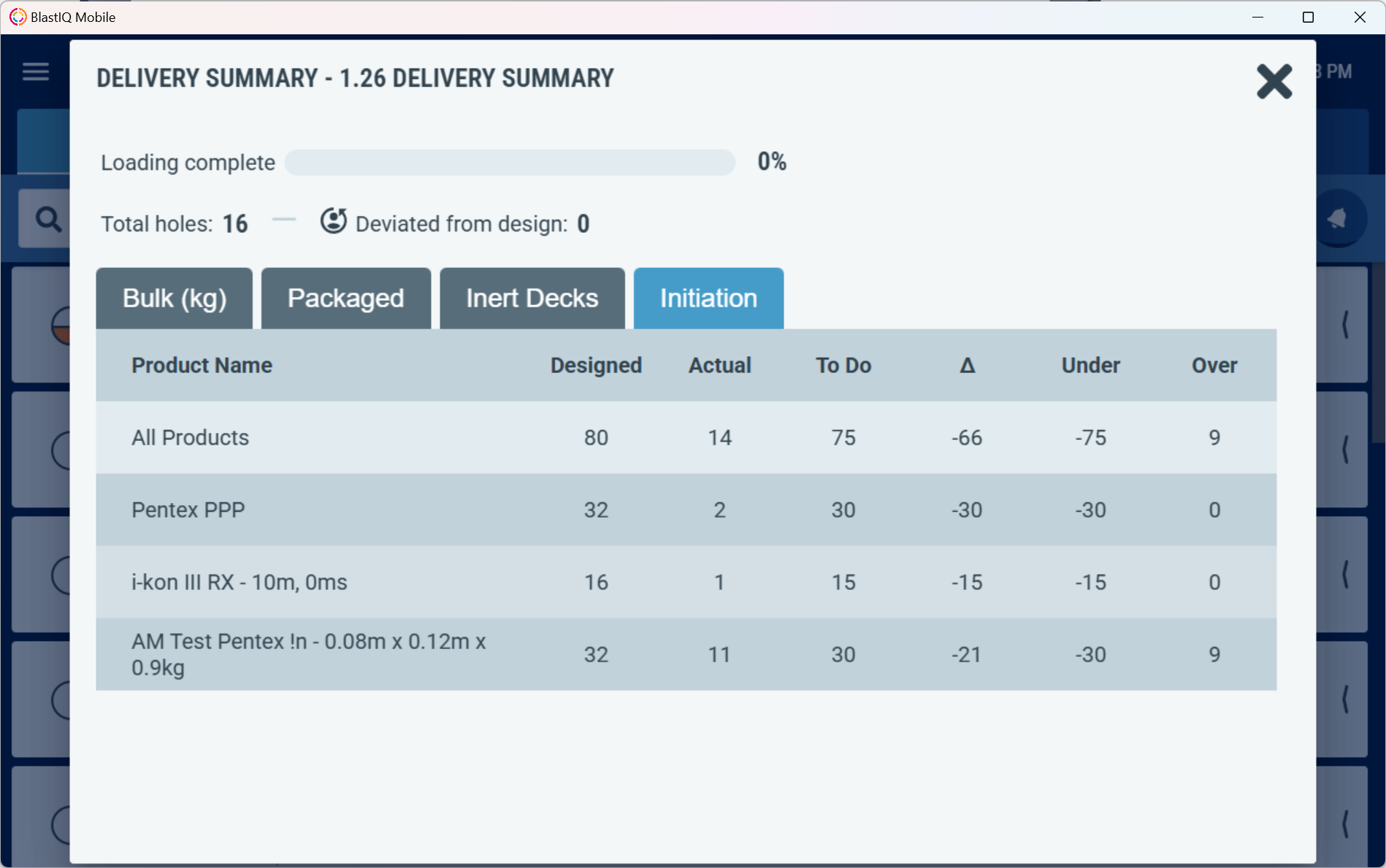

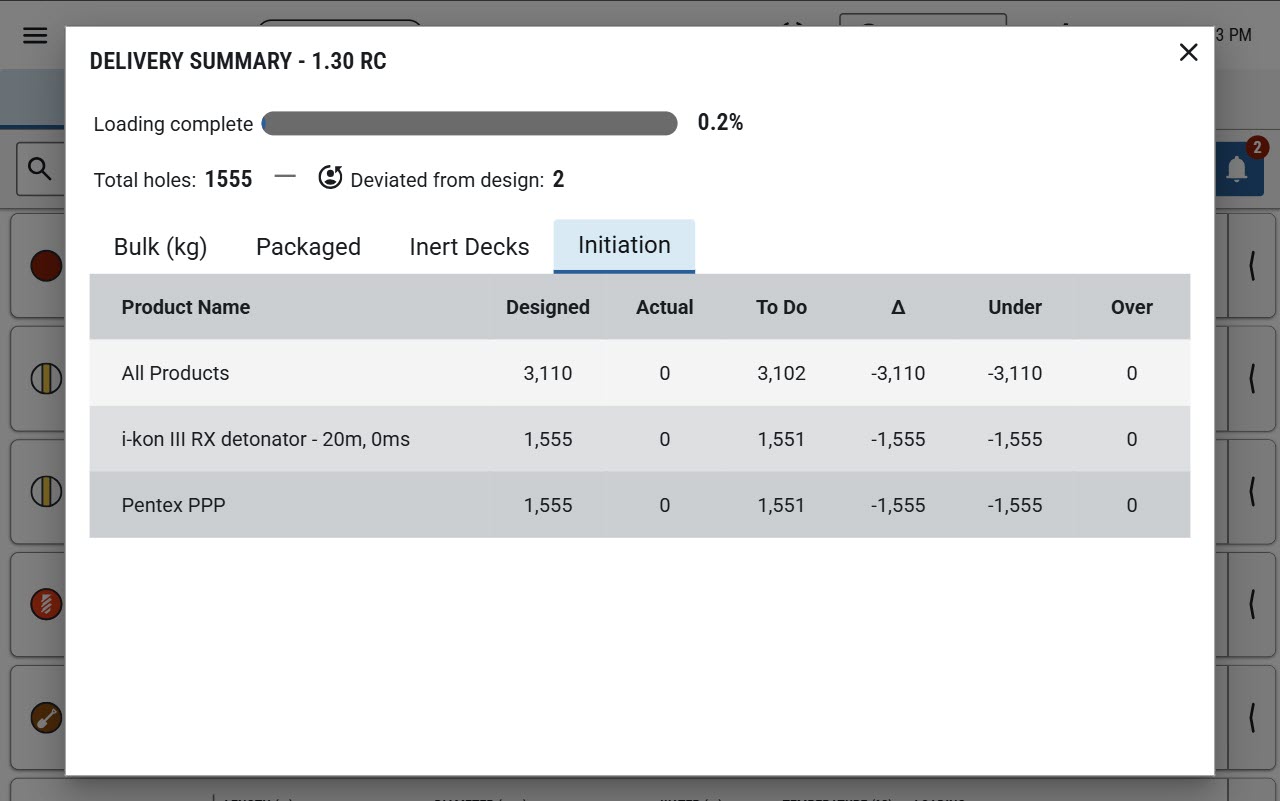

- Initiation
- The new “∆”, “Under”, and “Over” columns provide more precise tracking of discrepancies at the blast level. This ensures accurate reporting while maintaining alignment with site operations.
- Design
- The sum of products that have been planned.
- Actual
- The sum of products that have been placed/consumed.
- To Do
- WHERE Actual > Design = 0
- ELSE WHEN Status = Loading Complete OR Stemmed = 0
- ELSE = Design - Actual
- ∆
- The difference between Actual and Design
- = Actual - Design (- value is underloaded , + value is overloaded)
- The difference between Actual and Design
- Under
- WHERE Actual < Design = Actual - Design
- ELSE = 0
- Over
- WHERE Actual > Design = Actual - Design
- ELSE = 0
- Design
- The new “∆”, “Under”, and “Over” columns provide more precise tracking of discrepancies at the blast level. This ensures accurate reporting while maintaining alignment with site operations.
