BlastIQ™ Insights - Overview Dashboard

Last updated August 23, 2024 16:41

Release Date:: 27^th April 2023
KBA Summary:: This Knowledge Base Article describes the functionality of the Overview dashboard in BlastIQ™ Insights.

Summary

BlastIQ™ Insights Overview Dashboard provides a summarised view of totals pertaining to a defined set of blasts, all on a single page. This dashboard enables users to generate single blast, weekly, monthly or quarterly reports based on a range of filters.

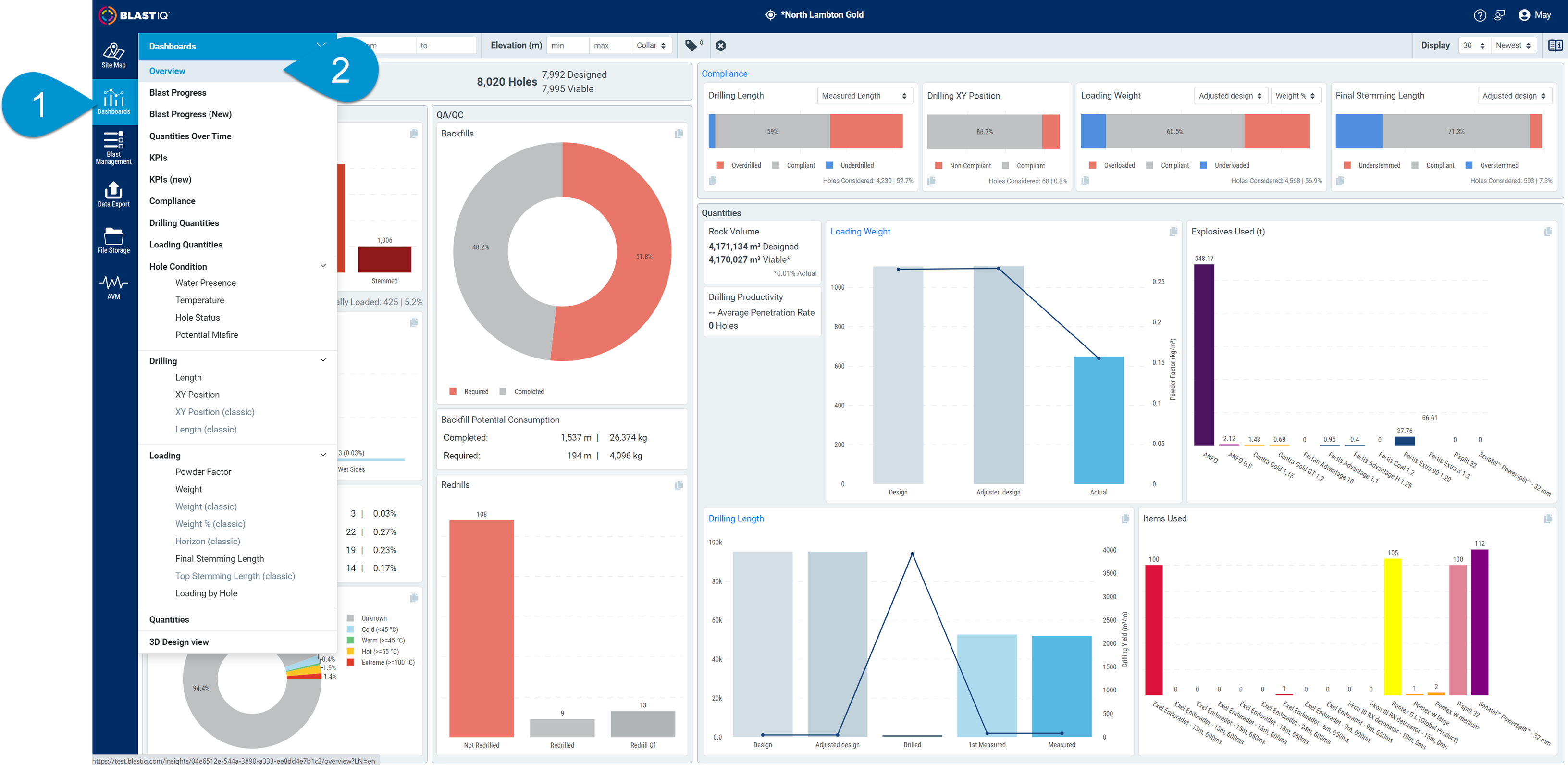

Navigation

To navigate to the Overview Dashboard:

From the BlastIQ™ Insights toolbar, select Dashboards.
From the Dashboards menu, select Overview.

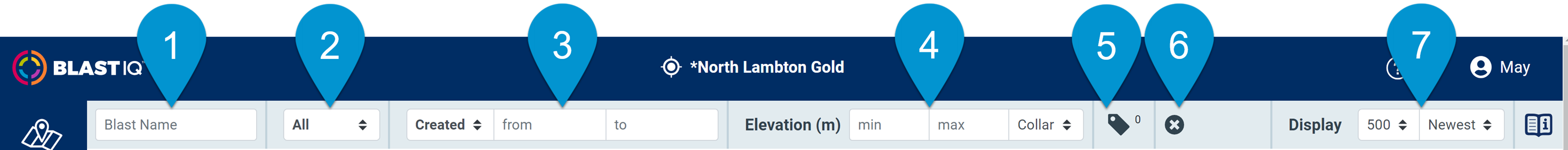

Filters

Blasts can be filtered using the following filters:

Blast Name Search Filter:
- Type in the search box.
- Blasts shown are the ones containing the typed-in characters.
Blast Status Filter:
- Select: All, Fired or Not Fired.
Date Range filter:
- Select Created or Fired Date.
- From and To fields are not mandatory.
- If the date range filter is not used, the blasts shown are the latest created/fired for the site.
- Maximum number of blasts shown is based on the Display Filter.
Elevation filter:
- Choose a minimum and/or a maximum elevation.
- Select Collar or Grade.
- If an elevation filter is not used, the blasts show an elevation range.
- Maximum number of blasts shown is based on the Display Filter.
Tags filter:
- Click on the Tags icon.
- Select the desired tags from each category.
- Click Apply to apply the filter criteria.
- It will return the blasts containing the selected tags based on the following logic:
  - OR for tags within the same category.
  - AND for tags across categories.
- Click on Clear and then Apply to clear all tags filters.
- Click on the X on the top right to close the tags filter; any edits to the filter criteria will be lost if not previously applied.
  Read more about Tags here.
Clear All filters - clears any filters that have been applied.
Display selection:
- Choose 20, 30, 60, 90, 250, 500 blasts and Newest or Oldest blasts from the dropdown list.
- This dictates the limit of blasts that are shown from other filters criteria and whether these blasts are picked from oldest first or newest first.

Information

The following information is shown on the Overview Dashboard:

Filter bar.
Summary.
Hole Condition.
QA/QC.
Compliance.
Quantities.
Copy to clipboard.

Comprehensive information is provided in each section.

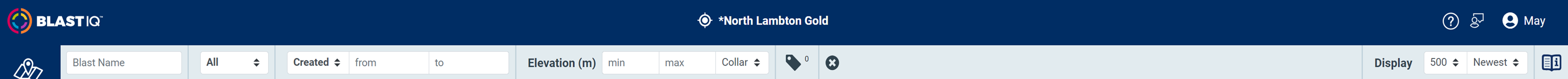

Filter Bar:
- Filtering by blasts using multiple criteria.
- For comprehensive details, please navigate to the Filters section.

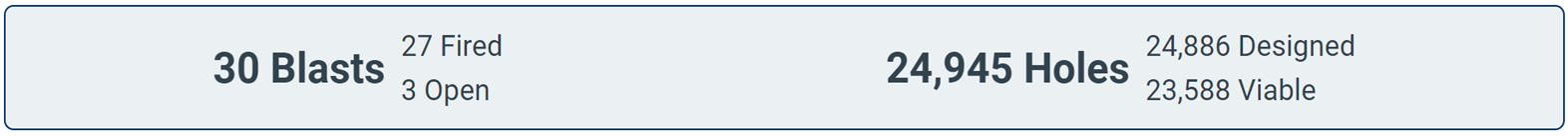

Summary:
- Total Number of Blasts that have been fired or created.
- Total Number of Holes.
Hole Condition:

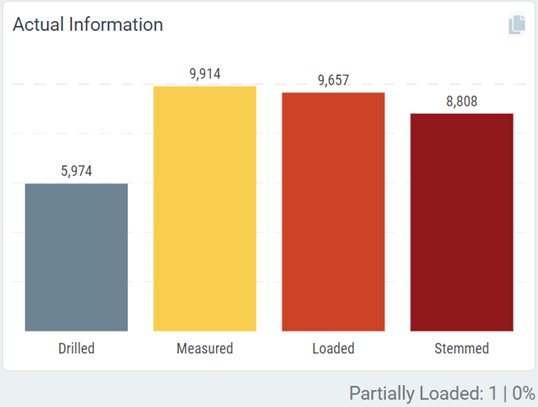

- Actual Information
  - The total count of holes is shown for each state, including Drilled, Measured, Loaded, and Stemmed.

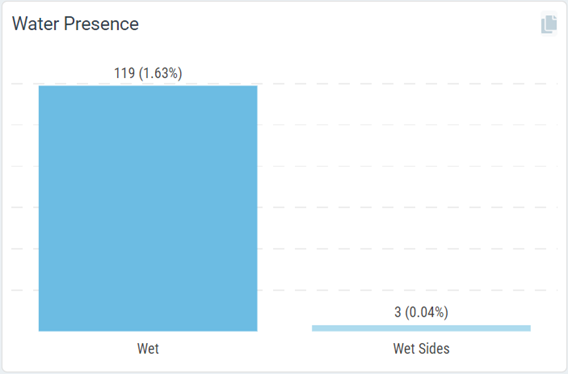

- Water Presence
  - The total count and percentage of wet holes are displayed separately, either wet or wet side.

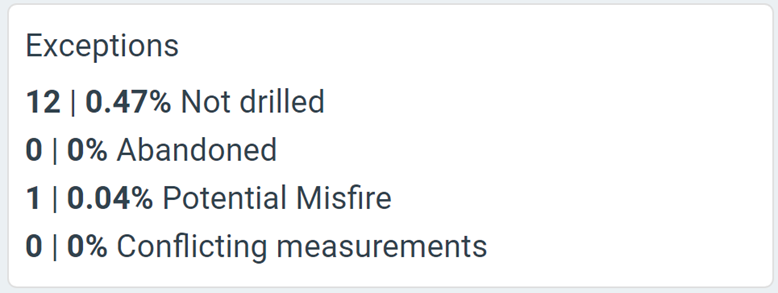

- Exceptions
  - The number of holes and their respective percentages are displayed for the following states: Not drilled, Abandoned, Potential Misfire, and Conflicting measurements.

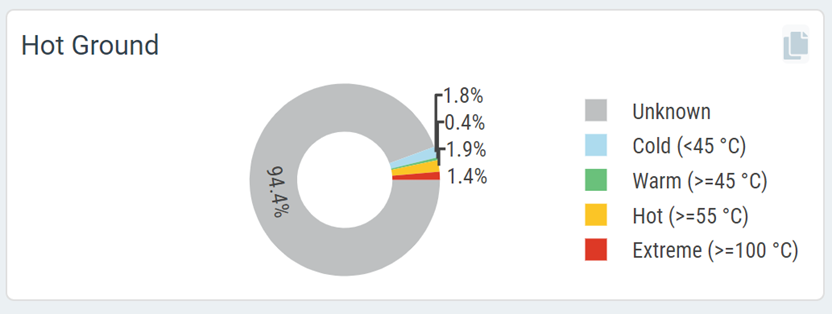

- Hot Ground
  - On hover, it shows the number of holes.
  - Displays the temperature range, corresponding percentage of the total holes for each temperature category. Read more here.
  - Only visible for sites that have temperature captured enabled.
  - If colour or ranges have suffered any changes and numbers do not seem accurate, please get in touch with BlastIQ Support to get these calculations reprocessed.
QA / QC:

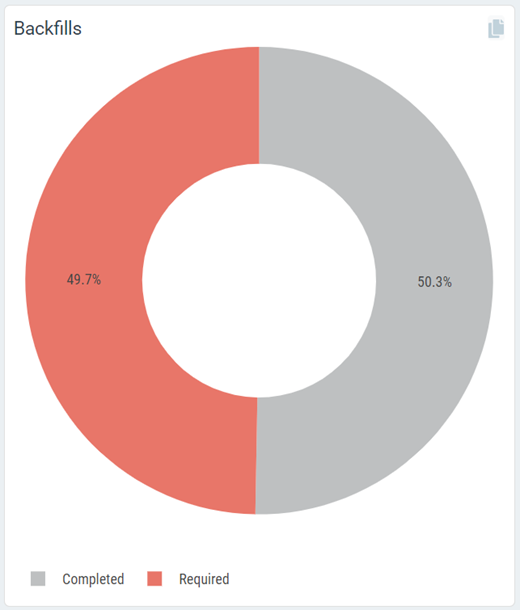

- Backfills - number of holes where backfill is:
  - Required: holes with a 'backfill required' tag (based on the defined tolerances in SHOTPlus) where the backfill deck has not been loaded.
  - Completed: holes with a 'backfill required' tag (based on the defined tolerances in SHOTPlus) where the backfill deck has been loaded.

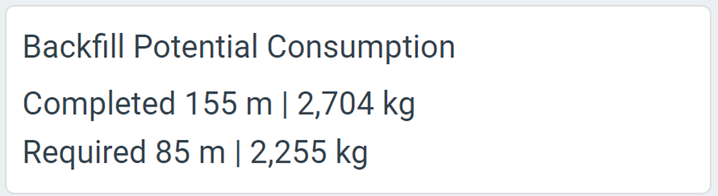

- Backfill Potential Consumption
  - Completed:
    - Length - backfill length that has been completed. The sum of the length of triggered backfill decks that have been completed.
    - Weight - explosive weight potentially saved by completing the backfill tasks. Weight calculated based on the volume of the triggered backfill decks that have been completed
    - Note: calculations for 'Completed' do not take into account any actual backfill decks lengths/volumes; the calculation assumes backfill decks have been completed to design.
  - Required:
    - Length - backfill length that has not been completed. The sum of the length of triggered backfill decks that have not been completed.
    - Weight -
      - fired blasts - explosive weight that has potentially been spent by not completing the backfill tasks.
      - open blasts - explosive weight that has potentially been spent by not completing the backfill tasks or will be spent if the backfill tasks are not performed.
    - Note: the weight of the explosive is based on the adjusted design explosive density in the deck placed right above the backfill deck.

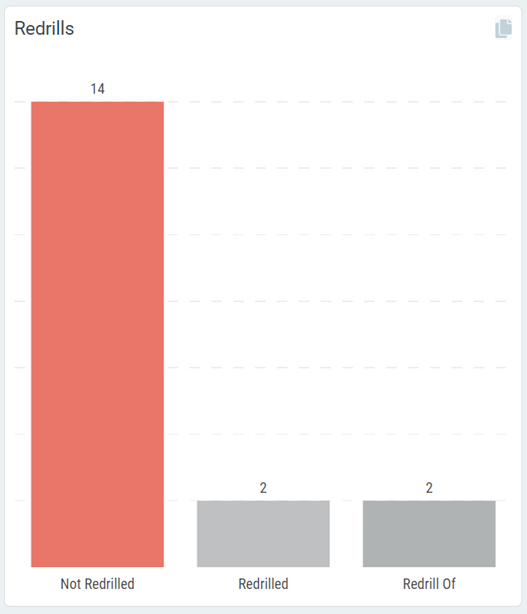

- Redrills
  - Not Redrilled: holes with the redrill required tag that are not present in the 'redrill of' field on another hole.
  - Redrilled: holes with the redrill required tag that is present in the 'redrill of' field on another hole.
  - Redrill Of: holes marked as a 'redrill of' another hole.
Compliance:
- Clicking ''Compliance'' redirects users to the Compliance by Blast dashboard.

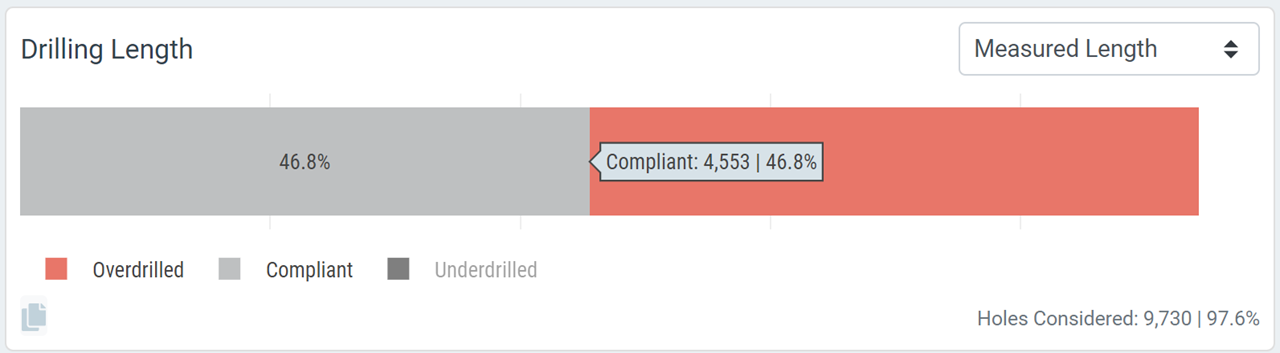

- Drilling Length.
  - Choose one of the comparison options (Drill Actual Length, First Measured Length, Measured Length or Length After Backfill) from the drop-down list.
  - Click on the legend like Overdrilled, Compliant and Undrilled.
  - Hovering the mouse over the stacked bar, you can view the number of holes per state and their corresponding percentage.

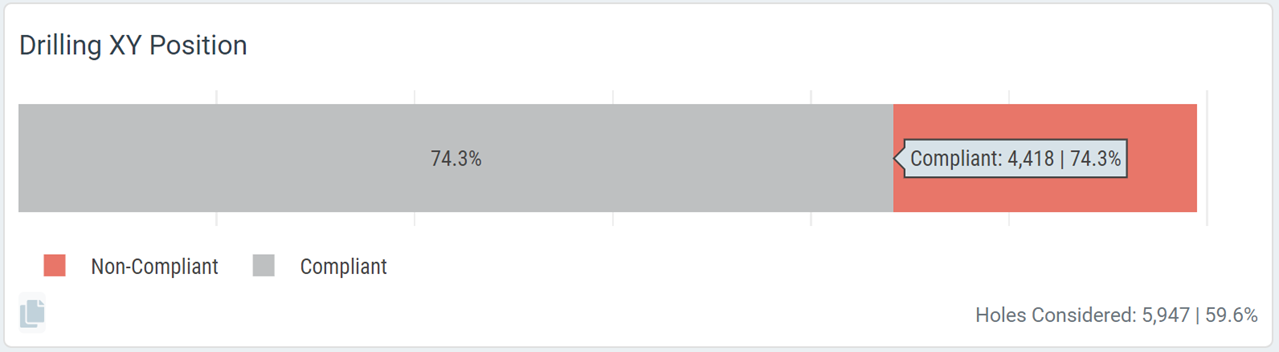

- Drilling XY Position.
  - Displays the total and percentage of the drilling XY Position compliance of holes.
  - Click on the legend like Non-Compliant or Compliant.
  - Hovering the mouse over the stacked bar, you can view the number of holes per state and their corresponding percentage.

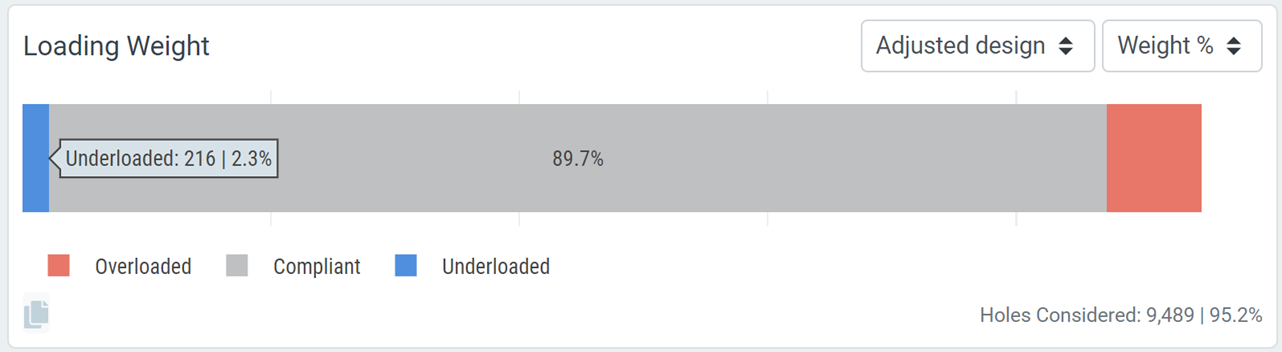

- Loading Weight
  - Clicking "Loading Weight" redirects users to the Loading Quantities dashboard.
  - Choose one of the comparison options (Design, Adjusted Design, Weight and Weight %) from the drop-down list.
  - Click on the legend like Overloaded, Complaint or Underloaded.
  - Hovering the mouse over the stacked bar, you can view the number of holes per state and their corresponding percentage.

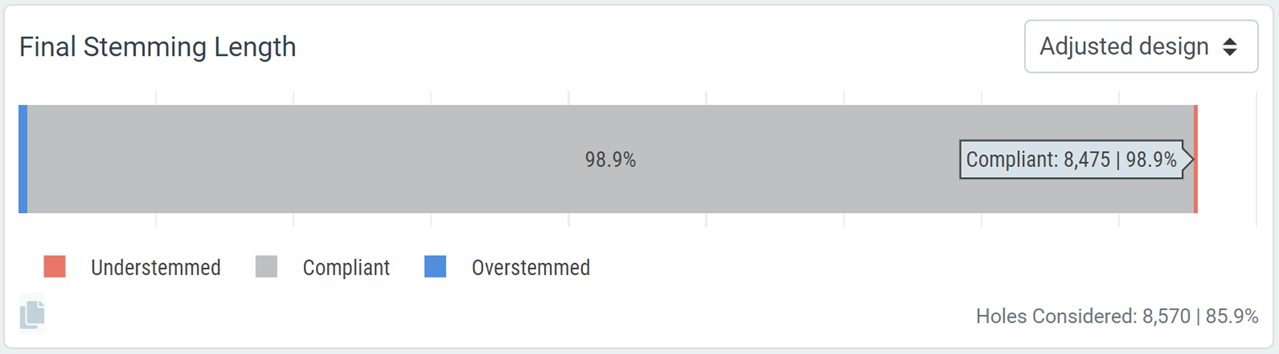

- Final Stemming Length
  - Choose one of the comparison options (Adjusted Design or Design) from the drop-down list.
  - Click on the legend like Understemmed, Compliant or Overstemmed.
  - Hovering the mouse over the stacked bar, you can view the number of holes per state and their corresponding percentage.
Quantities:

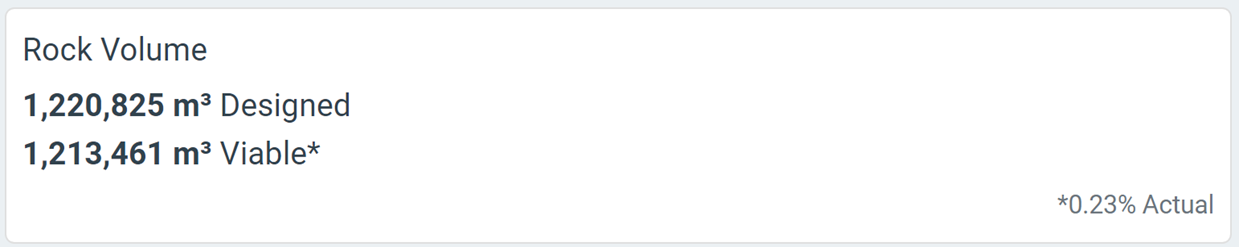

- Rock Volume
  - Total rock volume that has been designed and blasted. Read more here.
  - States are:
    - Design
      - Displays the total rock design volume in units of m3 (with no decimal point).
    - Viable
      - Displays the total rock's best available, viable volume in units of m3 (with no decimal point).
    - Is Actual
      - Displays the percentage of actual rock volume (with no decimal point).

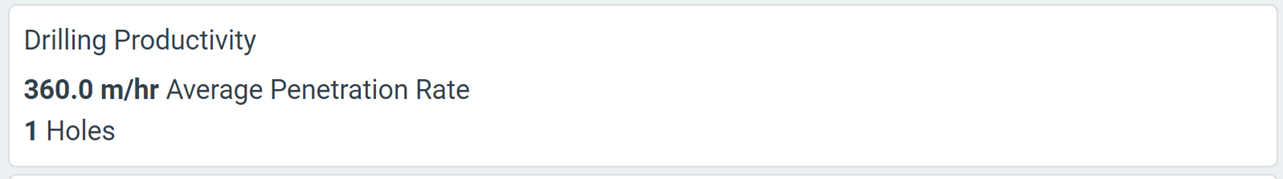

- Drilling Productivity
  - Displays the drill's actual average penetration rate and the number of holes.

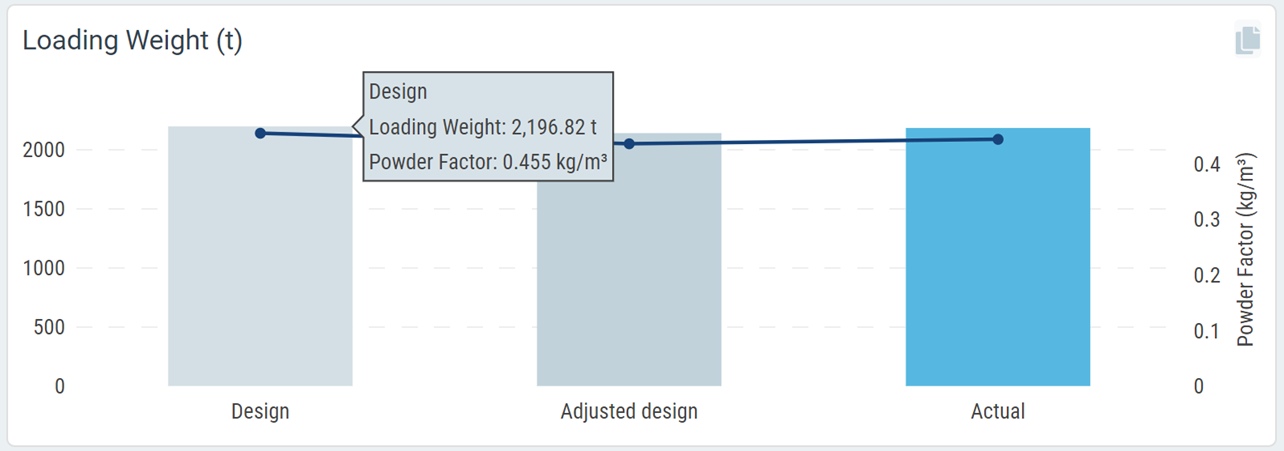

- Loading Weight
  - Clicking ''Loading Weight'' redirects users to the Loading Quantities by Blast dashboard.
  - Bar chart displays one bar per state:
    - Design
      - Total design bulk weight and design packaged weight is displayed in tonnes (t) units with one decimal point.
    - Adjusted Design
      - Total adjusted design bulk weight and design packaged weight are displayed in tonnes (t) units with one decimal point.
    - Actual
      - Total actual bulk weight + design packaged weight is displayed in tonnes (t) units with one decimal point.
  - Hovering the mouse over the bar chart per state displays the total loading weight and power factor used.

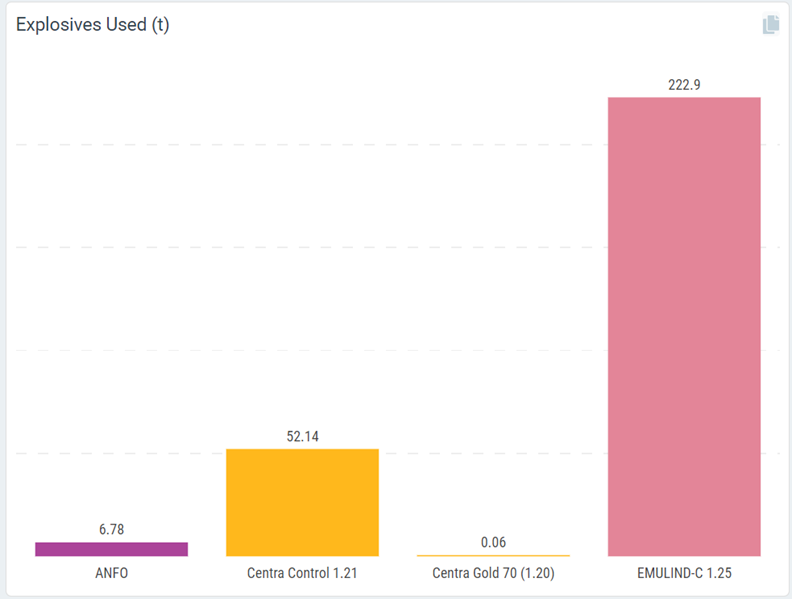

- Explosives
  - Bar chart displays one bar per product.
  - Hovering the mouse over the bar chart displays the actual weight of the product.

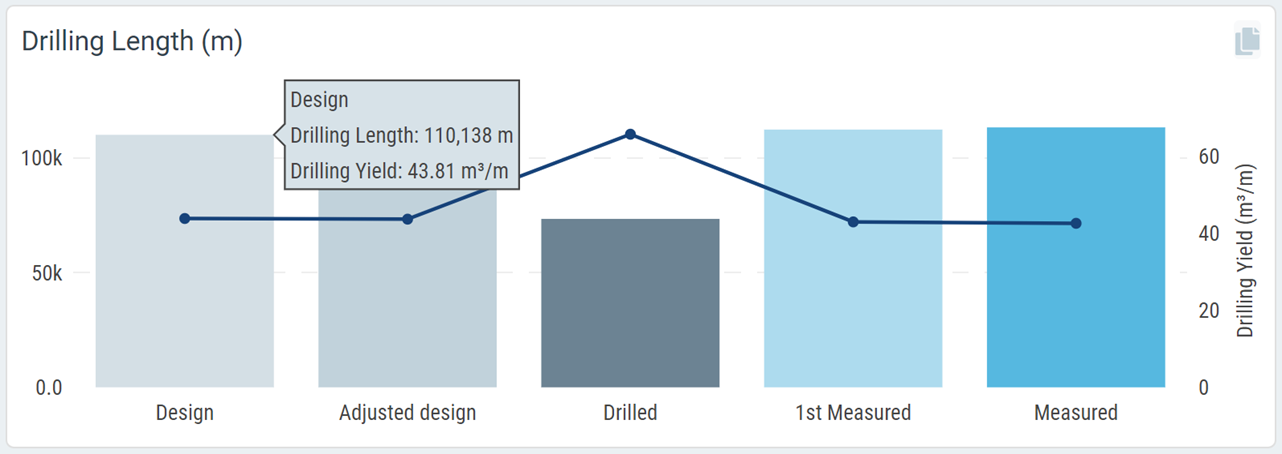

- Drilling Length
  - Clicking ''Drilling Length'' redirects users to the Drilling Quantities by Blast dashboard.
  - Bar chart displays the drilling length as the primary access and drilling yield as the secondary axis.
  - Hovering the mouse over the bar chart displays the total drilling length displayed in units of 10³m (with no decimal point) and the total drilling yield displayed in units of m³/m (with one decimal point).

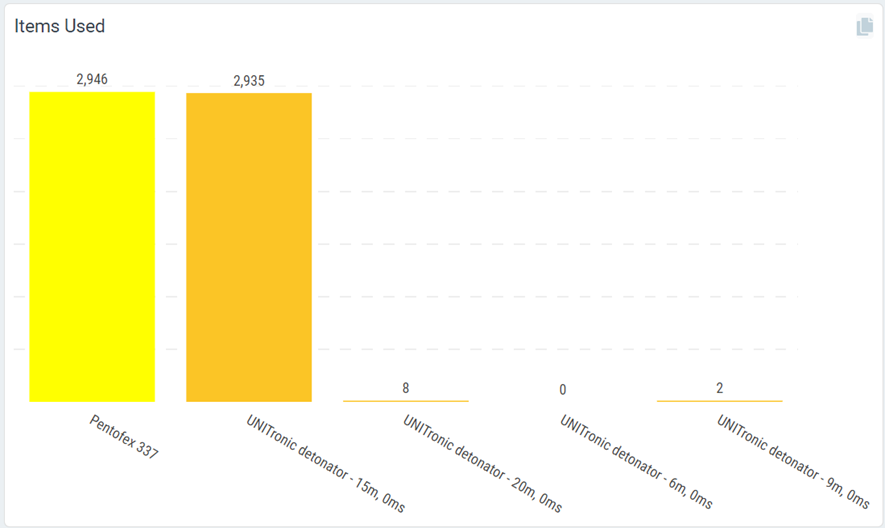

- Items Used
  - Hovering the mouse over the bar chart displays the product name and its count.
  - Note: products are displayed with 0 values where there is design information for those products but no actuals.

Calculations

Comparison Options:
- Design - Provides a view of of the actual recorded hole loading against the original loading design. Actual Hole Weight vs Design Hole Weight.
- Adjusted Design - Provides a view of of the actual recorded hole loading against the latest adjusted loading design. Actual Hole Weight vs Adjusted Design Hole Weight.
- Weight - Hole Compliance is based on the Weight (absolute) reporting tolerance.
- Weight % - Hole Compliance is based on the Weight % reporting tolerance.

Note: All weight comparison are at hole level, i.e. aggregation of all explosives deck weights in a hole.

Tolerances:
- Weight and Weight % tolerances considered in this dashboard are the site level reporting tolerances. Read more here.
Compliance Score:
- For any of the comparisons, the compliance score (%) is calculated as follows:
  Compliance Score (%) = 100*W/M
  where:
  W = within tolerance holes
  M = overloaded holes + underloaded holes + within tolerance holes
Holes Considered
- For a hole to be considered in the compliance score, it needs to have both the corresponding design and actual values.

Note:

All percentage values are truncated to 1 decimal place.
All other values are rounded to 1 decimal place.
