BlastIQ™ Insights - Compliance

Last updated August 23, 2024 16:41

Release Date:: 31st May 2023
KBA Summary:: This Knowledge Base Article describes the functionality of the Compliance by Blast dashboard in BlastIQ™ Insights.

Summary

BlastIQ™ Insights Compliance by Blast Dashboard empowers users to effectively assess their drill and blast performance. This feature enables users to analyse compliance tasks across multiple blasts, facilitating the identification of execution trends in drill and blast operations.

The Compliance by Blast Breakdown provides lengths and weights for design variations (over/under), allowing users to see the overall budget impact (original or adjusted design). Users can estimate their drilling and loading expenses by multiplying these figures with a cost constant.

Users can click on a specific data point to seamlessly navigate to its corresponding dashboard for in-depth insights and analysis.

Navigation

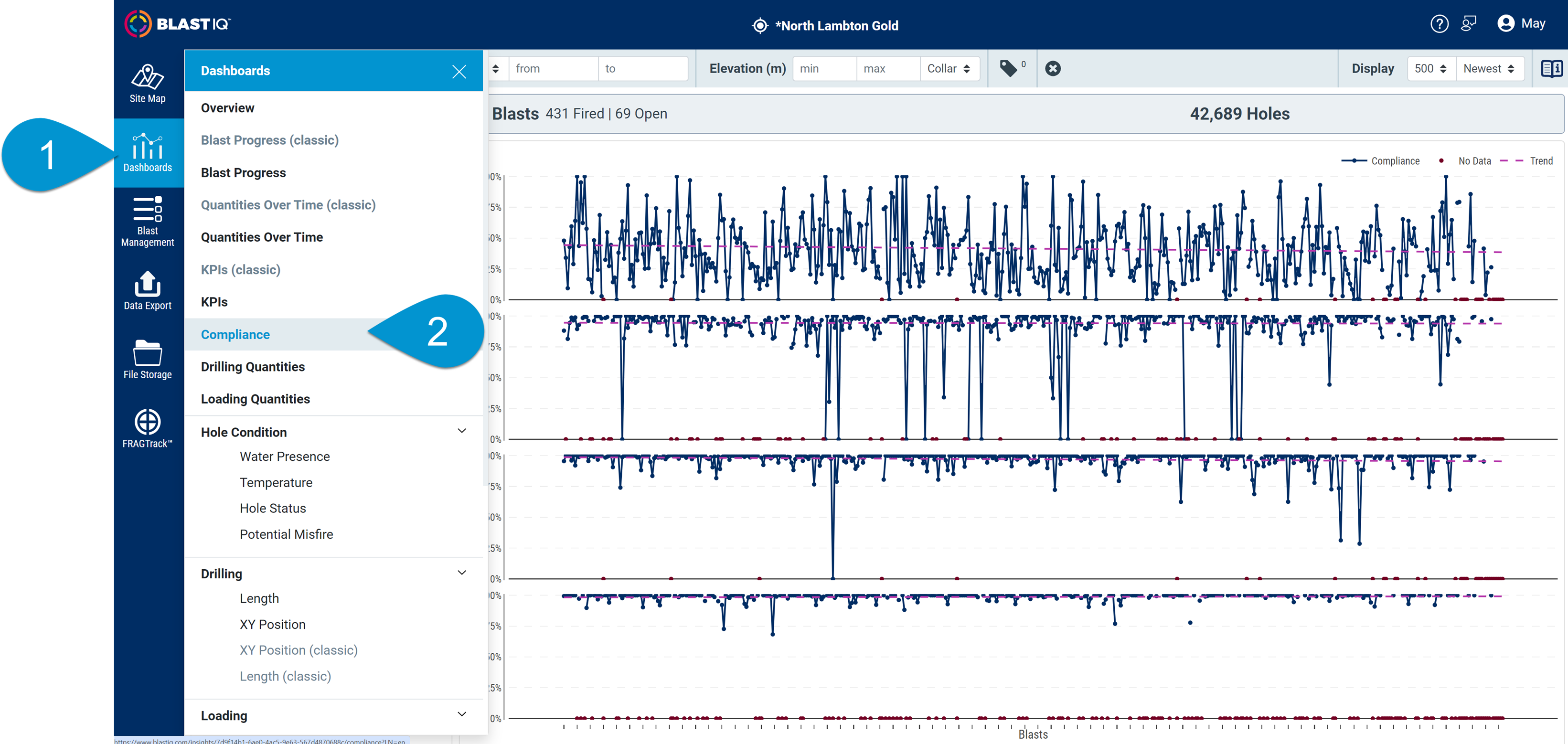

To navigate to the Compliance Dashboard:

From the BlastIQ™ Insights toolbar, select Dashboards.
Select Compliance.

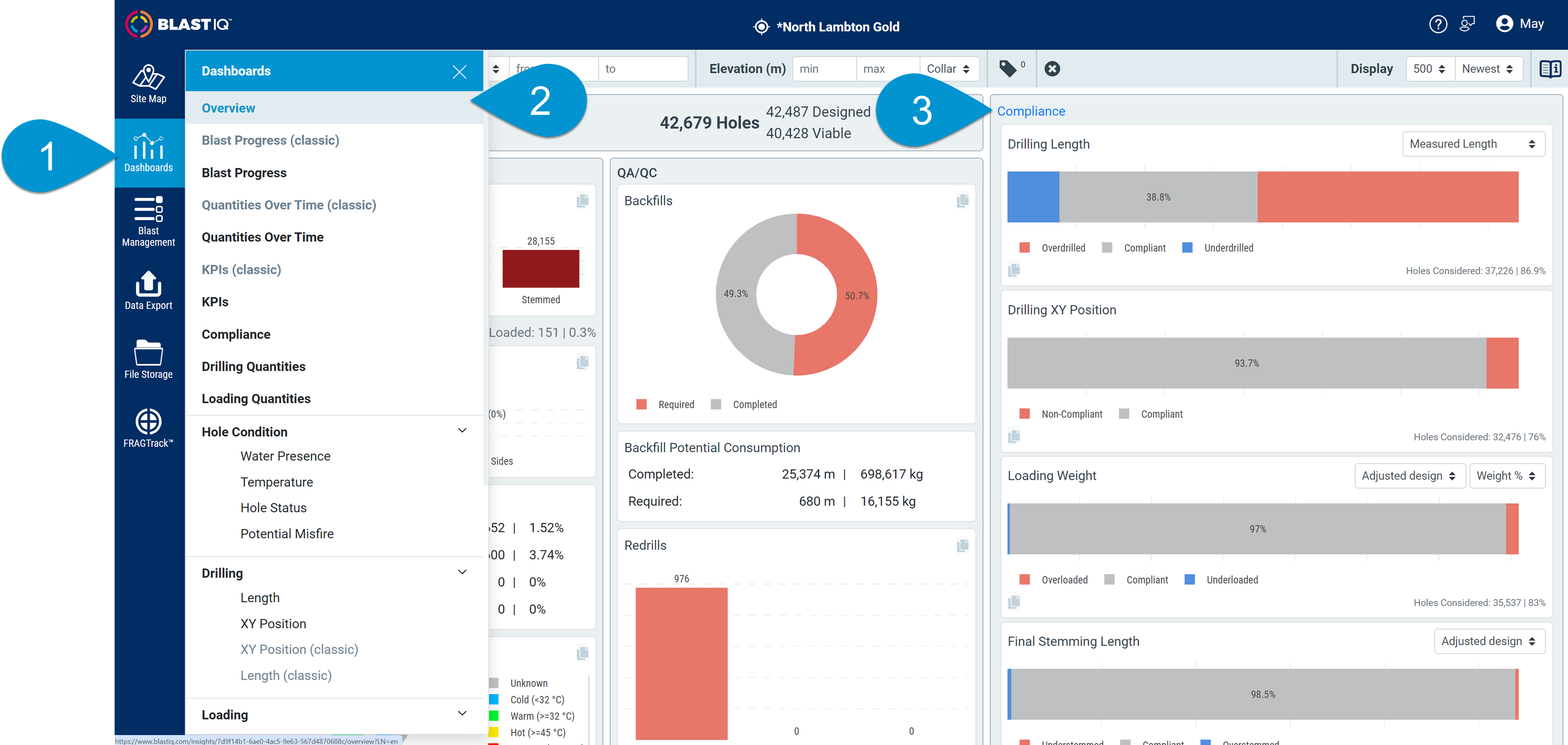

From the BlastIQ™ Insights toolbar, select Dashboards.
Select Overview.
Click "Compliance". Read more about the Overview Dashboard here.

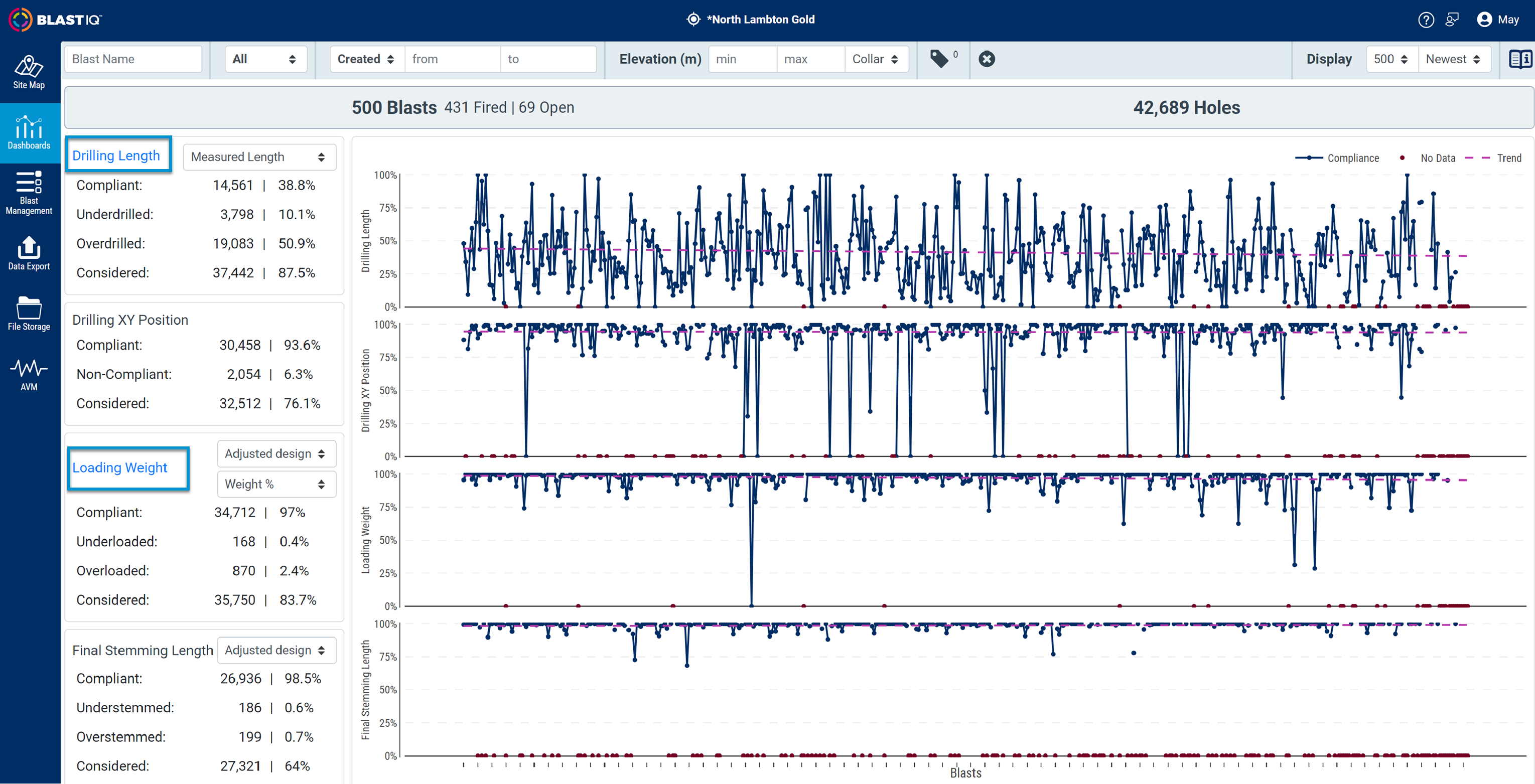

To navigate to the Drilling Length and Loading Weight compliance by blast breakdown:

Go to the Compliance dashboard and click Drilling Length to be redirected to the drilling length compliance breakdown.
Similarly, on the Compliance dashboard, click Loading Weight and be redirected to the loading weight compliance breakdown.

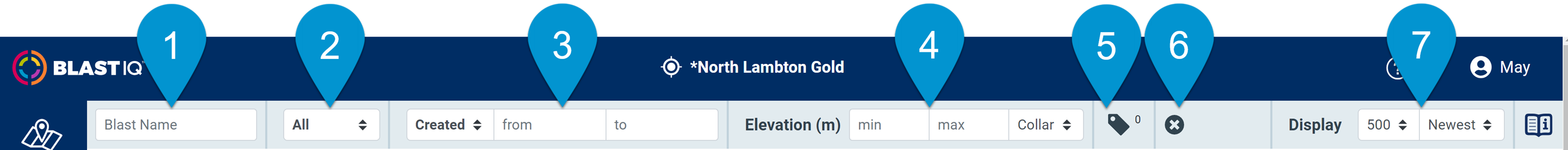

Filters

Blasts can be filtered using the following filters:

Blast Name Search Filter:
- Type in the search box.
- Blasts shown are the ones containing the typed-in characters.
Blast Status Filter:
- Select All, Fired or Not Fired.
Date Range filter:
- Select Created or Fired Date.
- From and To fields are not mandatory.
- If the date range filter is not used, the blasts shown are the latest created/fired for the site.
- Maximum number of blasts shown is based on the Display Filter.
Elevation filter:
- Choose a minimum and a maximum elevation.
- Select Collar or Grade.
- If an elevation filter is not used, the blasts show an elevation range.
- Maximum number of blasts shown is based on the Display Filter.
Tags filter:
- Click on the Tags icon.
- Select the desired tags from each category.
- Click Apply to apply the filter criteria.
- It will return the blasts containing the selected tags based on the following logic:
  - OR for tags within the same category.
  - AND for tags across categories.
- Click on Clear and then Apply to clear all tags filters.
- Click on the X on the top right to close the tags filter by, any edits to the filter criteria will be lost if not previously applied.
  You can read more about Tags here.
Clear All filters - clears any filters that have been applied.
Display selection:
- Choose 20, 30, 60, 90, 250, and 500 blasts from the dropdown list.
- This filter dictates the maximum number of blasts displayed in addition to other filters.
- To sort the plans, choose the newest or oldest from the drop-down list.

Information

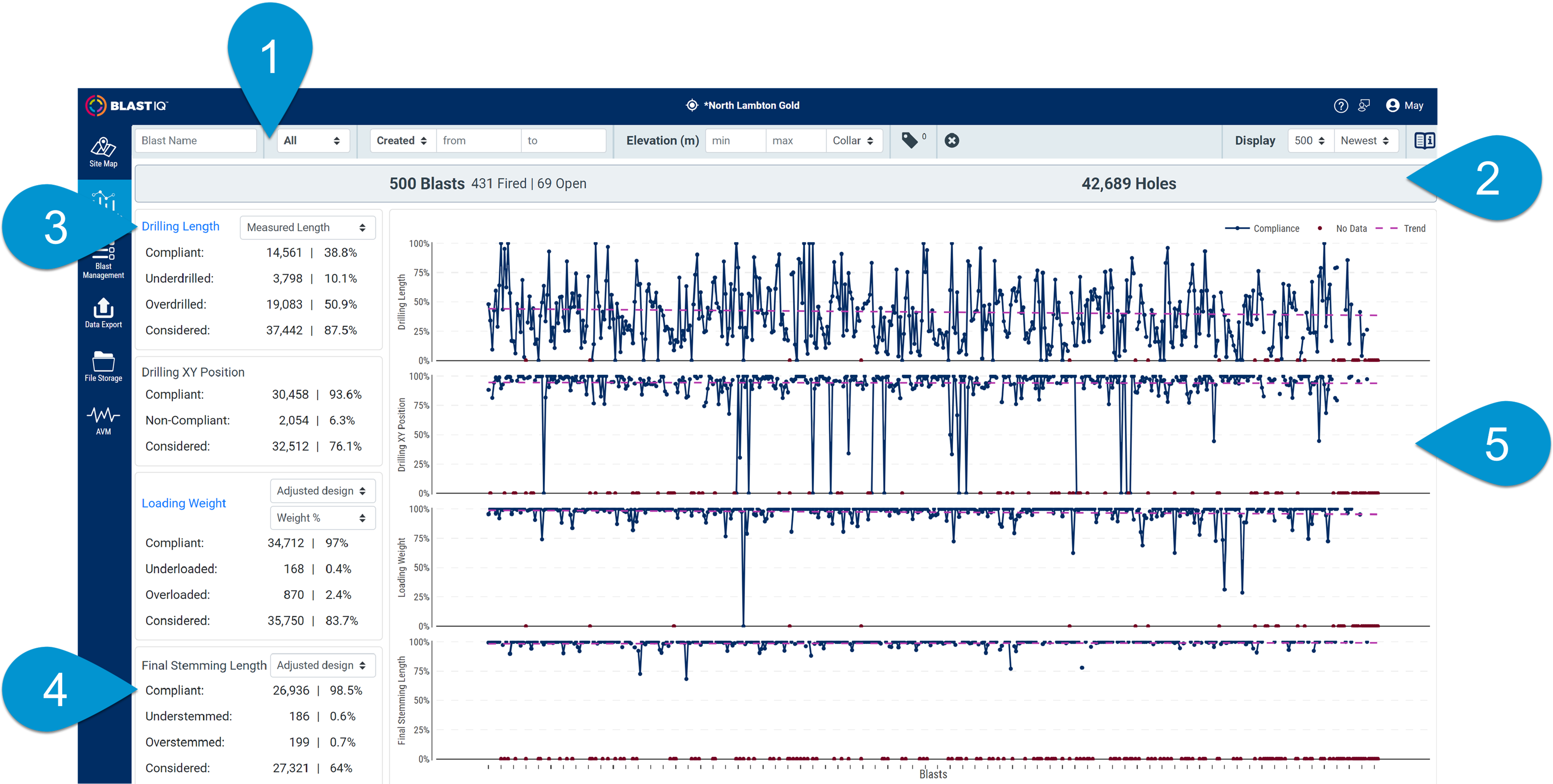

The following information is shown on the Compliance by Blast Dashboard:

Filter Bar.
Summary.
Compliance by Blast Breakdown Navigation (Drilling Length & Loading Weight).
Compliance Cards.
Compliance Plots.

Detailed information on each section:

Filter Bar:
- Filtering by blasts using multiple criteria.
- For comprehensive details, please navigate to the Filters section.

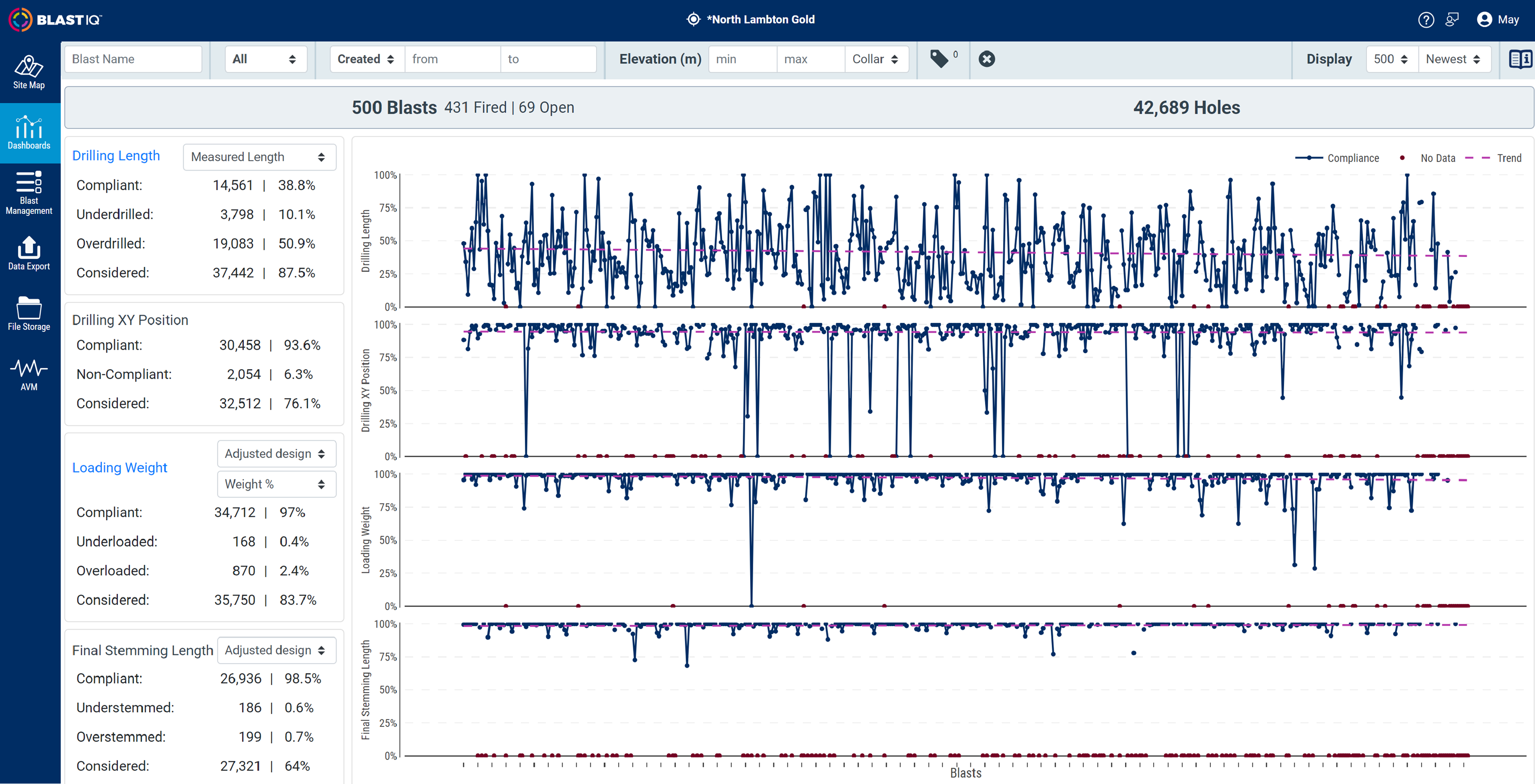

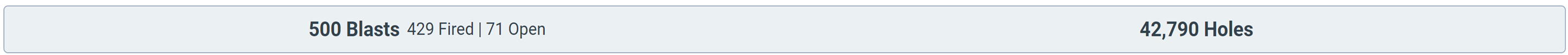

Summary:
- Total Number of Blasts that have been fired or created.
- Total Number of Holes.

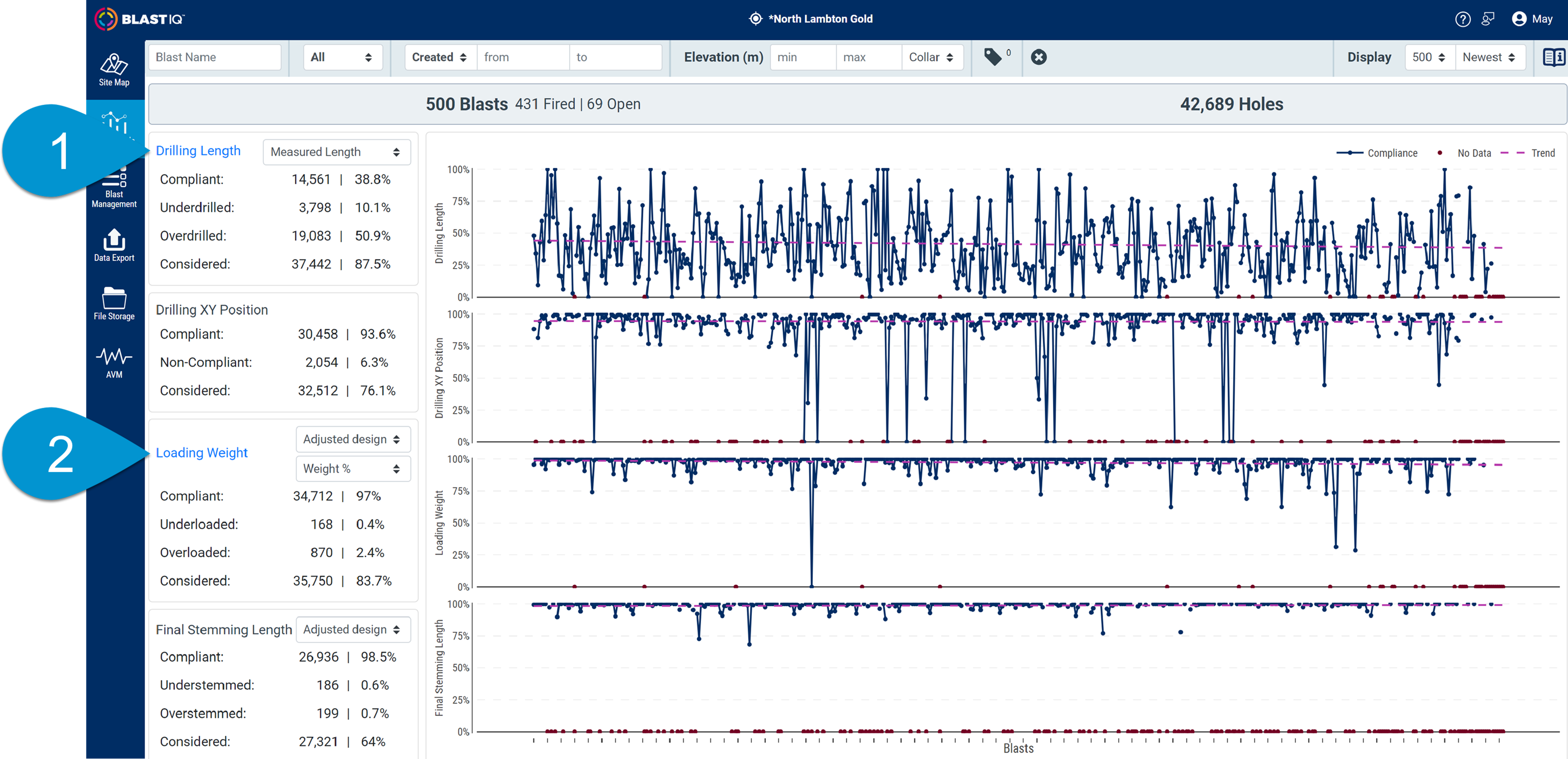

Compliance by Blast Breakdown Navigation.
- On the compliance dashboard, navigate to the card section.
- Click on the "Drilling Length" to view the compliance breakdown.
- Click on the "Loading Weight" to view the compliance breakdown.

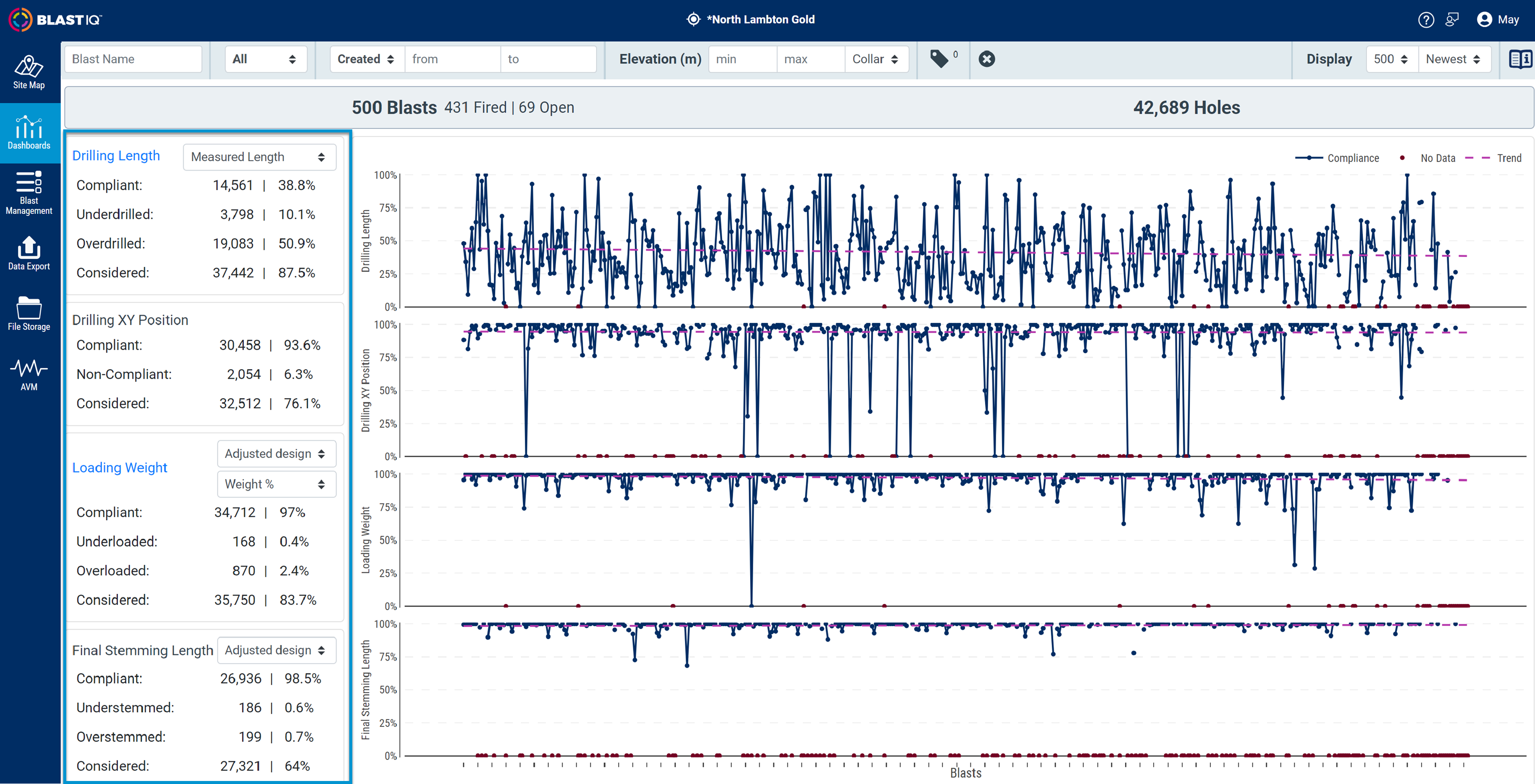

Compliance Cards
- Compliance
  - On the cards:
    - Drilling Length
      - Select from various comparison options such as "Length After Backfill," "Drill Actual Length," "First Measured Length," and "Measured Length."
      - The system dynamically updates the number of holes and their percentage for the compliant, underdrilled, overdrilled, considered based on the selected comparison options.
    - Drilling XY Position
      - The data represents the count and percentage of compliant, non-compliant, and considered holes.
    - Loading Weight
      - Select from various comparison options such as "Design," "Adjusted Design," "Weight," and "Weight%".
      - The system dynamically updates the number of holes and their percentage for the compliant, underloaded, overloaded and considered based on the selected comparison options.
    - Final Stemming Length
      - Select from various comparison options such as "Design" and "Adjusted Design".
      - The system dynamically updates the number of holes and their percentage for the compliant, understemmed, overstemmed, and considered based on the selected comparison options.
- Compliance by Blast Breakdown

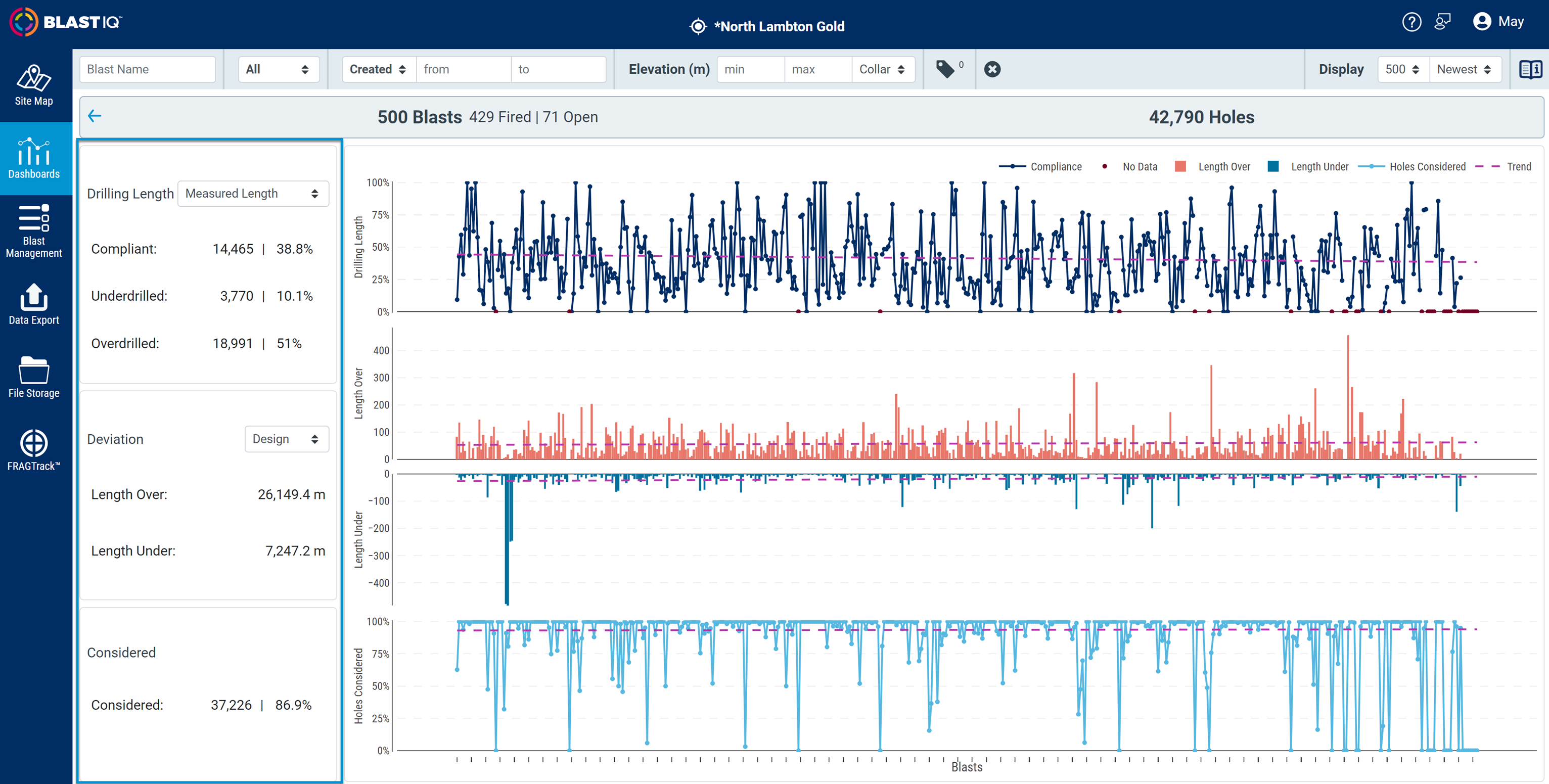

  - Drilling Length cards
    - Drilling Length
      - Select from various comparison options such as "Length After Backfill," "Drill Actual Length," "First Measured Length," and "Measured Length."
      - The system dynamically updates the number of holes and their percentage for the compliant, underdrilled and overdrilled based on the selected comparison options.
    - Deviation
      - Select from the deviation type options, such as "Design" and "Tolerance".
      - The chosen comparison option and deviation type will determine the Length Over and Under data.
    - Considered
      - For a hole to be considered in the compliance score, it needs to have both the corresponding design and actual values.
      - The data provides the number of holes and percentages, dynamically updated depending on the chosen comparison options.
    - For calculation details, please navigate to the Calculation section.
  - Loading Weight cards
    - Loading Weight
      - Select from various comparison options such as "Design," "Adjusted Design," "Weight," and "Weight%".
      - The system dynamically updates the number of holes and their percentage for the compliant, overloaded and underloaded based on the selected comparison options.
    - Deviation
      - Select from the deviation type options, such as "Design" and "Tolerance".
      - The chosen comparison option and deviation type will determine the Weight Over and Under data.
    - Considered
      - For a hole to be considered in the compliance score, it needs to have both the corresponding design and actual values.
      - The data provides the number of holes and percentages, dynamically updated depending on the chosen comparison options.
    - For calculation details, please navigate to the Calculation -> Loading Weight section.

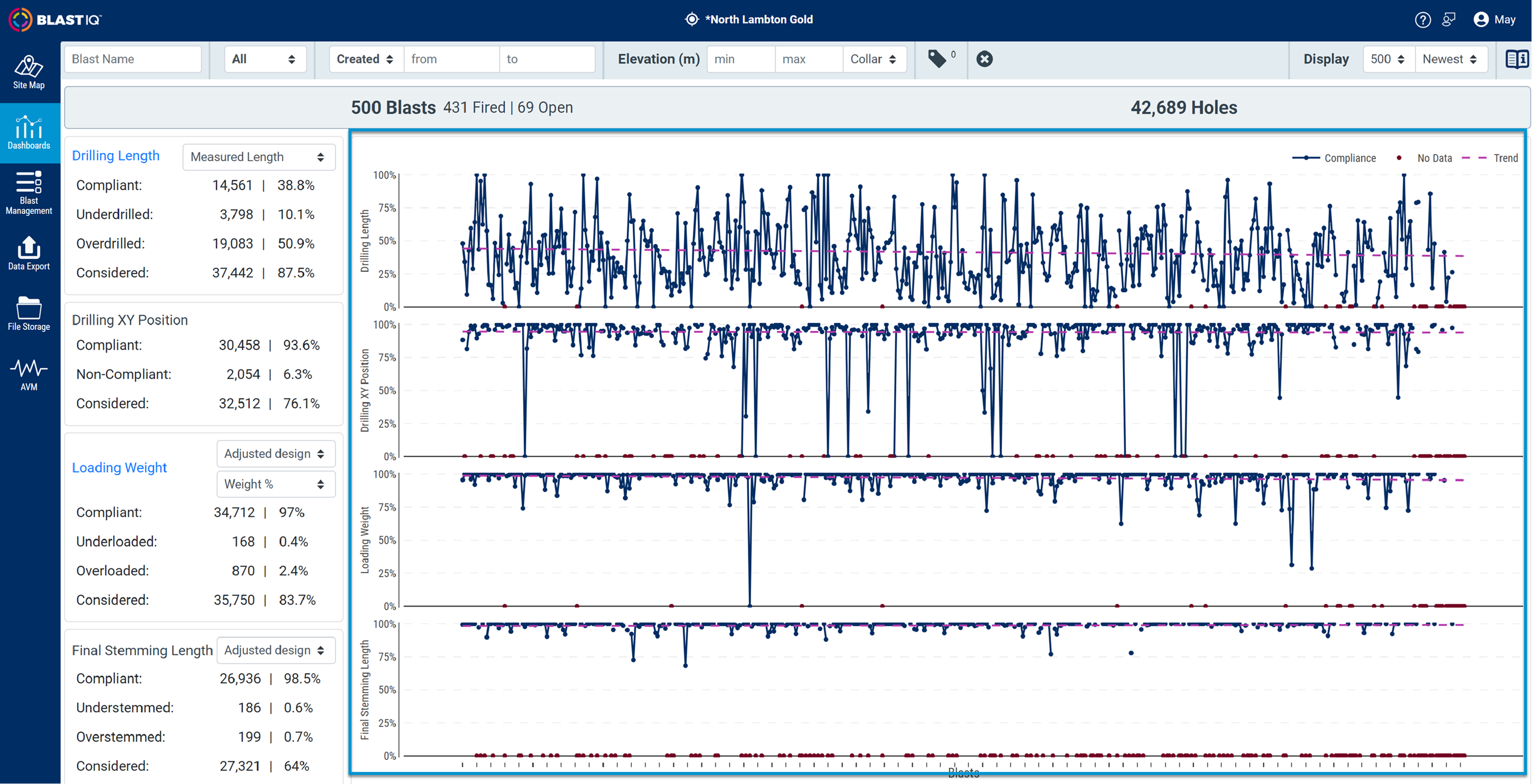

Compliance Plots
- Compliance
  - On the plots:
    - Drilling Length (Line chart)
      - Hover over the line chart to access information such as blast name, creation/fired date, compliance score and holes considered.
    - Drilling XY Position (Line chart)
      - Hover over the line chart to access information such as compliance score and holes considered.
    - Loading Weight (Line chart)
      - Hover over the line chart to access information such as compliance score and holes considered.
    - Final Stemming Length (Line chart)
      - Hover over the line chart to access information such as compliance score and holes considered.
    - Each compliance plot includes a line with markers and a trend line.
    - Null compliance (where no holes have been evaluated) is represented in a separate data set, which won't affect the Compliance trend line.
    - Zoom functionality is available for each plot, with the same zoom level applied consistently across all four plots.
    - The X-axis represents each blast, while the Y-axis represents the compliance score.
    - Blasts are sorted chronologically, with the oldest on the left and the newest on the right, using the corresponding date applied in the filters (fired or created).
- Compliance by Blast Breakdown

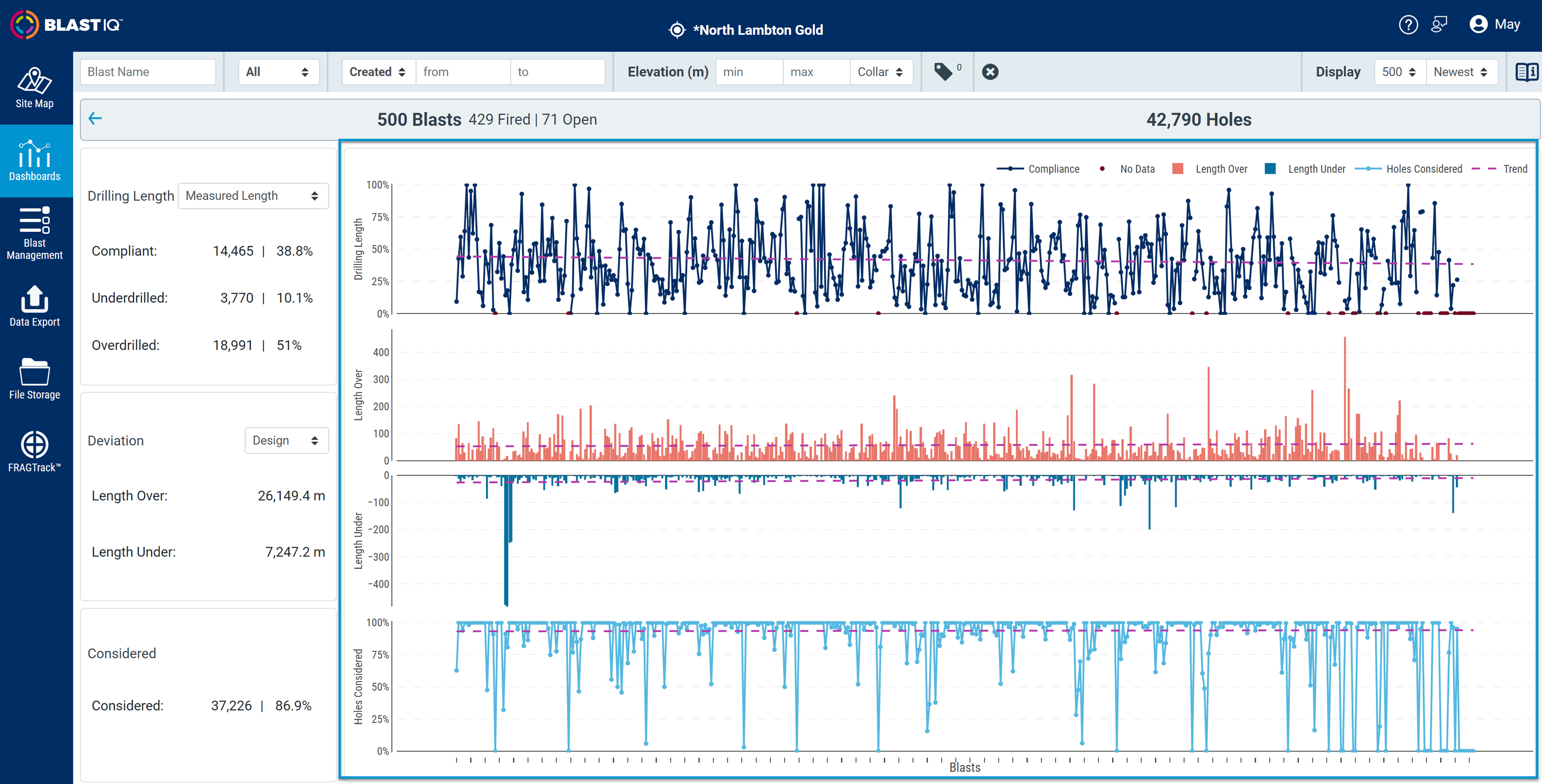

  - Drilling Length plots
    - Drilling Length (Line chart)
      - Hover over the line chart to access information such as blast name, creation /fired date, and compliance score.
    - Length Over (Bar chart)
      - Hover over the bar chart to access information such as Over design and its value.
    - Length Under (Bar chart)
      - Hover over the bar chart to access information such as Under design and its value.
    - Holes Considered (Line chart)
      - Hover over the line chart to access information such as the number of holes considered and their percentage value.
    - The charts will change based on filter and mode, such as comparison options and deviation type.
    - Zoom functionality is available for each plot, with the same zoom level applied consistently across all four plots.
    - The X-axis represents each blast, while the Y-axis represents the compliance score.
    - Blasts are sorted chronologically, with the oldest on the left and the newest on the right, using the corresponding date applied in the filters (fired or created).
    - Clicking the back button redirects back to the "Compliance" dashboard.

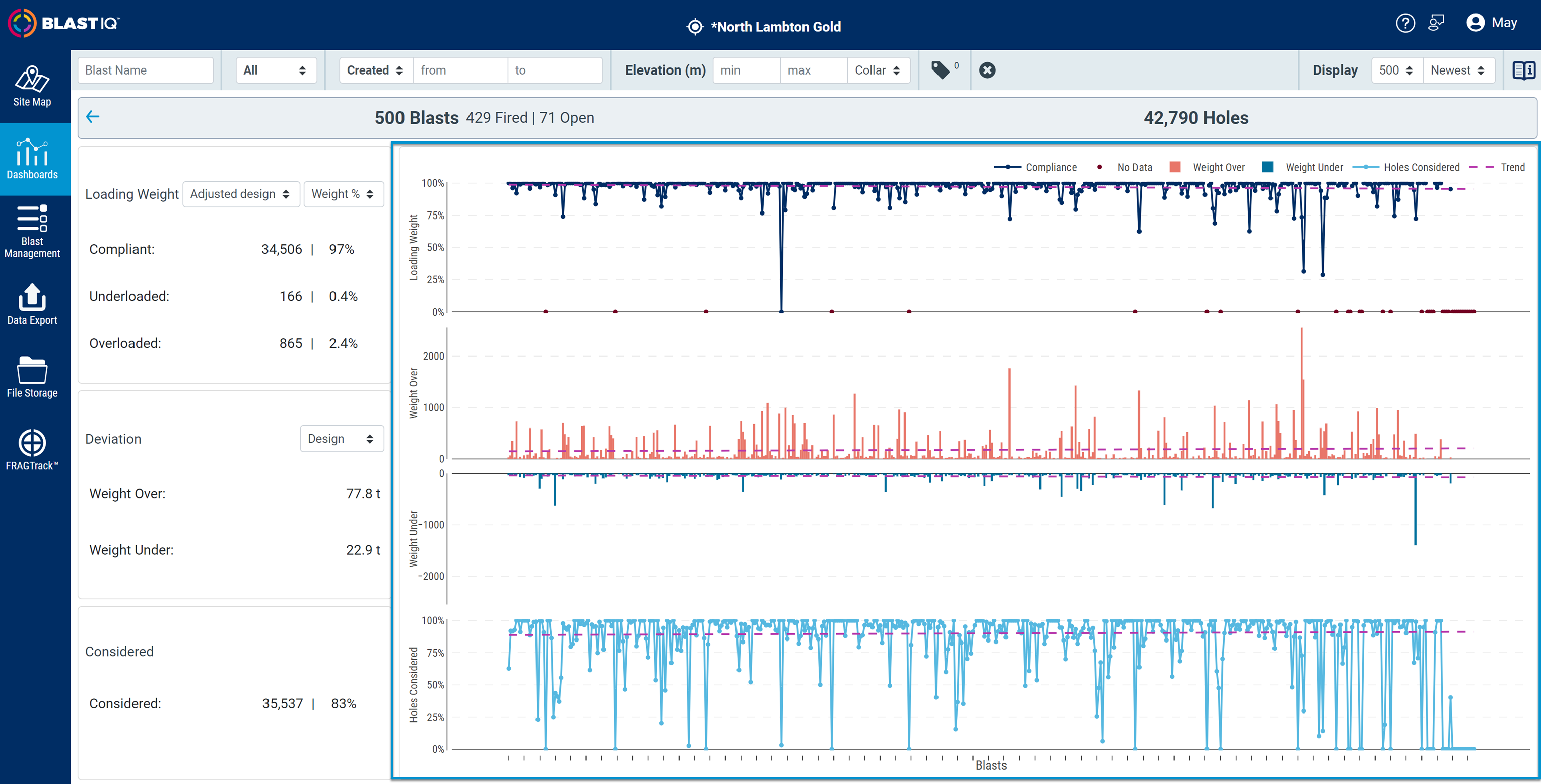

  - Loading Weight plots
    - Loading Weight (Line chart)
      - Hover over the line chart to access information such as blast name, creation /fired date, and compliance score.
    - Weight Over (Bar chart)
      - Hover over the bar chart to access information such as Over design and its value.
    - Weight Under (Bar chart)
      - Hover over the bar chart to access information such as Under design and its value.
    - Holes Considered (Line chart)
      - Hover over the line chart to access information such as the number of holes considered and their percentage value.
    - The charts will change based on filter and mode, such as comparison options and deviation type.
    - Zoom functionality is available for each plot, with the same zoom level applied consistently across all four plots.
    - The X-axis represents each blast, while the Y-axis represents the compliance score.
    - Blasts are sorted chronologically, with the oldest on the left and the newest on the right, using the corresponding date applied in the filters (fired or created).
    - Clicking the back button redirects back to the "Compliance" dashboard.

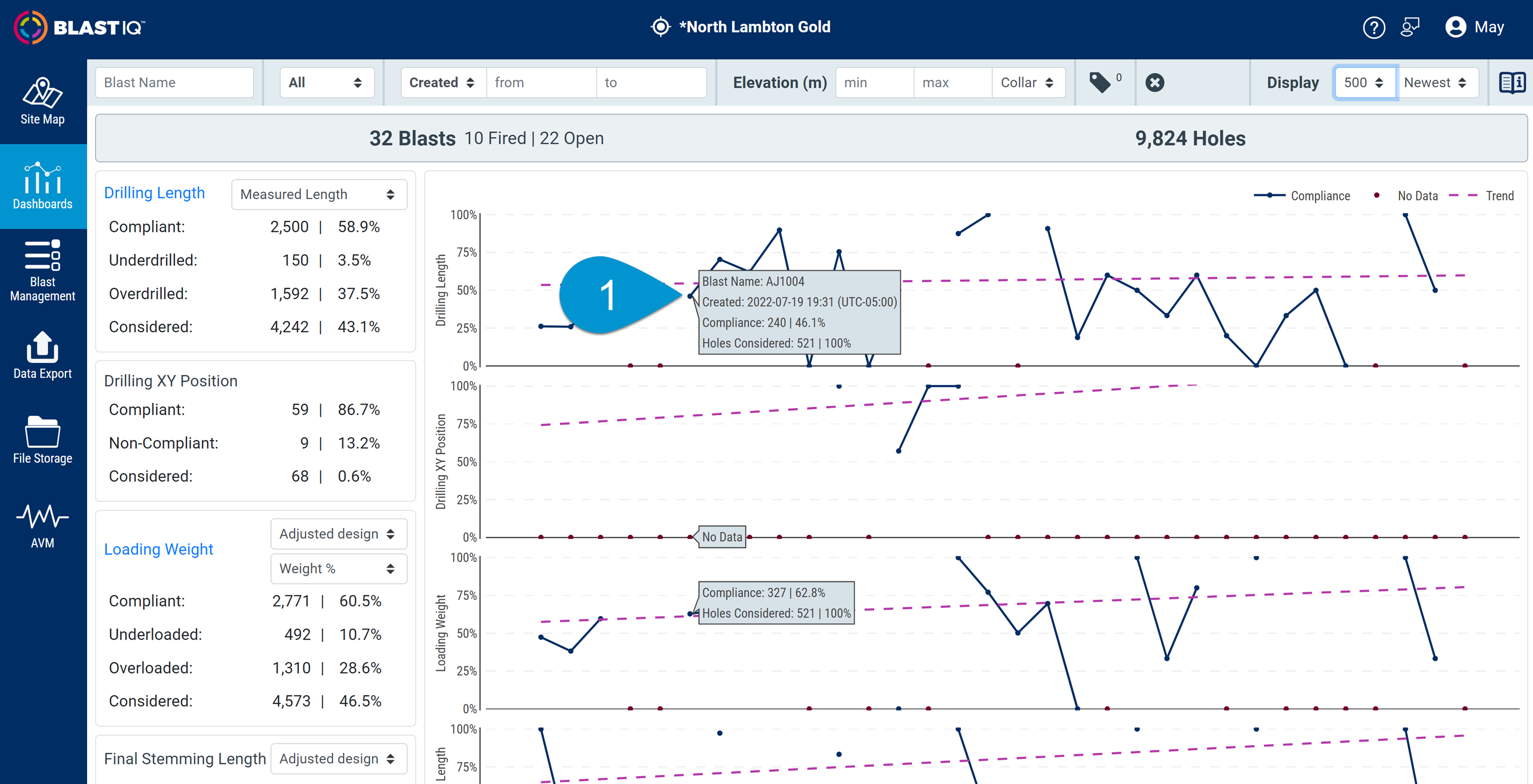

Navigation to Single Blast Dashboard

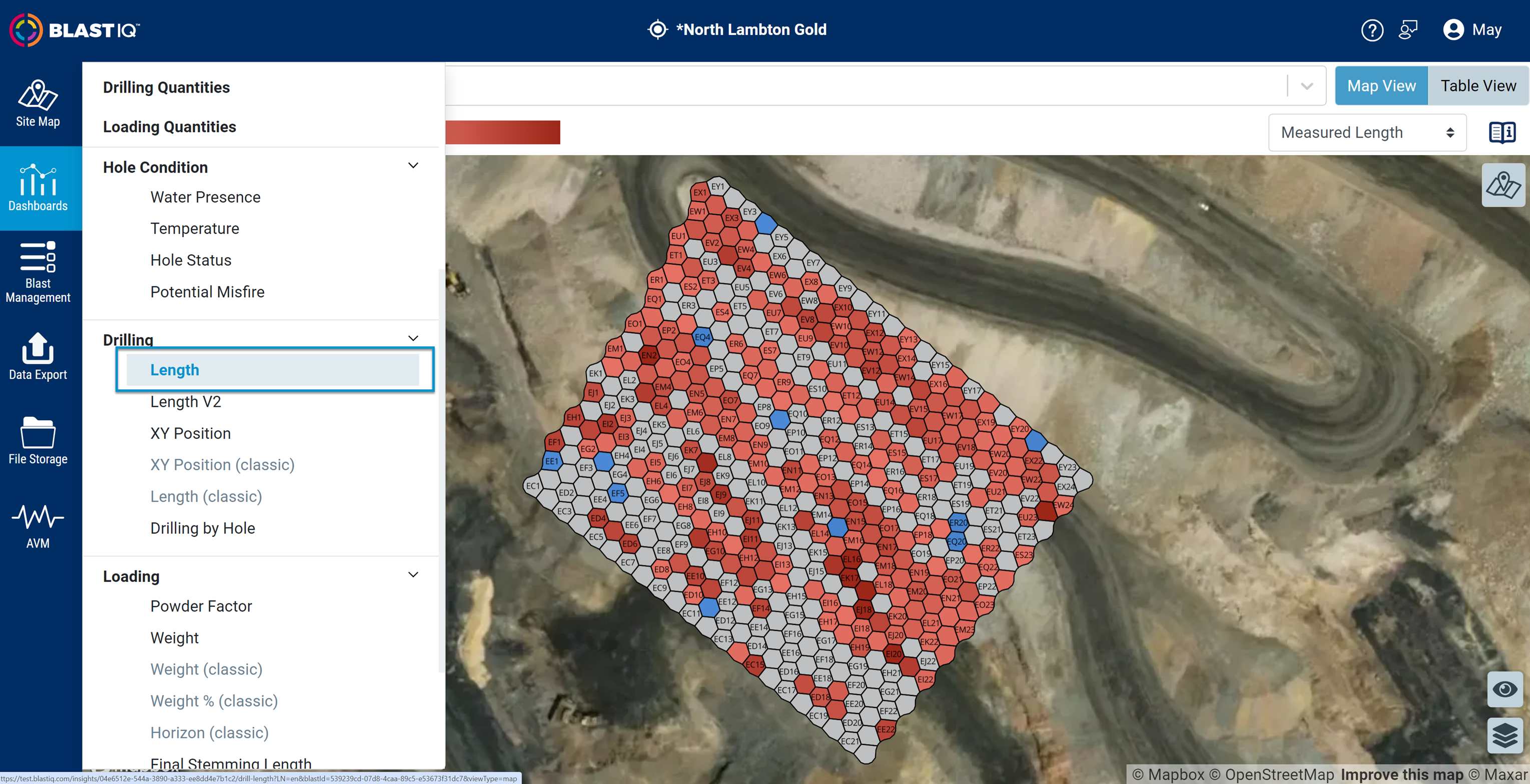

- Click on any data point in the compliance dashboard plots to navigate to the desired metric dashboard for the selected blast.
- Upon clicking the data point, you will be automatically redirected to the corresponding single blast dashboard to access specific details and insights.

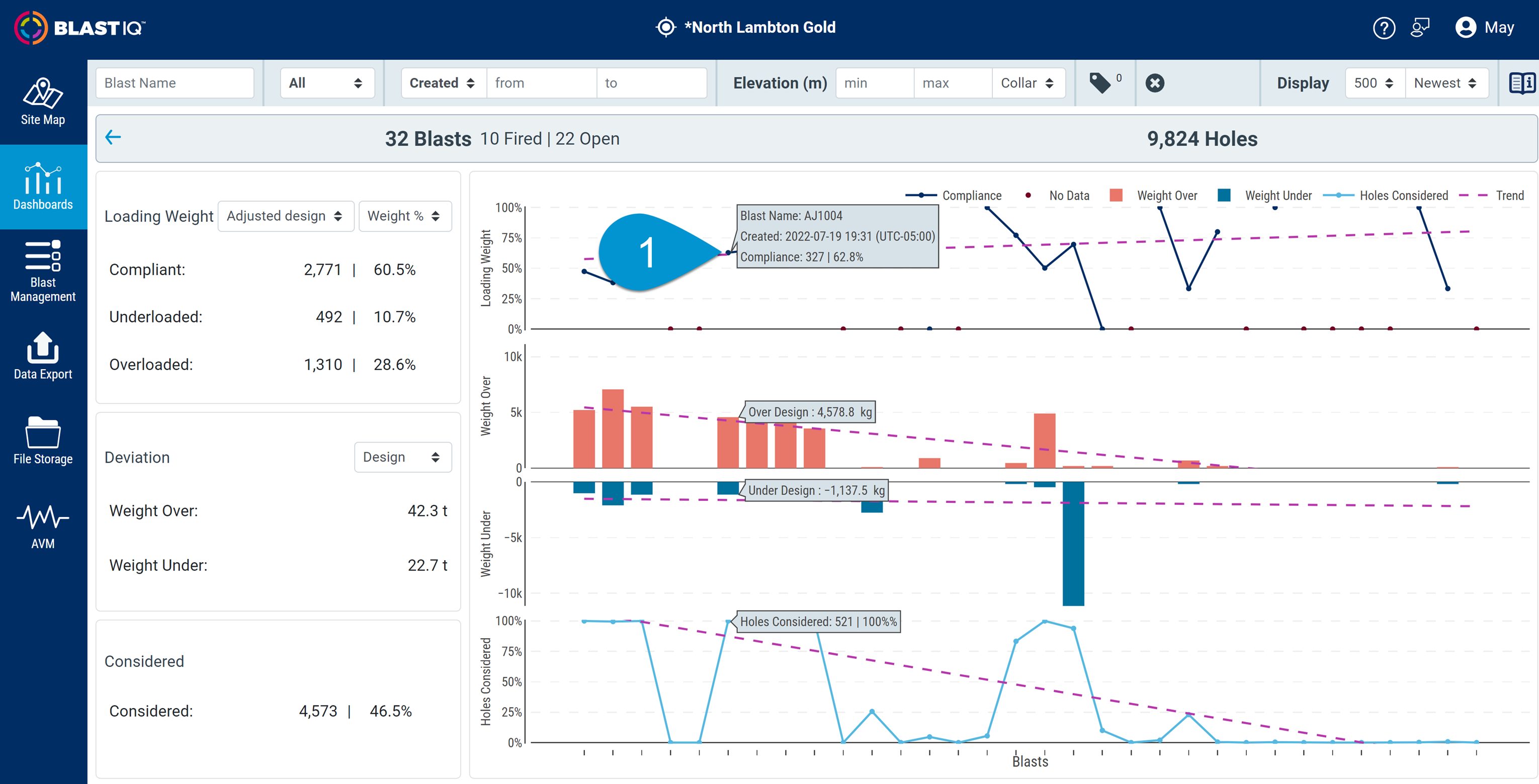

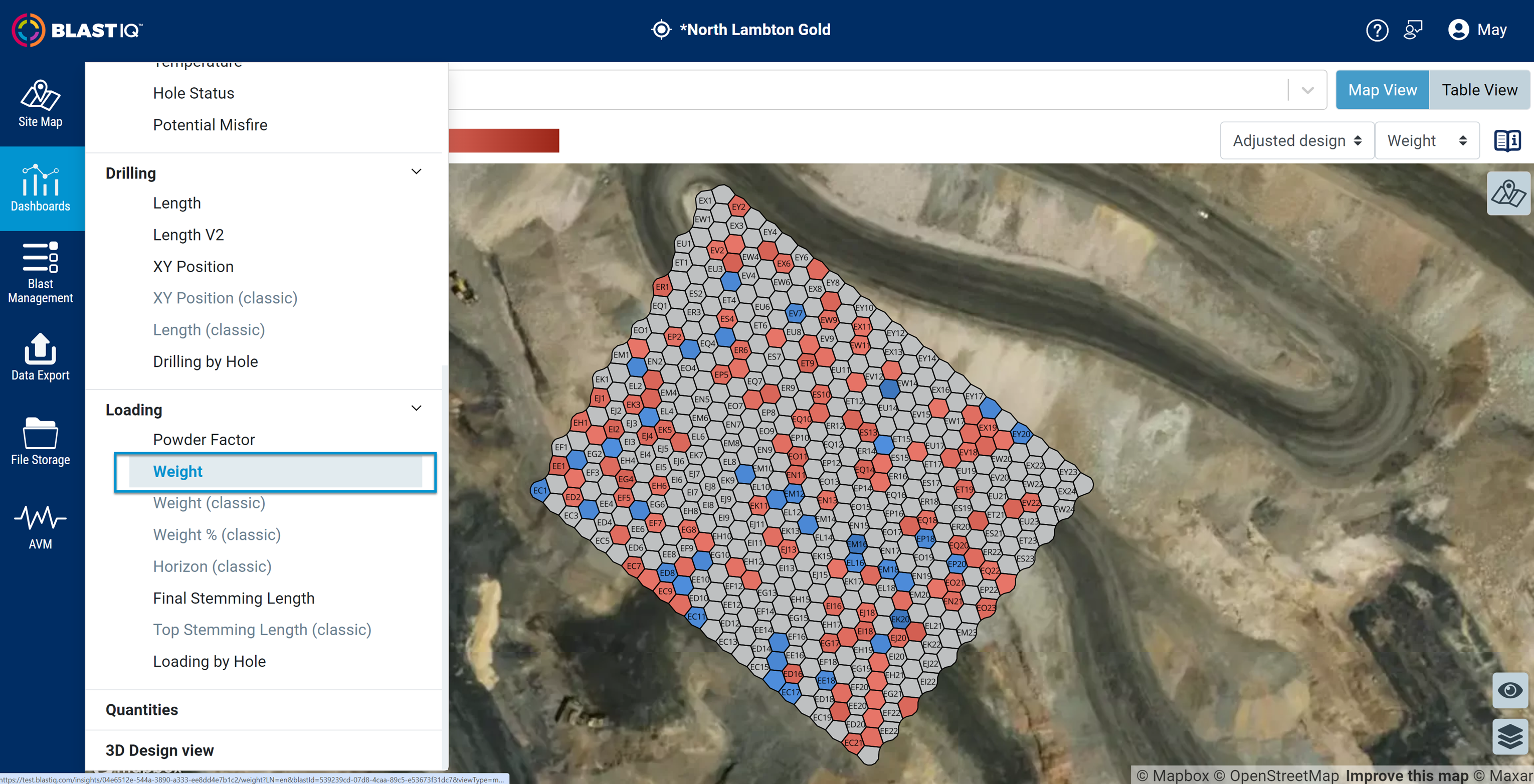

- Click on any data point in the compliance blast breakdown plots to navigate to the desired metric dashboard for the selected blast.
- Upon clicking the data point, you will be automatically redirected to the corresponding single blast dashboard to access specific details and insights.

Calculations

Refer to the following links for detailed information on each calculation:
- Drilling Length Calculation here.
- Drilling XY Position Calculation here.
- Loading Weight Calculation here.
- Final Stemming Length Calculation here.
