How to Create Holes from the Toe Up in SHOTPlus

NOTE: For SHOTPlus Premier and SHOTPlus Professional only.

1. Import the toe line or draw the line in SHOTPlus.sp1.png

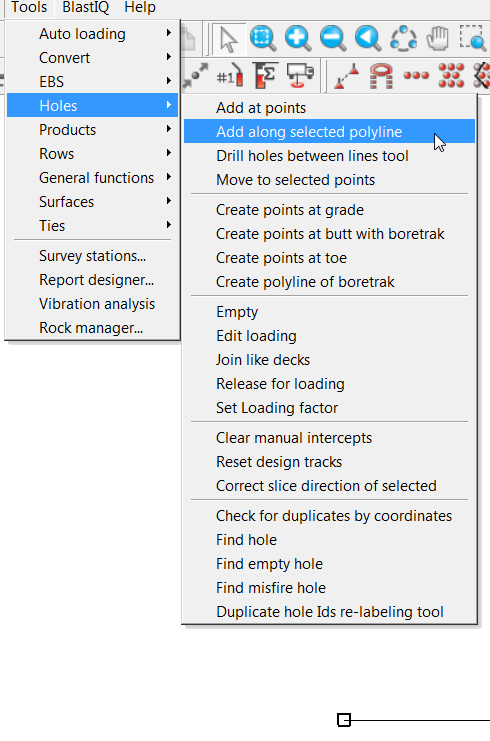

2. Select the line, Tools menu, Holes, Add along selected polyline

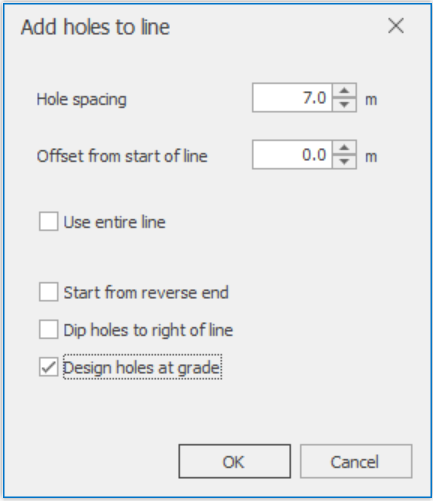

3. Define the parameters for the drill holes

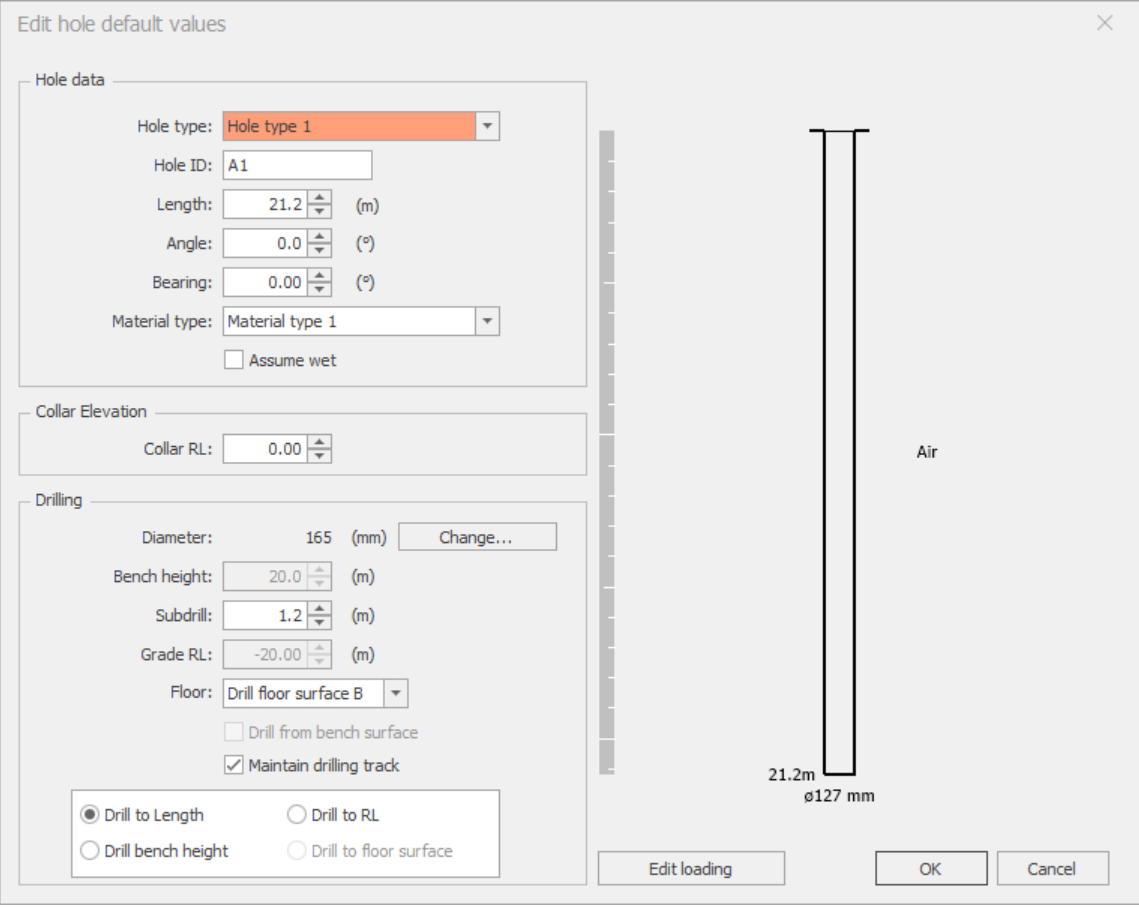

Make sure to select ‘design holes at grade’ on the second screen.


4. Holes will be added along the polyline.
