- SHOTPlus™ Variant:
- Surface
- Version:
- 6.7.0
- KBA Summary:
- This KBA describes how SHOTPlus™ users can export actual loading to BlastIQ™
Summary
SHOTPlus™ enables users to export actual loading to BlastIQ™.
To export actual loading, the loading must be imported into SHOTPlus™ via the text importer. The following Knowledge Base Article describes how users can import actual loading into SHOTPlus™.

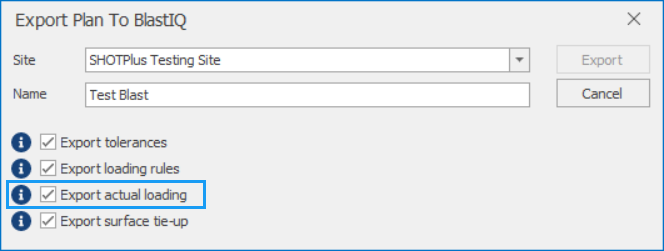

To export Actual loading to BlastIQ™ the Export actual loading option must be selected when exporting a plan to BlastIQ™
The following Knowledge Base Article describes the different options available with regards to BlastIQ™ Imports and Exports.
The following validation requirements are in place for deck actuals exported to BlastIQ™ from SHOTPlus™:
Backfill Decks
Actual backfill decks exported to BlastIQ™ must meet to following conditions:
- Product must be inert;
- Product must be included as a resource for the site; and
- Deck horizon must be supplied.
Packaged Explosive Decks
Actual packaged explosive decks exported to BlastIQ™ must meet the following conditions:
- Product must be included as a resource for the BlastIQ™ site; and
- Number of items or deck horizon must be supplied.
Bulk Explosive Decks
Actual bulk explosives decks exported to BlastIQ™ must meet the following conditions:
- Product must be included as a resource for the BlastIQ™ site; and
- Deck weight or deck horizon must be supplied.
