How to Change Hole Type Labels


SHOTPlus™ Variant:
Surface
Version:
6.0.0.0 and above
KBA Summary:
This KBA details how to change the Hole Type Labels

Summary

Set Hole Type Labels enables users to create and edit designs, apply different loading and initiation rules for each variation, and generate personalized designs for every plan.

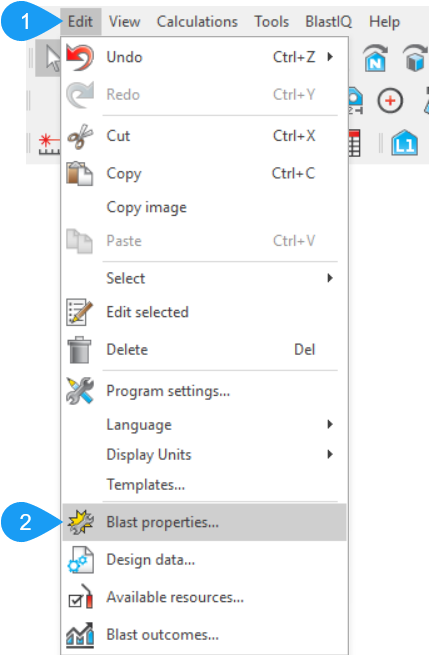

1. Click on the Edit menu

2. Select Blast properties.

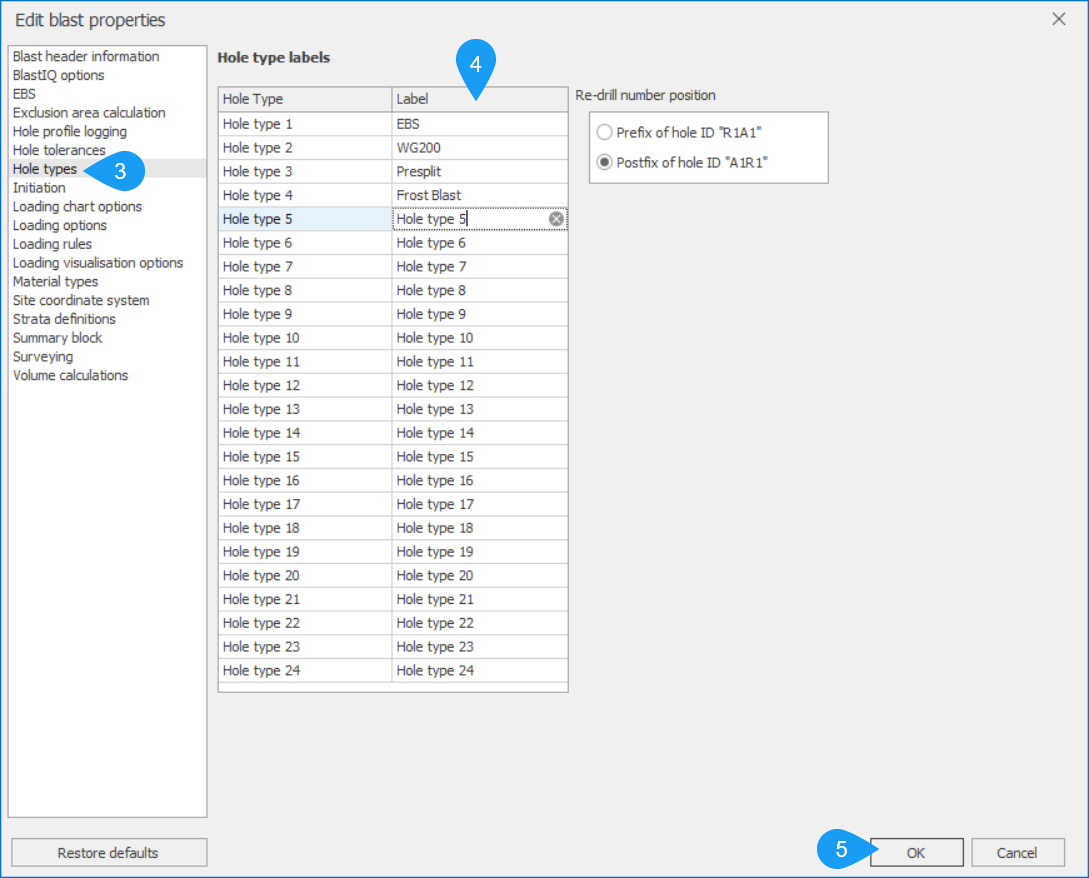

3. Click on the Hole Types tab.

4. Edit the Hole Type labels as required. If this is edited prior to starting a new shot, these will become the default Hole Type Labels. If these are edited after a new shot is started, it will be applied only to that shot. These could then be saved as part of a template in this situation.

5. Select OK





All inserted hole type labels will be available as options when needed, such as in the Design Data tool, as shown below.
