Filter and Search - Select Holes via Existing Polygon

SHOTPlus™ Variant:

Surface

Version:

6.3.0 and above

KBA Summary:

This KBA provides instructions for selecting blastholes that are inside (in two dimensions) a polygon in SHOTPlus™.

Summary

Users can select holes inside a specific polygon.

To select holes within a polygon:

1. 1. Select the desired polygon.

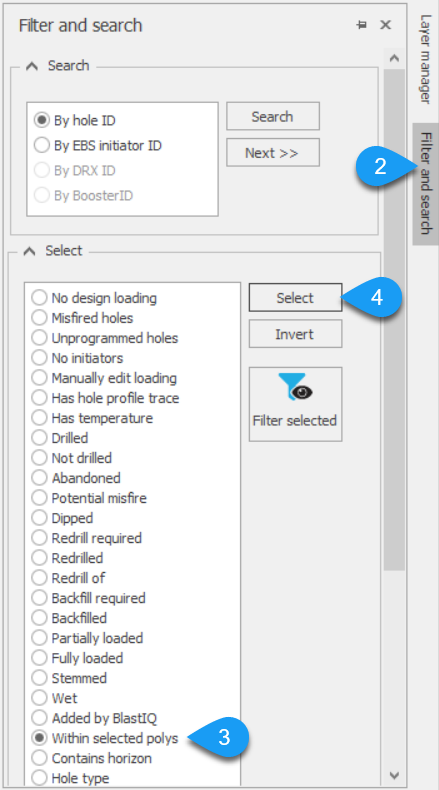

1. 2. Navigate to and expand the Filter and search panel.
   3. Select the Within selected polys radio button.
   4. Select the Select button.

1. 5. The holes that fall within the polygon, in two-dimensional space, will now be selected.
