Released 18^th January 2021

Known Issues

Backwards Compatibility Issue - Due to the change in how Hole Type Tolerances are displayed, files created in 6.1.1.6 or > and then opened in an earlier version will display Redrill and Backfill Tolerances as -1.0 m. This will block uploads to BlastIQ™ until tolerances are set to positive values. To avoid this, please ensure all users are updated to the latest version.

New Feature

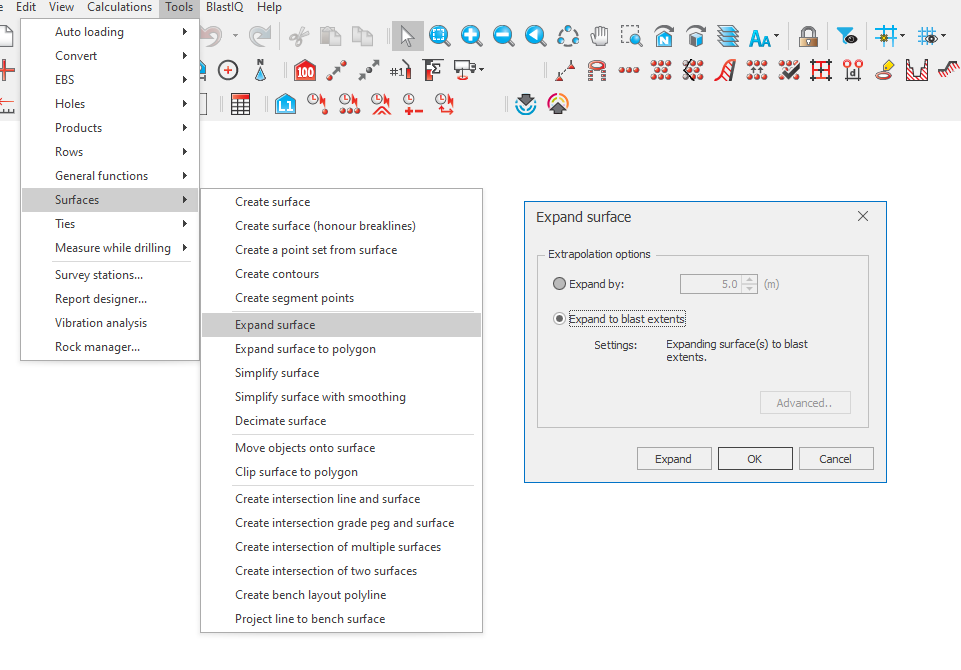

Expand selected surfaces - New option to expand selected surfaces to the blast extent

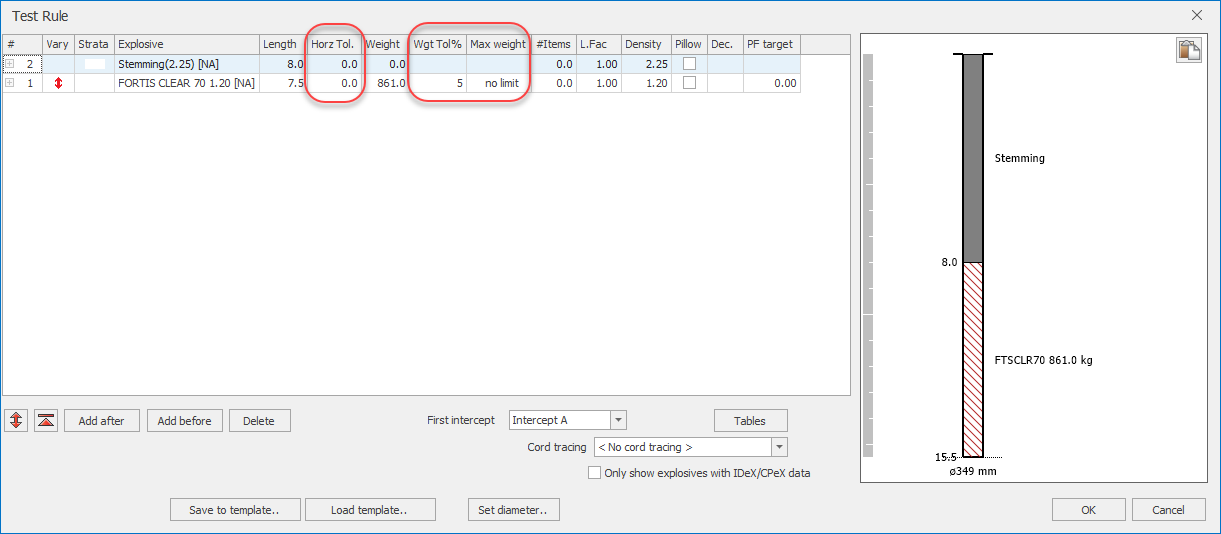

Loading Tolerances - Ability to set loading tolerances by deck (loading rules)

Improvement

Exceptions view renamed to “Analytics View”

Analytics View - Update "Drill to Method" legend

Analytics View - Update Powder factor to enable viewing of Design, Actual or Design & Actual powder factors

Analytics View - New Energy Factor view

Hole type - New hole type drill tolerance

Hole type - New collar x,y tolerance

IREDES Import - New “IREDES Plan File” import of drill spacial data

IREDES Export - Updated to include left & right co-ordinate system exports

Strata intercepts - Added the ability to export strata intercept x,y,z co-ordinates

Initiation rules - references to primers removed

Text Import - Validation now applied when importing loading data (minimum field requirements are now enforced)

Design Length is now able to be updated when actual hole data exists

Surface recalculation is now disabled when manual intercepts are not used

Visibility Manager - Added stem height

Blast Properties - Strata Definitions - Added user definable Horizon colours

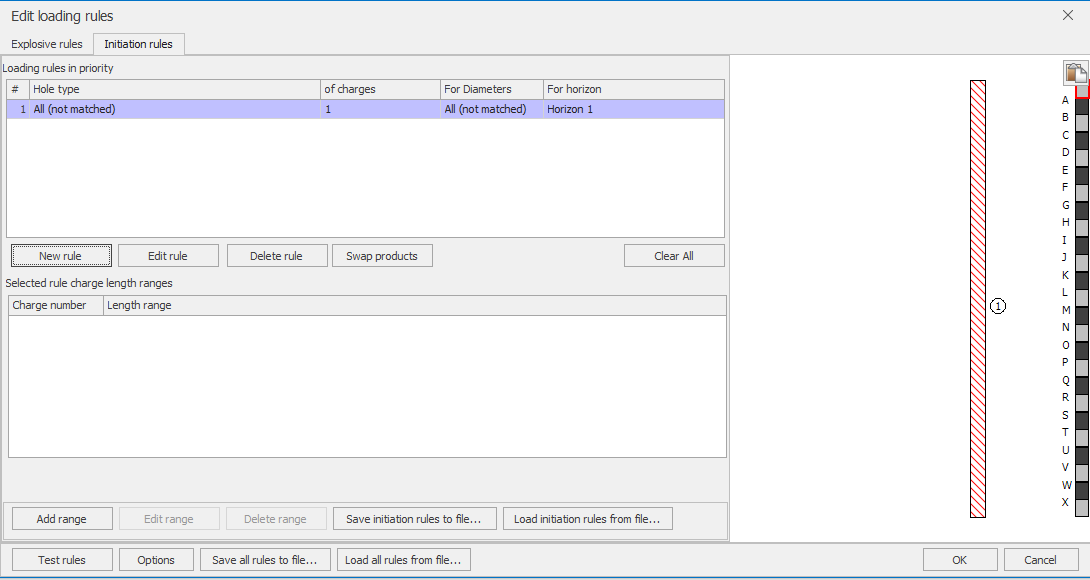

Initiation Rules - Show intercepts labels on rule horizons

Added new Tolerance page accessable from 'Tolerances' button in design data

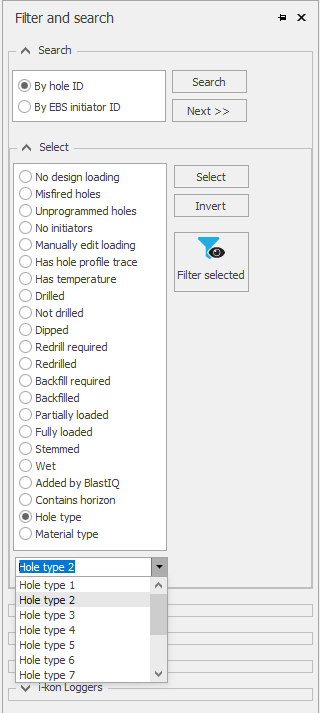

Filter & Search - Added ability to select Hole type or Material type

Initiation Rules - Intercept labels are now displayed

Text Import - Strata Import now provides auto surface update functionality

Analytics View - Improved 'Drilling Accuracy' view.

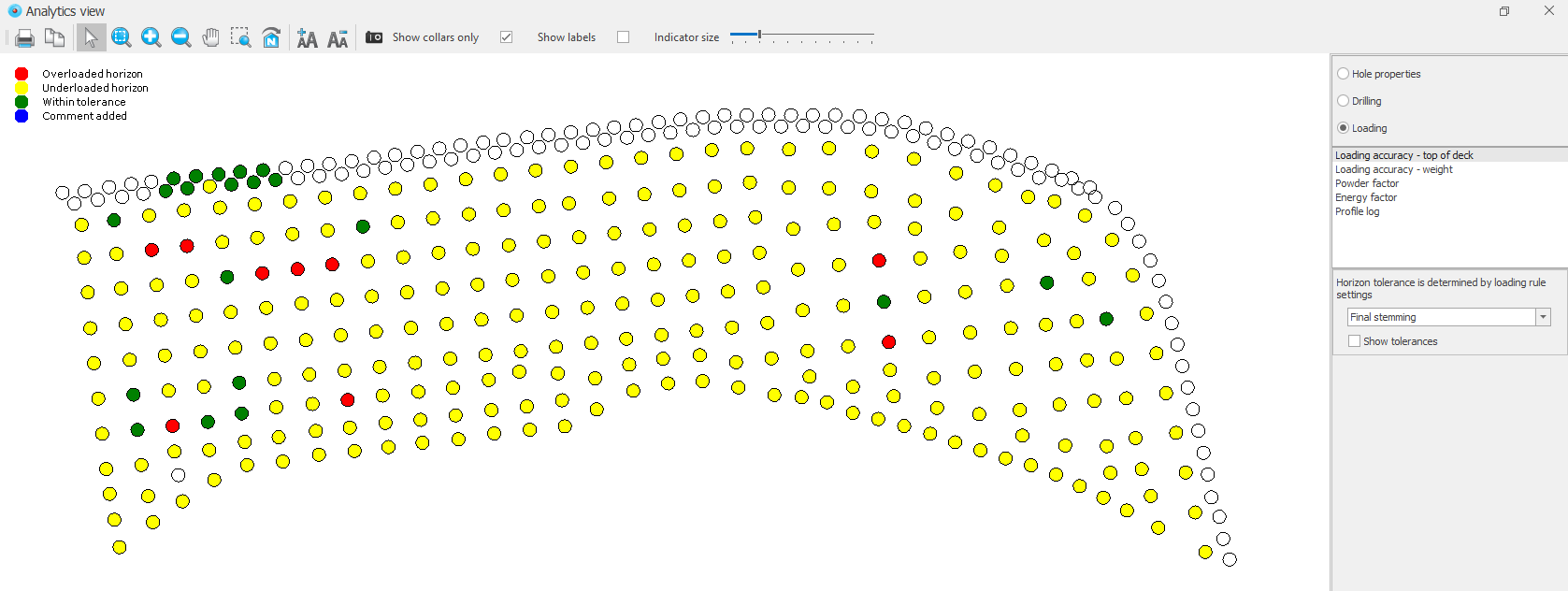

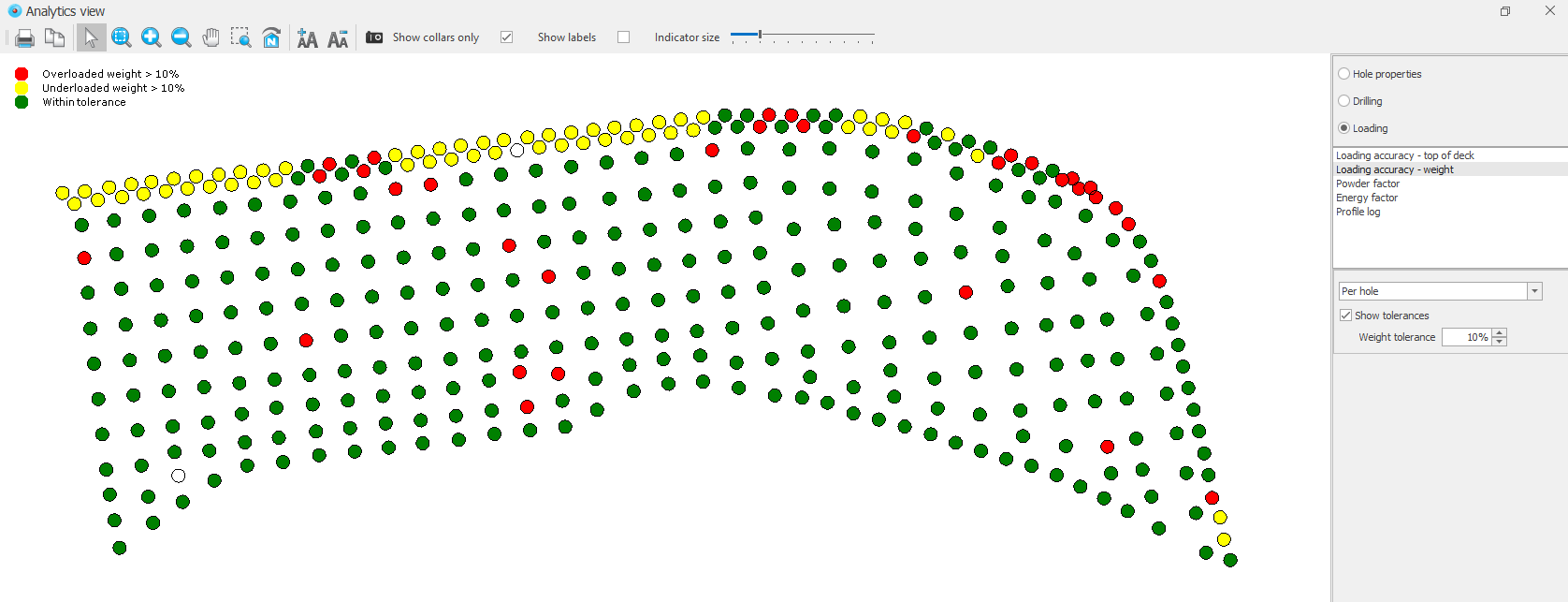

Analytics View - New loading exceptions view

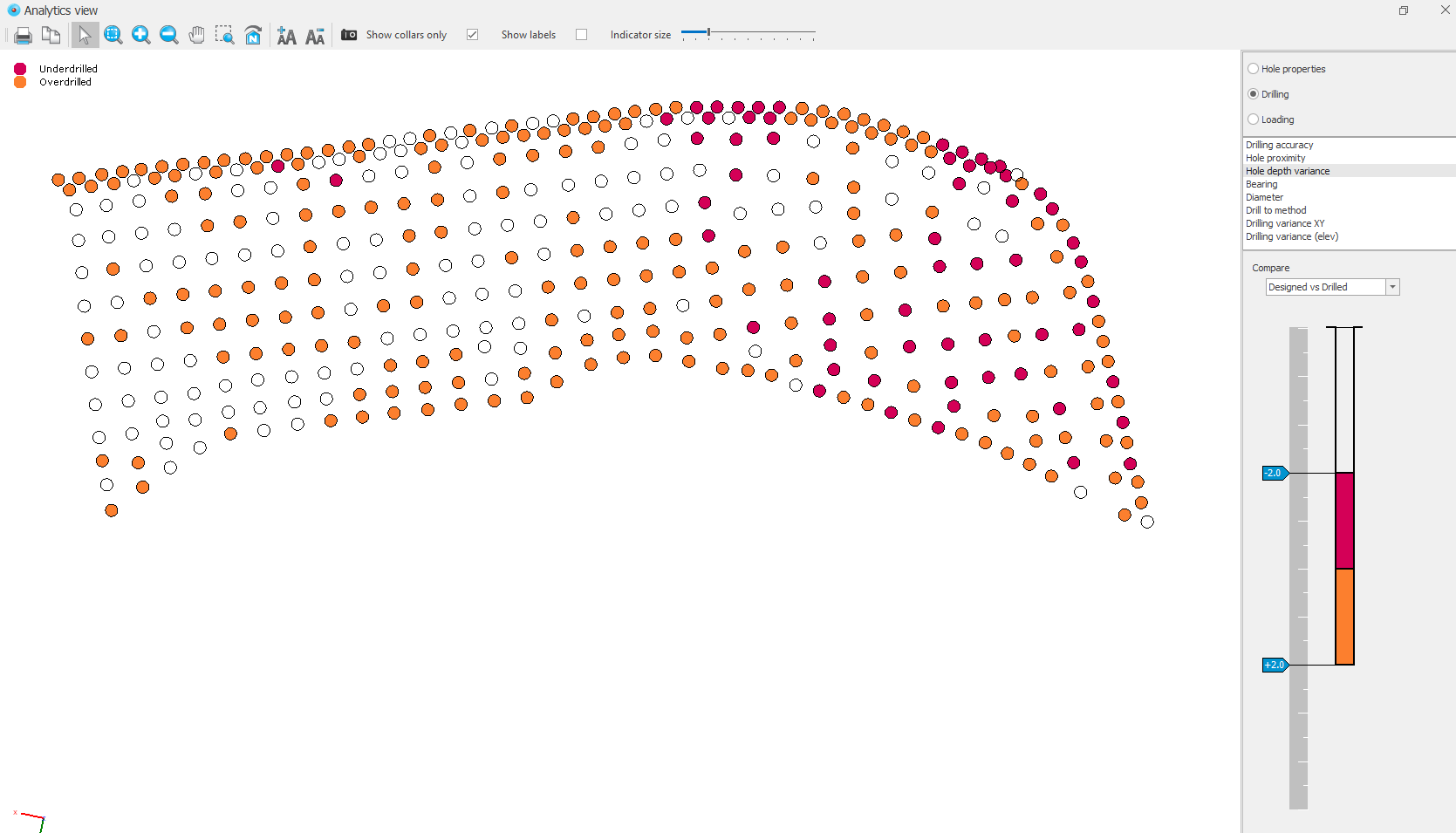

Analytics View - Improved 'Hole Depth Variance'.

Analytics views now utilise BlastIQ recorded times from BlastIQ Mobile

Volume calculations - Improved calculation method

Updated AVM capability

Bug Fixes

Fixed issues with;

Holes emptied via the edit loading dialogue would incorrectly reapply when closing

Hole table export - Error when exporting data containing hole types 9-12

Loading Rules - Test rules for area condition not triggering

Hole Profile Rules - Rules were not triggering when RL values were imported in bottom up order

Hole Profile Logging Tool - Manual adjustment of strata was not triggering a reapplication of the rules

Boretrak Import - Exception error upon import of Pulsar data

Boretrak Import - Import file access error of Pulsar data

Esc was not deleting free selection loop

Hole deviation tool - missing data upon import

Initiation Rules - Application of rules error

Surface expansion - Blast bounds - Incorrect expansion

Text import - Collar co-ordinates - Exception error

Text Import - Import of actual collar coordinates was incorrectly updating the design length

Inconsistent timing between Standard & Premier versions

• Premier - Updated to maintain current firing times when applying rules to manually edited loadings.
• Standard – Rectified issue where some holes would be saved incorrectly as “drill to bench height” when no dipping or drilling data was present

Incorrect design snapshot when updating actual collar coordinates

Tasks

New WebGen initiation type created in the product database

Blast Properties - Remove obsolete Analytics settings (old exceptions)

BlastIQ Export - Inert products as now sent with a 0 weight

Analytics View - BlastIQ hole states temporally removed

Released: Wednesday 10^th February 2021

New Feature

WebGen™ - Import of encoded information back into SHOTPlus™

BlastIQ™ Import - Import of wetside values

BlastIQ™ Export - Export initiation and initiation rules to the production environment

Improvement

BlastIQ™ Export - New option to allow users to upload without initiators or initiation rules when initiation products do not exist for a site

Analytics View - Improved text scaling

Analytics View - Drilling Accuracy - new options to view Underdrill or Redrill & Overdrill or Backfill

Analytics view - Improved 'Hole Depth Variance'

Hole Depth Variance – Improved slider response time along with added ability to drag each cursor past the other

Analytics View - Add blasthole count to Analytics views

Visibility Manager - Added New Fields

• Hole collar RL (Z co-ordinate)
• Hole toe RL (Z co-ordinate)
• Subdrill

Wetsides and water values are now prevented from being entered or imported from the text importer simultaneously - Only a wetside or water value can be stored at any one time

Export to Logger - Hole IDs with letters as a suffix (eg: A1R) are now;

• Exportable to Logger II
• Prevented from export to Logger I

Bug Fixes

Fixed issues with;

BlastIQ Export - Export of holes with manually positioned primer was causing an error

Profile trace scaling bug when copying traces between holes

OBJ Import - Illegal characters in path

Hole Profile Logging Rules - Minimum thickness not applying correctly

Initiation Rules - WebGen™ products not showing

Hole Positions - Maintain Hole Track is deselected for holes when file is reopened.

BlastIQ™ Import - Extra Holes - Unable to update Collar Coordinates of added holes in SHOTPlus™

BlastIQ™ - Resource list incorrectly importing deleted products

Null reference exception error

Validation Error - Charge end length less than start length

Validation Error - Duplicate charge numbers

Analytics View - Loading Accuracy - Incorrect Deck Displayed when Opening Analytics View

Extra Holes from BlastIQ™ – Unable to update elevation co-ordinates.

Analytics View – Loading Accuracy – Underloaded and Overloaded count and appearance incorrectly inverted

BlastIQ™ Integration – Resource list not updating correctly when using BlastIQ™ menu to set

Text File Import - System.IndexOutOfRange Exception

BlastIQ™ Export - Validation Error - Initiator depth greater than hole length

Exceptions Error - System Argument Out of Range Exception when saving some files

STR Import - STR Import resulting in unhandled exception error

Exception Error - Unhandled exception error when no surface existed for a drill to surface design depth

Incorrect initiation rule applied when multiple decks present

BlastIQ™ Import - Taponex product import error

Licence expiry - Warning shown after save button selected resulting in exception error / frozen splash screen

site and resources

IREDES Export -  Reverted checksum for v1.2 to previous method

Tasks

Analytics View - Removed 'Temperature (warm)’

SHOTPlus™ Variant:

Surface

Version #:

6.3.0.0

Release date:

30^th of March 2021

New Feature

• Fill Polygon Tool - Design by reference Line.

Improvement

• Added the ability to create a midpoint of a polyline.

KBA Link

• Select blastholes via existing polygon.

KBA Link

• Ability to create blastholes from a polyline (.dxf hole track).

KBA Link

• Surfaces - Added the ability to apply an elevation heat map rendering to an existing surface.

KBA Link

• 45° functionality for polyline and measurement tool.

KBA Link

• Edit multiple x, y, or, z values for points, group of points, points in a polygon or points in a polyline.

KBA Link

• Ability to rotate polygons, polylines text boxes, arrows etc.

KBA Link

• Ability to move/copy surfaces.
• Tools - Holes - Add along selected polyline - function now positions the holes along polyline via a hole spacing radius.
• Implemented code improvements to reduce occurrence of .dll errors.
• BlastIQ™ interface now autoscales the interface dialog box to show all tag characters.
• Volume Tool - Copy to clipboard functionality added for Segment Volumes.
• Added new 'Wetsides' state for holes with wetside values.
• Updated WebGen™ export format.
• Fill Polygon Tool - Added the ability to change the Hole ID properties from within the tool.
• Fill Polygon Tool now refreshes selections when the tool is opened.
• Initiation - BlastIQ™ recorded initiation is now displayed in all the SHOTPlus™ hole diagrams.
• Charge Track - Stemming is now drawn for blasholes that are loaded with stemming only.
• BlastIQ™ Export - Underdrill and Overdrill tolerances are now sent to the BlastIQ™ system (Underdrill and Overdrill functionality outside of SHOTPlus™ requires further BlastIQ™ system updates).
• Updates to hole tolerances are now recognised without the need to export and reimport from BlastIQ™.
• i-kon™ logger export - Enforce renaming of duplicate Hole IDs before allowing export.
• Updated naming of Surface tool to Surface Manager to match dialog box.
• Recalculation of surfaces now only occurs when at least three holes have measured intercept values, this prevents surfaces created from .dxf’s from being recalculated.
• Hole Type and Material Type can now be updated via the text importer when holes are in updated design mode.
• Initiation Import- Hole Loading Diagram and BlastIQ™ Hole History are now updated with recorded initiation rules imported from BlastIQ™.

Bug Fixes

Fixed issues with;

• Uni tronic™ initiator was not showing correctly.
• Hole Table - Wet Sides measurement were not persisting after being reopened.
• BlastIQ™ Export - Validation error: Grade position incorrectly above collar position.
• Section View - Section dropdown selection was not ordering correctly.
• Wet Sides - Wet Sides were being incorrectly linked to the 'Wet State Tolerance'.
• BlastIQ™ Export - Exception Error - Input string was not in correct format.
• Hole Table - When all holes were selected the table was defaulting to the top of the list when clicking on a specific hole within the list.
• Report - 'SHOTPlus™ Blast Quantity Usage Summary V2' report results in error.
• Fill Polygon Tool - Tool does not recognise polygon or reference point if selected prior to opening tool.
• IS Palette - When changing a tie product the new selected tie was not being applied.
• BlastIQ™ export - Export failed when regional PC setting was set as a comma for the decimal symbol.
• Fragmentation Prediction - Exception error - Value was either too big or too small for an Int32.
• Initiation Rules - Creating a new range was incorrectly copying the current selected range.
• Initiation Timing - Detonators where being incorrectly deleted upon BlastIQ™ import when using horizon timing initiation rules.
• Graphics - Unstable graphics when rotating in 2D or 3D.
• BlastIQ™ Import - Wet side property was not being shown in the BlastIQ™ Hole History
• Rules - Incorrect drawing of coal in the loading rules hole diagram.
• BlastIQ™ Import - Backfill deck was not being recognised.
• BlastIQ™ Import - Import error - No design length present.
• WebGen™ - Encoding path tool was not closing properly.
• WebGen™ - GID list was not populating correctly.
• IREDES Export - Fix checksum for v1.2

Tasks

• Validation - Match Harness Wire
• Loading Rules - Removed PF. Target from Loading Rules
• Added match all regions option (*) to initiator BlastIQ™ product matching
• Generated new translation packs for SHOTPlus™ version 6

Released 6 April 2021

Bug Fixes

Fixed issues with;

Hole Type Tolerances - Setting a null tolerance was triggering an error

BlastIQ™ Export - Initiation Rules - Hole type conditions were not being sent

Released 5 May 2021

New Feature

BlastIQ™ Import - Import Toe and/or Collar points only of a selected blast.

KBA Link

Text Import - Ability to import redrills, append a suffix or prefix to the hole ID, and associate a parent or child link for redrill holes.

 Improvement

Hole Type Tolerances for backfill and redrill can now be set at 0

The 'Use backfill' checkbox located in Edit > Design data has been removed. The use of backfill is now managed by disabling (Ctrl + Delete) or enabling the Backfill Hole type tolerance.

KBA Link

Hole Type Tolerances - X/Y Tolerances are now uploaded to BlastIQ™

Fill Polygon Tool - Baselines can now be switched when designing from a reference line

BlastIQ™ Import -  Zero length decks or decks containing null products are now excluded from import

BlastIQ™ Export - Export detonating cord to BlastIQ™

KBA Link

Variable deck marker is now locked when a hole is marked as Manually Loaded

Files created in SHOTPlus™ version 5 will now open as “Read Only” in SHOTPlus™ version 6

WebGen™ - Import of encoded data is now available

Edit Hole - Loading State - Wording updated to Designed / Updated Design / Actual.

Import Drill Data - Option to infer 'Drilled' toe values when user imports only Drilled collar X, Y, Z locations.

0 m length holes are now prevented from being entered or imported to align with the BlastIQ™ System.

Not Drilled is now set by the BlastIQ™ system "Not Drilled" flag.

i-kon™ Export - Numeric hole ID's are now exported to Logger II's.

Import first strata intercept from BlastIQ™.

Bug Fixes

Fixed issues with;

Hole Type Tolerances - Setting a null tolerance was triggering an error

Polyline Edit - Editing a polyline was not opening on the selected point

Hole Table - Incorrect hole was being selected when first opening the hole table

BlastIQ™ Export - missing initiation product error

BlastIQ™ Import - System Invalid Operation exception error

Loading rule condition "string contains" with wildcards not matching correctly

Hole Design - Subdrill was not active when drilling to RL

Corrupt file error

Initiation Rules - Hole type trigger conditions rules were not being sent in some instances

Export - BlastIQ™ deck history was occasionally not successfully completing

BlastIQ™ Export - Initiation Rules - Direct initiation by cord export error

Move/Copy Entity - Unhandled exception error.

BlastIQ™ Deck History - Deck History was not updating correctly in certain import scenarios.

Export - Drill data not being sent in some instances

Section View - Blastholes could become unselectable after a surface was selected.

Unhandled Exception - Text file import error when using Graphical Loading Rules.

BlastIQ™ Upload - Not drilled holes were failing BlastIQ™ validation.

Graphical Loading Rules - Deleting last range resulted in an exception error.

BlastIQ™ Export - Incorrect message displayed - Plan Could not Be Finalised in Time to Receive Drilling Data message.

Loading Rules - Exception Error when creating a new rule.

Export - Actual hole position values were not being exported in some scenarios.

Monitoring Point - Monte Carlo Model tab was incorrectly opening in a minimised state.

BlastIQ™ Import - Drill data positions were being incorrectly assigned upon import.

BlastIQ™ Export - Cord Tracing Validation was incorrect.

Drill Data Import - Design collar elevation was being incorrectly displayed after drill import.

BlastIQ™ Export - Initiation Rules - Uploads containing Direct Initiation by cord were incorrectly failing.

Quantities Calculation was not refreshing under certain conditions.

Re-drill Status - 'Parent To' list not refreshing under certain conditions.

Tasks

BlastIQ™ Export - Drill data validation added for drill lengths below the minimum allowable length.

Text Import - length values less that the minimum allowable are now rounded up to prevent system validation issues.

BlastIQ™ API updated for inconsistencies in Naming Tolerances.

EBS Hole Time - Prevent 'EBS Hole Time' from being automatically activated when using EBS Tools.

BlastIQ™ Export - Added webview logging

Released 3 August 2021

New Feature

• Graphical Charging Rules ¹

• Exclusion Zone Calculator Tool

Exclusion Zone Calculator KBA Link

• Backfill decks (‘Updated design’ and ‘Actual’) are now represented separately in Table View, under ‘Hole loading’.
• Added ability to export ‘Updated design’ loading from the SHOTPlus™ text exporter.
• Added the ability to clear ‘Actual Drill Locations’ within SHOTPlus™ ².
• Plans and holes with loading rules containing packaged explosives can now be exported to BlastIQ™ ³.

Improvement

• Polygons - Text tag for polygons moved to be in line with the polygon.
• WebGen™ 100 - Include .csv export.
• Environmental prediction - Prevent 0 m/s velocity from being entered into vibration monitor ‘monte carlo setup’ dialog box.
• Text Import - Implemented warning where deck lengths, imported via text importer, exceed the measured hole length.
• Added warning when trying to import a loading design with missing decks e.g., decks one and three, via the text importer.
• Update in-hole initiation design when importing an updated loading design from BlastIQ™, and not automatically reapplying loading rules.
• Improved check for existing Drill Actuals in BlastIQ™.
• Estimate deck length when deck loading is imported via the text importer and length is not provided.
• Ignore blank bulk explosive decks imported from BlastIQ™ when building 'Actual' loading.
• Update text importer and text exporter to standardise available fields and order of parameters.
• Backfill decks are now classified as a specific deck type for text imports and exports.
• Updated WebGen™ ICD.
• Implemented minimum validation for bulk product decks when importing ‘Design’ or ‘Actual’ loading via the text importer. Must now supply at least:
  • Deck No.
  • Product.
  • Length, horizon, weight, or any combination of the three.
• Implemented minimum validation for packaged product decks when importing ‘Design’ or ‘Actual’ loading via the text importer. Must now supply at least:
  • Deck No.
  • Product.
  • Length, horizon, quantity, or any combination of the three.
• Increase the number of decimal places used for converting between metric and imperial for coordinate transforms.
• Blank cells are now ignored for defined columns when using the SHOTPlus™ text importer.
• Added information pop-ups to the BlastIQ™ Export dialog box.
• Clarified warnings when exporting plans to BlastIQ™ ¹.
• Variable deck indicators are no longer shown for manually edited holes.
• Improved validation for Resource List matching between SHOTPlus™ and BlastIQ™.
• SHOTPlus™ now validates that all backfill decks imported via the text importer are an inert product.
• Align organisational trees for Text Import and Text Export fields.
• Changed the hole ordering field for the Default Dip Sheet Report.
• Added a confirmation prompt when deleting a blast via the BlastIQ™ interface in SHOTPlus™.
• SHOTPlus™ now validates that all inert decks imported via the text imported are assigned either a deck horizon or a deck length.
• WebGen™ 200 - Product Updates.

Bug Fixes

• Unhandled Exception - Turning off face triangles in Profile Tool workbox caused an unhandled Exception.
• AVM™ Online Import - Some monitoring point variables were not being set when downloading from AVM™ Online.
• Initiation Rules - Diameter was being incorrectly converted from imperial to metric.
• Filter & Search - Wildcard option was not applying correctly.
• Initiation Rules - EBS offset was not applying when using WebGen™ resources.
• Drill to surface method was not applying correctly when no surface was registered.
• BlastIQ™ Deck Histories - First import was incorrectly displaying reference ID's in some instances.
• Volume Overview Tool - Incorrect calculation when a single row was present.
• WebGen™ - Logging Summary Report - Det and Deck# were not being populated.
• WebGen™ - Encoder path - Multiple encoder paths were incorrectly able to be assigned to the same hole.
• WebGen™ - Enable encoder paths for all charges was not applying correctly.
• WebGen™ - Unhandled exception when changing blaster type from WebGen™ to i-kon™.
• Resources - Certain detonator lead lengths were not being recognised as available in the resource list.
• Text import - Incorrect ‘duplicate hole ID’ warning shown when importing profile log information.
• BlastIQ™ Import - In certain instances BlastIQ™ exception handling was causing SHOTPlus™ to become stuck in a loop.
• Exporting firing data with cosines not reporting correct error.
• Screen refresh issue after using ‘adjust EBS time intervals’ tool.
• Calculations - Holes loaded with packaged explosives incorrectly registered as misfires.
• Profile tool - Charging diagram was not updating to current loading design when using the profile tool.
• Loading rules - All imported Initiation Rules were being shown as Rule No. 0.
• Text export - When exporting 'quantity' property from the text exporter, the number of packages was not being correctly reported.
• In some circumstances, Manually Edited Loading was being adjusted when importing from BlastIQ™.
• Inert decks added in Loading tool were being incorrectly marked as backfill.
• Importing packaged product actuals from BlastIQ™ was replacing existing packaged product decks with Air in some circumstances.
• Holes were incorrectly being highlighted in Analytics View – Hole Depth Variance.
• The variable deck indicator was incorrectly being adjusted for manually edited holes in certain situations.
• ‘Number of Items’ recorded for Packaged Explosives in BlastIQ™ Mobile was not being correctly imported into SHOTPlus™.
• Initiation points with no booster were incorrectly failing validation and preventing plans from being exported to BlastIQ™.
• Unhandled error - When importing plans from BlastIQ™ that contained products not included in the SHOTPlus™ resource list. Error now correctly reported.

New

1. Export actual loading to BlastIQ™.
2. Display and tag/un-tag holes as 'Not Drilled' and 'Abandoned' via:

   1. Text import ¹.
   2. Hole edit dialog box.
   3. Hole table ².
   4. BlastIQ™ import/export.
3. Restricted entering of 'Actuals' for holes marked as 'Not Drilled'.
4. Filter holes by 'Not Drilled' and 'Abandoned' tags.
5. Report 'Not Drilled' and 'Abandoned' tags via SHOTPlus™ Reports.
6. Filter holes that have an Intercept added by BlastIQ™.
7. Export fragmentation results and curves as a CSV.
8. Import temperature colour palette and temperature thresholds from a BlastIQ™ site via temperature Analytics View.
9. View and post BlastIQ™ Plan Level Notes.

Plan Level Notes KBA

10. Rounded item counts for packaged explosives are now shown in hole loading diagrams.
11. Import of XML files from RHINO.
12. Exports 'Depth to Wet Sides' values to BlastIQ™.

  Information

1. 1. 'Not Drilled' and 'Abandoned' are selectable from the 'Measurements' tab on the Text Importer and Text Exporter.
   2. 'Not Drilled' and 'Abandoned' are visible under the 'Hole measures' tab in the Hole Table.

Improved

1. HOTPlus™ excludes holes marked as 'Not Drilled' or 'Abandoned' from fragmentation predictions.
2. SHOTPlus™ excludes holes marked as 'Not Drilled' or 'Abandoned' from Volume Overview calculations.
3. Advanced Vibration Management (AVM™) export/import functionality now requires a bespoke licence key.
4. Added ability to export text files without column headers.
5. Added new field to Text exporter - 'Title_HoleID' ¹.
6. Updated the default temperature colour palette to match BlastIQ™.
7. When setting BlastIQ™ site and resources, SHOTPlus™ now updates the temperature colour palette to match the selected BlastIQ™ site.
8. Increased the limit for Advanced Vibration Management (AVM™) submission to 5,000 holes.
9. SHOTPlus™ now correctly notifies users when Hole Type Tolerances are modified based on a BlastIQ™ Import.
10. When importing tolerances from BlastIQ™, SHOTPlus™ now imports and modifies reporting tolerances - Collar XY, Underdrill, and Overdrill.
11. Added information to the 'Export Tolerances' option when importing from BlastIQ™.
12. Item count rounding setting now affects the item count sent to BlastIQ™.
13. Item count rounding setting is now used for calculating loading designs.
14. A message is shown when choosing 'Round to half package' option for item rounding that BlastIQ™ only supports whole numbers for item counts.
15. Updated SHOTPlus™ DXF library. SHOTPlus™ can now export DXFs in the following formats:
    1. SHOTPlus™ Legacy Format;
    2. AutoCAD 2000;
    3. AutoCAD 2004;
    4. AutoCAD 2007;
    5. AutoCAD 2010;
    6. AutoCAD 2013; and
    7. AutoCAD 2018.
16. Added dialog to notify users of successful exports to BlastIQ™.
17. BlastIQ™ Plan Level Notes moved to the 'BlastIQ™ Blast Management' dialog.
18. Charging rules not supported by the BlastIQ™ system no longer block exports to BlastIQ™ from SHOTPlus™ ^{2, 3}.
19. Updated error, warning, information, and confirmation icons.
20. SHOTPlus™ will now 'batch' data when exporting to BlastIQ™, to support exporting large amounts of data without timeout issues.
21. Increased the automatic timeout when exporting a plan to BlastIQ™ to 150 seconds, to support the export of large plans.
22. SHOTPlus™ will now trim blank characters from Hole Type names on import.
23. 'BlastIQ™ Blast Properties' renamed to 'BlastIQ™ Blast Management'.

  Information

1. The 'Title_HoleID' field exports the title of the blast, per the 'Blast Header Information', concatenated with HoleID.
2. Excludes charging rules without conditions or charging rules with tables of a single defined length.
3. Unsupported rules will not be exported to BlastIQ™ and will not be applied to holes in the BlastIQ™ system. Hole loaded with these rules in SHOTPlus™ prior to export will be treated as manually loaded in the BlastIQ™ system.

Fixed

1. The assigned delay time for i-kon™ detonators, in holes with Manually Edited loading, was being deleted in certain situations.
2. Hole states were incorrectly being updated to 'Updated Design' where tolerances had been changed and Loading Rules were reapplied.
3. Unhandled error given when opening 'EBS Logging Report' in a SHOTPlus™ file with no electronic detonators present.
4. WebGen™ DRX units were not being included in the SHOTPlus™ Quantities Report
5. Underdrill Hole Type Tolerance was resetting to 0.2 m in certain situations.
6. Redrill tolerance was not being adjusted when importing from BlastIQ™ when tolerance was disabled in BlastIQ™.
7. Blastholes added with 'Assume Wet Hole' turned on were assigned the incorrect design diameter.
8. Filter and search hole type drop down was incorrectly displaying Material types.
9. Manually edited primers were being added to the incorrect deck in certain situations.
10. Temperature measurements were not being reported when imported via the text importer.
11. Filter and search ignoring disabled backfill and redrill tolerances.
12. Filter and search incorrectly identifying redrill holes.
13. Top of Deck incorrectly being identified as outside of tolerances in Analytics View.
14. Filter and search incorrectly selecting holes that were not visible.
15. Strata surface recalculation was not rebuilding surfaces in some instances.
16. Importing an Abandoned tag from BlastIQ™ was incorrectly setting the wet state for a hole.
17. When importing backfill decks via the text importer, missing rows were resulting in an unhandled error.
18. Design loading imported via SHOTPlus™ text importer was not being assigned to holes.
19. Reinstated line number in SHOTPlus™ log files.
20. SHOTPlus™ was not correctly sending Abandoned and Not Drilled information in certain situations.
21. Reworded error message related to exporting decks without sufficient information to BlastIQ™.
22. Circles converted to polygons were being moved to the 'default' layer.
23. Temperature measurements entered into the Hole Table were not being saved or recorded against holes.
24. Incorrect initiation products available for selection under certain circumstances.
25. Extended Firing Data with Cosines export reporting incorrect number of decks.
26. Hole table export causing unhandled error.
27. Opening Edit Hole dialog was clearing water measurements from the hole diagram in certain situations.
28. SHOTPlus™ now allows imports of plans with blank tolerances from BlastIQ™.
29. Initiation times displayed were not being limited to those within the horizon selected on the Status Bar.

Fixed

1. Unhandled exception when importing a plan with holes that have null Hole Type and/or null Material Type.

Released 15th November 2021

New

Edit Deck Measurements Tool

1. Interactive dialog box to enter 'Actual' deck measurements that can be synced with BlastIQ™.

To learn more about the Edit Deck measurments Tool click here.

Exclusion Zone Tool

1. Added 'Topography' registerable surface to interact with the new Exclusion Zone Surface.
2. New 'Exclusion Zone Surface' that represents worst case horizontal flyrock trajectories of given outputs¹.
3. Output now shows the maximum vertical distance for given outputs.
4. Exclusion Zone Tool outputs can now be clipped to either the registered Topography surface or the plane of the blasthole collars.
5. Added the ability to adjust the resolution of the 'Exclusion Zone Surface'².

Analytics View

1. Analytics view is now displayed in 3D.
2. Analytics view toolbar updated to include all view tools.
3. Hole tracks are now displayed in analytics view³.
4. New 'Zone of Influence' view⁴.
5. Ability to sync Analytics View with the Main Screen.
6. 'Lasso' selection enabled in Analytics View.

BlastIQ™ First Length

1. SHOTPlus™ imports "First Length" from BlastIQ™⁵.
2. "First Length" added as exportable parameter from SHOTPlus™ Text Exporter.
3. Added new data source to SHOTPlus™ FastReports - "First Length".
4. "First Length" added to Hole Table.
5. New auto surface based on First Lengths imported from BlastIQ™.
6. Display "First Length" in Edit Hole dialog box.
7. Display "First Length" property in Hole History parameters table.
8. Added "First Length" to Drilling Accuracy Analytics View.
9. Added "First Length" to Hole Depth Variance Analytics View.

To learn more about BlastIQ™ First Length click here.

BlastIQ™ Surface Tie-Up

1. SHOTPlus™ now exports surface tie-ups to BlastIQ™.

To learn more about BlastIQ™ Surface Tie-Up click here.

Other New Features

1. Surfaces DXFs can now be exported as Face 3D.
2. SHOTPlus™ now allows the import of 'EBS Hole Time' via the text importer⁶.
3. Implemented Blast File Encryption and Fingerprinting for WebGen™ 200 exports and imports.
4. Added the ability to save and load import templates when importing Profile values.
5. New "Text Tag" field available when importing Points or Polylines via the SHOTPlus™ Text Importer.
6. Display Deck Horizons and Strata Horizons in Section View.

  Information

1. For generation of the Exclusion Zone Surface, flyrock generated by Stemming Ejection and Cratering is assumed to have an initial trajectory of the sum of the hole angle and the dispersion angle, up to a maximum of 45°. Flyrock generated by Face Burst is assumed to have an initial trajectory of 45°.
2. The high resolution surface increases the number of points used to represent potential flyrock travel trajectories, and the sampling rate of these points used to generate the Exclusion Surface. Generating a high resolution Exclusion Surface, especially for larger blasts, can result in longer calculation times and may result in SHOTPlus™ being unresponsive for a period of time until the surface has been calculated and rendered.
3. Hole track information can be turned on or off via the Visibility Manager on the main SHOTPlus™ window.
4. The Zone of Influence view is not available when comparing design to actual powder factor or energy factor.
5. "First Length" is the first length of hole recorded on a BlastIQ™ field device. First Length cannot be recorded by SHOTPlus™, it can only be imported from BlastIQ™.
6. EBS Hole Time sets the time for the hole, times for individual detonators within the hole will be equal to the EBS Hole Time plus any offsets defined in the initiation rules.

  Improved

1. Strata intercepts are now only assigned based on hole track location.
2. Maximum constant radius distances when using the Exclusion Zone tool increased to 2,000 m.
3. Primers can now be placed in inert decks when manually editing a hole or a group of holes¹.
4. Ranges within the Graphical Charging Tool can now be selected by clicking the desired Range on the graphical representation.
5. Decimals removed from diameter column of Graphical Charging Rule list.
6. Range and Sub Length makers in the Graphical Charging Tool are now interactive.
7. Deck weights are now shown, and are editable, when adjusting a Range or Sub Length in the Graphical Charging Tool².
8. Deck lengths for Ranges and Sub Lengths in the Graphical Charging Tool with two defined decks now auto-adjust to achieve the desired length.
9. Sub Lengths in the Graphical Charging Tool can now be deleted³.
10. Unused 'deck comment' field removed from Analytics View.
11. Collar indicator colours in Analytics View changed to 20% transparency.
12. Exclusion Surface will no longer be limit to the extent of the registered Topography surface where the potential flyrock distance has been calculated to be beyond the limit of that surface.
13. Remaining length now live-updates as adjustments to deck length or weight are made for Length or Sub Lengths in the Graphical Charging Tool.
14. Charging diagram centered when editing a rule in the Graphical Charging Tool.
15. Previous and Next arrows on SHOTPlus™ Hole Table now work regardless of hole selection.
16. SHOTPlus™ section tool updated:
    1. Sections can now be labelled with Alpha or Numeric characters.
    2. Labels can be set to increment of decrement.
    3. SHOTPlus™ warns user about duplicate section labels.
17. SHOTPlus™ now notifies users of successful submission of AVM™ jobs.
18. Auto-grade surface is now rendered, consistent with other auto surfaces.
19. When swapping detonators in Initiation Rules, products can now only be swapped like for like to prevent errors when exporting to BlastIQ™.
20. Surpac Exporter now allows users to adjust data fields.
21. Surpac Importer now allows users to adjust data fields.
22. Surface delay length mismatch error now limited to first 20 errors.
23. DXF export library updated.

  Information

1. Primers within inert decks can only be exported to BlastIQ™ when a hole is manually edited. Loading rules (Charging and Initiation) will not be applied to these holes within the BlastIQ™ system.
2. Deck weights can only be entered for explosive decks.
3. To delete a Sub Length right-click on the Sub Length tab or marker and select 'Delete sub length' OR open the dialog box for the Sub Length and select 'Delete length' in the bottom left hand corner.

  Fixed

1. Profile trace values were being incorrectly inferred and displayed for areas above the start of a trace.
2. Hole measurement tool was being hidden when used via analytics view.
3. SHOTPlus™ Reports were not being limited to 'Selected Objects Only' when option was selected.
4. Profile logging tool was not correctly displaying two traces simultaneously where the trace values had different scales.
5. 'Actual' Powder Factor and Energy Factor analytic views were not being displayed where holes did not have a loading design.
6. SHOTPlus™ was incorrectly loading blastholes with detonator lead lengths that were not selected as 'available' in the resource list.
7. Import a loading table template with a different number of defined decks was causing an unhandled exception.
8. 'Actual' hole tracks were visible behind opaque surfaces.
9. WebGen detonator information was not being shown in the EBS logging summary after import.
10. Product name and weight could be hidden on the Graphical Charging Tool hole diagram where long product names where used.
11. Actual backfill decks added in the Edit BlastIQ™ Deck Measurements tool were not syncing with BlastIQ™ where no Design backfill deck was present.
12. Updates to previously recorded backfill deck measurements, made using the Edit BlastIQ™ Deck Measurements tool, were not being synced with BlastIQ™.
13. Unhandled exception was occurring when syncing the Edit BlastIQ™ Deck Measurements table under certain circumstances.
14. SHOTPlus™ calculation windows were only using nominal initiation times.
15. Zero length decks were being allowed to be set when adjusting loading using the hole diagram in the Graphical Charging Tool.
16. SHOTPlus™ loading rules were not correctly setting all required properties of an initiation rule, causing an unhandled exception in certain circumstances.
17. Graphical Charging Tool view was incorrectly defaulting to the first range when a new range was added.
18. Slice direction of holes was not being updated on the main scene explorer without selecting the screen.
19. SHOTPlus™ was not sending all required surface connector lengths, when exporting surface tie-ups to BlastIQ™.
20. Unhandled exception when importing a plan with holes that have null Hole Type and/or null Material Type.
21. SHOTPlus™ was included tie types not included in the tie-in when exporting surface tie-ups to BlastIQ™.
22. SHOTPlus™ was incorrectly setting the flag for initiator located below the toe of a blasthole when imported from a cBlast file.
23. SHOTPlus™ was exporting the incorrect EBS Hole time to BlastIQ™.
24. Users were unable to select object in the main scene explorer under certain circumstances.
25. SHOTPlus™ was not downloading product GUIDs when exporting to BlastIQ™ in certain circumstances.
