- Release Date:
12th November 2024
- KBA Summary:
This Knowledge Base Article describes the functionality of the Site Overview page in the NEW FRAGTrack™ Web. Try it out!
Summary

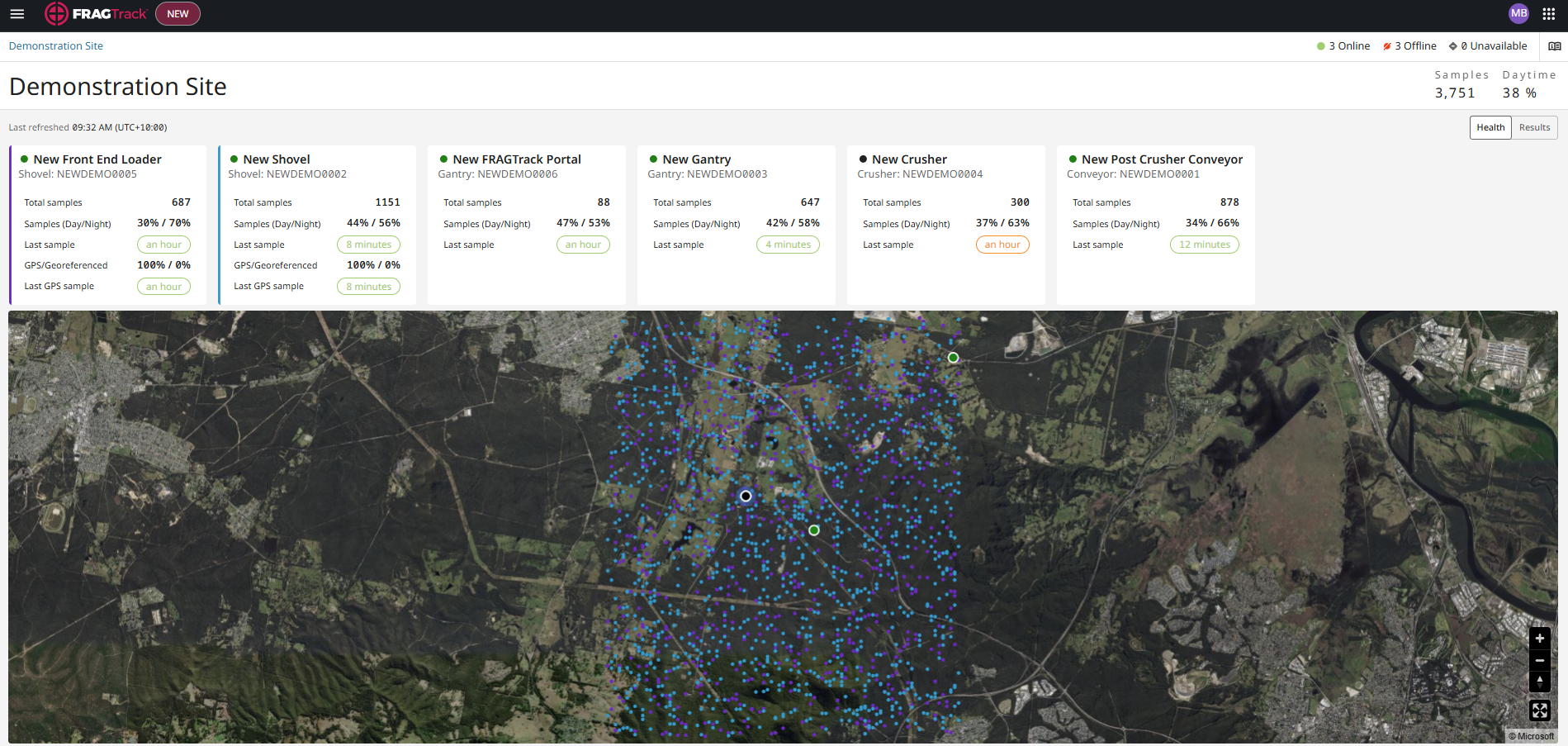

The NEW FRAGTrack™ Web - Site Overview page provides a comprehensive view of all FRAGTrack™ Installations on a site. Enabling users to understand the current status and performance of all active installations at a glance, based on the Last 24 hours information.

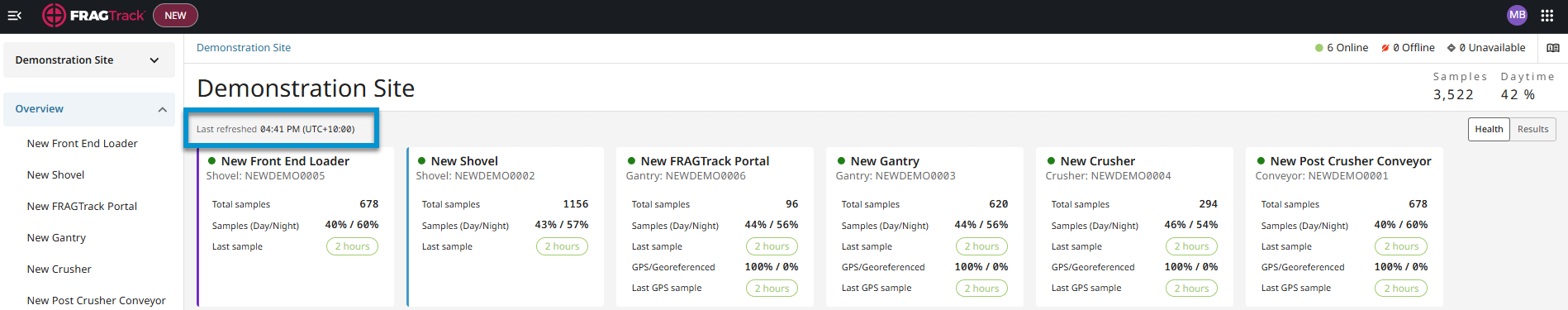

This page will refresh every 5 minutes, the last refreshed date/time is displayed in the user's device time zone. All other date/time information is shown in the site's time zone.
Note: Deprovisioned (inactive) installations are available on the left side of the navigation panel.
Note: Experience the new BlastIQ™ Blast Fragmentation dashboard for blast-correlated fragmentation analysis. Read more here.
After selecting a site, you will be automatically directed to the Site Overview page. To navigate back to the site Overview page from any installation page:
- Select a site on the left side menu.
- -OR- select the site's name on the breadcrumbs.

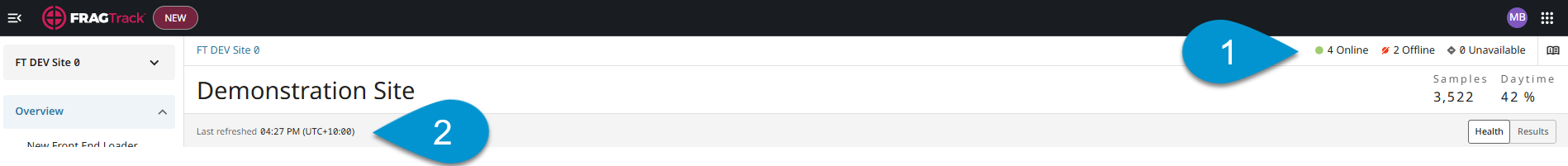

- A summary of all currently active installations on site is displayed in this section.
- Data is refreshed every 5 minutes and the Last refreshed date/time can be seen here.

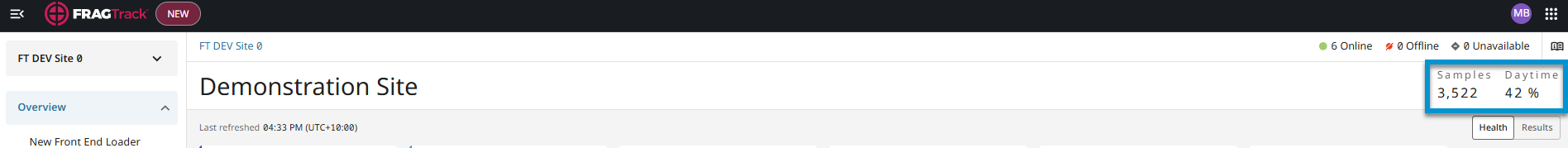

A summary of samples from all currently active installations.
Note, percentages of samples for either daytime or nighttime are based on sunrise and sunset times for the installation location, so percentages will vary throughout the year.

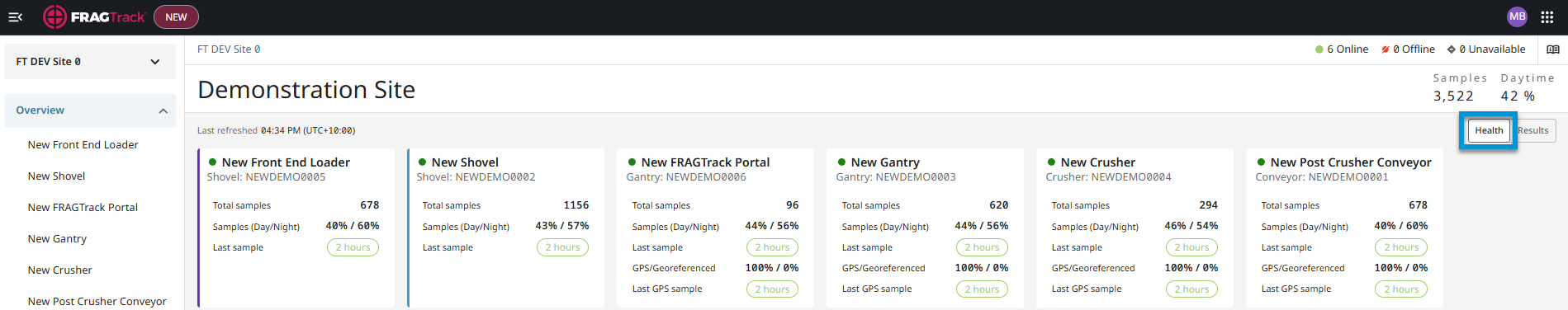

Select 'Health' to view a summary of the status and performance of each active installation. The information displayed varies depending on installation type.
For example, FRAGTrack Shovel and Front End Loader (FEL) cards include the time since the last sample containing a GPS fix. Cards are colourised for easy identification on the map:
- Hovering over: mouse over values on the installation card to get additional information.
- Click: click anywhere on the installation card to go the installation's page. Read more here.

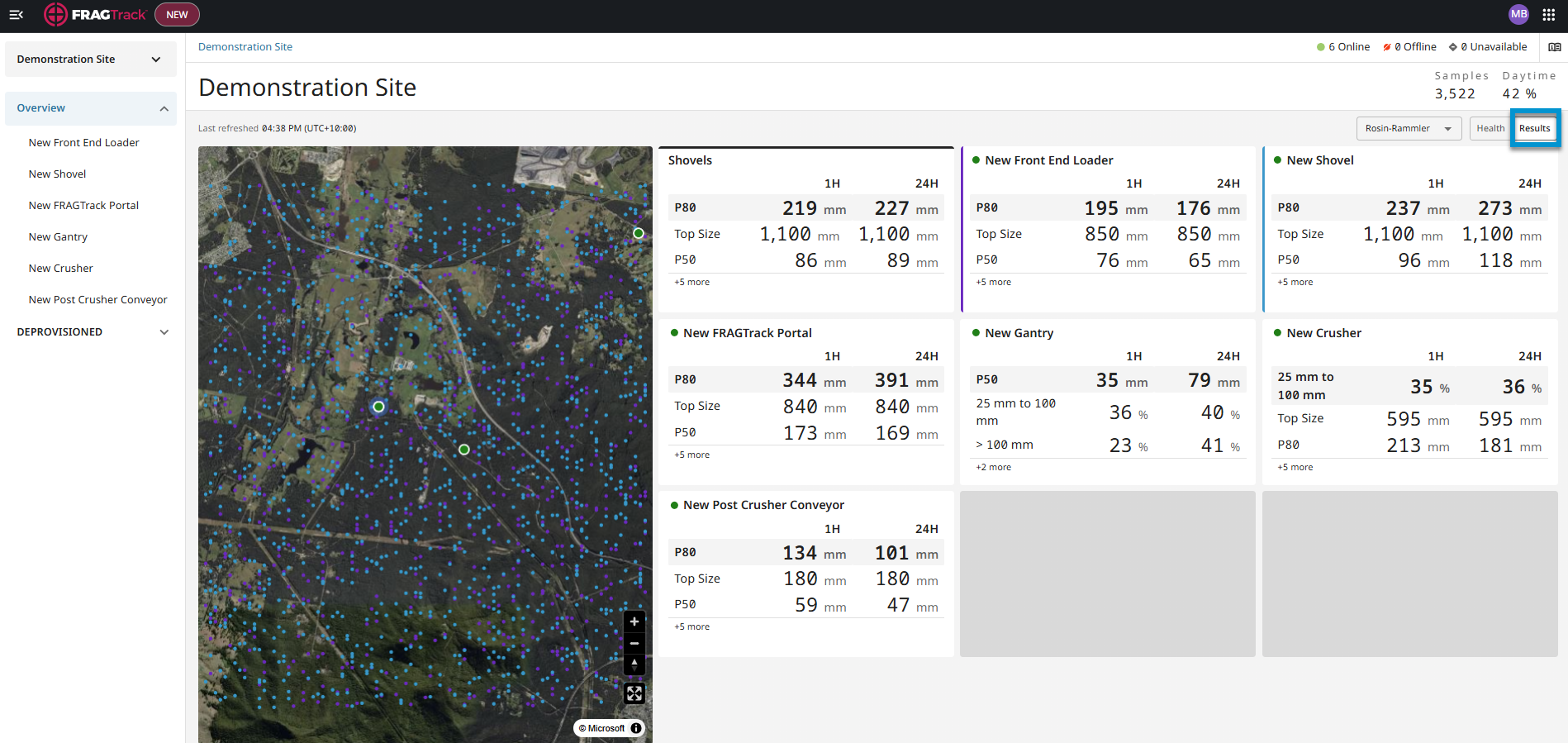

Select ‘Results’ to view a summary of fragmentation results for all installations on site. Results can be viewed as either Rosin-Rammler, or Swebrec. This mode provides a dense, static layout designed for quick assessment of fragmentation performance.
Each installation card displays configured metrics of interest aggregate over:
- Last 1hr results.
- Last 24hrs results.
Each card includes:
- Installation name
- Online / Offline status
- Metric of interest, ordered as:
- Default metric first
- Remaining metrics in descending order
Additionally, an aggregation of all Shovel installations is provided as an overview of the fragmentation performance gathered by an entire mobile fleet.

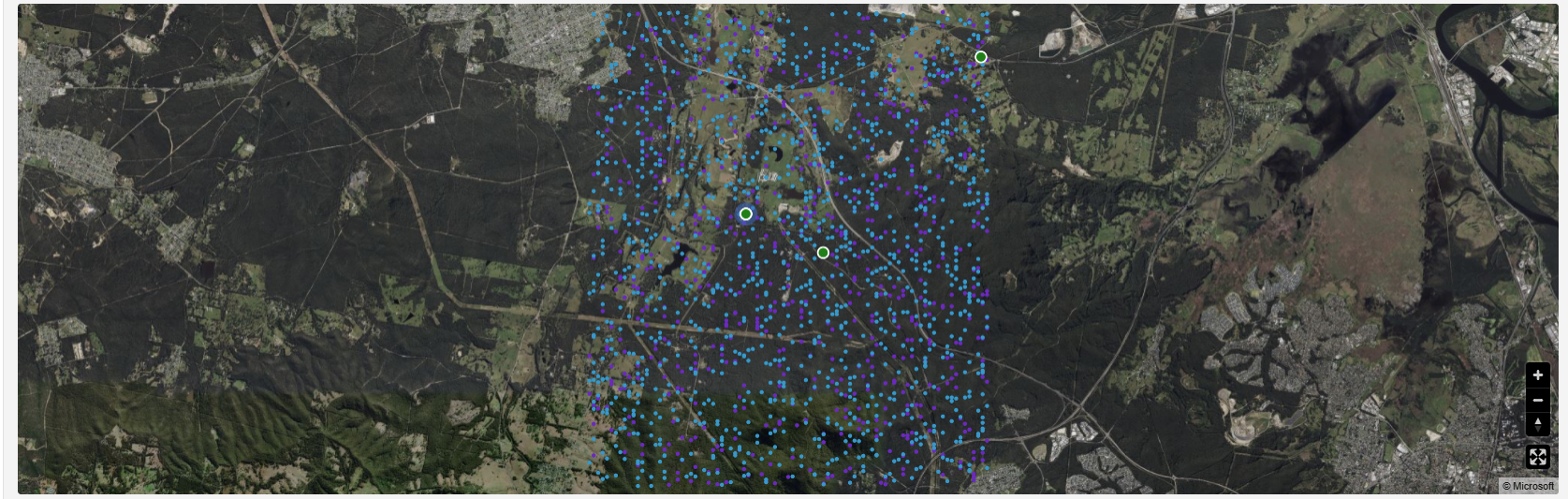

In both Health Mode and Results Mode, the map displays all active installation markers based on the last known GPS location.
FRAGTrack™ Shovel and Front-End Loader (FEL) installation markers show an additional coloured ring around them, samples taken in the last 24 hours are also visualised in the map in the corresponding colour.
Coordinates: Where Georeferenced coordinates are available, the map will use those to display samples on the map, regular GPS coordinates will be used otherwise.
Only the last refreshed time is displayed in the user's device time zone.
All other date/time information is shown in the site's time zone.
