6.22.4
SHOTPlus™
Surface
Beta
March, 2025
- Version 6.22.1 of SHOTPlus™ Beta, first offered to users on Monday, 17th March 2025.
- A notification will appear on start-up in SHOTPlus™ Beta once the update is available.
- For further information on updating SHOTPlus™, please contact the BlastIQ™ Support Team via support.blastiq.com.
-
New
-

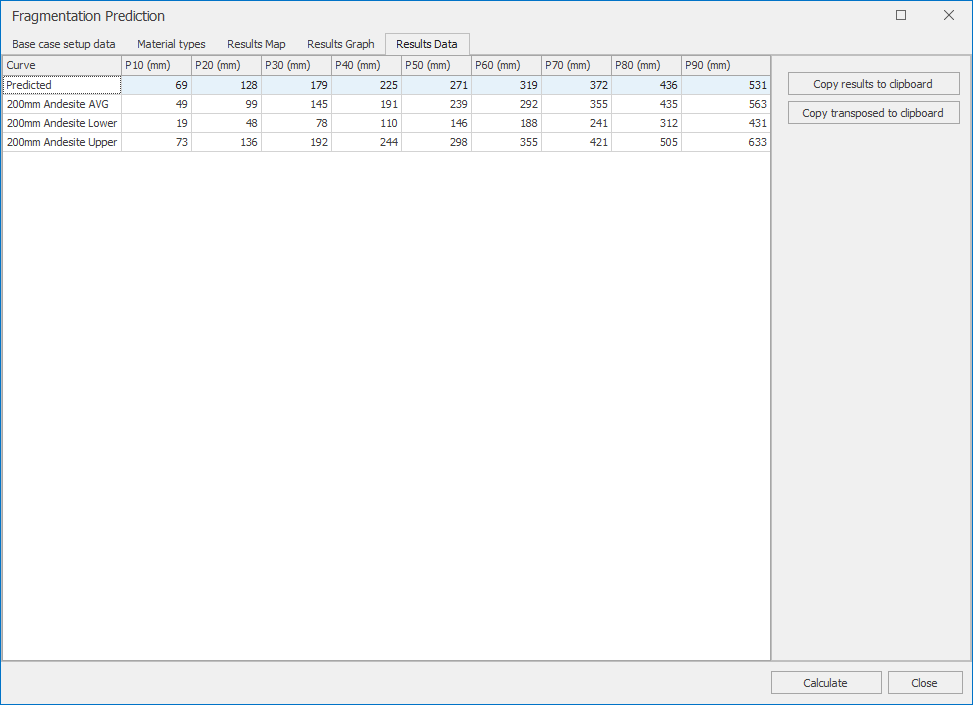

- Fragmentation prediction tool: A new Results Table to display all passing sizes.1
- Introduced country-based product lists based on the user feedback. Please refer to this article for more information.
- Users can select cached country product lists when offline. More details here: Changing product lists while offline.
- Users can now quickly compare actual face burden to target values across the entire face.
Information
- Data can be easily copied (and transposed) and exported as CSV or Excel. A detailed tutorial can be accessed here: SHOTPlus™ Fragmentation modelling.
- Fragmentation prediction tool: A new Results Table to display all passing sizes.1
-
Improved
-
- SHOTPlus™ now records the source for profile log data, allowing different filtering methods to apply on the data import. 1
- For type 2 loading rules, SHOTPlus™ now sends adjusted loading design as design to make reporting in BlastIQ™ Insights more consistent.
- Legacy browser support has been removed for BlastIQ™ Login Services.
- SHOTPlus™ displays names for initiating systems more clearly in the Available Resources list.
- Fragmentation prediction tool:
- Results graph tool tip will now display decimal values for all the points on curves.
- Clicking on a legend item now highlights the corresponding curve line and vice versa.

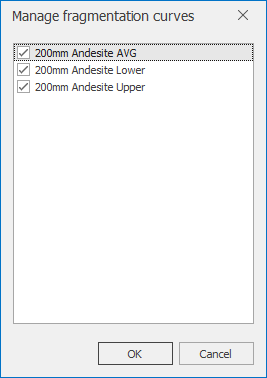

- Fragmentation curve manager displays the names of curves for better management.
- The default graphing mode will be Log/Linear to support standard practices.
- Results graph tool tip will now display decimal values for all the points on curves.

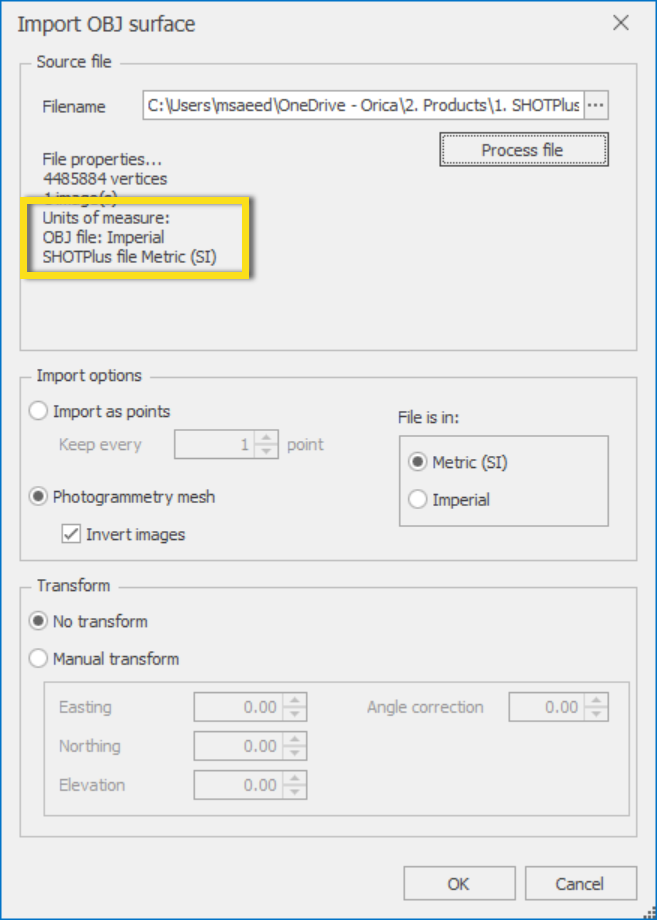

- Display unit of measure while importing OBJ files.
- Implemented logical, left-to-right, top-to-bottom tab order for editable fields in the Edit Charging Rule dialog.
- Improved tie legend display in plans by preventing label cut-offs and accurately grouping ties by length and delay.
Information
- Supported data types are RHINO, XML, LAS, Unknown.
-
Fixed
-
- The loading factor does not persist when editing loading via the edit hole dialog.
- The Imperial units for rock density were incorrect for rock volume calculations.
- Users were experiencing issues with the 'update template' option within the Template Manager.
- SHOTPlus™ was not considering differences in in-hole delays when preparing lists of detonators to pick from.
- Boretrack data disappears when adding a Hole on the Front Row.
- The OBJ imports default to and convert to SI Units, regardless of the currently selected "Display Units" setting within SHOTPlus™.
- Blast clearance zone report not respecting imperial unit selection.
- When drawing a polygon, if the user selects H or V to draw a vertical line, before clicking, the line is not horizontal or vertical.
- Fragmentation prediction tool: The export button only exports a single curve that has been calculated, it doesn't export the ones that were imported.
- An issue with Energy Factor not being updated in Analytics View.
- The use of detonation lead lengths that are no longer available in the site's resource list.
- EBS field report: Fixed report totals to prevent them from incorrectly incrementing with each plan edit.
- Ensured consistent harness wire quantity calculations across the application, including EBS lead-in and quantities reports, by applying the surface waste parameter consistently.
- An error occurred after opening the Edit deck Measurement tool for the hole that has been copied.
- An error when syncing actual loading data via the Edit Deck Measurement tool with BlastIQ™.

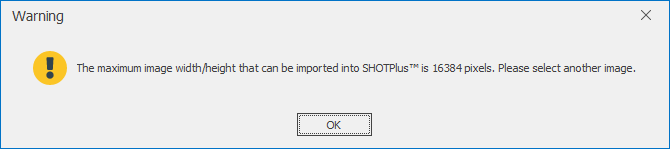

- Implemented a warning dialog to notify users when attempting to import images exceeding maximum allowed size.
