BlastIQ™ Underground Desktop - Blast Management

Application:
BlastIQ™ Underground Desktop
Version:
1.1.0 and above
KBA Summary:
This article describes how to export or re-export data within the BlastIQ™ Underground Desktop application.  It also covers how to import new data, whether it already exists in a project or is not yet included.
Export a new blast to BlastIQ™

To export a new blast to BlastIQ™, follow the steps below.

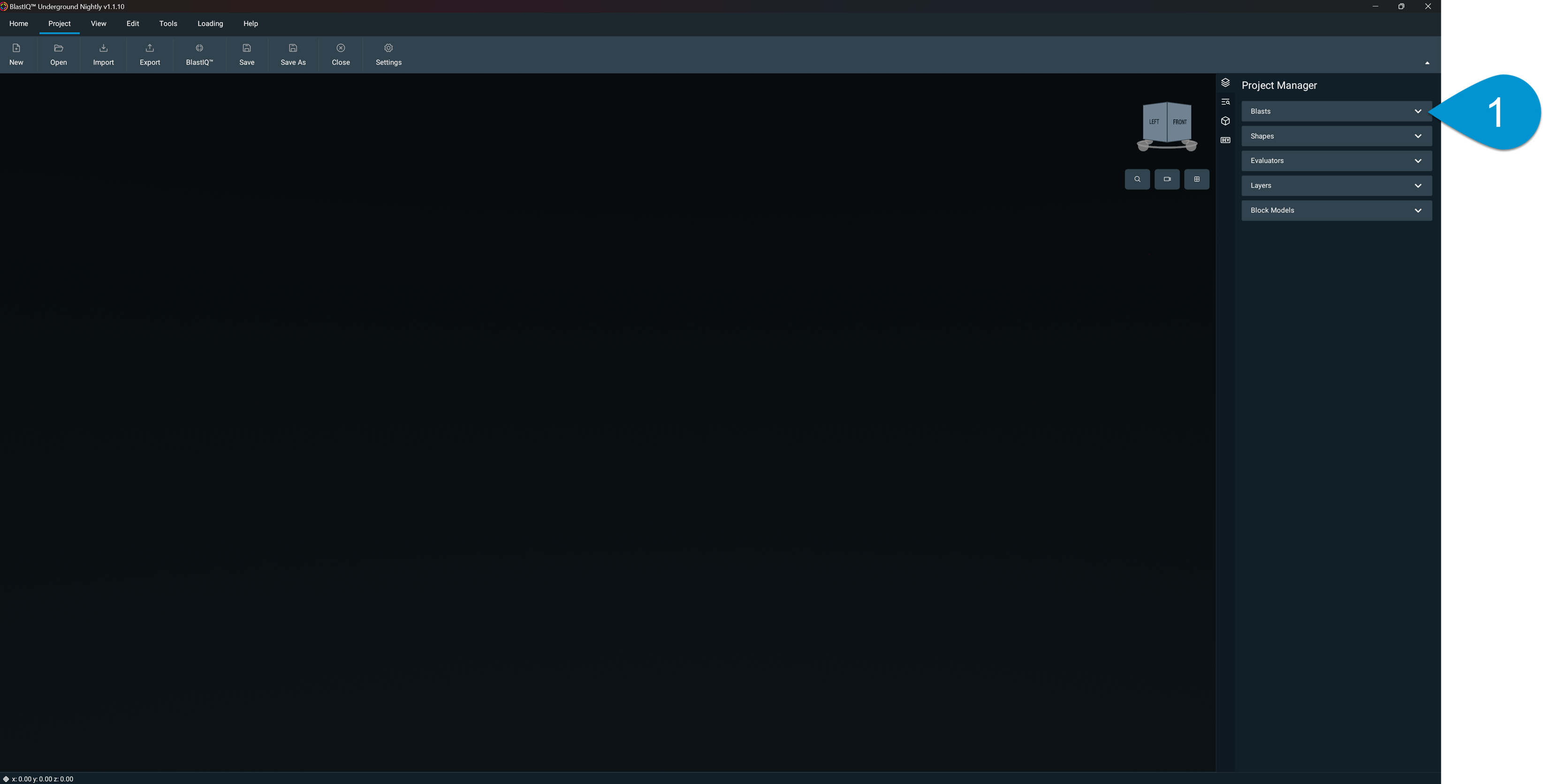

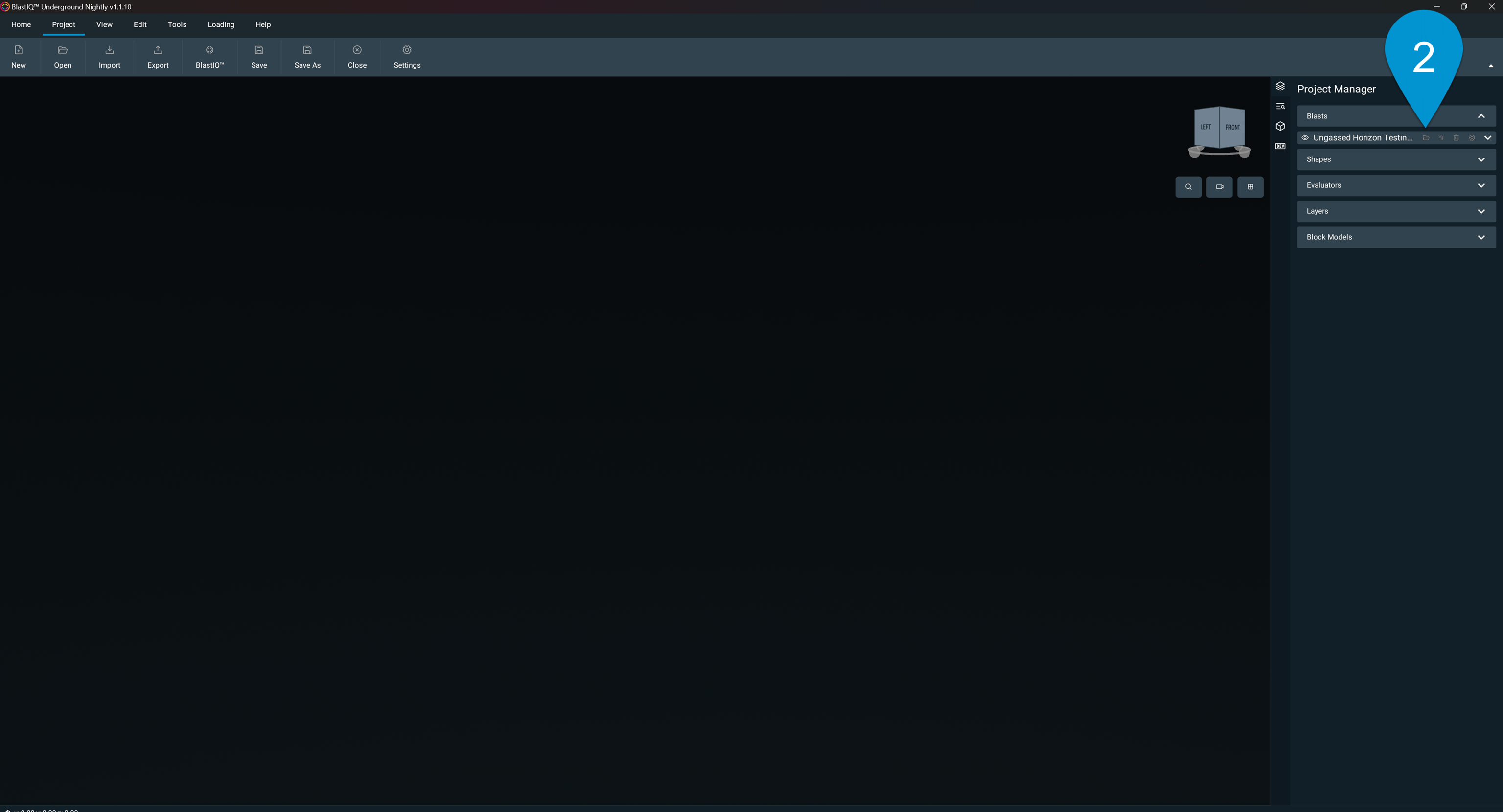

  1. Navigate to the Project Manager section and click the "Blasts" dropdown.


  2. Click on the "Folder" icon to open the data table.

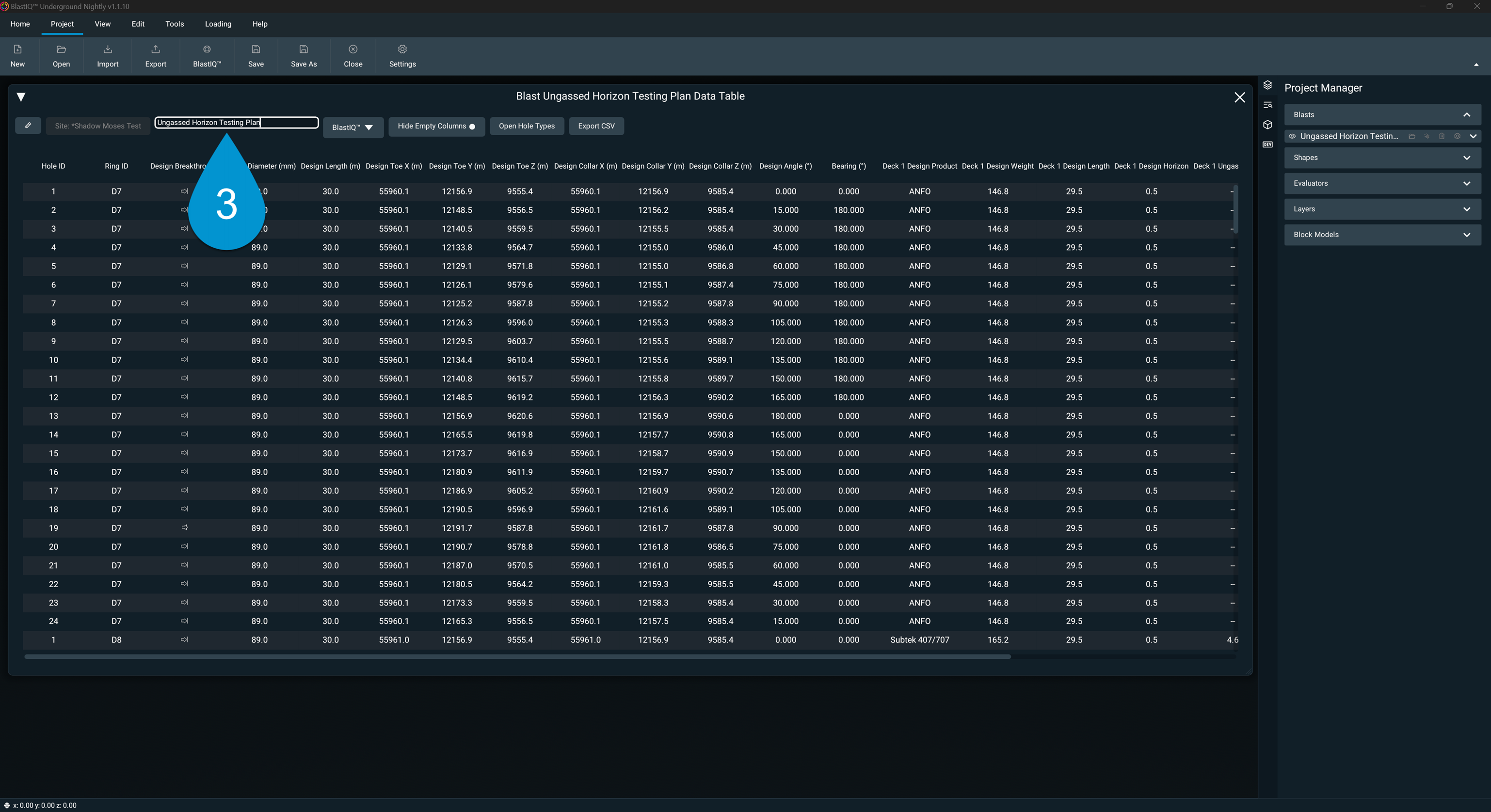

  3. Modify the plan name if necessary.

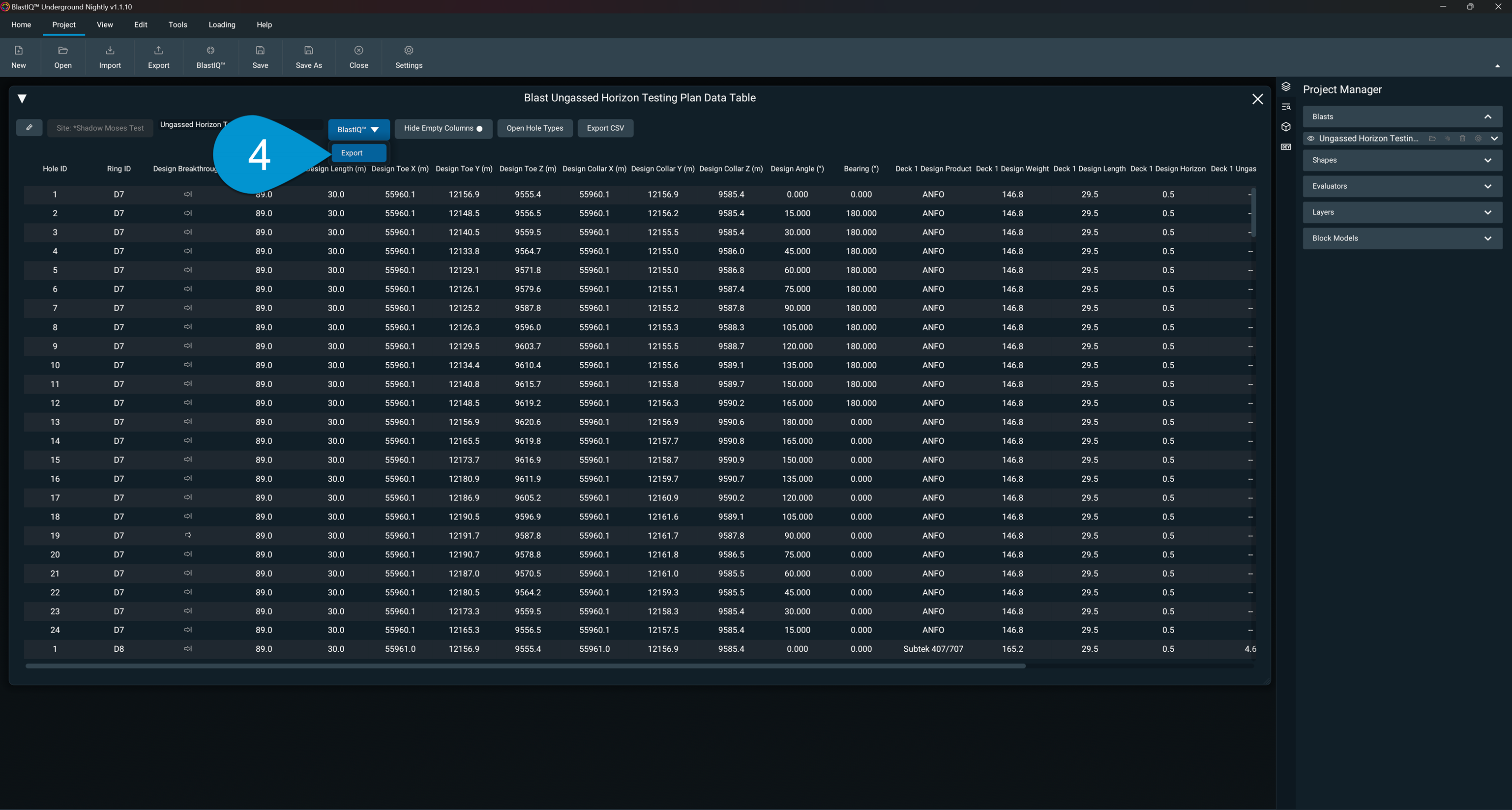

  4. Select the BlastIQ™ dropdown and select "Export".

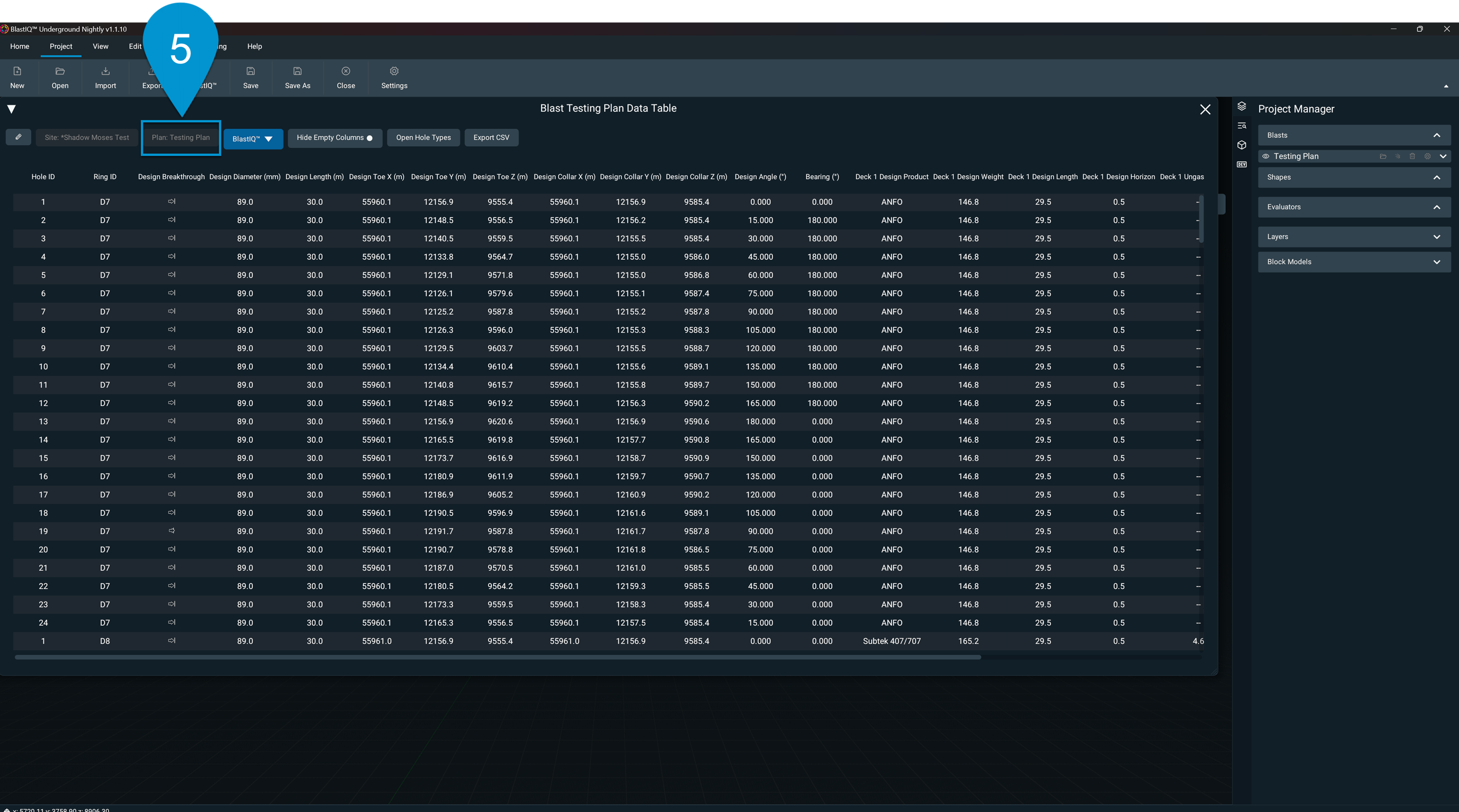

  5. Blast name is not editable after exporting.


Re-export a blast to BlastIQ™

To re-export a blast to BlastIQ™ after making changes, follow the steps below.

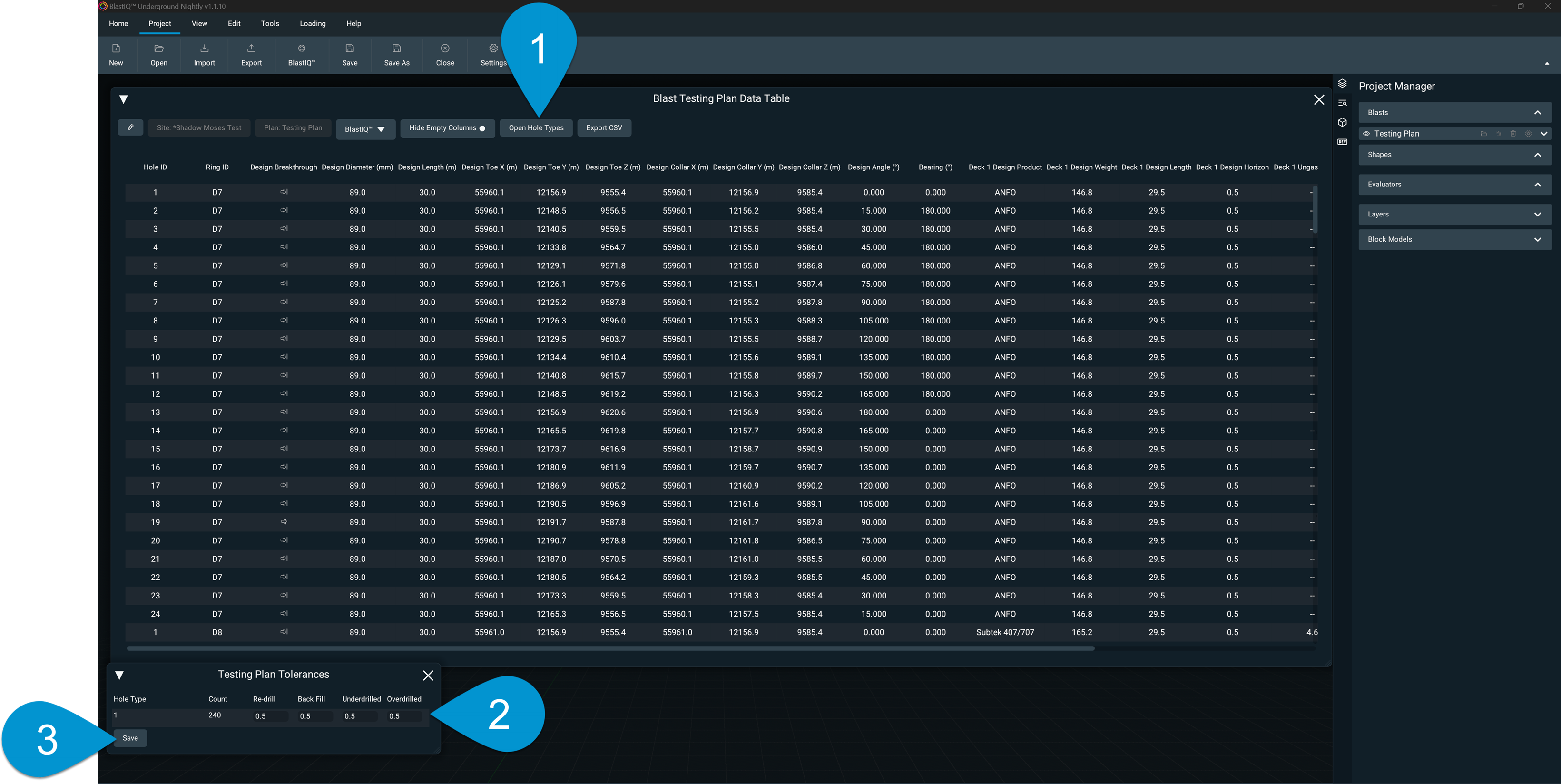

  1. Given you want to update, e.g. Hole Tolerance, simply click "Open Hole Types".
  2. Add values to the tolerances.
  3. And click the "Save" button when done.

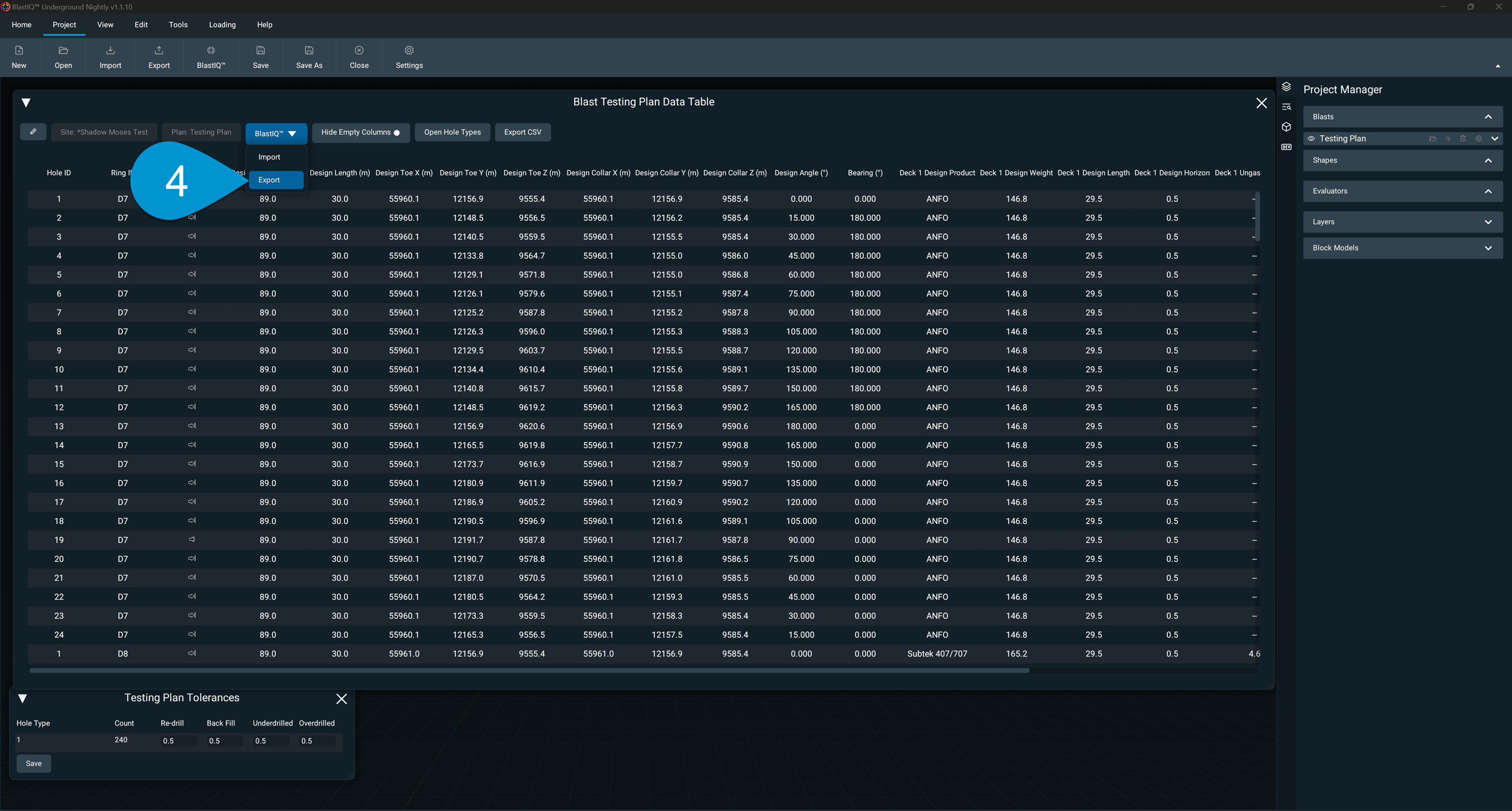

  4. Select the BlastIQ™ dropdown and select "Export".

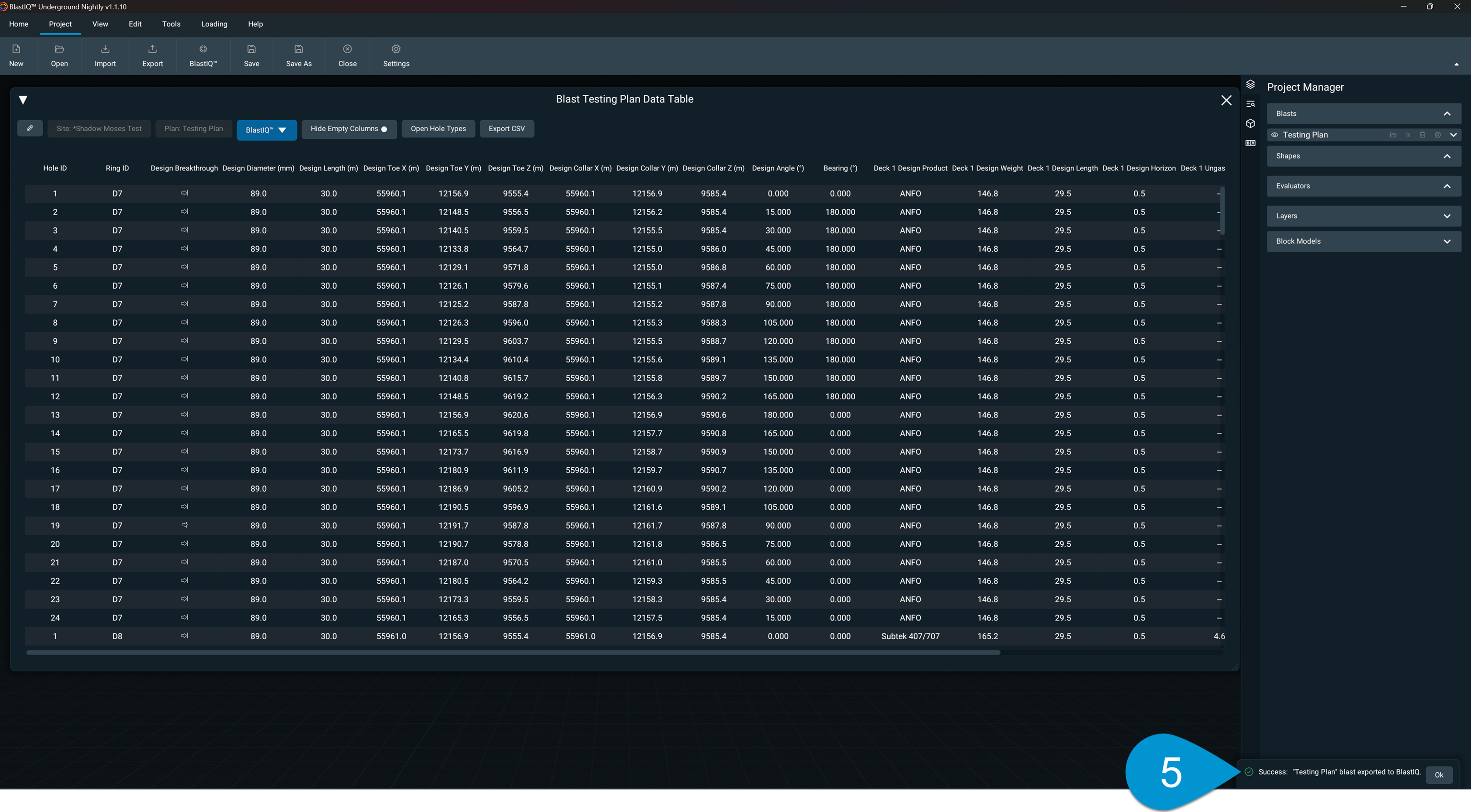

  5. A success message appears, and changes will be visible in BlastIQ™ Mobile.




Import a new data

To import new data about a blast that exists in the project, follow the steps below.

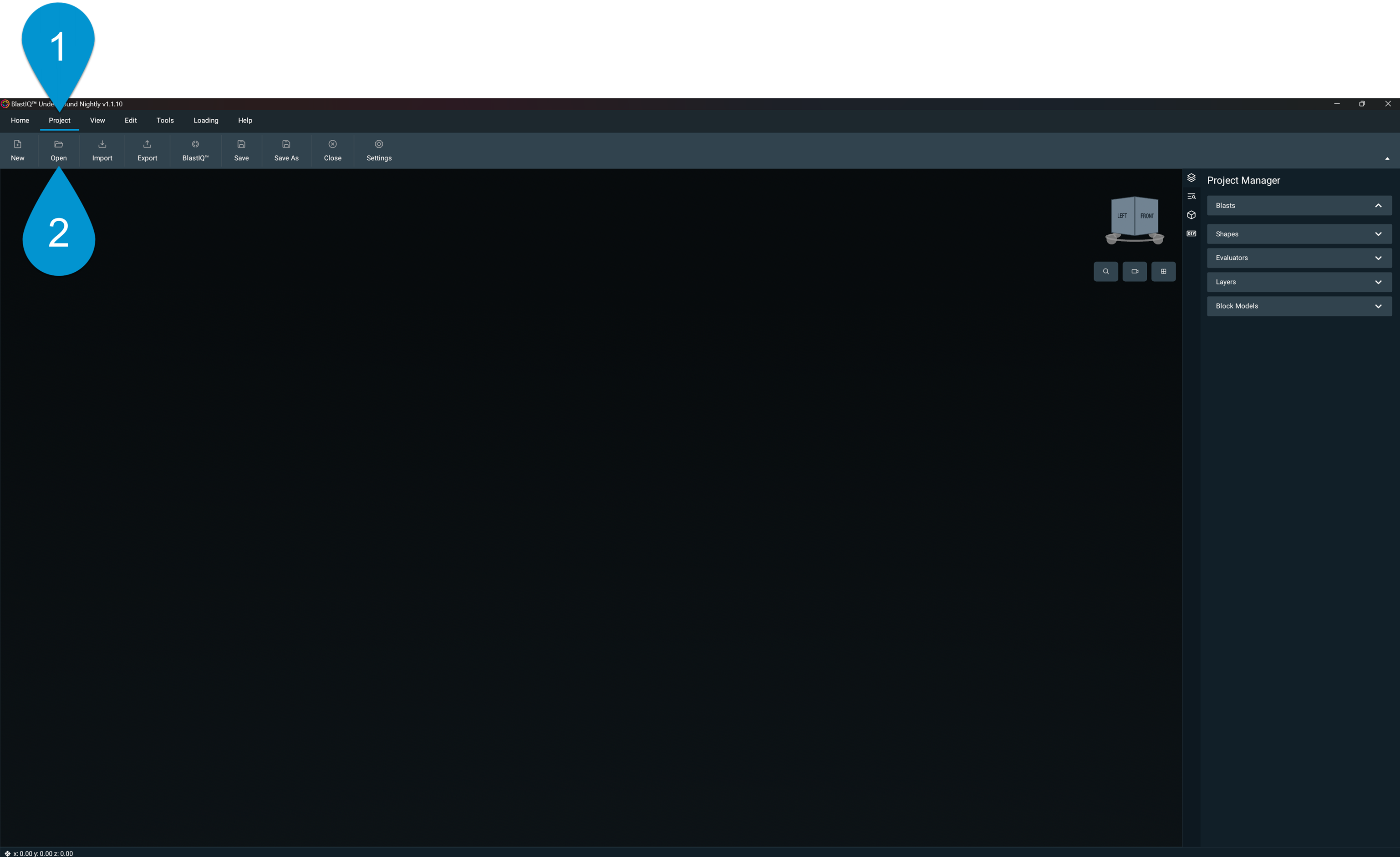

  1. Navigate to the "Project" tab on the main ribbon.
  2. Click the "Open" menu.

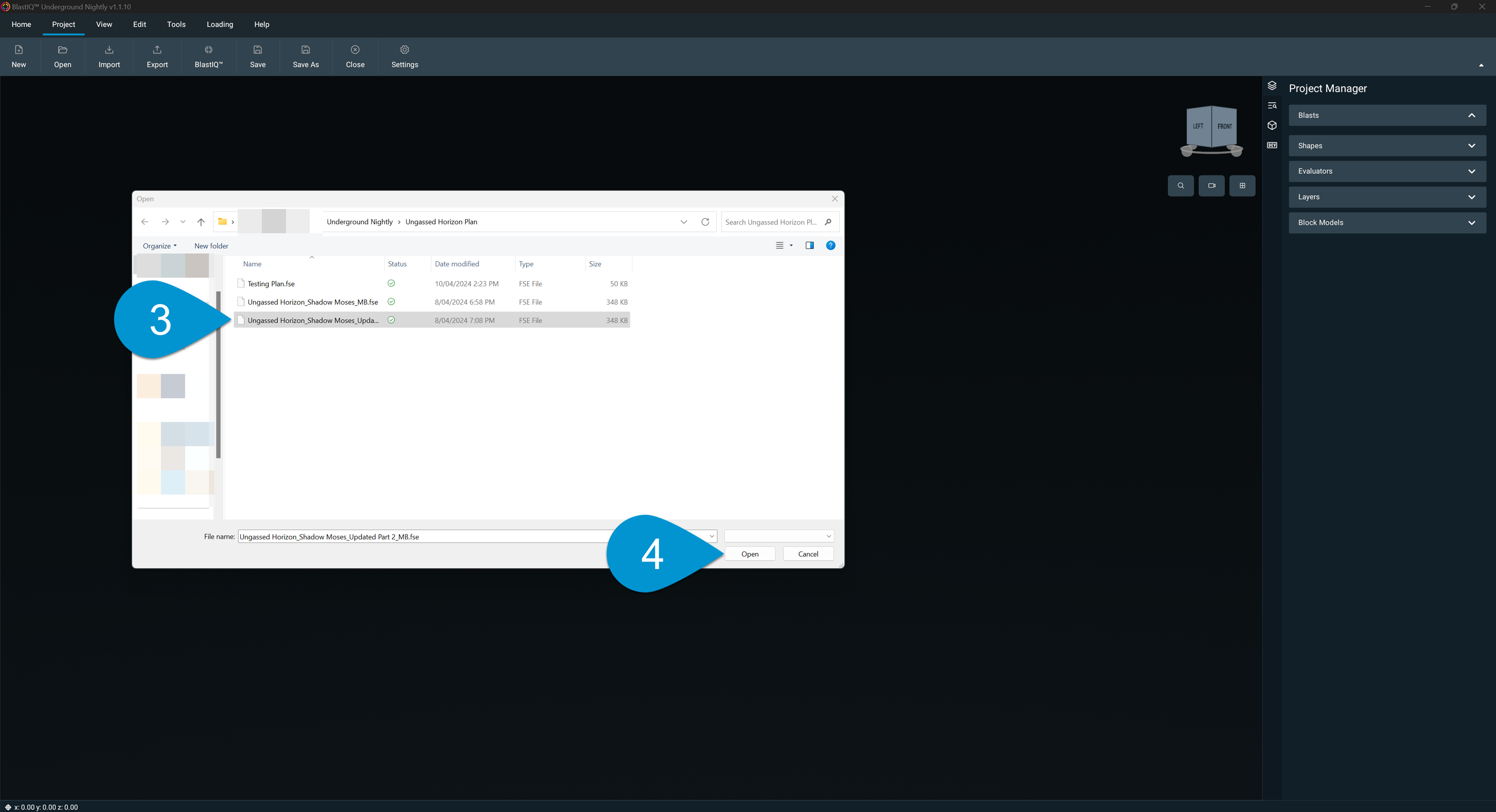

  3. Use Windows Explorer to navigate to the correct directory.
  4. Select the correct.FSE project file and click "Open".

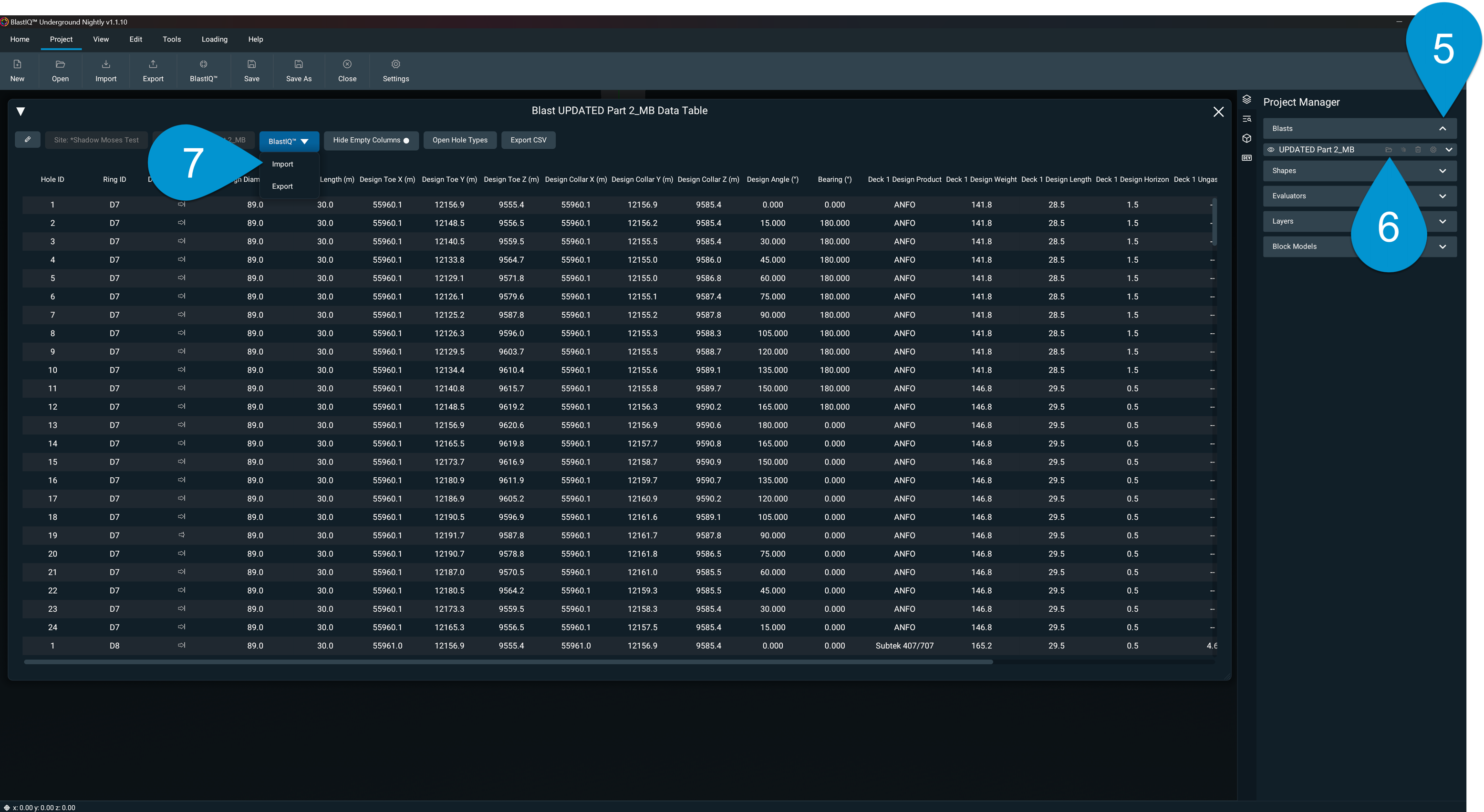

  5. Navigate to the Project Manager section and click the "Blasts" dropdown.
  6. Click on the "Folder" icon to open the data table.
  7. Select the BlastIQ™ dropdown and select "Import".


Import a blast from BlastIQ™

To import a blast from BlastIQ™ that is not yet present in the project, follow the steps below.

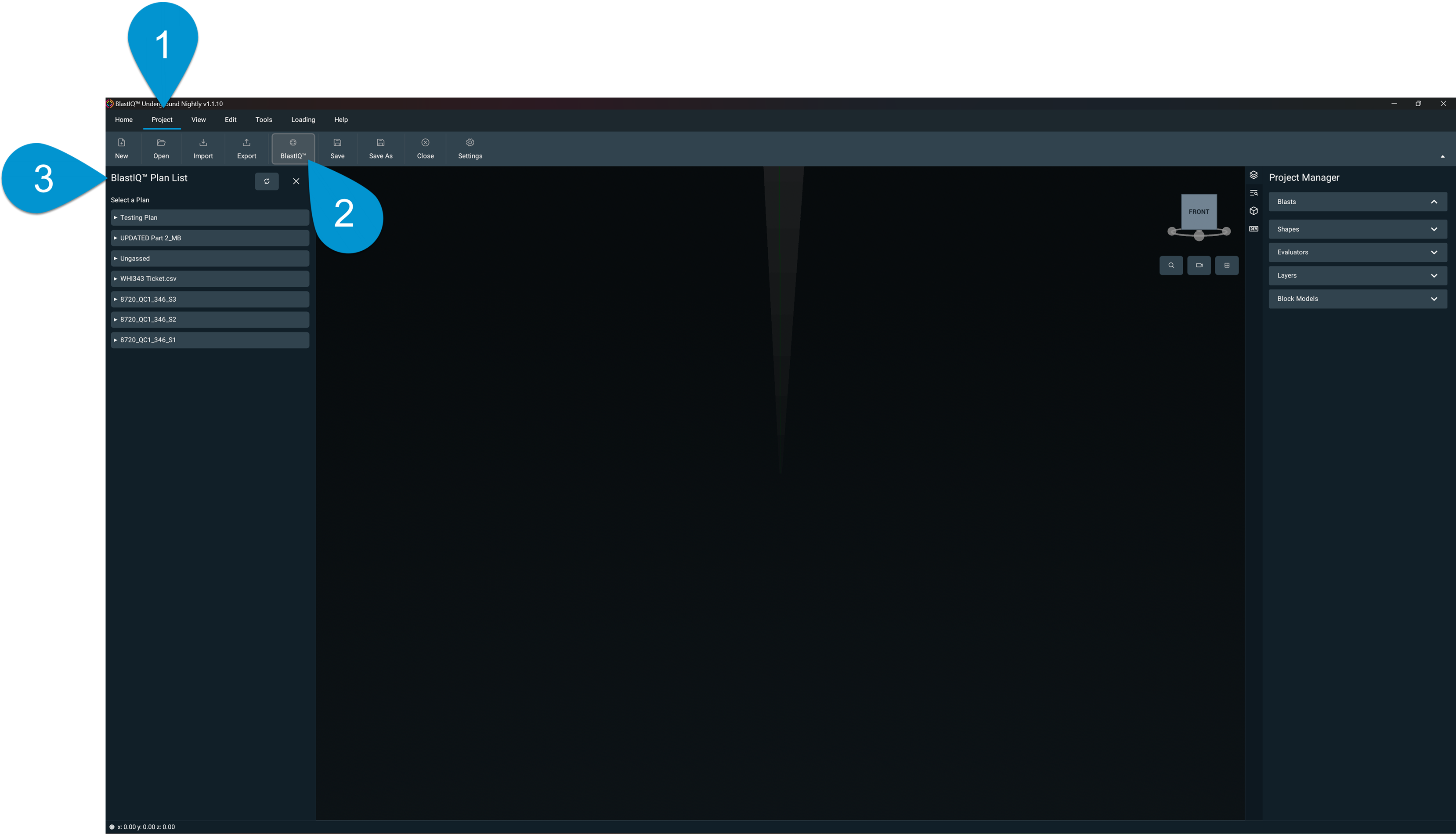

  1. Navigate to the "Project" tab on the main ribbon.
  2. Select "BlastIQ™".
  3. The BlastIQ™ Plant list will show all active blasts for a site.

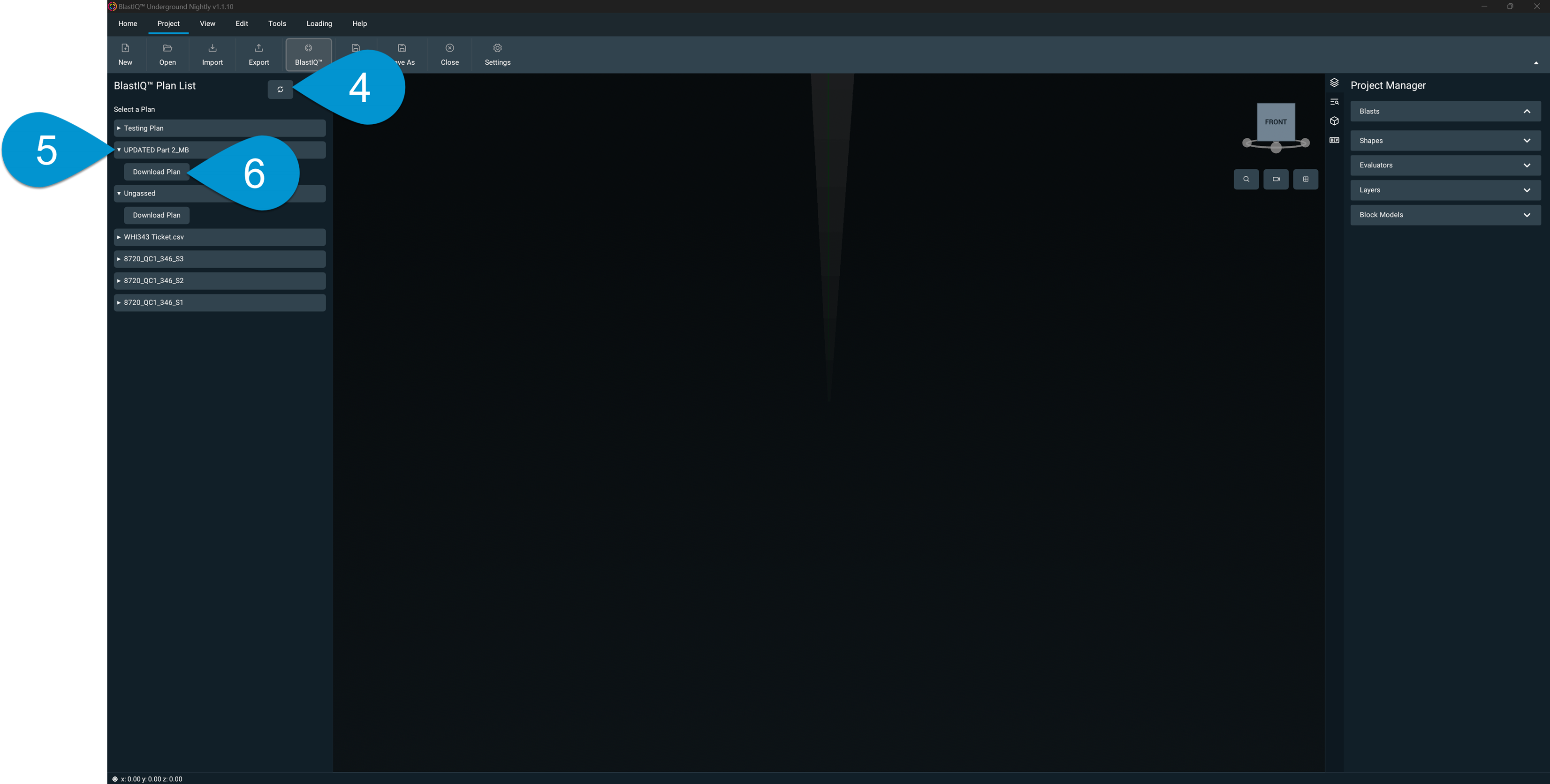

  4. Click the "Refresh" to get the latest active blasts.
  5. Open a single blast or multiple blasts.
  6. Click the "Download Plan" button.

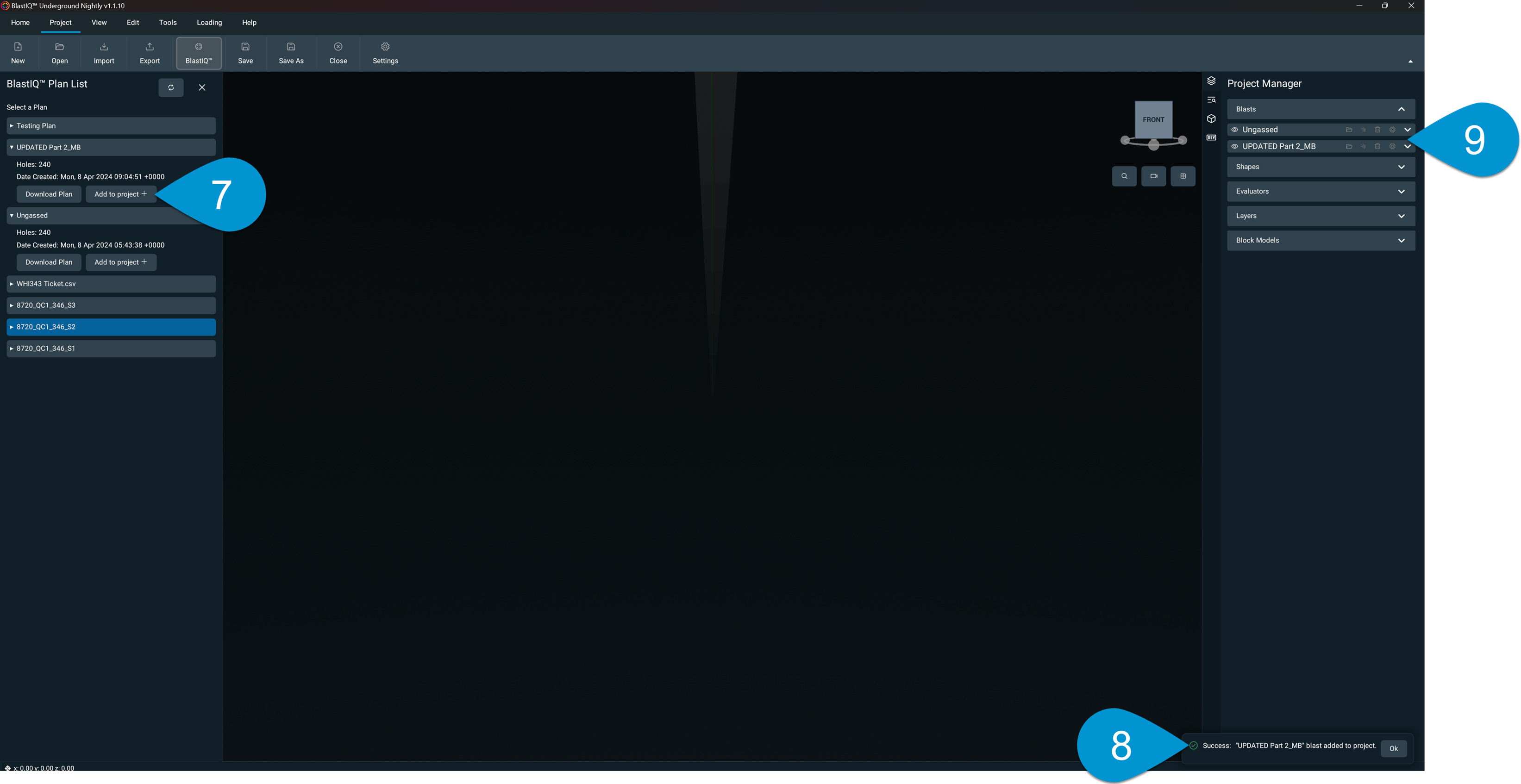

  7. Click the "Add to project +" button
  8. A success message will appear.

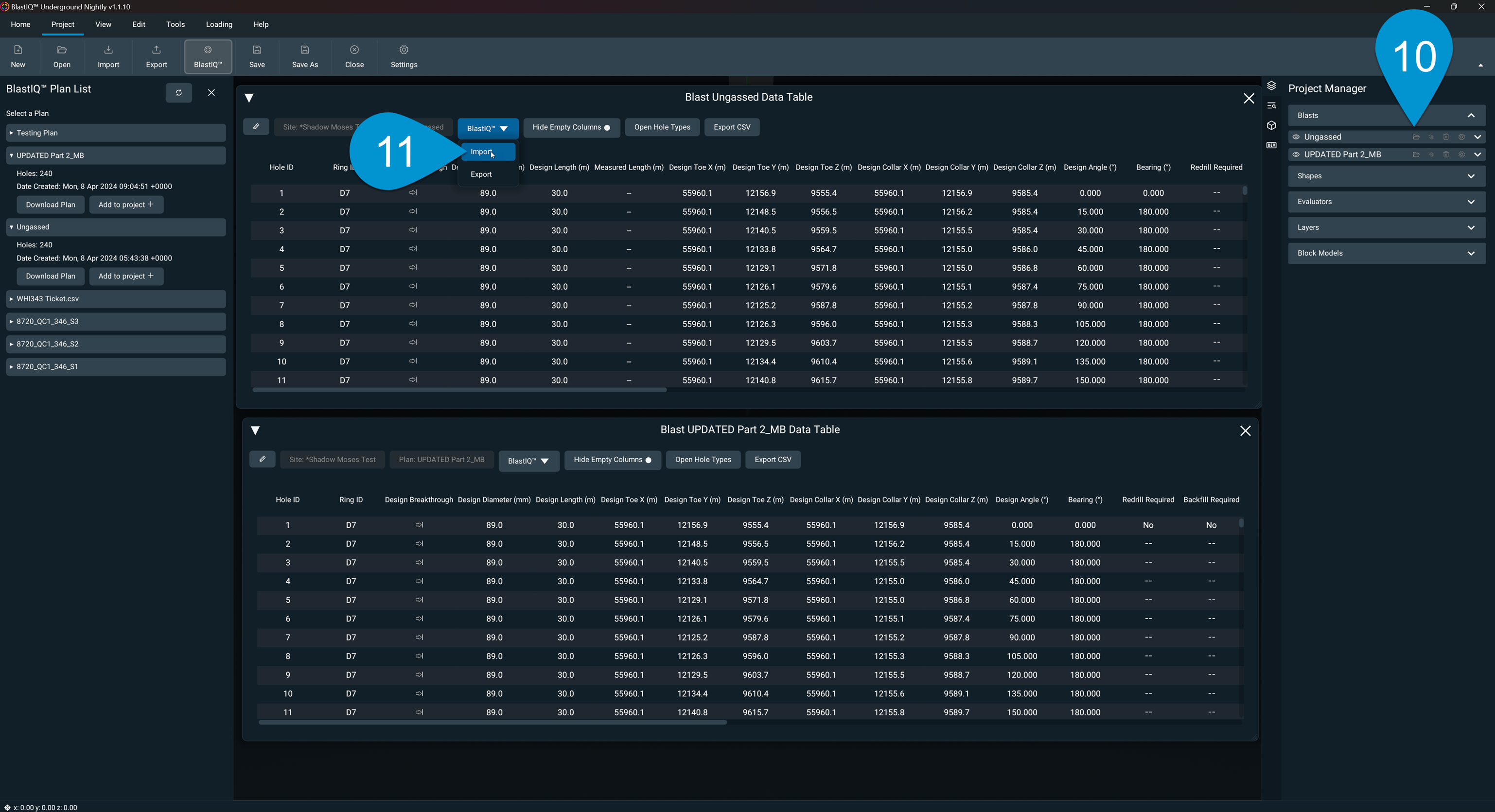

  9. The added plan/s should now be listed on the blast lists under the Project Manager section.


  10. Click on the "Folder" icon to open the data table.
  11. Select the BlastIQ™ dropdown and select "Import".
